NOBS 2.0mm x 350mm x5Ton Precision Slitting Line

Manufacturer: NOBS Switzerland

YOM: 1993

General specs:

Max. line speed: 400m/min

Strip thickness: 0,1 – 2.0mm

Entry strip width: 100mm – 350mm

Finished strip width: 8mm – 340mm

Max. Coil weight: 5 tons

Max. Coil OD: 1600mm

Max. Coil ID (Pay-off): 400mm

Max. Coil ID re-wind: 200/300/400/500mm

Upgraded by Burghardt+Schmidt in 2009: New Scrapchoppers, upgraded slitter drivetrain allows max. thickness of 2mm

Controls: Siemens S7-400 installed 2018

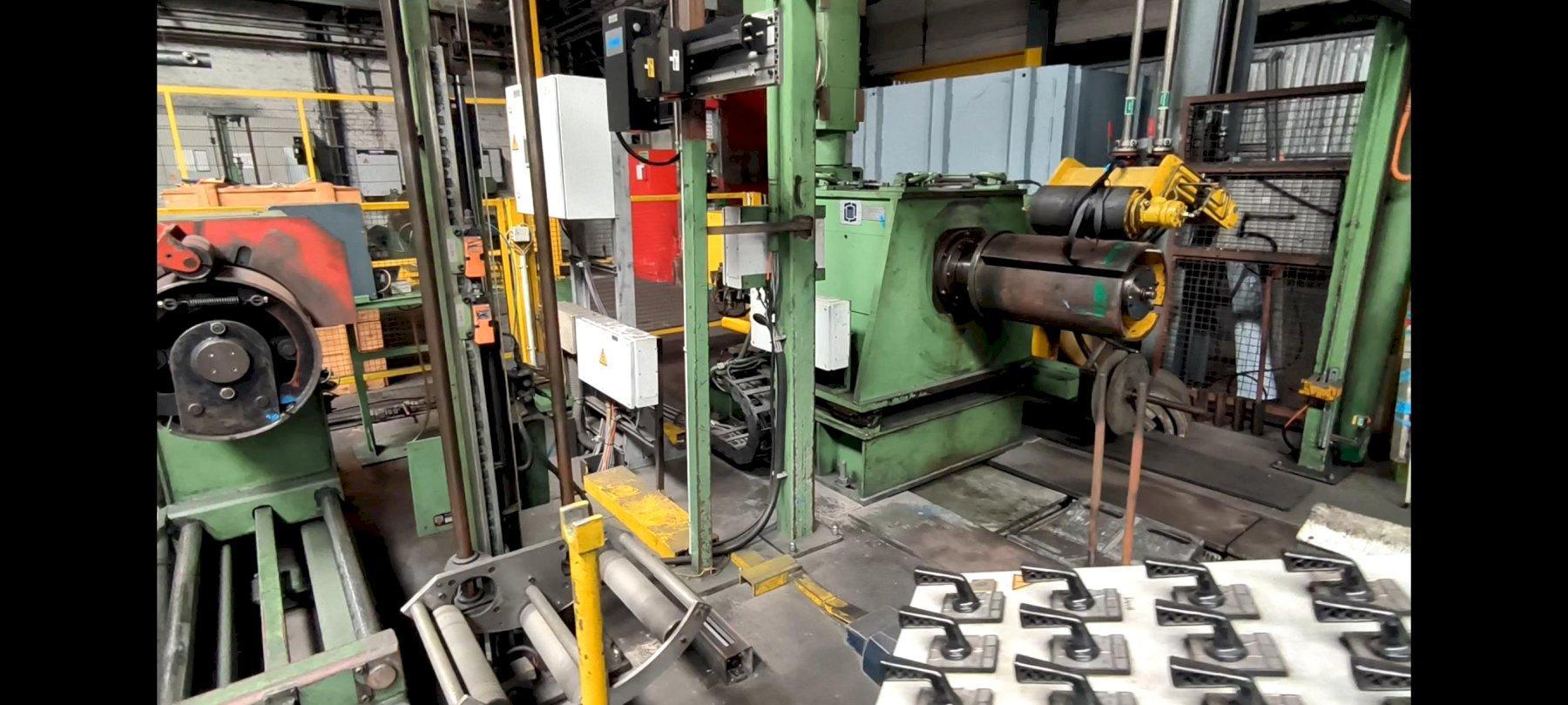

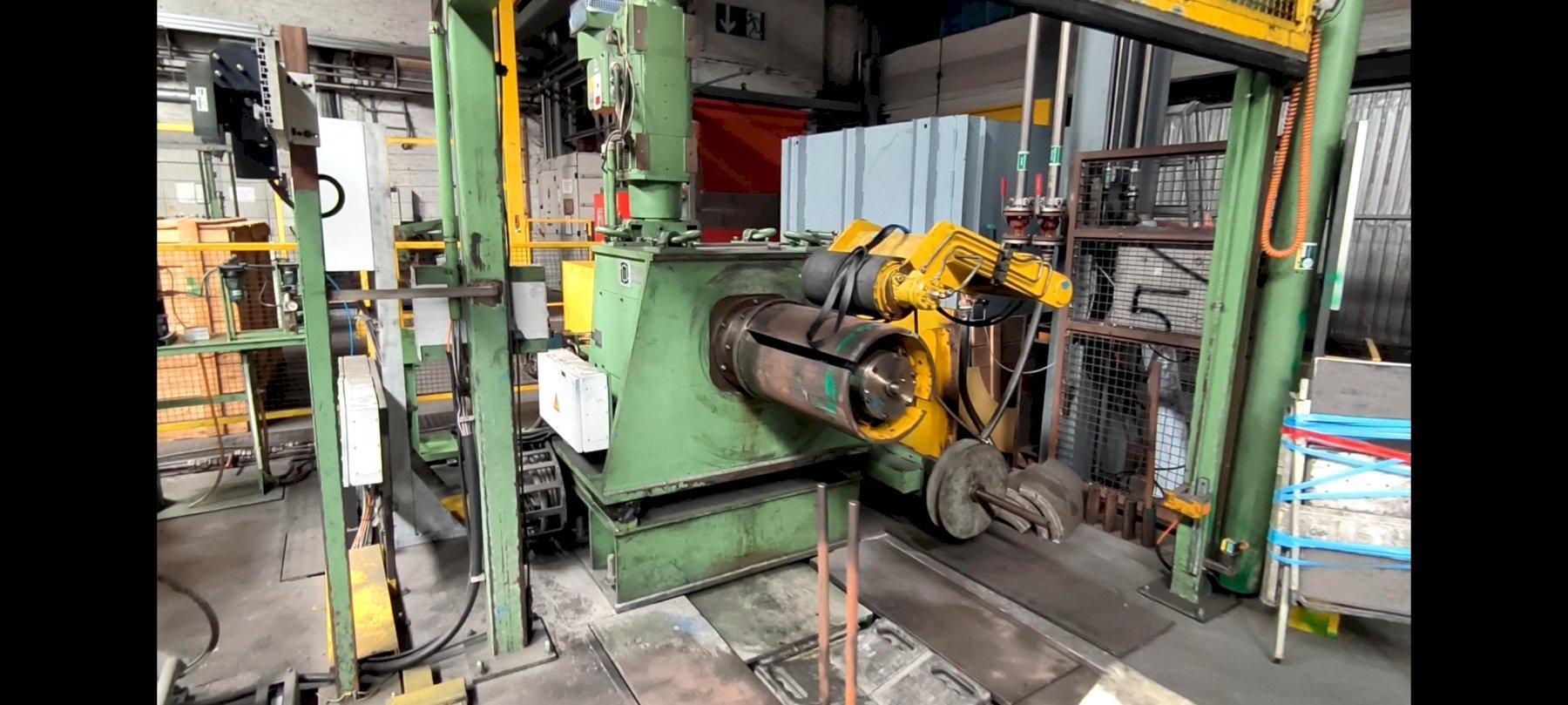

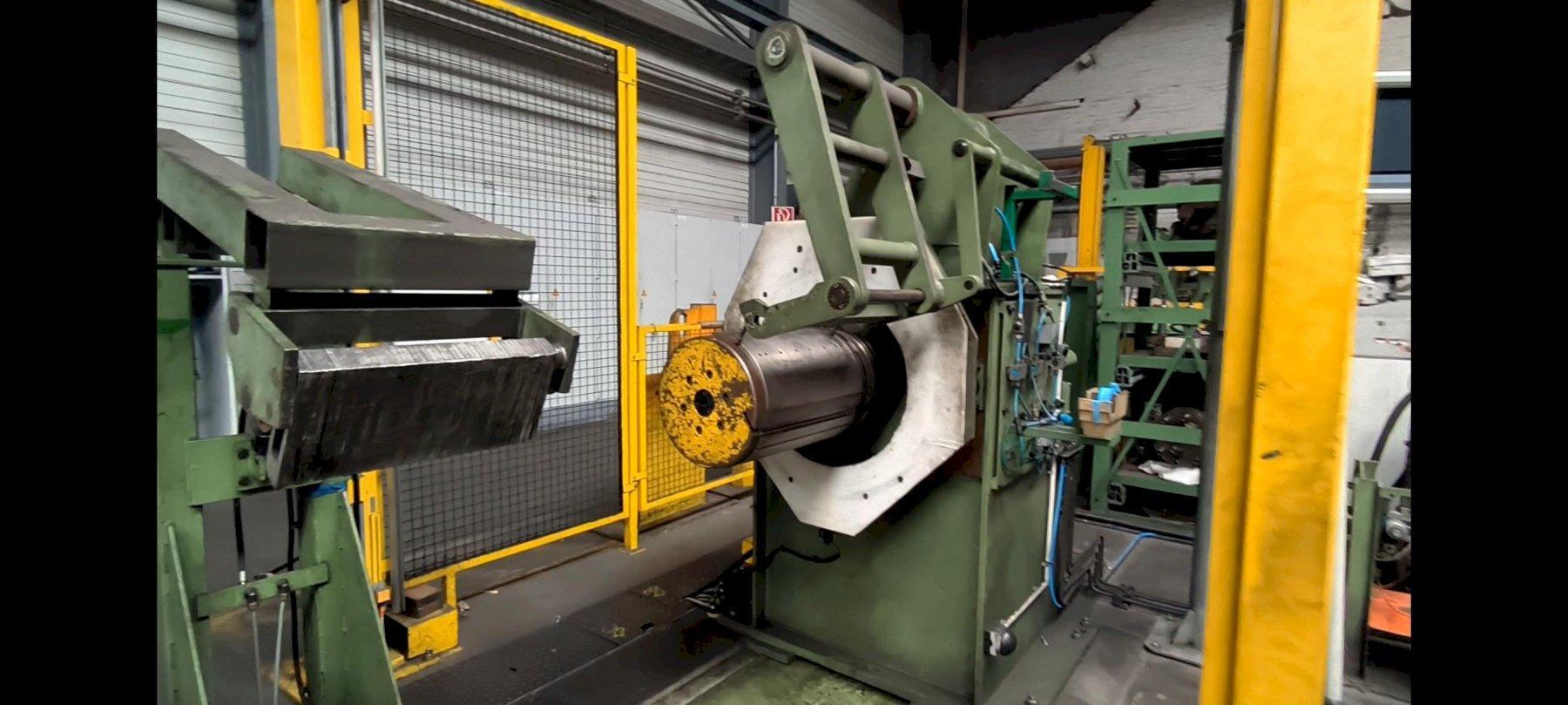

Pay-Off:

YOM: 1998

Manufacturer: HPL

Drive: 24Kw DC

Winder with snubber roll arm

Underground coil car

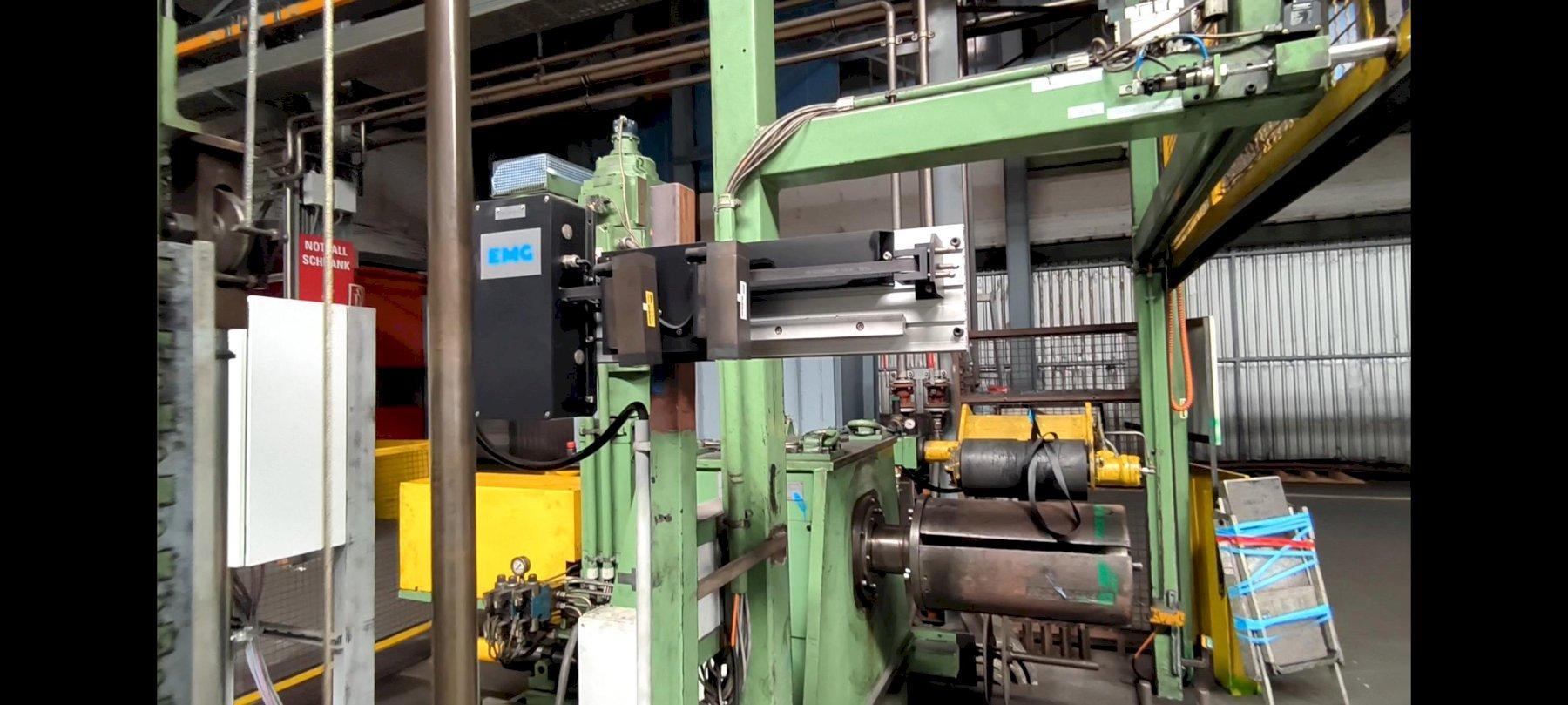

EMG Edge control

Dancing / Tension loop stand

2x strip guiding rolls

Support winder for unwinding first few meters of scrap

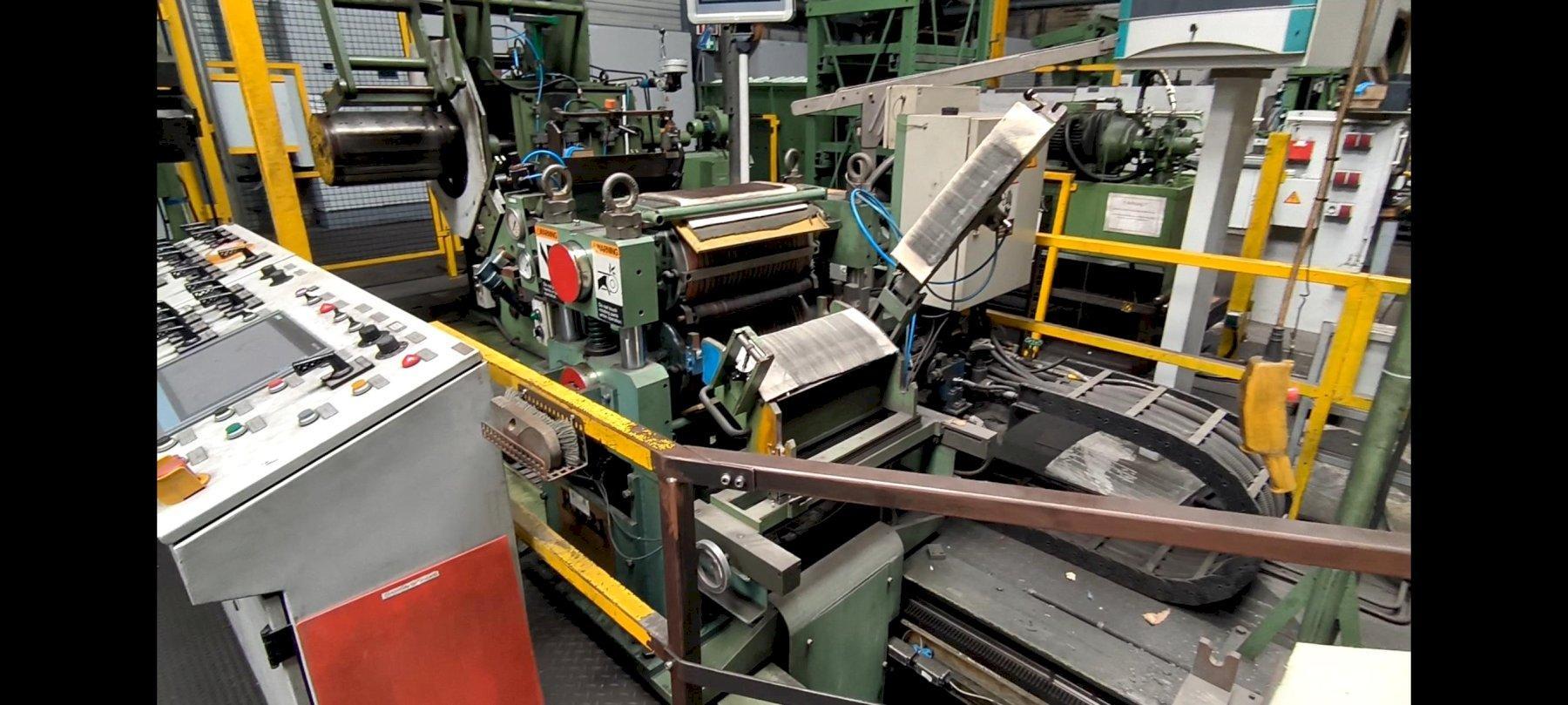

Material Inspection:

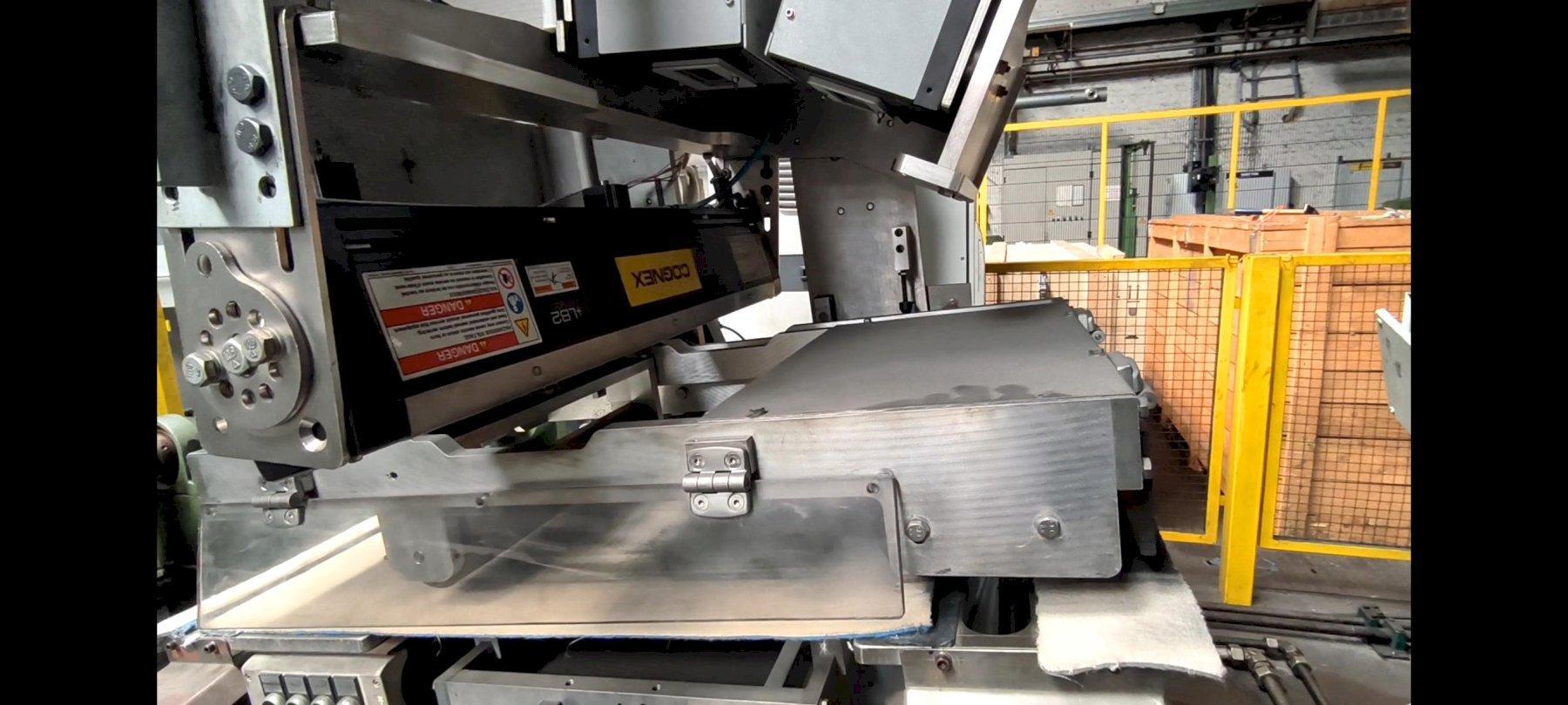

Material  surface inspection table with COGNEX OFI camera system – NEW 2015

3x set of side guiding rolls

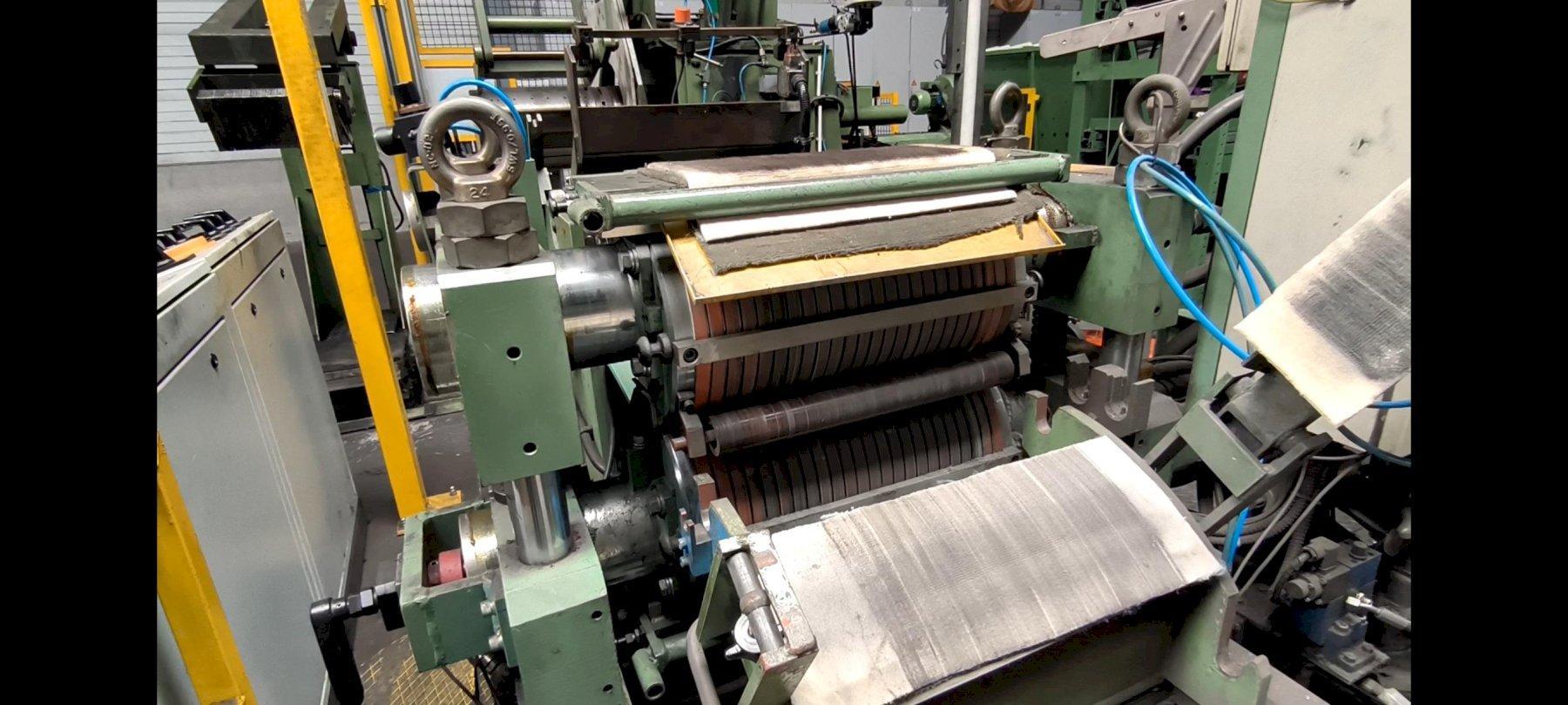

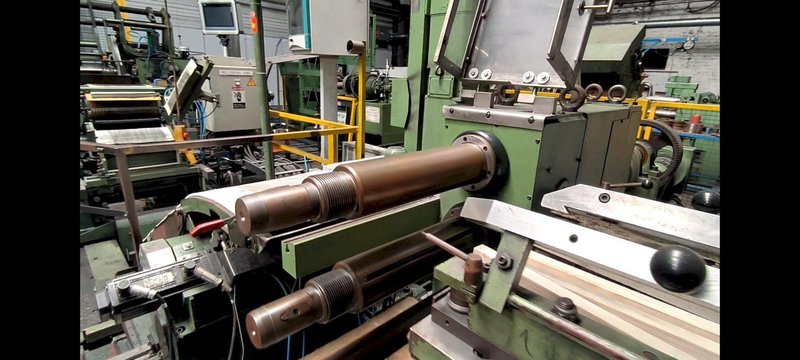

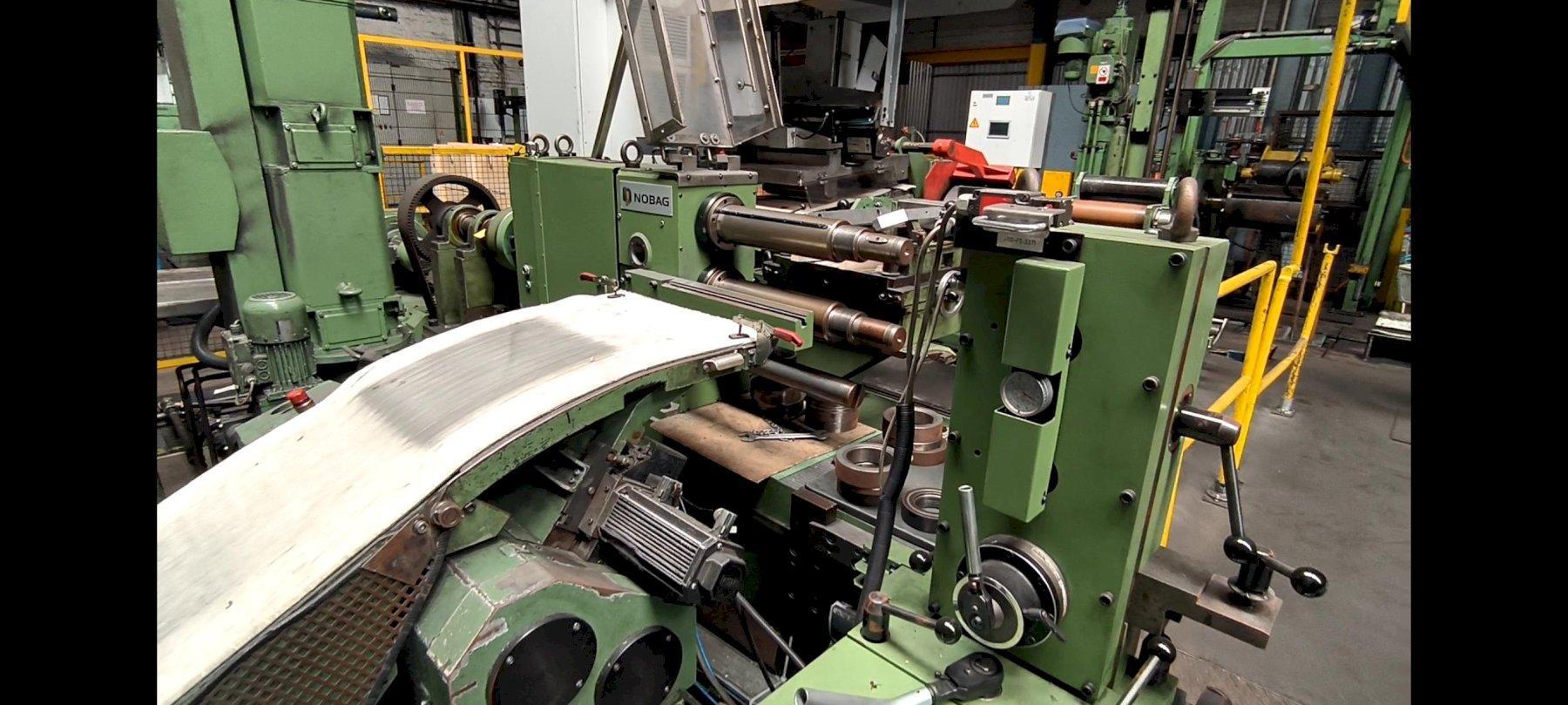

Slitting head:

Slitter drive: 42Kw DC

Slitter shaft OD: 100mm

Tool OD: 190/200mm

Scrap choppers with under-/overground scrap conveyor

Scrap chopper drive: 25.2Kw

Strip transfer table

Separation roll

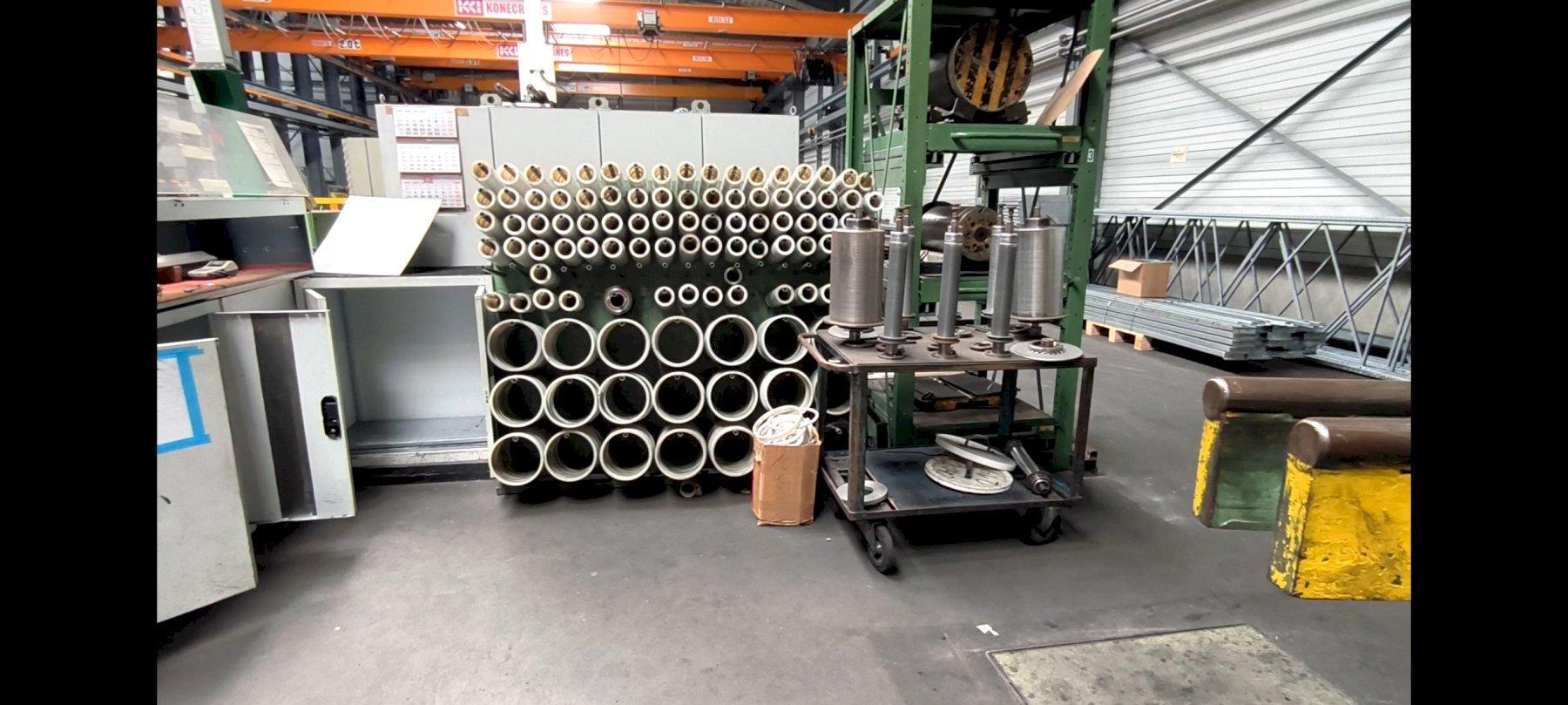

Tooling turnstile for 2 tooling setups

Tension stand:

Includes 2 systems (all installed simultaneously): Vacuum roll, leather belts

Separation roll

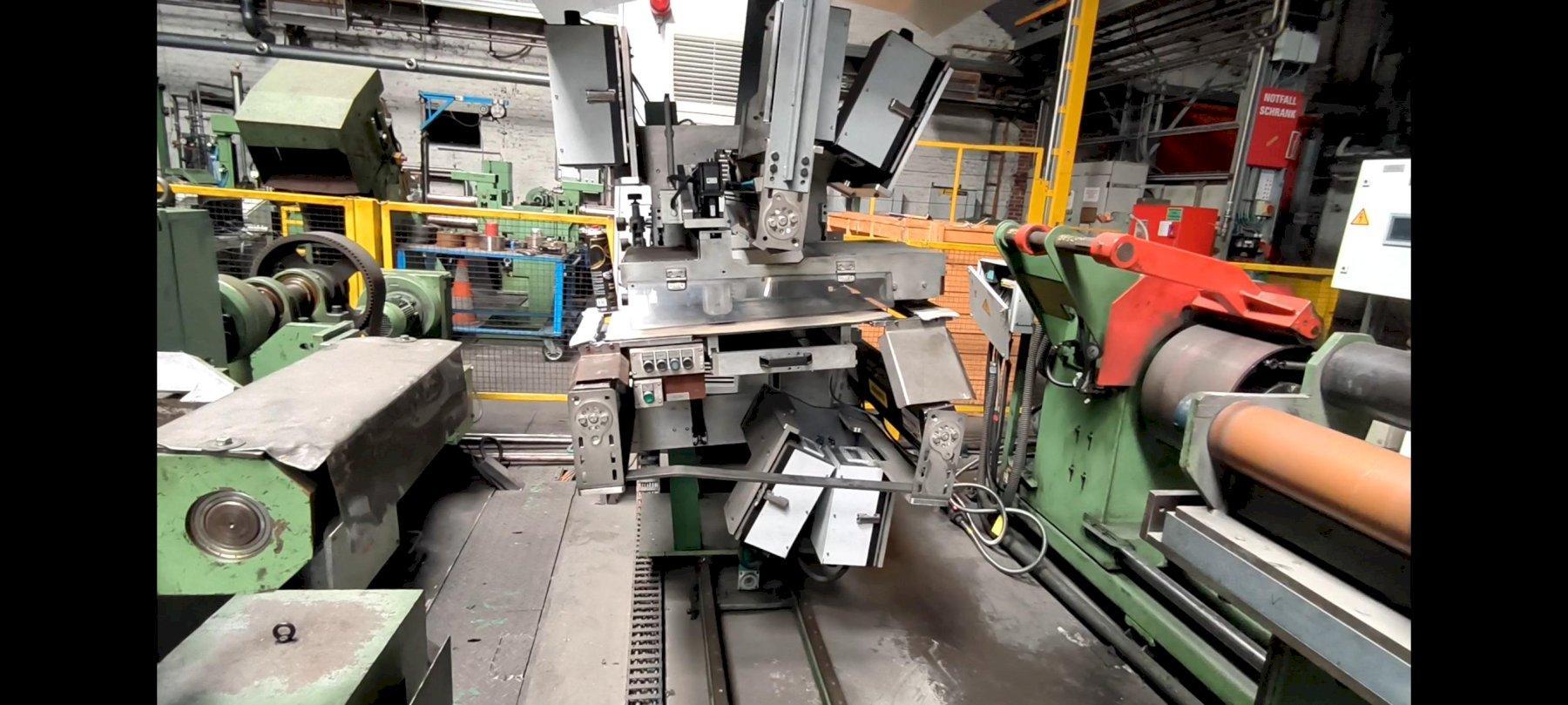

Re-coiler:

Re-coiler drive: 36.4Kw DC

Hold down roll

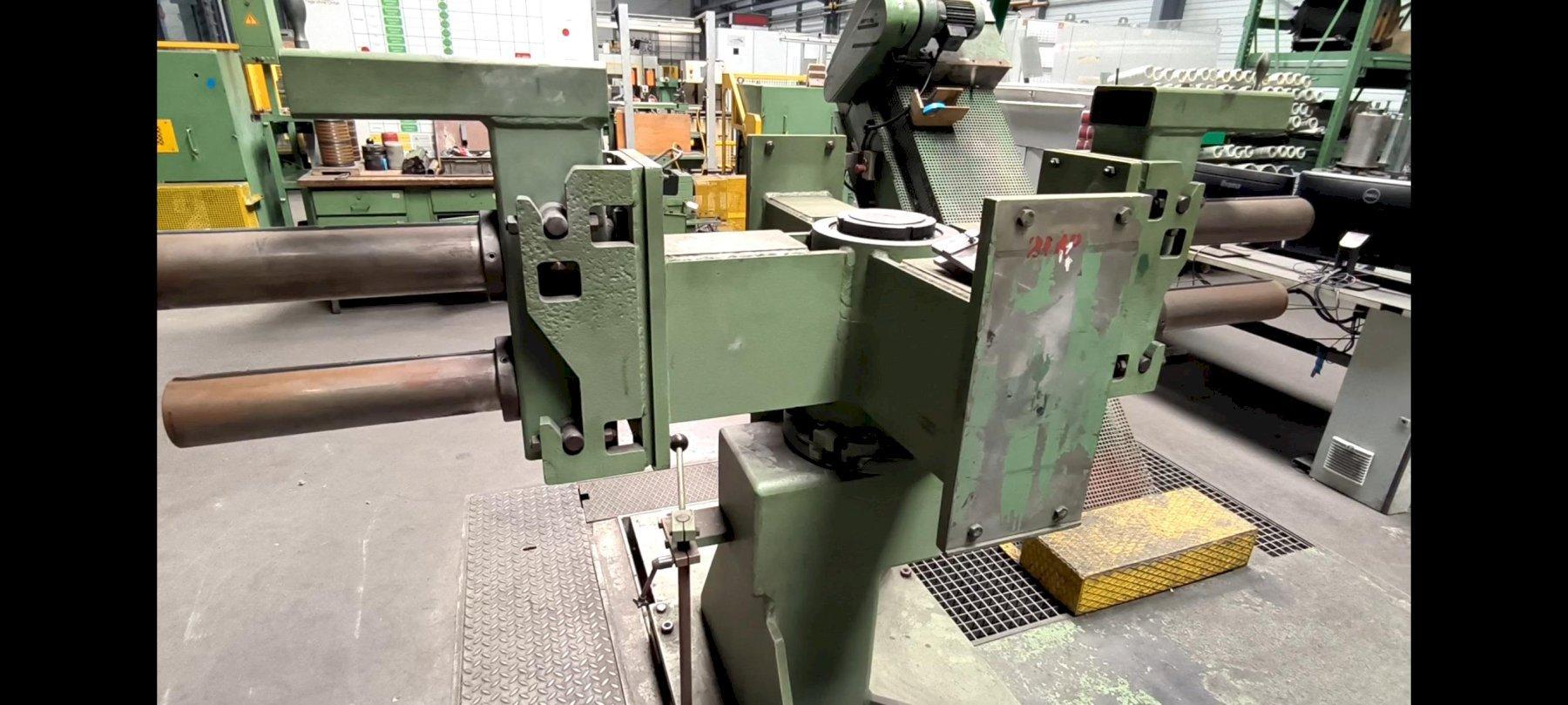

2-arm Turnstile
