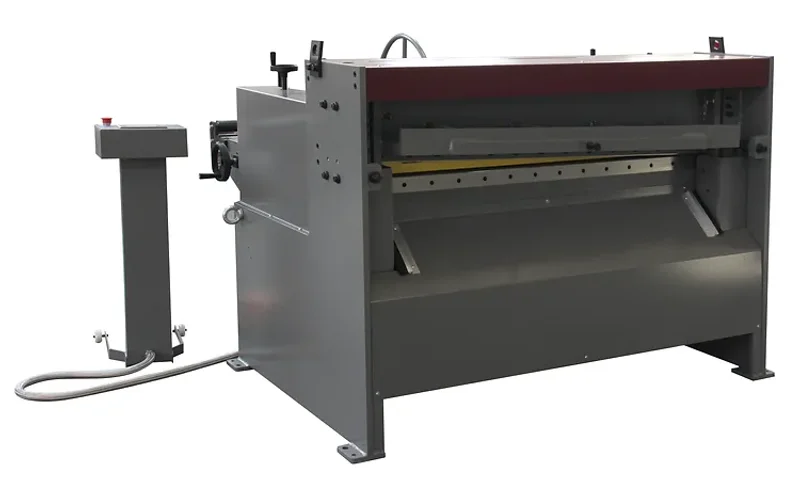

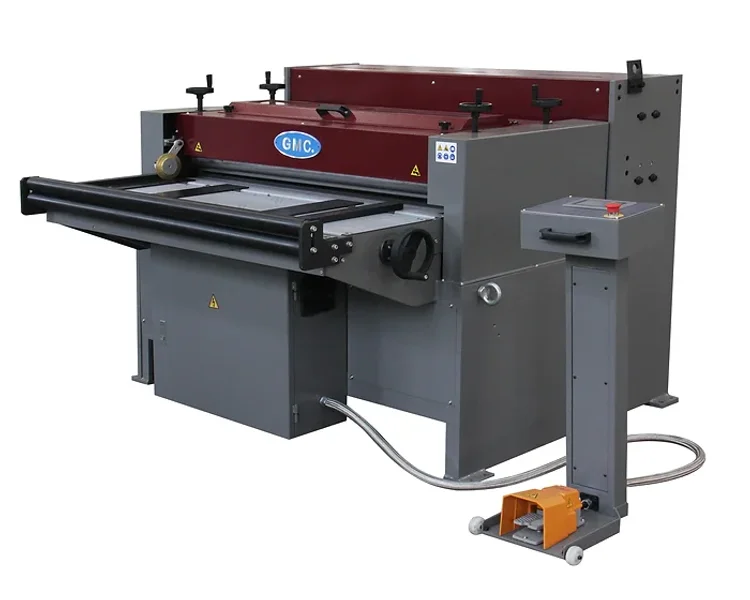

NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH

Brand
Model
PS-4816GT
Stock #
19496
Year
Not specified
Condition
New

Location

California
NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH


STANDARD FEATURES
  • ISO 9001 certified
  • American design and Taiwan quality machine

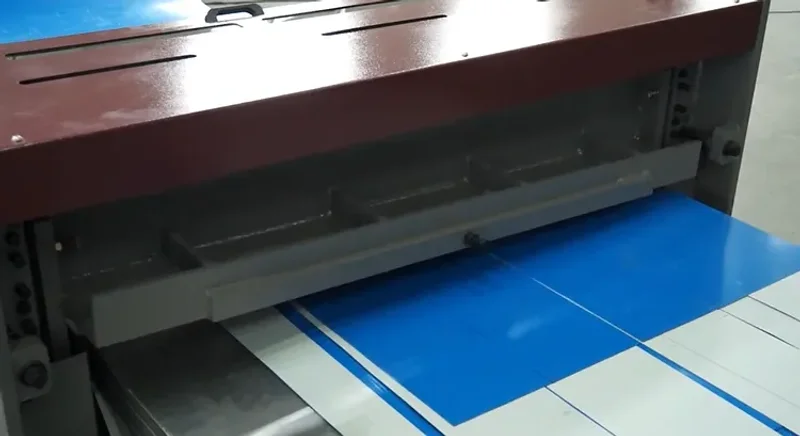

  • Slit and cut to length in one unit
  • NC programmable cutting length, 100 job memory feature
  • Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
  • Auto cycle mode-shearing will auto cycle the programmed cut lengths.
  • Easy removal of slitting blades for cut to length operations without slitting.

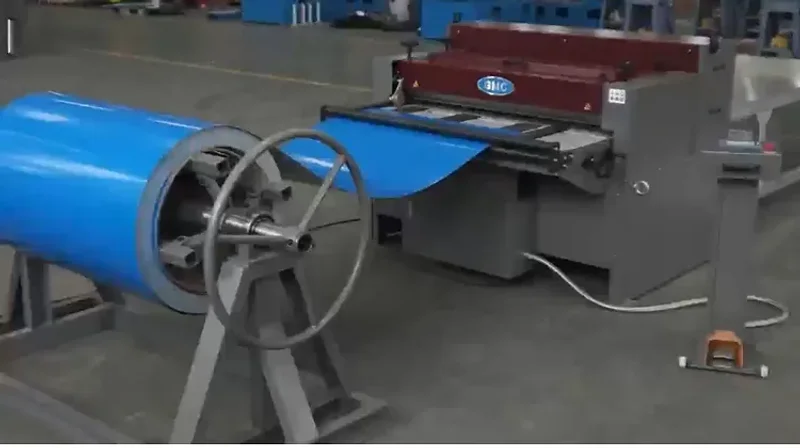

  • feed the sheet metal from the manual decoiler to cut to length without slitting blades

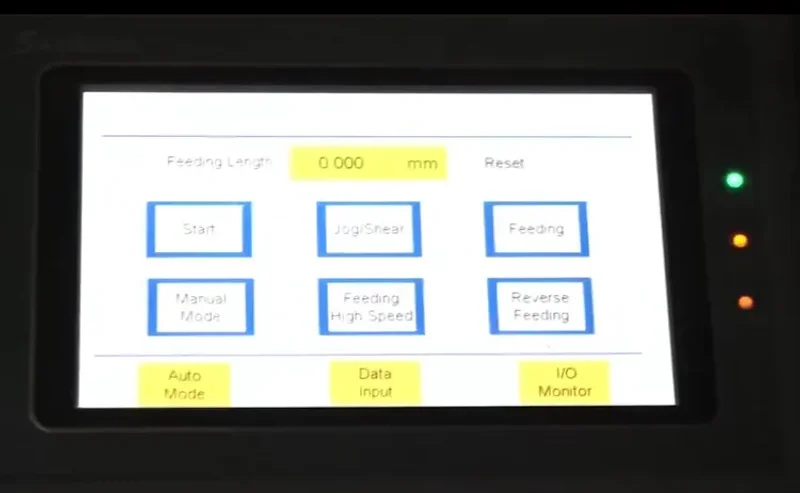

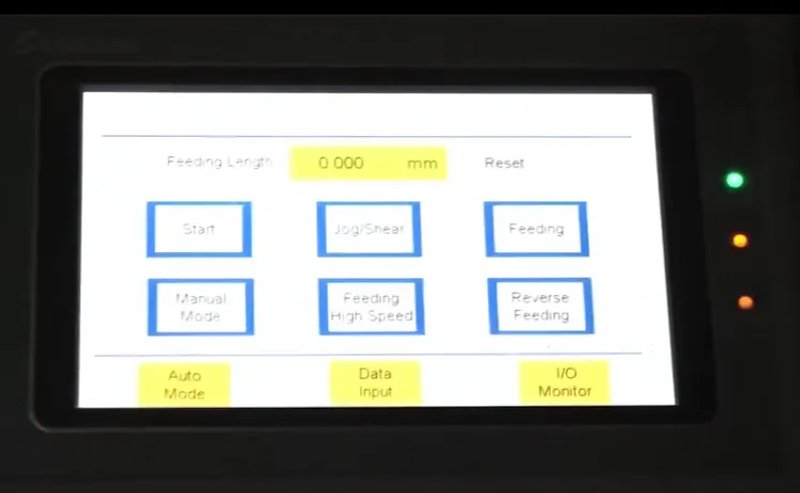

  • 5” Omron touch screen
  • 3-1/8” diameter shafts mounted in precision ball sealed bearings
  • Slitting blades are dual edged
  • Safety type foot pedal control
  • One year warranty for parts


STANDARD EQUIPMENT
  • Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
  • full length finger guard
  • Removable safety foot pedal control
  • One set of upper & lower shearing blades


OPTIONAL EQUIPMENT

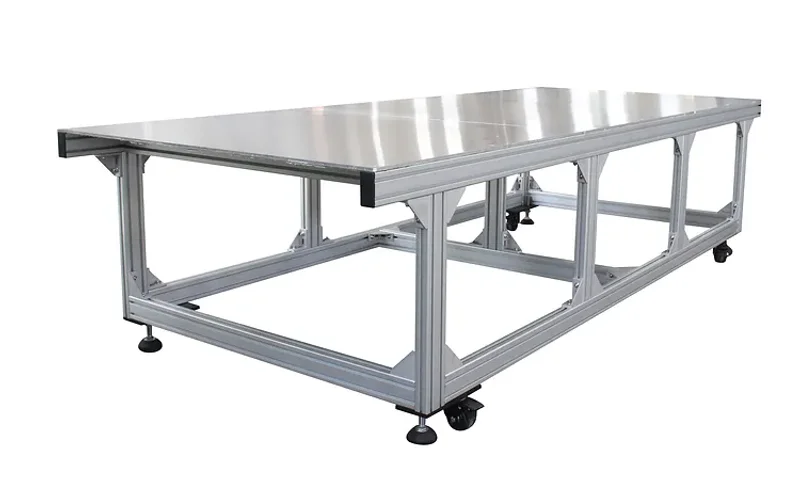

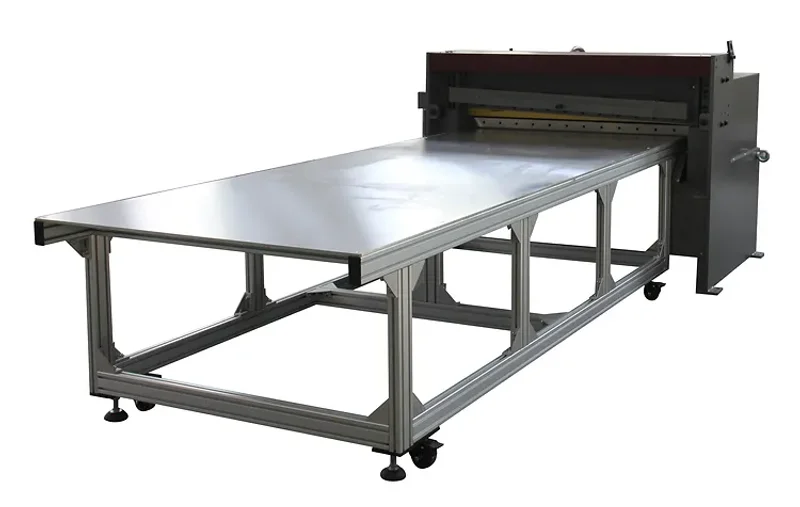

  • 10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing
  • 10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing

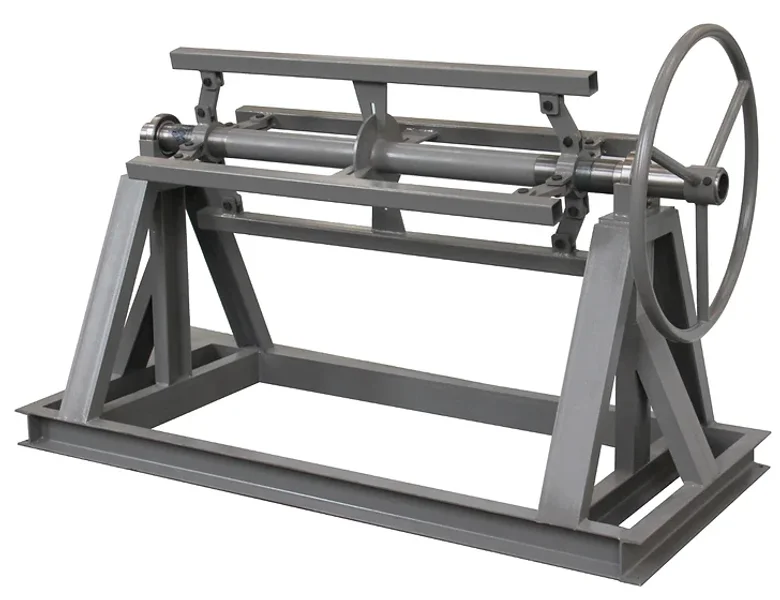

  • Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight....... call for pricing
  •     Extra set of slitter blades for PS-4816GT …….call for pricing
  •    Extra set of shear blades ……call for pricing

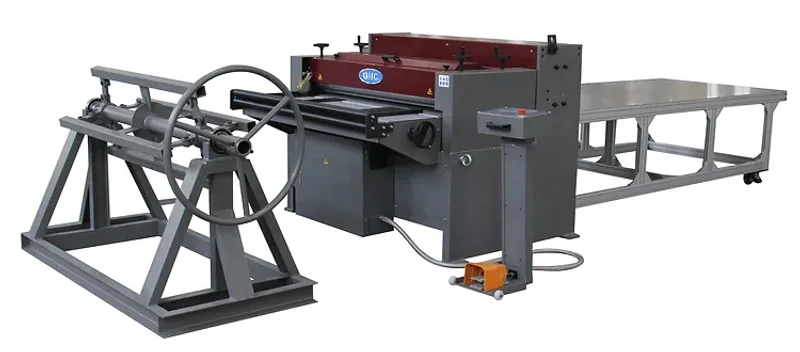

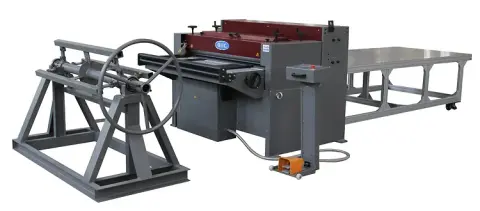

Package: The line of Power Slitter includes: 1 set Power Slitter # PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T …………… call for pricing


Specifications:

PS-4816GT

Slitting and shearing capacity: width x thickness

mild steel(hot roll) Tensile 60,000PSI

stainless steel & cold roll, tensile 85,000PSI

soft aluminum, tensile 28,000PSI

min. thickness

Max. slitting length



48”x16Ga

48”x20Ga

48”x12Ga

30Ga

20ft, NC programmable

Shearing blade length

50”

Shearing blade rake angle

2 degree

Infeed/outfeed table height

32”

Slitting blades

6 pairs

Slitting feed speed

Shearing stroke

57 FPM

35

Slitting capacity: Number of cuts / strips

16Ga mild steel

18Ga mild steel

20Ga mild steel

22Ga-24Ga mild steel

26Ga-30Ga  mild steel



1 cut / 2 strips

2 cuts / 3 strips

3 cuts / 4 strips

4 cuts / 5 strips

6 cuts / 7 strips

Slitting motor

Shearing motor

3HP, 220V,1phase

 3HP, 220V, 1phase

Amperage draw 25A

Decoiler specifications

Manually operated

For coil size 48” width, 20” coil ID,

Max coil weight 2T = 4,500LBS

Dimensions: 71”x32”x39-1/2”

Machine weight

Shipping weight

2,850LBS

2,950LBS

Machine dimensions LxWxH

Shipping dimensions LxWxH

68” x 63” x 48”

70” x 65” x 51”

No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
NEW 16 GAUGE X 47" GMC MODEL PS-16 SHEET METAL SLITTER
GMC

Slitters & Slitting Lines

1520mm x 6.5mm x 25 TON PEKRUN MASCHINENFABRIK LOOPING PIT SLITTING LINE

Slitters & Slitting Lines

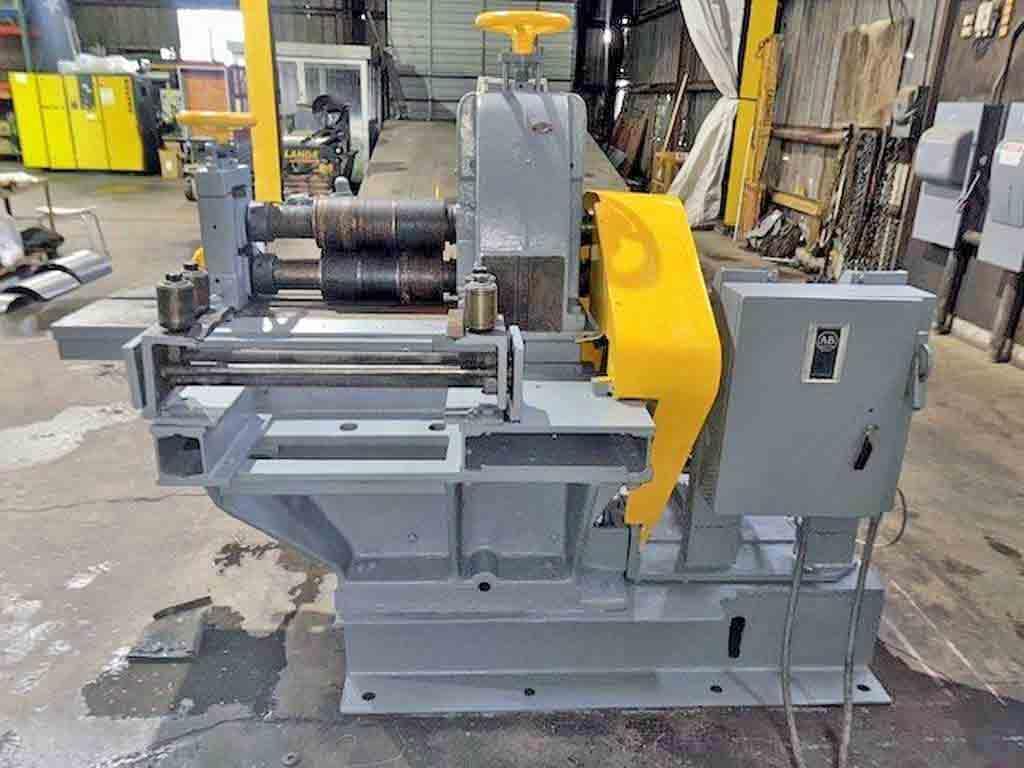

18" x 2.625" x 2,500# Waterbury Farrel Slitting Line
