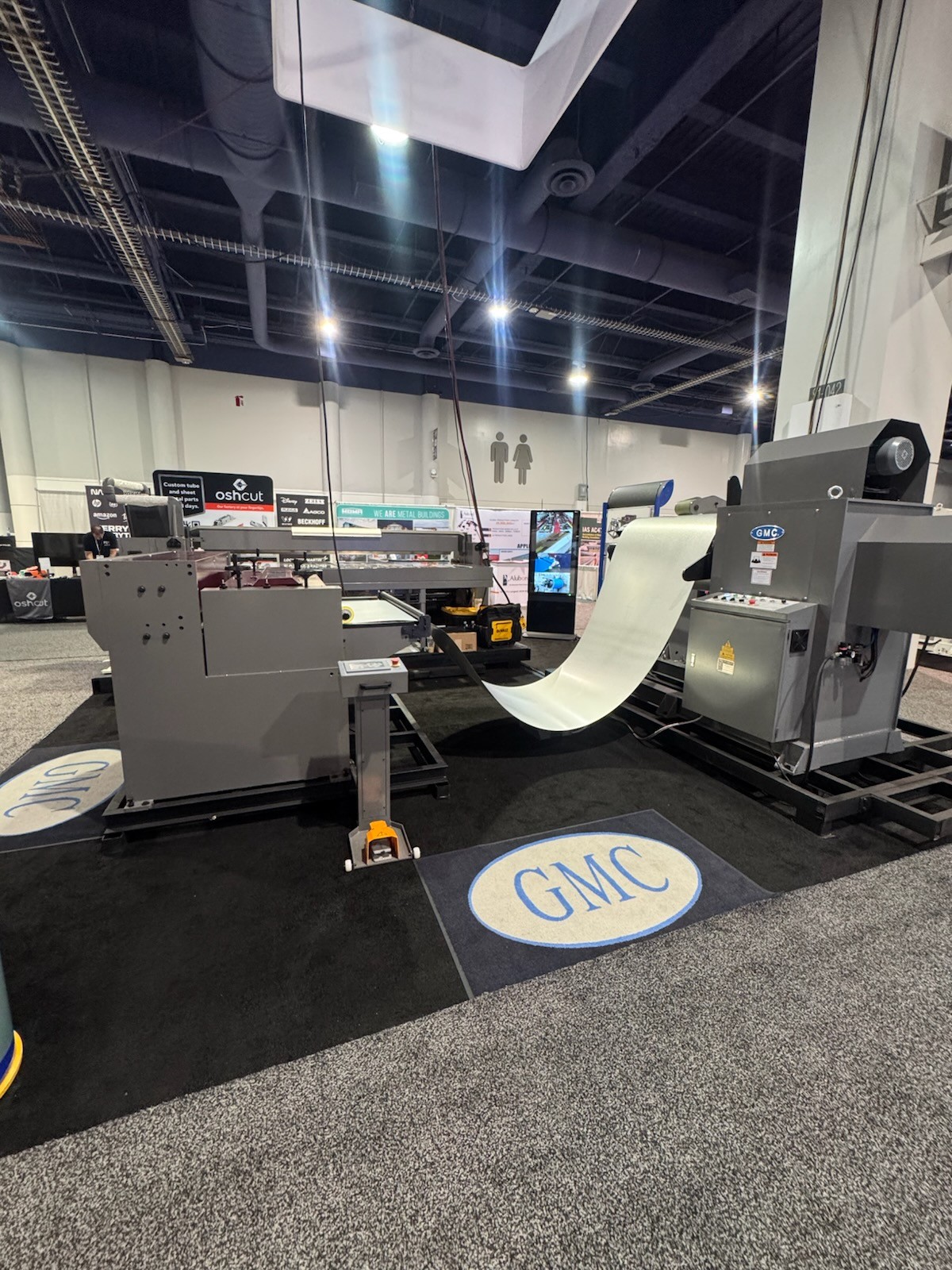

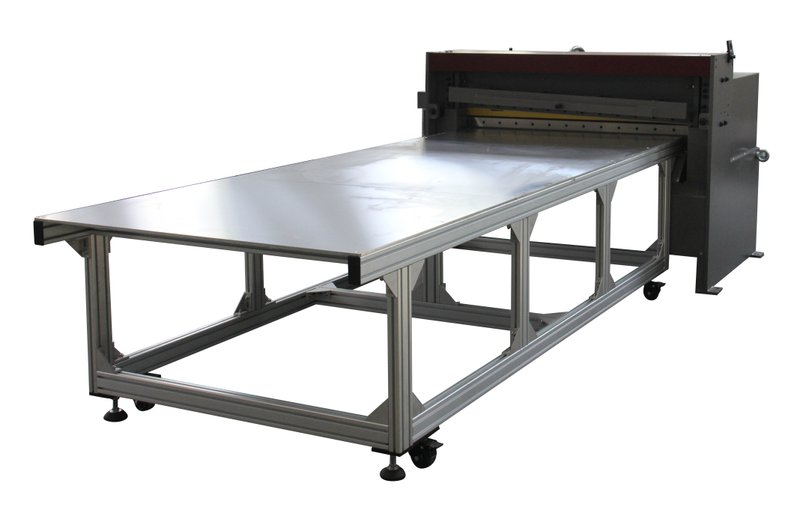

Gang Type Metal Powered Slitter with programmable cut to length

Specifications:

PS-4816GT

Slitting and shearing capacity: width x thickness

mild steel(hot roll) Tensile 60,000PSI

stainless steel & cold roll, tensile 85,000PSI

soft aluminum, tensile 28,000PSI

min. thickness

Max. slitting length

Min. slitting width

48”x16Ga

48”x20Ga

48”x12Ga

30Ga

20ft, NC programmable

3"

Shearing blade length

50”

Shearing blade rake angle

2 degree

Infeed/outfeed table height

32”

Slitting blades

6 pairs

Slitting feed speed

Shearing stroke

57 FPM

35

Slitting capacity: Number of cuts / strips

16Ga mild steel

18Ga mild steel

20Ga mild steel

22Ga-24Ga mild steel

26Ga-30Ga  mild steel

1 cut / 2 strips

2 cuts / 3 strips

3 cuts / 4 strips

4 cuts / 5 strips

6 cuts / 7 strips

Slitting motor

Shearing motor

3HP, 220V,1phase

 3HP, 220V, 1phase

Amperage draw 25A

Decoiler specifications

Manually operated

For coil size 48” width, 20” coil ID,

Max coil weight 2T = 4,500LBS

Dimensions: 71”x32”x39-1/2”

Machine weight

Shipping weight

2,850LBS

2,950LBS

Machine dimensions LxWxH

Shipping dimensions LxWxH

68” x 63” x 48”
