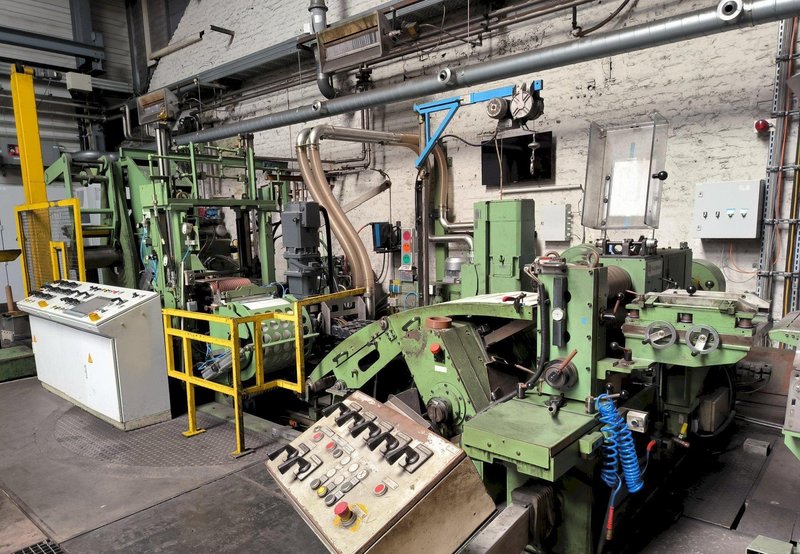

NOBS 1mm x 350mm x5Ton Precision Slitting Line

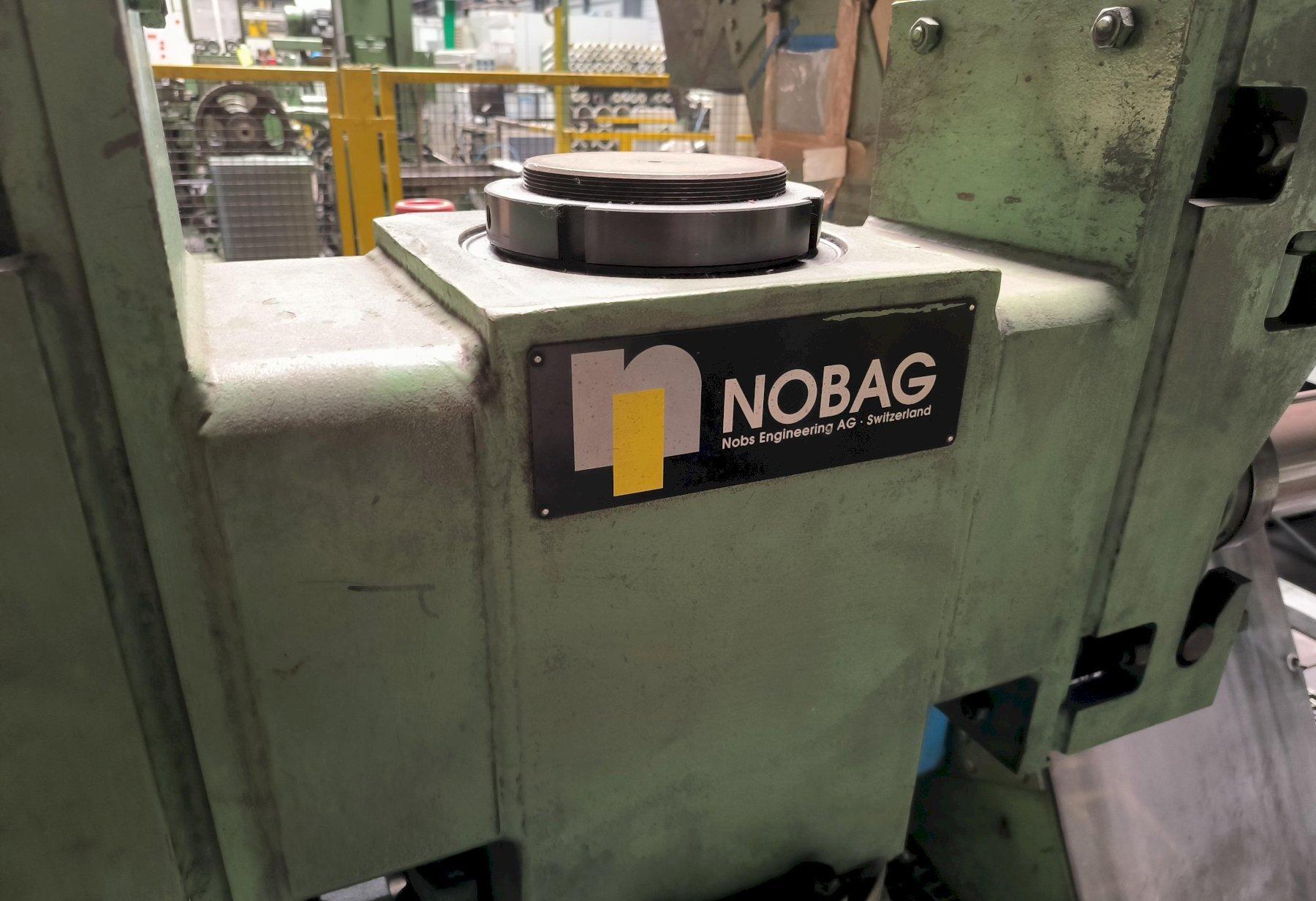

Manufacturer: NOBS Switzerland

YOM: 1987

General specs:

Max. line speed: 400m/min

Strip thickness: 0,1 – 1.0mm

Entry strip width: 100mm – 350mm

Finished strip width: 8mm – 340mm

Max. Coil weight: 5 tons

Max. Coil OD: 1600mm

Max. Coil ID (Pay-off): 400mm

Max. Coil ID re-wind: 200/300/400/500mm

Pay-Off:

Drive: 22Kw DC

Winder with snubber roll arm

Underground coil car

Paper winder – Winder drive 1.8Kw

EMG Edge control

Dancing / Tension loop stand

2x strip guiding rolls

Material Inspection:

Material  surface inspection table with COGNEX OFI camera system – NEW 2012

3x set of side guiding rolls

Slitting head:

Slitter drive: 43Kw DC

Slitter shaft OD: 100mm

Tool OD: 190/200mm

Scrap choppers with under-/overground scrap conveyor

Scrap chopper drive: 25.2Kw

Strip transfer table

Separation roll

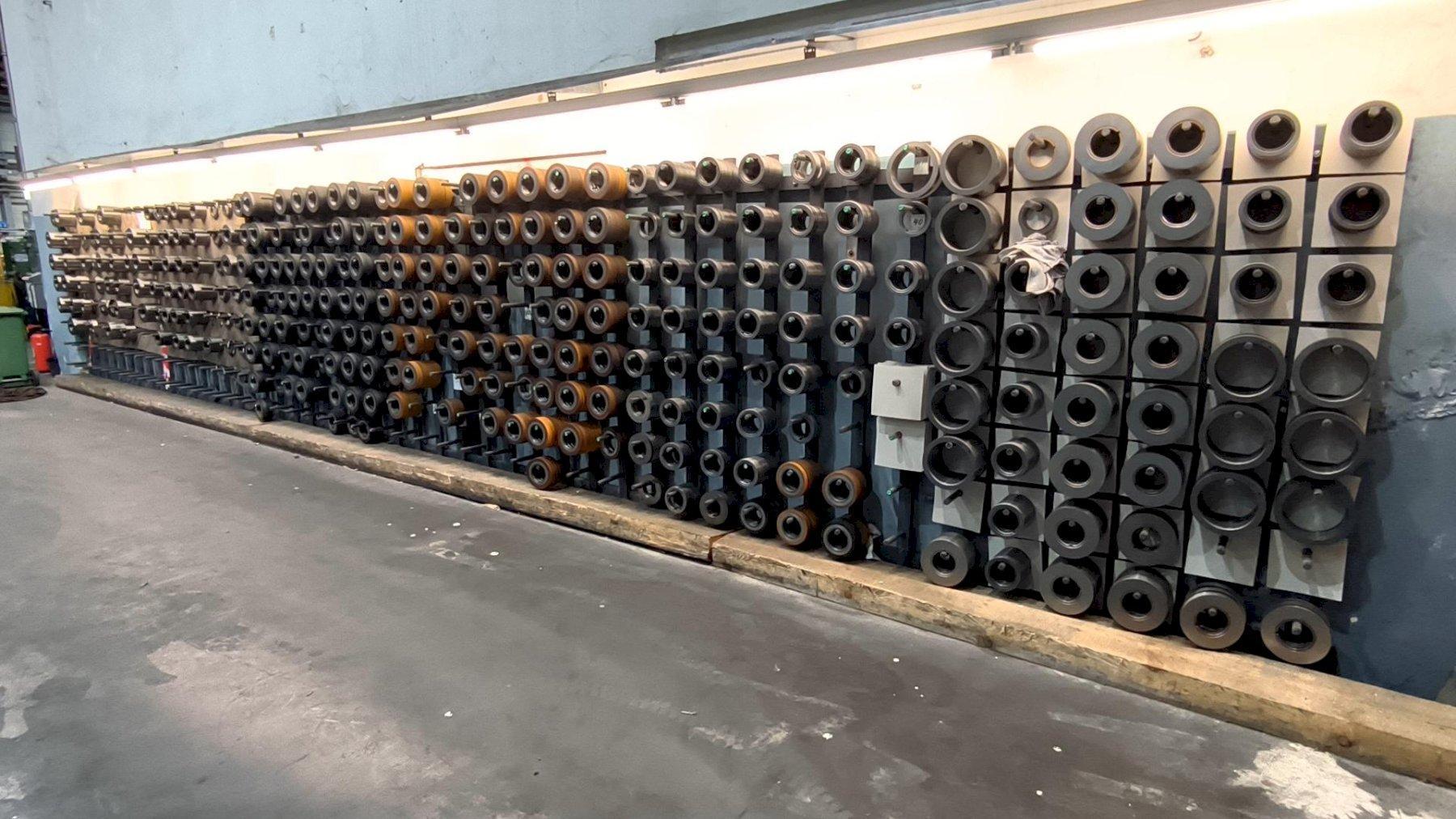

Tooling turnstile for 2 tooling setups

Tension stand:

Includes 3 systems (all installed simultaneously): Vacuum roll, leather belts, felt brake

Separation roll

Re-coiler:

Re-coiler drive: 51.5Kw DC

Hold down roll

4-arm Turnstile
