24" x 5.00" x 10,000# Ruesch Slitting Line (14701)

24" x 5.0" x 10,000# Ruesch Slitting Line
Stock # 14701

Consisting of:

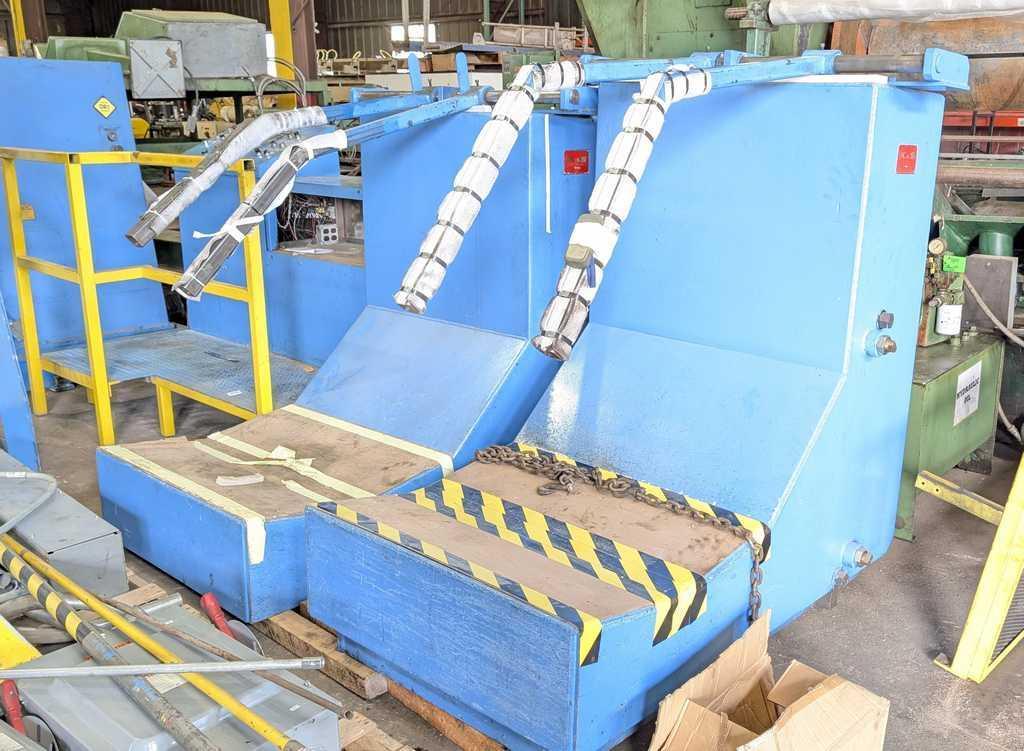

-Entry Coil Car: K&S
  40" Wide Bed
  60" O.D. Capacity
  Self-Contained Hydraulics
  Coil Retaining Arms
  Overall Size: 66" L x 55" W x 68" High

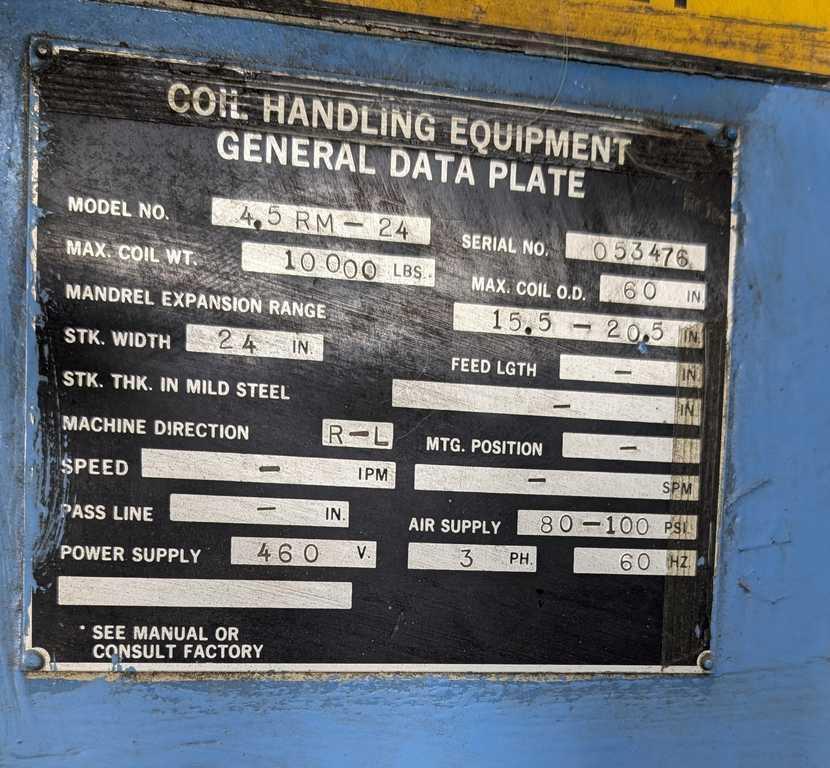

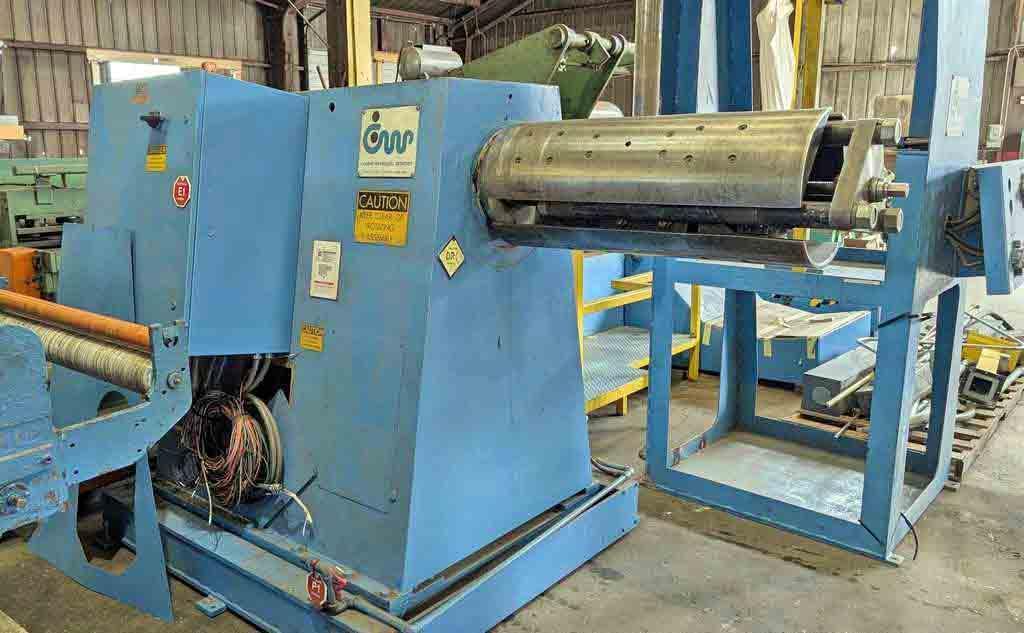

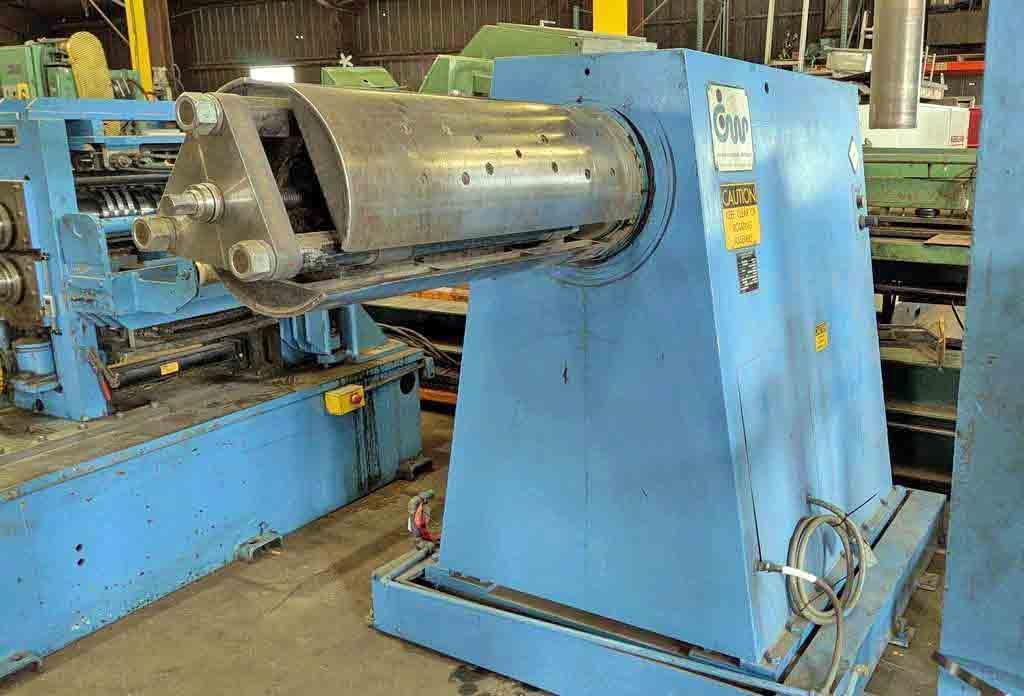

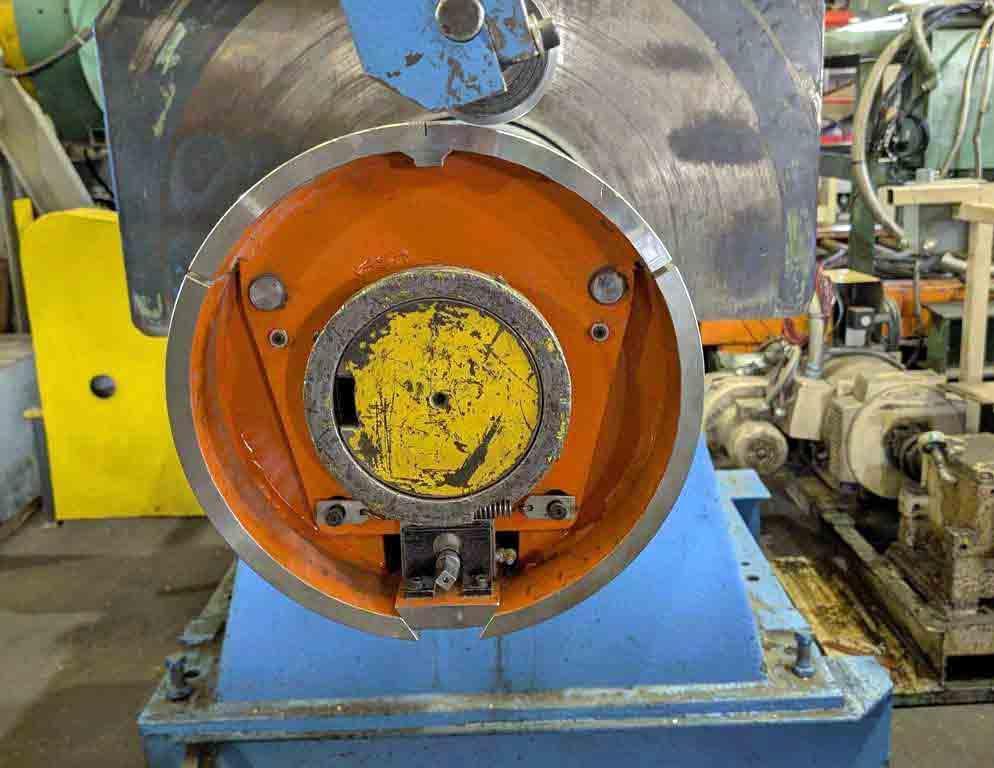

-Uncoiler: Cooper Weymouth
  Model: 4.5 RM - 24
  S/N: 053476
  Hydraulic Expansion: 15.5" - 20.5"
  38" Face Mandrel
  60" O.D. Coil Capacity
  DC Motor Drive W/Blower

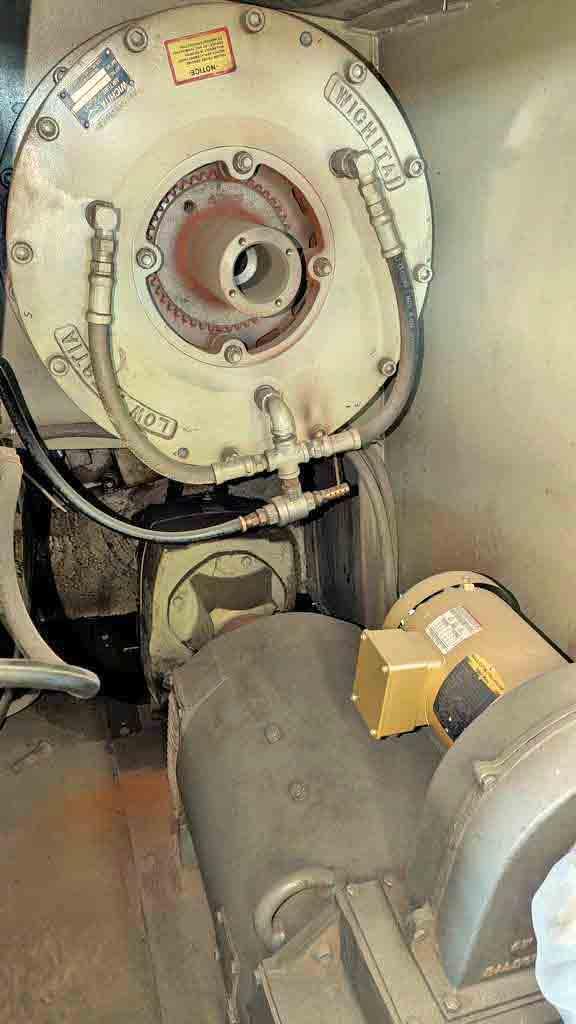

  Wichita Air Brake
  60" from Floor to center of Mandrel
  Overall Size: 114" L x 68" W x 74" High

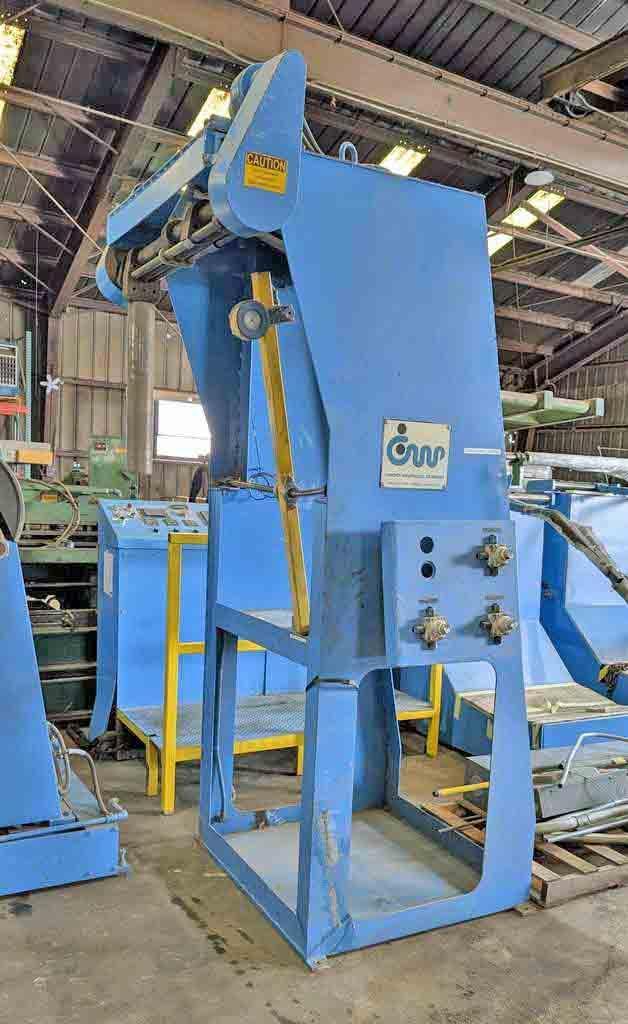

-Edge Control Stand: Cooper Weymouth
  Adjustable Edge Control Arm
  Loop Control Arm
  Overall Size: 61" L x 57" W x 110" High

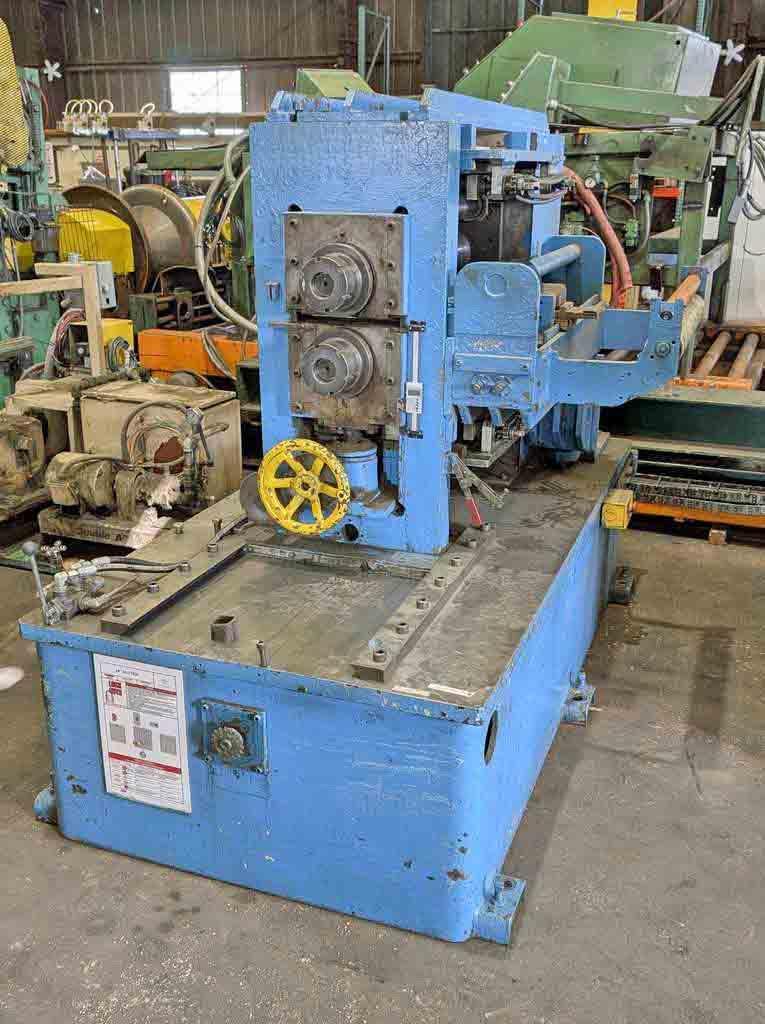

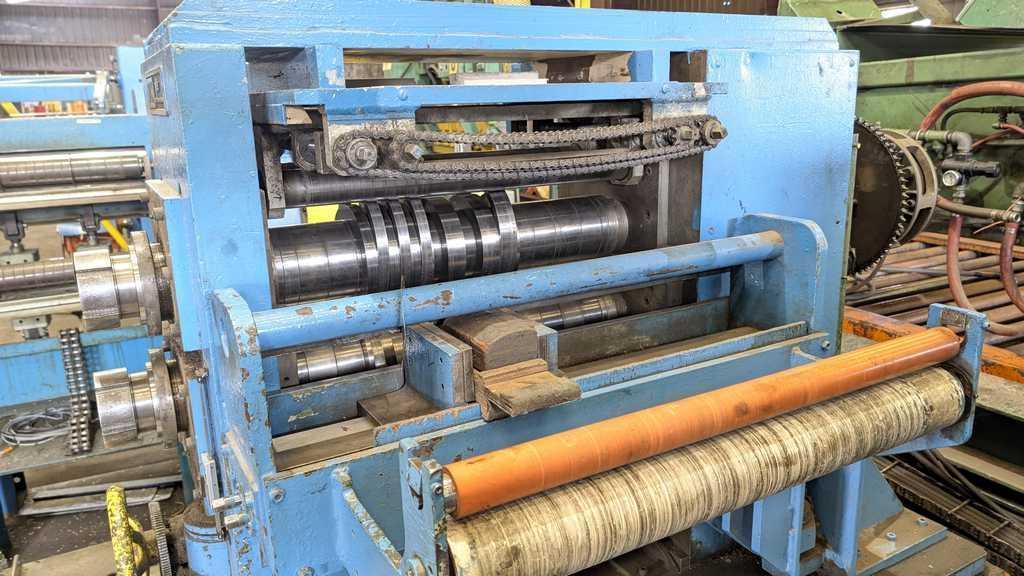

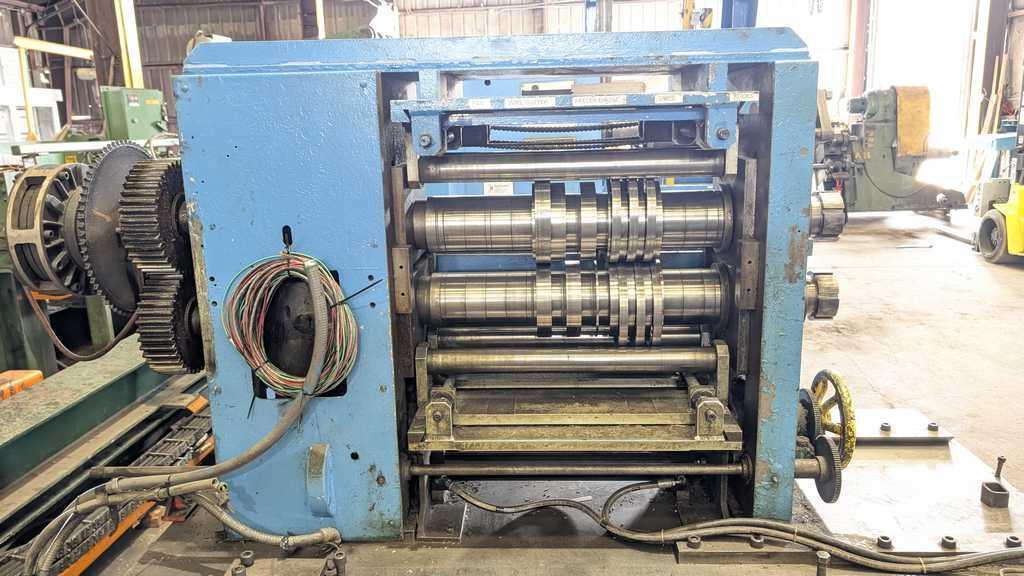

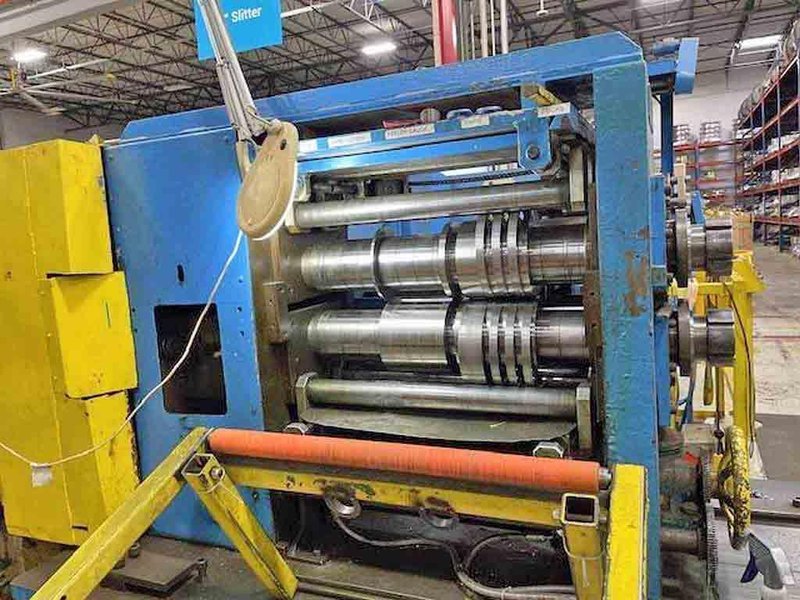

-Slitter Head: Ruesch
  Model 300
  5" Dia. x 28" Face Arbors

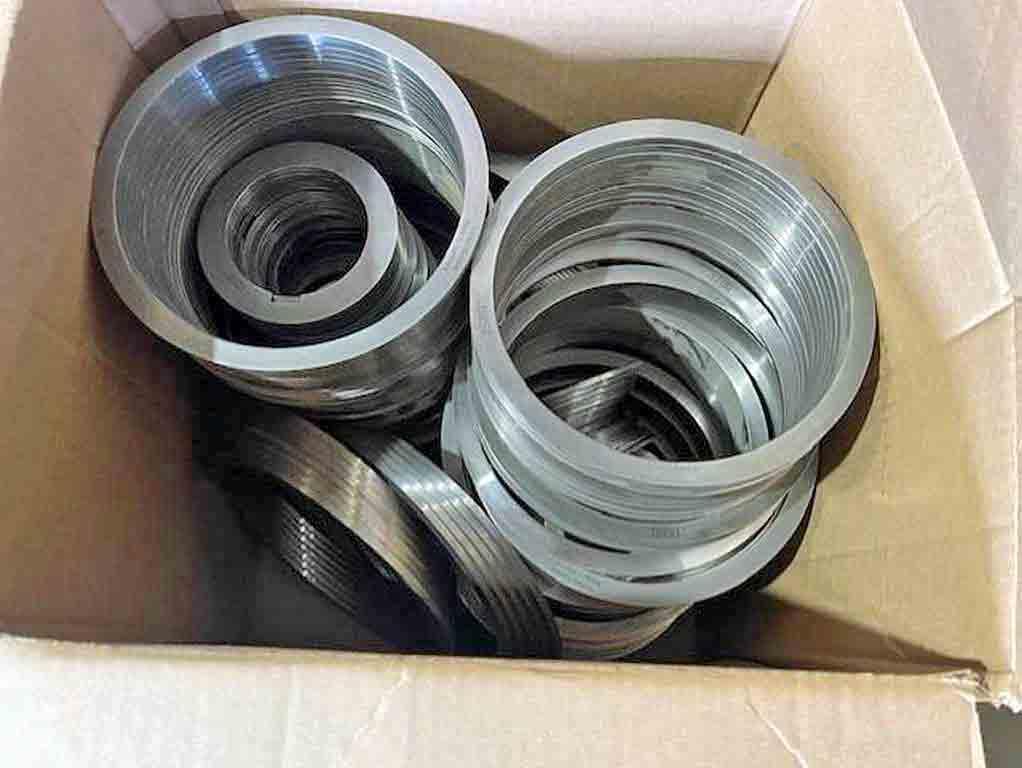

  Steel Stripper Ring Assembly
  Entry Passline Rolls
  Entry Side Guides, Manual Adjustment
  40 HP DC Motor, 1750 RPM, 500 V
  2 Speed Transmission
  Chain Drive to Slitter Head w/Air Clutch
  Passline: 48"
  Overall Size: Head - 102" L x 53" W x 68" High
                Drive - 62" L x 37" W x 46" High

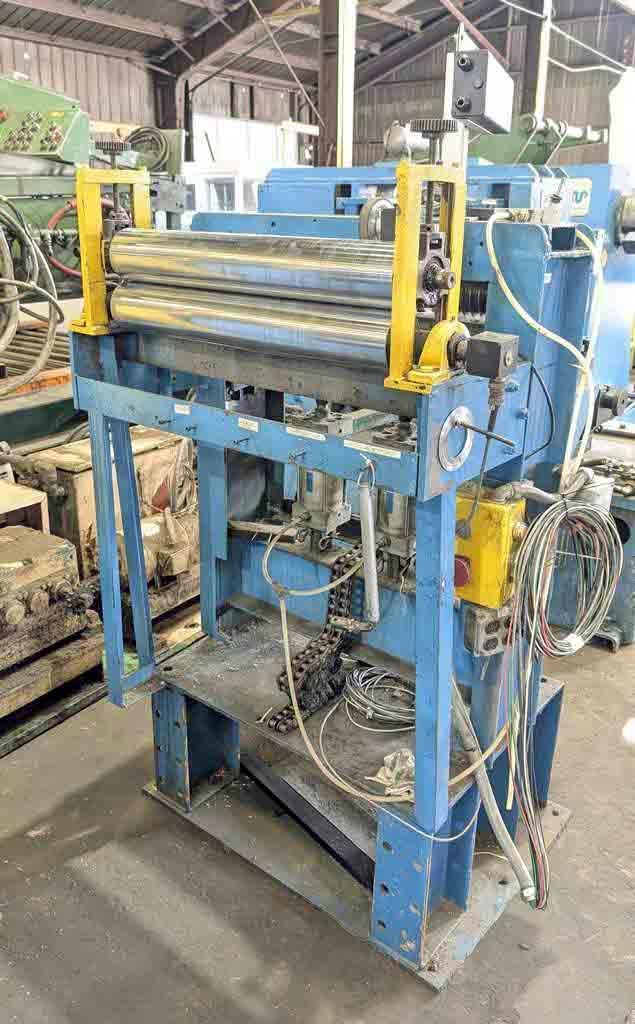

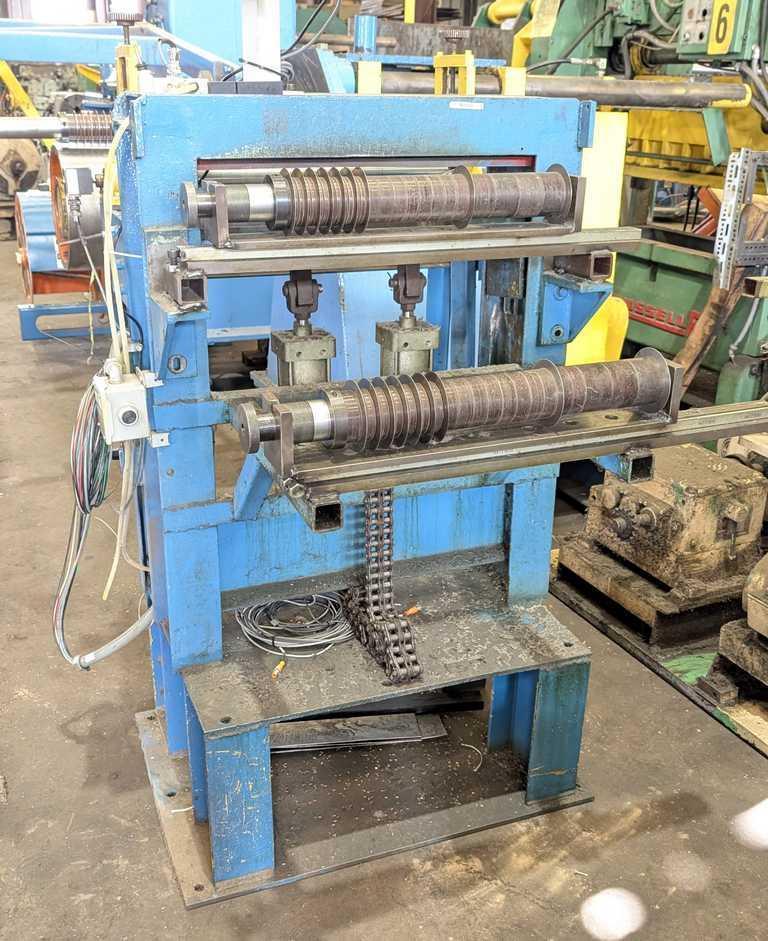

-Tension Stand:
  Entry Pit Separator Tooling Bar
  Entry Separator Tooling Bar
  Pad Tension Device
  27" Long Pad
  (2) Hydraulic Cylinders for Tension
  Exit Pinch Rolls, 4" Dia. x 28" Face, Manual Screw Adjustment
  Overall Size: 45" L x 44" W x 74" High

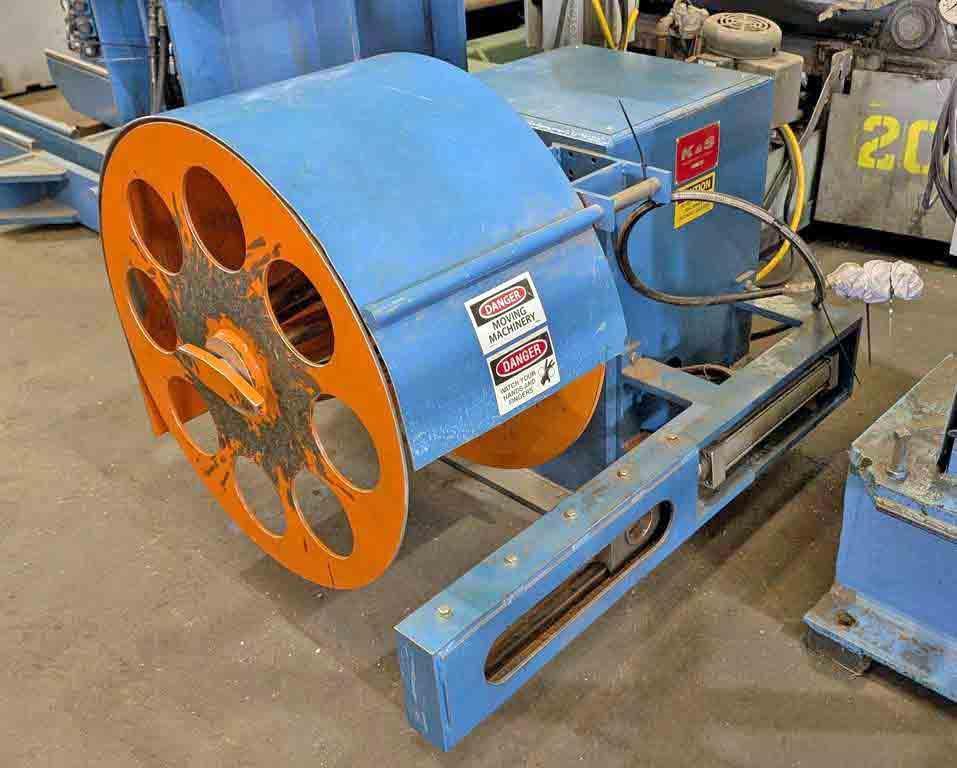

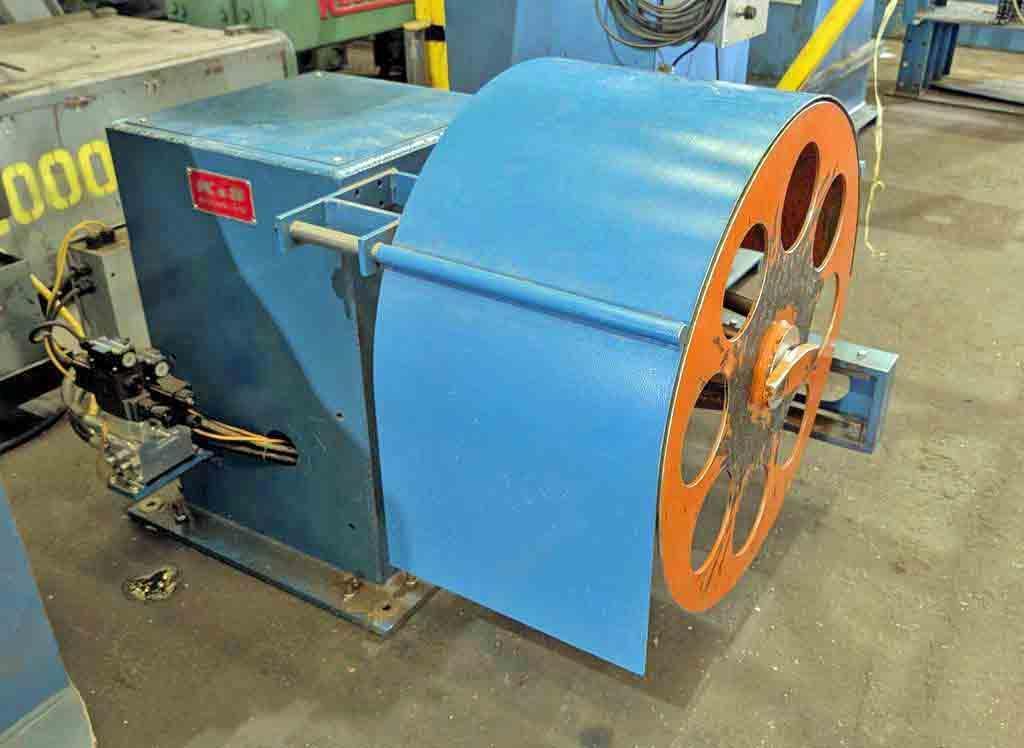

-Scrap Winder: K&S
  Hydraulic Motor Driven
  Oscillate Wind
  16" W x 27" O.D. Scrap Ball Capacity
  Manual Ball Removal
  Overall Size: 55" L x 39" W x 37" High

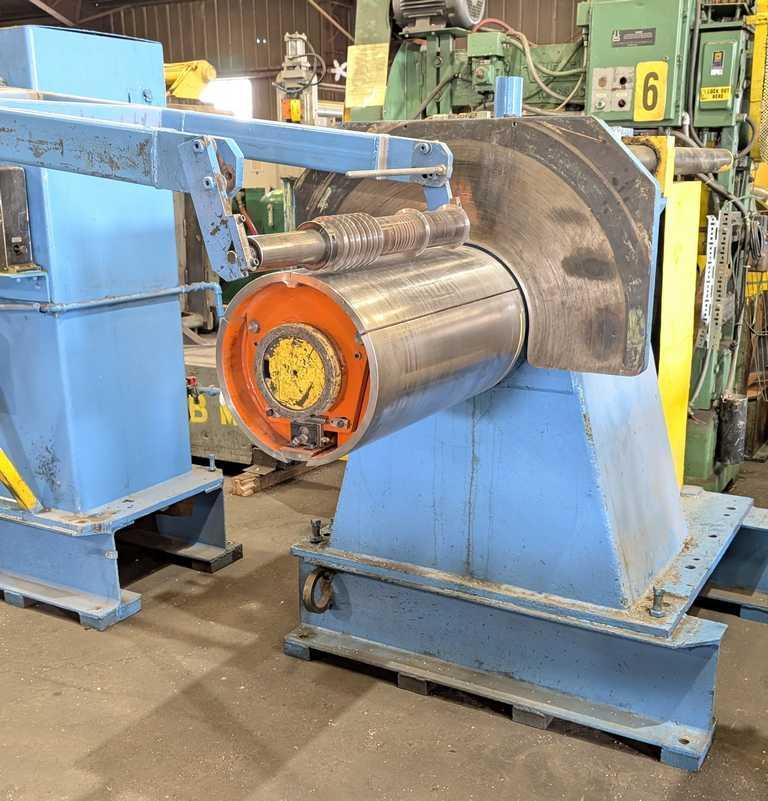

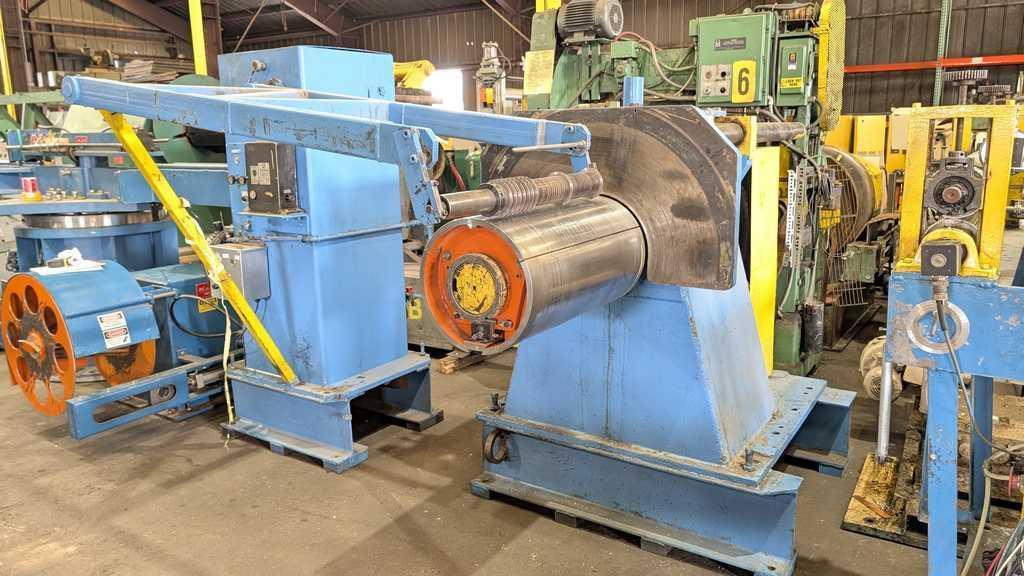

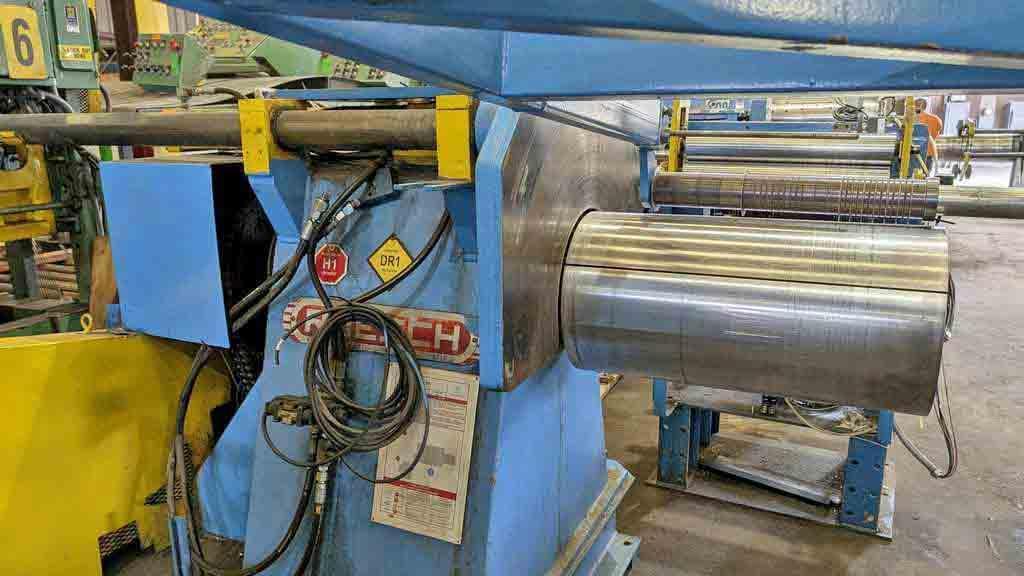

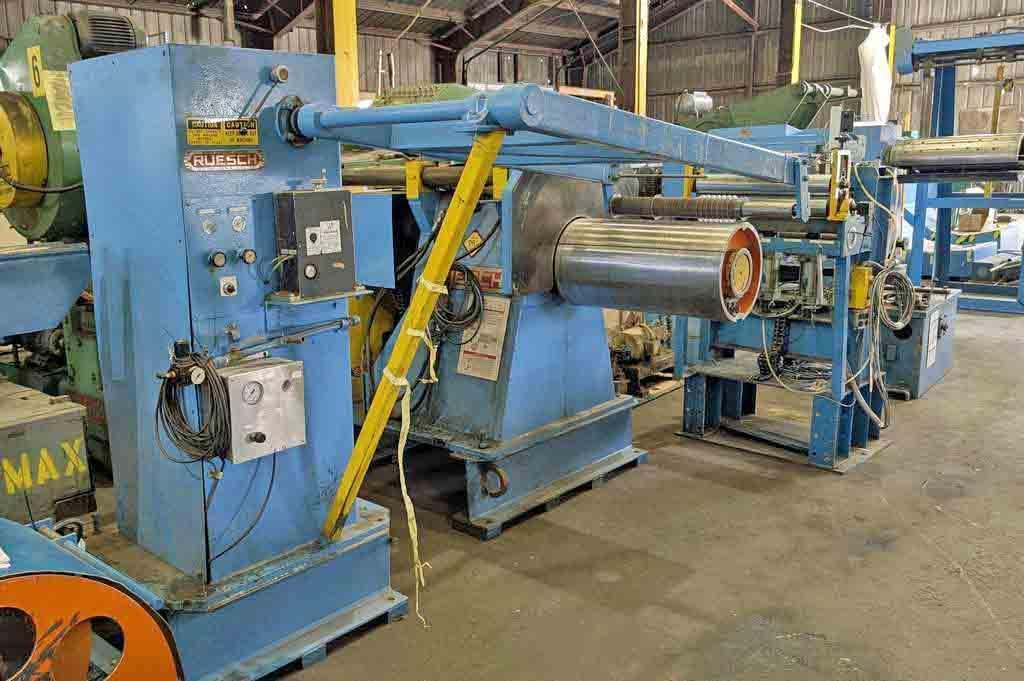

-Recoiler: Ruesch
  Model: N2381A
  S/N: 5715
  16" Dia. x 30" Face Drum
  Manual Expansion
  Material Slot (No Gripper)
  Hydraulic Pushoff
  46" from Floor to center of Drum
  25 HP Reliance DC Motor, 500/1800 RPM, 230 V
  Chain Drive to Recoiler
  Overall Size: Recoiler - 101" Long x 83" W x 71" High
                DC Motor - 41" L x 37" W x 42" High

-Freestanding Overarm Separator: Ruesch
  Model: N2381
  S/N: 5715
  Overall Size: 90" L x 82" W x 79" High

-Exit Coil Car: K&S
  40" Wide Bed
  60" O.D. Capacity
  Self-Contained Hydraulics
  Coil Retaining Arms
  Overall Size: 66" L x 55" W x 68" High

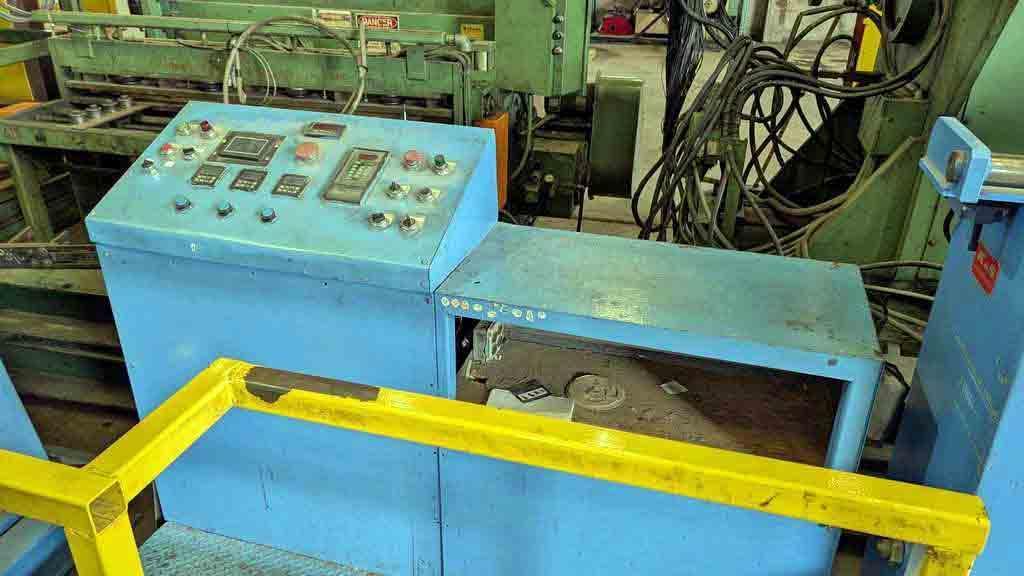

-Main Operators Control Panel:

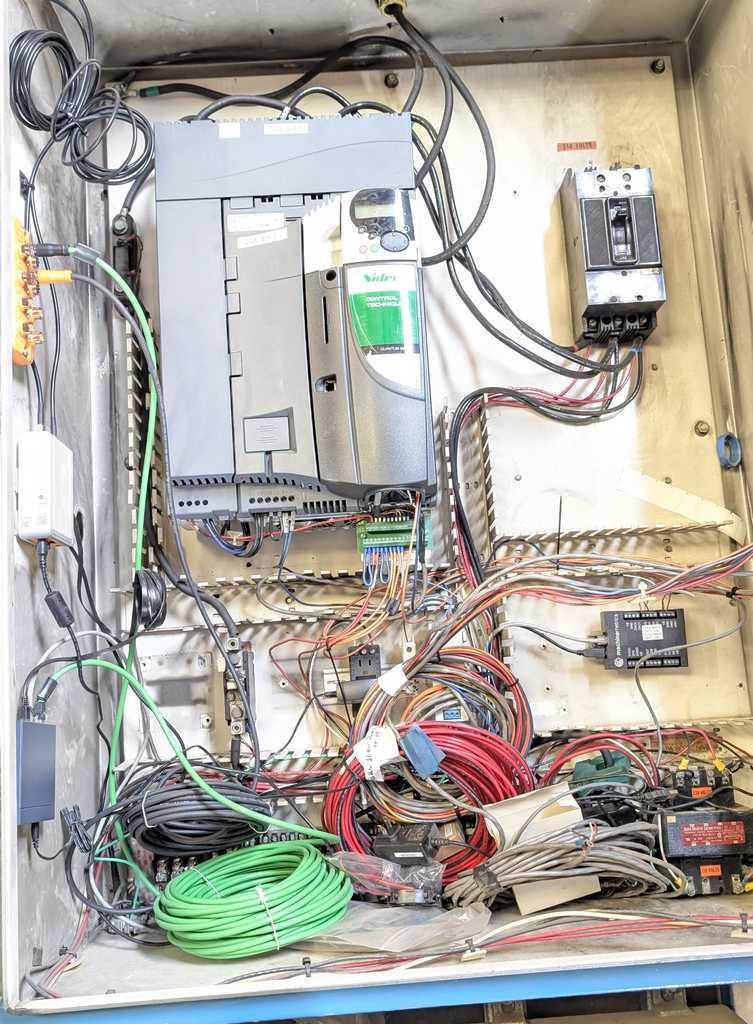

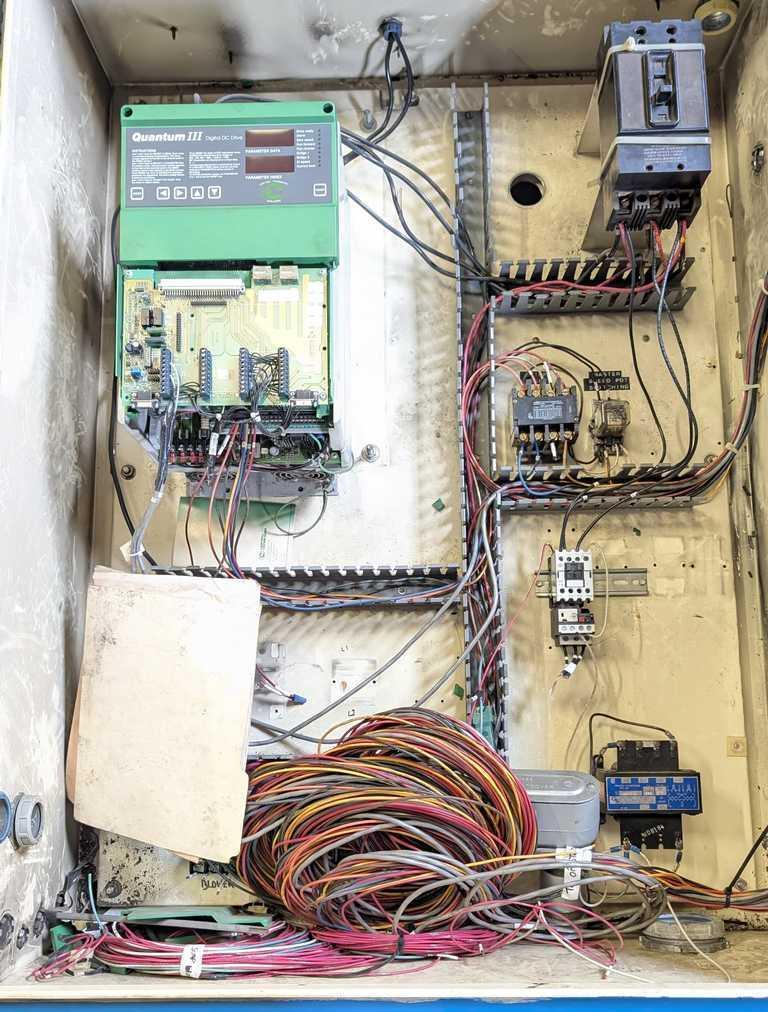

-(2) DC Drive Cabinets:
  #1 - Quantum III Drive
  #2 - Nidec Control Techniques Quantum MP Drive (New in 2020)

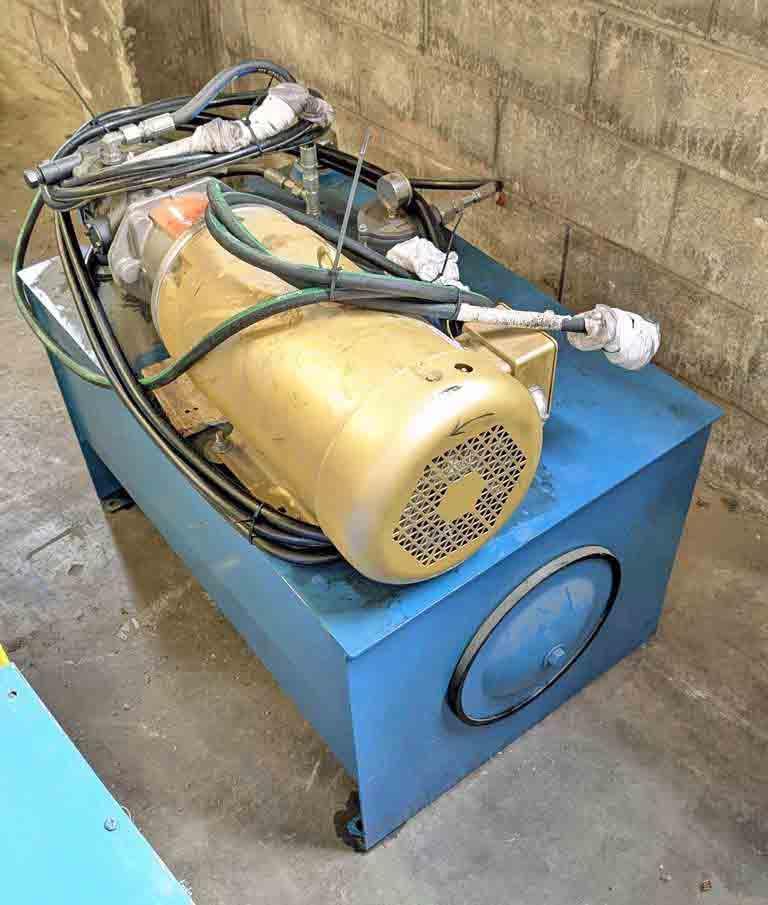

-Hydraulic Power Unit:

-Line Direction: Right to Left
Removed and in storage

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
