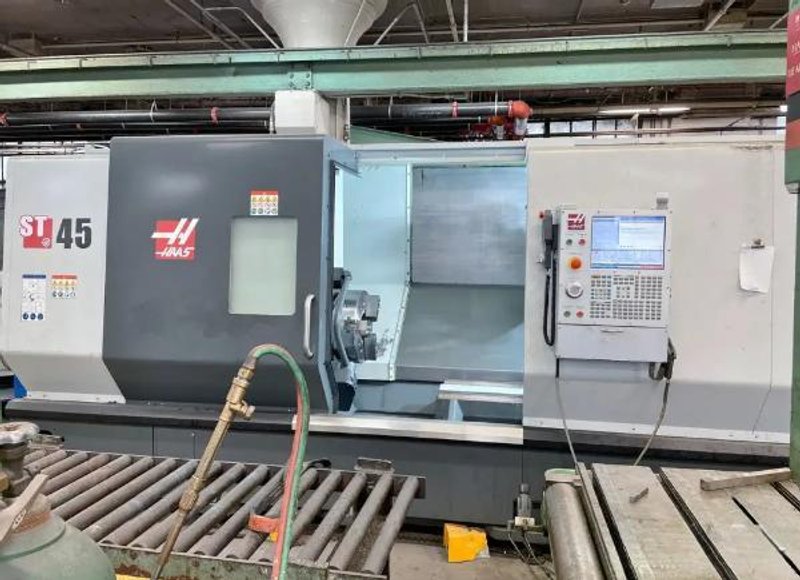

34.5” X 17” CNC Lathe with 18” 3 - Jaw Samchully Chuck, Manual Tailstock (hydraulic Quill), Tool Presetter, Chip Conveyor, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect (Remote Monitoring).

GENERAL SPECIFICATIONS
Max Swing:                    34.5”
Max Cutting Diameter:            25.5”
Max Cutting Length:                44”
X - Axis:                    17”
Z - Axis:                    44”
Chuck Size:                    18”
Bar Capacity:                    6.5”
Spindle Bore:                    7”
Spindle Nose:                A2-11
Spindle Motor:                 40 HP
Spindle Speed:                1,400 RPM
Rapid Traverse Rate X - Axis:        710” / Min
Rapid Traverse Rate Z - Axis:        710” / Min
Turret Positions:                12
Turret Type:                    Bolt - On
Dimensions:                    230” X 100” X 90”
Weight:                    28,000 Lbs


INCLUDES: 18” 3 - Jaw Samchully Chuck, Manual Tailstock (hydraulic Quill), Tool Presetter, Chip Conveyor, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect (Remote Monitoring).

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
