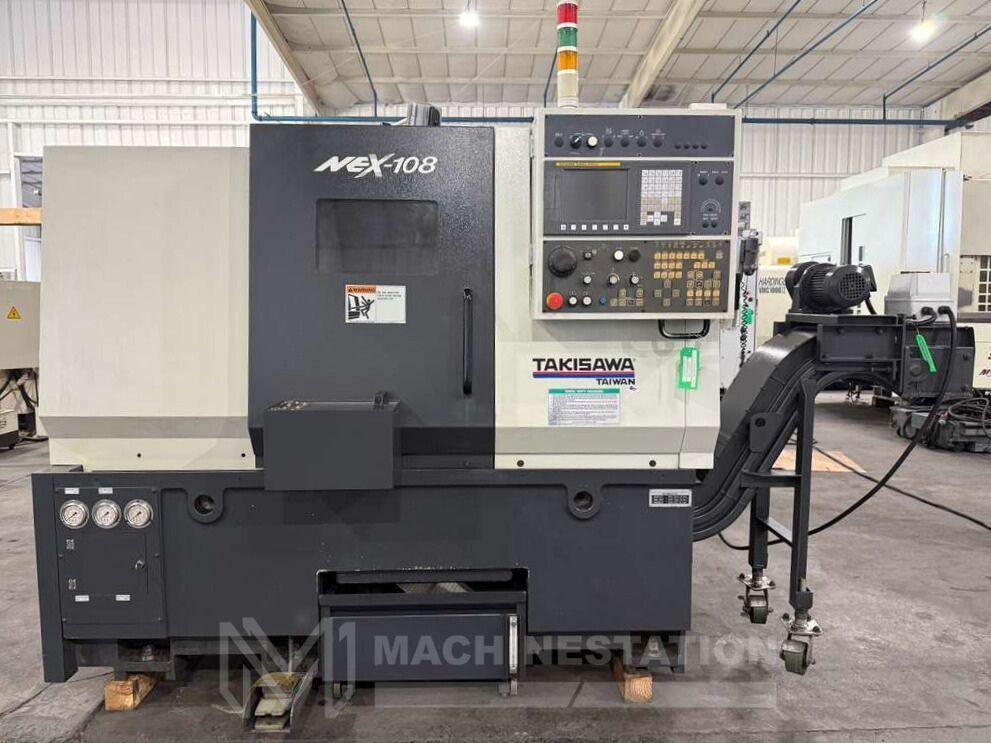

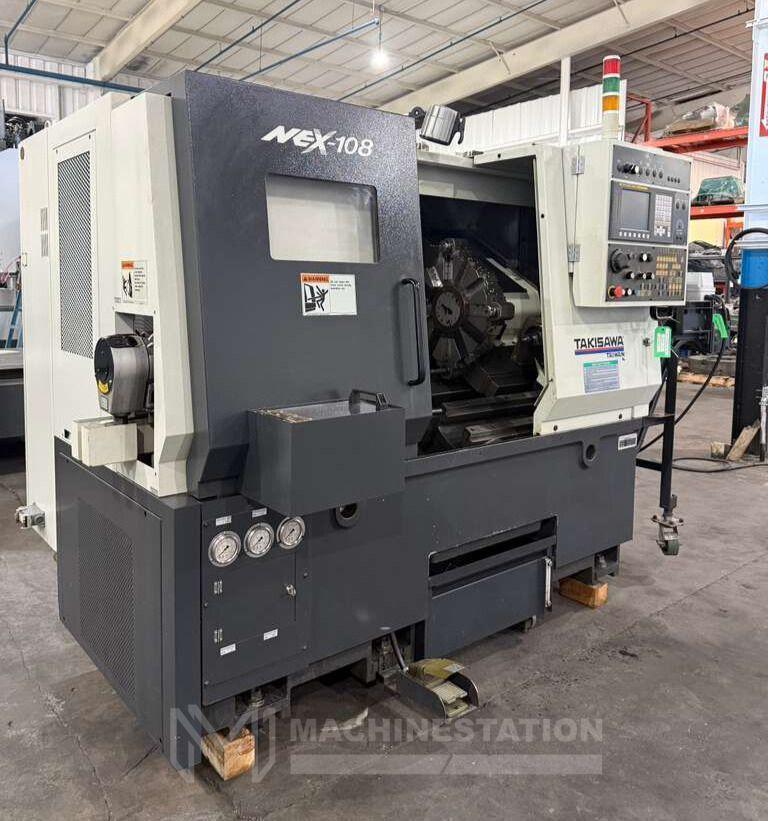

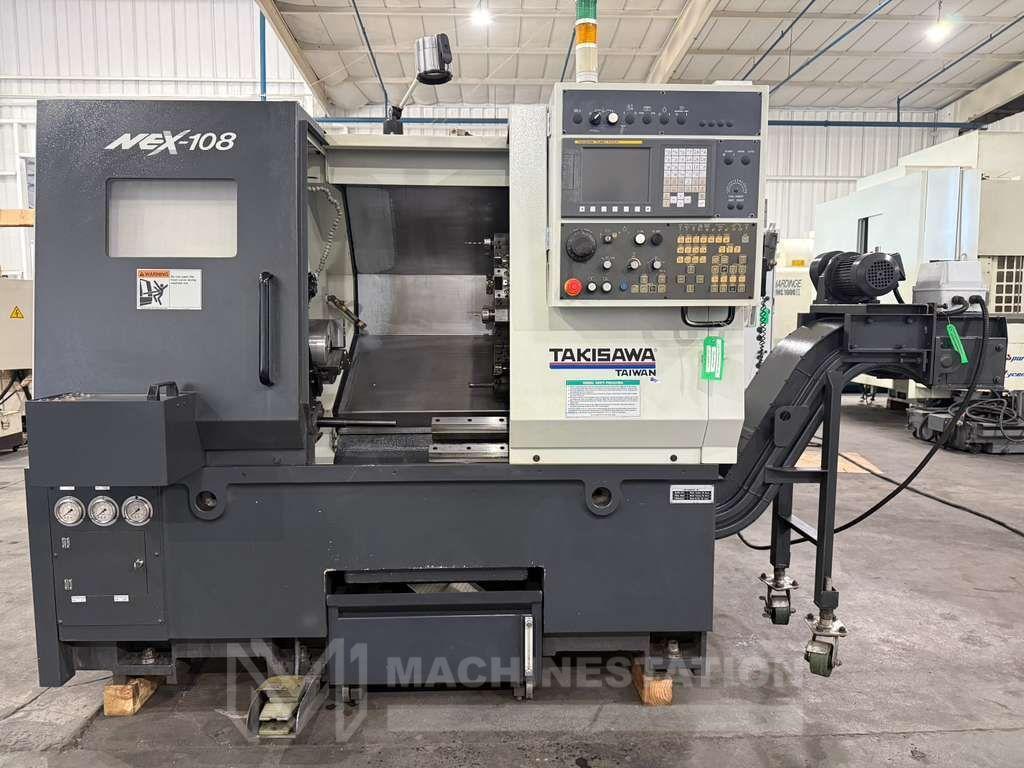

Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe

Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe

Name: Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe
Brand: TAKISAWA
SKU: 113512
Availability: InStock

Brand

TAKISAWA

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Takisawa
Model:	NEX-108

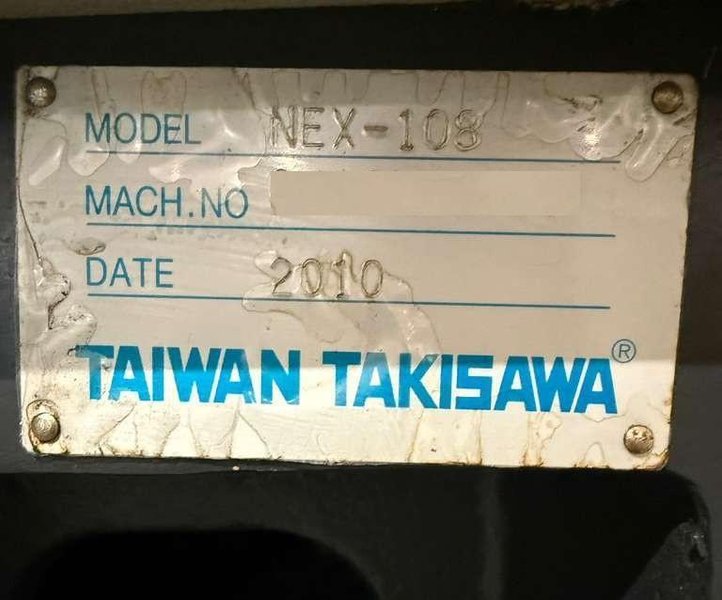

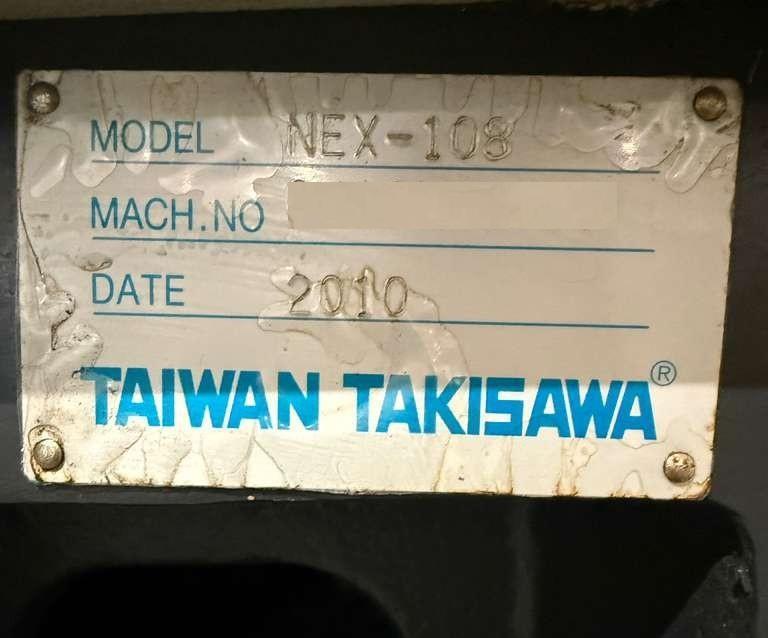

Year:	2010

Equipped With:

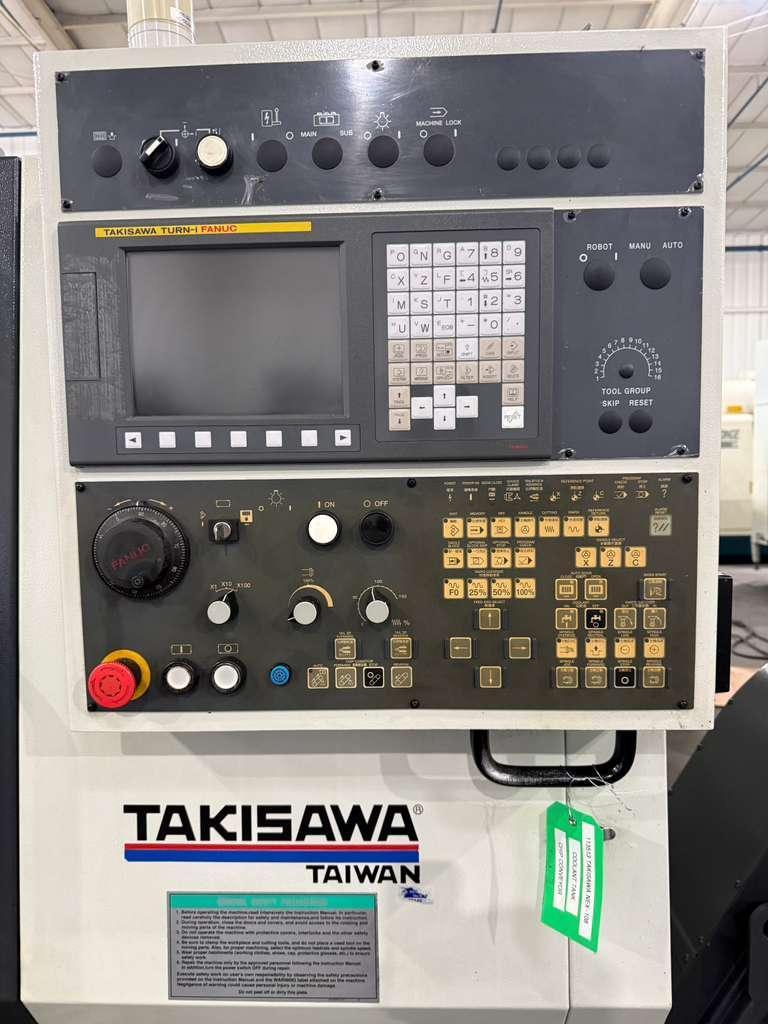

Takisawa Turn-i Fanuc CNC Control
Linear Ways Construction

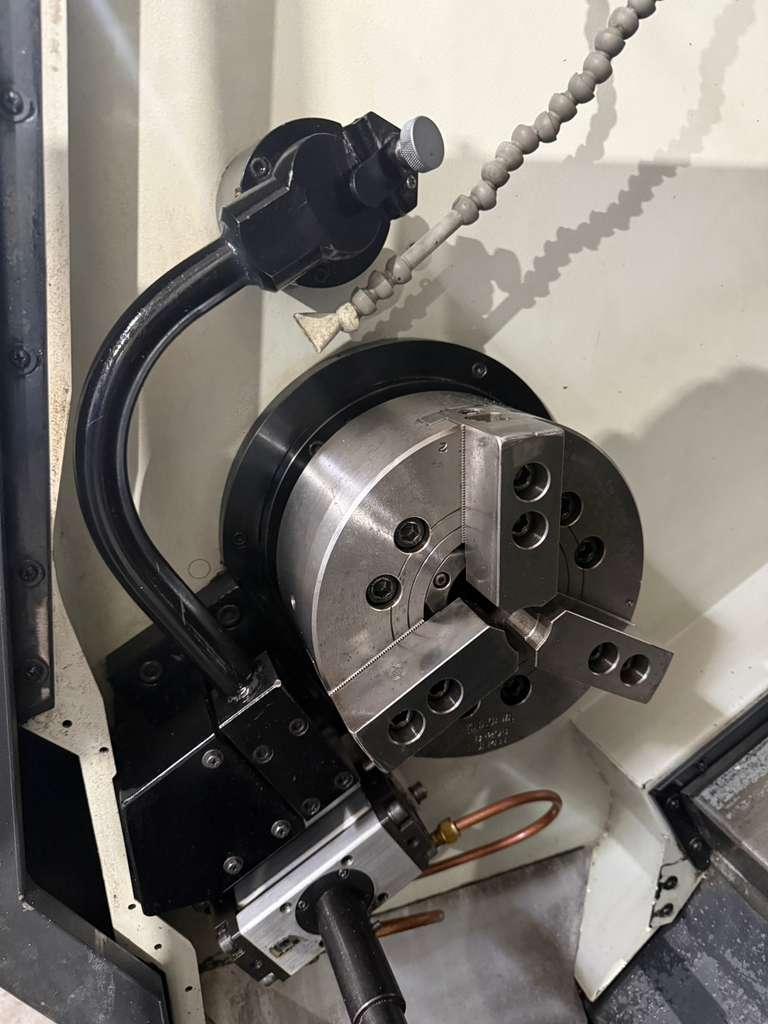

8 inch 3-Jaw Hydraulic Chuck
12-Station Automatic Turret
Tool Presetter
Tailstock
PCMCIA Card Interface

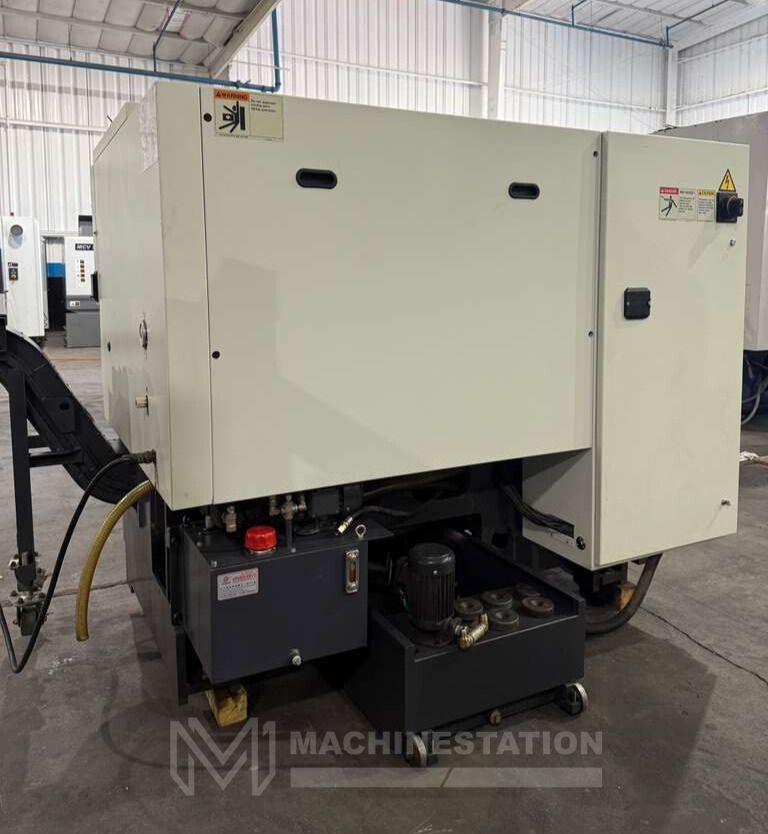

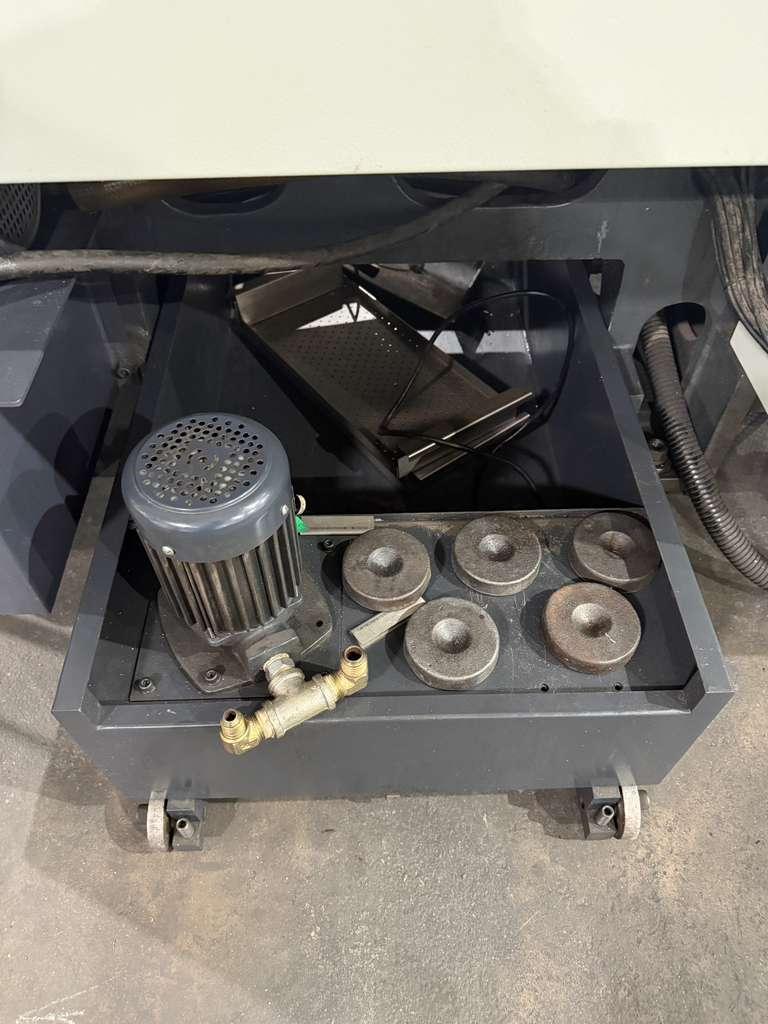

Coolant Tank
Automatic Lubrication Unit
Foot Switch

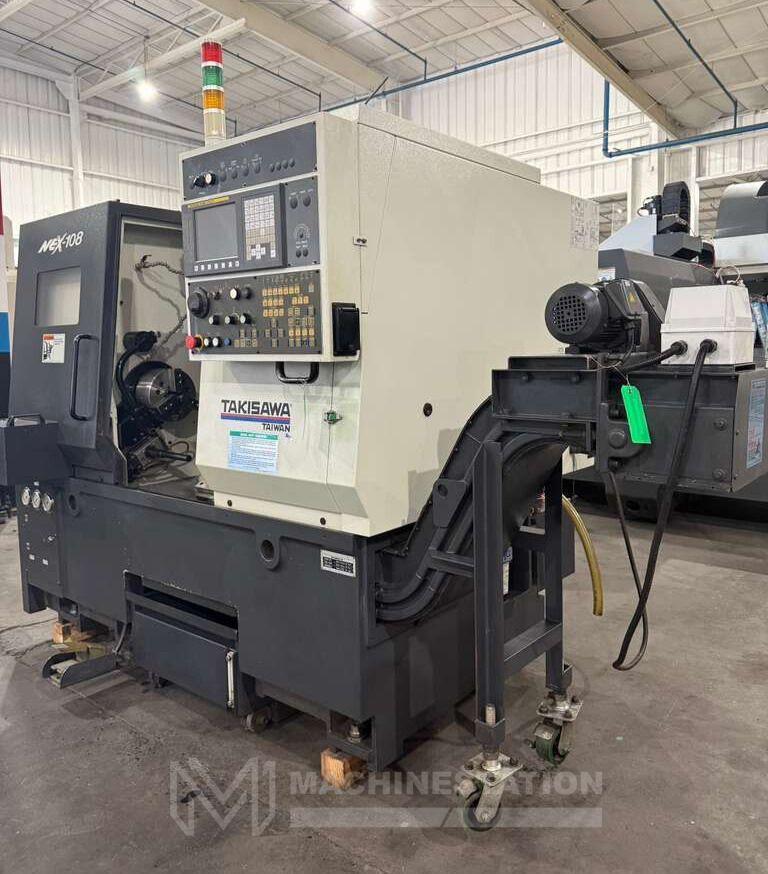

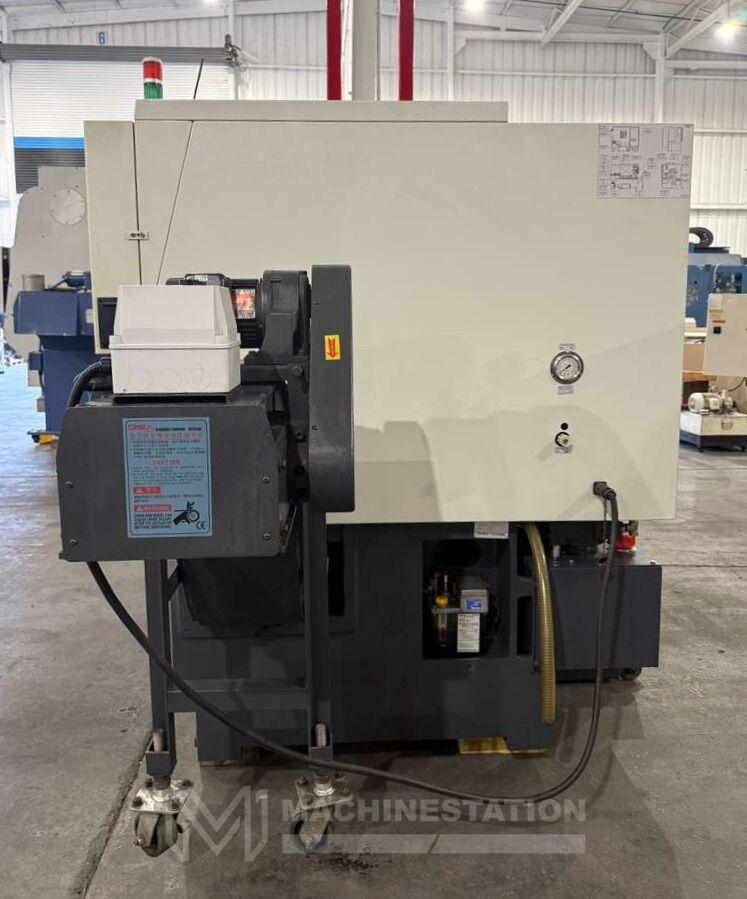

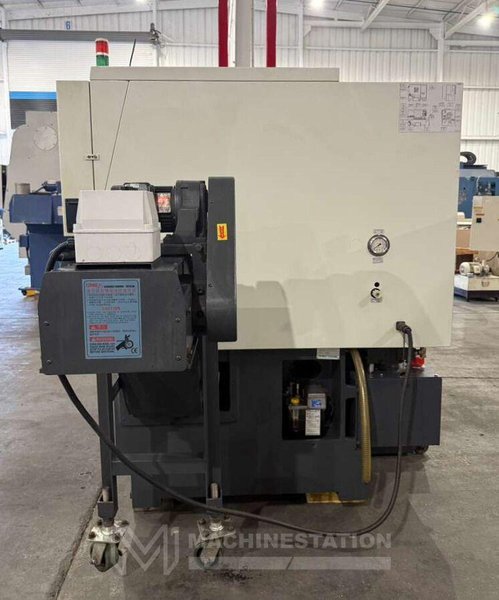

Chip Conveyor
Levelling Pads

Capacity:
Max Turning Diameter: 12.60 inch
Max Turning Length: 18.93 inch
Swing Over Bed: 15.75 inch
Swing Over Cross Slide: 12.60 inch
Max Bar Capacity: 2.04 inch

Travels:
X Axis Travel: 7.08 inch
Z Axis Travel: 20.87 inch
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.48 inch
Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP

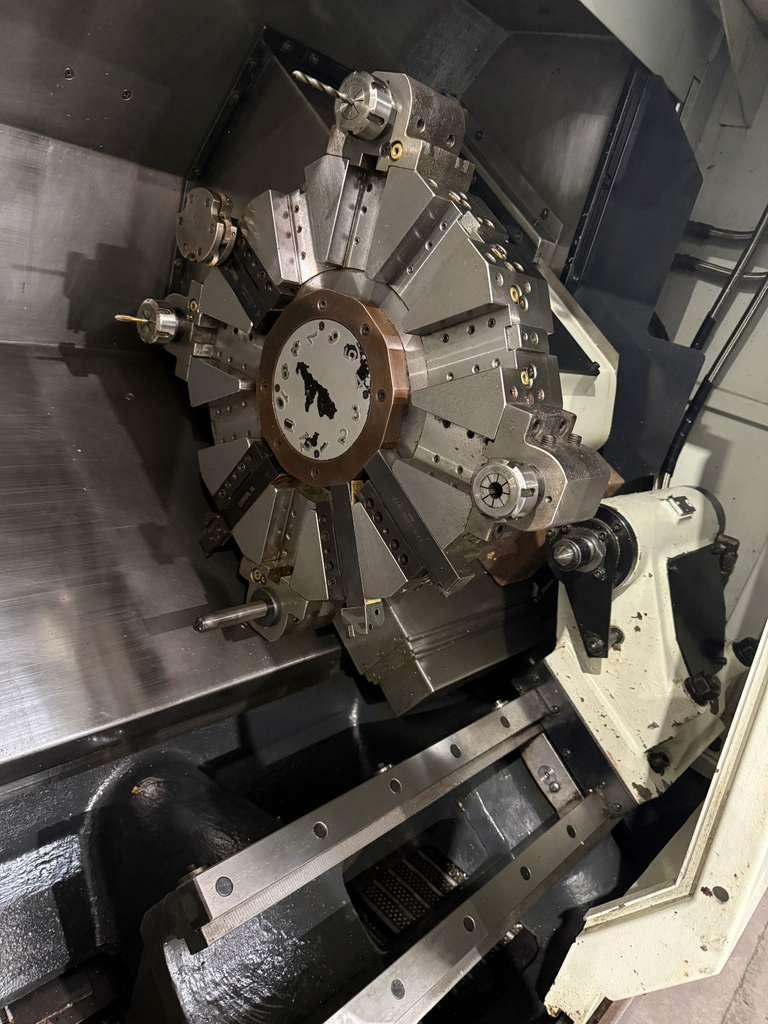

Turret:
Turret Capacity: 12 Stations
Turning Tool Shank: 1.0 inch
Boring Bar Shank Diameter: 1.57 inch
Tool Holders Type: Bolt Mounted

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 16.73 inch
Tailstock Quill Diameter: 2.95 inch
Tailstock Quill Travel : 3.93 inch

General:
Power Source: AC 220 V, Three Phase, 50/60 Hz
Power Requirement: 21 kva
Overall Dimensions: 86 inch x 65 inch x 70 inch High Approx.
Weight : 8,377 lbs Approx.
