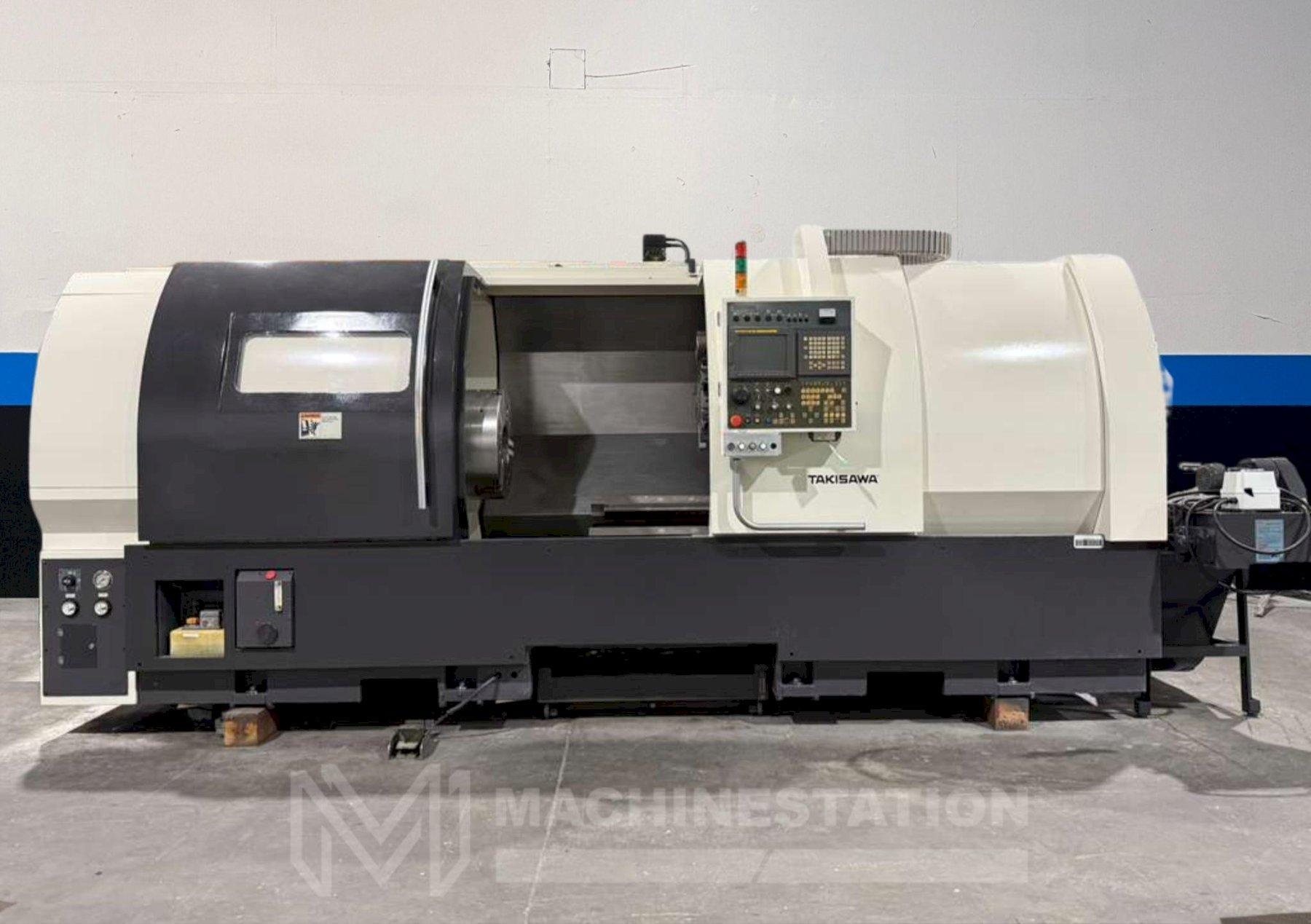

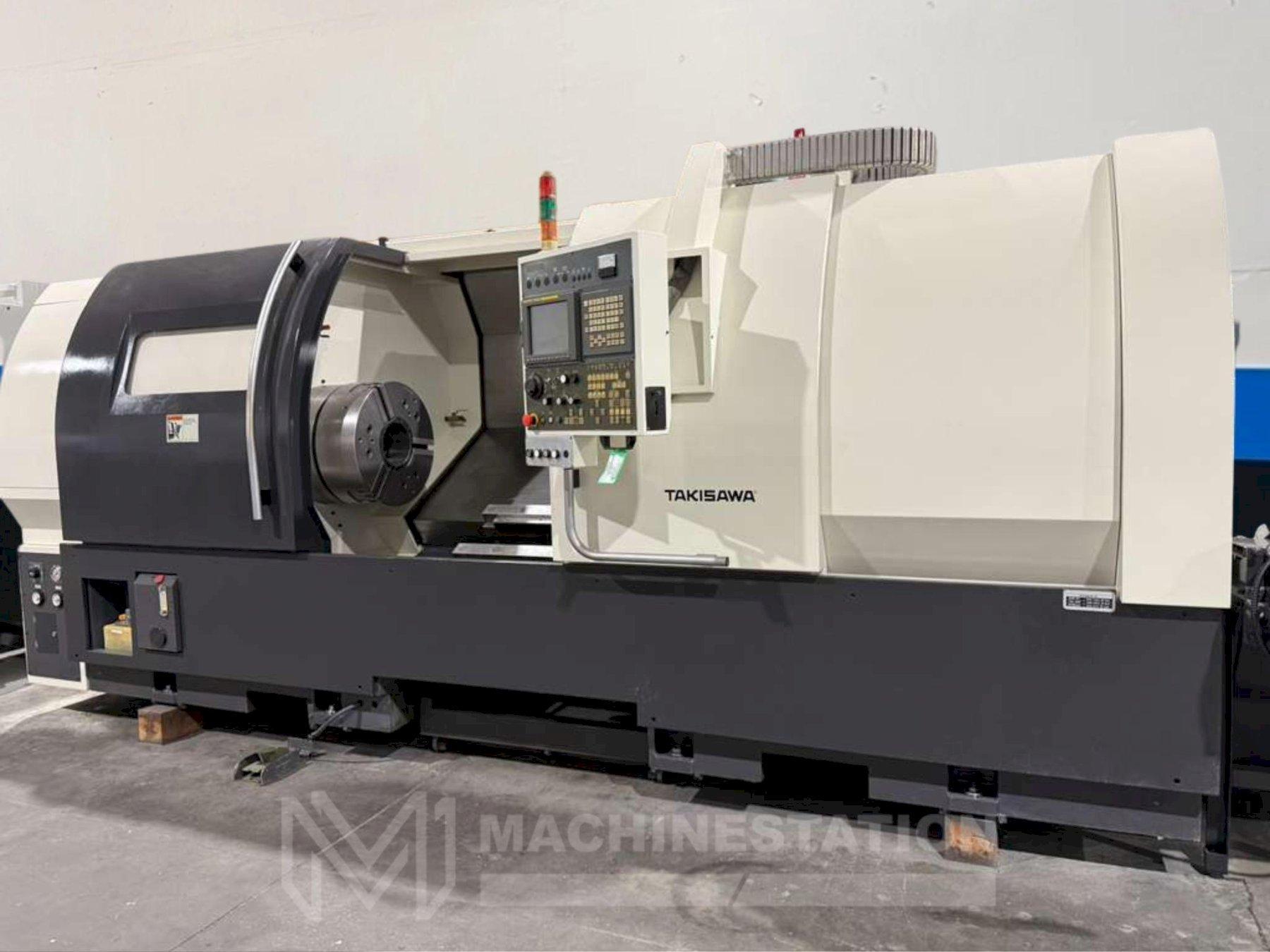

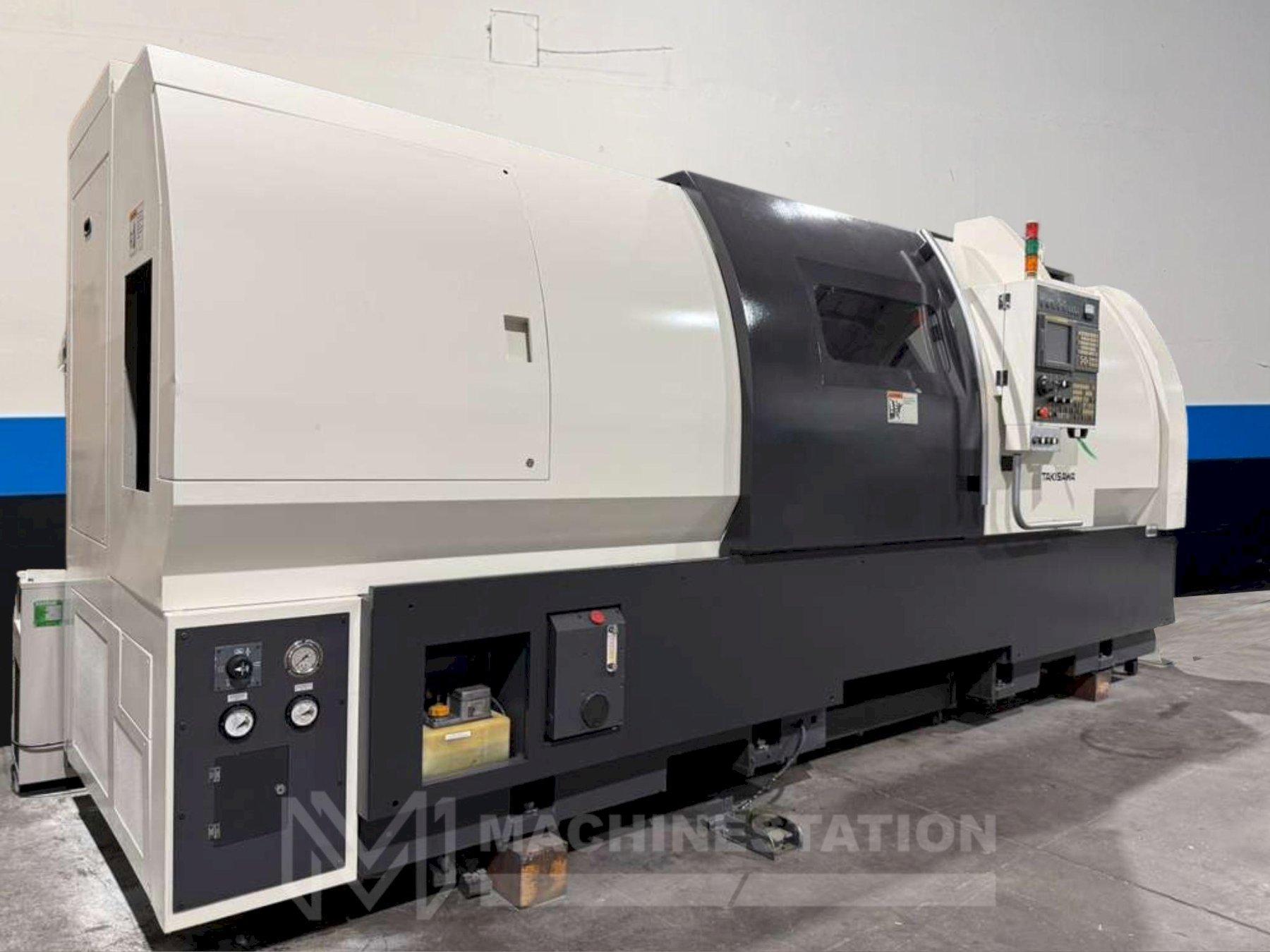

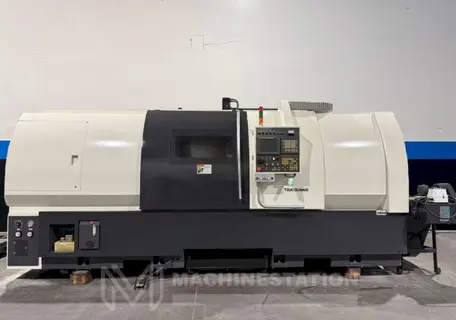

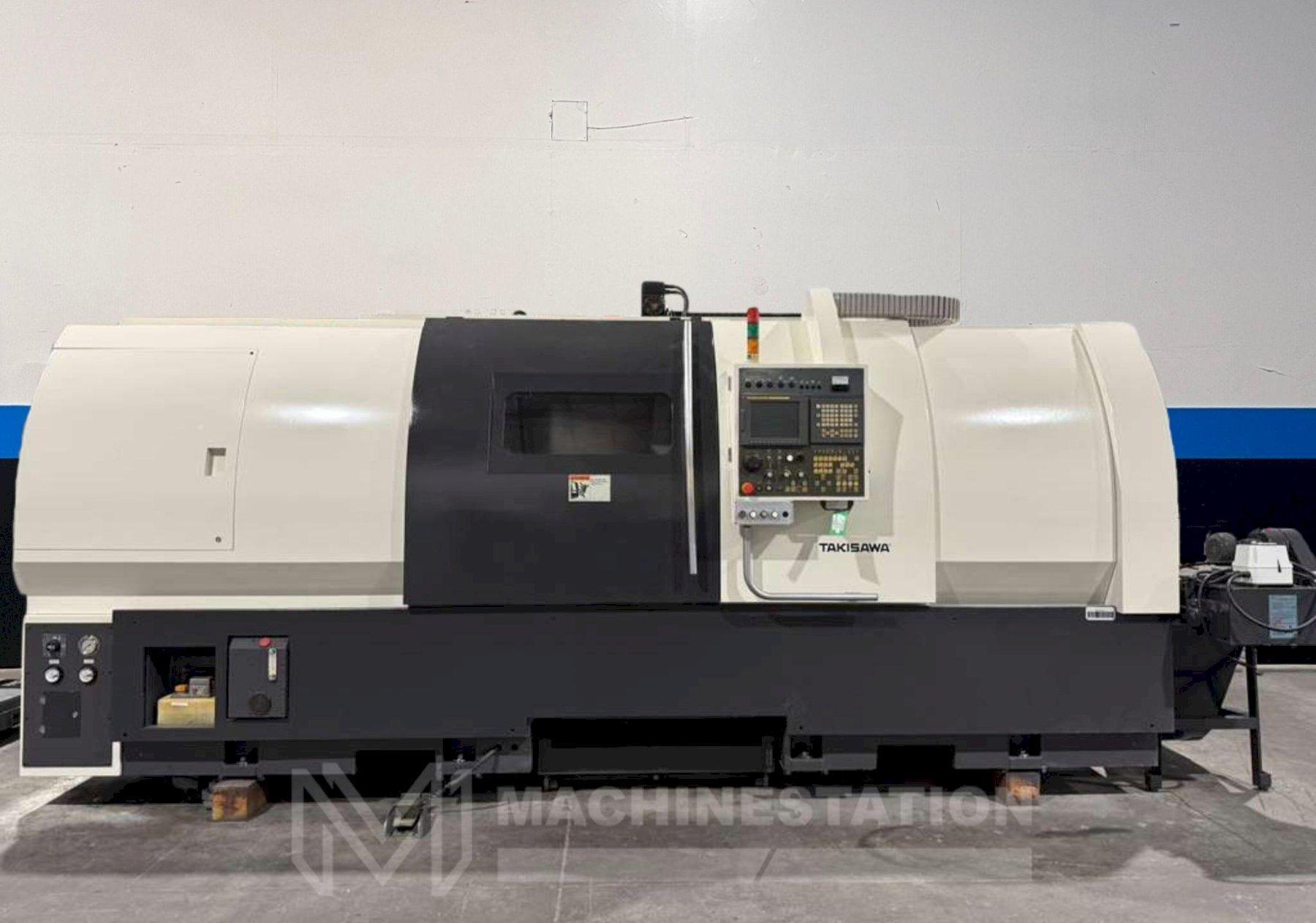

Takisawa EX-122 CNC Turning Center – 21″ Chuck, 7.87″ Big Bore, Long Bed Lathe

Brand
TAKISAWA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
EX 122
Stock #
112929
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Takisawa
Model: EX-122
Year: 2005
Equipped With:

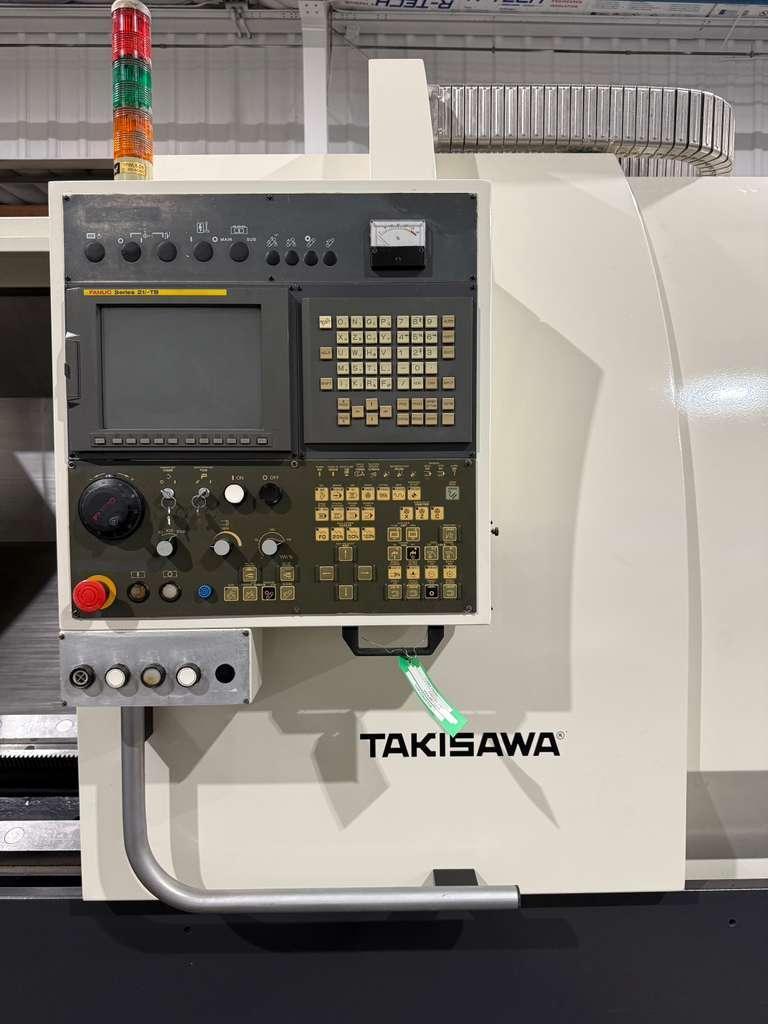

Fanuc 21i-TB CNC Control
Long Bed Box Way Machine

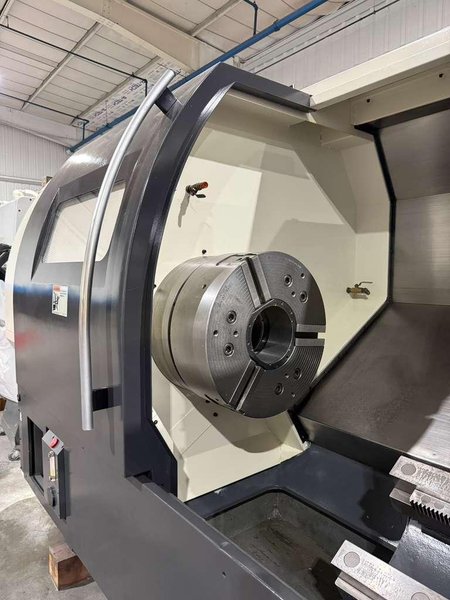

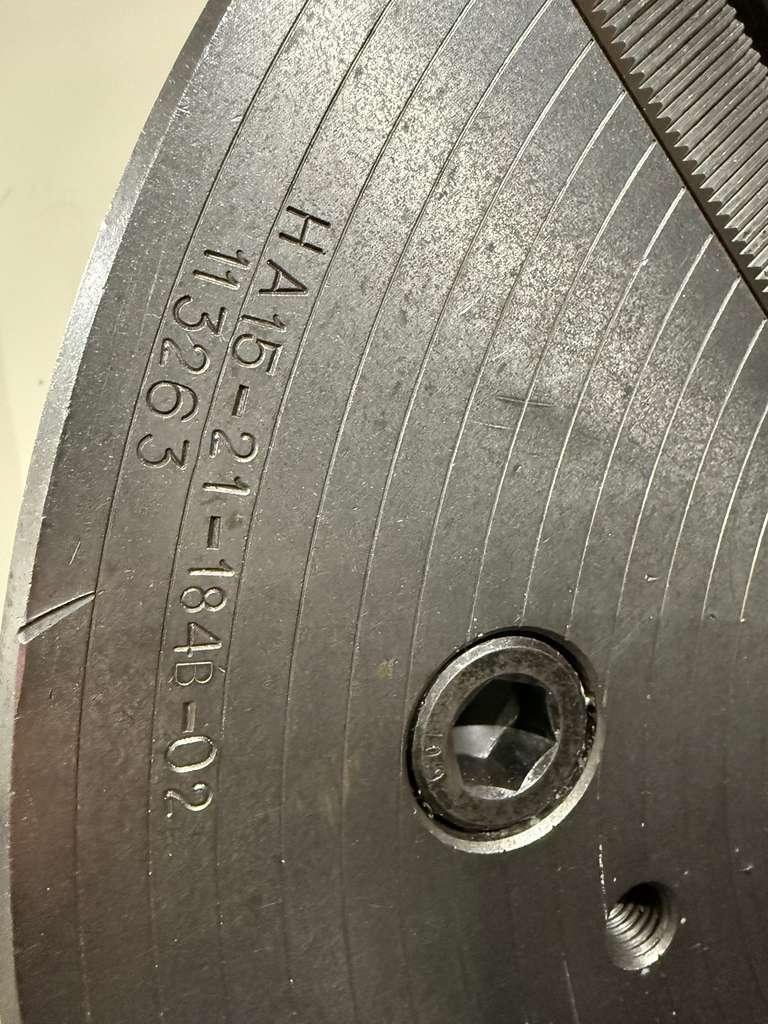

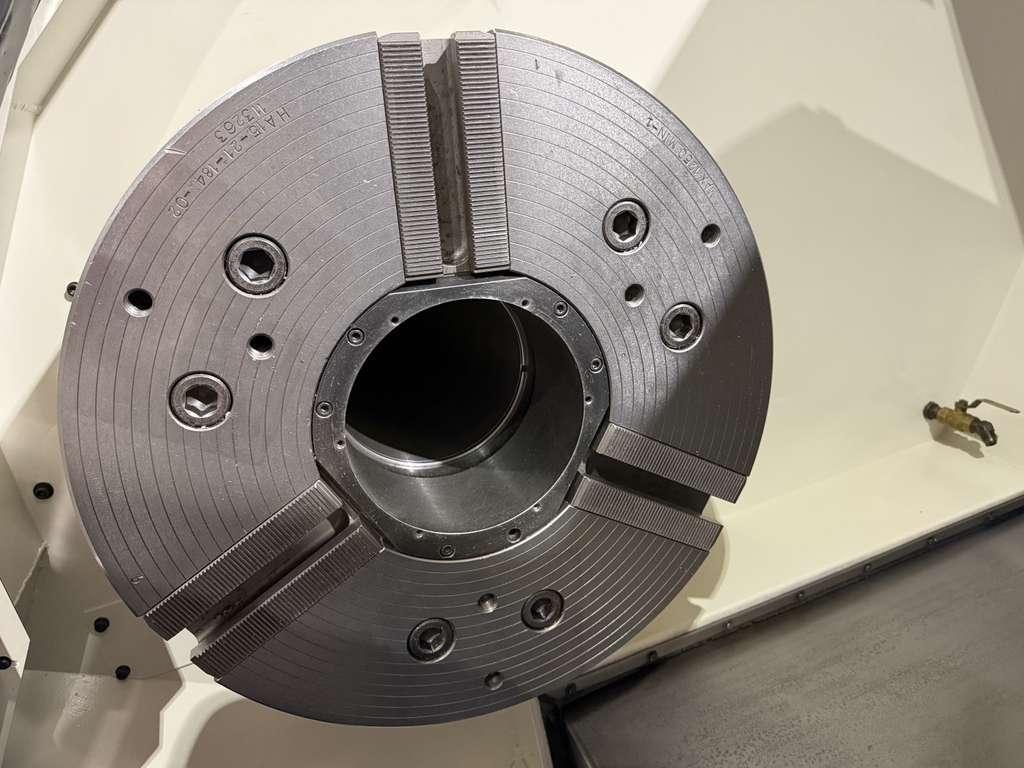

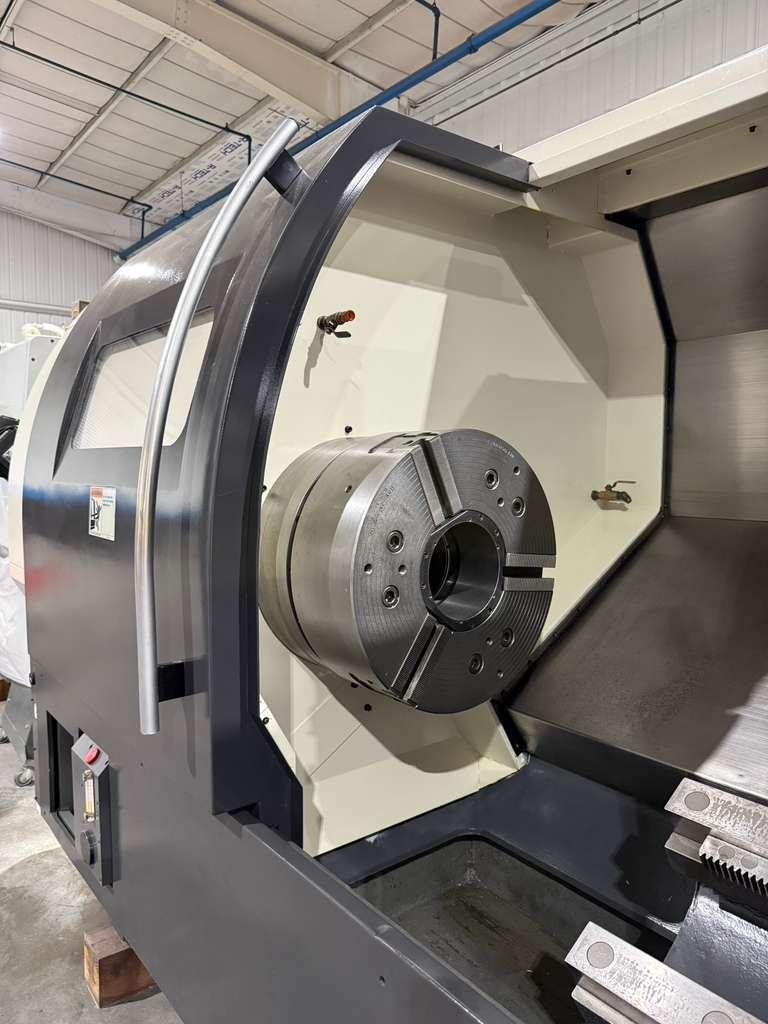

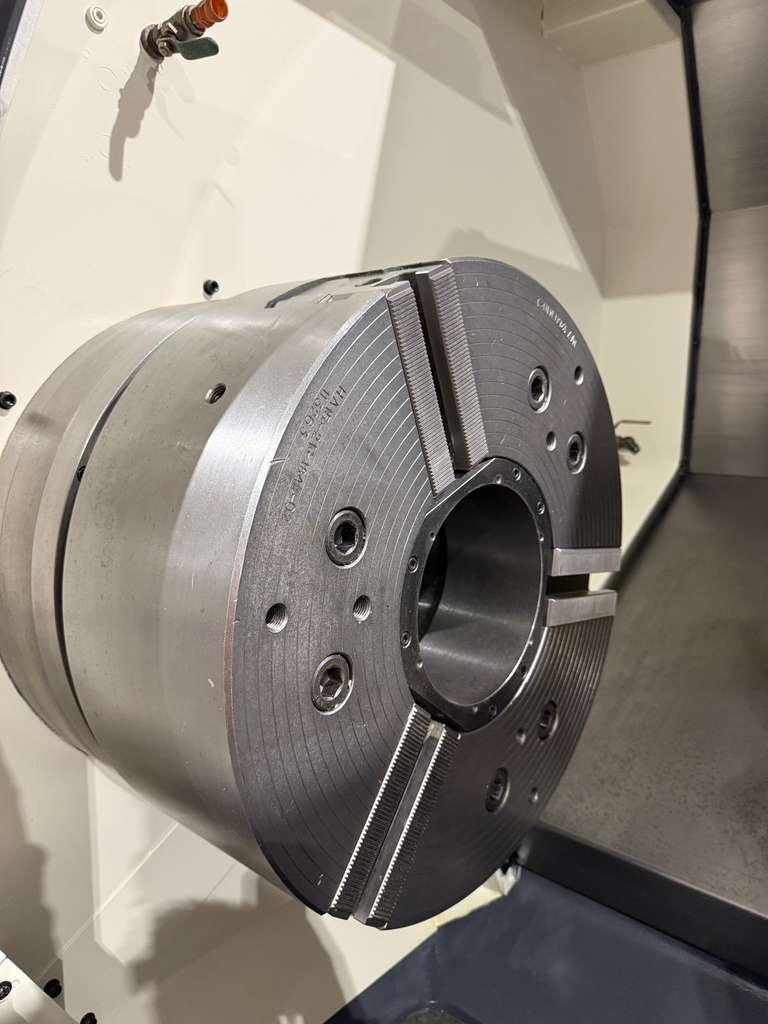

21 inch 3-Jaw Hydraulic Chuck
7.87 inch Big Bore, A2-15 Spindle

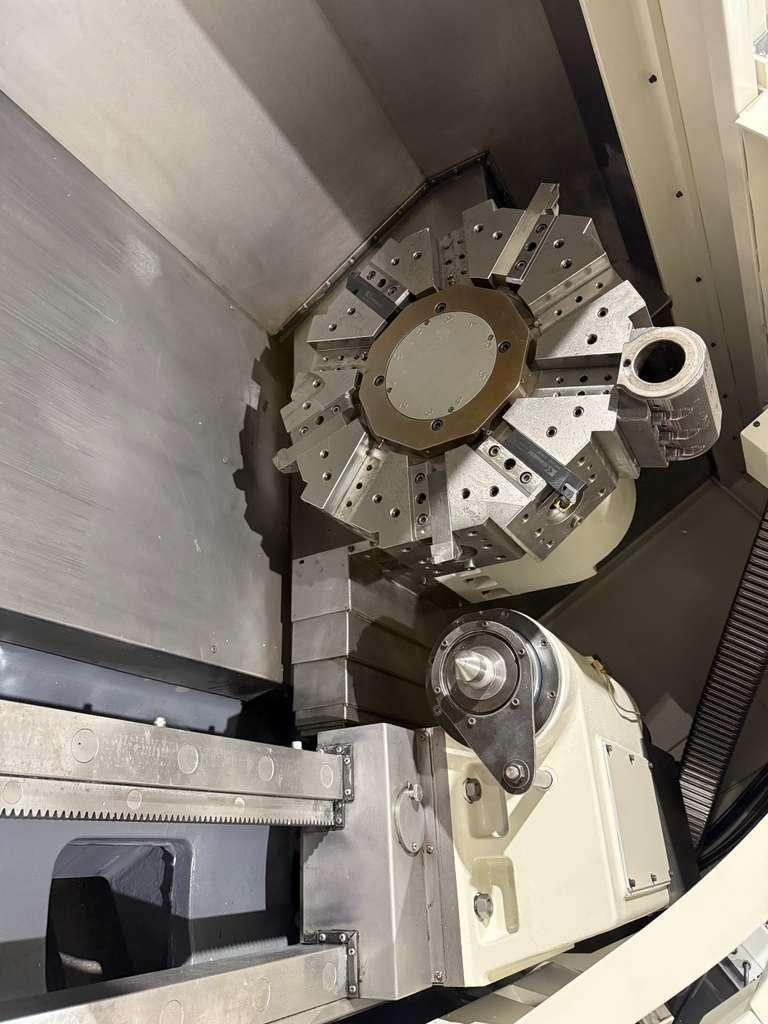

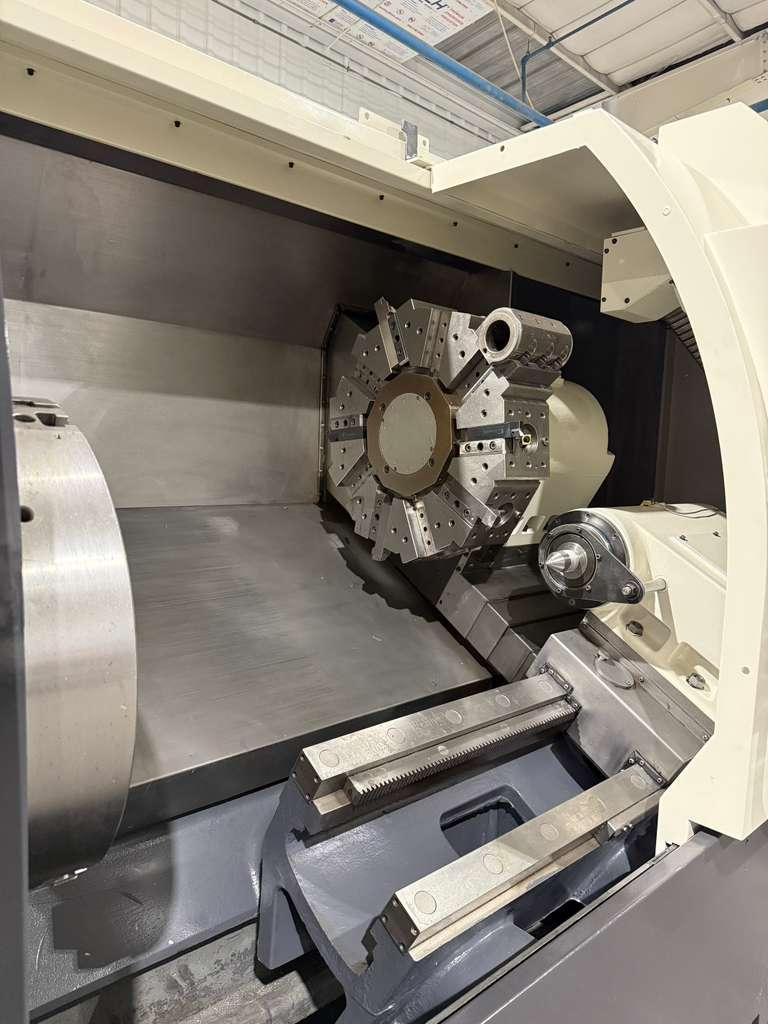

10 Station Automatic Turret
35 HP High Torque Spindle
High Precision Geared Head Spindle for powerful Torque

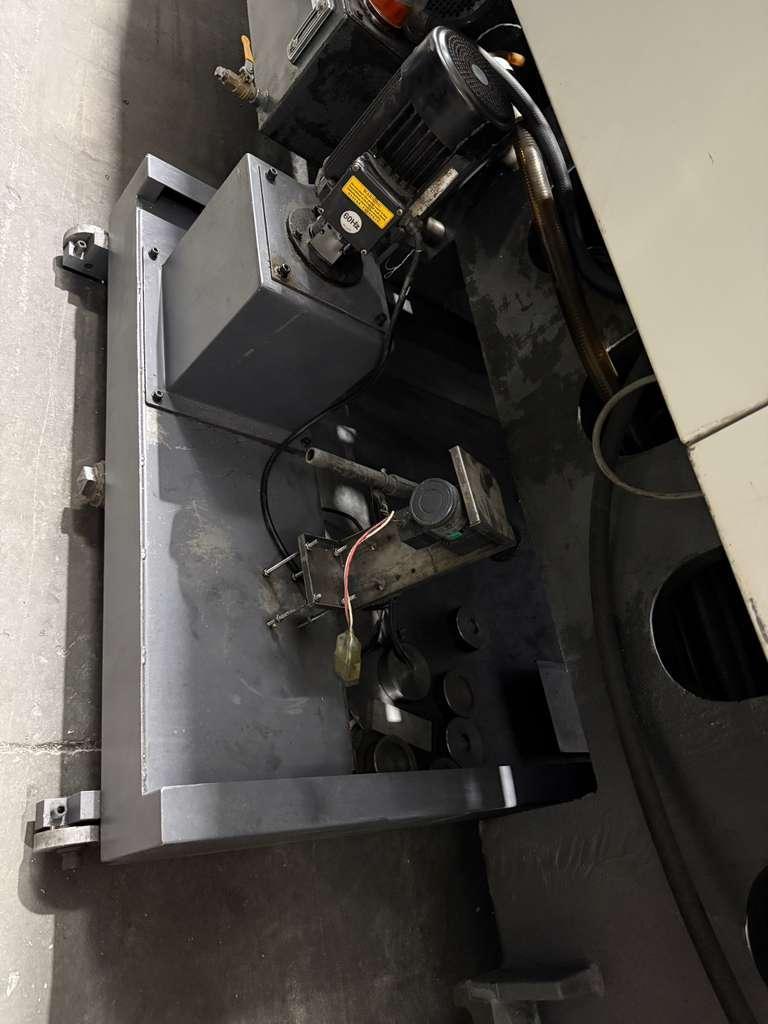

Hydraulic Tailstock and Power Quill
PCMCIA Card Interface
Coolant Tank

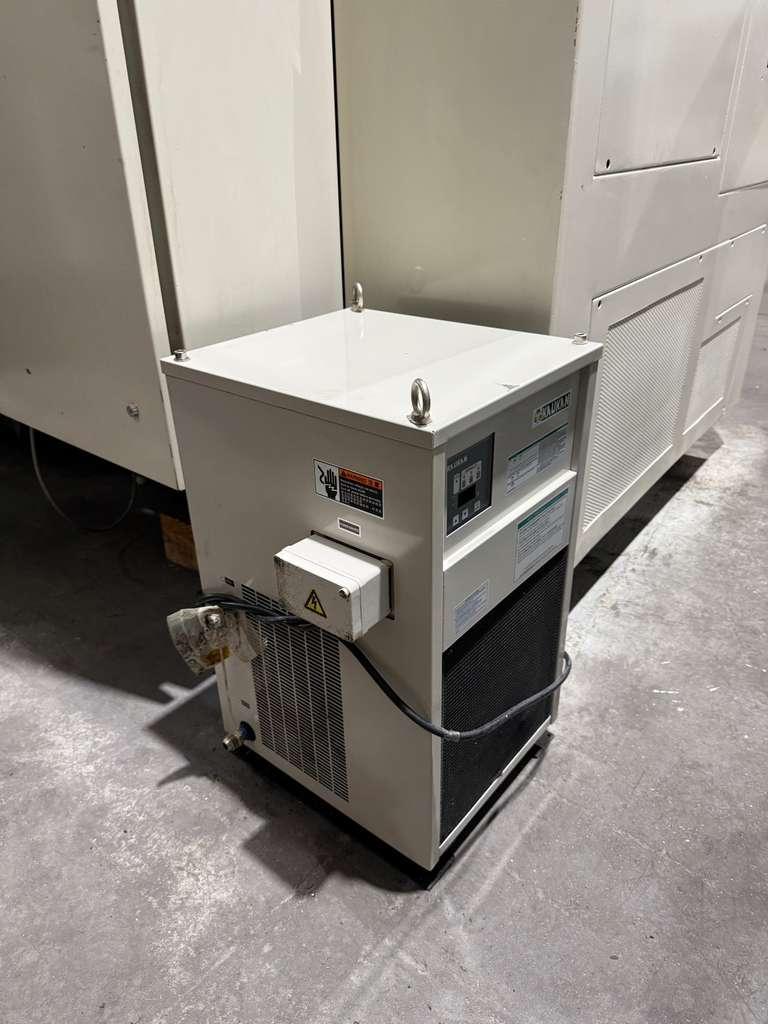

Spindle Chiller Unit

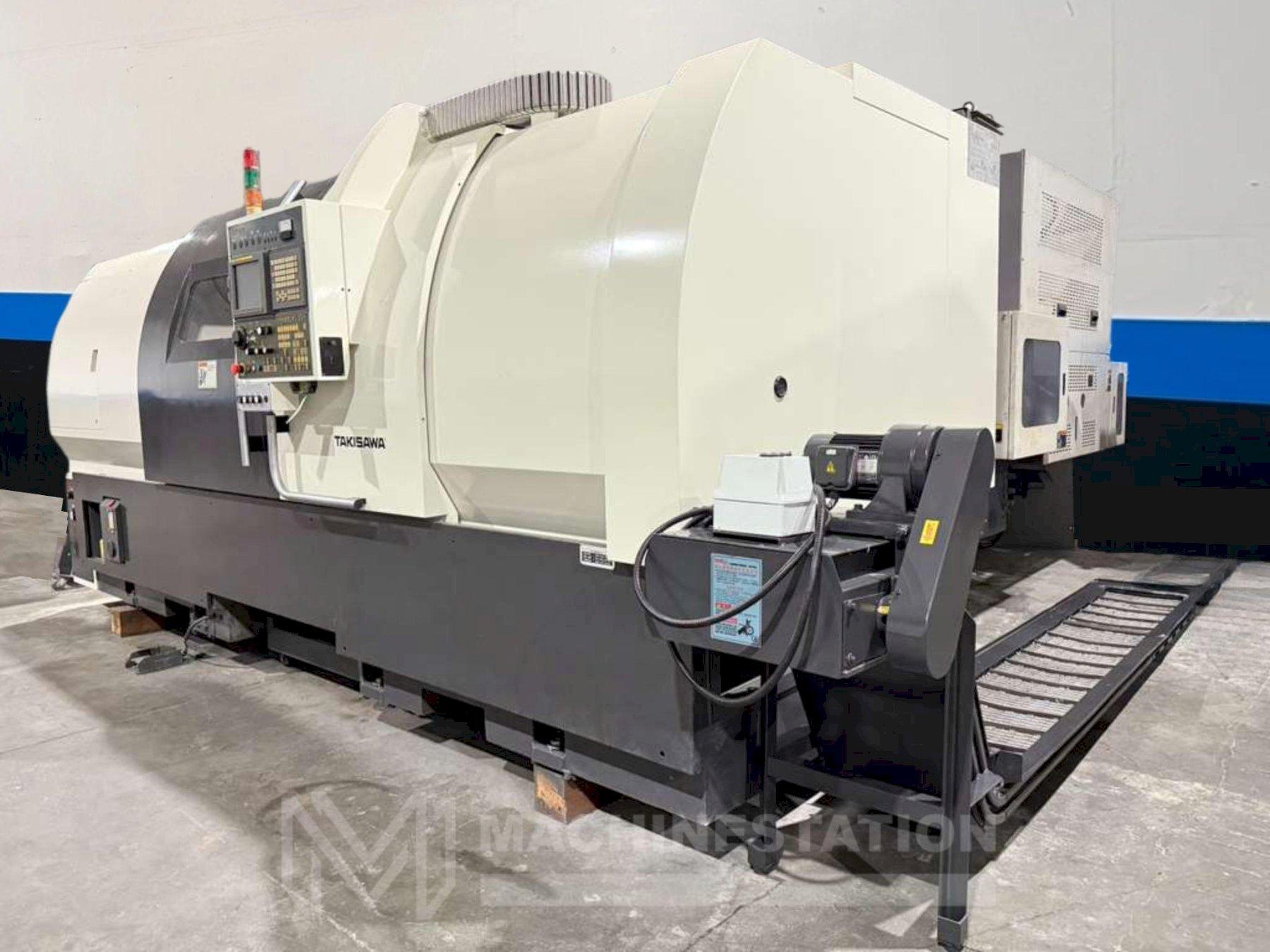

Chip conveyor

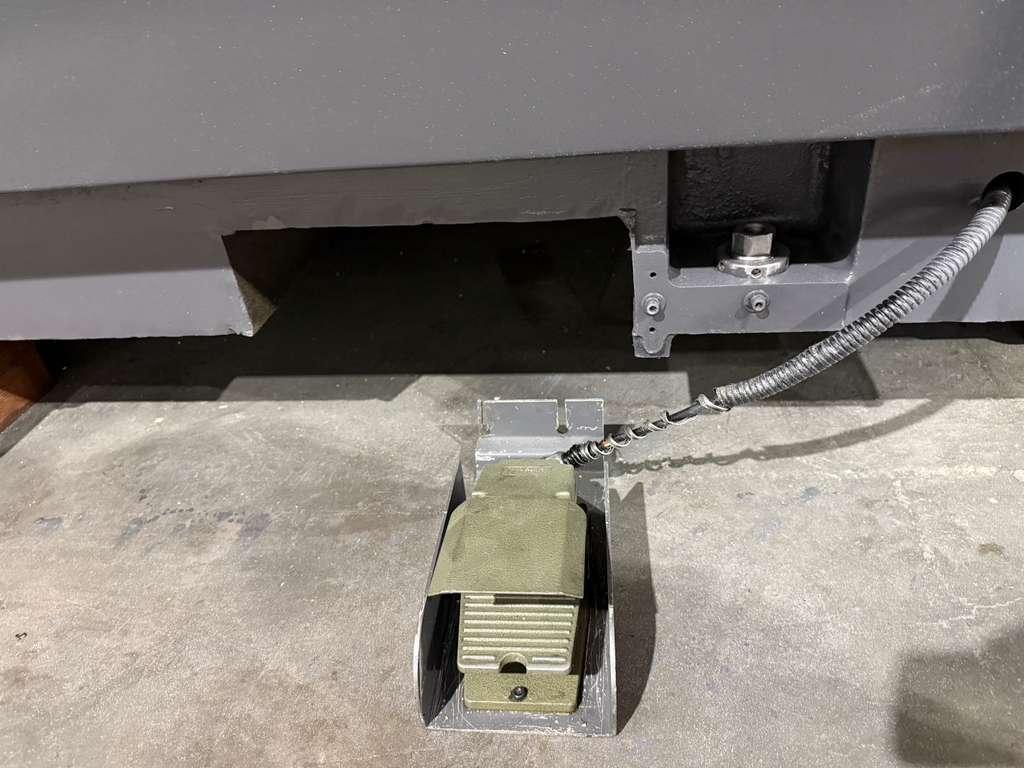

Foot Switch
Levelling Pads
Capacity:
Max Turning Diameter: 24.0 inch
Max Turning Length: 60.0 inch
Max Bar Capacity: 7.25 inch
Max Swing Over Bed: 36.0 inch
Travel:
X Axis Travel: 13.38 inch
Z Axis Travel: 60.00 inch
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 944 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.87 inch
Spindle Speed: 12 – 1200 RPM
Spindle Motor: 35 HP
Turret:
Capacity: 10 Stations
Turning Tool Size: 1.26 inch
Boring Tool Diameter: 2.56 inch
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Stroke.: 7.87 inch
Tailstock Body Travel: 55.11 inch
General:
Power: 220v / 54 kva / 3-Phase
Overall Dimensions: 186.6 inch x 83.86 inch x 82.28 inch High Approx.
Weight: 24,200 lbs. Approx.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?

Similar Listings to - Takisawa EX-122 CNC Turning Center – 21″ Chuck, 7.87″ Big Bore, Long Bed Lathe

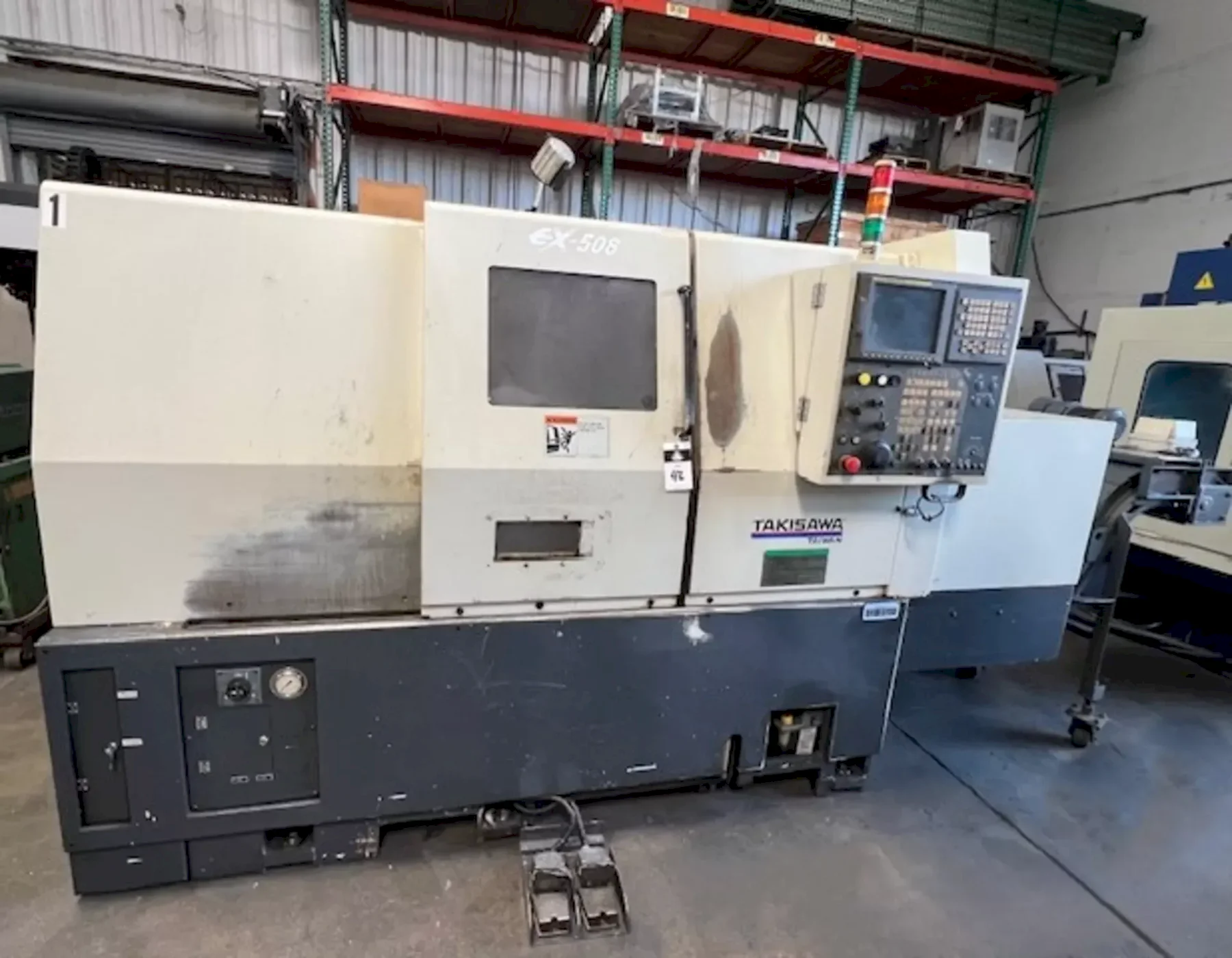

TAKISAWA EX-508 CNC Lathes & Turning Centers
TAKISAWA

Turning Centers

TAKISAWA EX-508 CNC Lathes & Turning Centers
Takisawa TX-50C CNC Turning Center – 12″ Chuck, 5″ Big Bore Lathe
TAKISAWA

Turning Centers

Takisawa TX-50C CNC Turning Center – 12″ Chuck, 5″ Big Bore Lathe
Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe
TAKISAWA

Turning Centers

Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe

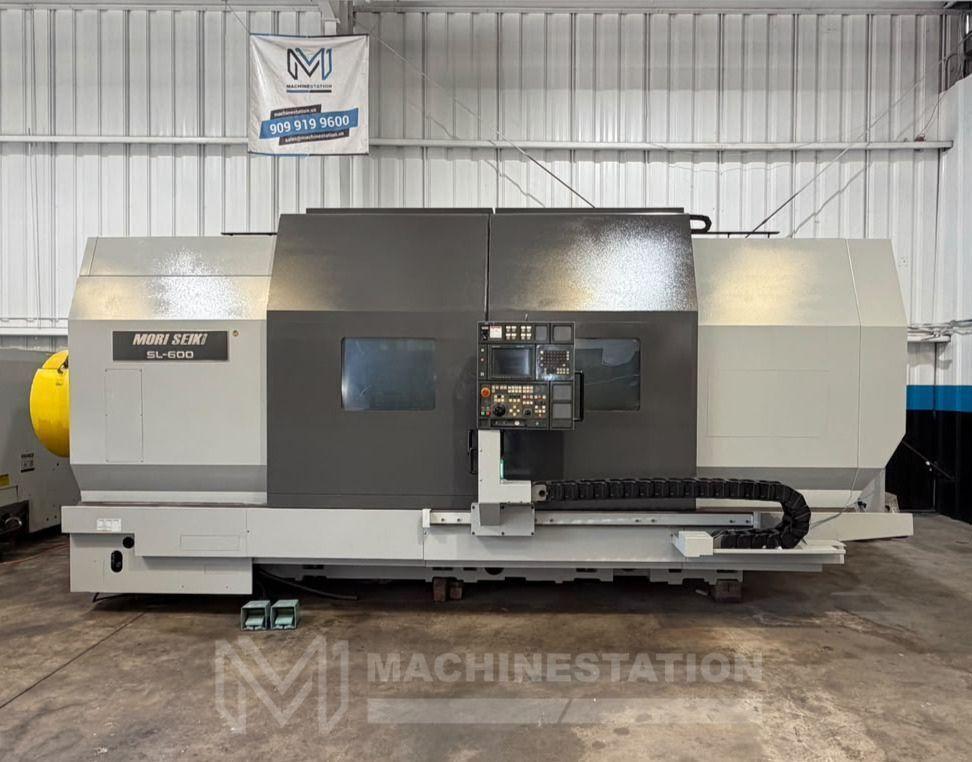

Mori Seiki SL-600C/2000 CNC Turning Center – 10.8″ Big Bore, 24.8″ Chuck, Long Bed Lathe
MORI SEIKI

Turning Centers

Mori Seiki SL-600C/2000 CNC Turning Center – 10.8″ Big Bore, 24.8″ Chuck, Long Bed Lathe

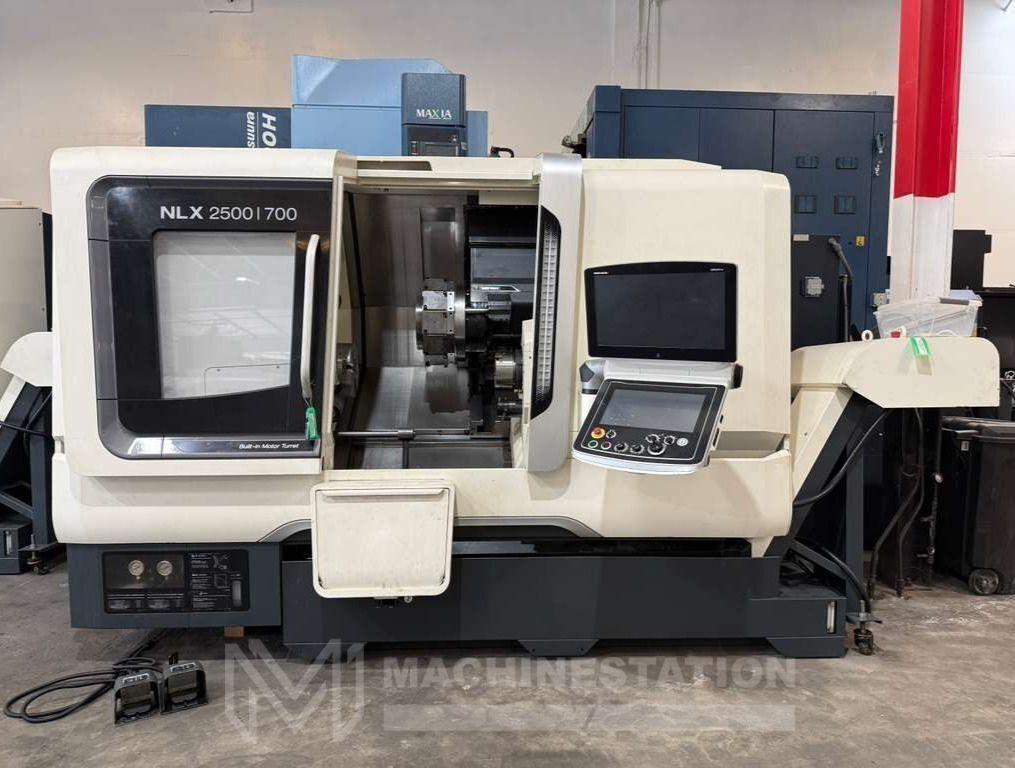

DMG Mori NLX-2500SY/700 CNC Turning Center – 2019 Sub Spindle, Y Axis Lathe
DMG MORI

Turning Centers

DMG Mori NLX-2500SY/700 CNC Turning Center – 2019 Sub Spindle, Y Axis Lathe

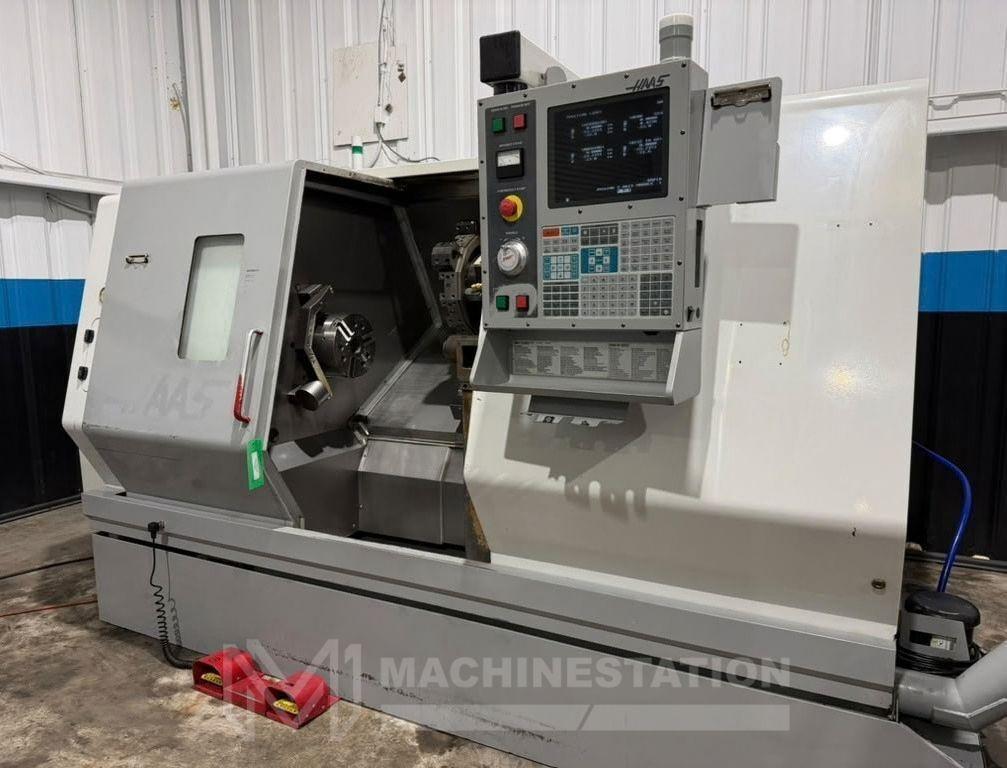

Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe
HAAS

Turning Centers

Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe

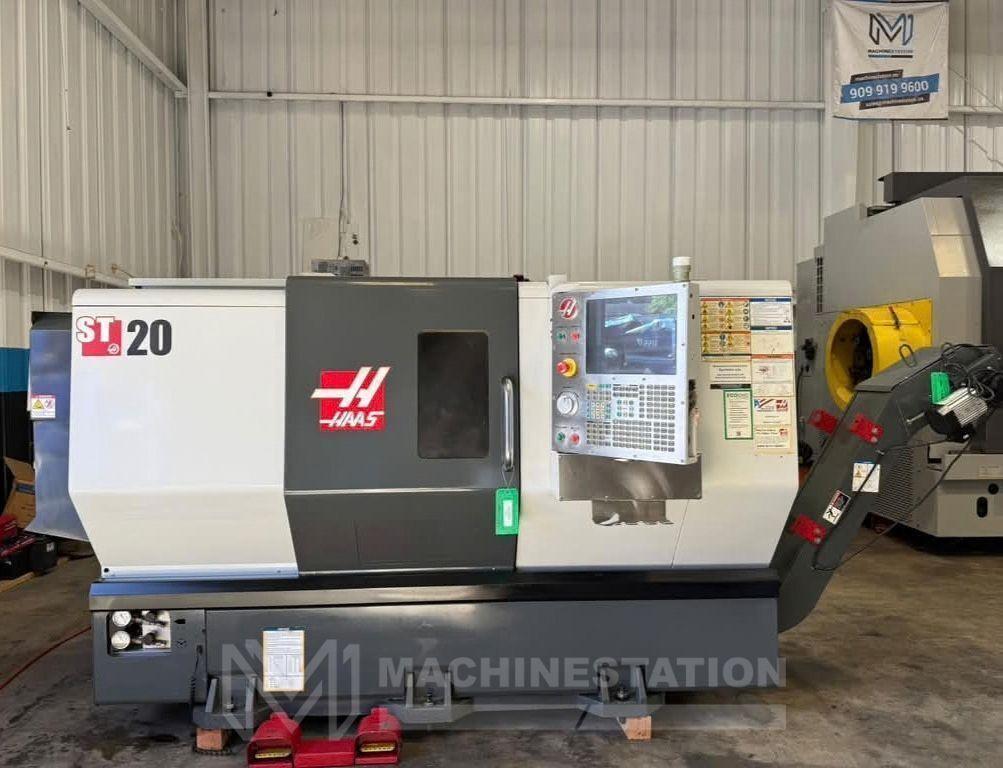

Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe
HAAS

Turning Centers

Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe

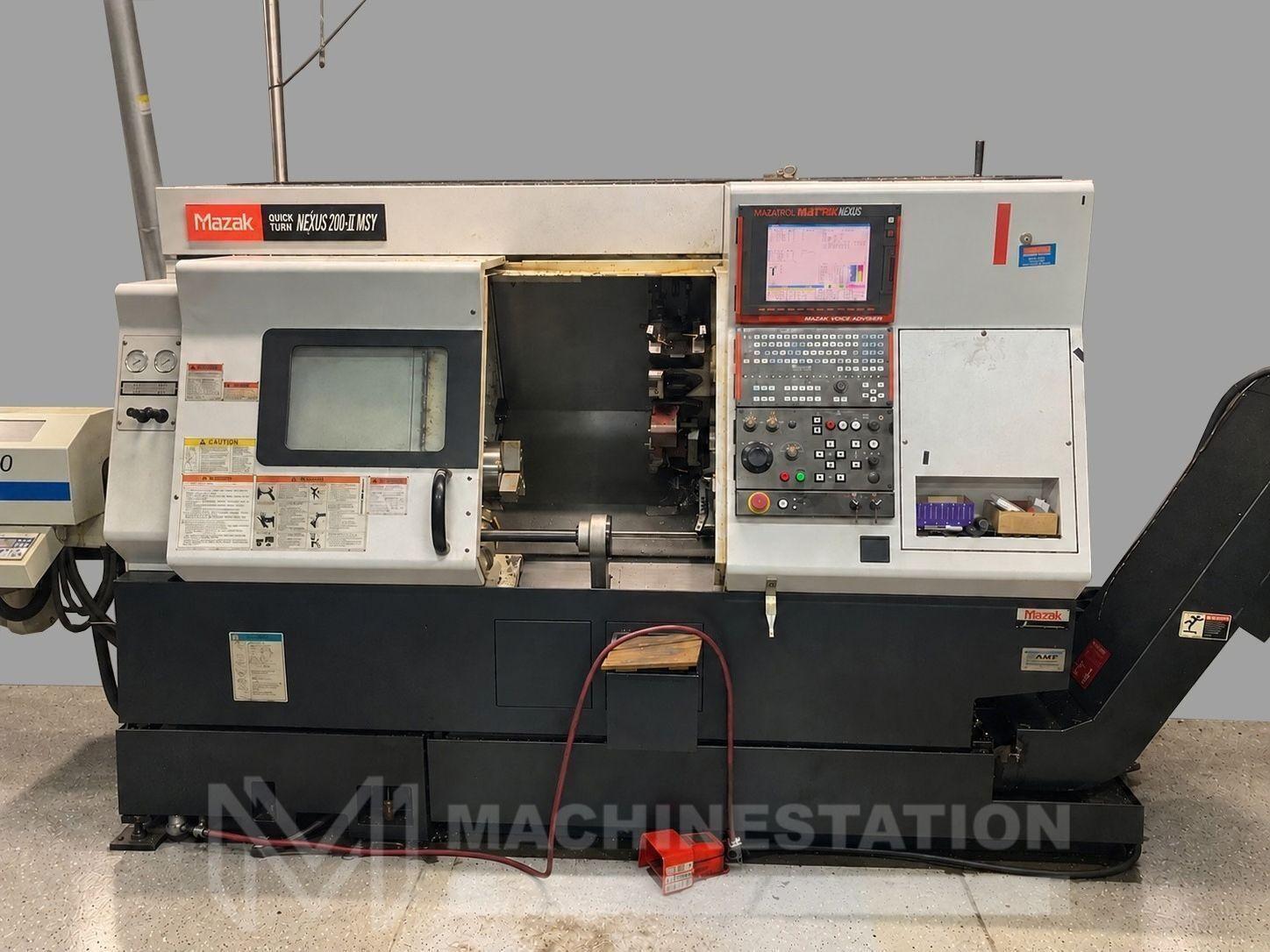

Mazak Quick Turn Nexus 200-II MSY CNC Turning Center – Y Axis, Sub Spindle Lathe
