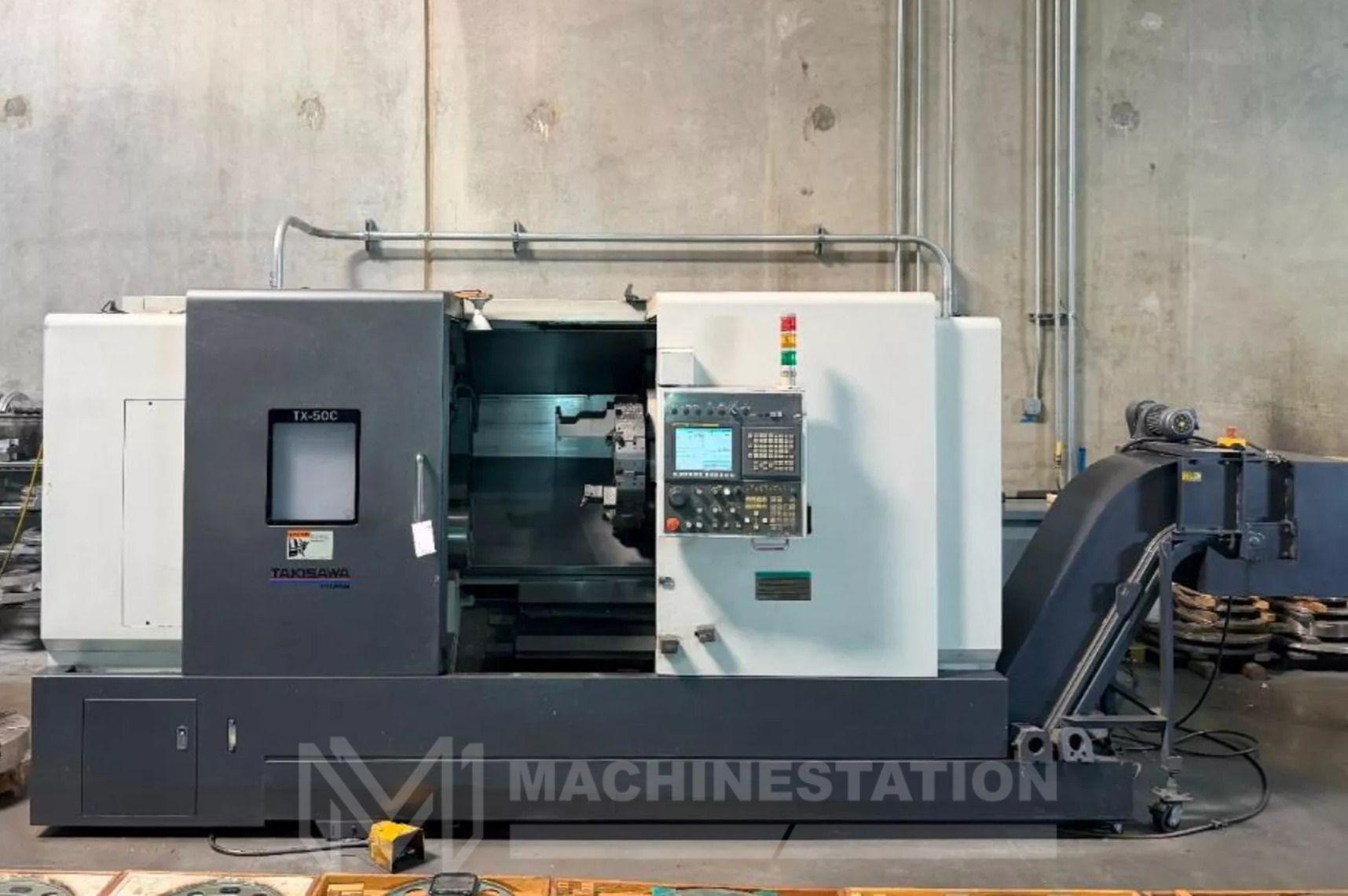

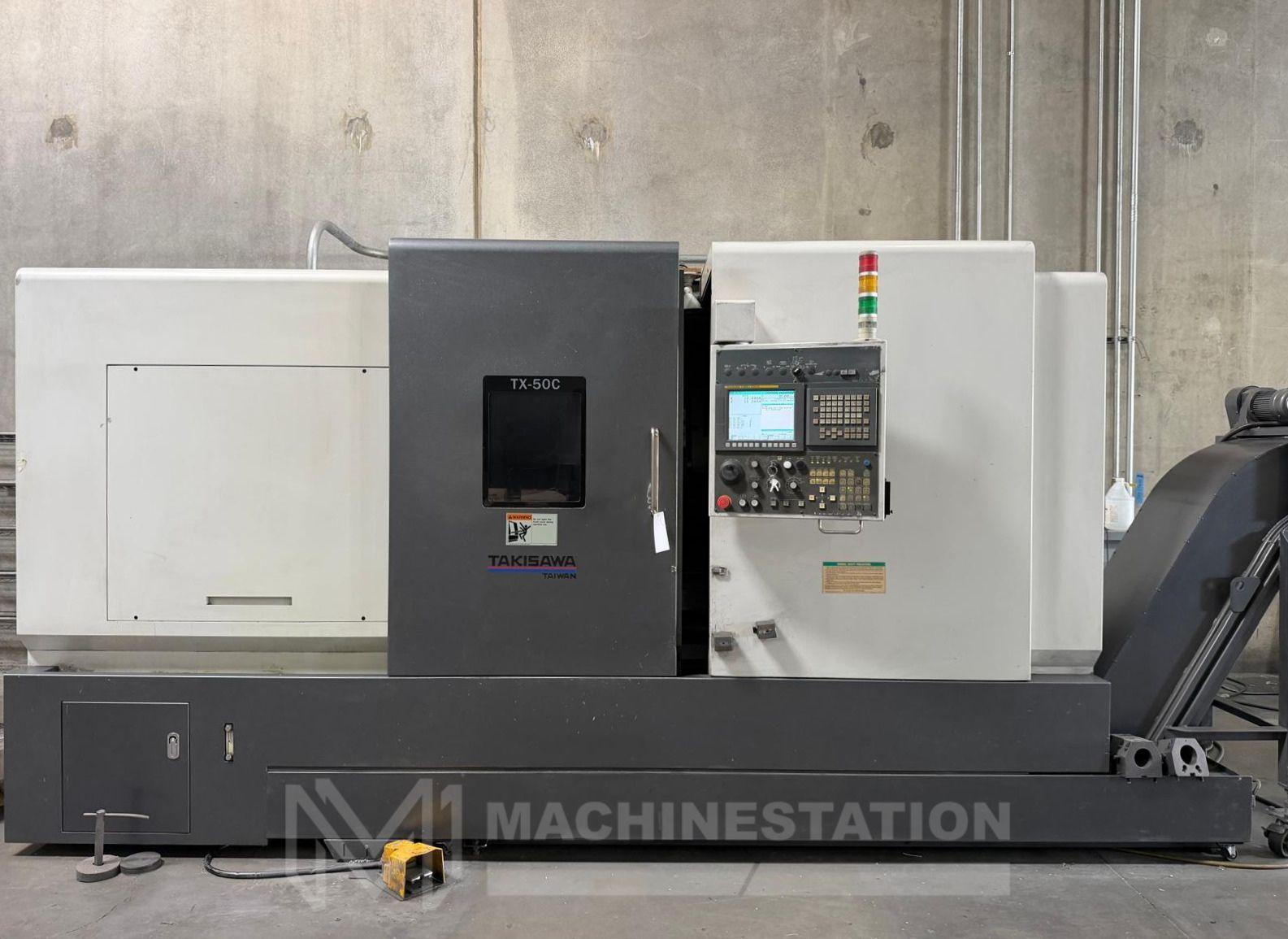

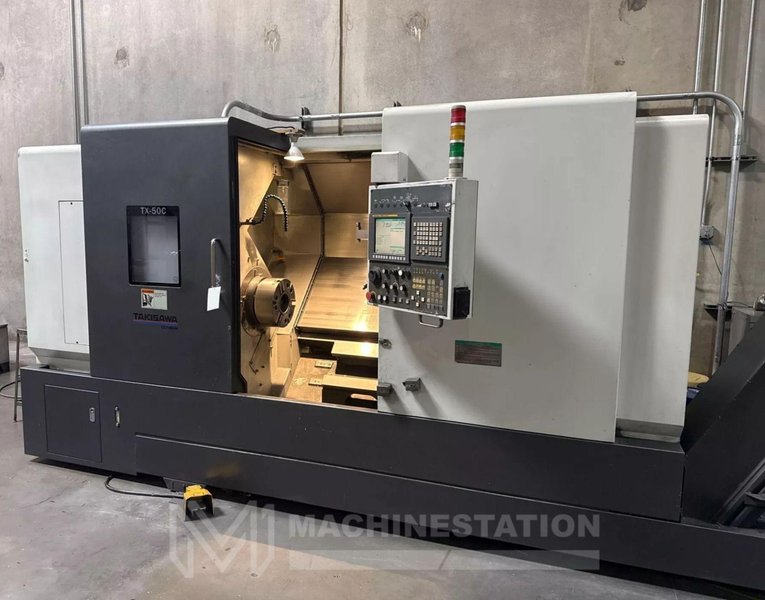

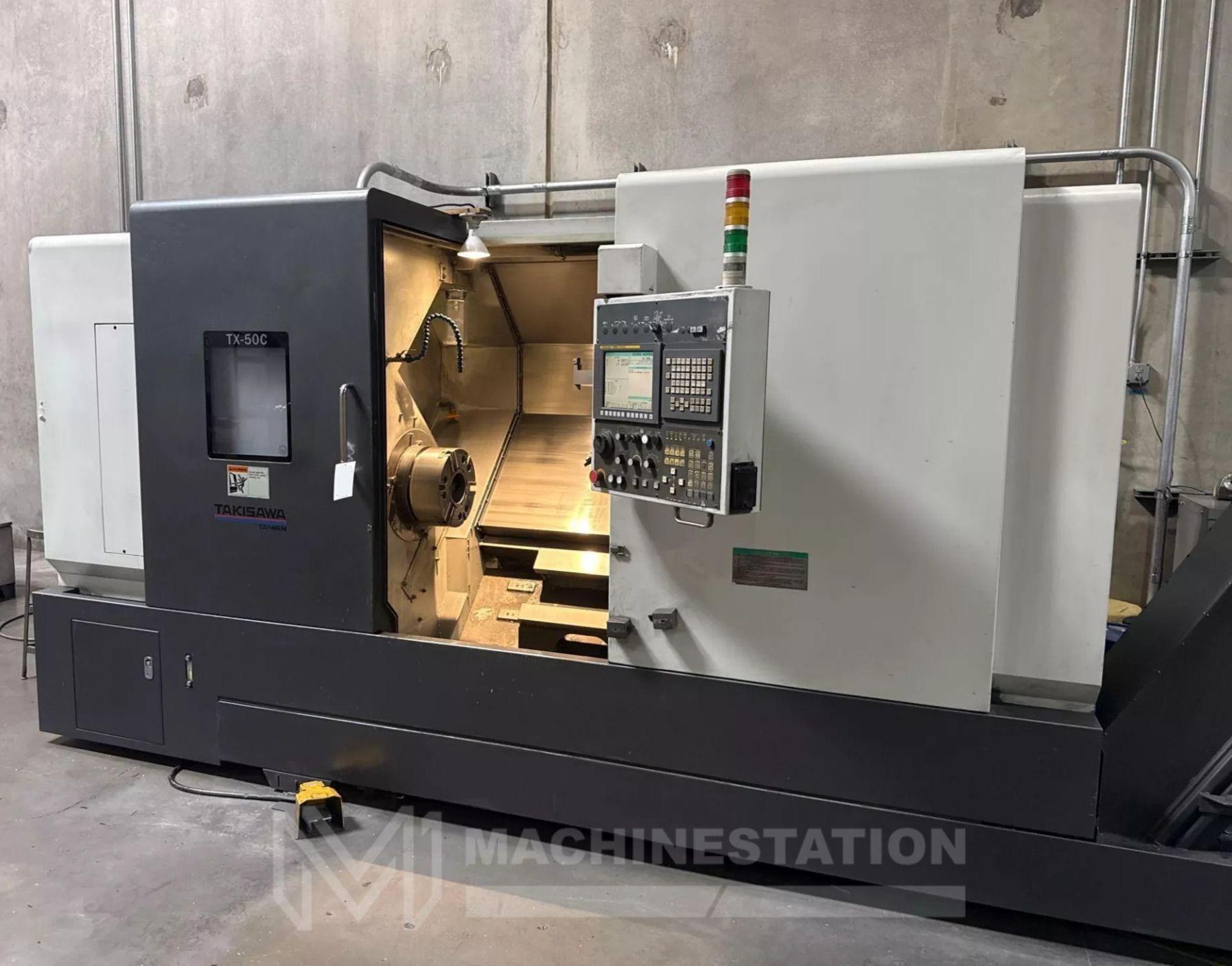

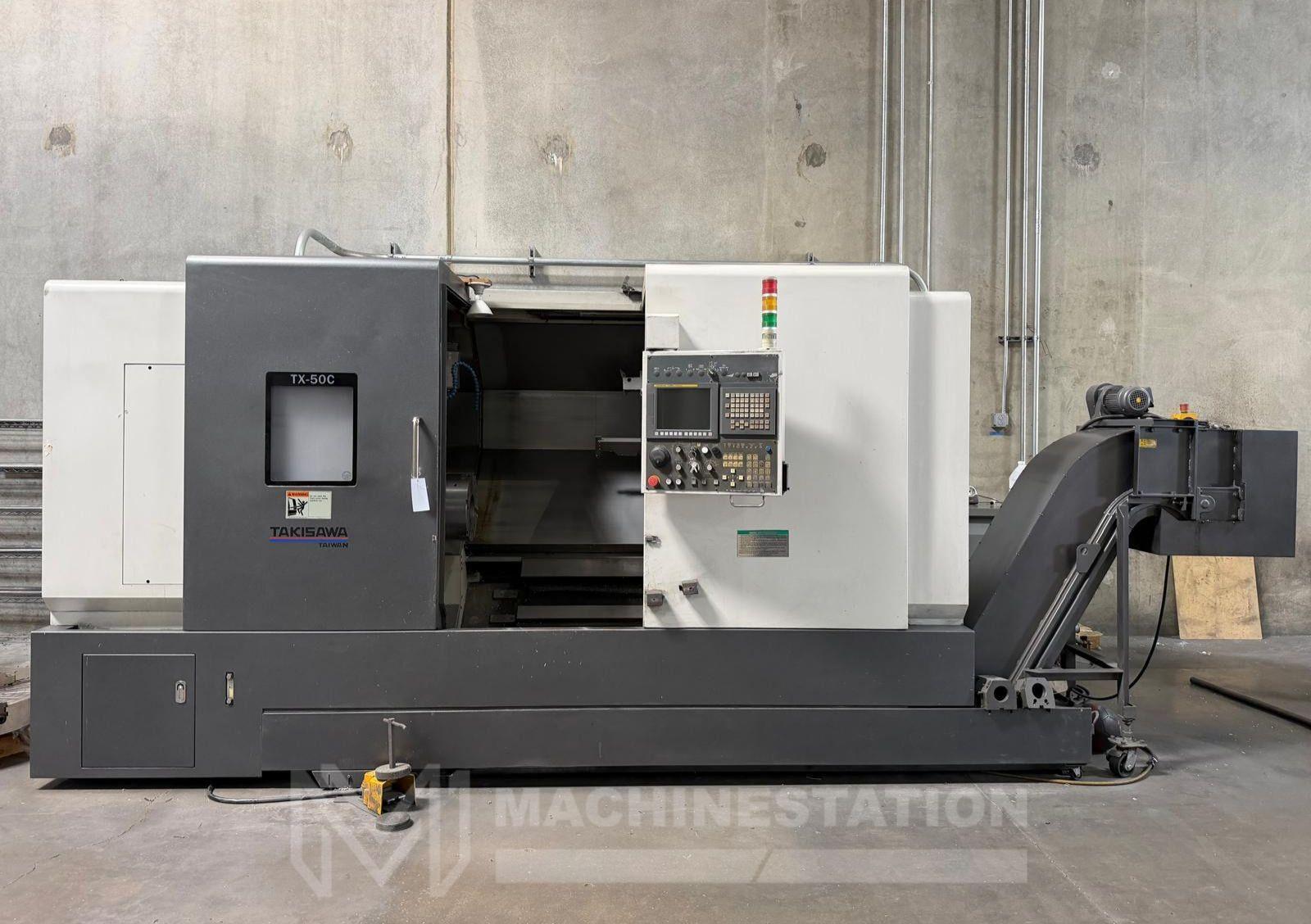

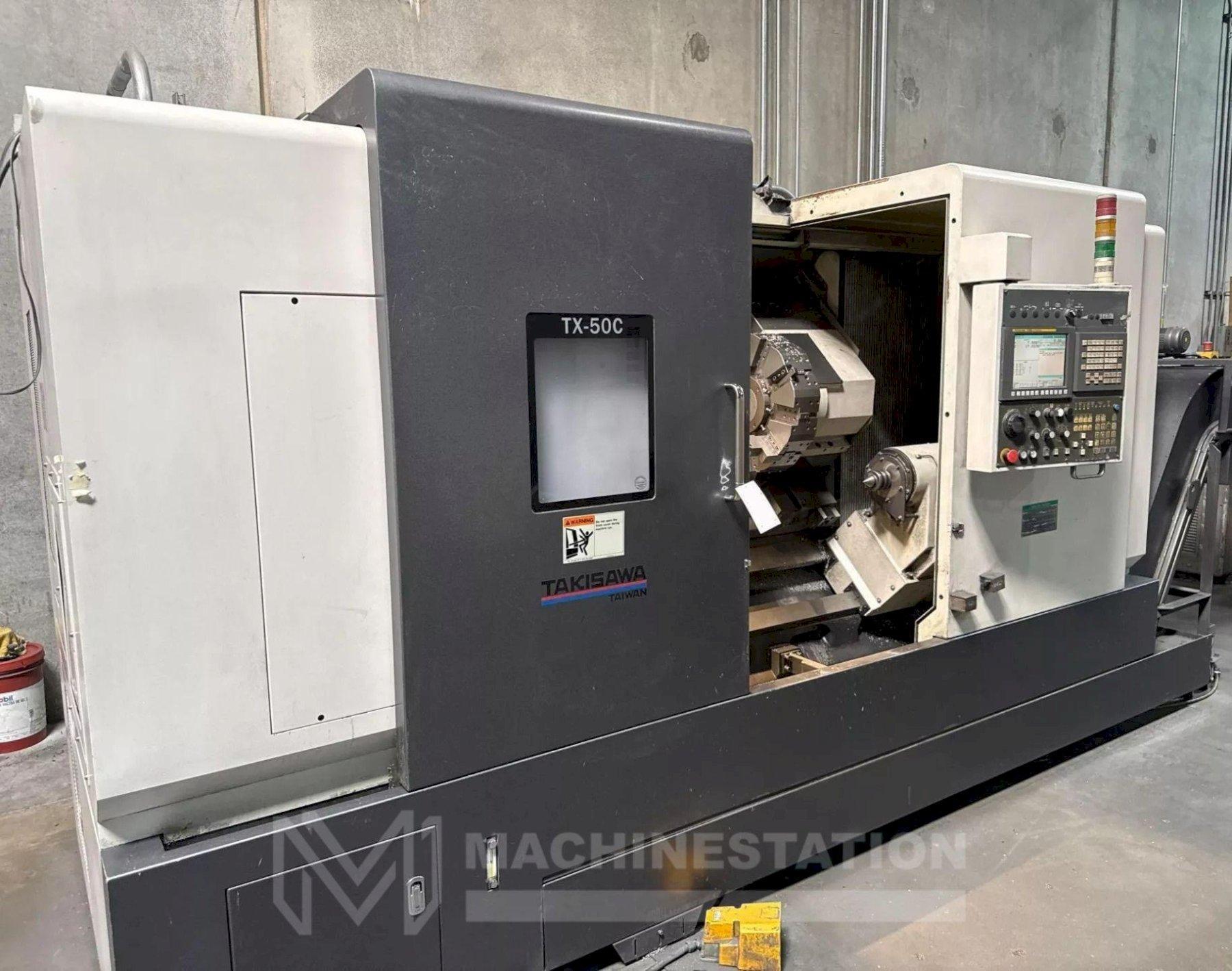

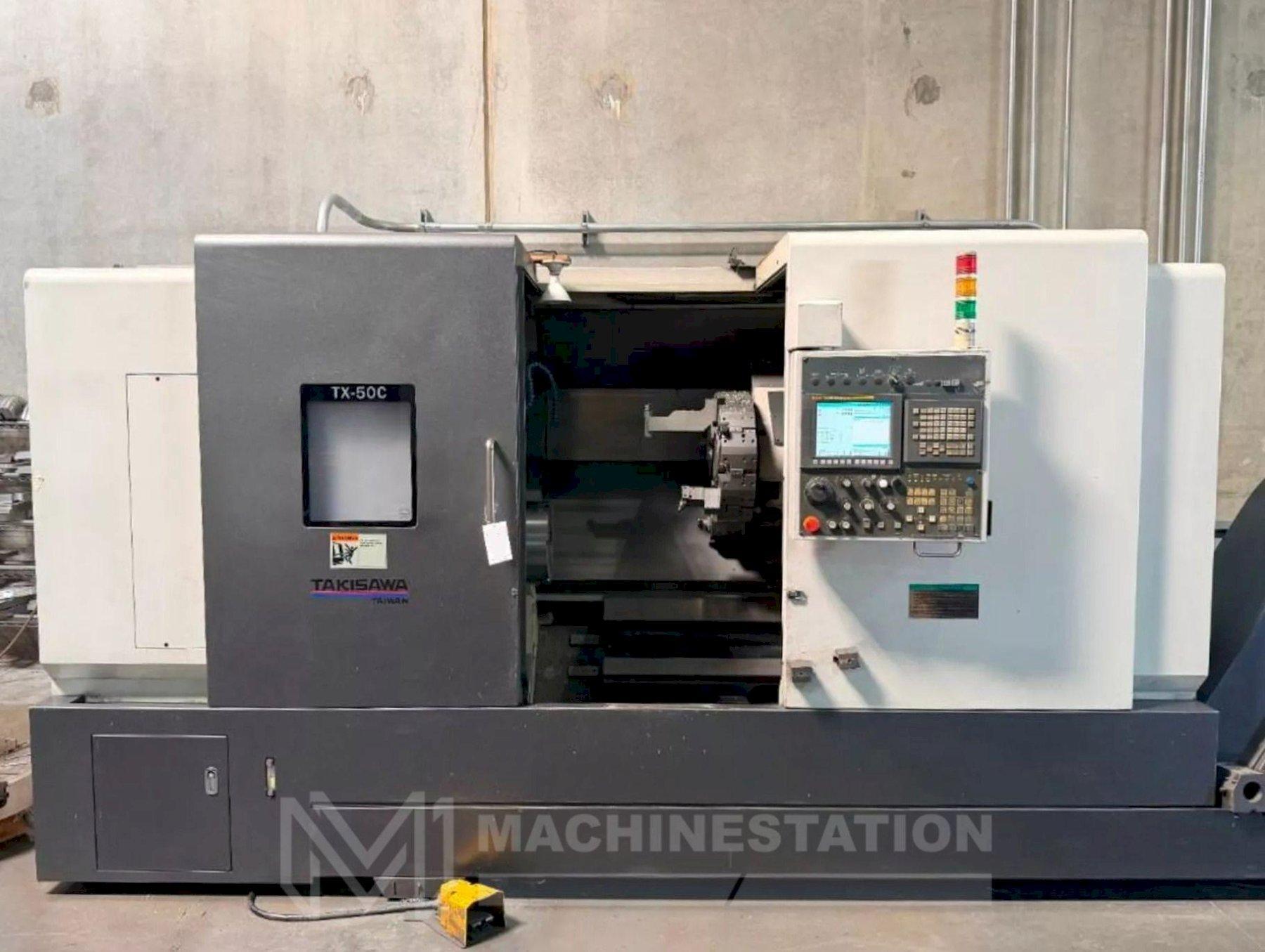

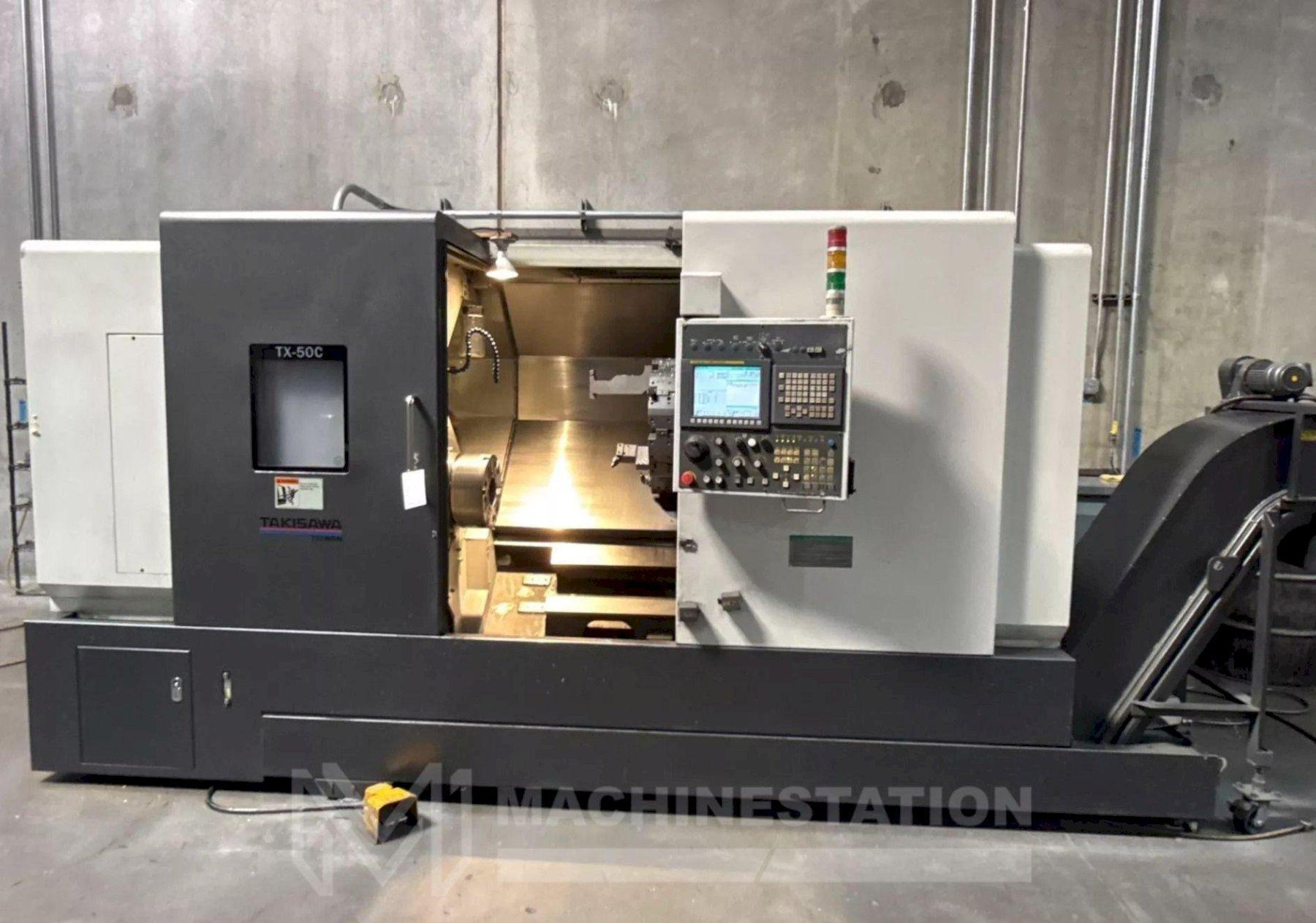

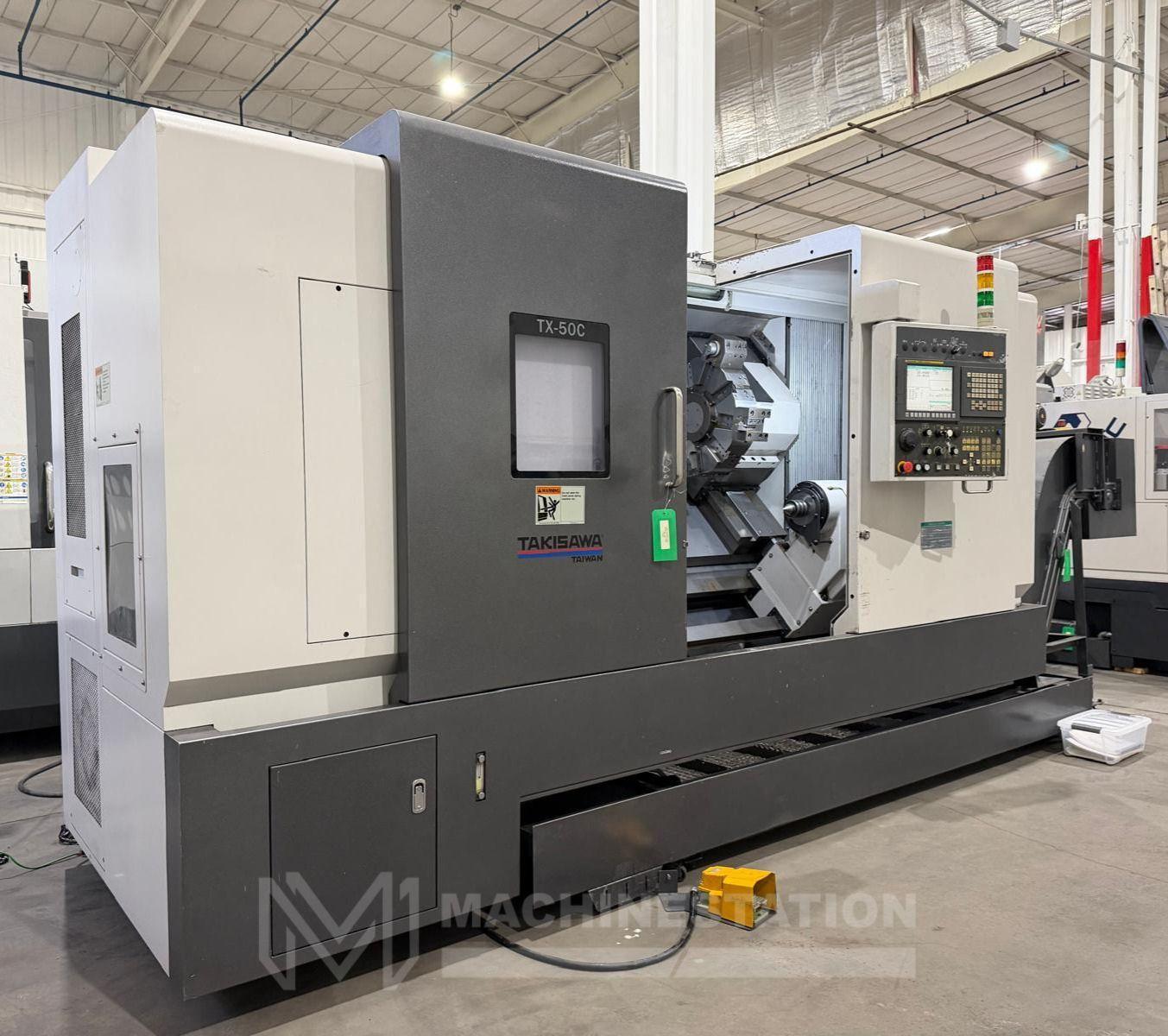

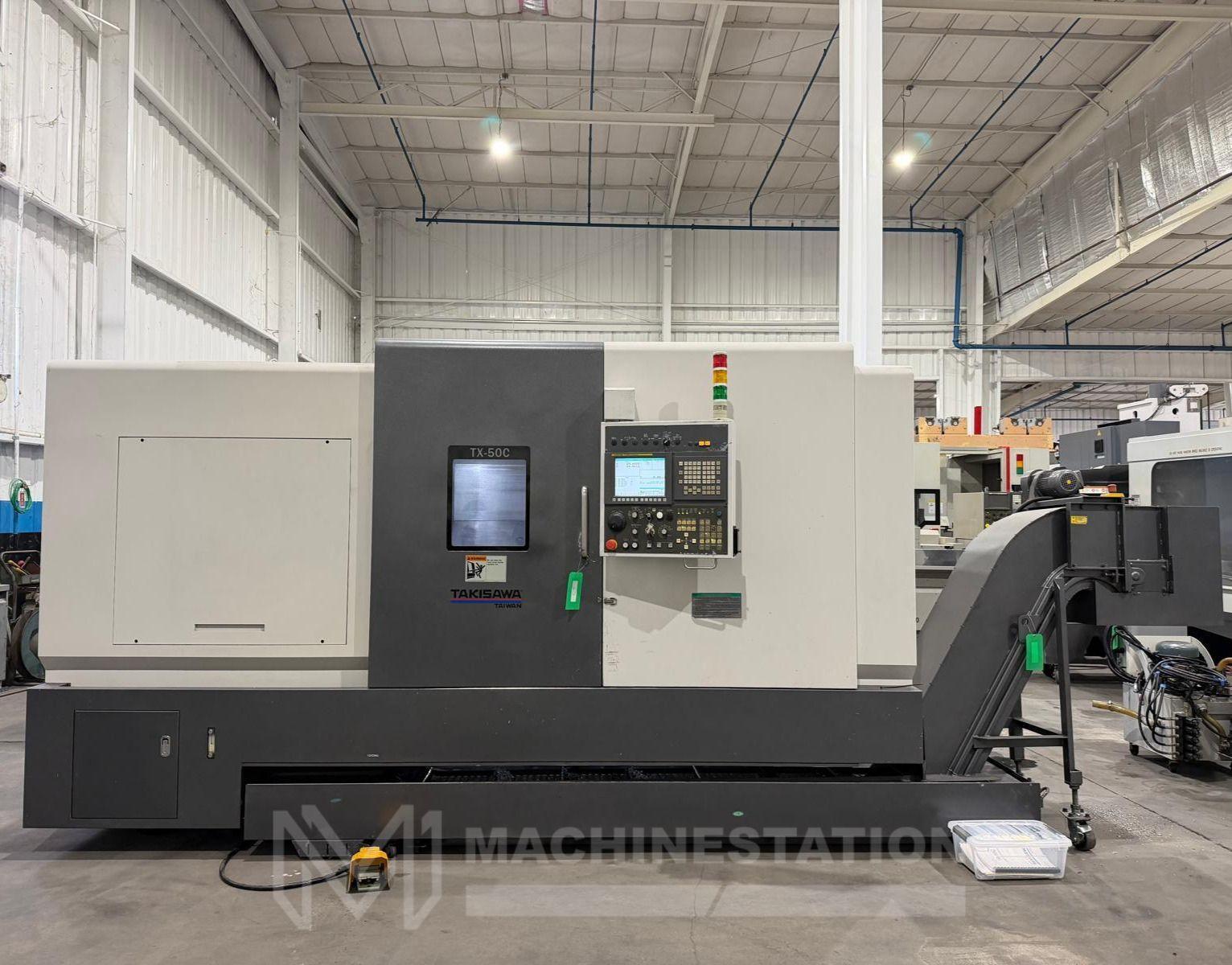

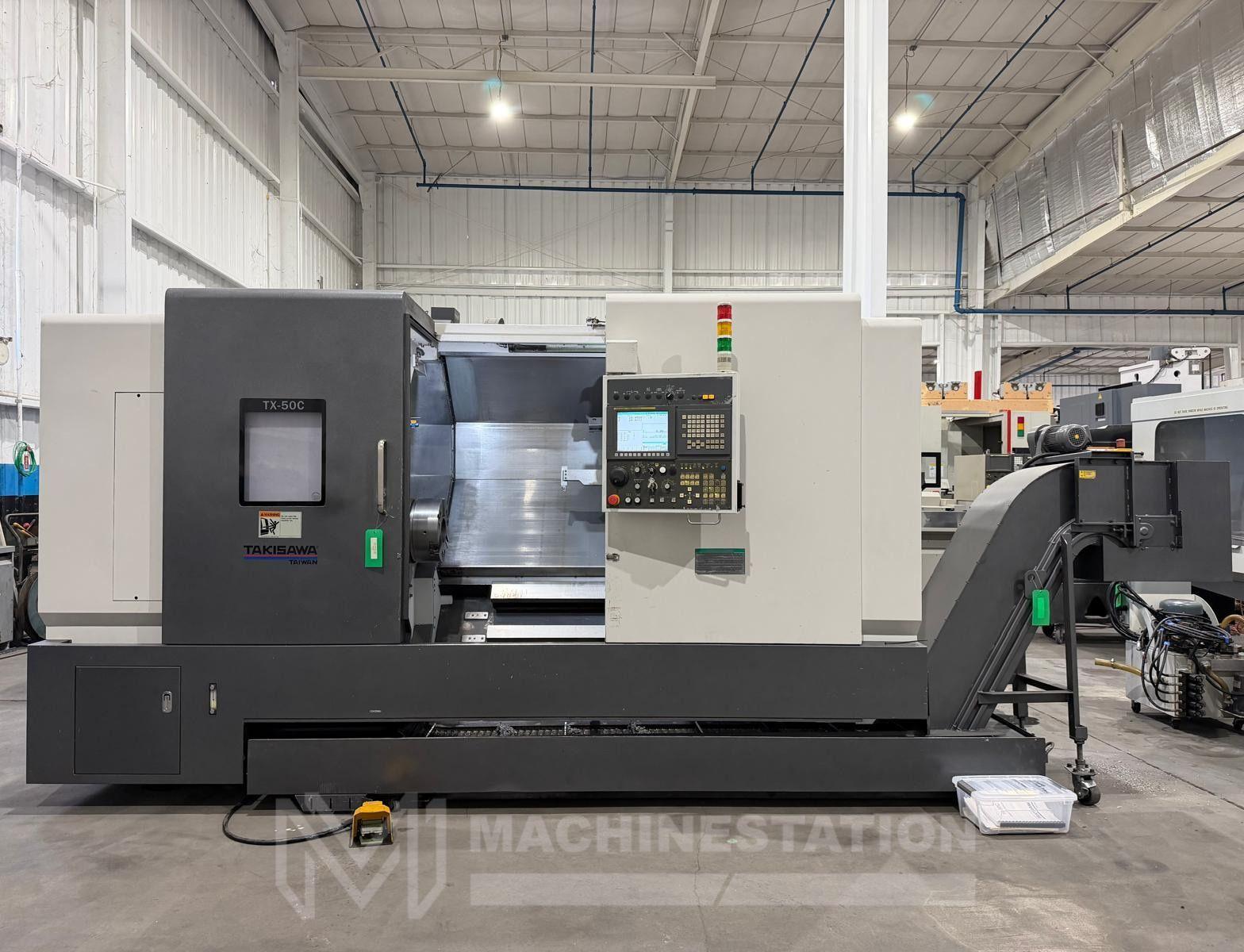

Takisawa TX-50C CNC Turning Center – 12″ Chuck, 5″ Big Bore Lathe

Brand
TAKISAWA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
TX-50C
Stock #
113600
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

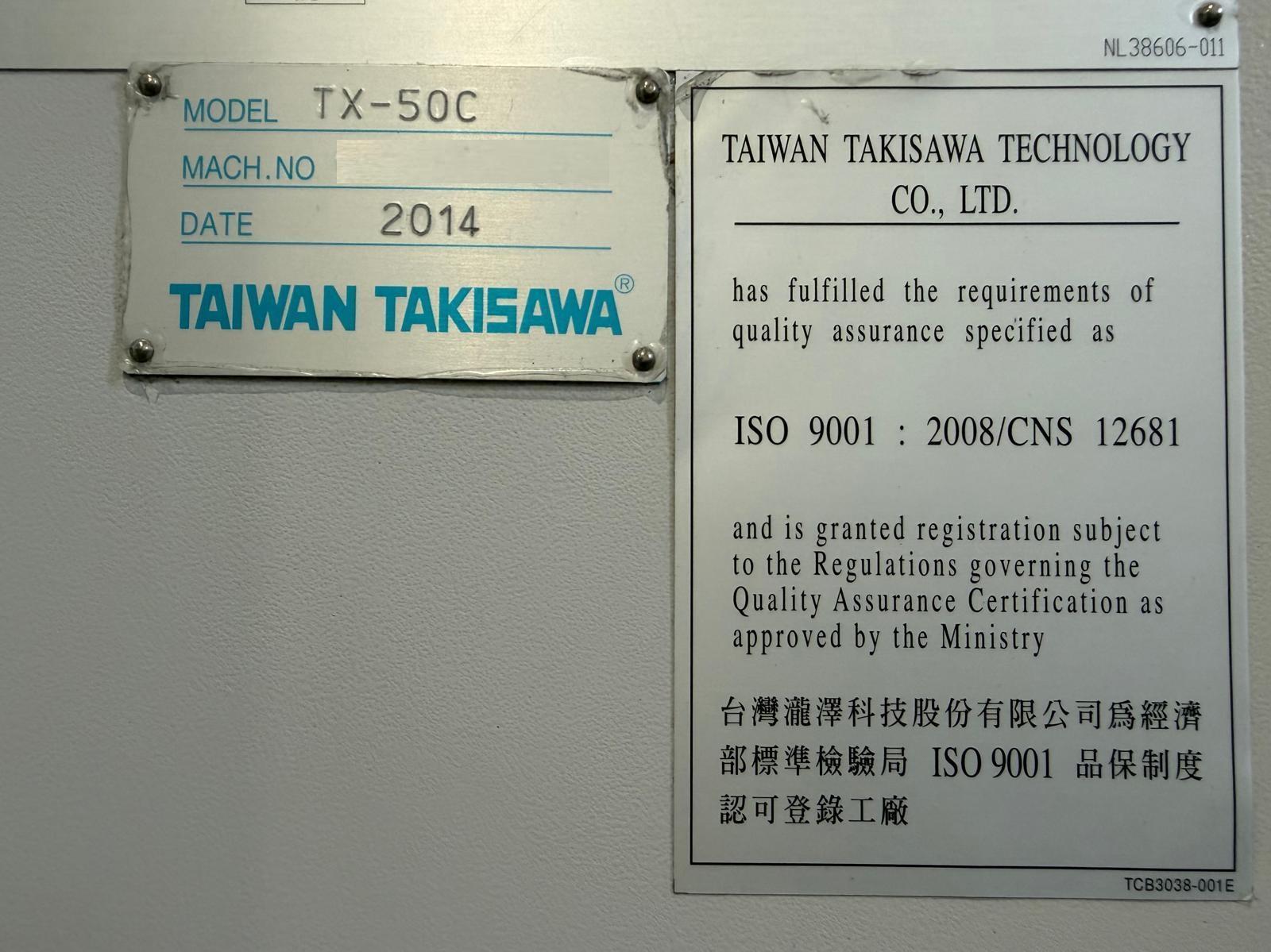

Make: Takisawa
Model: TX-50C
Year: 2014
Equipped With:

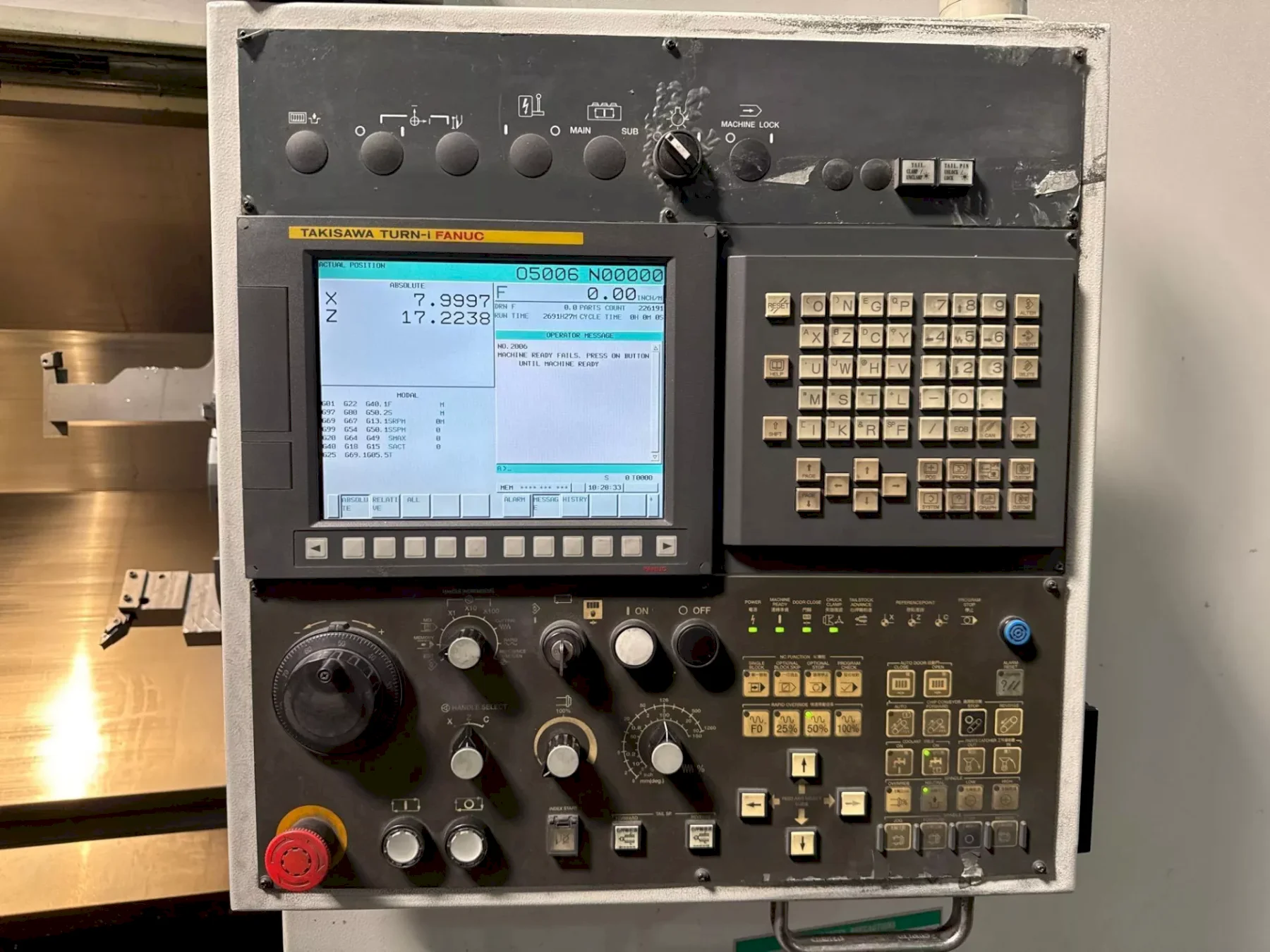

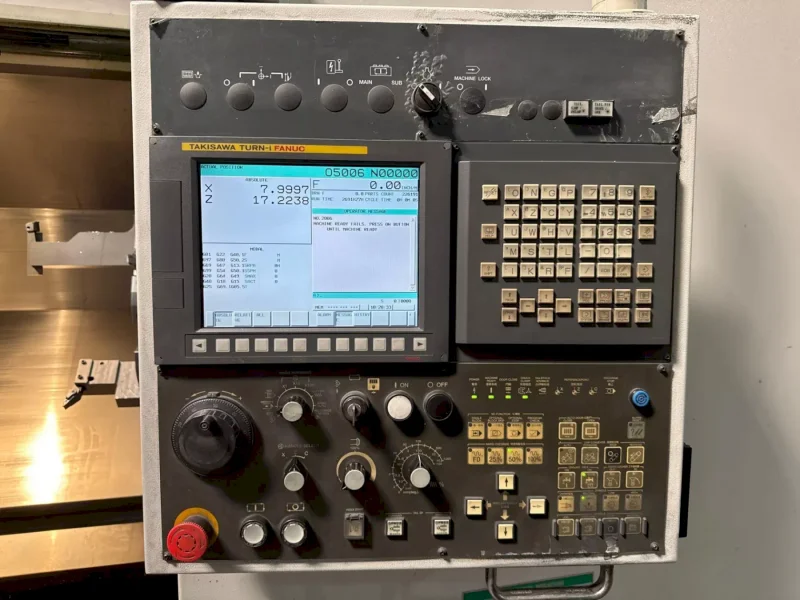

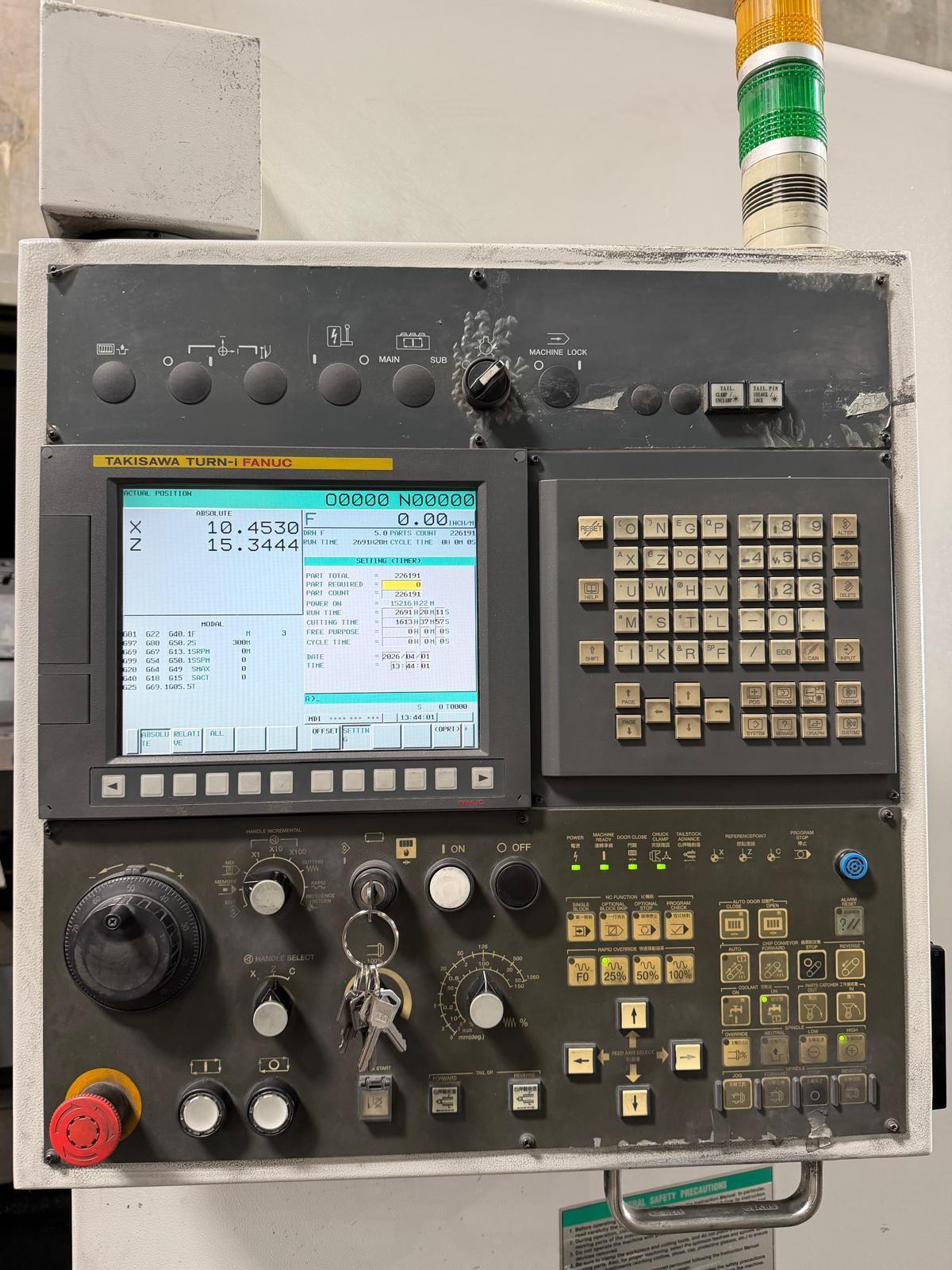

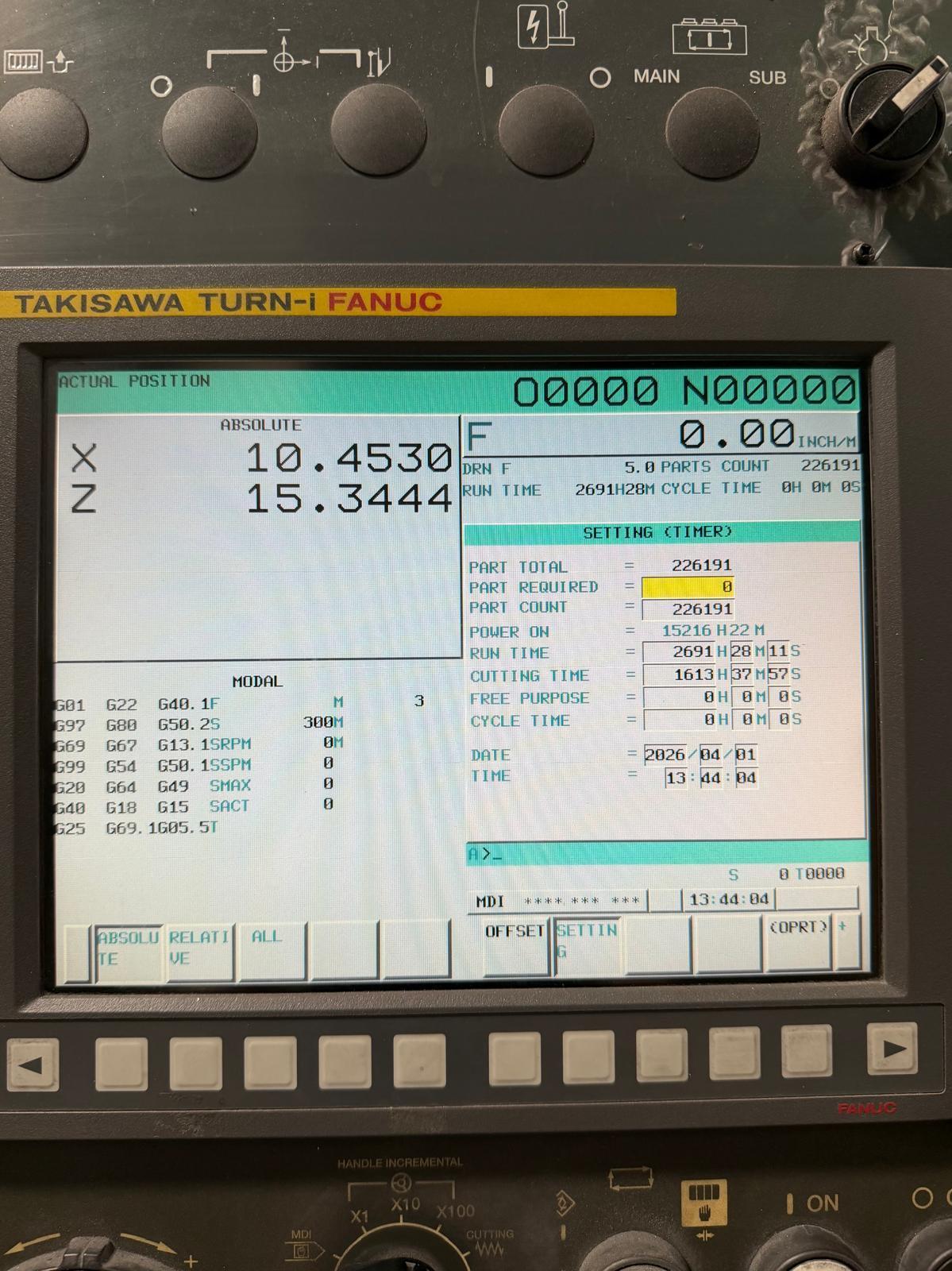

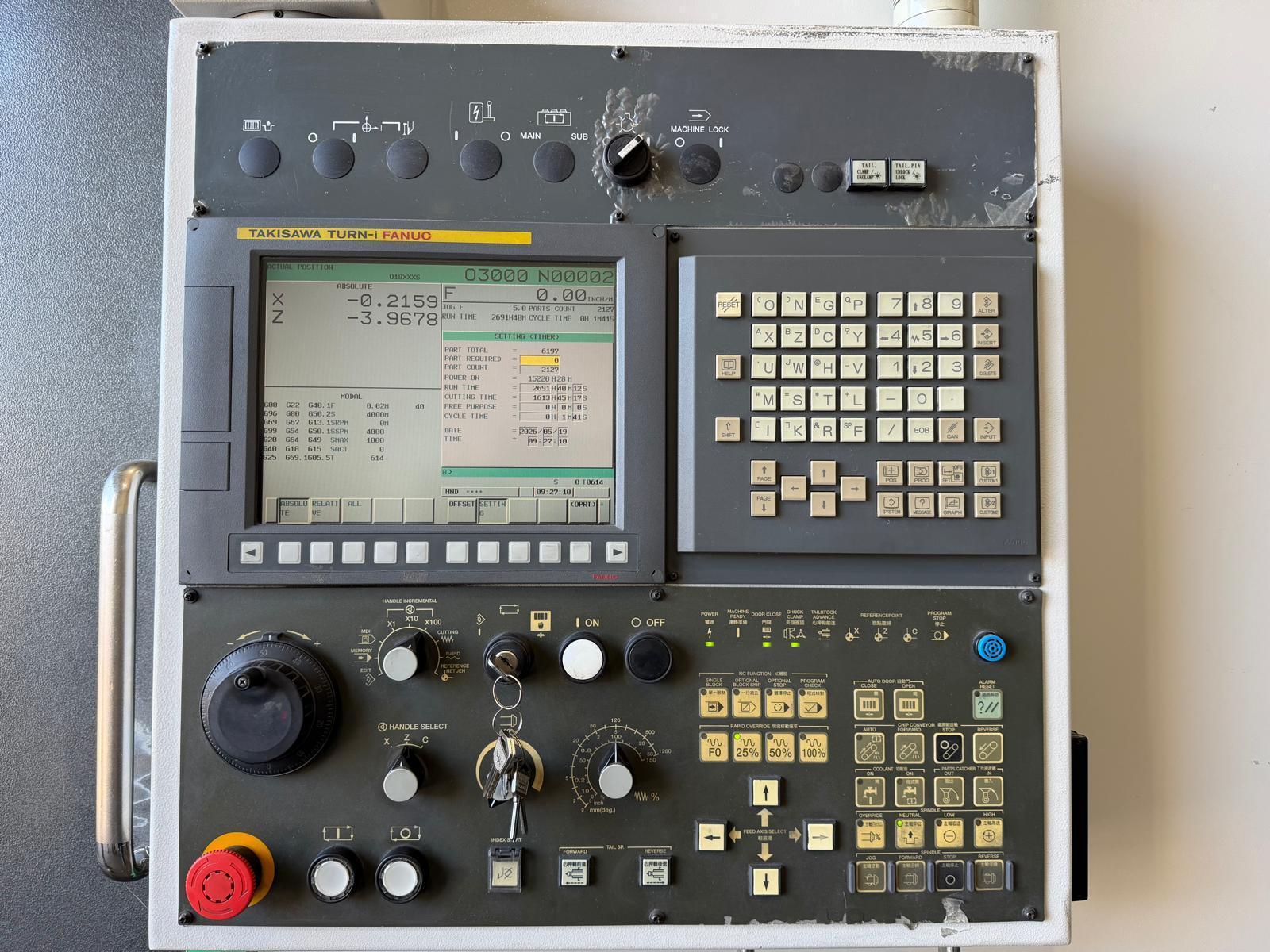

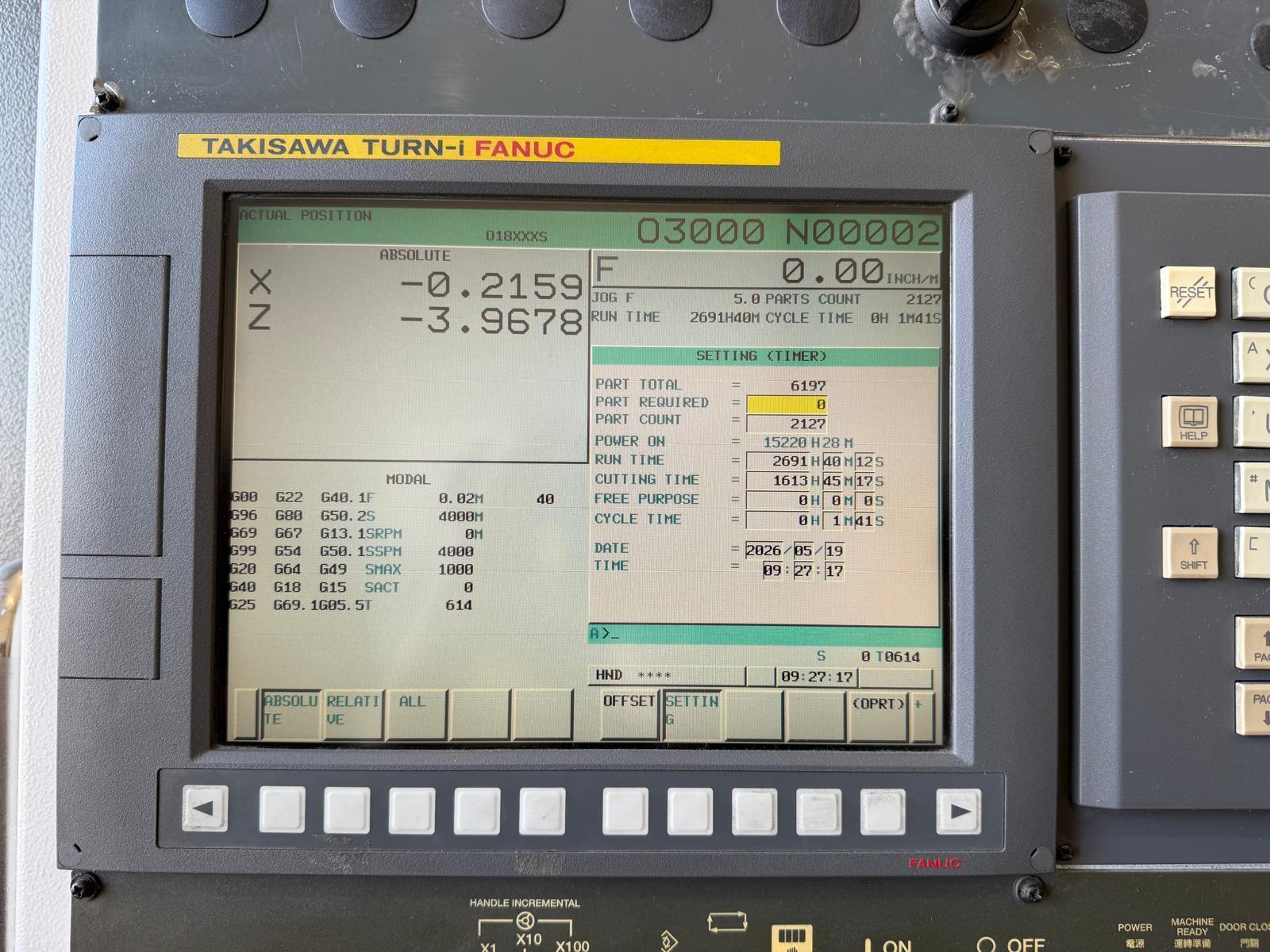

Takisawa Turn-i Fanuc CNC Control

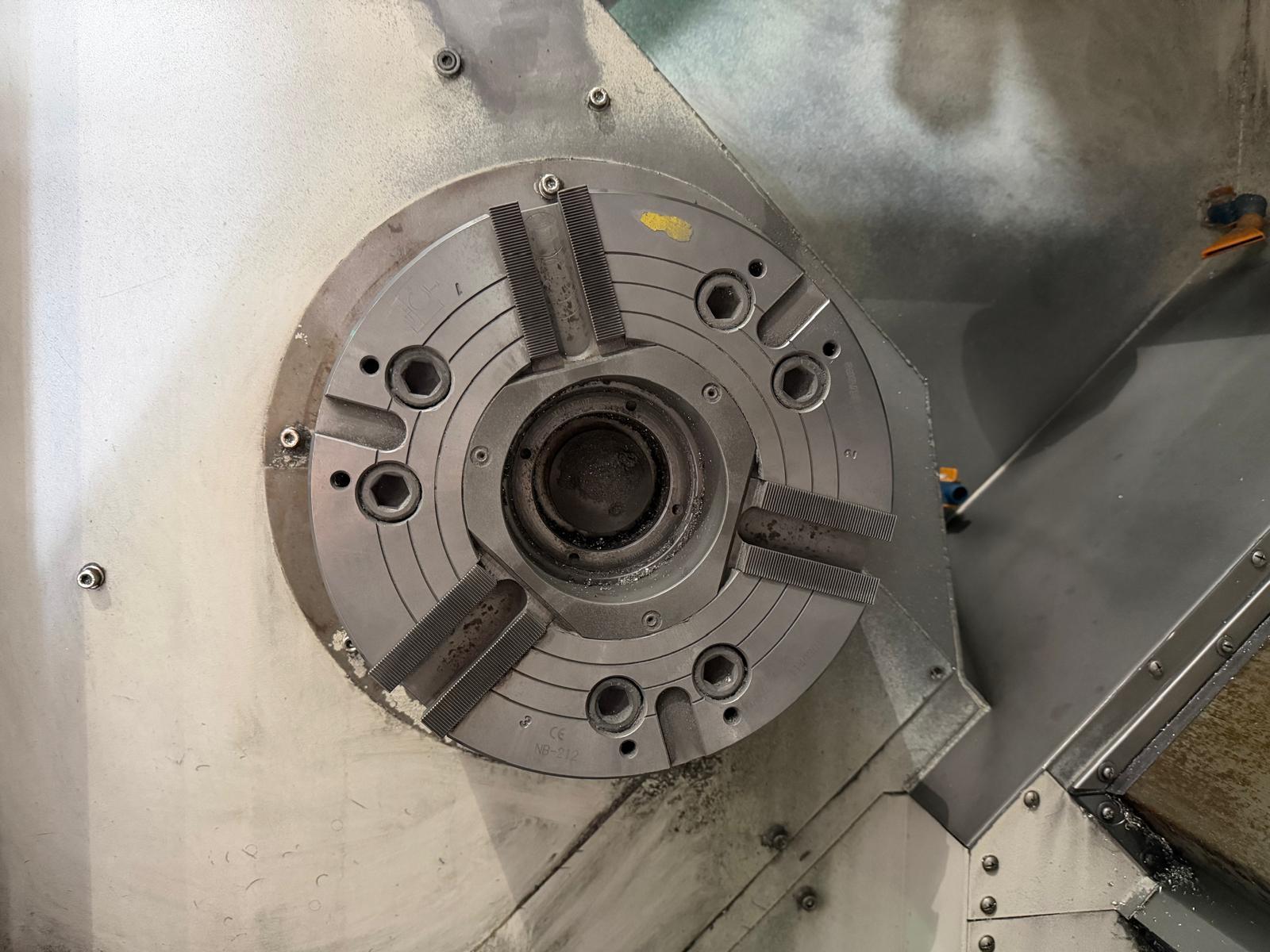

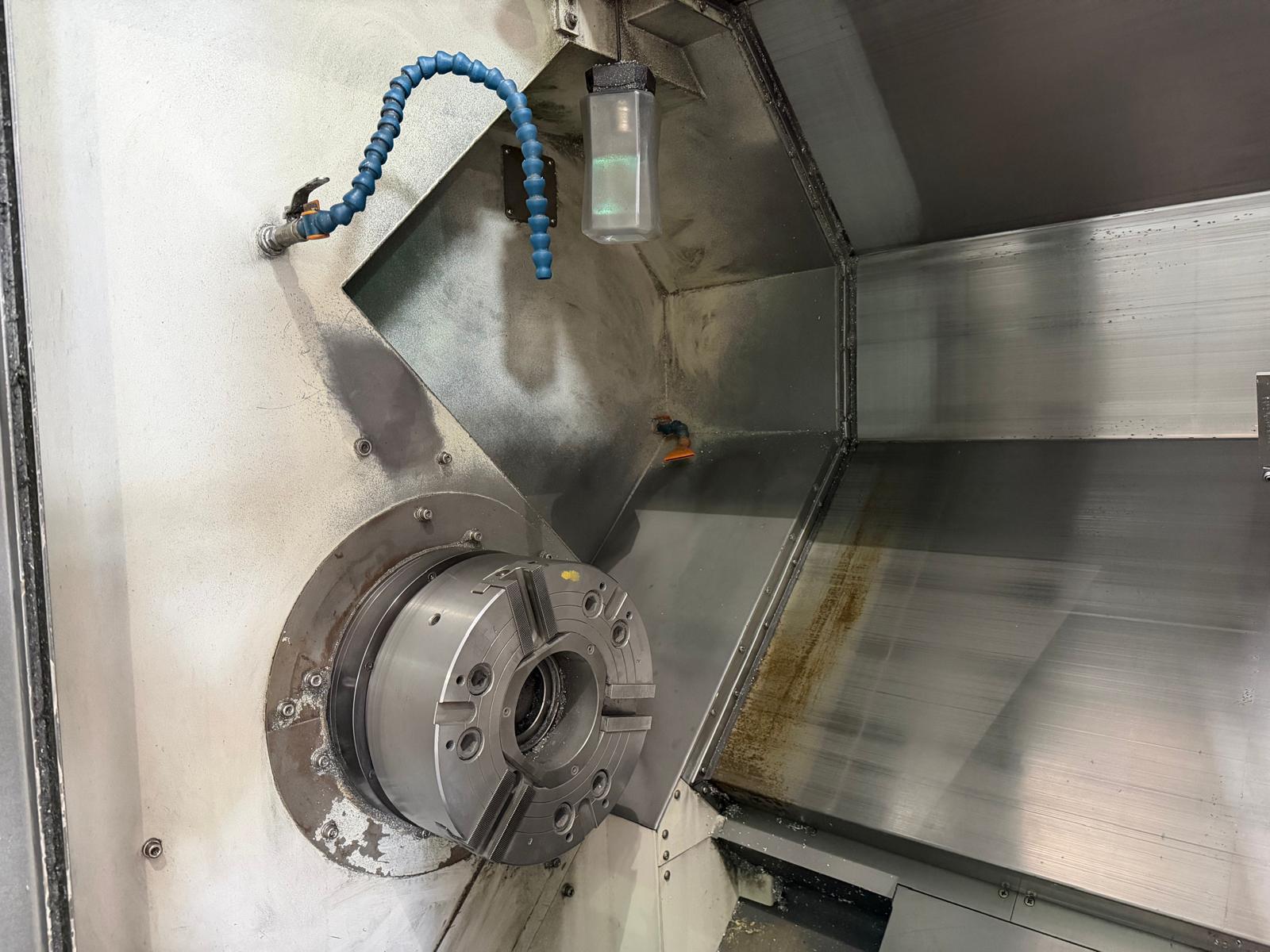

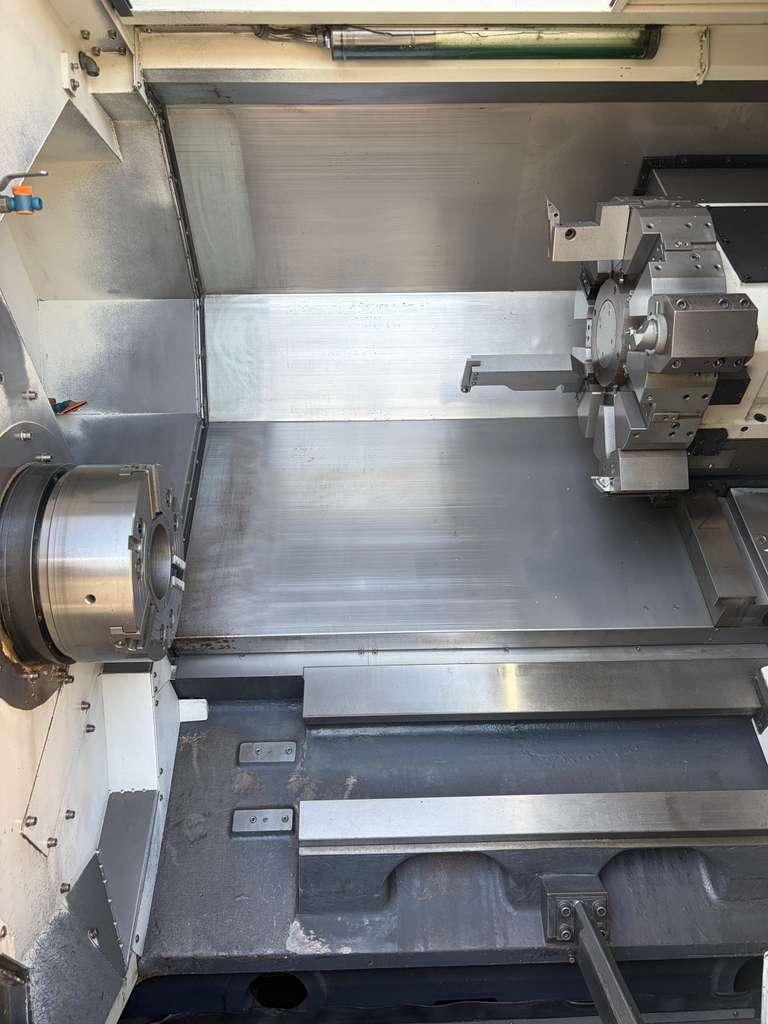

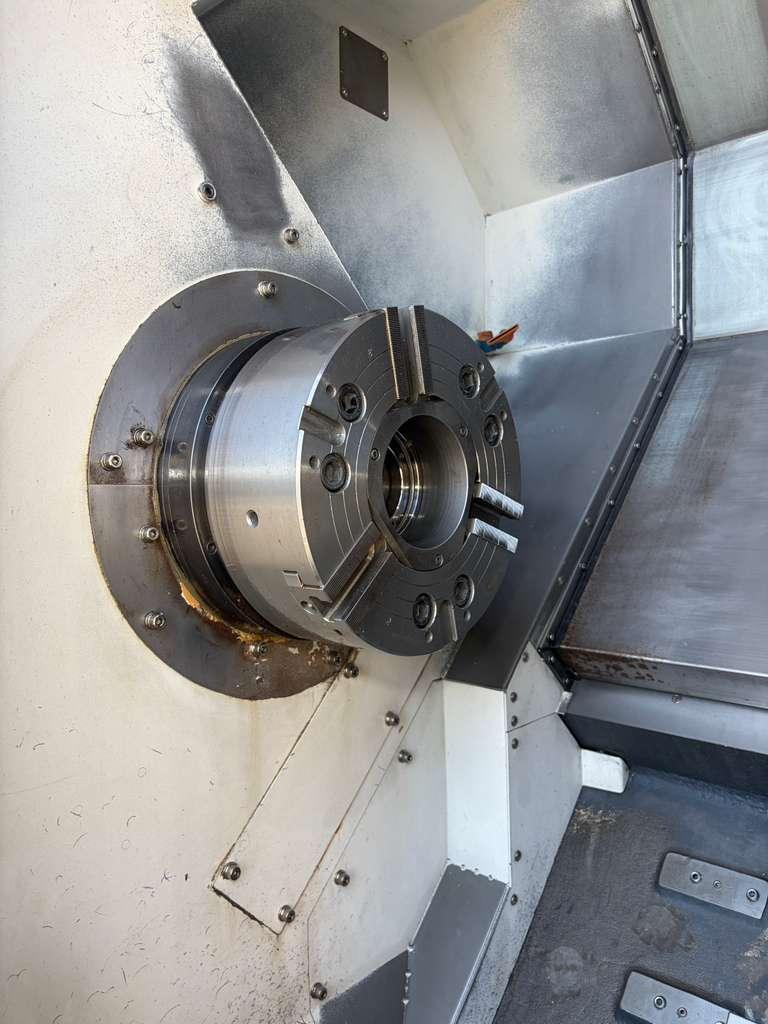

12 inch 3-Jaw Hydraulic Chuck (Capable 15 inch Chuck)
5.0 inch Big Bore Spindle

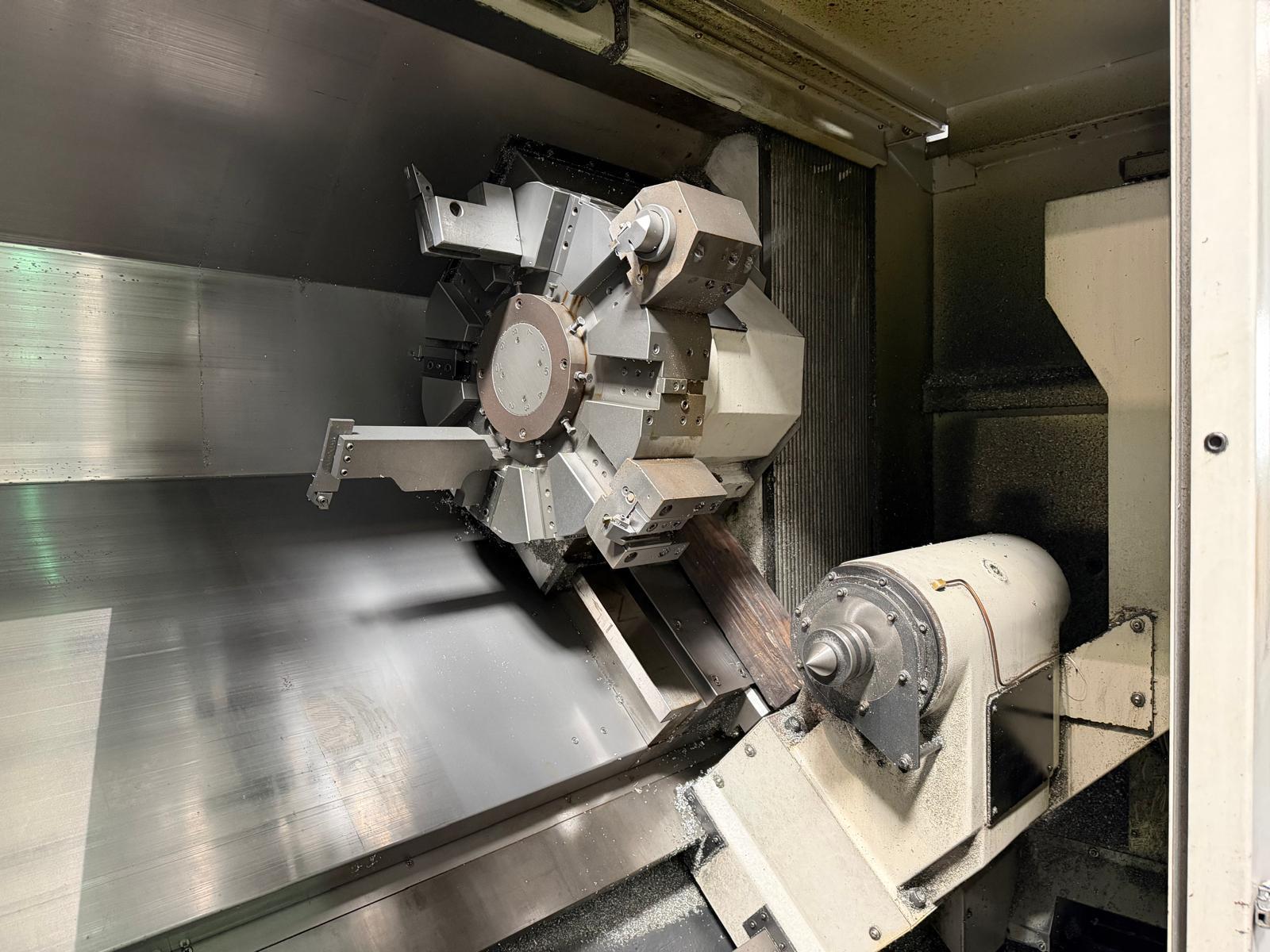

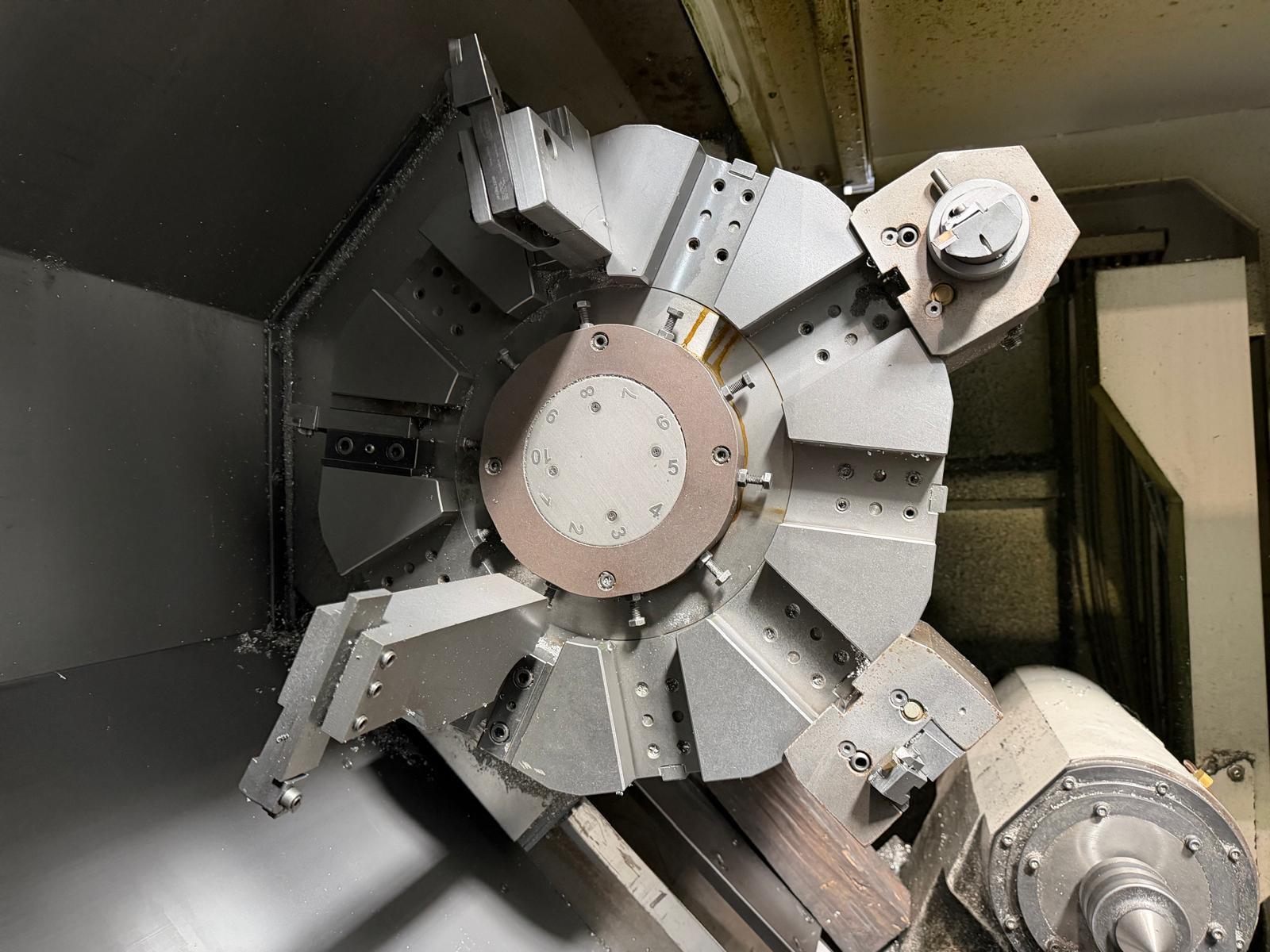

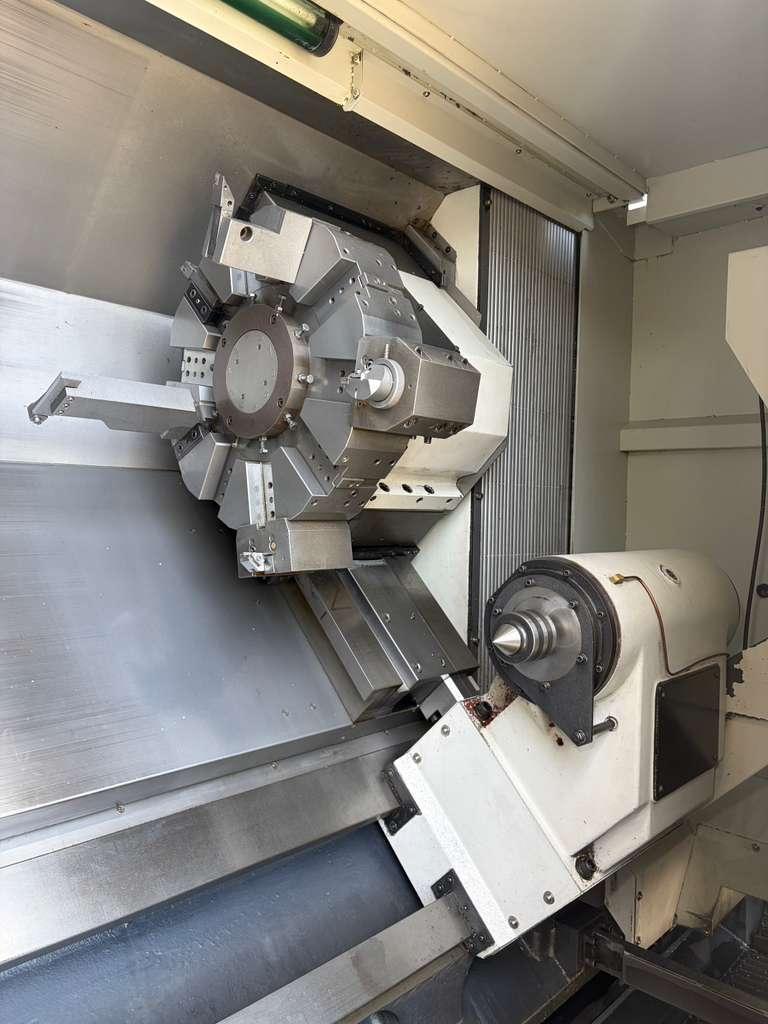

10 Station Automatic Turret

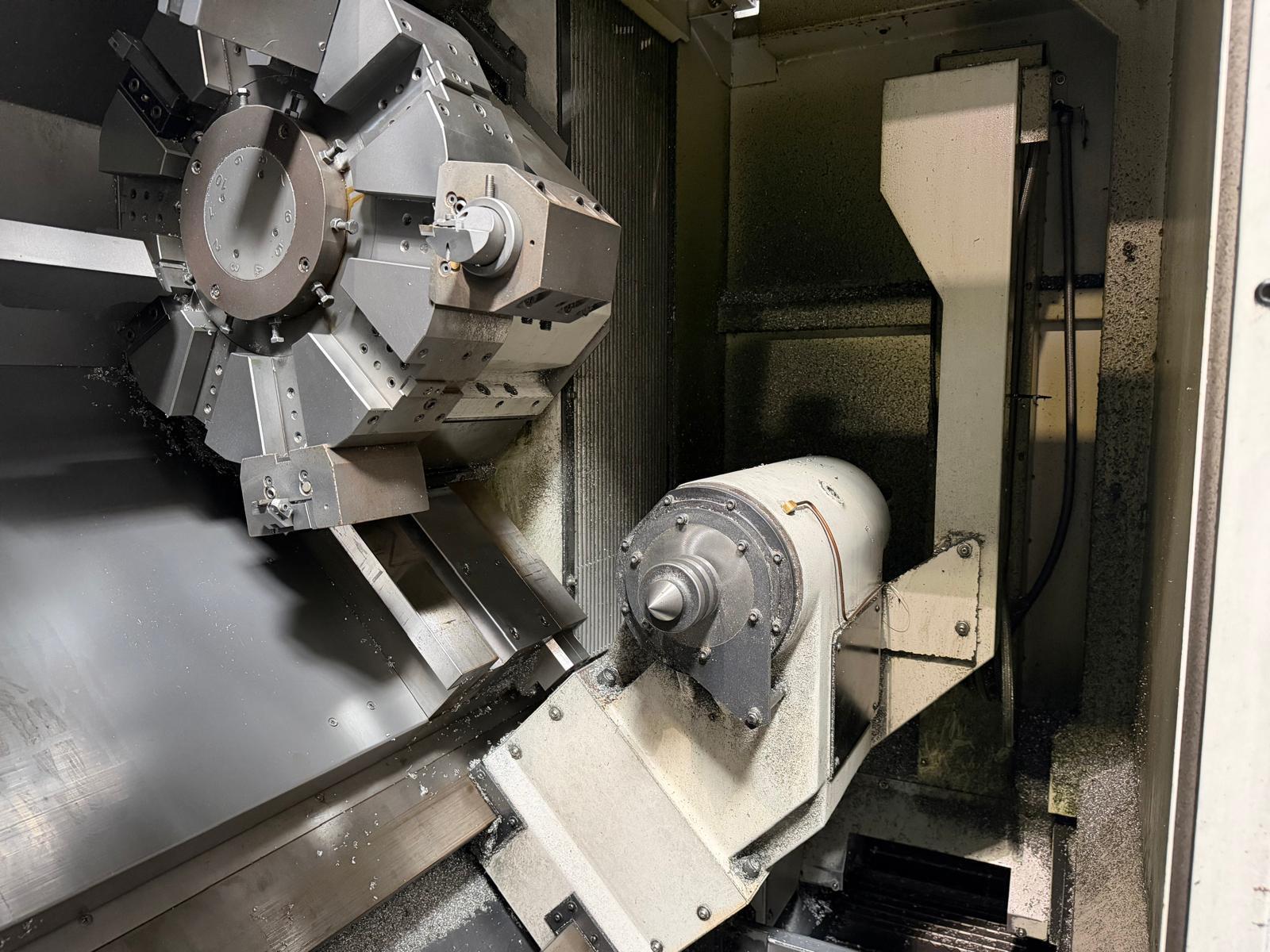

Tailstock
PCMCIA Card Interface

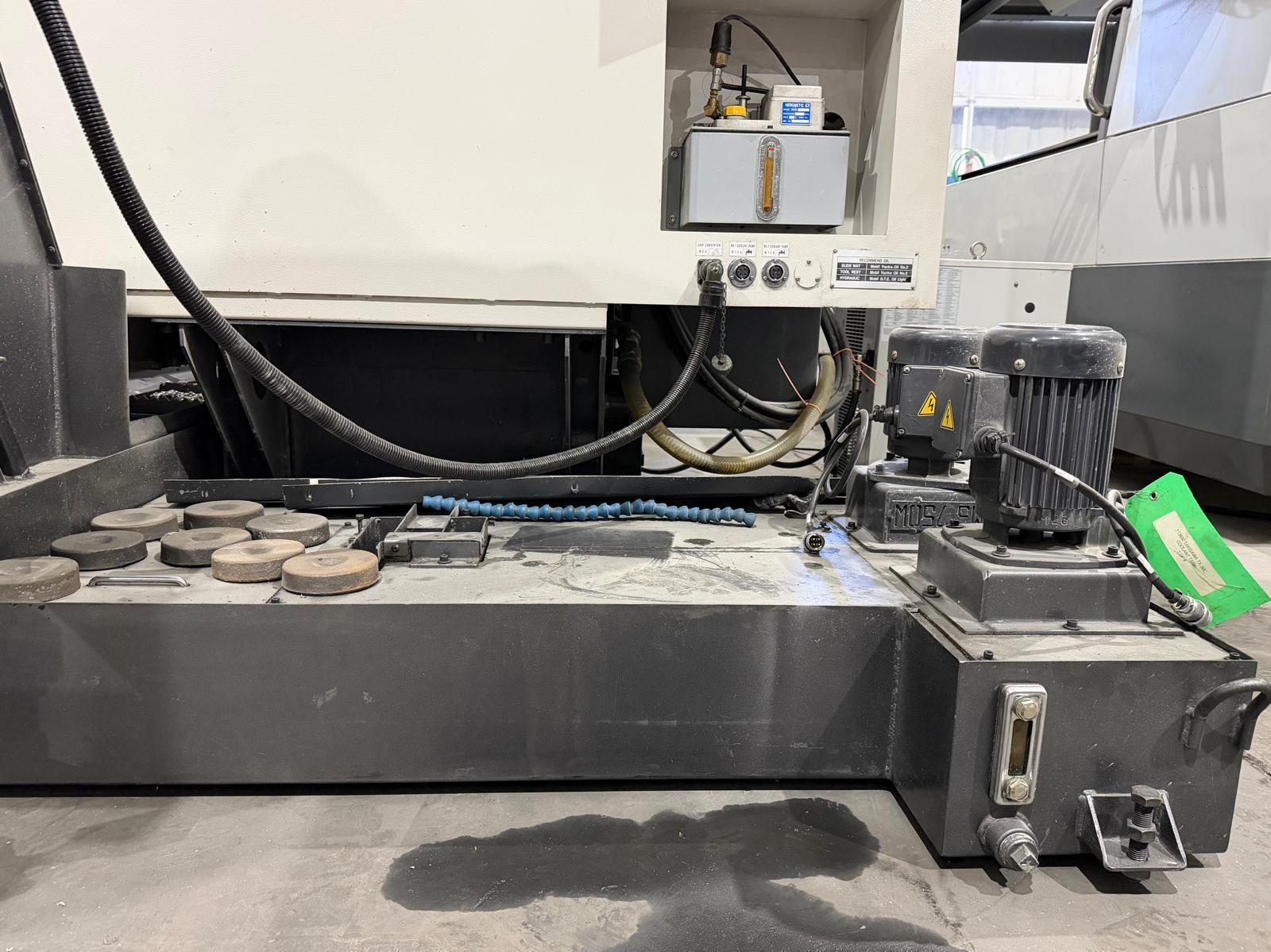

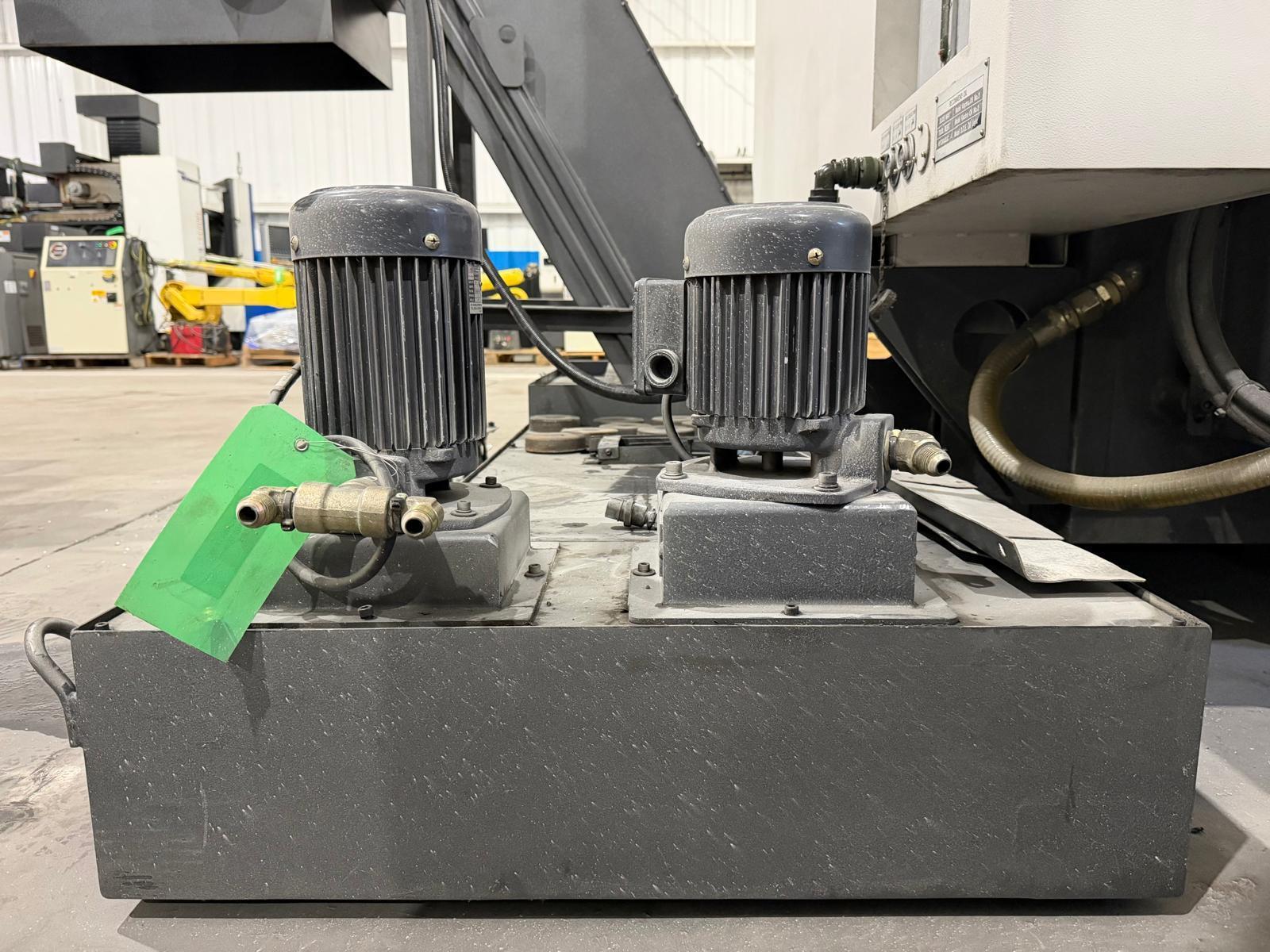

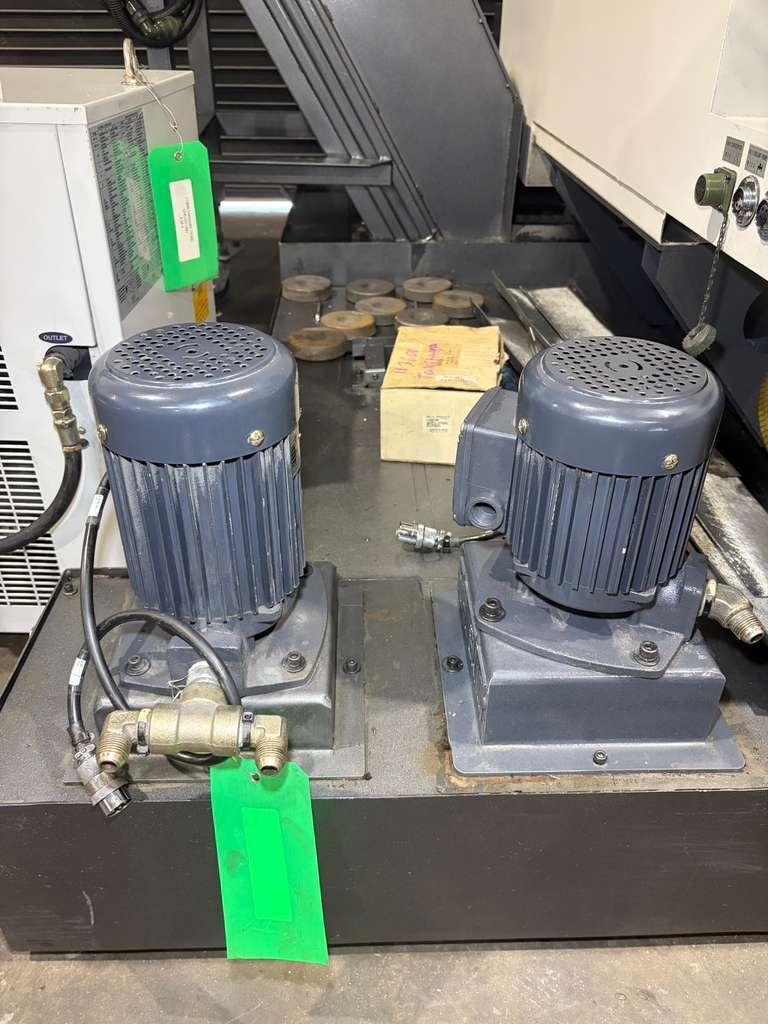

Coolant Tank

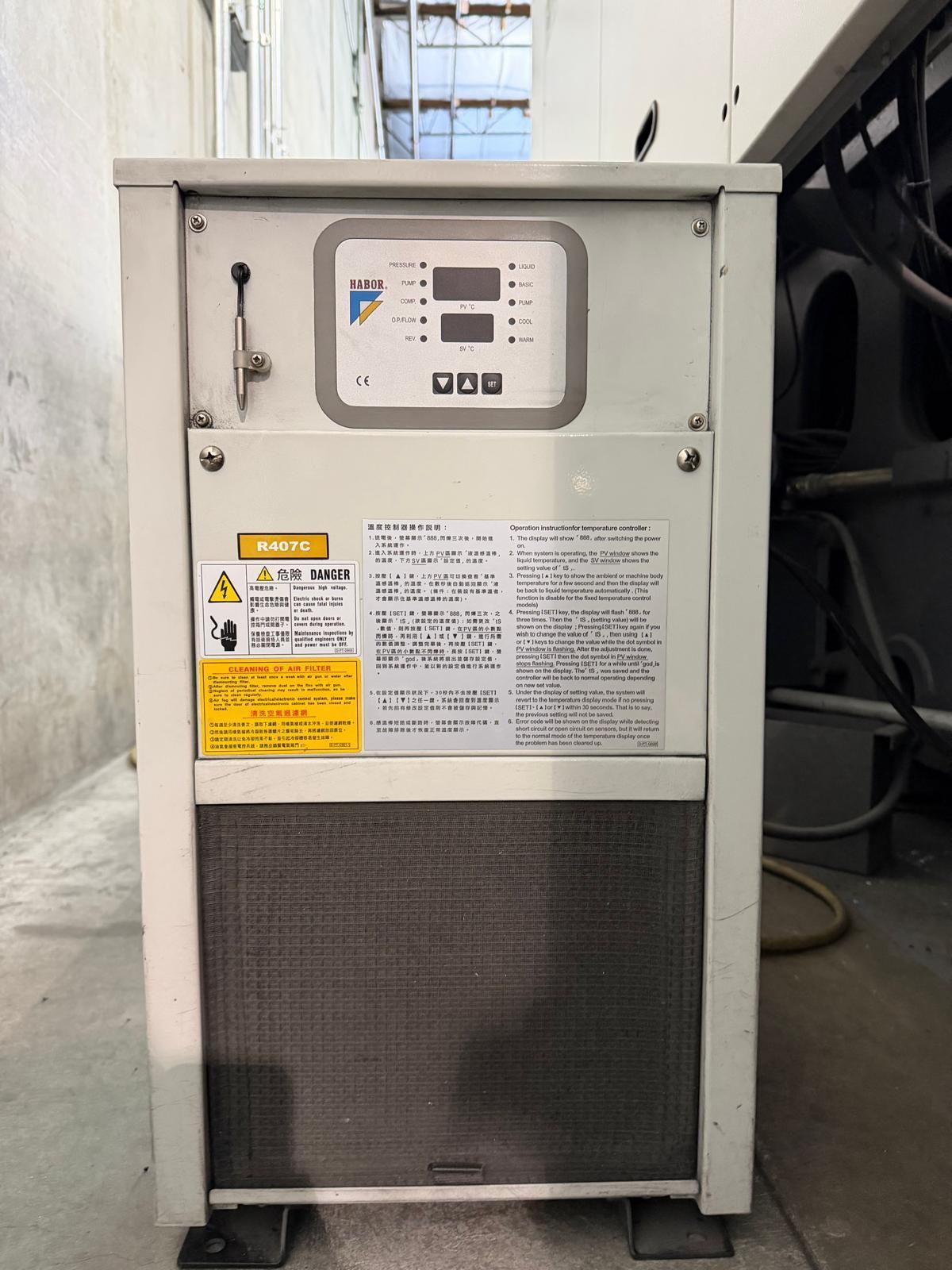

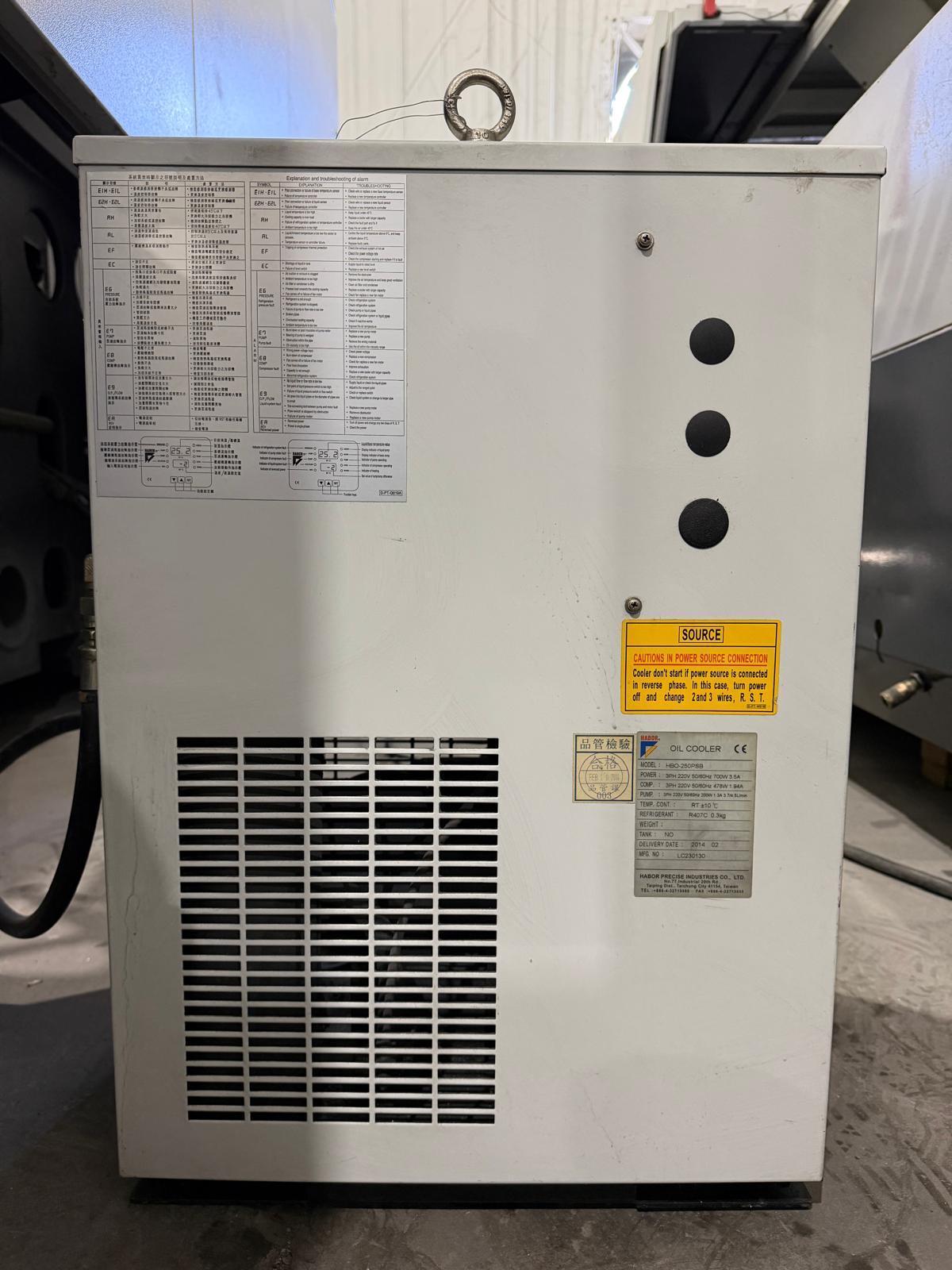

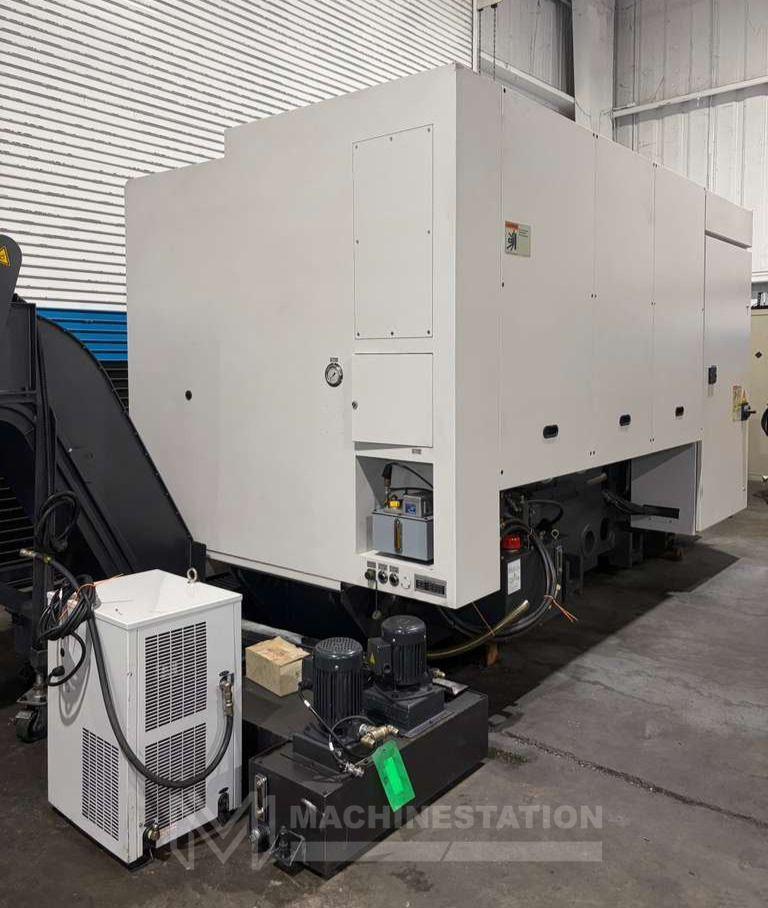

Spindle Chiller Unit
Chip conveyor
Foot Switch
Leveling Pads

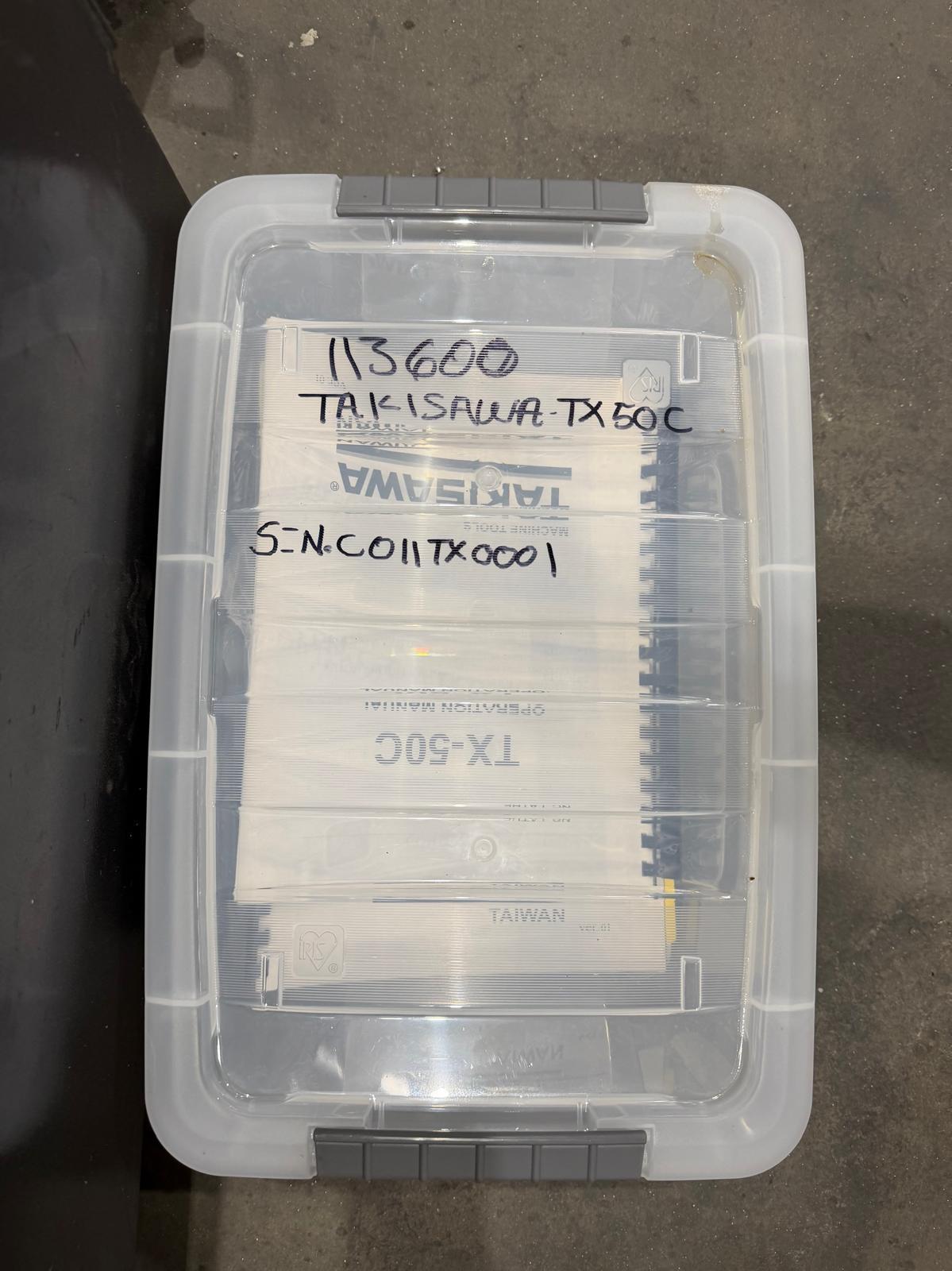

Books & Manuals
Capacity:
Max Turning Diameter: 21.65 inch
Max Turning Length: 29.90 inch
Max Swing Over Bed: 30.31 inch
Max Swing Over Saddle: 25.19 inch
Spindle Bore: 5.0 inch
Travels:
X-Axis Travel: 11.41 inch
Z-Axis Travel: 31.49 inch
X-Axis Rapid Travese Rate: 630 IPM
Z-Axis Rapid Travese Rate: 787 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.0 inch
Spindle Speed: 2000 RPM
Spindle Motor: 35 HP
Turret:
Capacity: 10 Stations
Turning Tool Size: 1.26 inch
Boring Tool Diameter: 1.96 inch
Tailstock:
Tailstock Travel: 31.49 inch
Tailstock Taper: MT-5
Tailstock Spindle Diameter: 7.08 inch
Tailstock Spindle Travel: 5.90 inch
General:
Power Source: 220v / 50/60 Hz / 3-Phase
Overall Dimensions: 157 inch X 82 inch X 85 inch High Approx.
Weight: 19,840 lbs. Approx.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?

Similar Listings to - Takisawa TX-50C CNC Turning Center – 12″ Chuck, 5″ Big Bore Lathe
TAKISAWA EX-508 CNC Lathes & Turning Centers
TAKISAWA

Turning Centers

TAKISAWA EX-508 CNC Lathes & Turning Centers

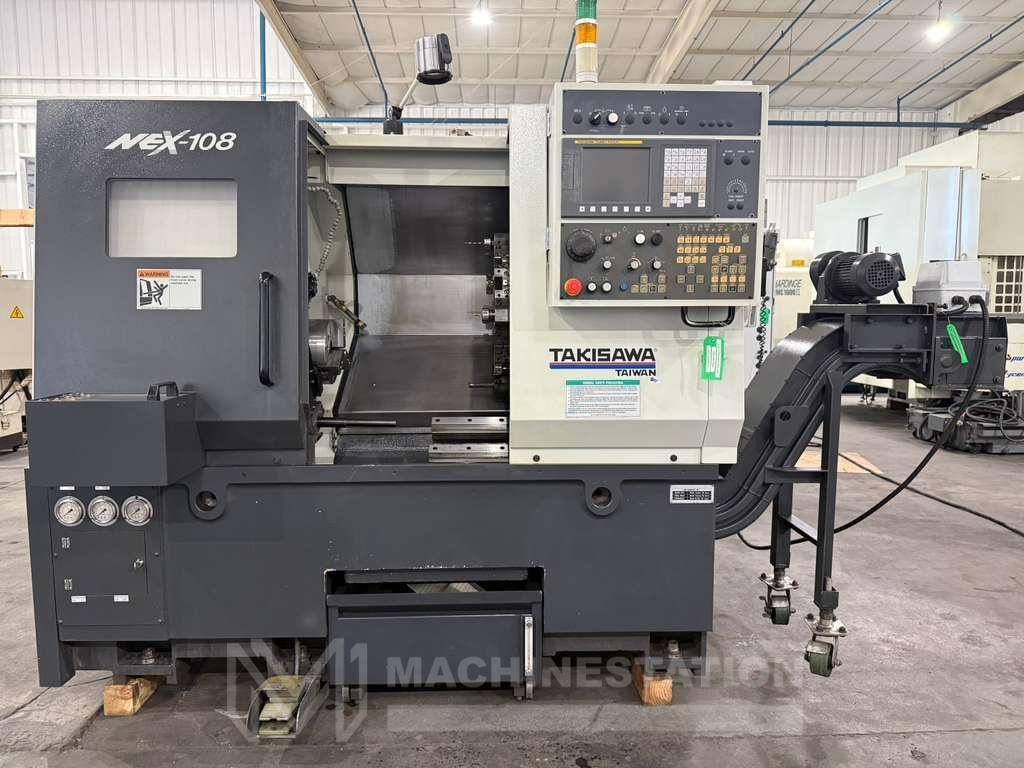

Takisawa NEX-108 CNC Turning Center – 8″ Chuck, Tool Presetter, Tailstock Lathe
