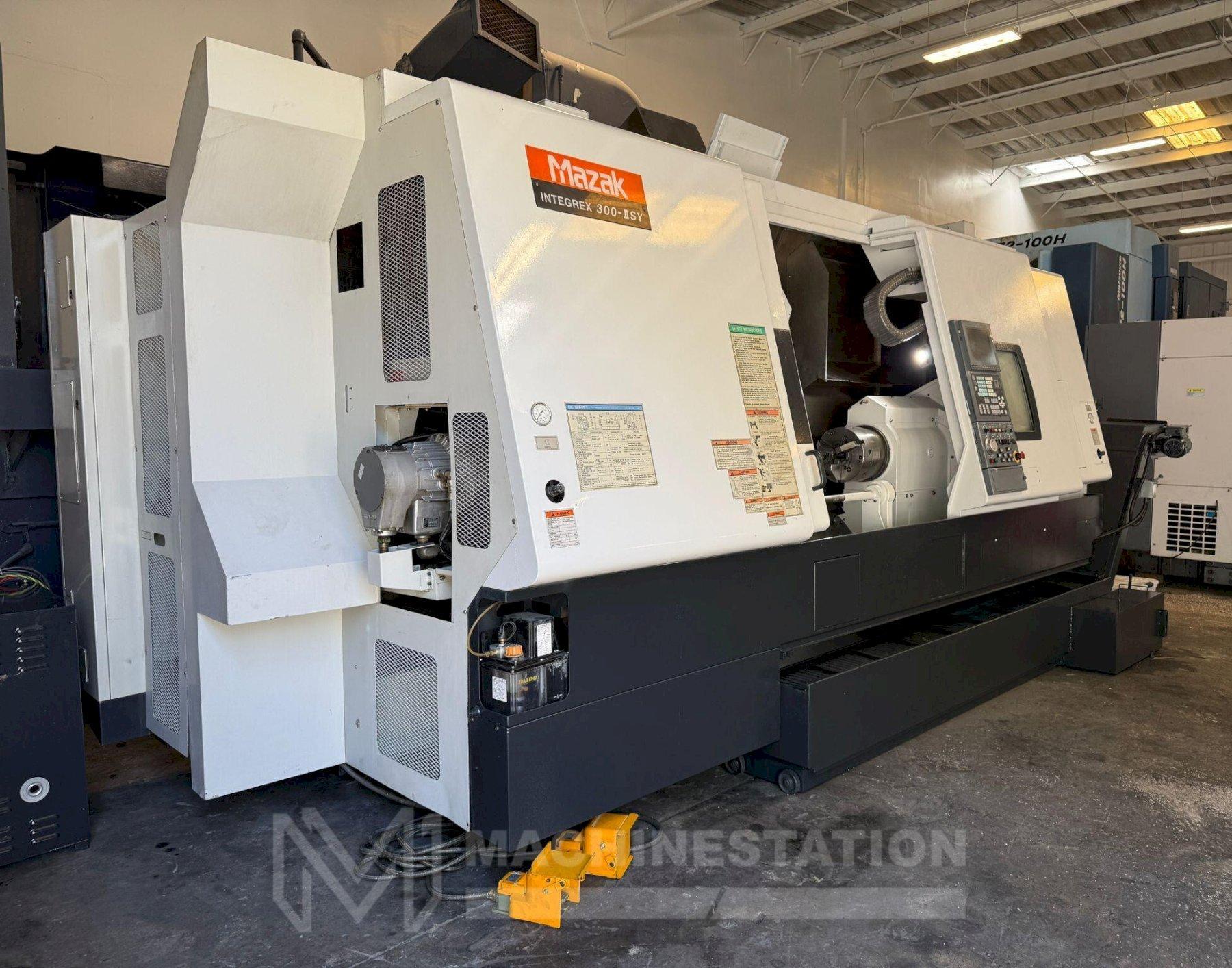

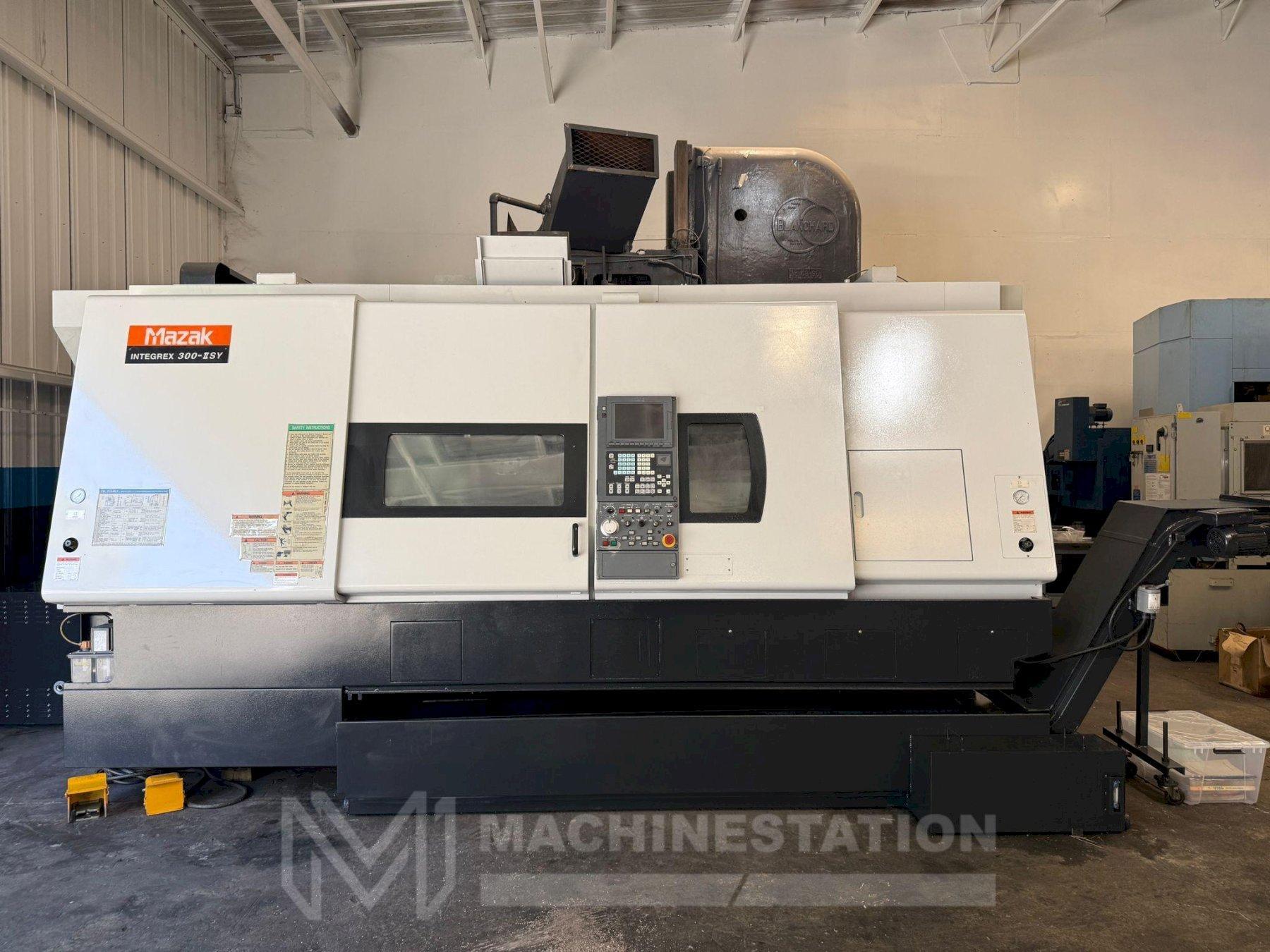

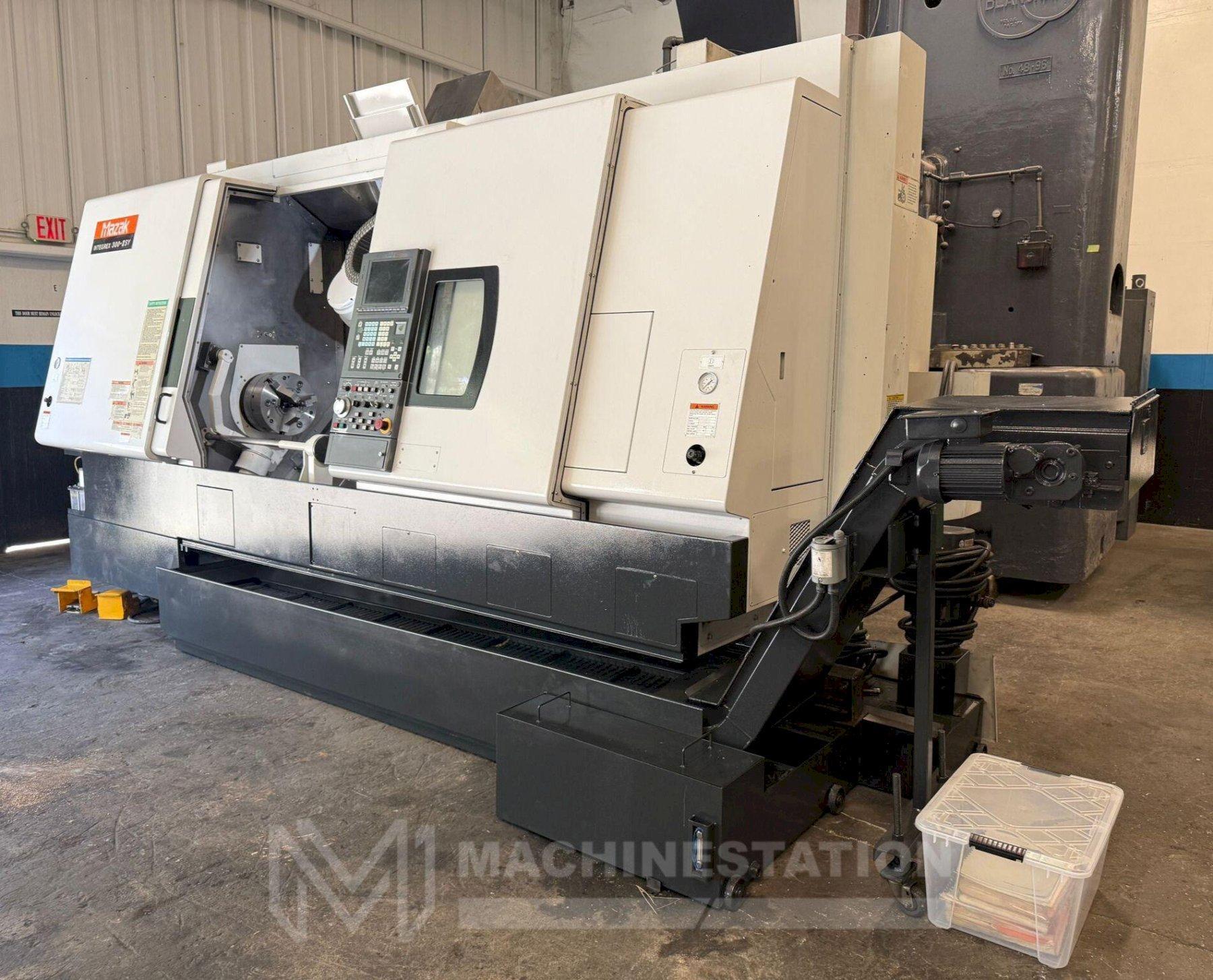

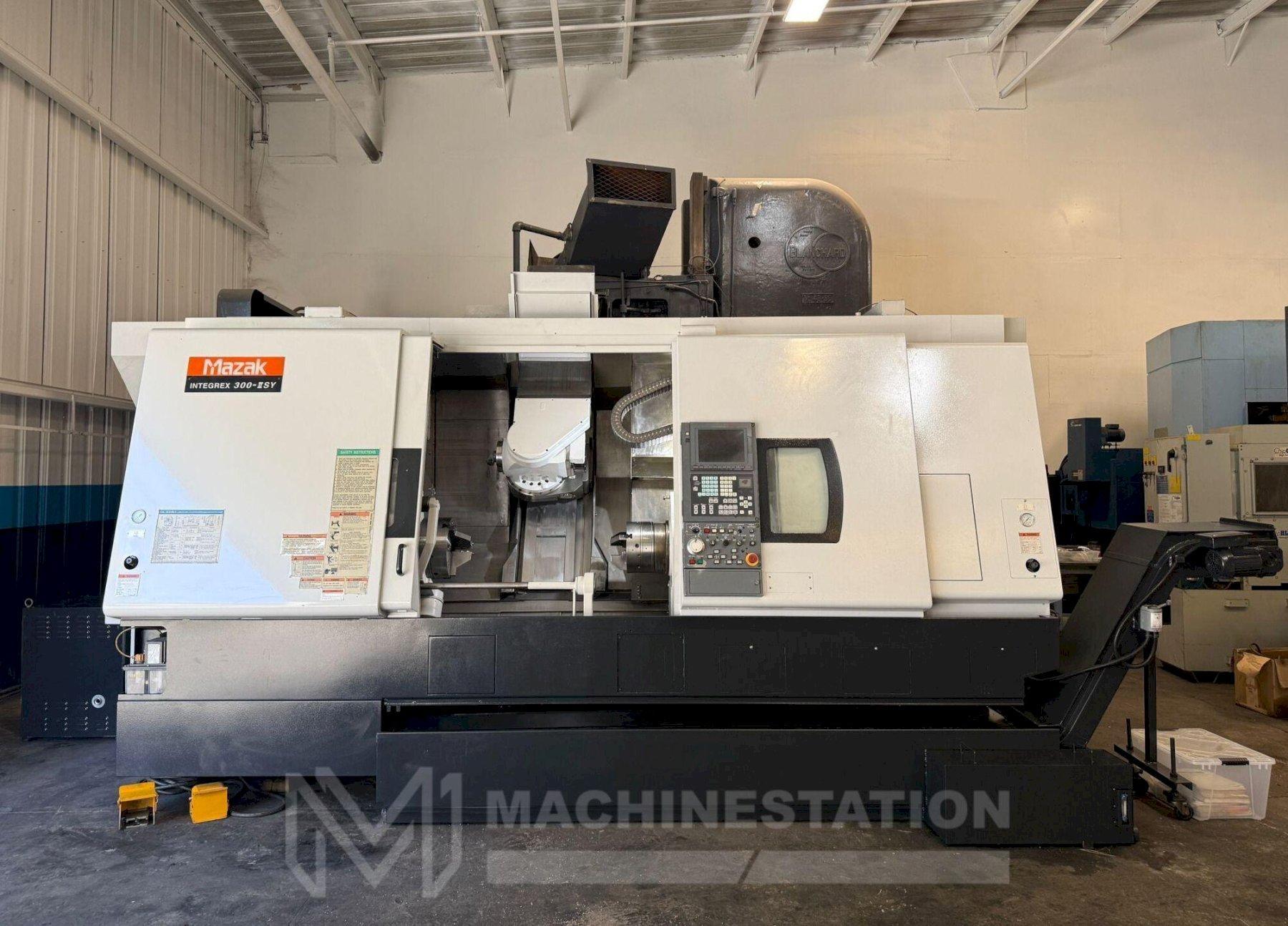

Mazak Integrex 300II-SY Multi Axis CNC Turning Center -Lathe

Brand
MAZAK
Category
Lathes & Turning Machines
Type
Turning Centers
Model
: Mazak Integrex 300II-SY
Stock #
112724
Year
2002
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mazak
Model: Integrex 300II-SY
Year: 2002
Condition: Used – Good
Equipped With:

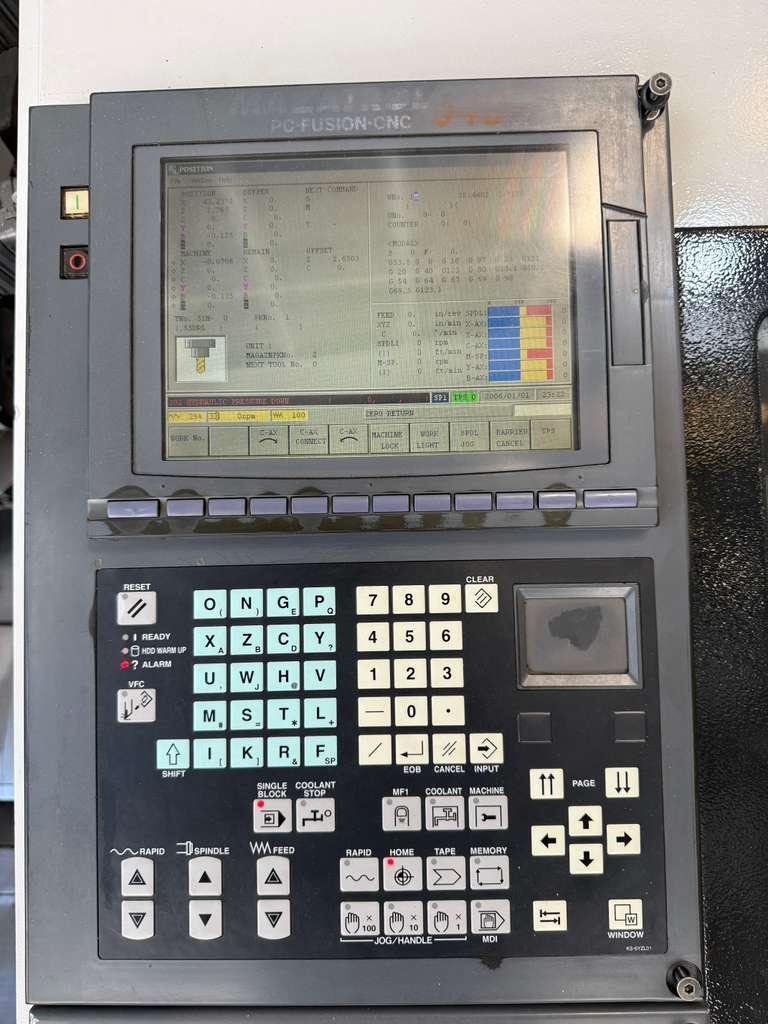

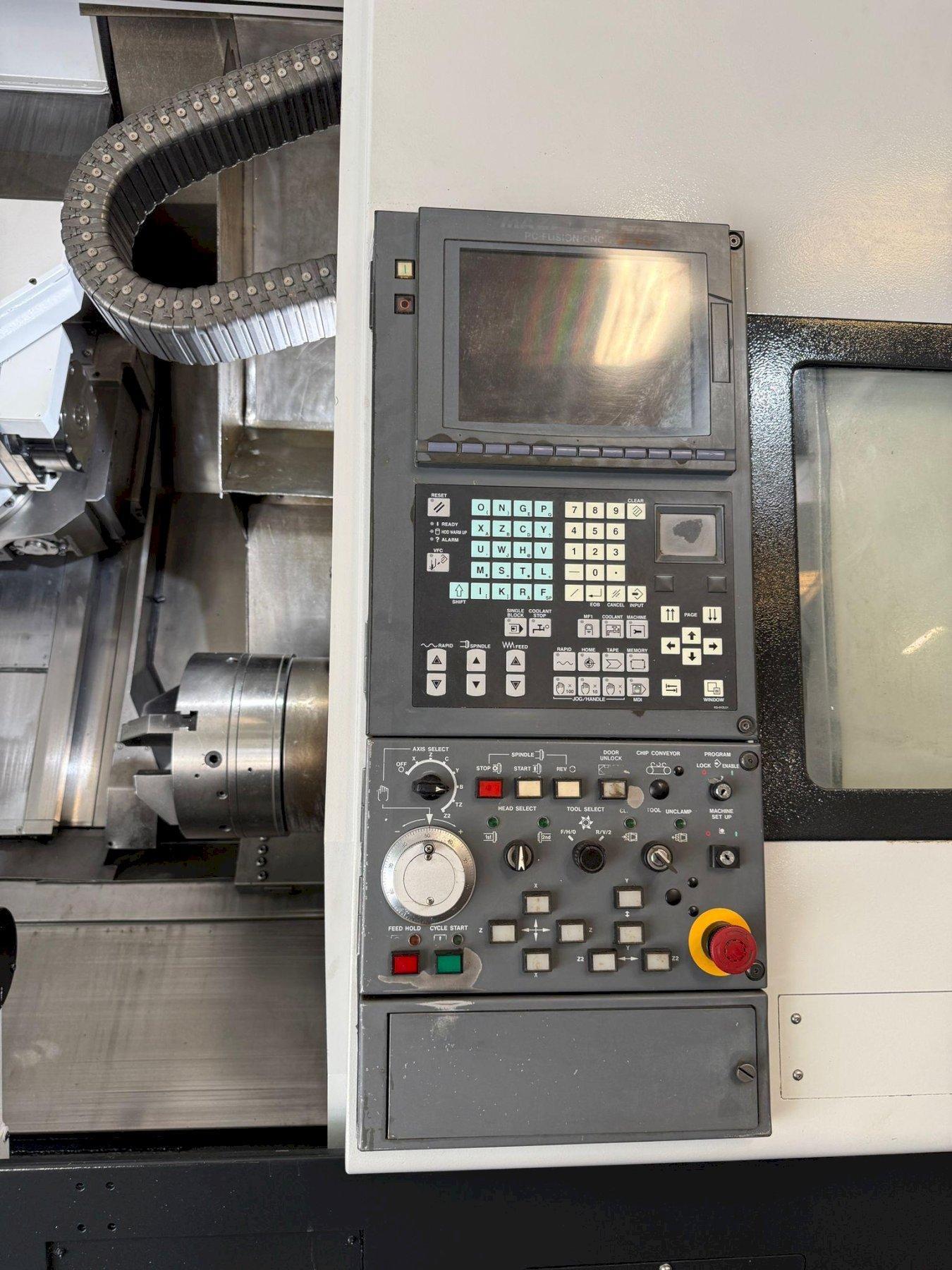

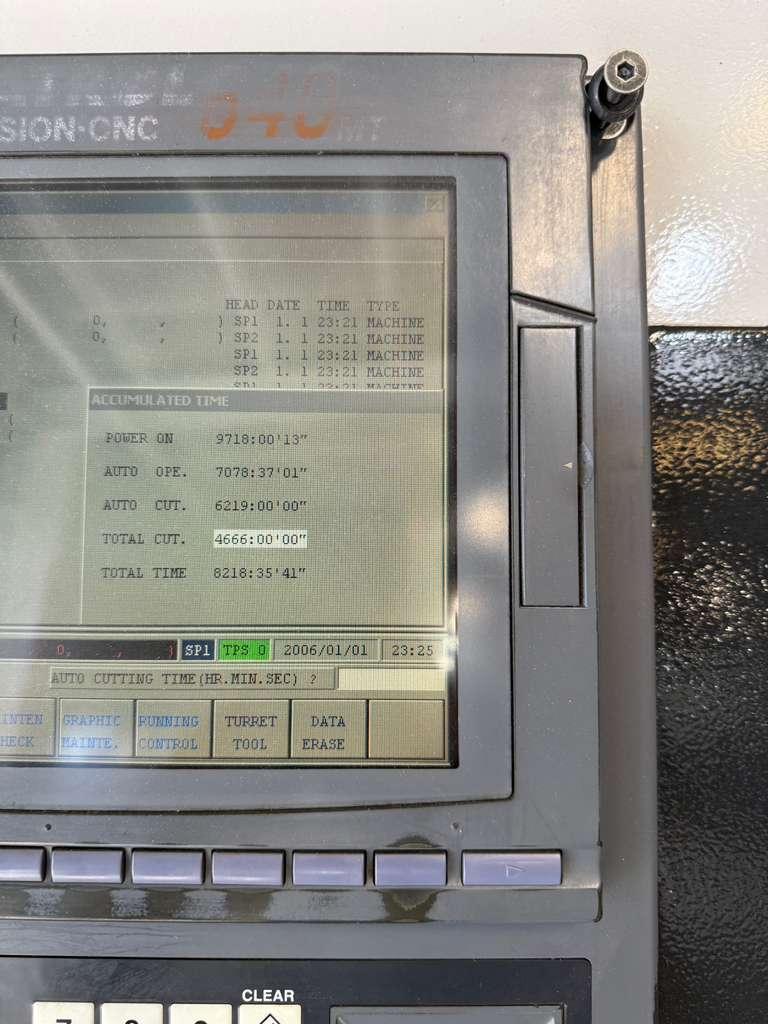

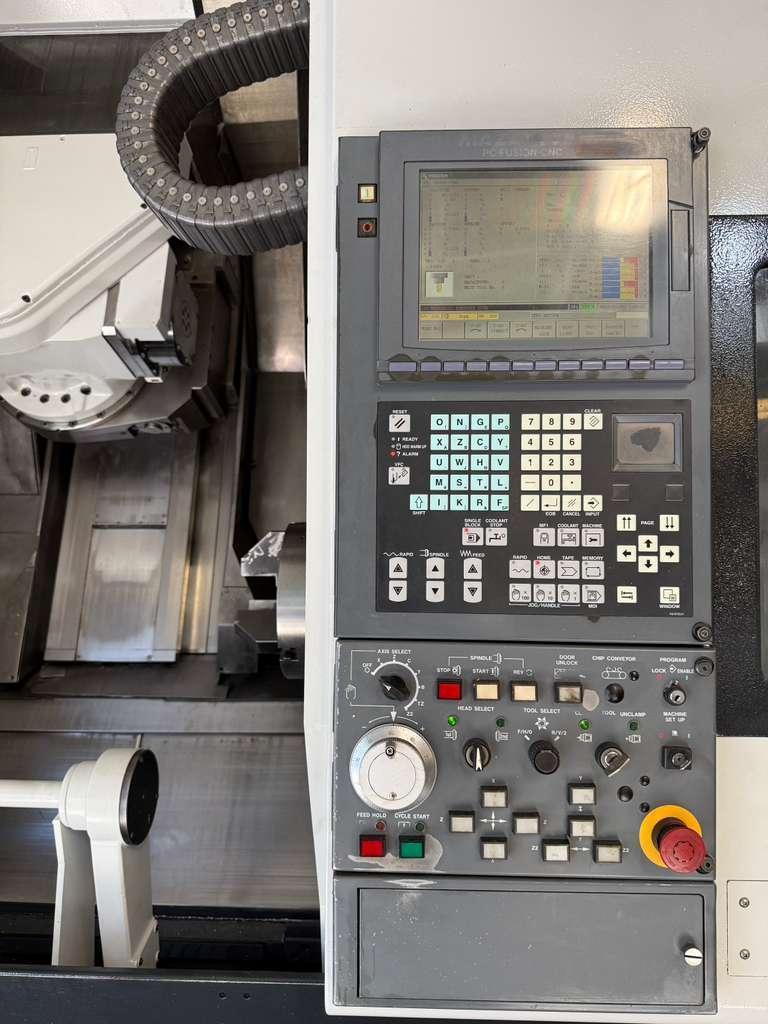

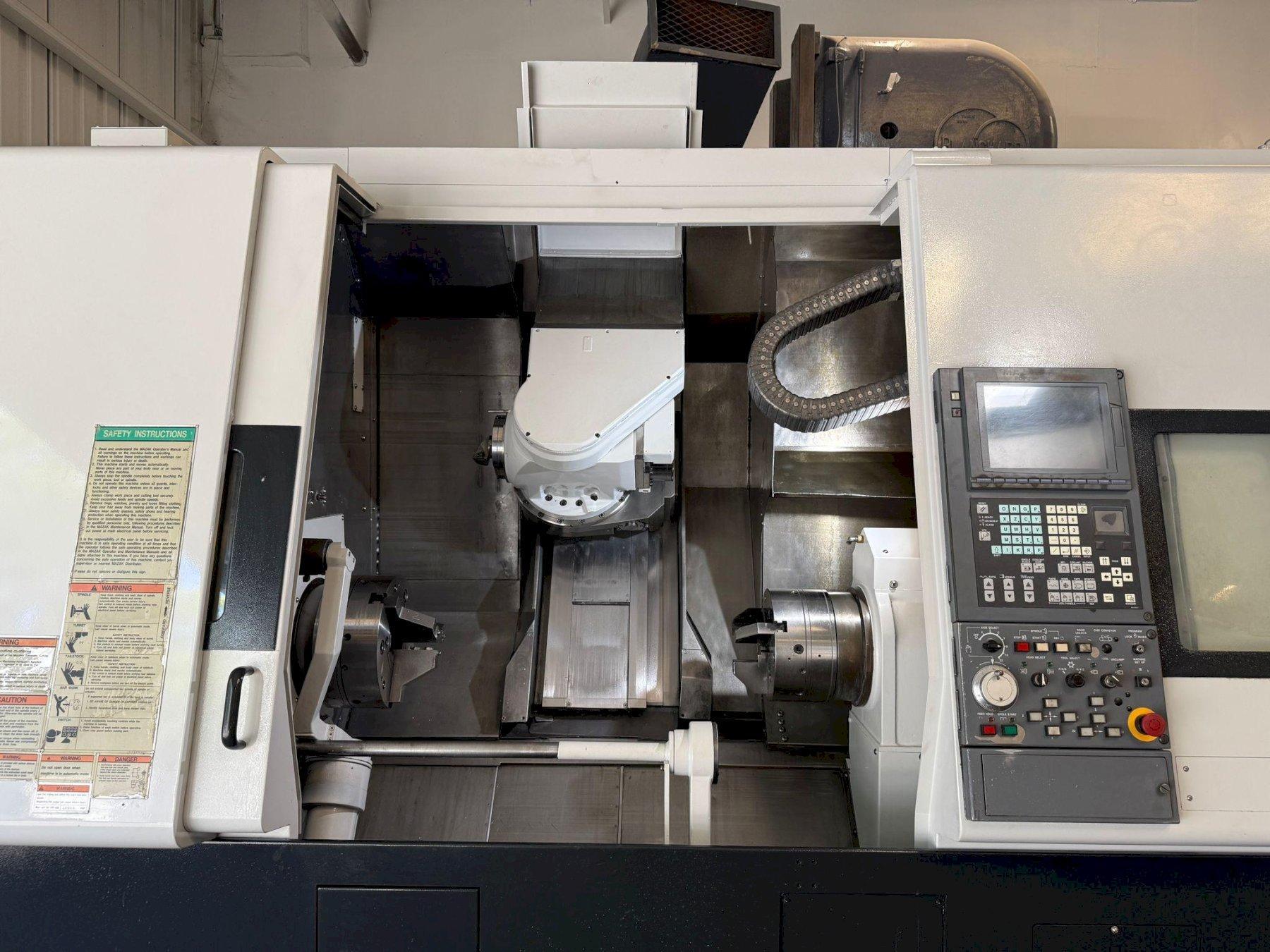

Mazatrol Fusion 640MT CNC Control

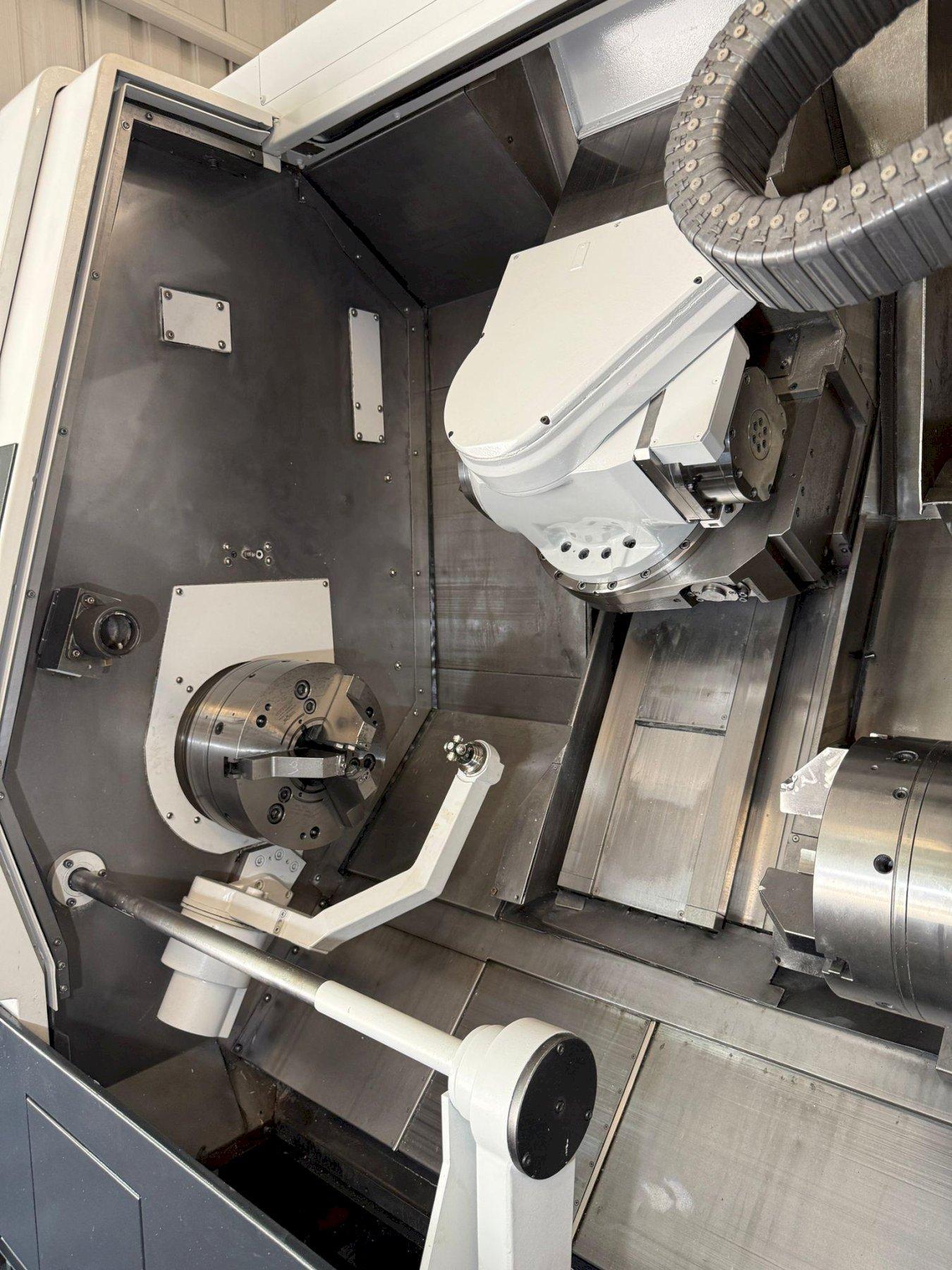

10,000 RPM Pendulum Milling Head
40 Station Tool Magazine

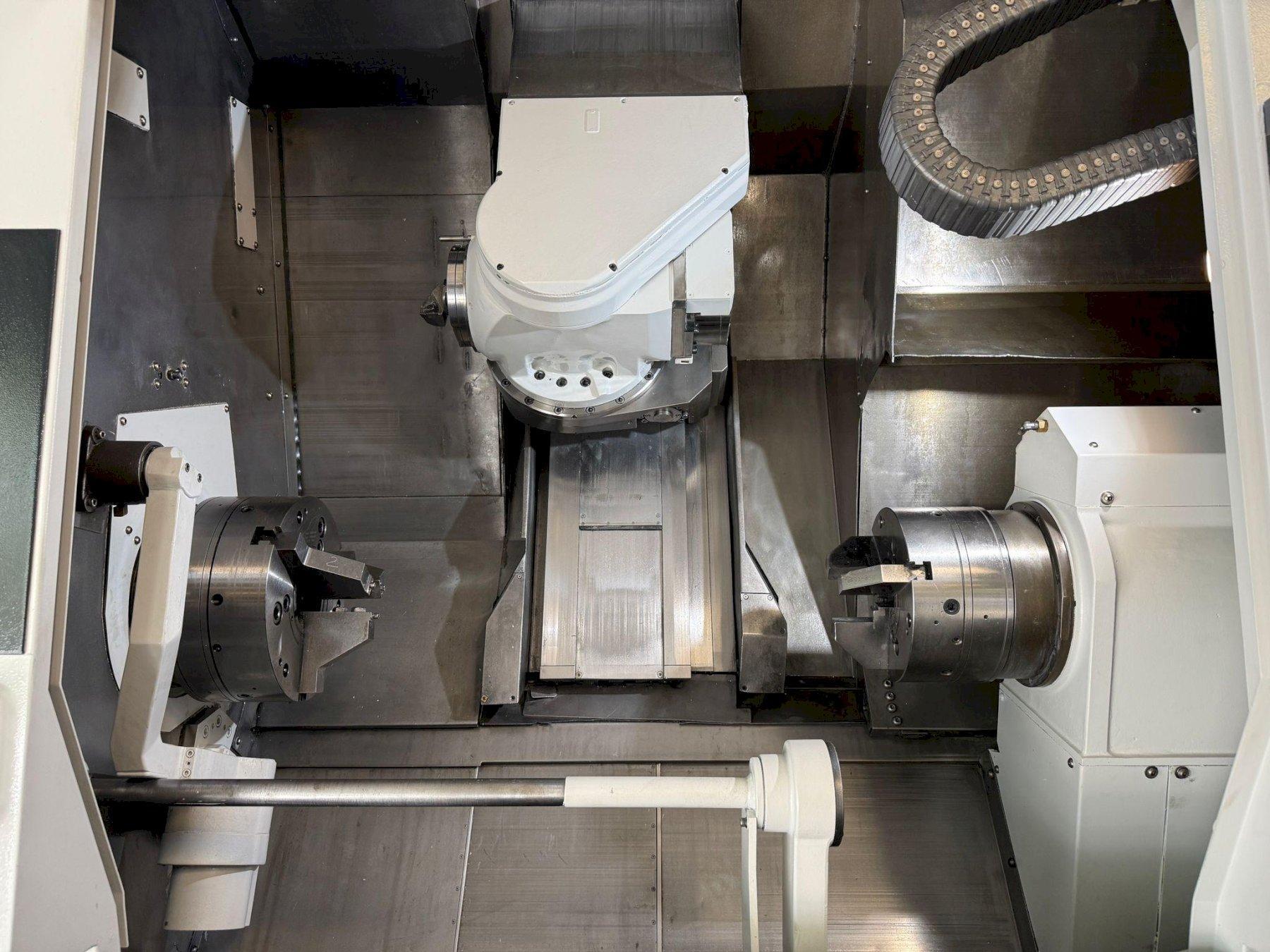

Sub Spindle
Full C-Axis on Both Spindles
Y Axis Capability

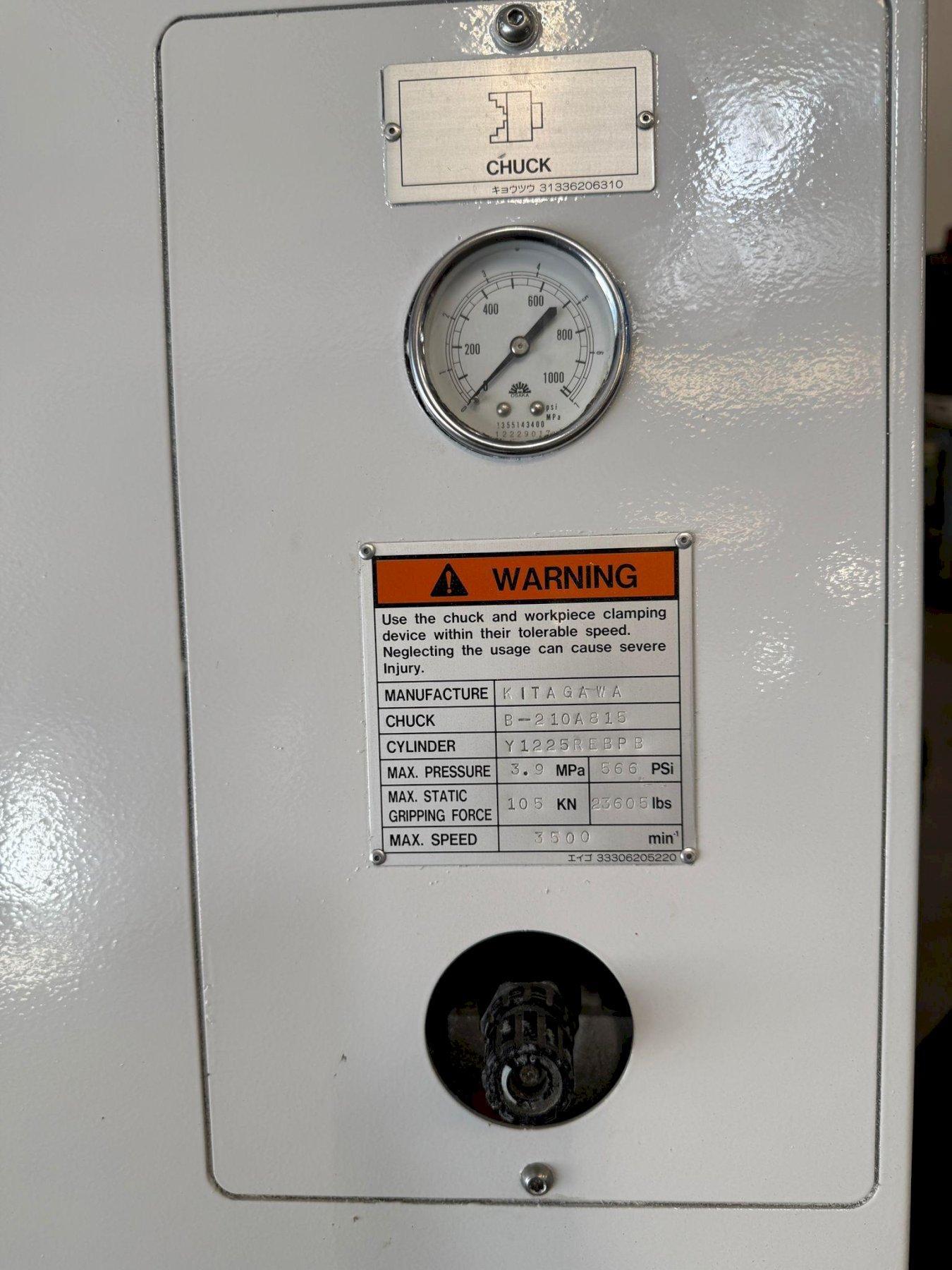

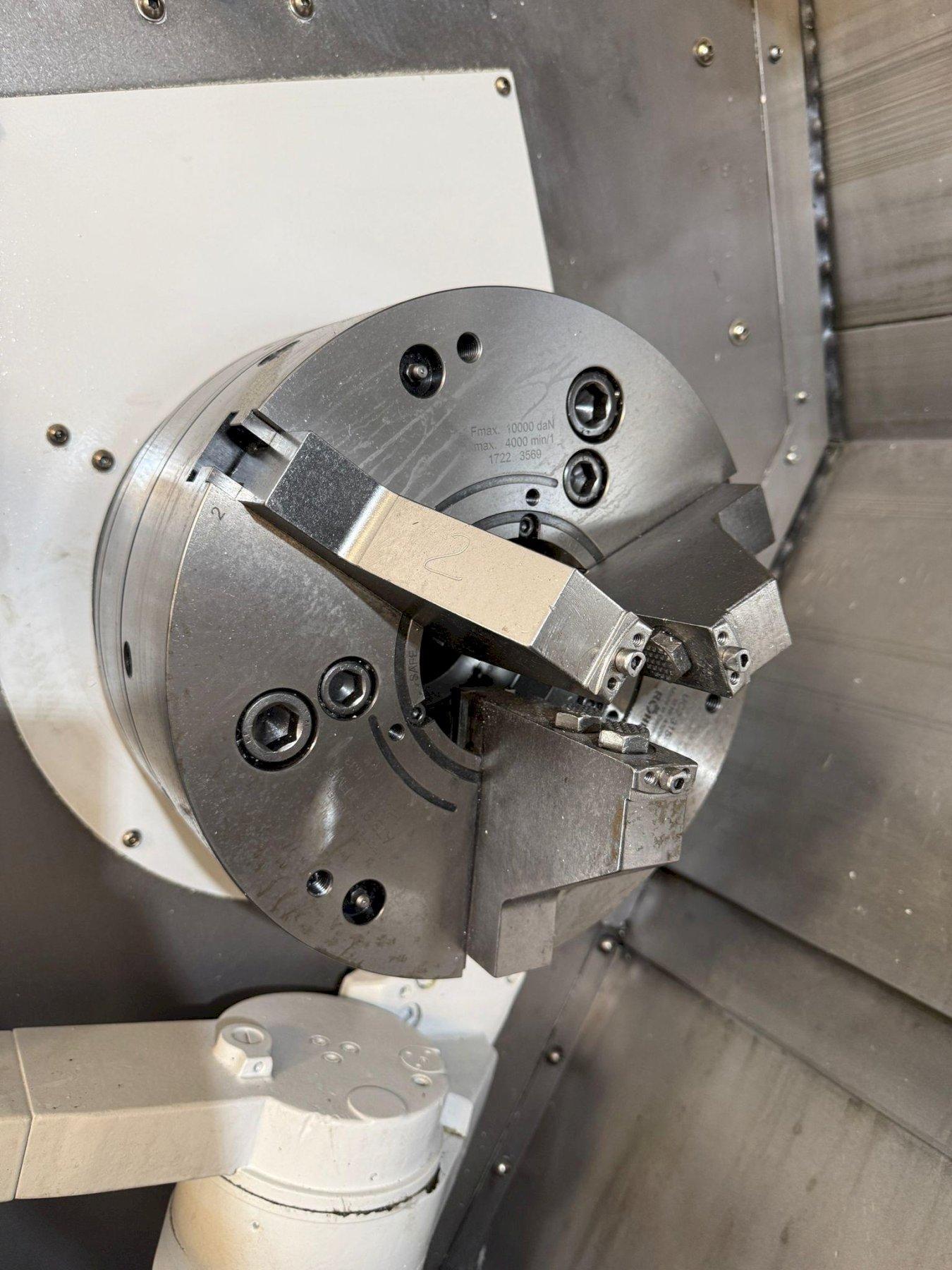

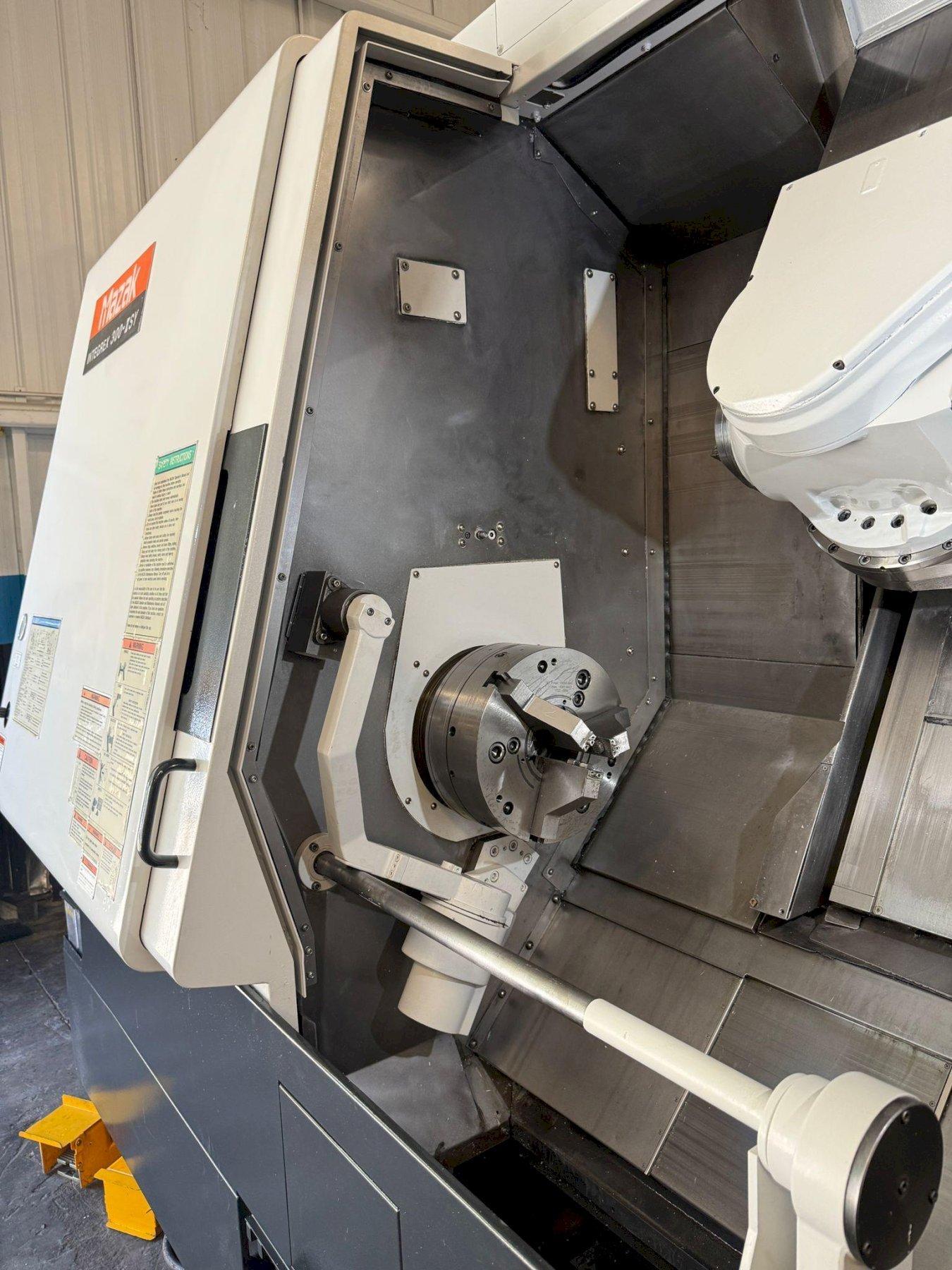

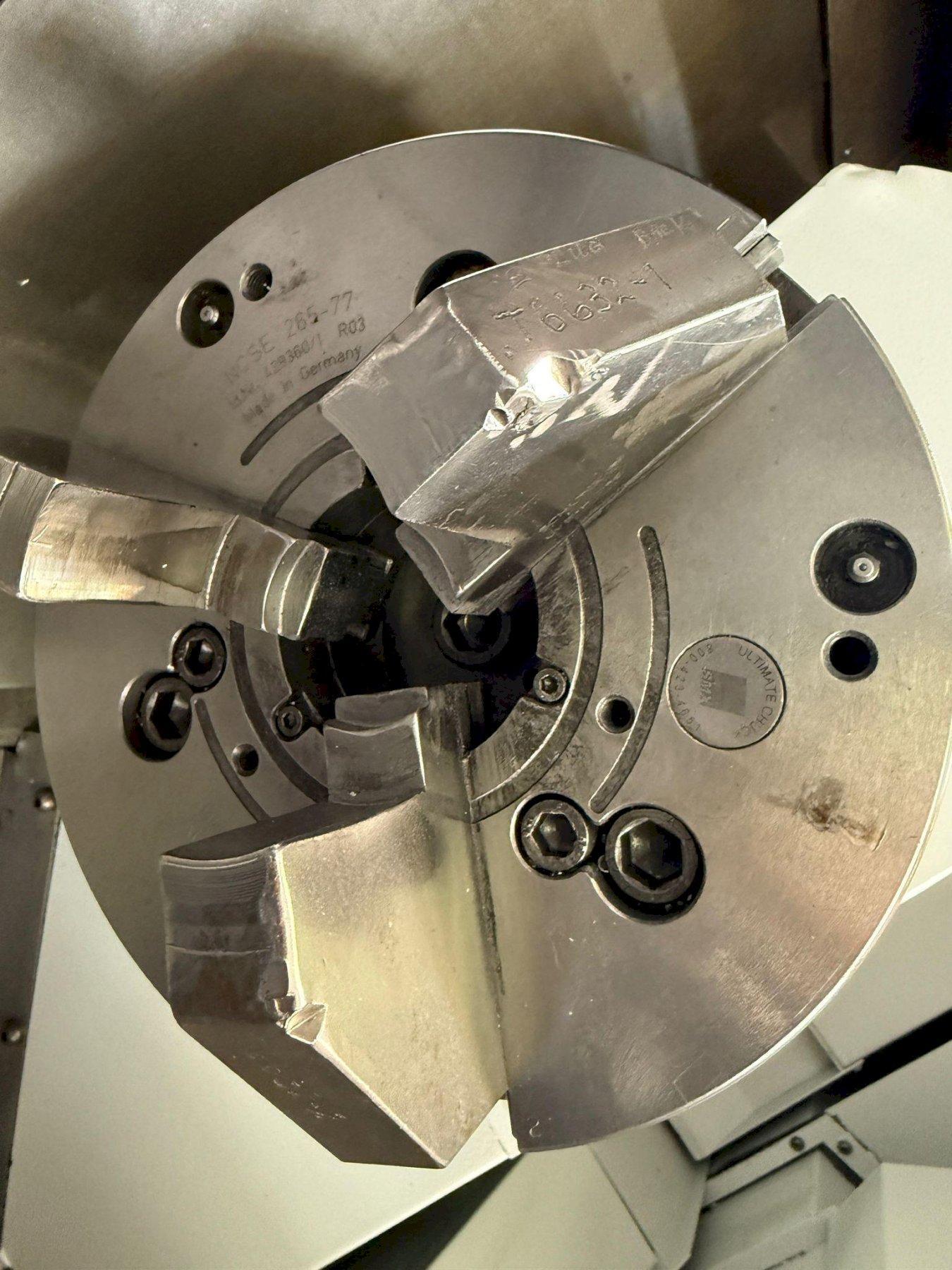

12.4″ 3-Jaw Chuck on Main Spindle

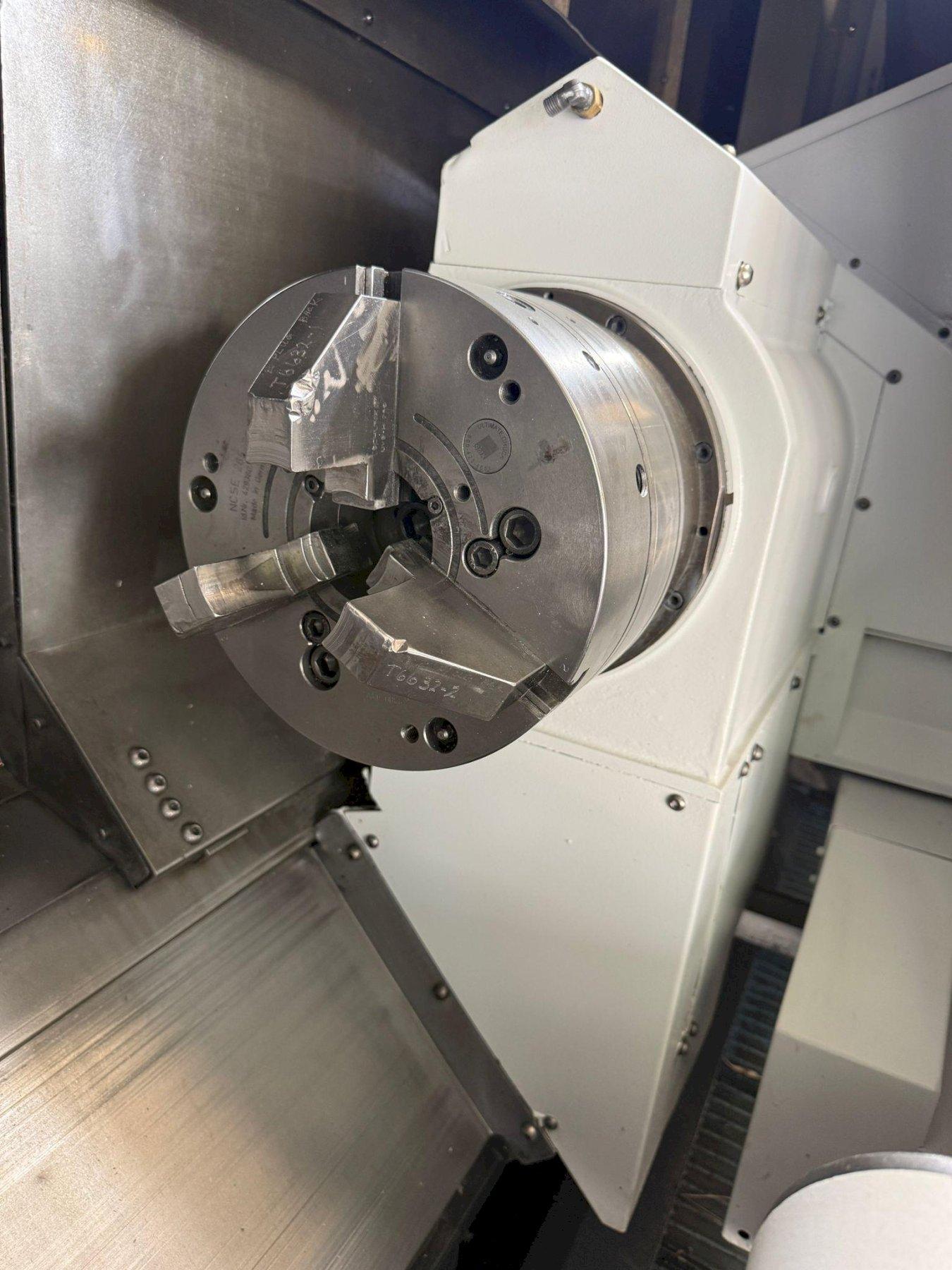

10.4″ 3-Jaw Chuck on Sub Spindle
Tool Presetter
Part Cather
Rigid Tapping
Coolant System
Chip Conveyor

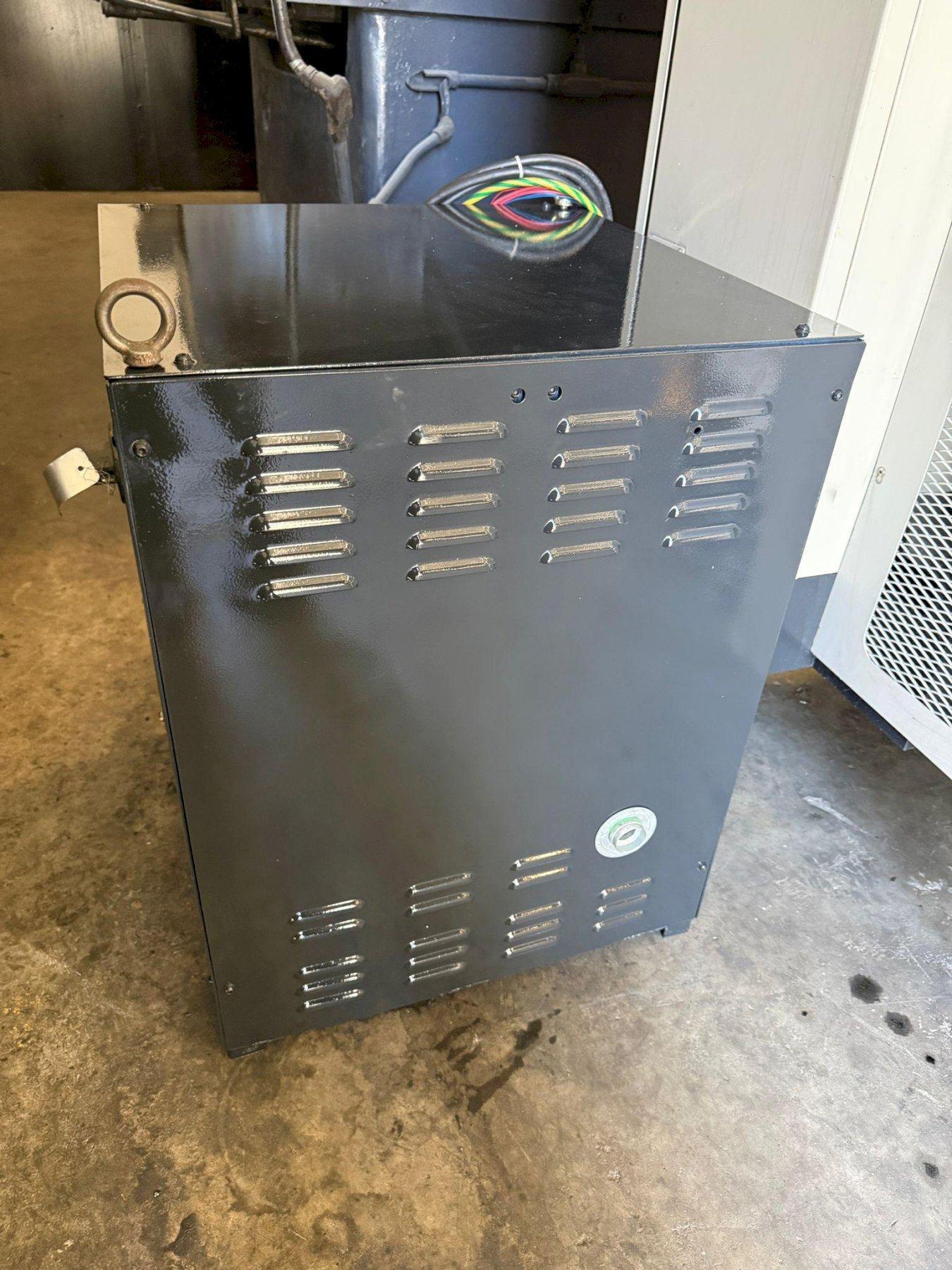

Transformer
Foot Switches
Books and Manuals
Capacity:
Max Turning Diameter: 30″
Max Turning Length: 60″
Max Bar Capacity: 3.46″
Swing Over Bed: 30.0″
Distance Between Centers: 60″
Travels:
X Axis Travel: 24.80″
Y Axis Travel: 9.06″ (+/-4.53″)
Z Axis Travel: 62.40″
W Axis Travel (Sub Spindle): 60.24″
B Axis Travel: 225 Degree
C Axis: 360 Degree (0.001 Degree)
X Rapid Traverse Rate: 1181 Inch Per Minute
Y Rapid Traverse Rate: 591 Inch Per Minute
Z Rapid Traverse Rate: 1181 Inch Per Minute
Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 4.1″
Main Spindle Speed: 35 – 3500 RPM
Main Spindle Motor: 40 HP

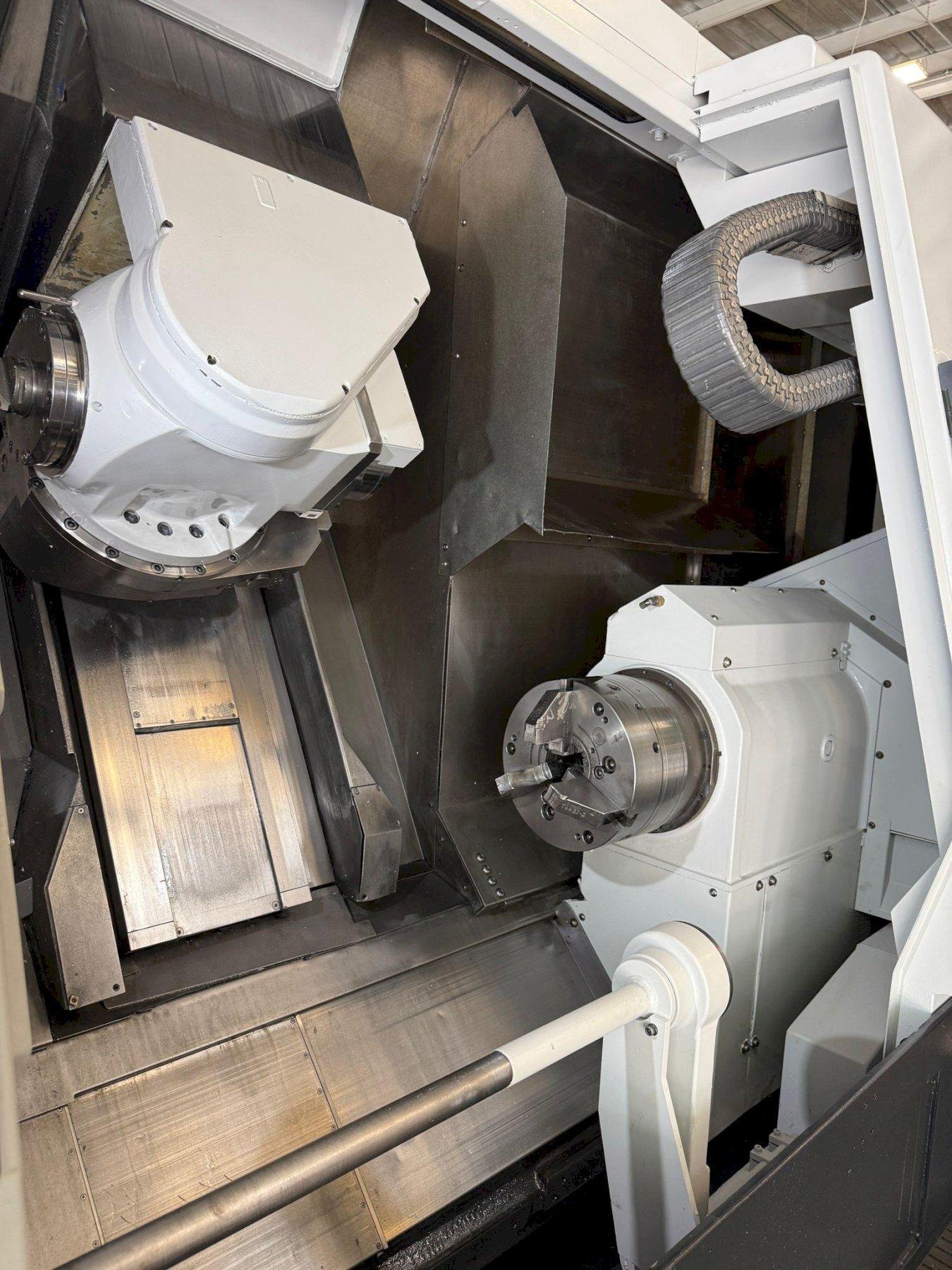

Sub Spindle:
Sub Spindle Nose: A2-8
Sub Spindle Bore: 3.1″
Sub Spindle Speed: 35 – 3500 RPM
Sub Spindle Motor: 30 HP
Milling Head:
Single Station Pendulum Head with 40 ATC
Tool Type: Capto C6
Spindle Speed: 15-10,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec
General:
Power Source: AC 200 V, Three Phase, 50/60 Hz
Power Requirement: 62.8 Kva
Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High Approx.
Weight: 22,000 lbs Approx.
