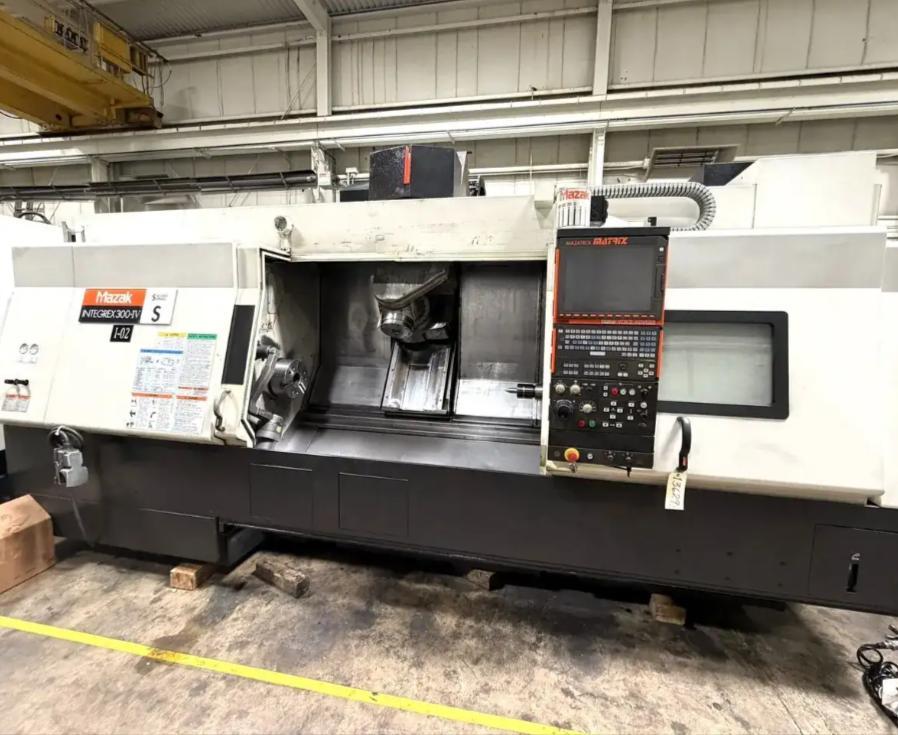

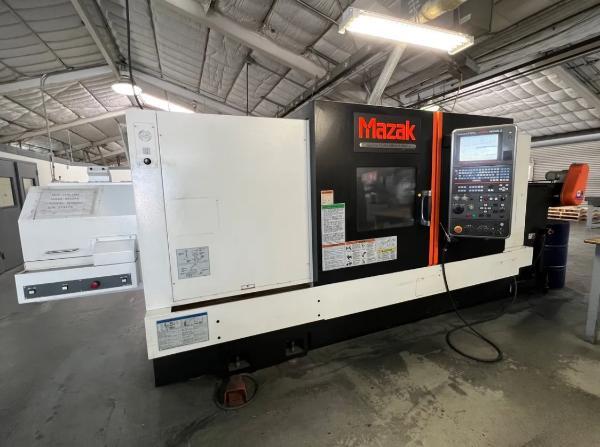

30” X 60” CNC Turning Center with Mazatrol Matrix CNC Control, 10” Chuck, Chip Conveyor, Coolant System, Parts Catcher and Tool Measurement.

GENERAL SPECIFICATIONS
Bar Capacity:                        3”
Max. Machining Diameters:                30”
Max. Machining Length:                60”

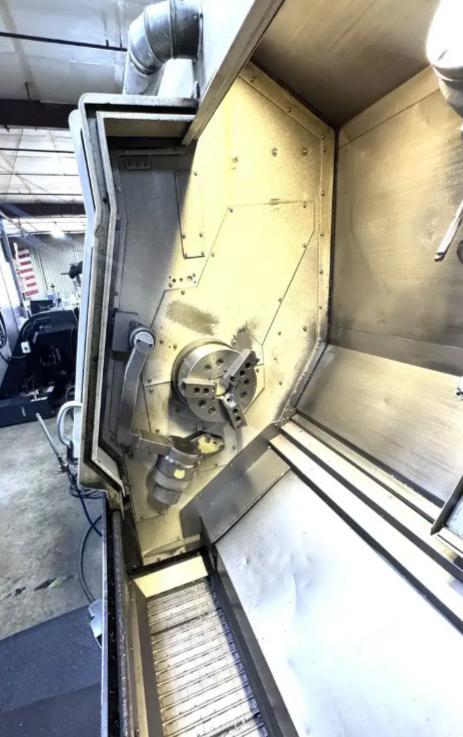

Main Spindle Chuck Size:                10”
Main Spindle Max. Speed:                4,000 RPM
Main Spindle Motor Output:            40 HP
Second Spindle Max. Speed:            4,000 RPM
Second Spindle Motor Output:            35 HP

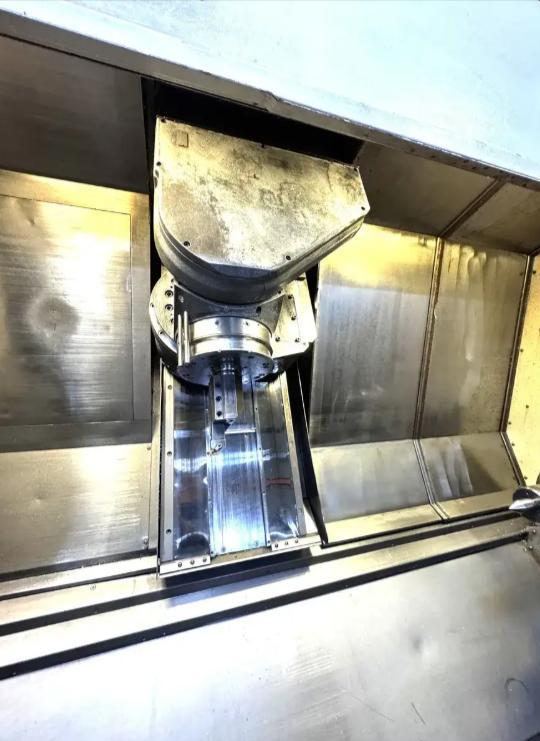

Milling Spindle B - Axis Travel:            225°
Milling Spindle Magazine Capacity:        20
Milling Spindle Max Speed:                12,000 RPM
Milling Spindle Motor:                25 HP
X - Axis Travel:                    24.8”
Y - Axis Travel:                    9.06” (±4.53”)
Z - Axis Travel:                    62.4”
W - Axis Travel (Sub-Spindle):            60.24”
B - Axis travel:                    225°
C - Axis:                        360° (0.001)

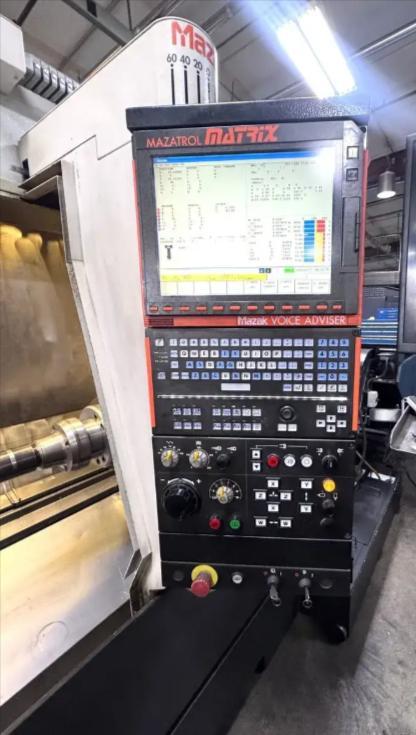

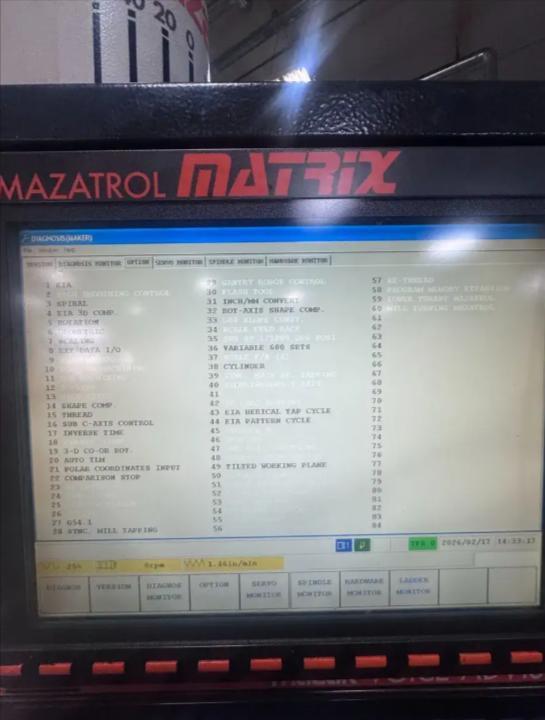

INCLUDES:  Mazatrol Matrix CNC Control, 10” Chuck, Chip Conveyor, Coolant System, Parts Catcher and Tool Measurement.
