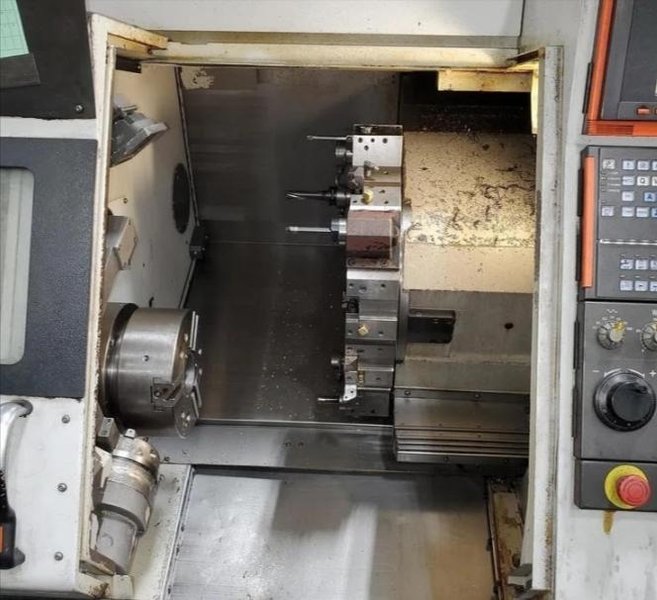

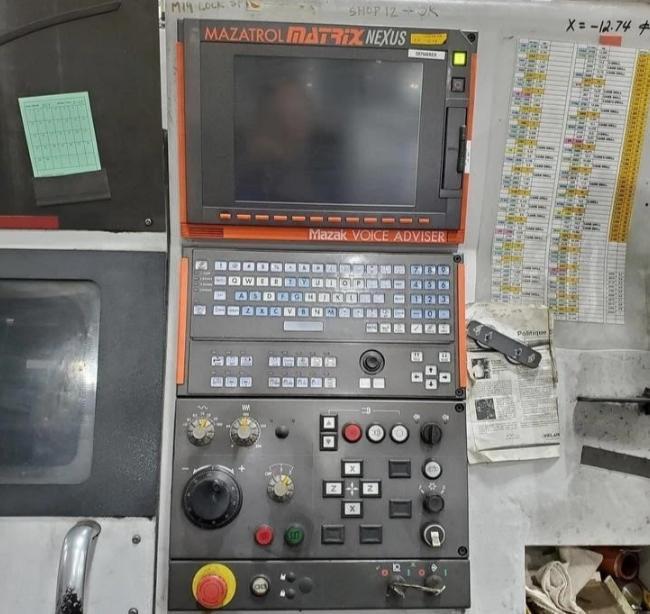

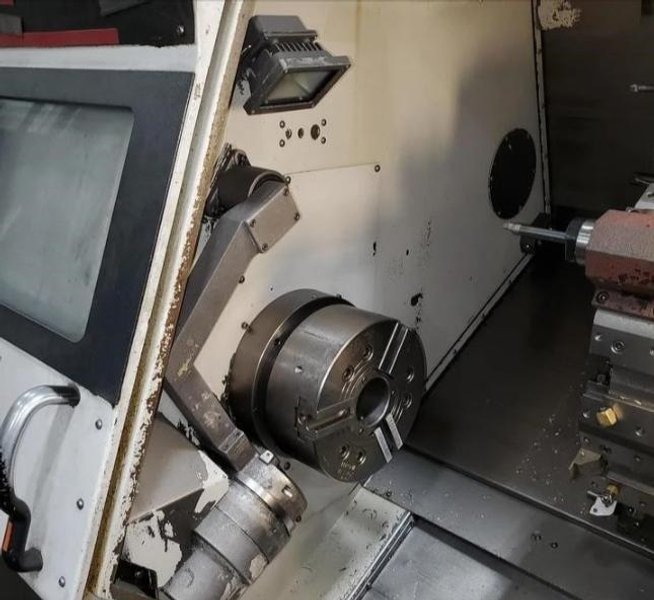

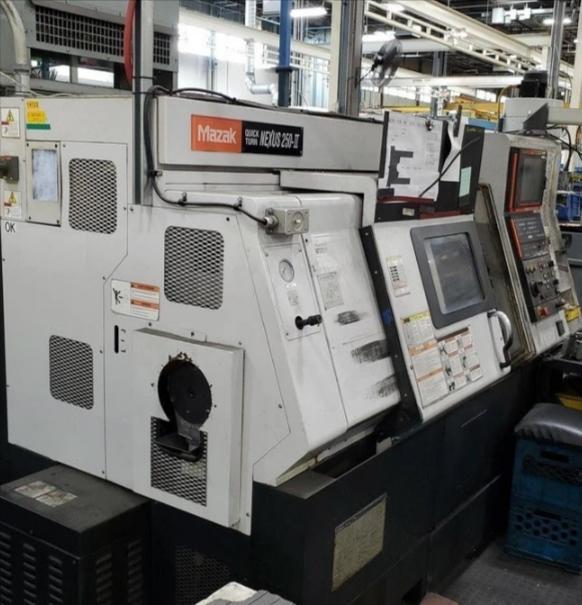

26.57” X 18” CNC Turning Center with Mazatrol Matrix Control, EIA / ISO Input Function, Programmable Tailstock, Chip Conveyor and 3 - Jaw Chuck

GENERAL SPECIFICATIONS
Max Swing:                        26.57”
Max Turning Diameter:                18.73”
Spindle Bore / Max Bar Capacity:            3.46” / 3.0”
Z - Axis Travel:                    20.25”
X - Axis Travel:                    7.5”
Machining Length:                    19.85”
Chuck Size:                        10”

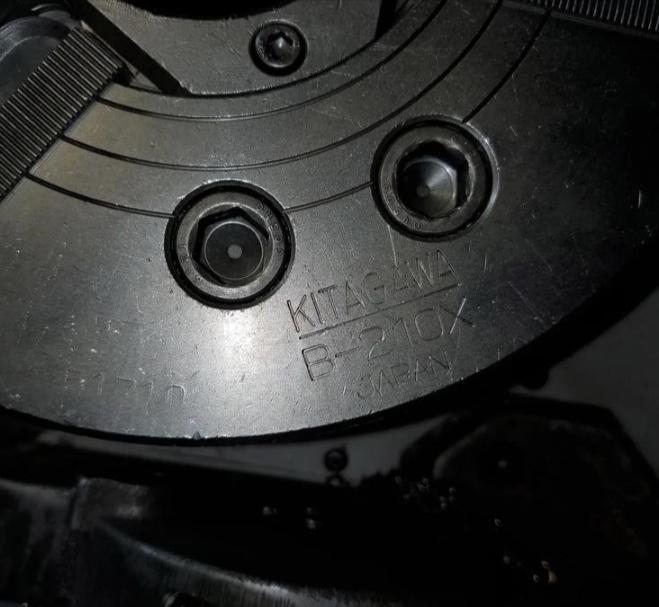

Chuck Type:                        Hydraulic
Spindle Motor:                    35 HP
Spindle Speeds:                    4000 RPM
Spindle Bore:                        3.46”
Max Bar Capacity:                    3.06”
Turret Tool Positions:                12
Dimensions:                        108” X 74” X 75” (w/o Conveyor)
Weight:                        11,000 Lbs


INCLUDES: Mazatrol Matrix Control, EIA / ISO Input Function, Programmable Tailstock, Chip Conveyor and 3 - Jaw Chuck

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
