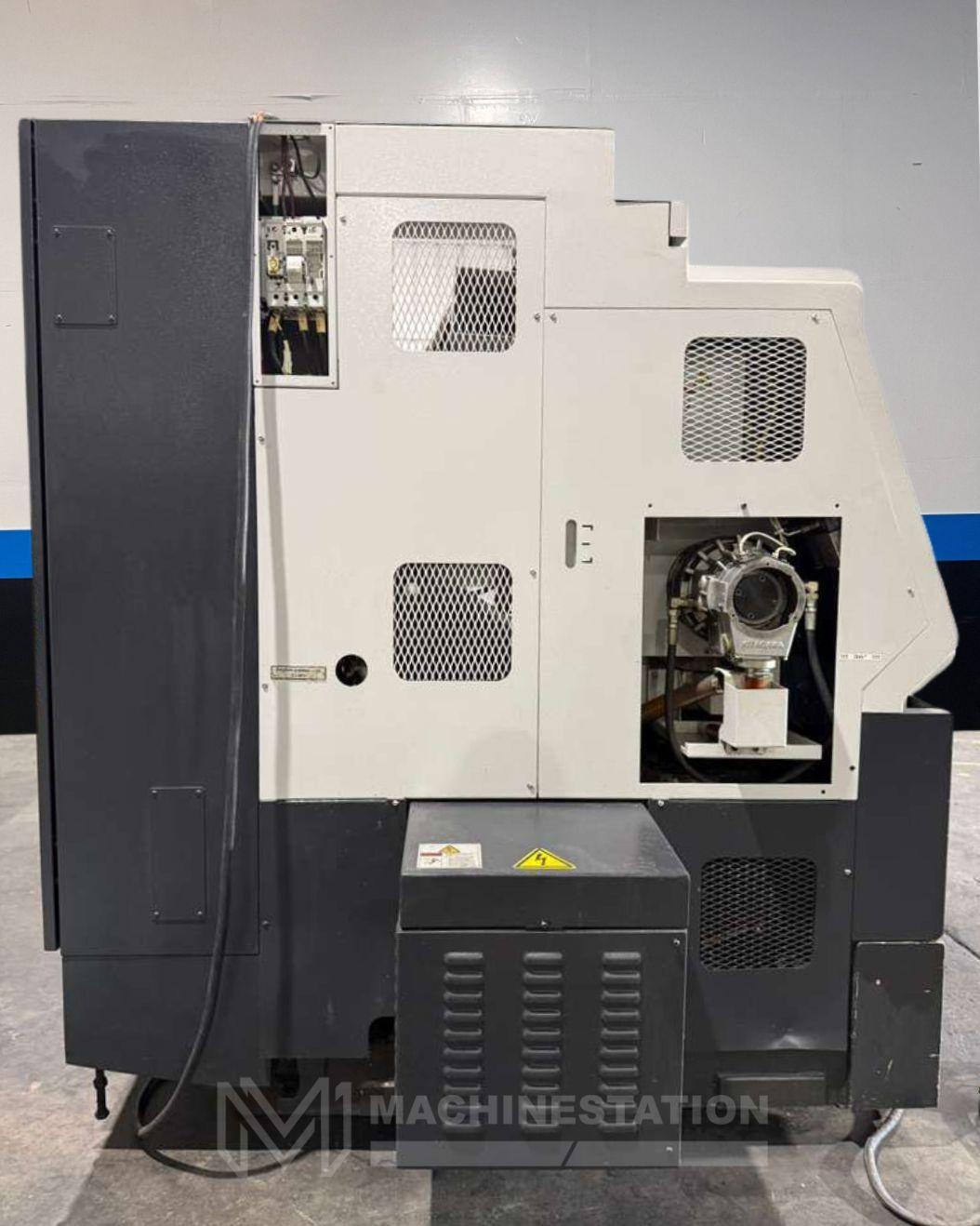

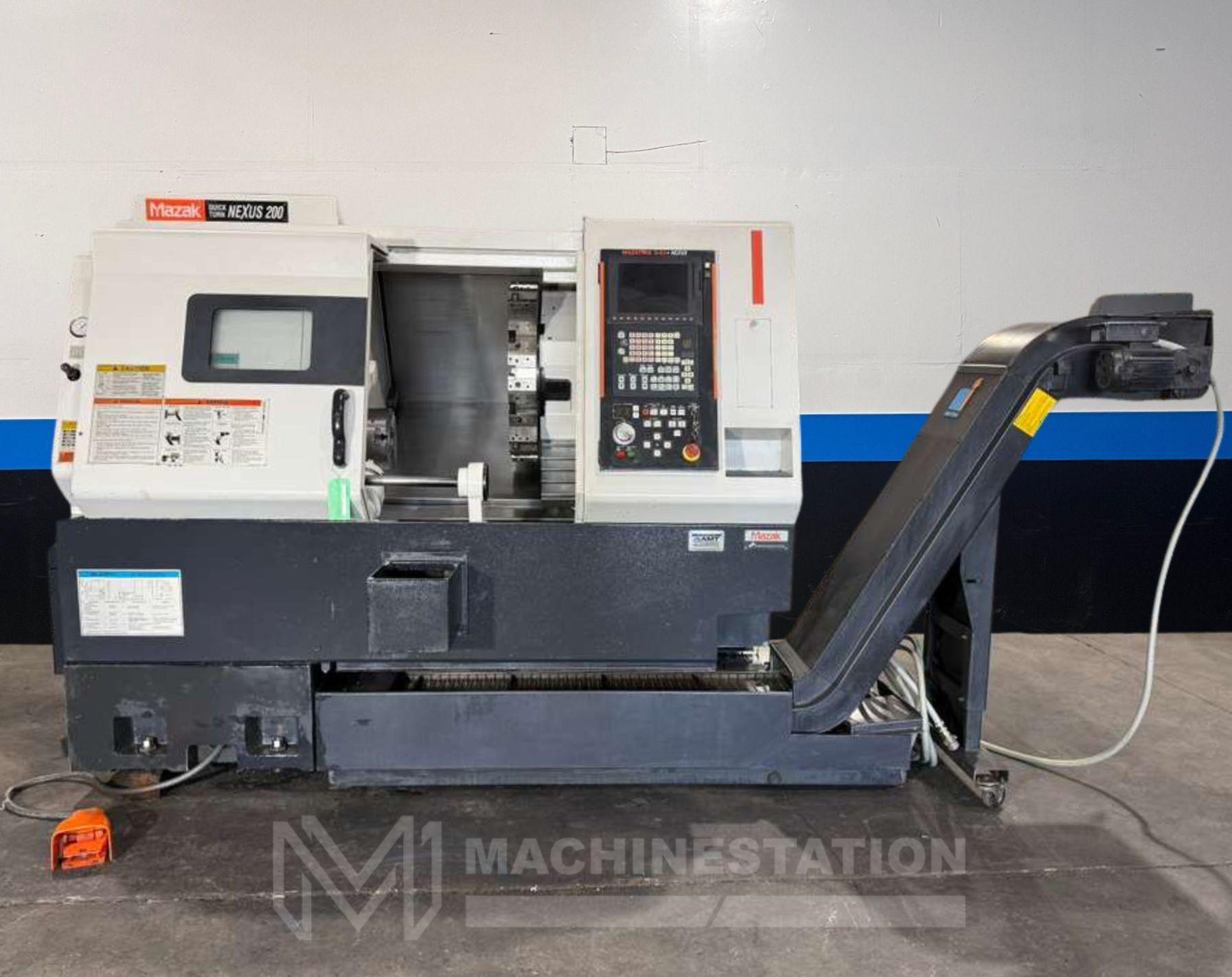

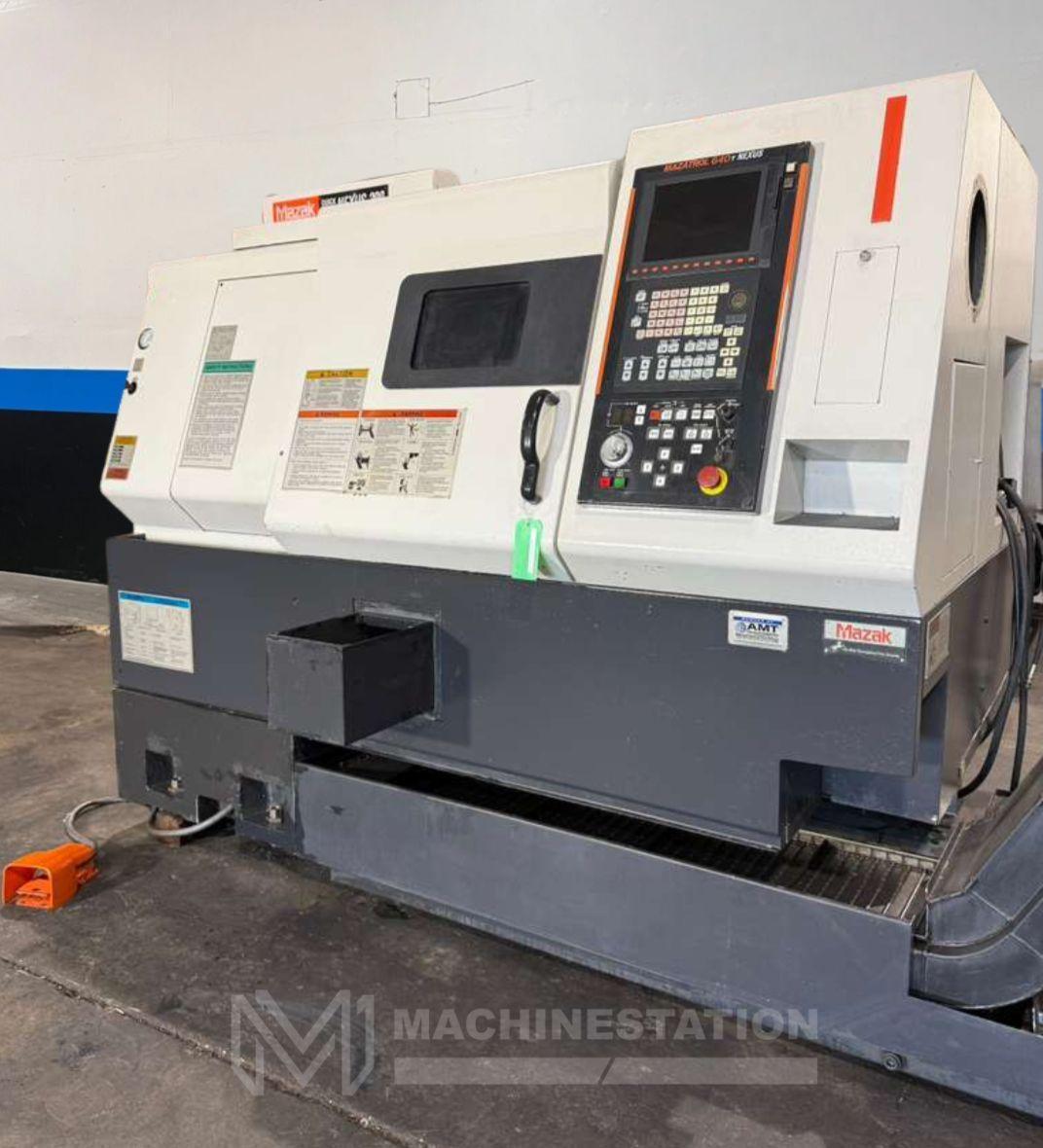

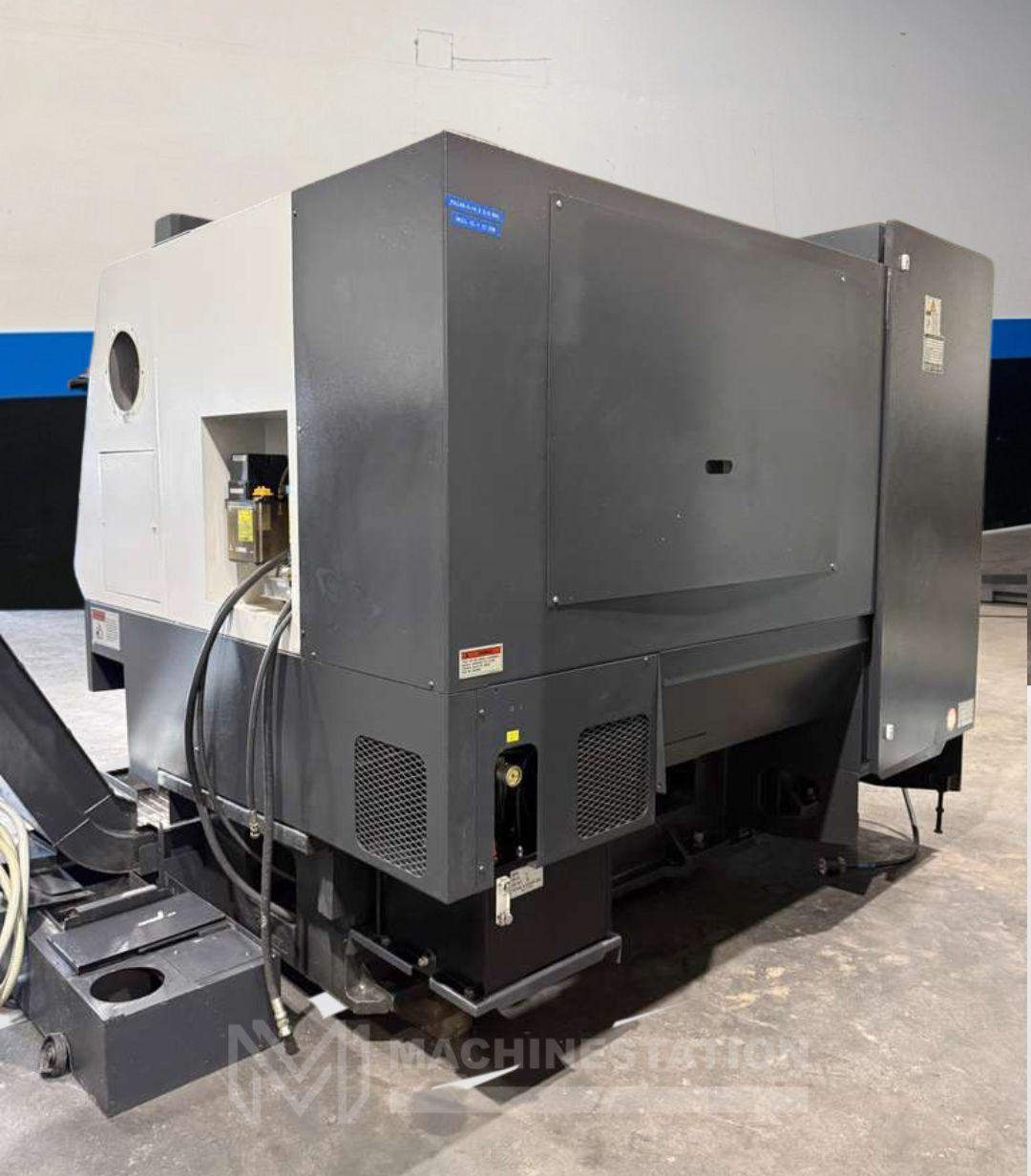

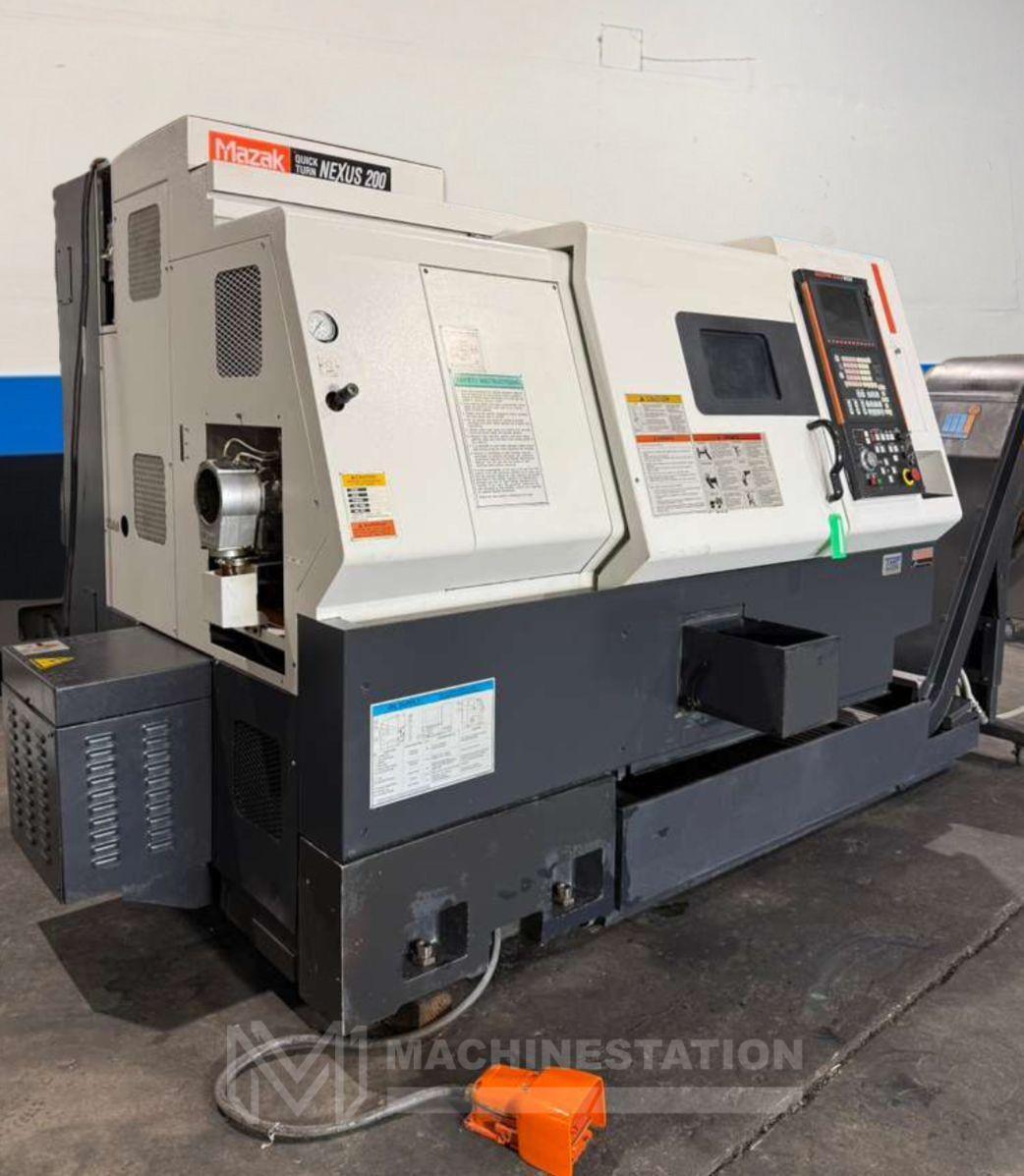

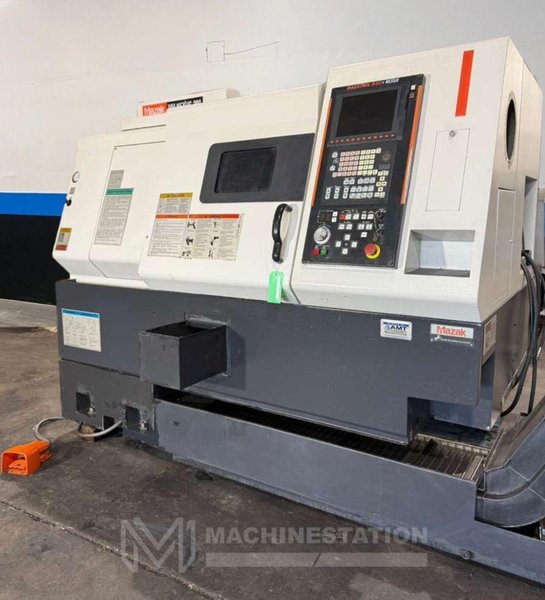

Mazak QTN 200 CNC Turning Center – 8″ Chuck Tool Presetter Tailstock Lathe

Brand
MAZAK
Category
Lathes & Turning Machines
Type
Turning Centers
Model
QUICK TURN NEXUS 200
Stock #
112937
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

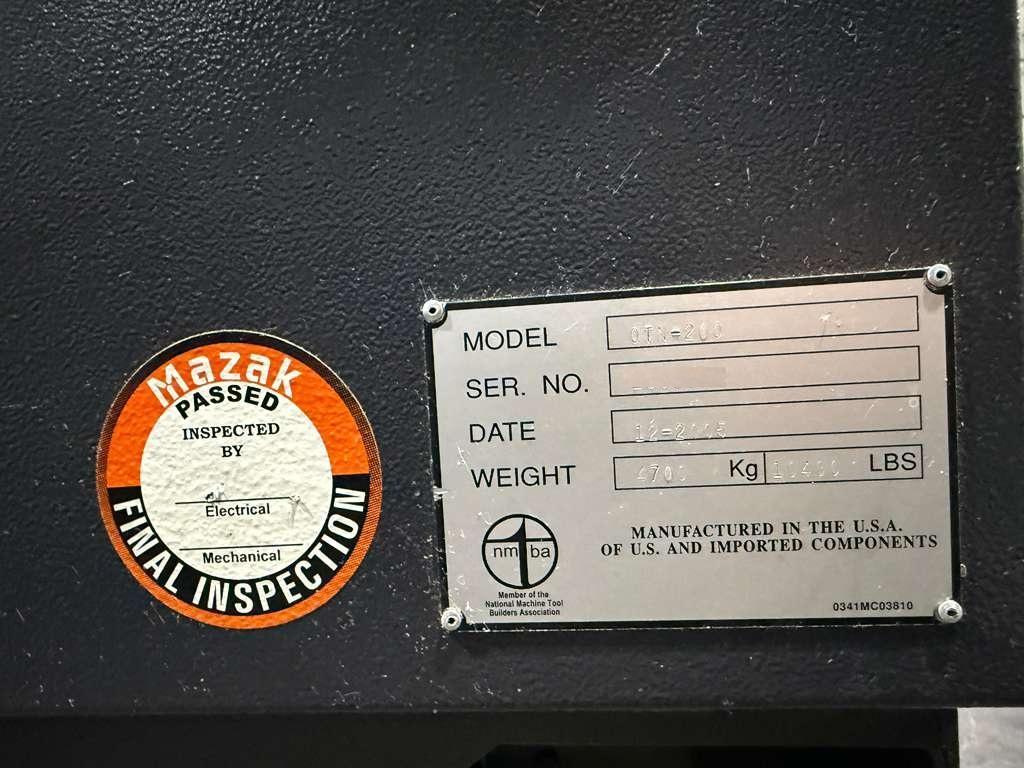

Make: Mazak
Model: QTN 200
Year: 2005 (Sold & Installed in 2006)
Equipped With:

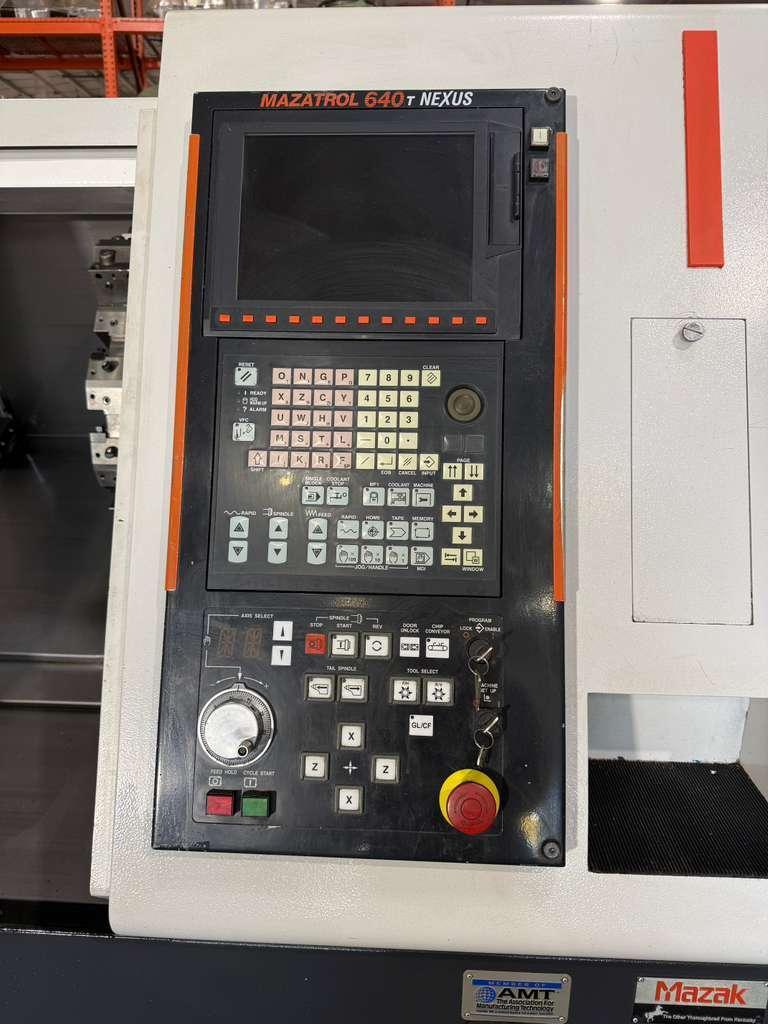

Mazatrol 640T CNC Control

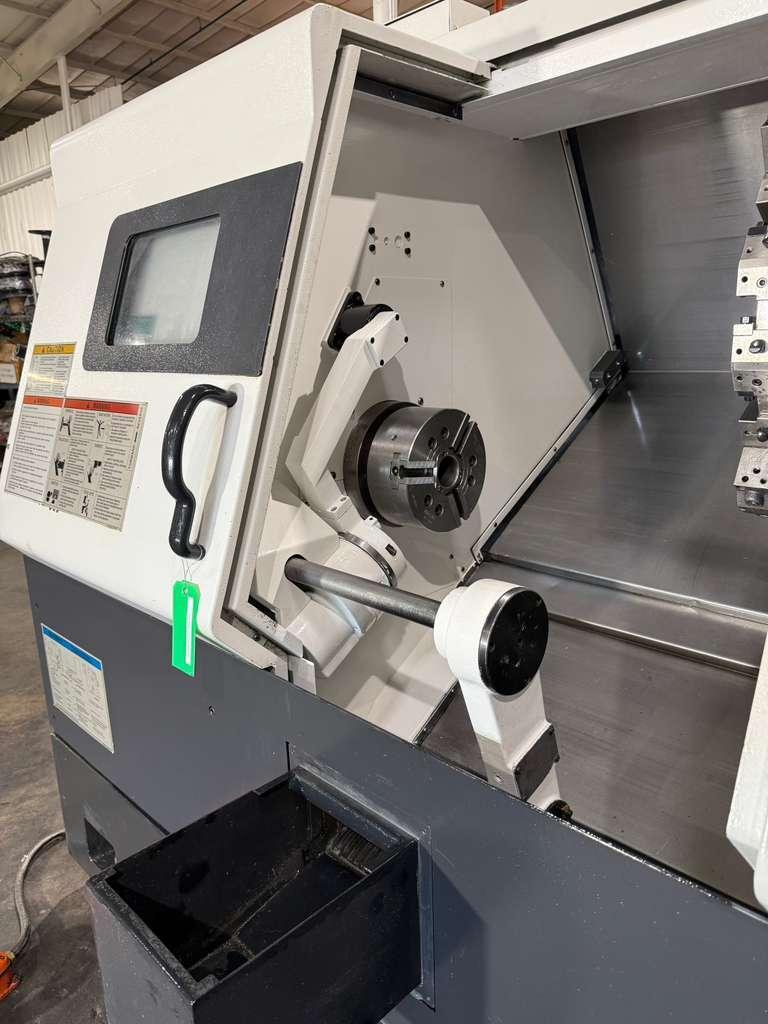

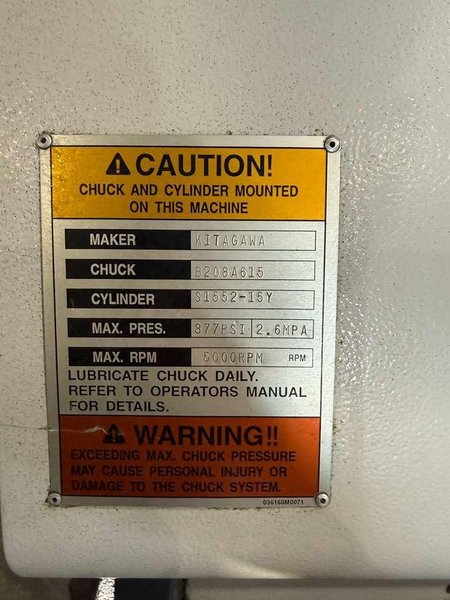

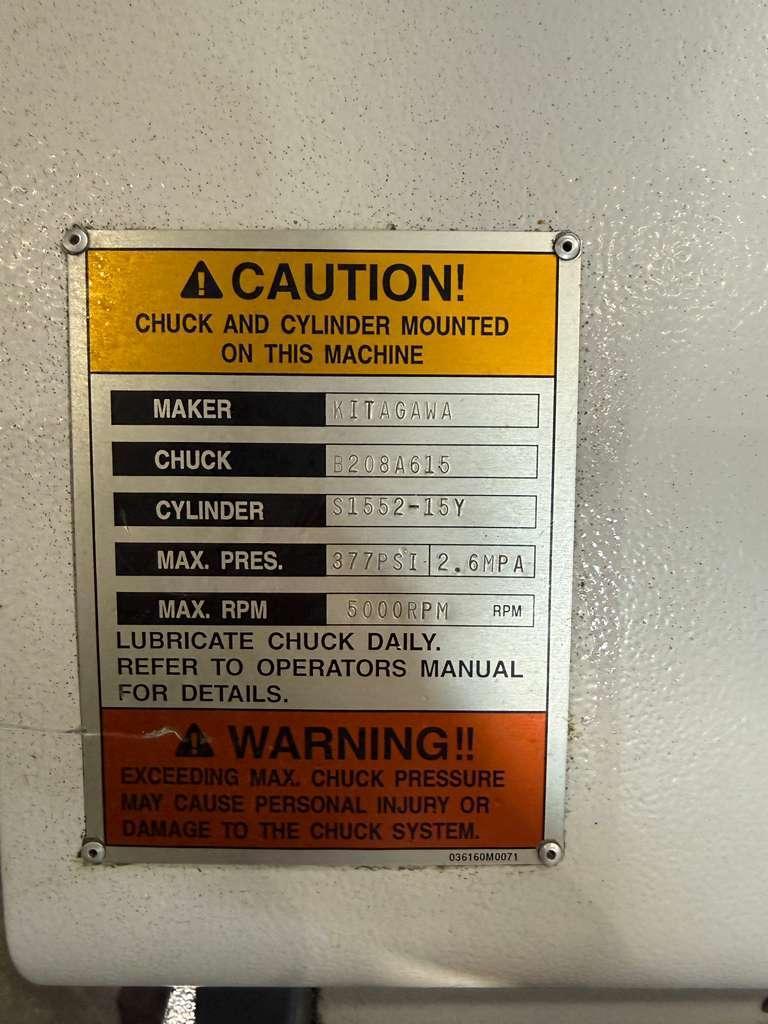

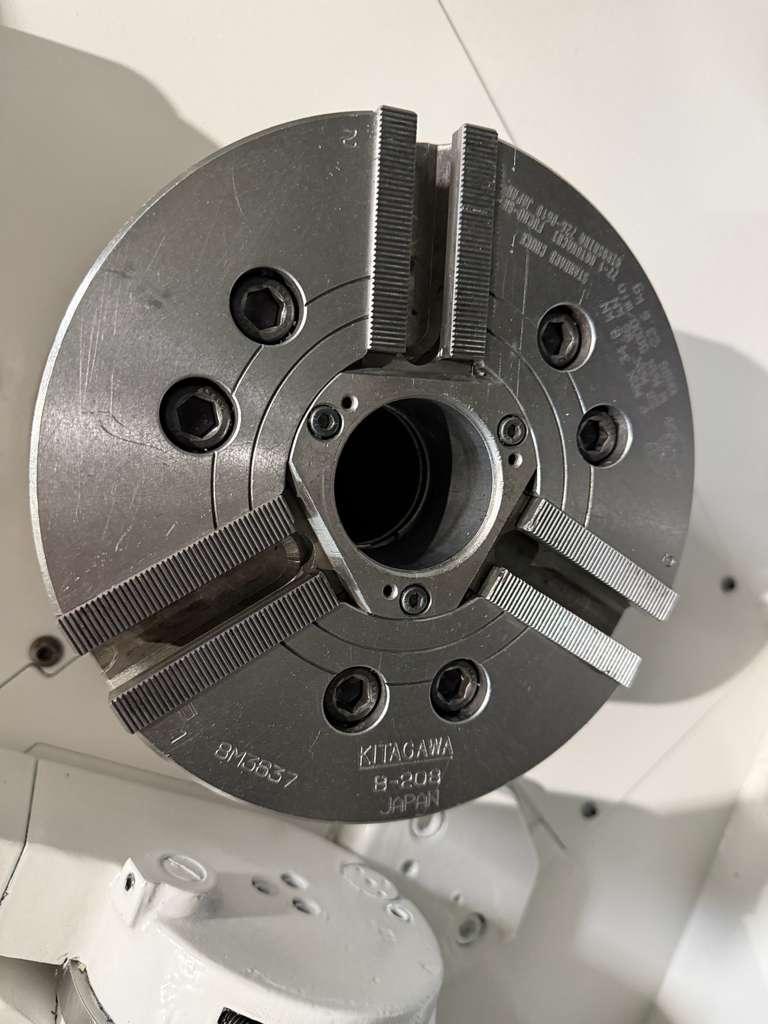

8 inch 3- Jaw Kitagawa B208 Chuck

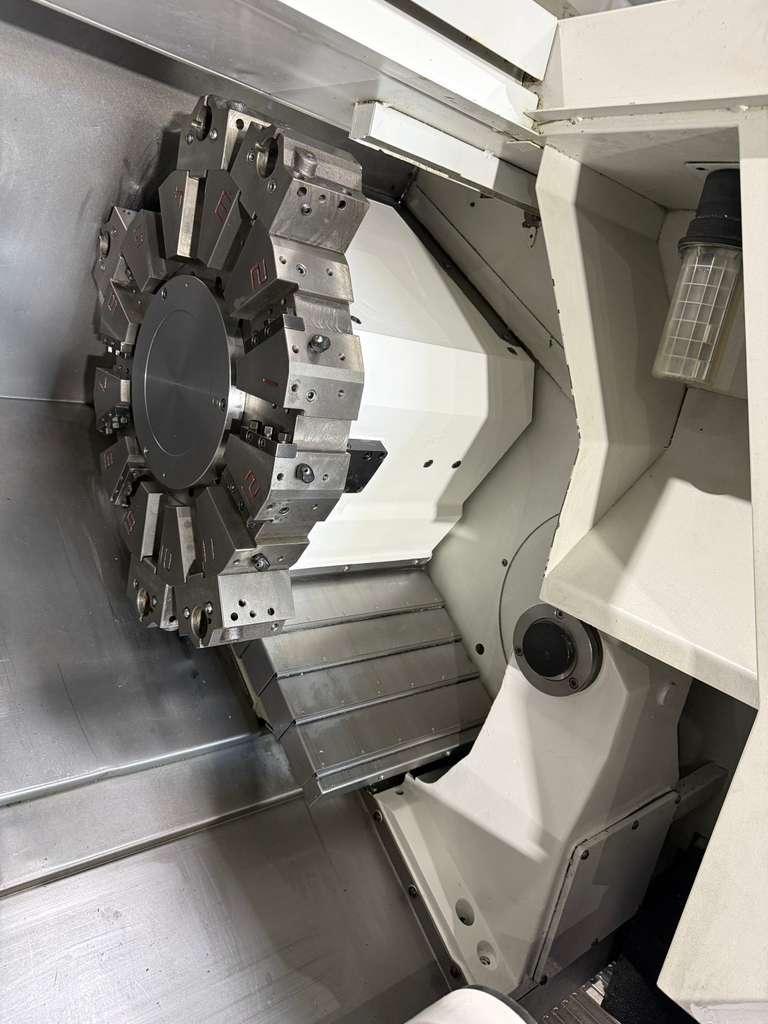

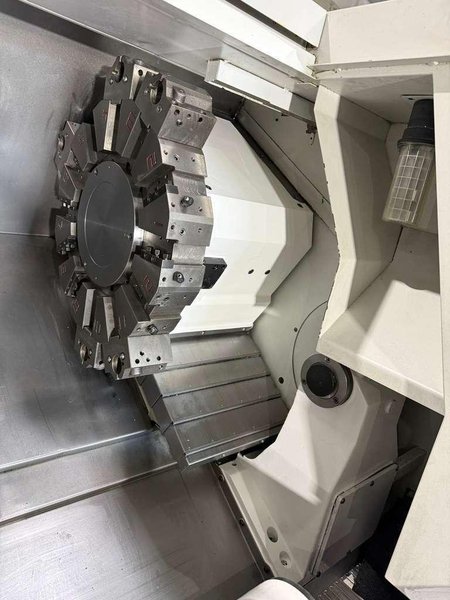

12 Stations Automatic Turret
Automatic Tool Presetter
Parts Catcher
Tailstock
Rigid Tapping
Foot Operated Control for Chuck
Automatic Lubrication Unit
Coolant Tank
Chip Conveyor

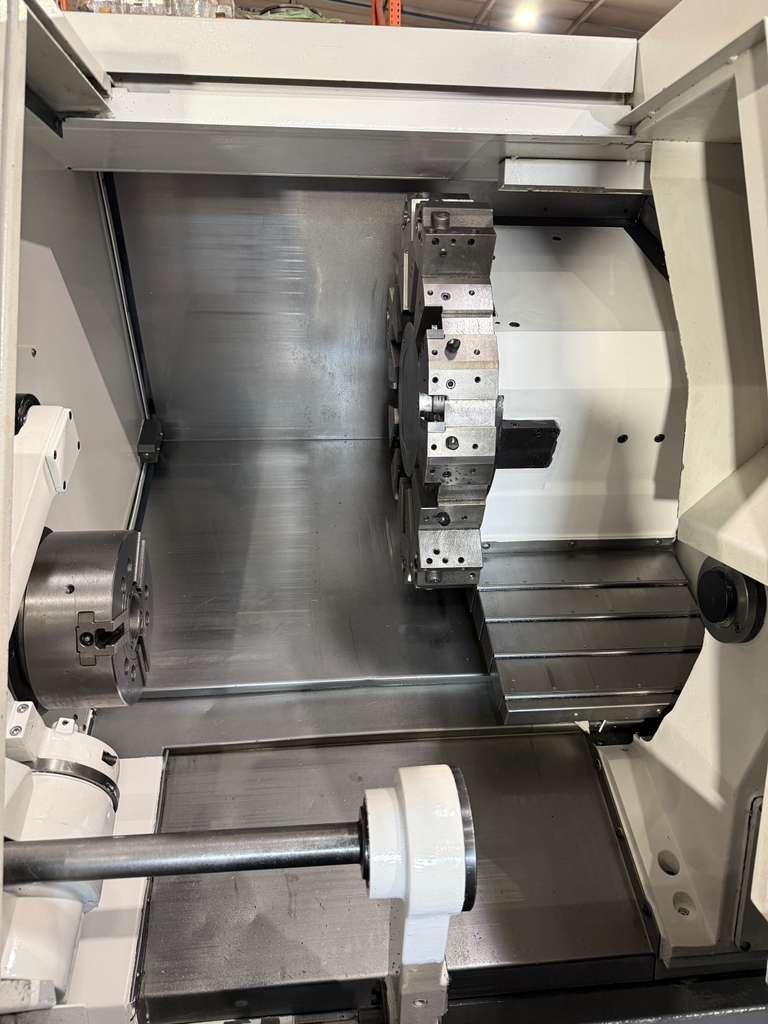

(5) Boring Tool Holders (Mounted on Turret as Shown in the images)
Capacity:
Max Turning Diameter : 13.78 inch
Max Turning Length : 20.16 inch
Max Swing Over Bed: 24.02 inch
Max Bar Capacity : 2.60 inch
Travels:
X Axis Travel : 7.50 inch
Z Axis Travel : 21.13 inch
Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1299 IPM
Spindle:
Spindle Bore: 3.0 inch
Spindle Nose: A2-6
Spindle Speed: 5,000 RPM
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
Tailstock:
Tailstock Taper: MT-5
General:

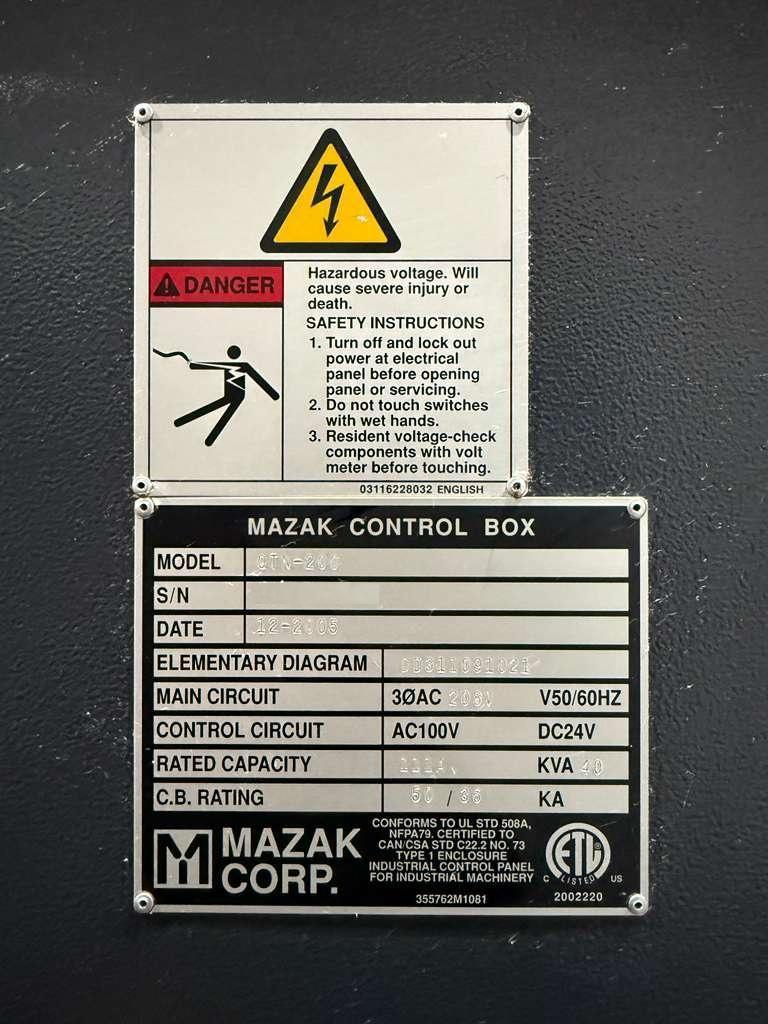

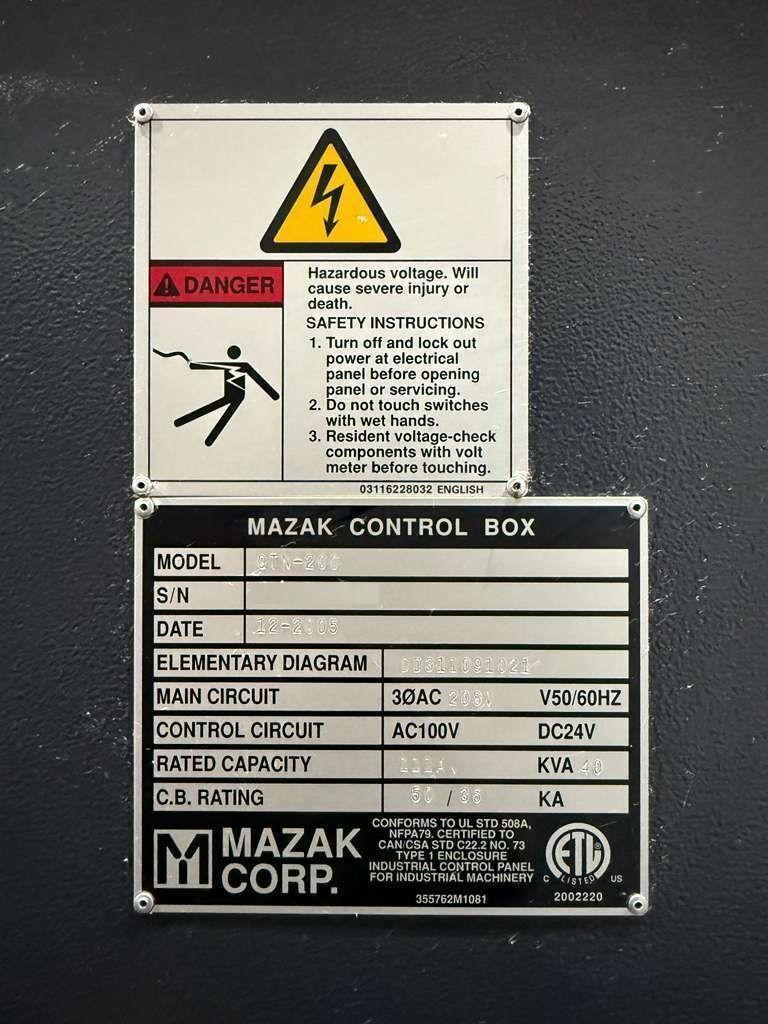

Power Source: 40 kva / 208v / 50/60 Hz / 3-Phase
Overall Dimensions: 137 inch X 80 inch X 80 inch High Approx.
Weight: 11,000 lbs. Approx.
