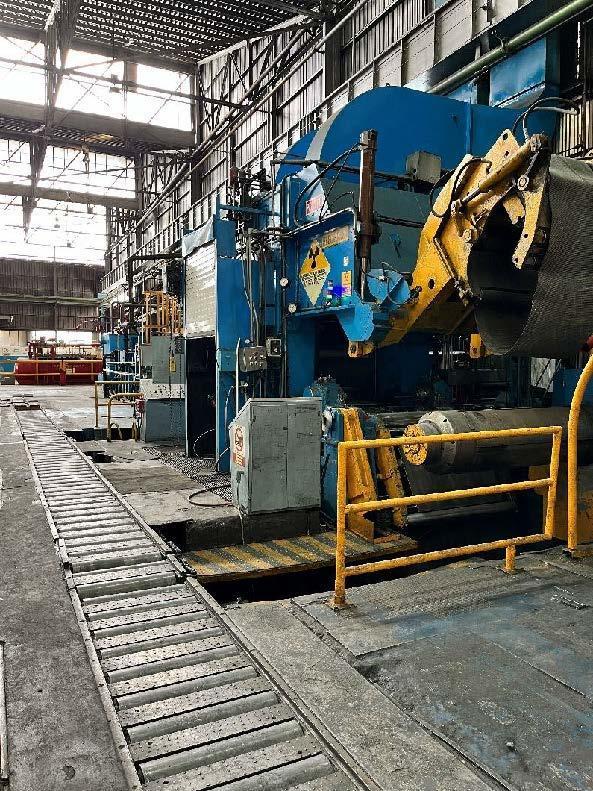

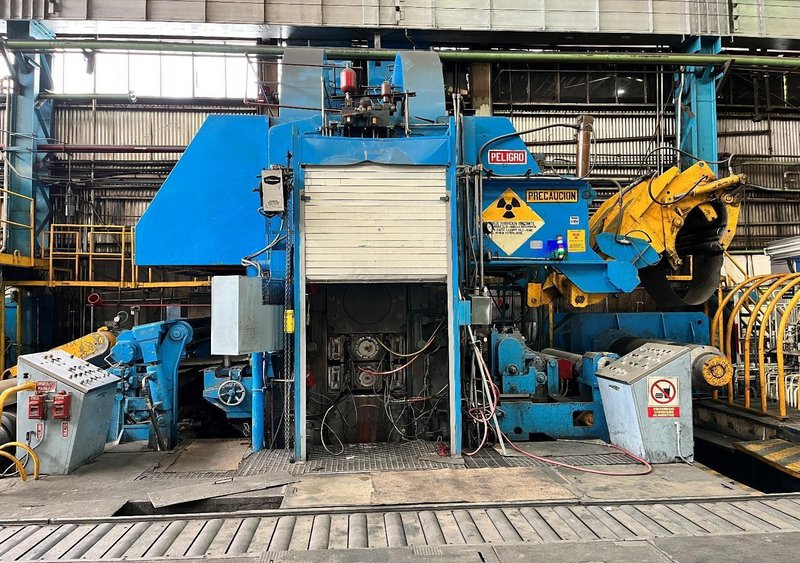

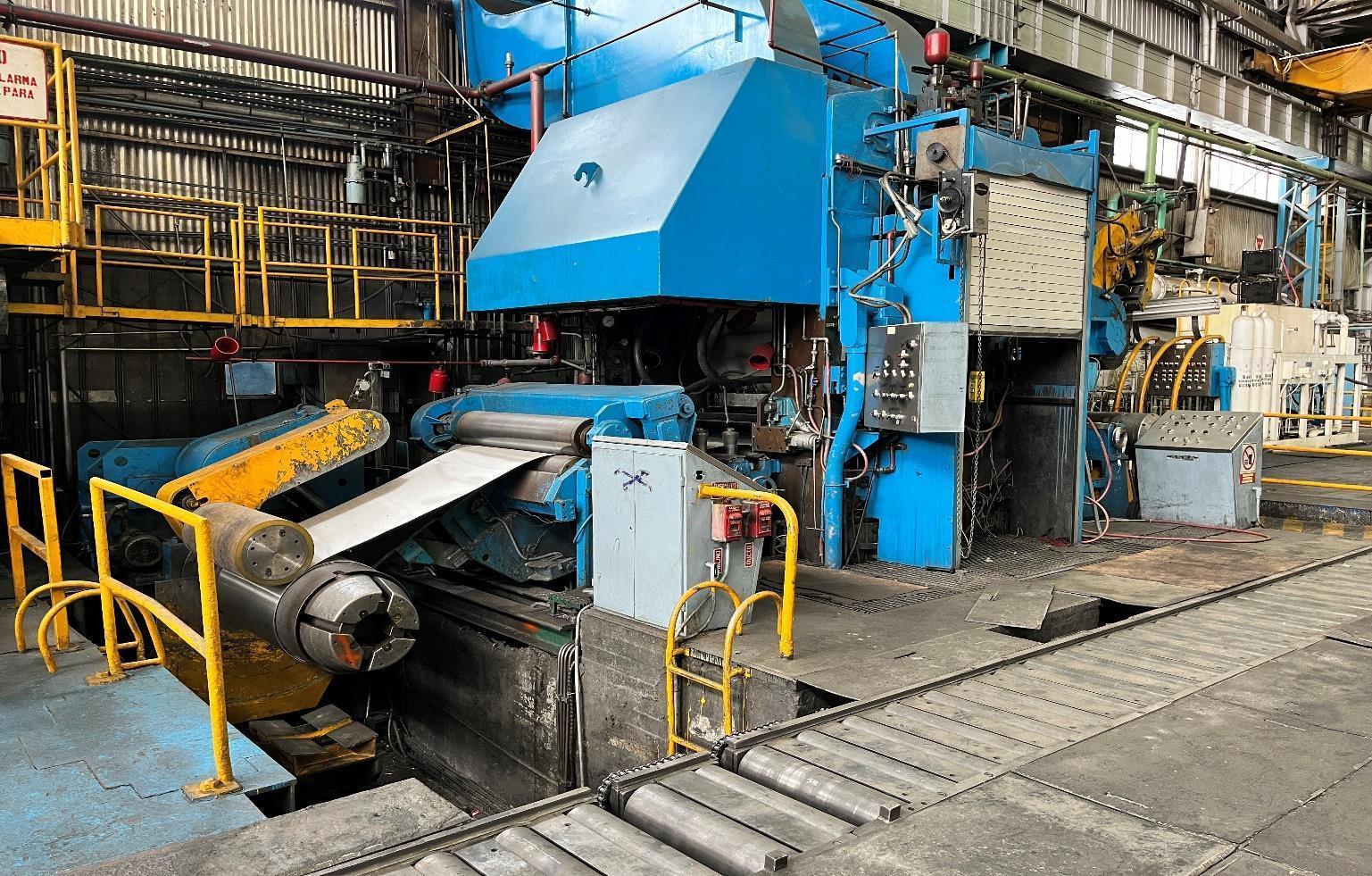

14” X 30” X 43.3” SPIDEM 4 HIGH ROLLING MILL (14532)

Name: Used SPIDEM 4 high rolling mill For Sale 14532
Brand: SPIDEM
SKU: 14532
Availability: PreOrder

Brand

SPIDEM

Not specified

Max Width Workpiece	43 inches
Work Roll Dia.	14 inches
Back Up Roll Diameter	30
Roll Face Width	43.3

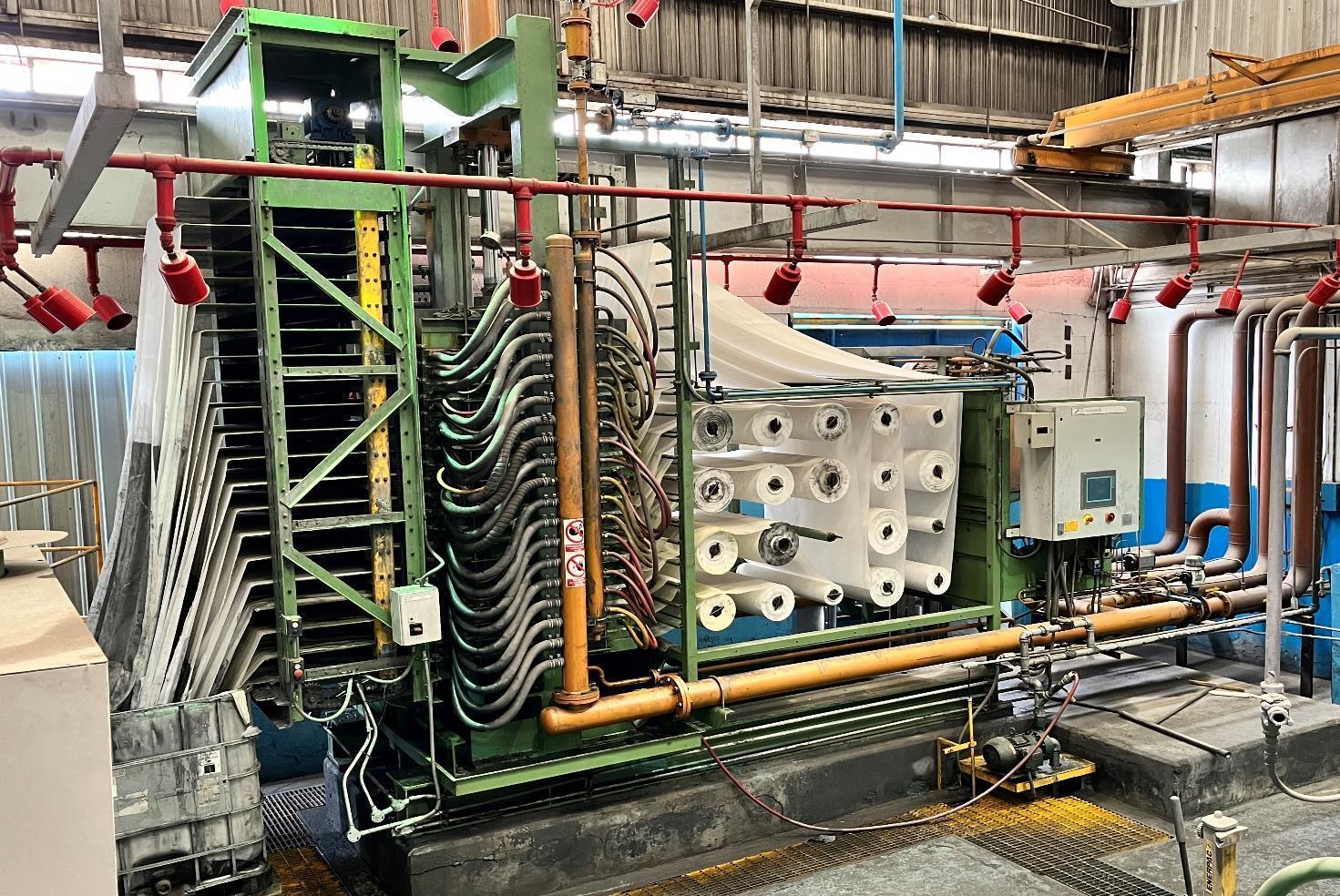

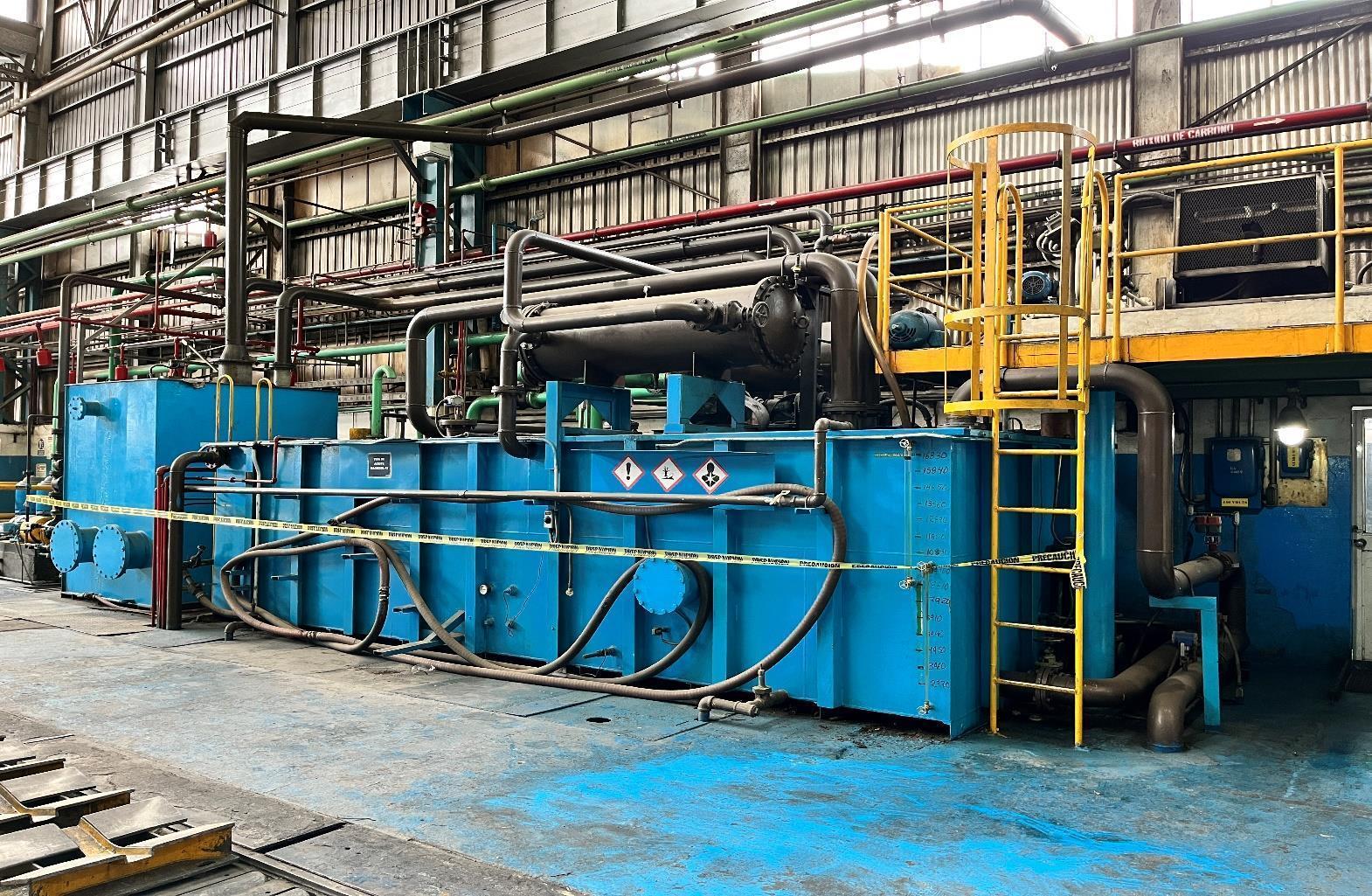

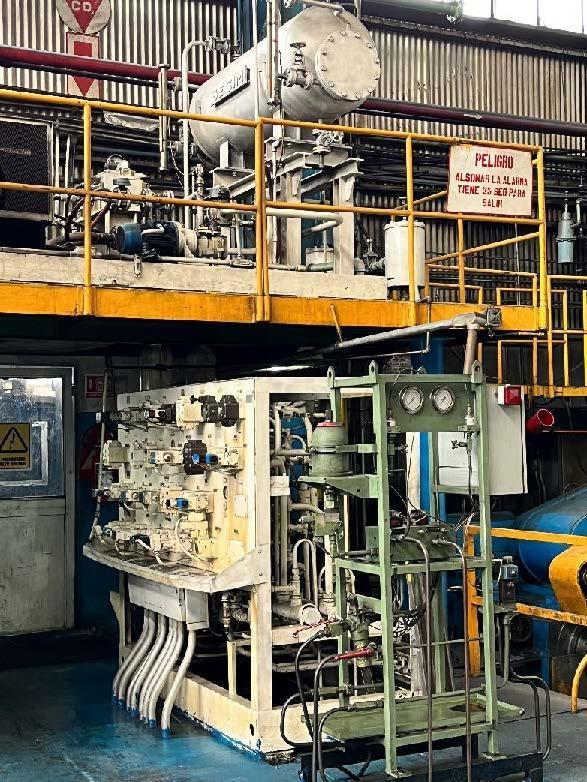

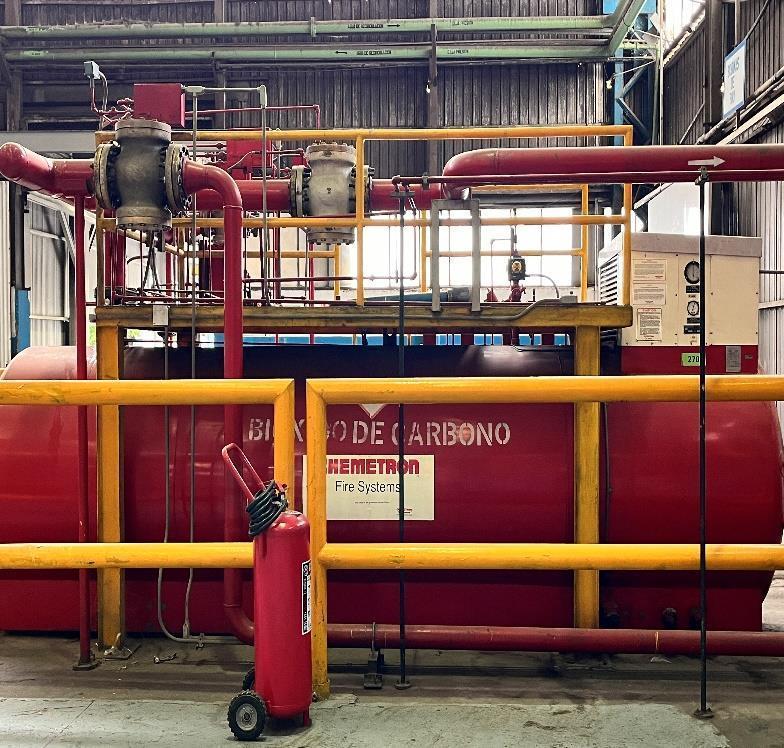

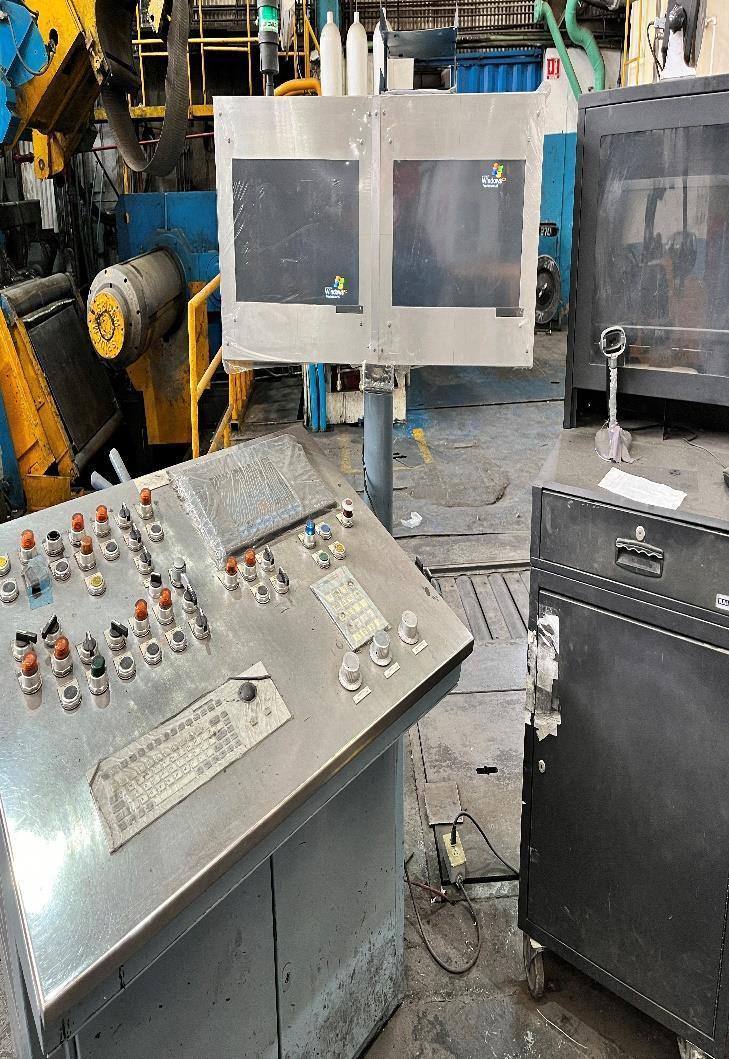

14” (355 mm) X 30” (762 mm) X 43.3” (1100 mm) Stock # 15432 • Manufacturer: SPIDEM • Thickness measurement NDC AGC and AFC Automation by Fata Hunter in 2016 • Technical Specifications: • Width min-max: 500 – 1100 mm. • Entry Thickness: 8 mm Exit Max/Min Thickness: 4 - 0.25 mm • Line Speed 300 mpm max • Max Coil weight : 6000 Kg • Mill Data: • Work Roll Face: 1100 mm • Work Rolls Diameter: 355 mm. Back Up Rolls diameter: 762 mm. • 750 Kw Motor drive • Uncoiler Data: Recoiler Data • Coil ID 610 mm. Coil ID: 610 mm. • Coil OD 1650 mm. Coil OD: 1650 mm. • 2 x 37 kw Motor Drive 2 x 185 kw Motor Drive • Control system H by Fata Hunter • NDC X Ray Thickness measurement • Shapemeter • Complete Controls, Electric & Hydraulics • Exit to entry coil conveyor system • Edge trimmer & chopper • Belt Wraper • Installed and Running • Rolls & Spare parts • Available: • Steel cores • Chemetron CO2 fire fighting system • Schneider Filtration System • Coolant System Temporary Specifications Subject to Revisions PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION
