1100MM (0.25MM EXIT) SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING MILL
Brand
Category
Type
Model
Not specified
Stock #
116723
Year
Not specified
Condition
Used
Location
Not specified
|

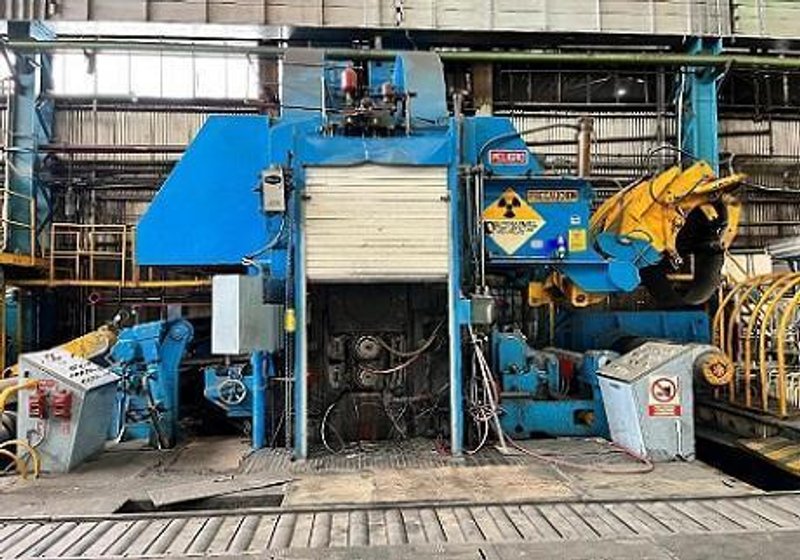

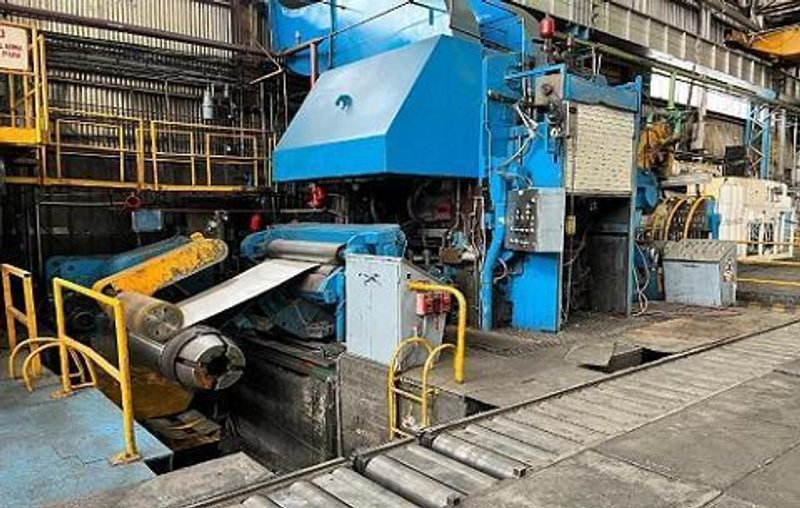

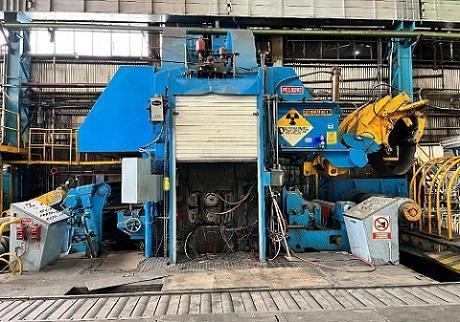

1100MM (0.25MM EXIT) SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING MILL
14" (355MM) X 30" (762MM) X 43.3" (1100MM)
MANUFACTURER: SPIDEM
THICKNESS MEASUREMENT NDC
AGC AND AFC AUTOMATION BY FATA HUNTER IN 2016
TECHNICAL SPECIFICATIONS:
WIDTH MIN-MAX: 500MM - 1100MM
ENTRY THICKNESS: 8MM
EXIT MAX/MIN THICKNESS: 4MM - 0.25MM
LINE SPEED: 300 MPM MAX
MAX COIL WEIGHT: 6000 KG
MILL DATA:
WORK ROLL FACE: 1100MM
WORK ROLLS DIAMETER: 355MM
BACK UP ROLLS DIAMETER: 762MM
750 KW MOTOR DRIVE
UNCOILER DATA:
COIL ID 610MM
COIL OD 1650MM
2 X 37 KW MOTOR DRIVE
RECOILER DATA
COIL ID: 610MM
COIL OD: 1650MM
2 X 185 KW MOTOR DRIVE
CONTROL SYSTEM H BY FATA HUNTER
NDC X RAY THICKNESS MEASUREMENT
SHAPEMETER
COMPLETE CONTROLS, ELECTRIC & HYDRAULICS
EXIT TO ENTRY COIL CONVEYOR SYSTEM
EDGE TRIMMER & CHOPPER
BELT WRAPPER
AVAILABLE ROLLS & SPARE PARTS
STEEL CORES
CHEMETRON CO2 FIRE FIGHTING SYSTEM

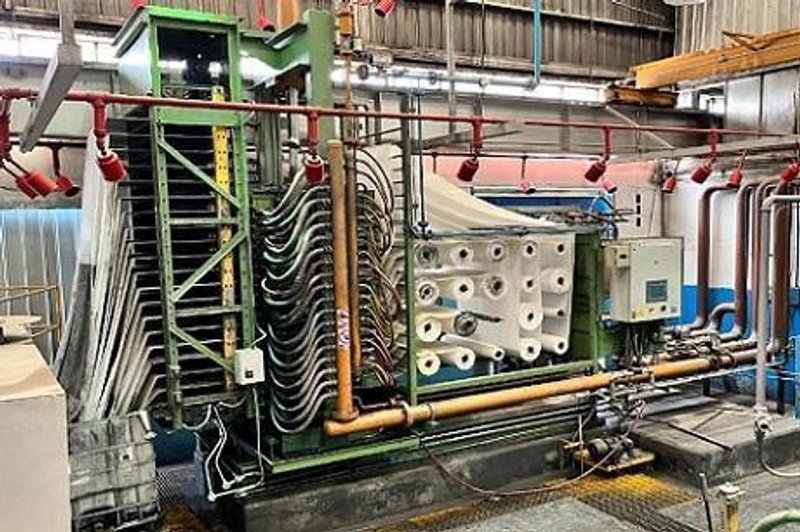

SCHNEIDER FILTRATION SYSTEM

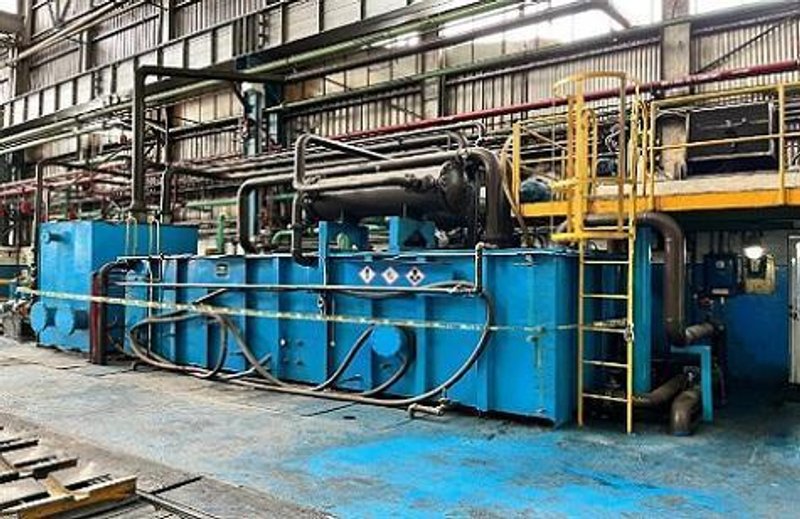

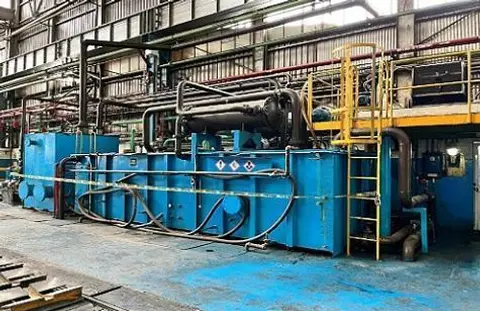

COOLANT SYSTEM
INSTALLED AND RUNNING
|
