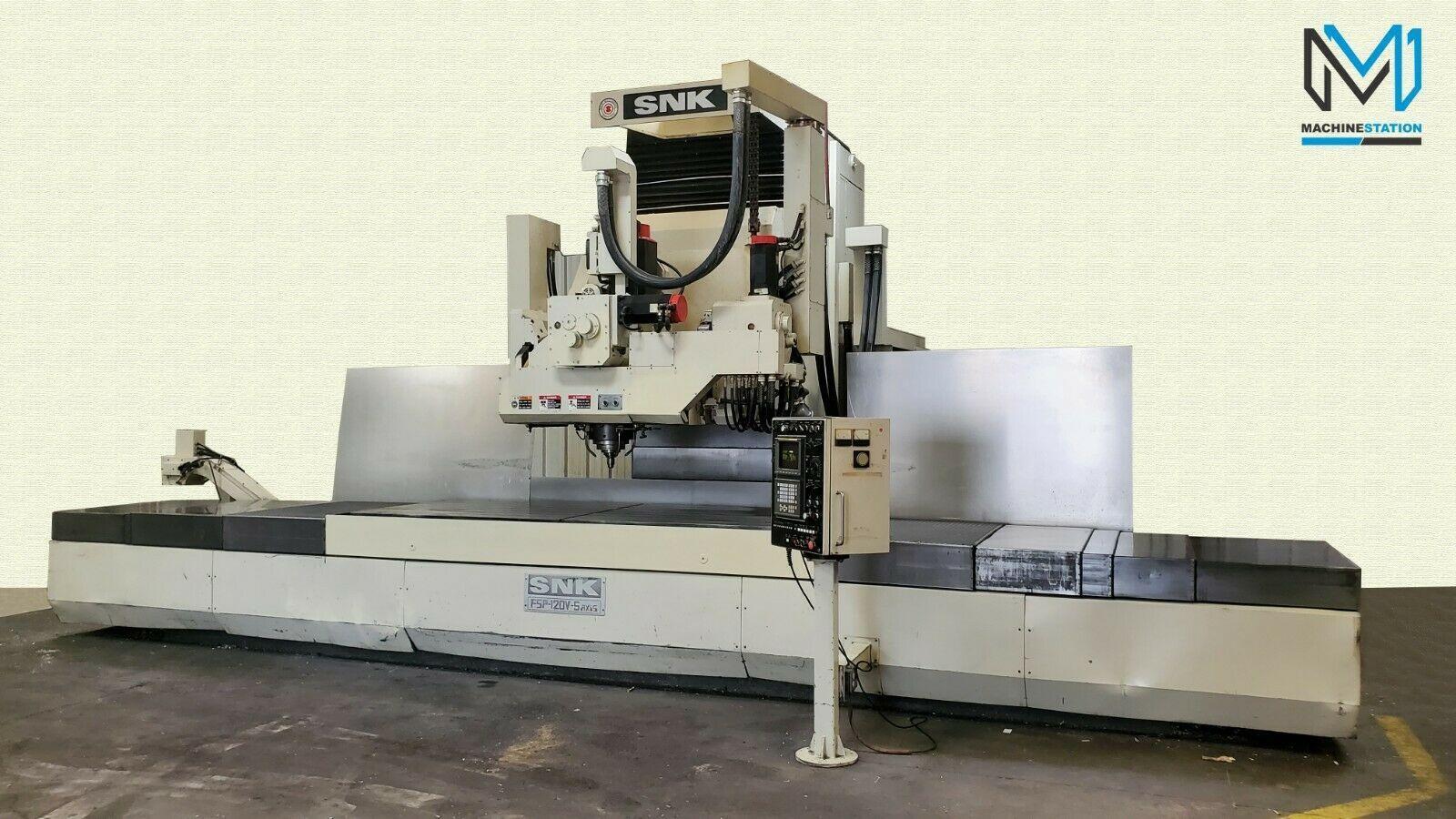

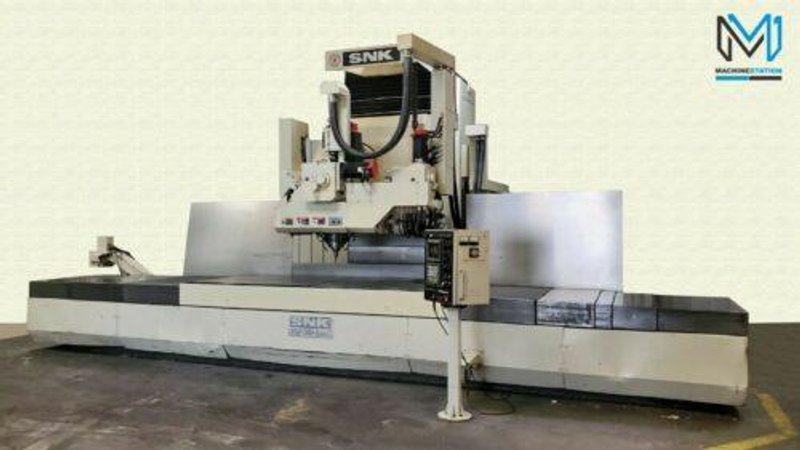

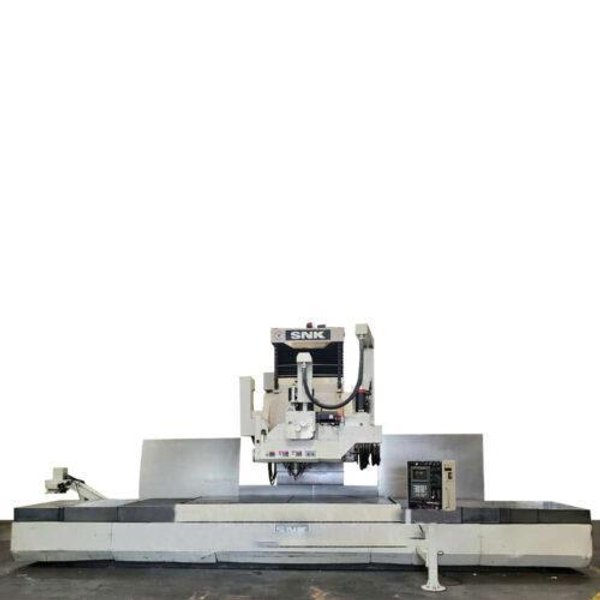

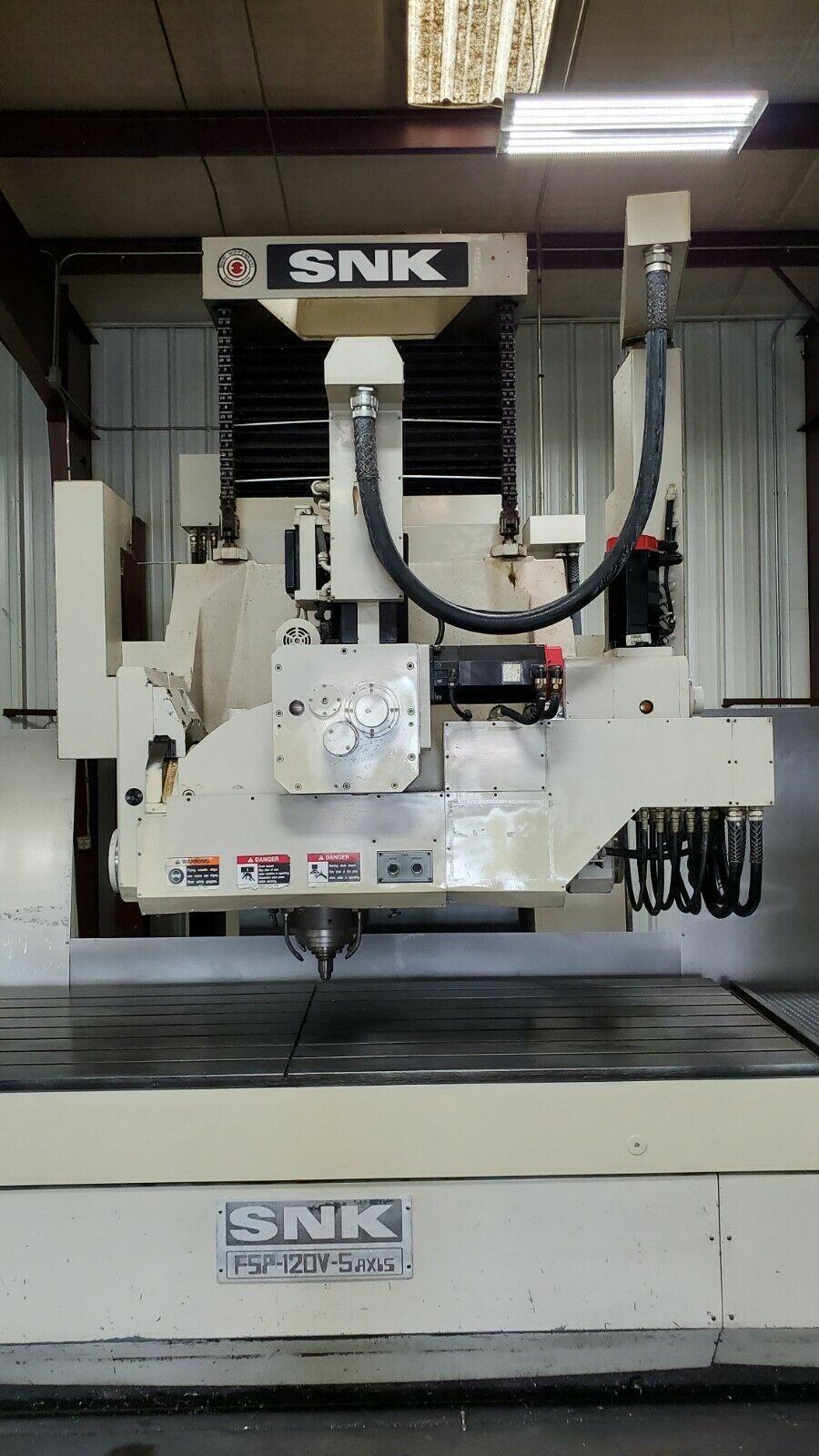

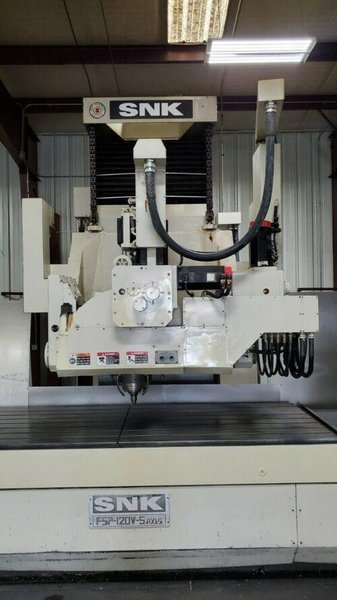

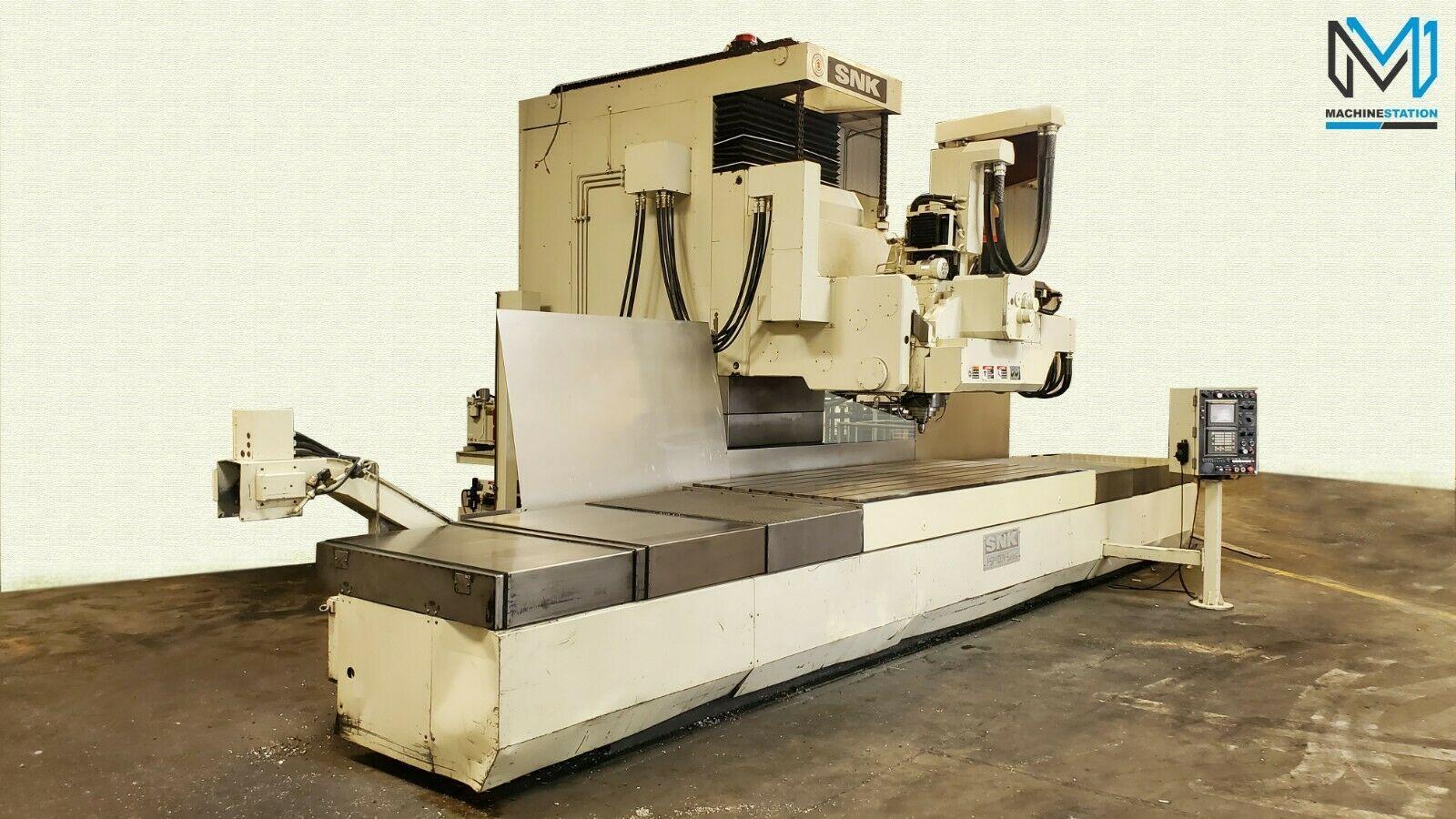

SNK FSP-120V CNC 5 Axis Profiler Mill

Brand
SNK
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
SNK FSP-120V
Stock #
112023
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:2023
Make:SNK
Model:FSP-120V

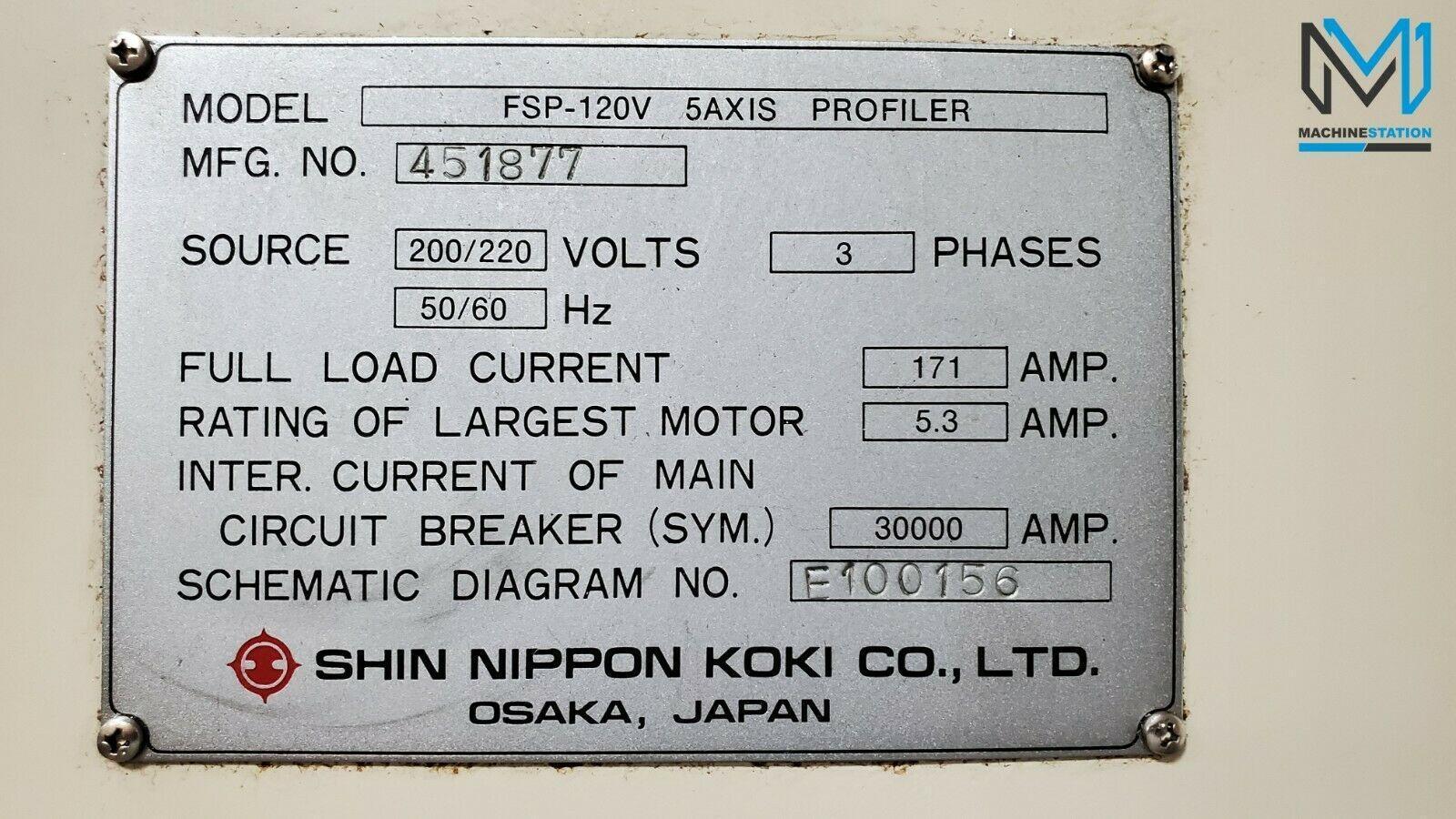

Serial:451877
Condition:Very Good



Features:

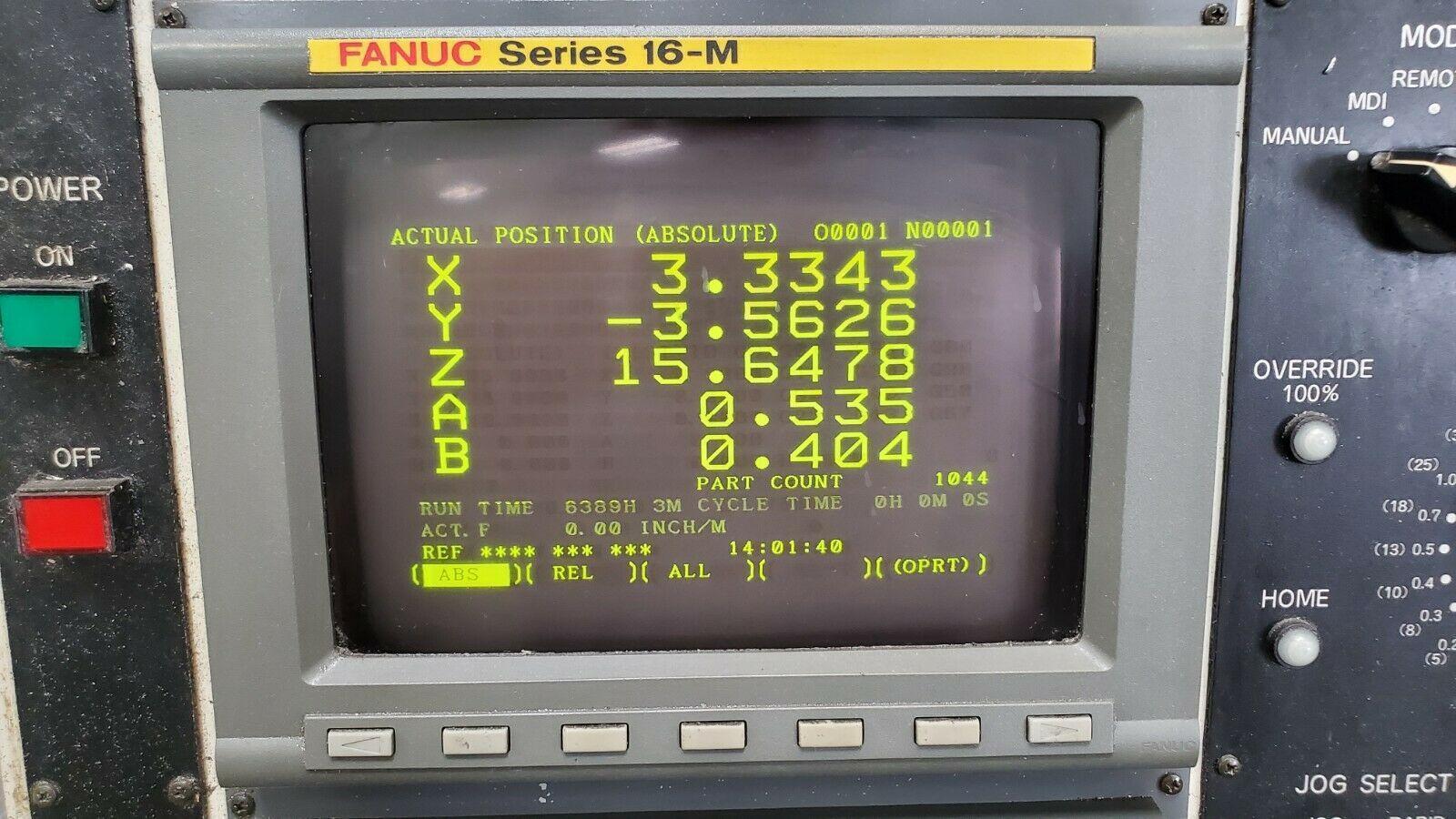

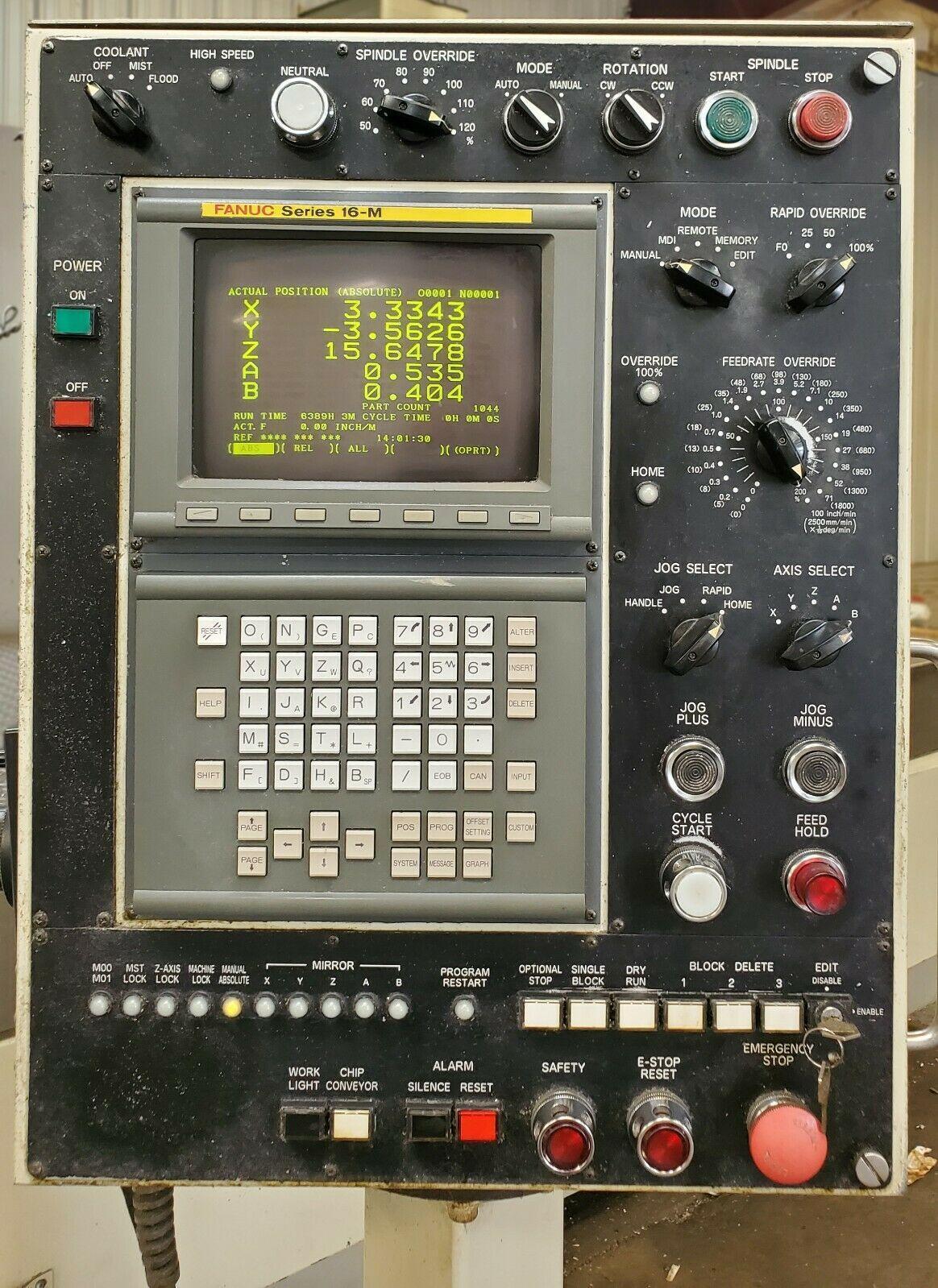

Fanuc 16M 5 Axis Simultaneous Contouring Control

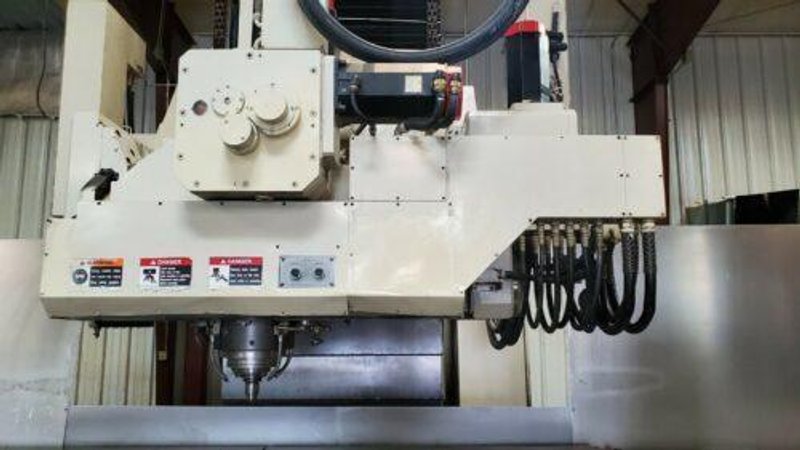

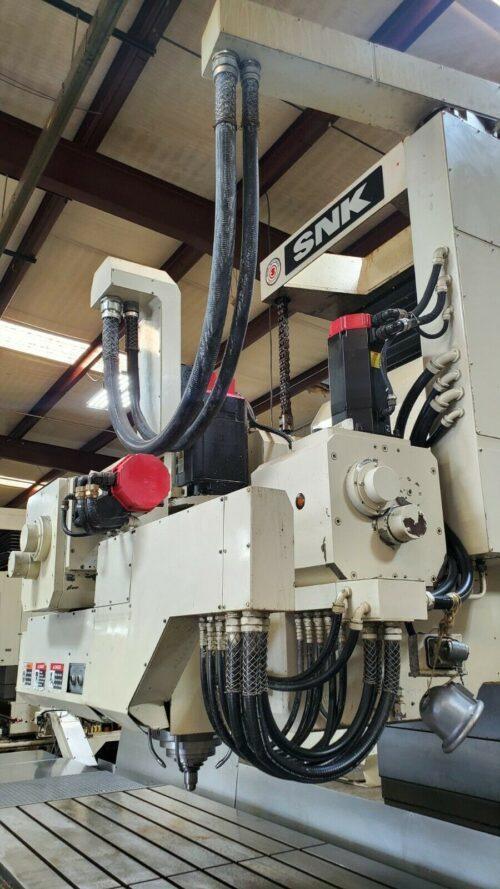

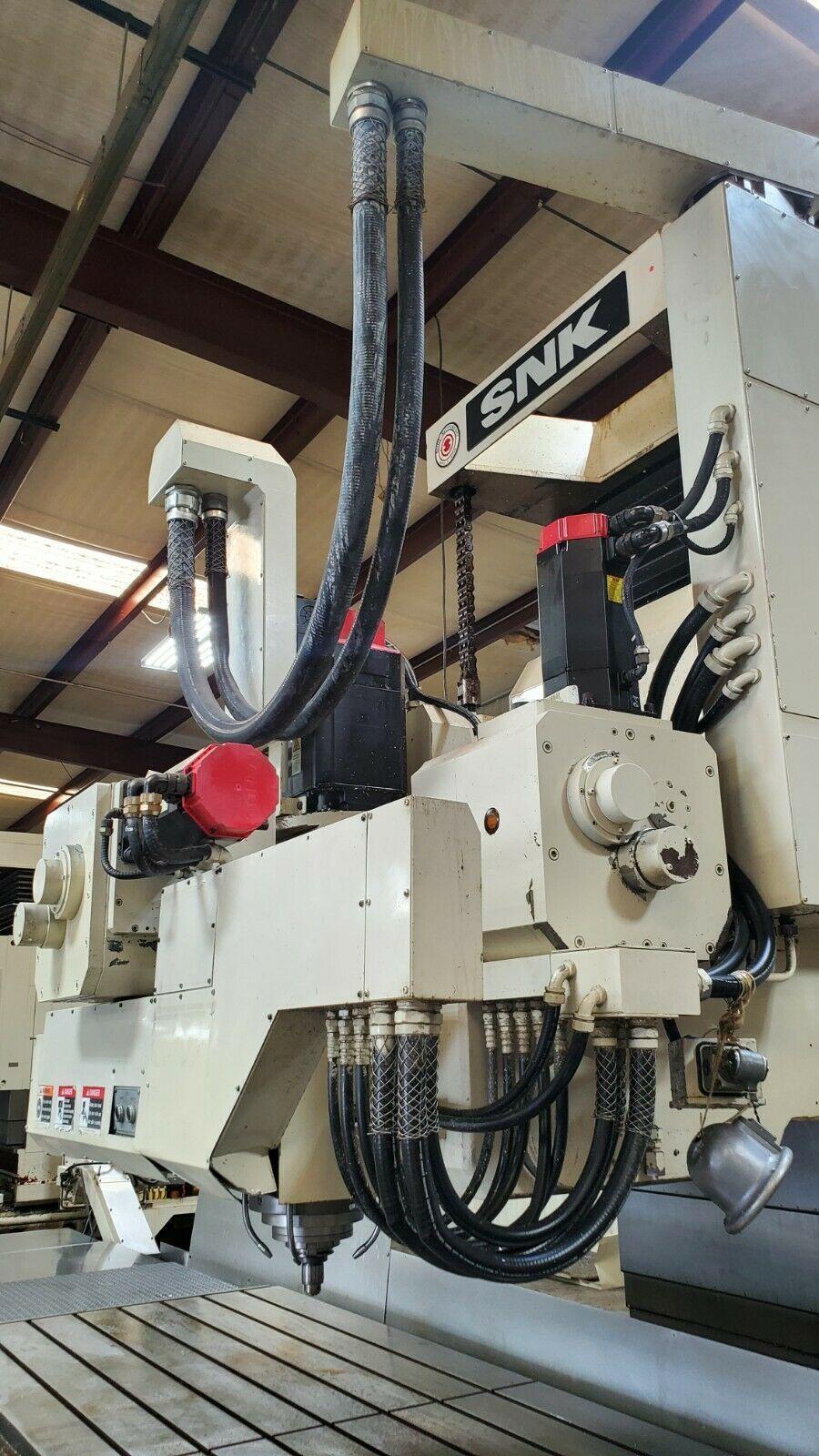

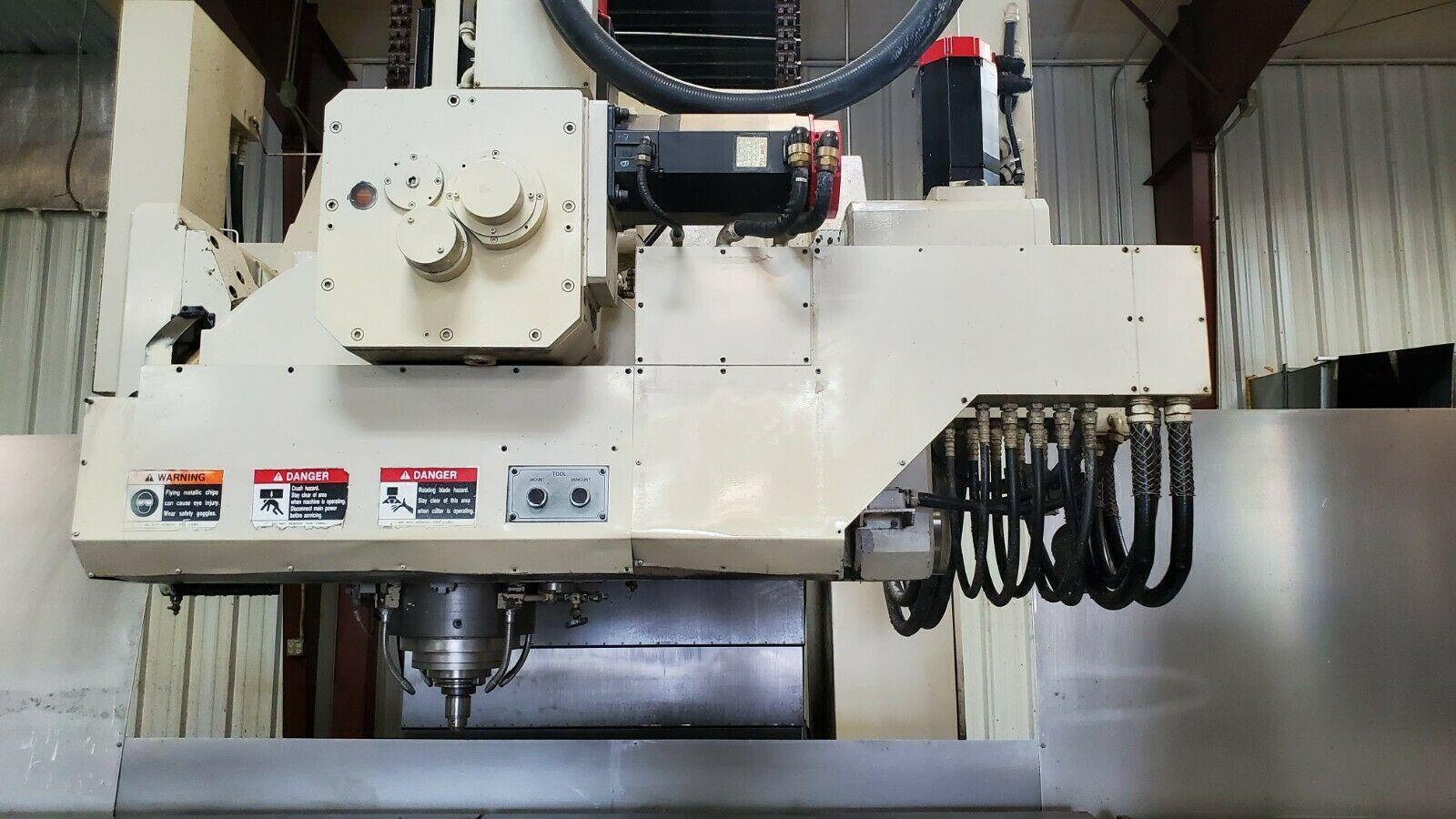

Articulating Spindle Head
Travelling Column Box Way Heavy Construction
30 HP High Torque Spindle Motor
50 Taper 4000 RPM Geared Head Spindle
MPG Control
Rigid Tapping
RS-232 Port
Telescopic way covers
Coolant Tank
Chip Conveyor



Travels:
X-Axis: 120.0″
Y-Axis: 50.0″
Z-Axis: 24.0″
A-Axis: +/- 25° degrees
B-Axis: +/- 25° degrees
Rapid Traverse Rates: 200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.0″ – 33.0″

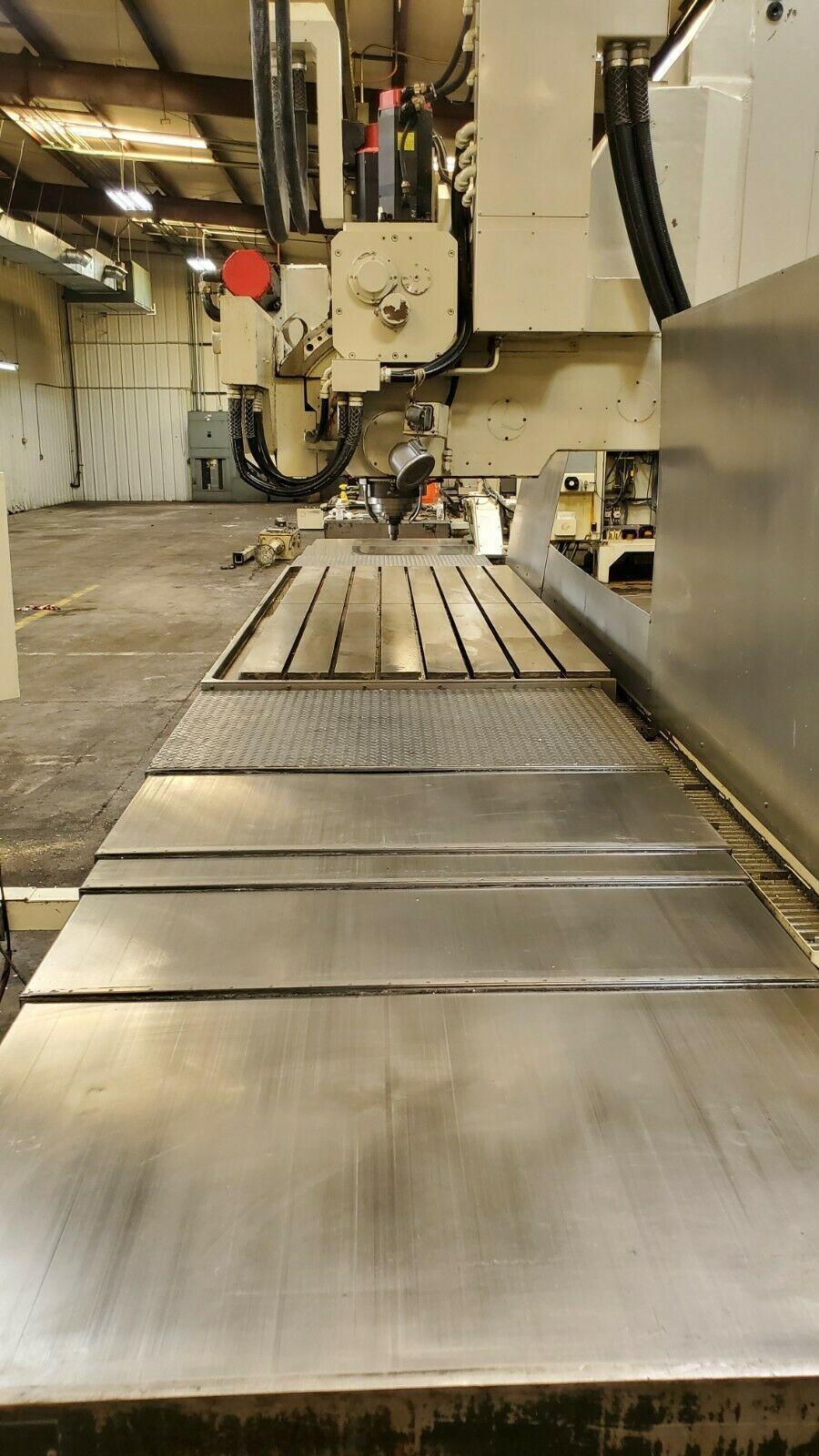

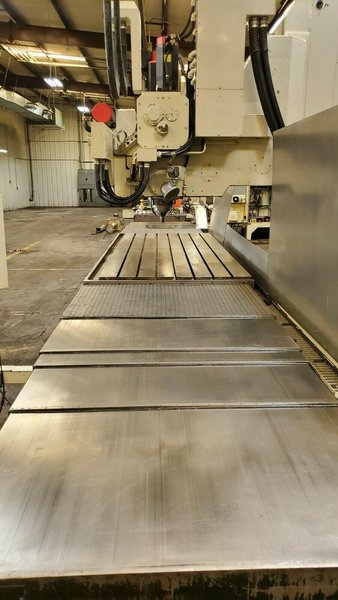

Table:
Length: 124.0″
Width: 48.0″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 22,000 lbs

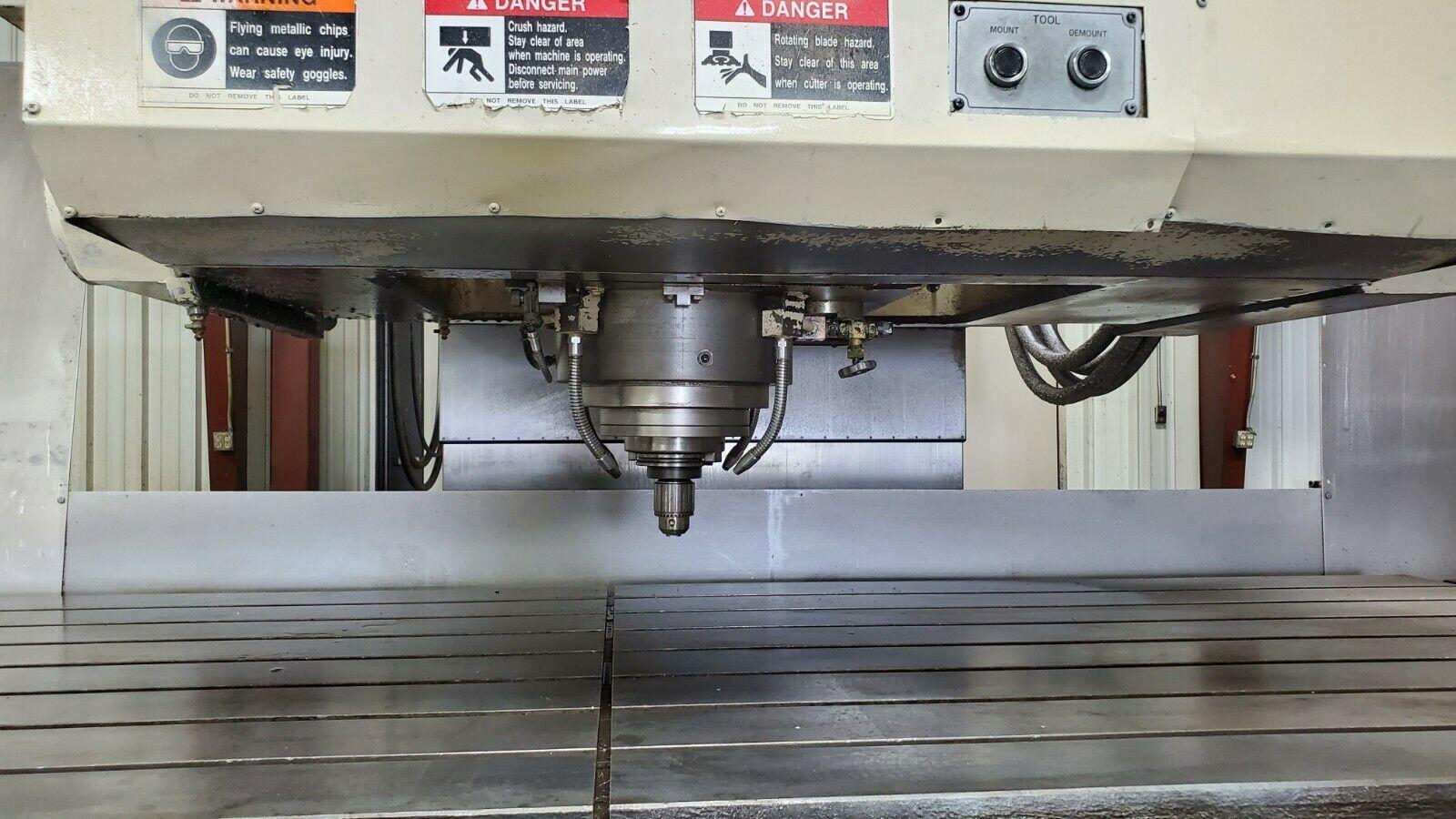

Spindle:
Articulated 5 Axis
Taper Size: 50
Speed Range: 4000 RPM
Spindle Power: 30 HP



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 315″ x 170″ x 138″ High
Weight: 97,000 lbs
