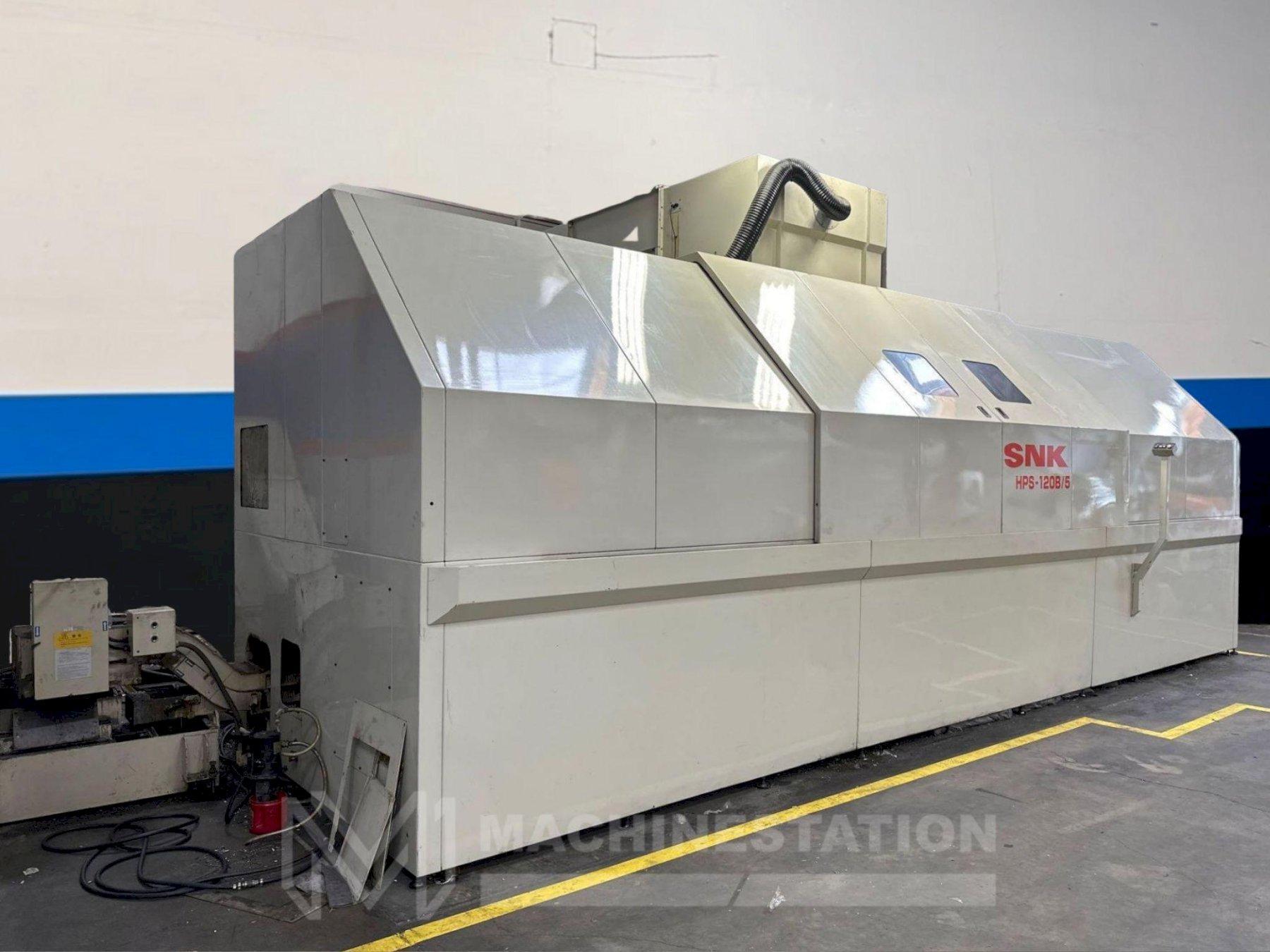

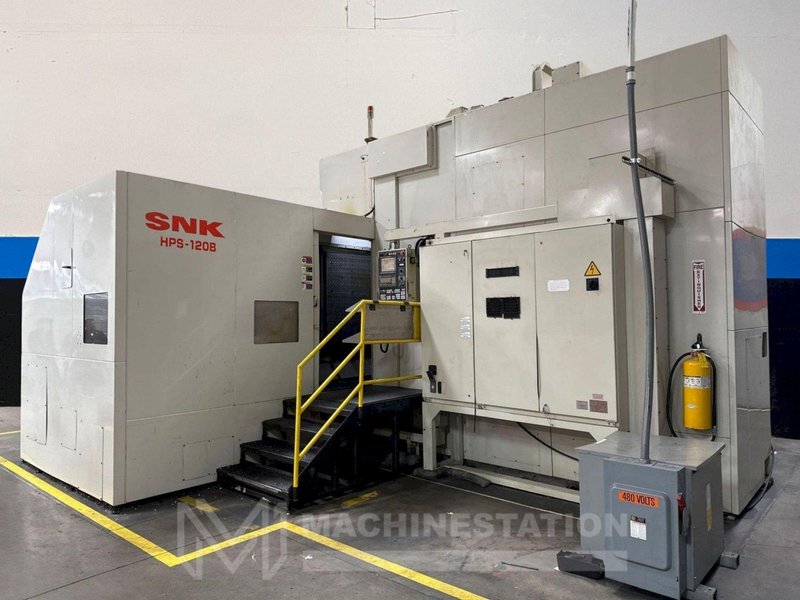

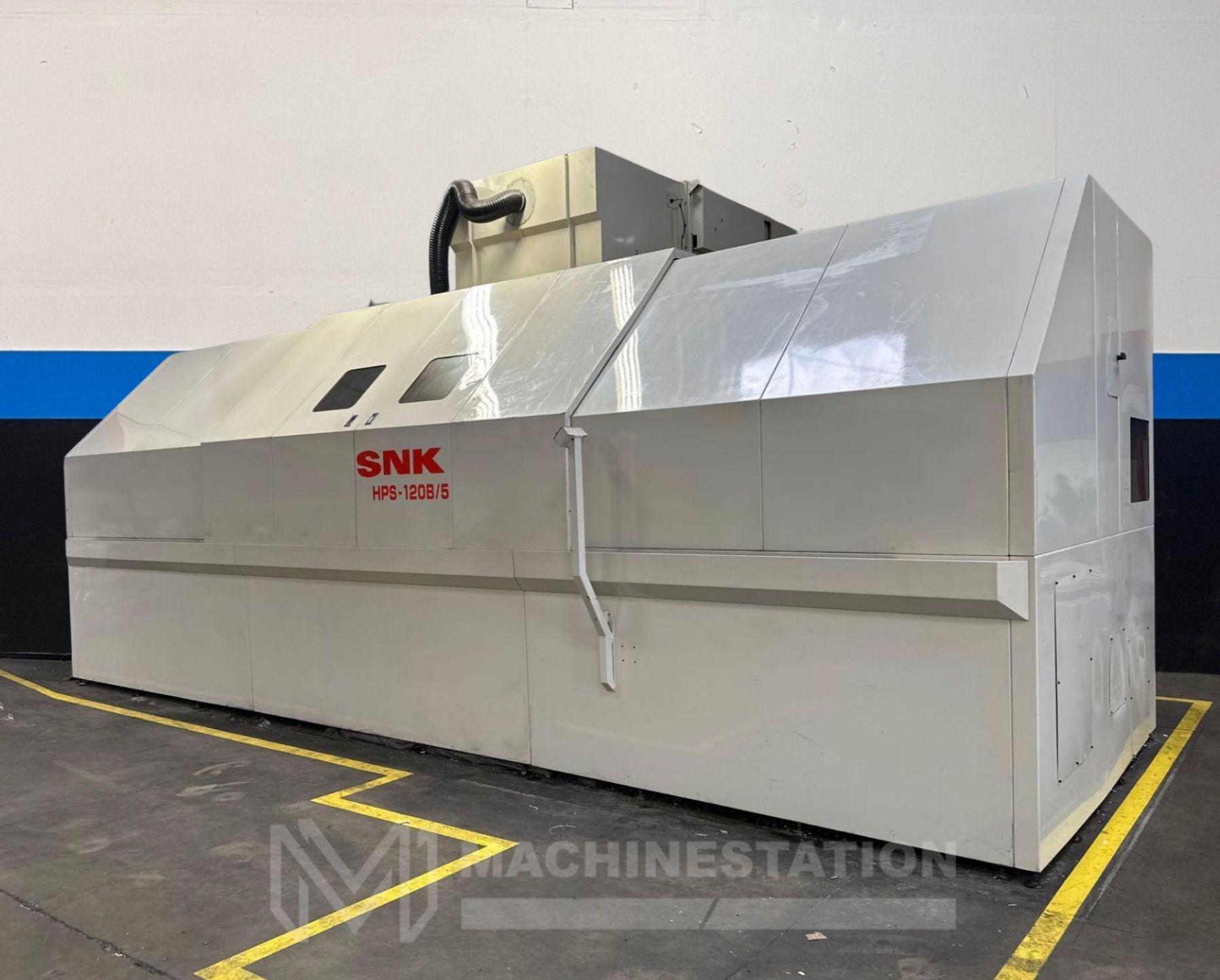

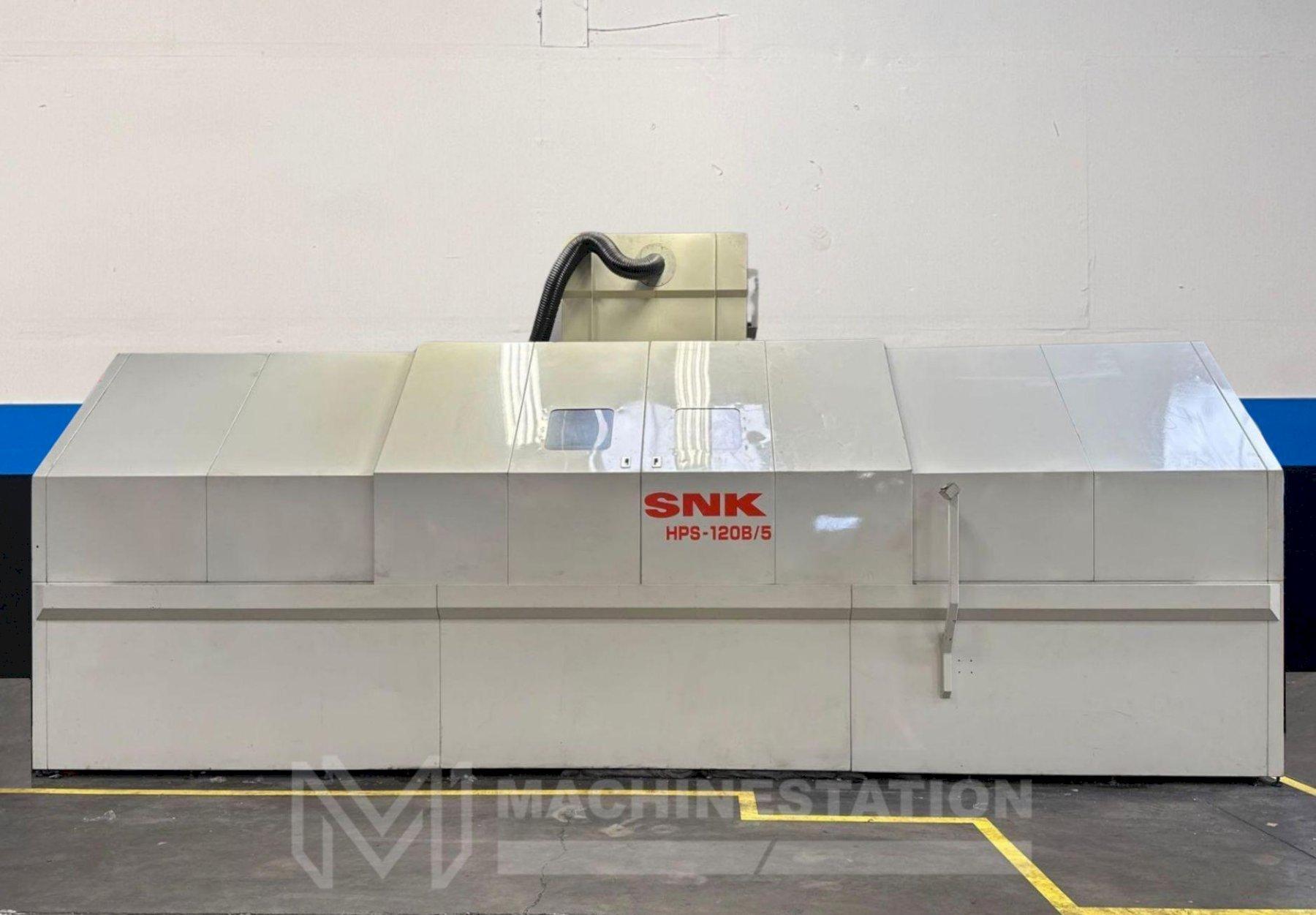

SNK HPS-120B/5 High Speed 5 Axis CNC Profiler Mill – 15,000 RPM, 50 Taper, TCS

SNK HPS-120B/5 High Speed 5 Axis CNC Profiler Mill – 15,000 RPM, 50 Taper, TCS

Name: SNK HPS-120B/5 High Speed 5 Axis CNC Profiler Mill – 15,000 RPM, 50 Taper, TCS
Brand: SNK
SKU: 113016
Availability: InStock

Brand

SNK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	SNK
Model:	HPS120B/5

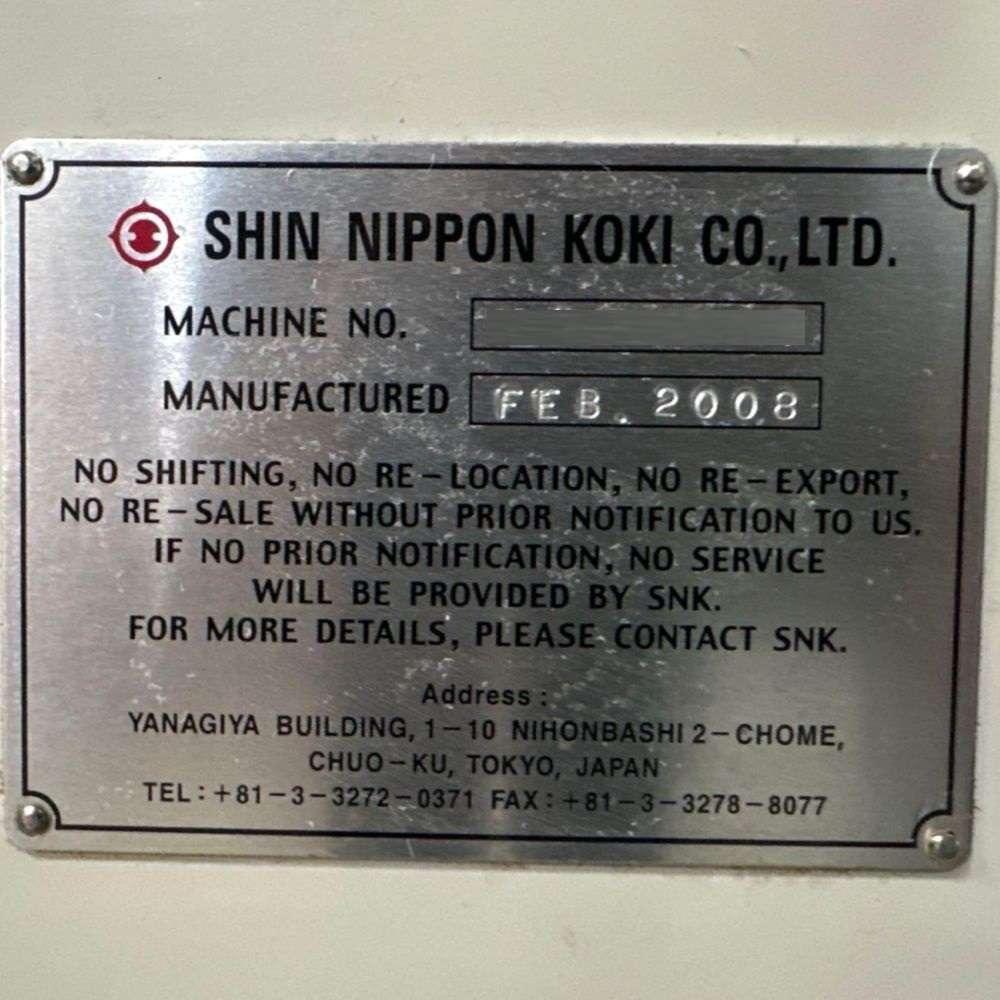

Year:	2008
Condition:	Used – Good

Equipped With:

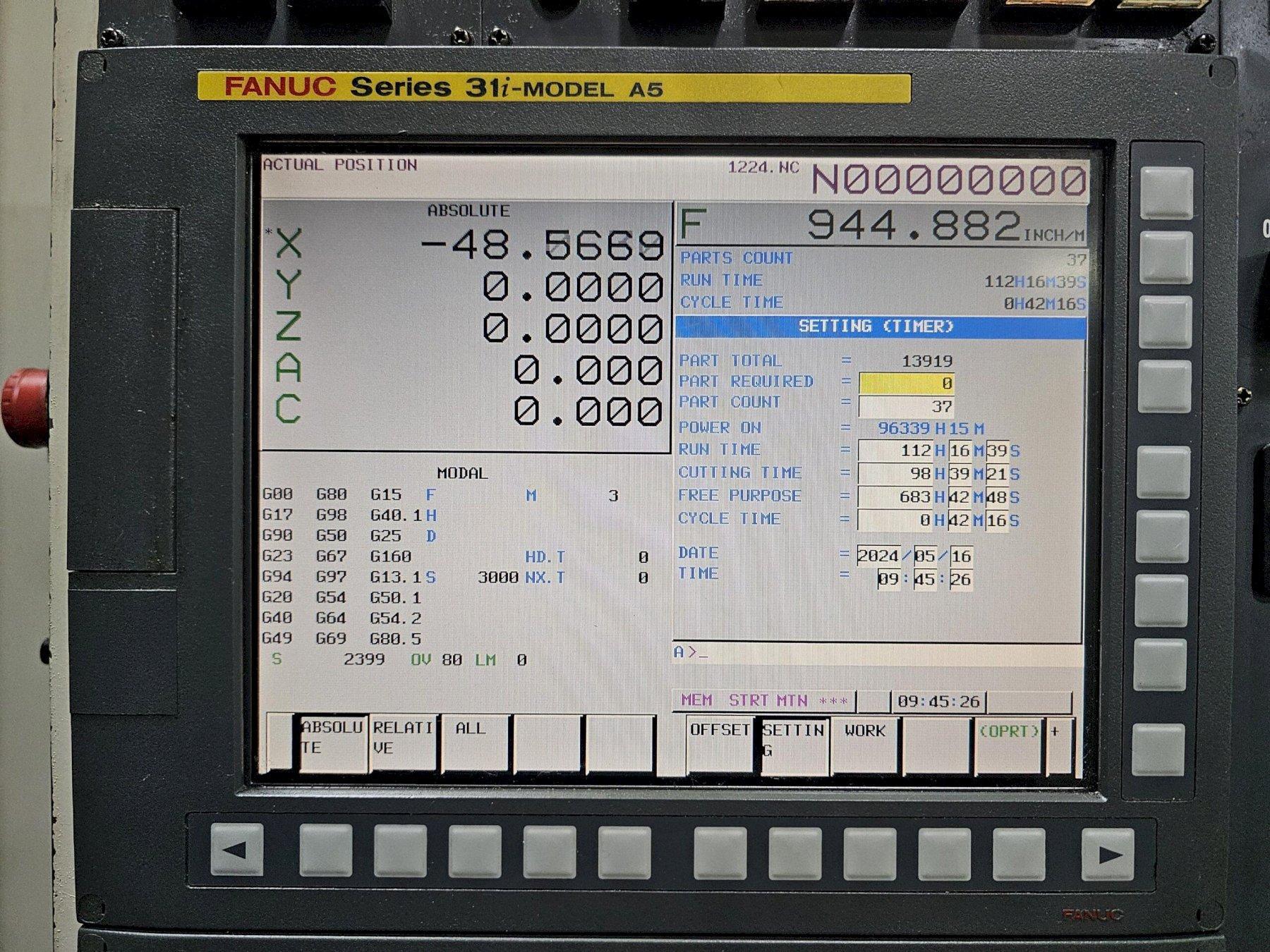

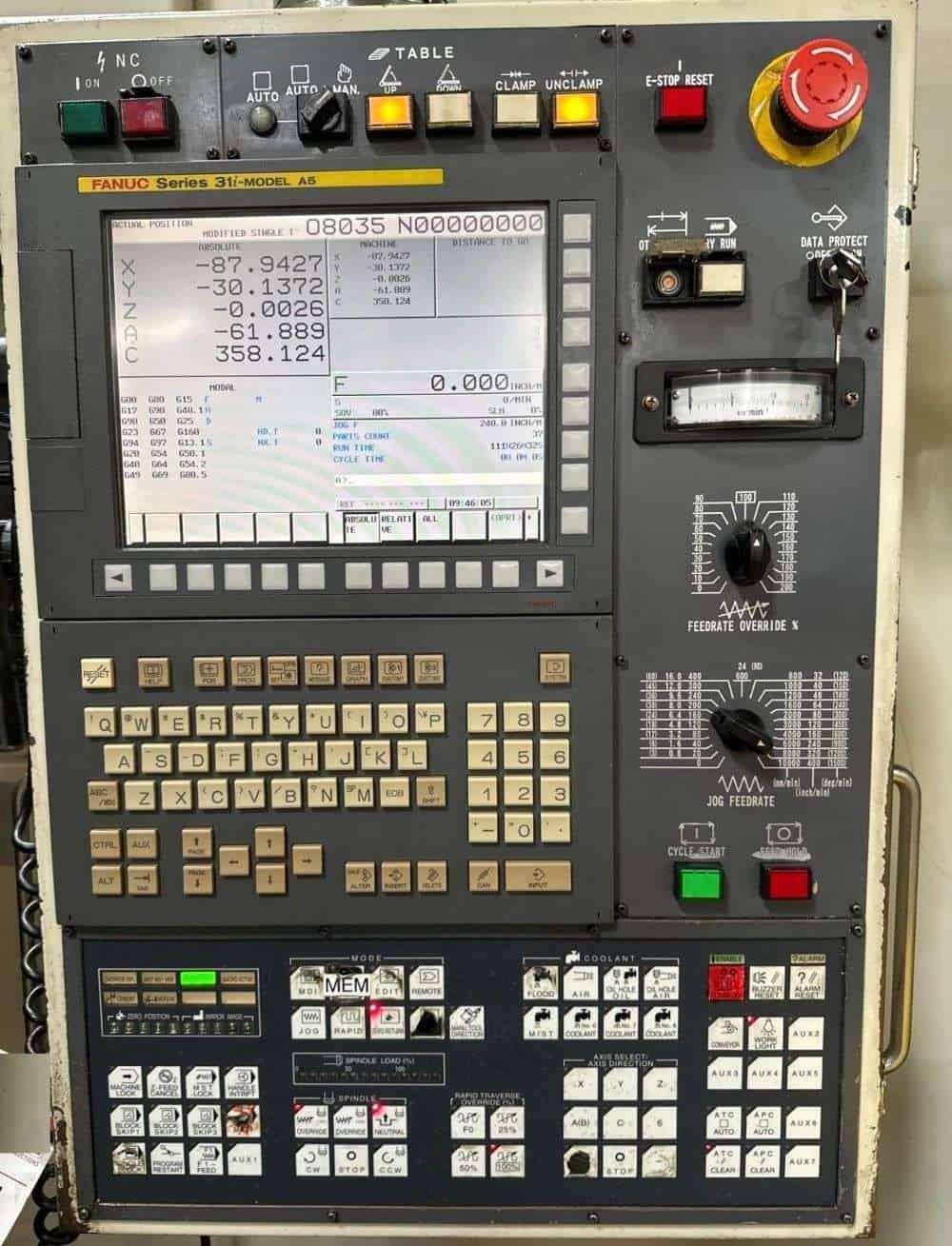

Fanuc 31iM 5 Axis Simultaneous Contouring Control

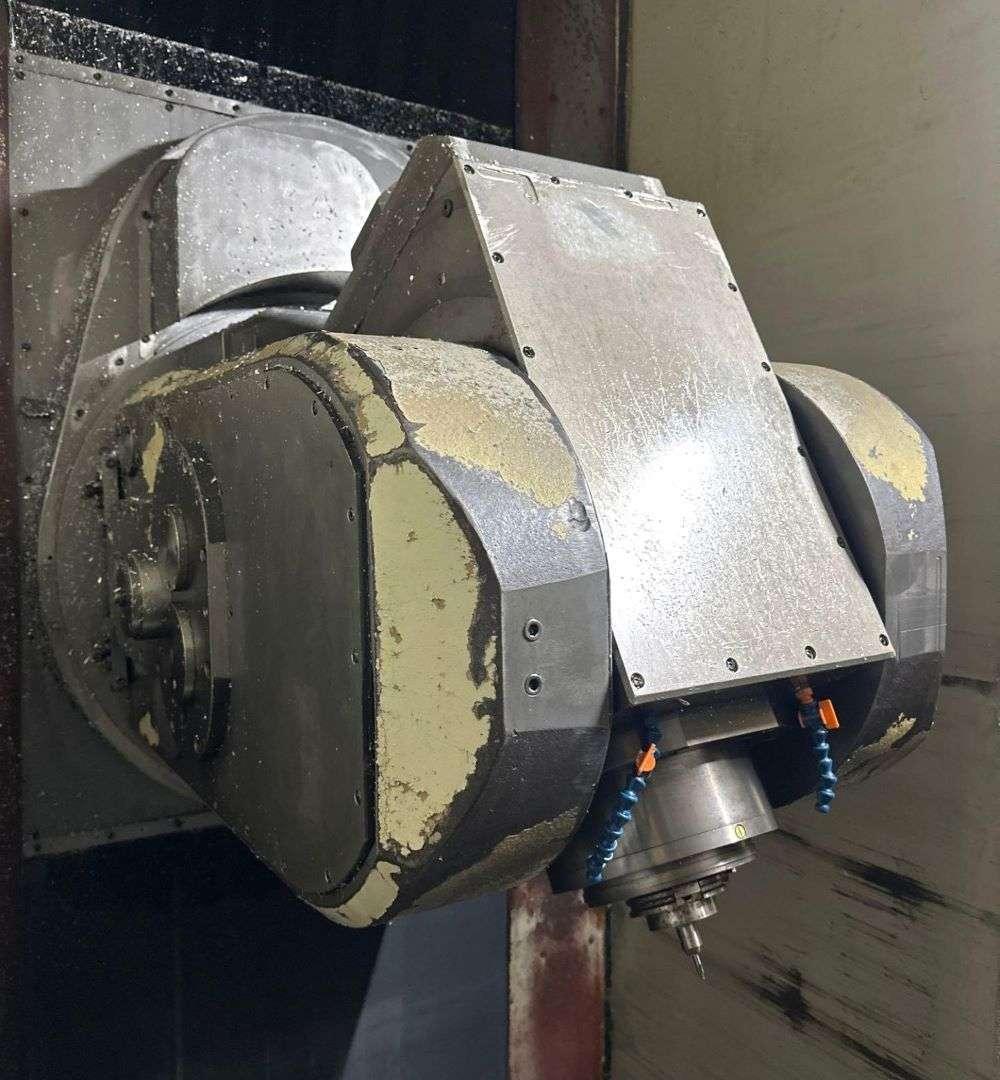

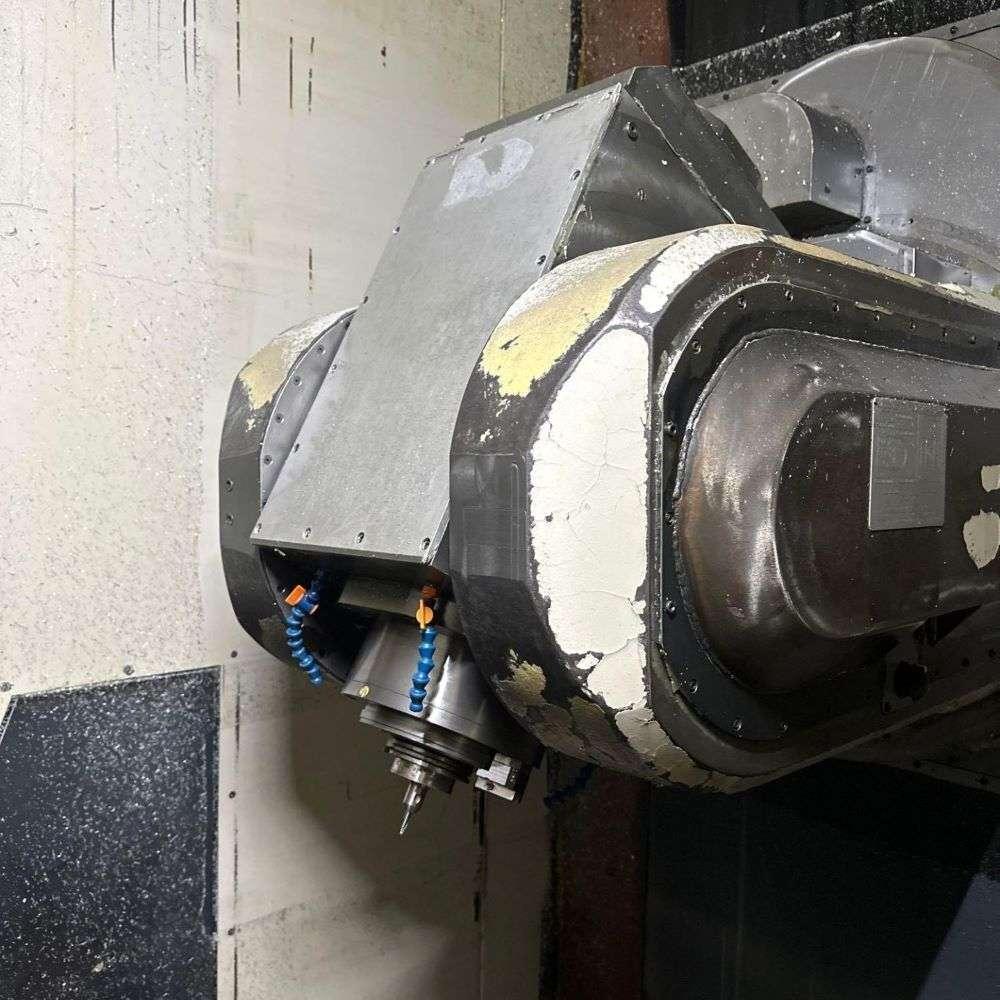

Articulating Spindle Head (A & C Axis)

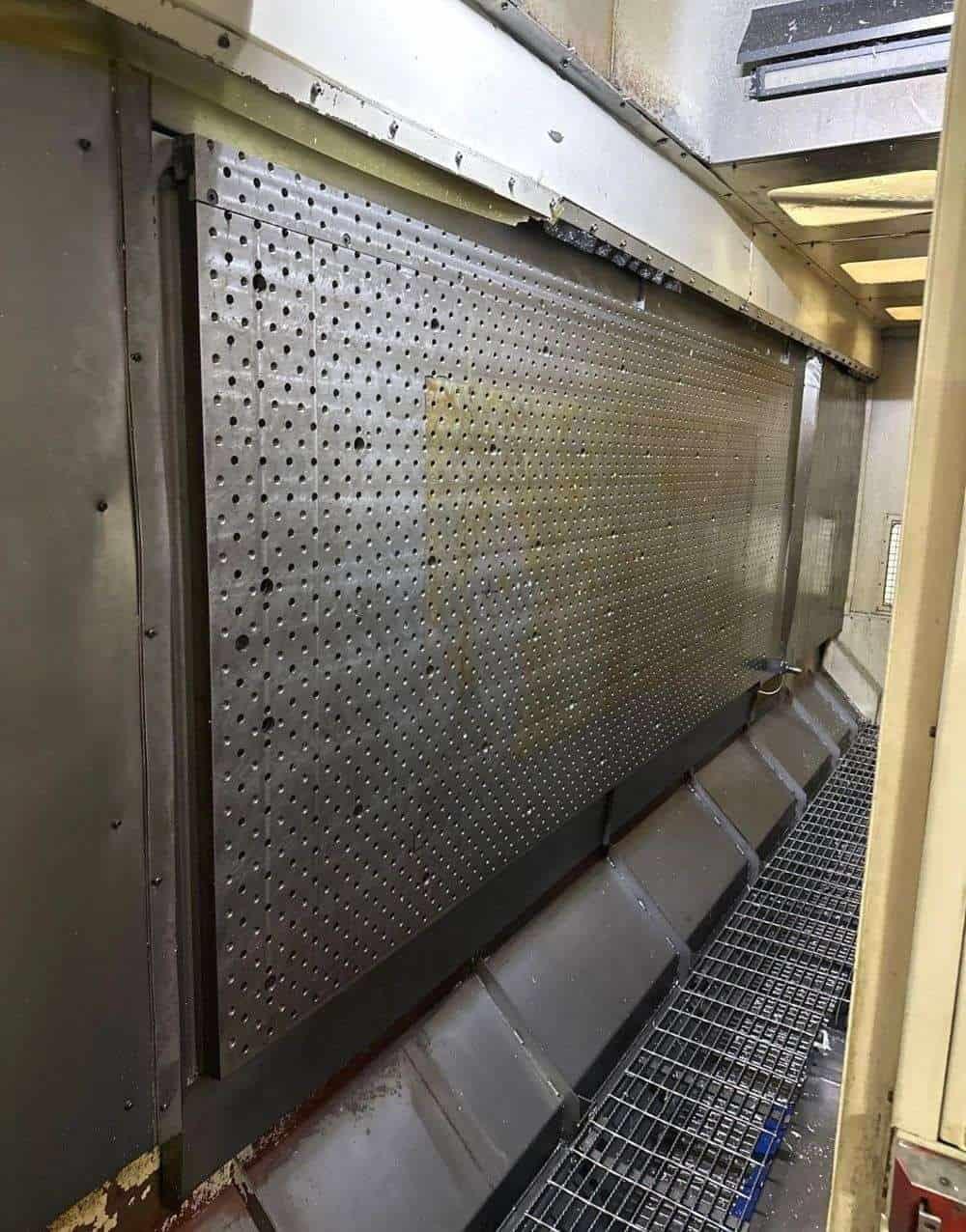

120” x 48” Hydraulic Tilt Table
50 HP High Torque Spindle Motor
50 Taper 15000 RPM Gear Head Spindle
Through Spindle Coolant
Box Way Heavy Construction
MPG Control
Rigid Tapping
PCMCIA Card Slot
Telescopic way covers

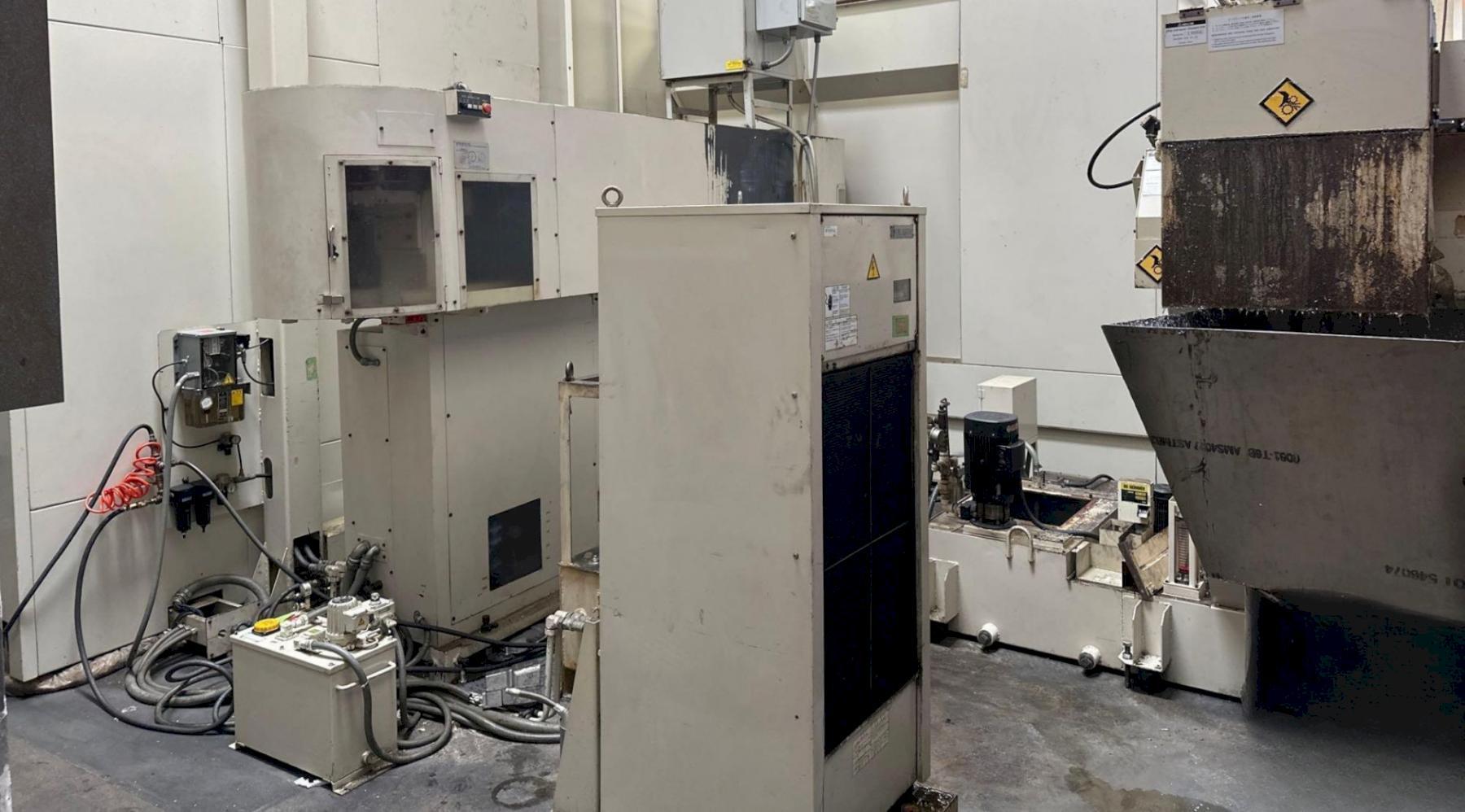

Chip Blaster Mist Collector

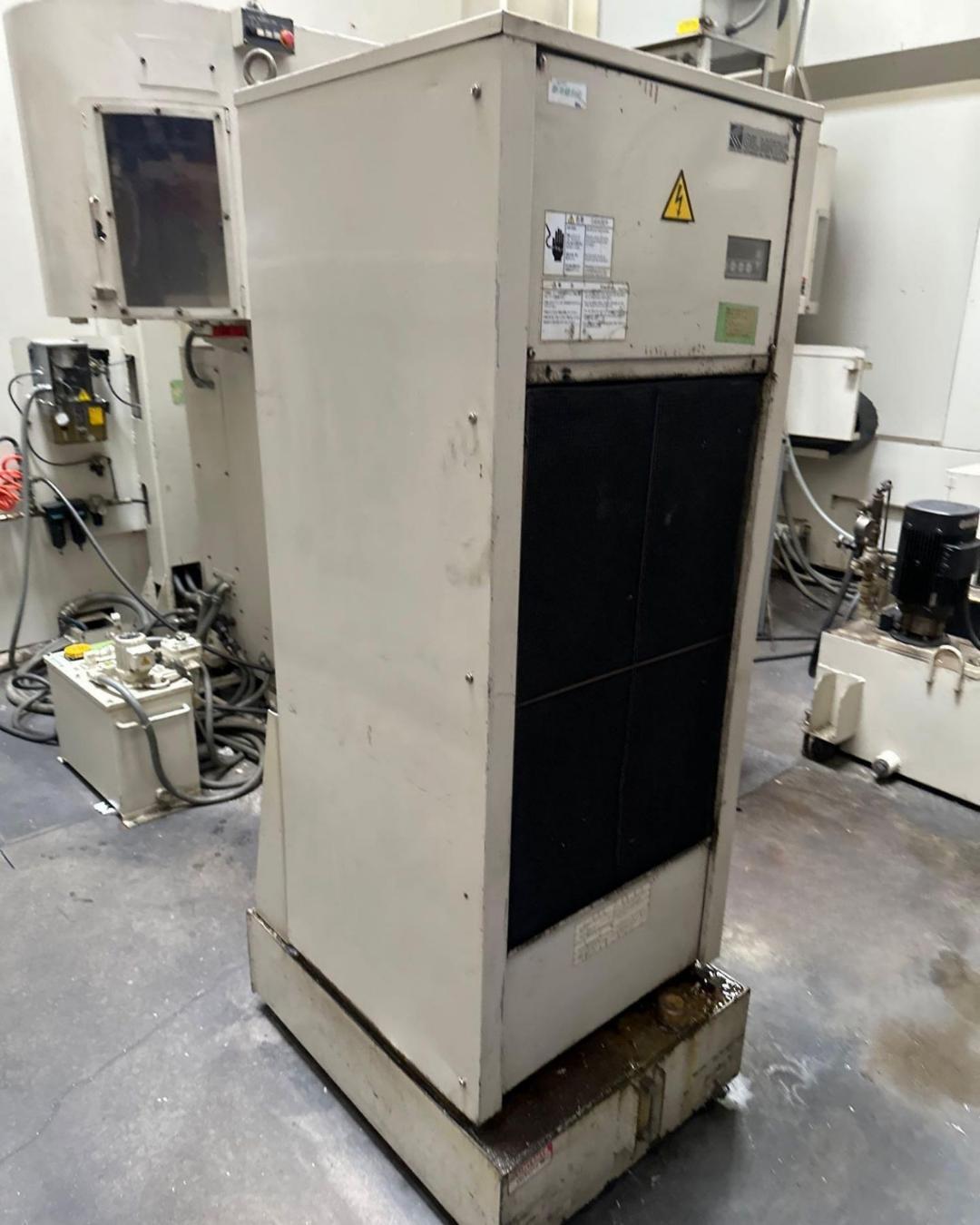

Chiller Unit
Coolant Tank
Chip Conveyor

Travels:
Table Longitudinal (X-Axis): 124.0″
Spindle Head Vertical (Y-Axis): 52.0″
Column Transverse (Z-Axis): 30.0″
Spindle Head Tilt (A-Axis): +/- 90° degrees
Spindle Head Rotation (C-Axis): +/- 360° degrees
Spindle Nose to Table (Min.- Max.): 5.0″ – 33.0″

Feedrates:
Rapid Traverse Rates (X, Z Axis): 945 Inch Per Minute
Rapid Traverse Rates (Y Axis): 787 Inch Per Minute
Rapid Traverse Rates (A, C Axis): 1800 Degree Per Minute
Cutting Feed Rates (X, Y, Z Axis): 393 Inch Per Minute
Cutting Feed Rates (A, C Axis): 1800 Degree Per Minute

Table:
Work Mounting Surface of Table:
Length: 120.0″
Width: 48.0″
Max Weight on Table: 11,000 lbs.

Table Positioning:
At Time of Work Piece Setting: 0 Degree (In Horizontal Position)
At Time of Work Piece Machining: 90 Degree (In Vertical Position)

Spindle:
Articulated 5 Axis
Taper Size: CAT-50
Speed Range: 15,000 RPM
Spindle Power: 50 HP

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 379″ x 308″ x 153″ High
Weight: lbs ?
