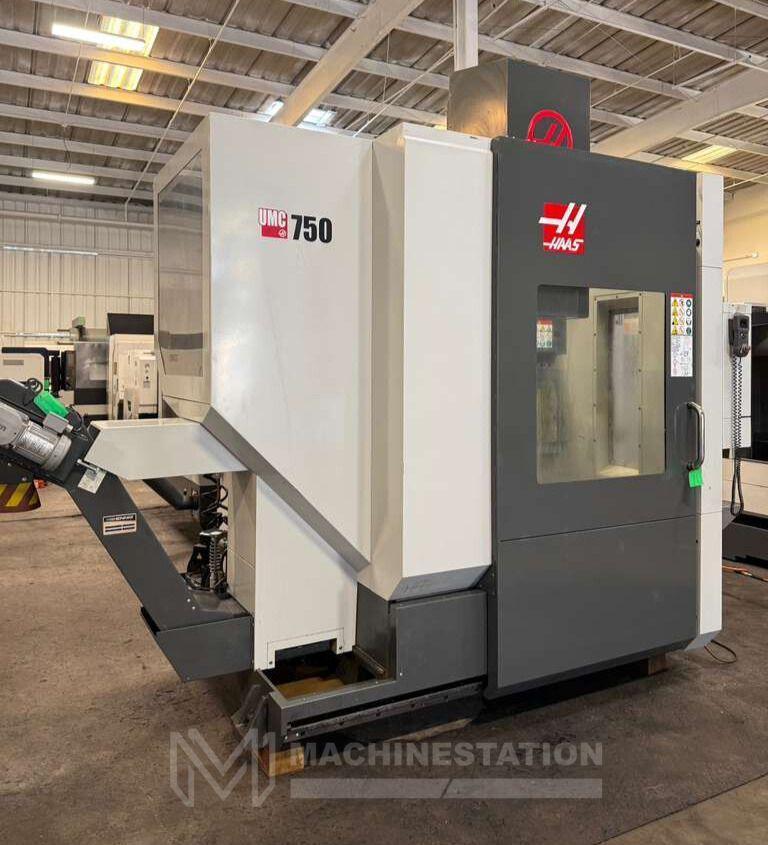

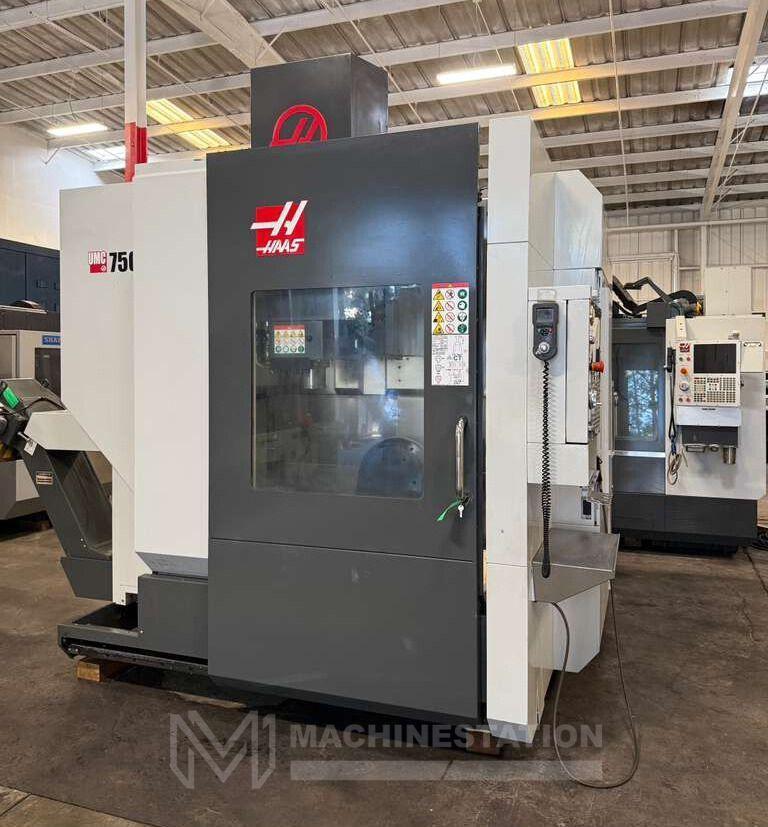

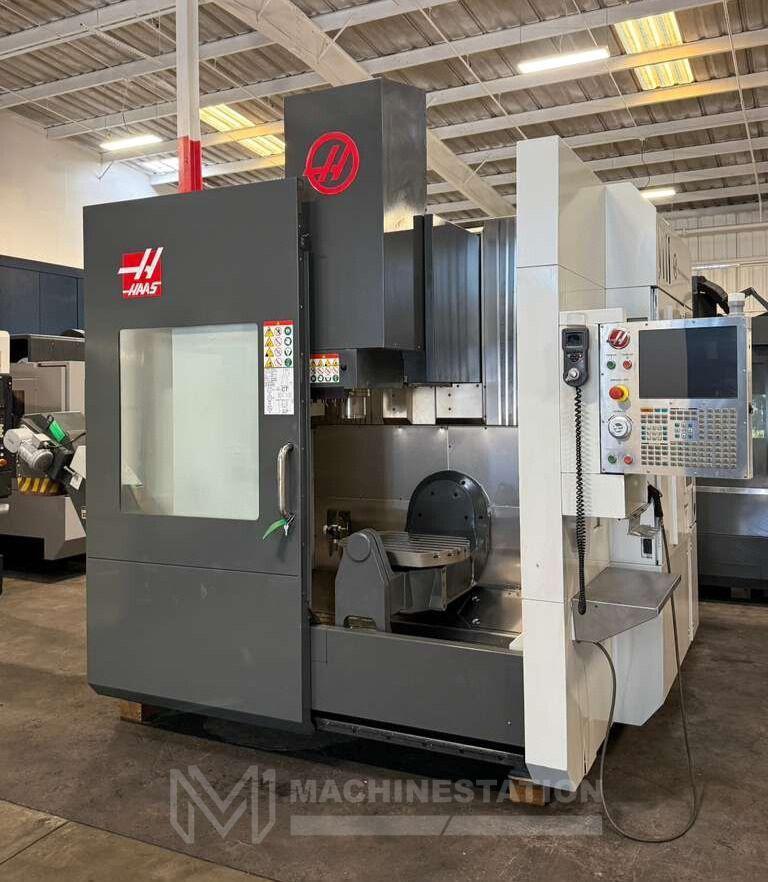

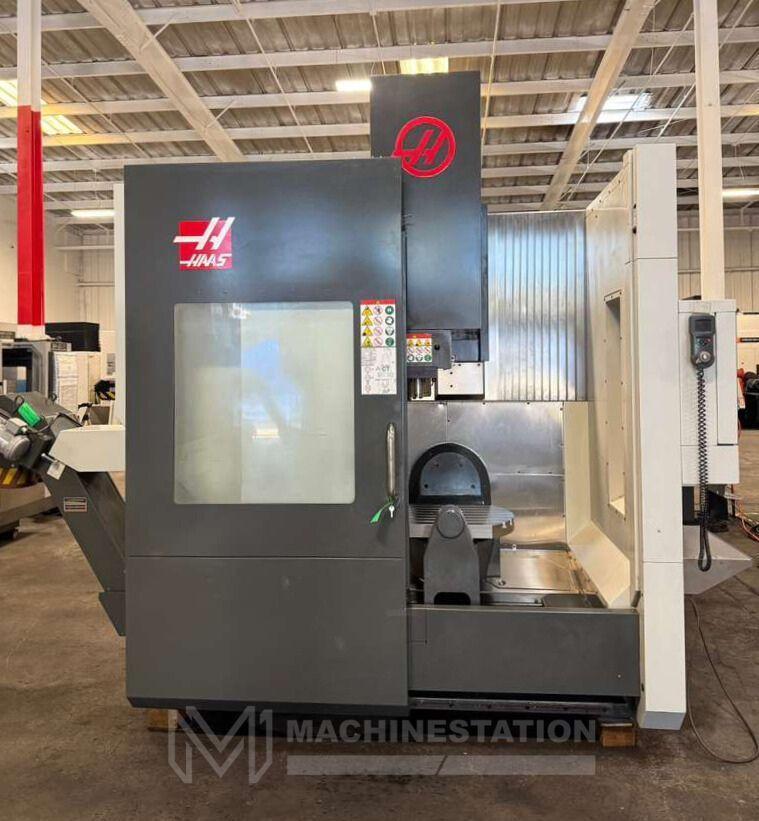

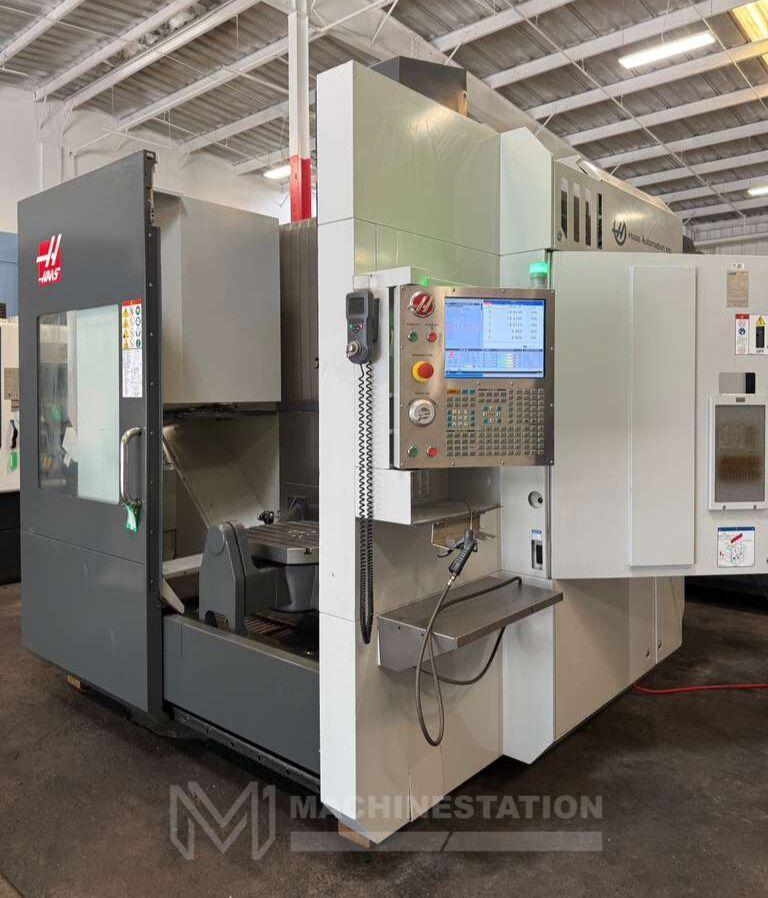

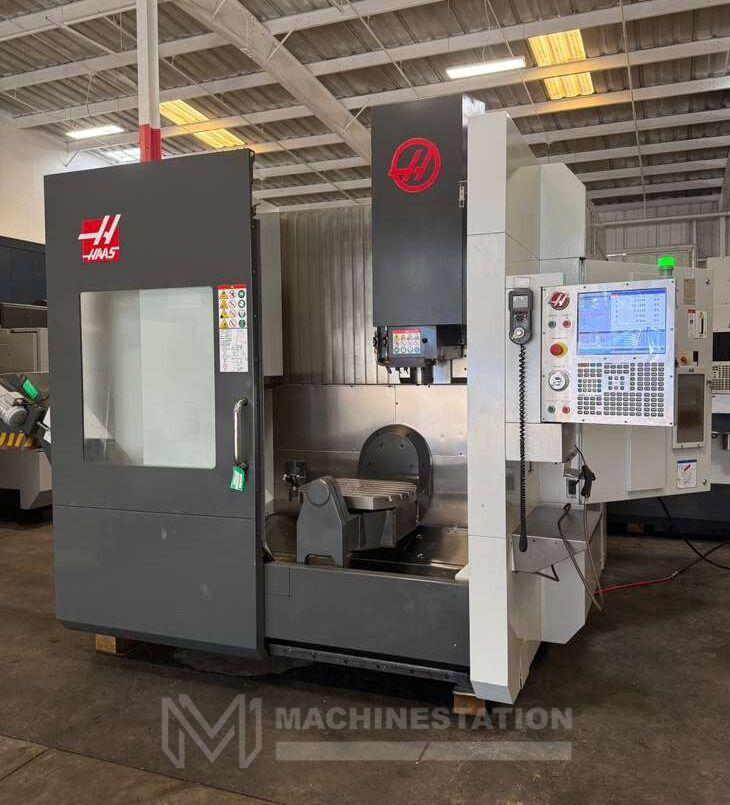

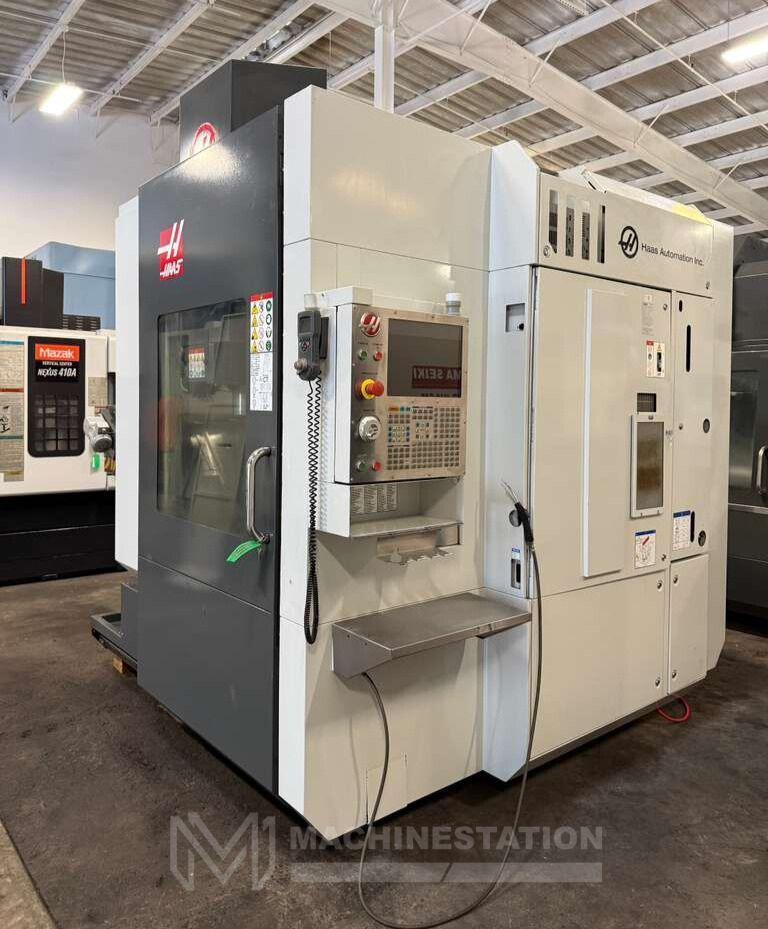

Haas UMC-750 5-Axis CNC Universal Machining Center – 12,000 RPM, 40 ATC, TSC, HSM Mill

Haas UMC-750 5-Axis CNC Universal Machining Center – 12,000 RPM, 40 ATC, TSC, HSM Mill

Name: Used Haas UMC-750 For Sale 112959
Brand: Unknown
SKU: 112959
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

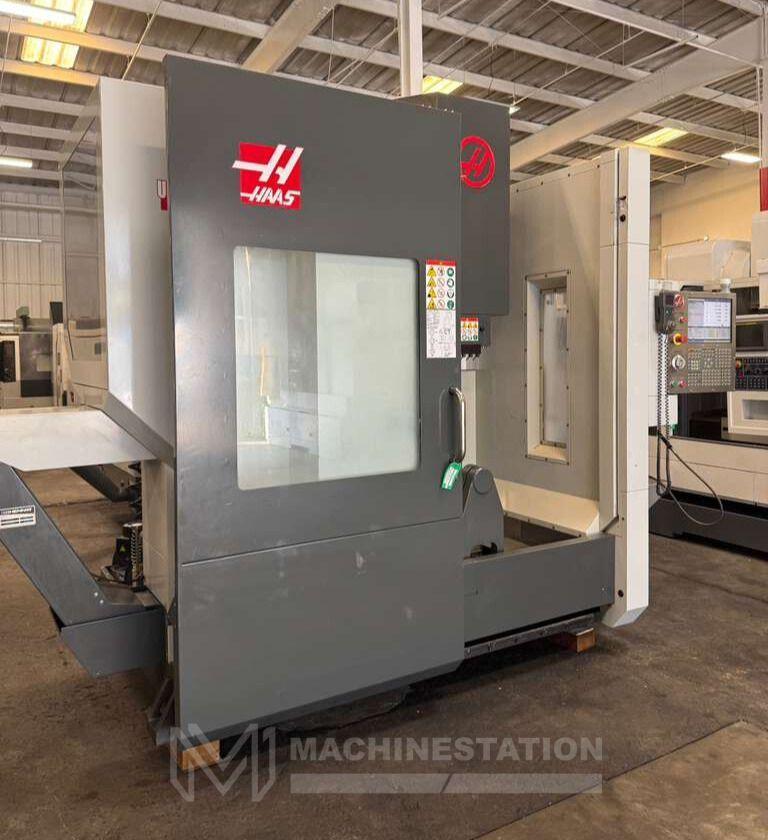

Make:	Haas
Model:	UMC-750
Year:	2016
Condition:	Used – Good

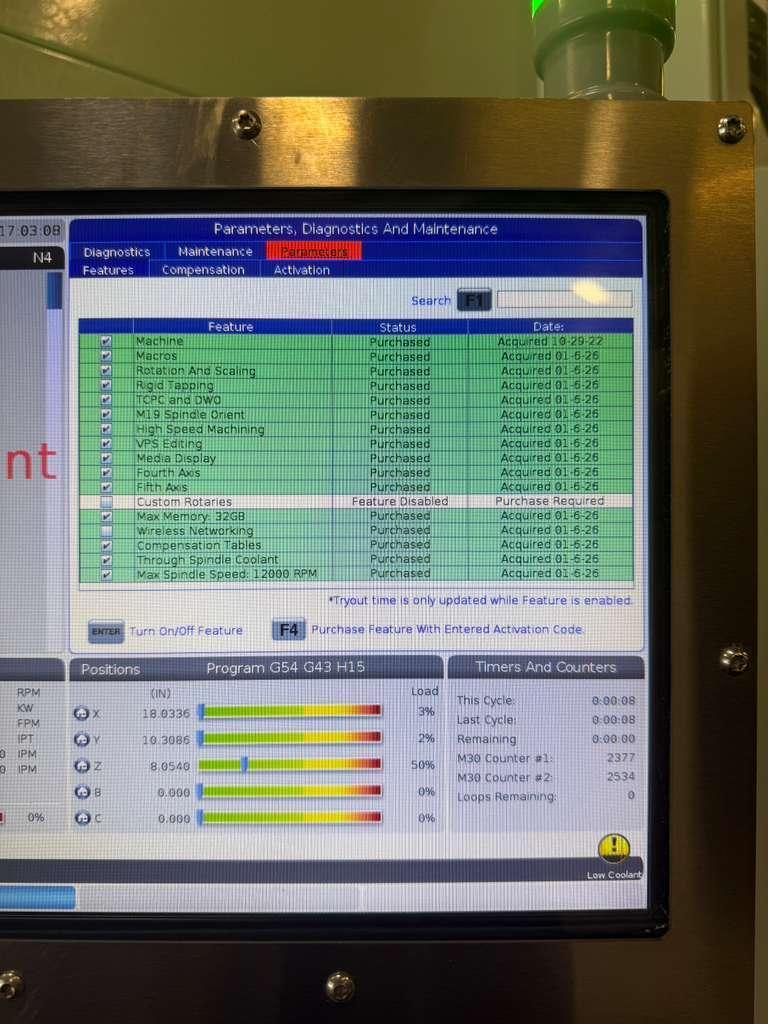

Features:

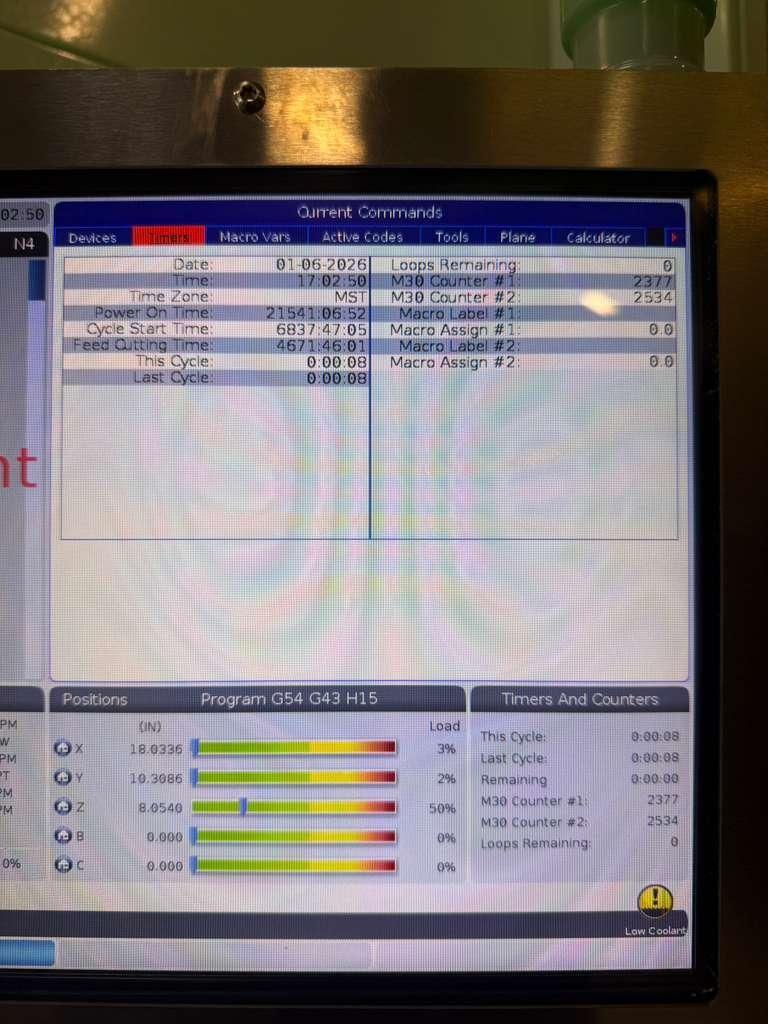

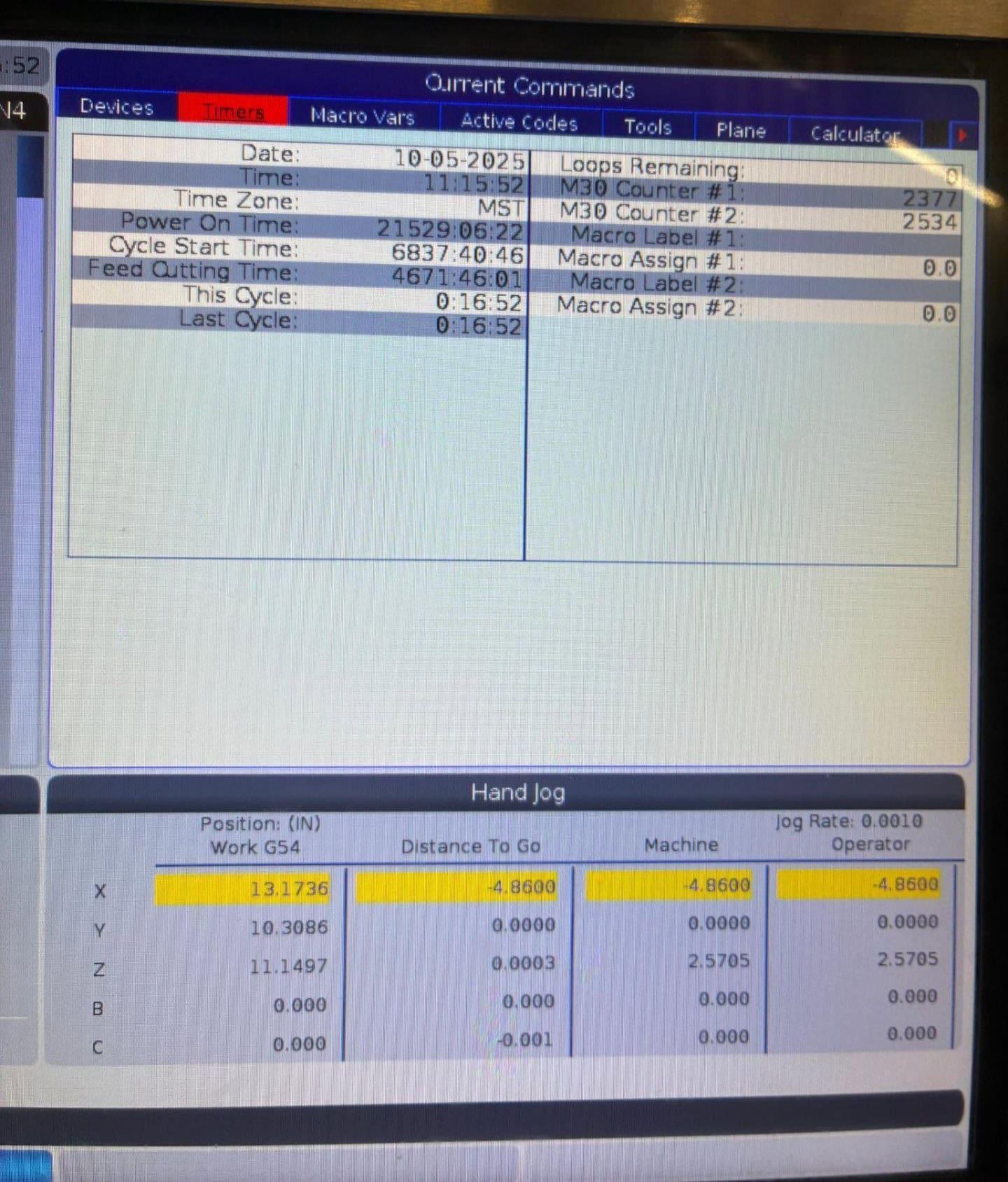

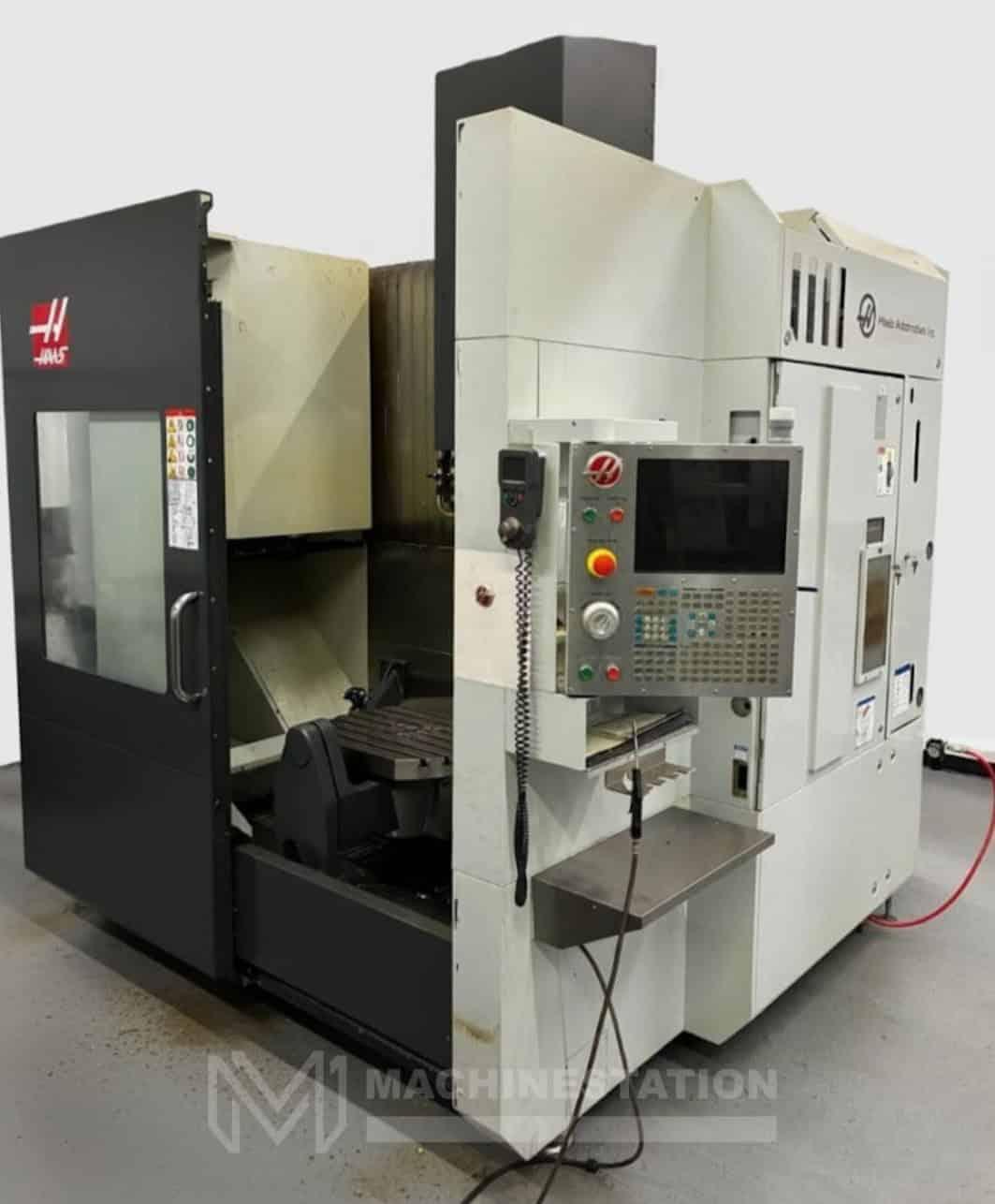

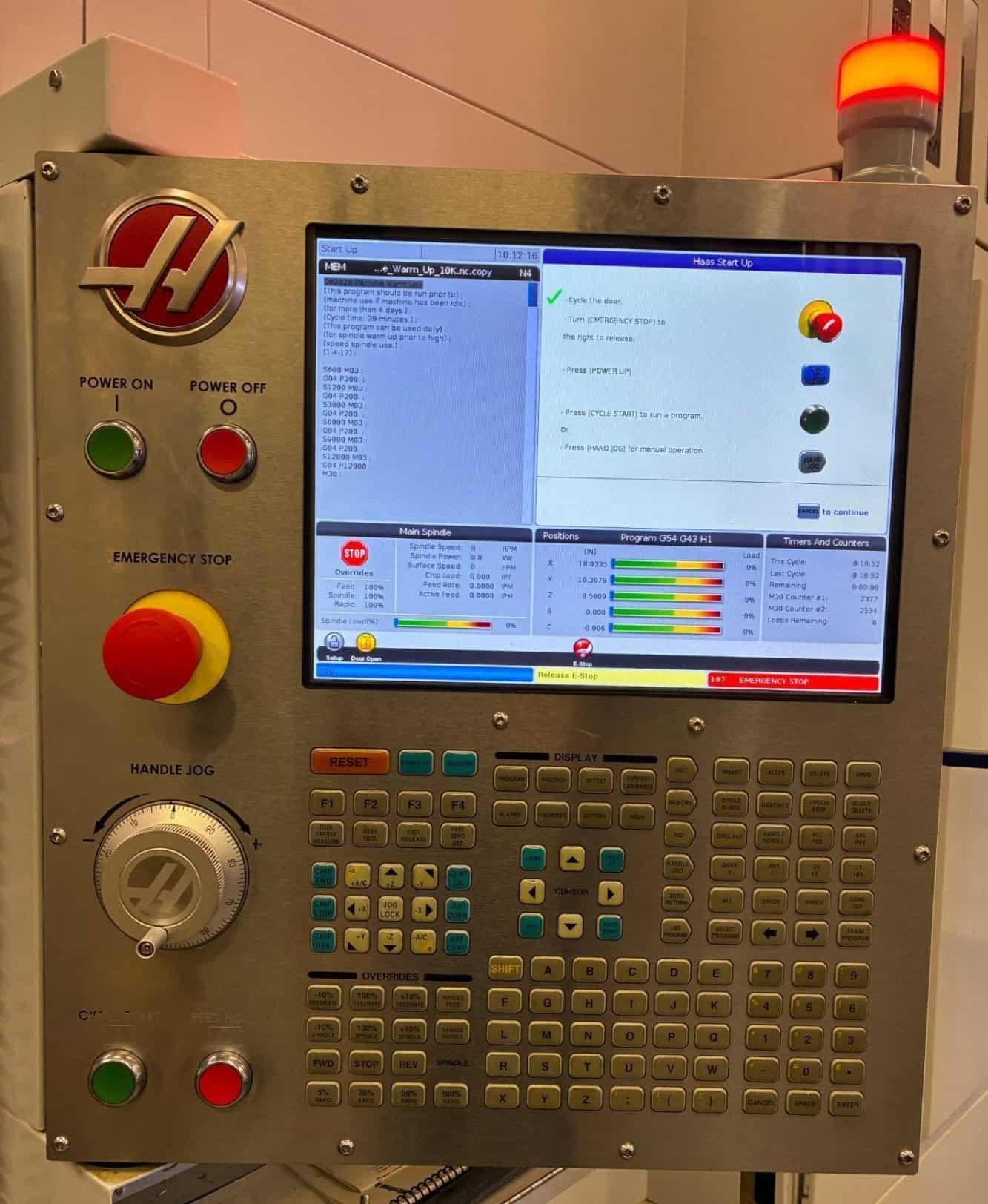

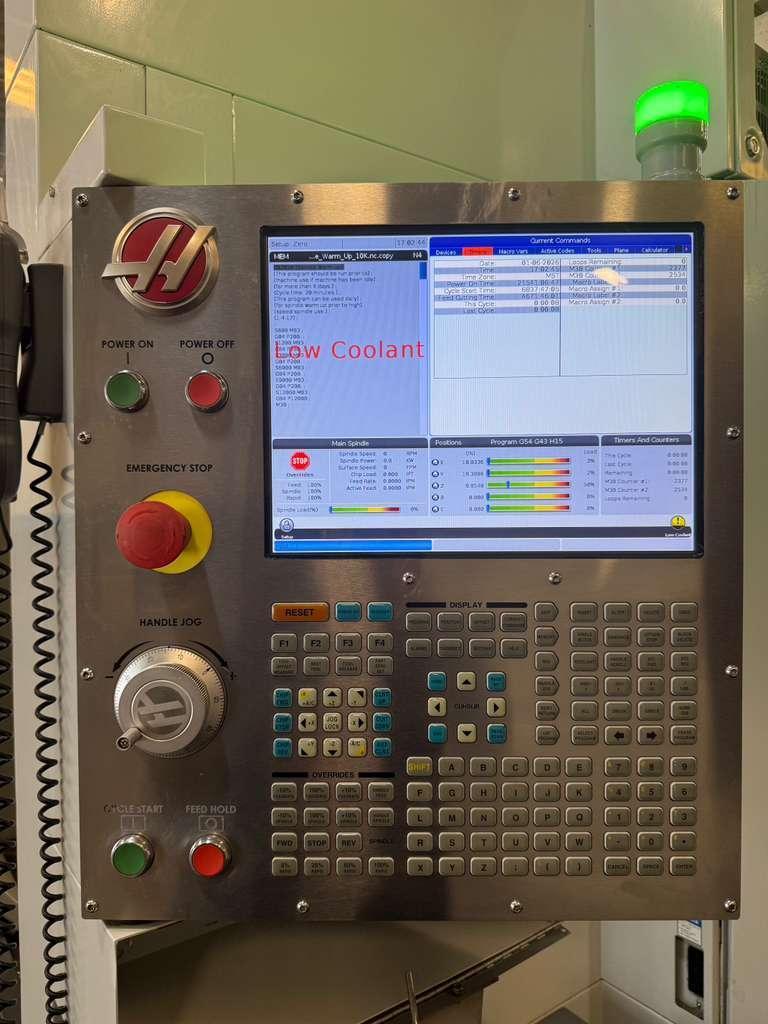

Haas CNC Control

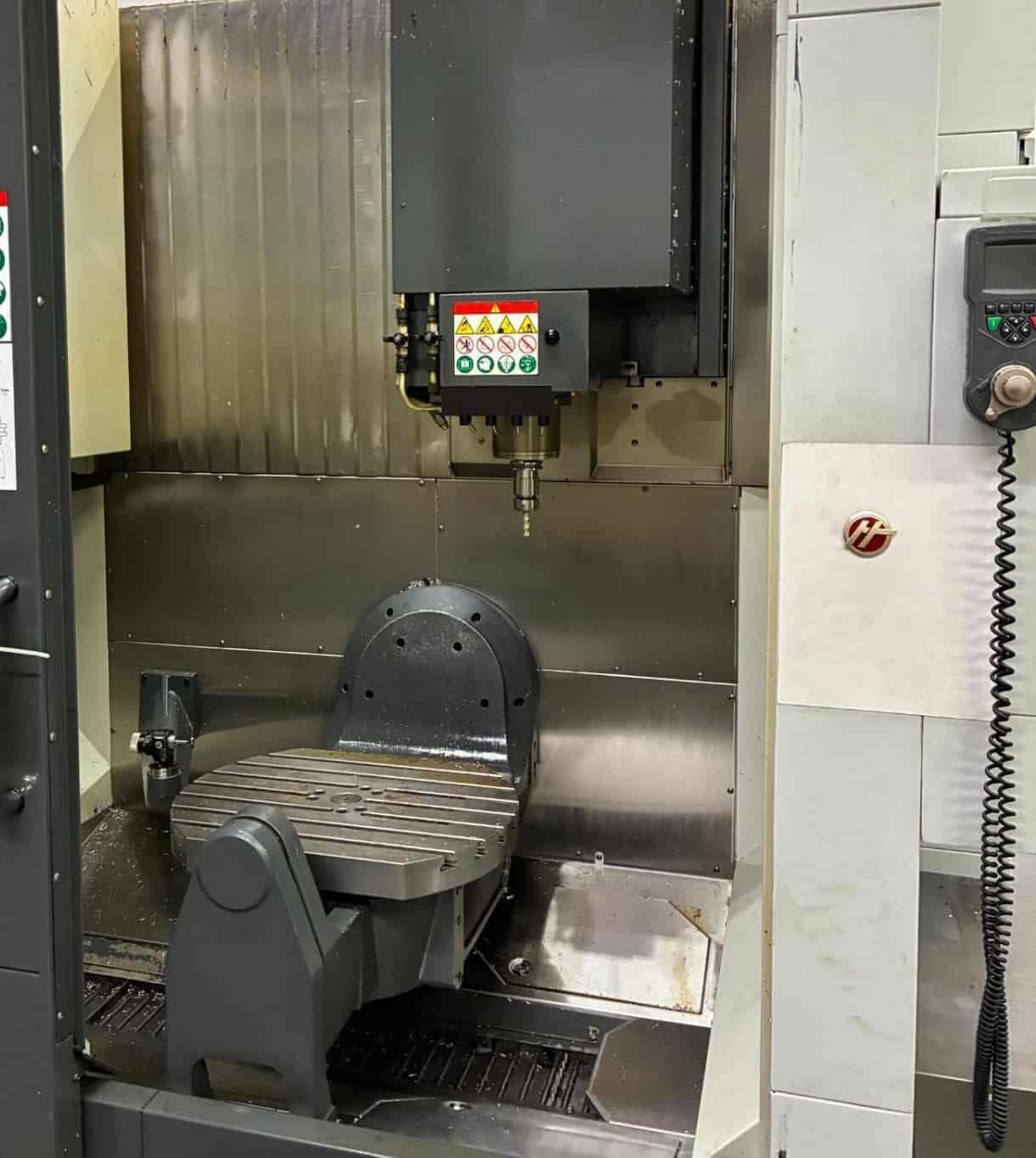

Haas Trunnion Table
12,000 RPM High Speed Spindle (Upgraded $11,195 Approx. value Included)
40 Station Automatic Tool Changer (Upgraded $11,995 Approx. value Included)

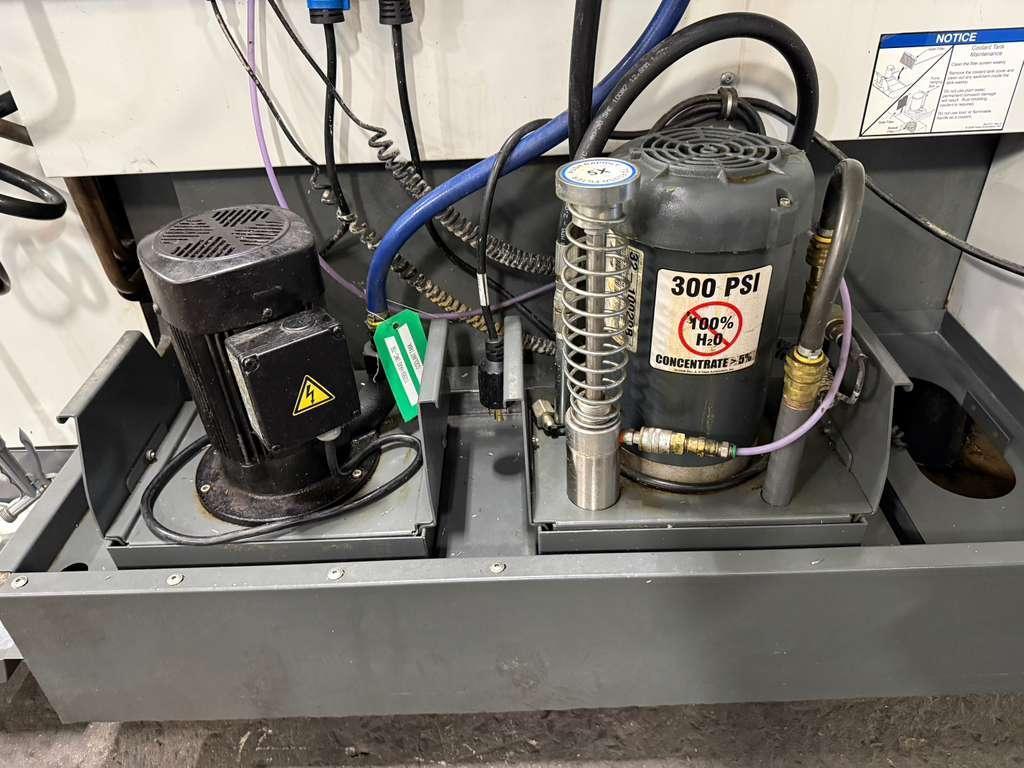

Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
High Speed Machining (Upgraded $3,895 value Included)
Renishaw Probing System (Probe Needed)

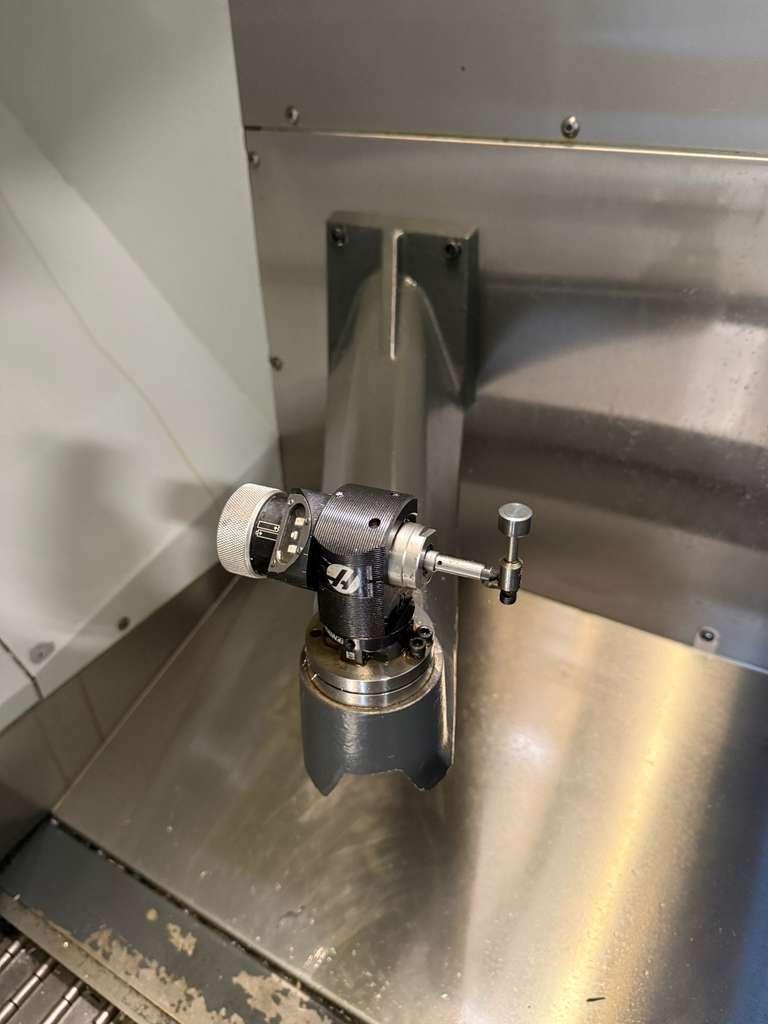

Tool Presetter
30 HP High Torque Spindle
Remote Jog Handle
Rigid Tapping
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
32 GB Expanded Memory (Upgraded $1,695 value Included)
Media Display M-Code
Coolant Tank

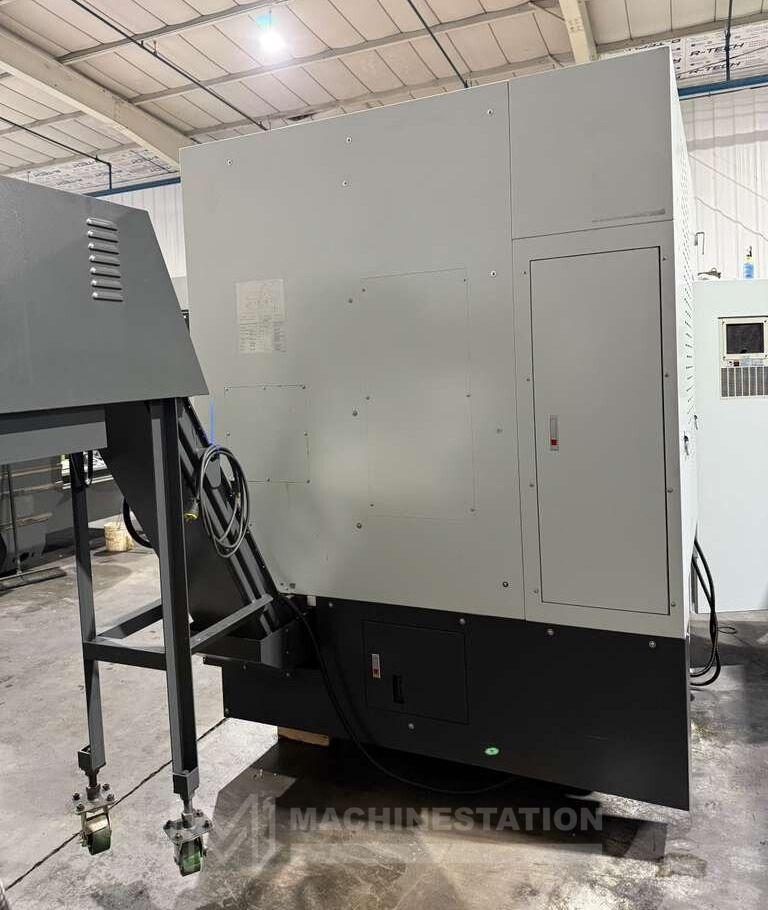

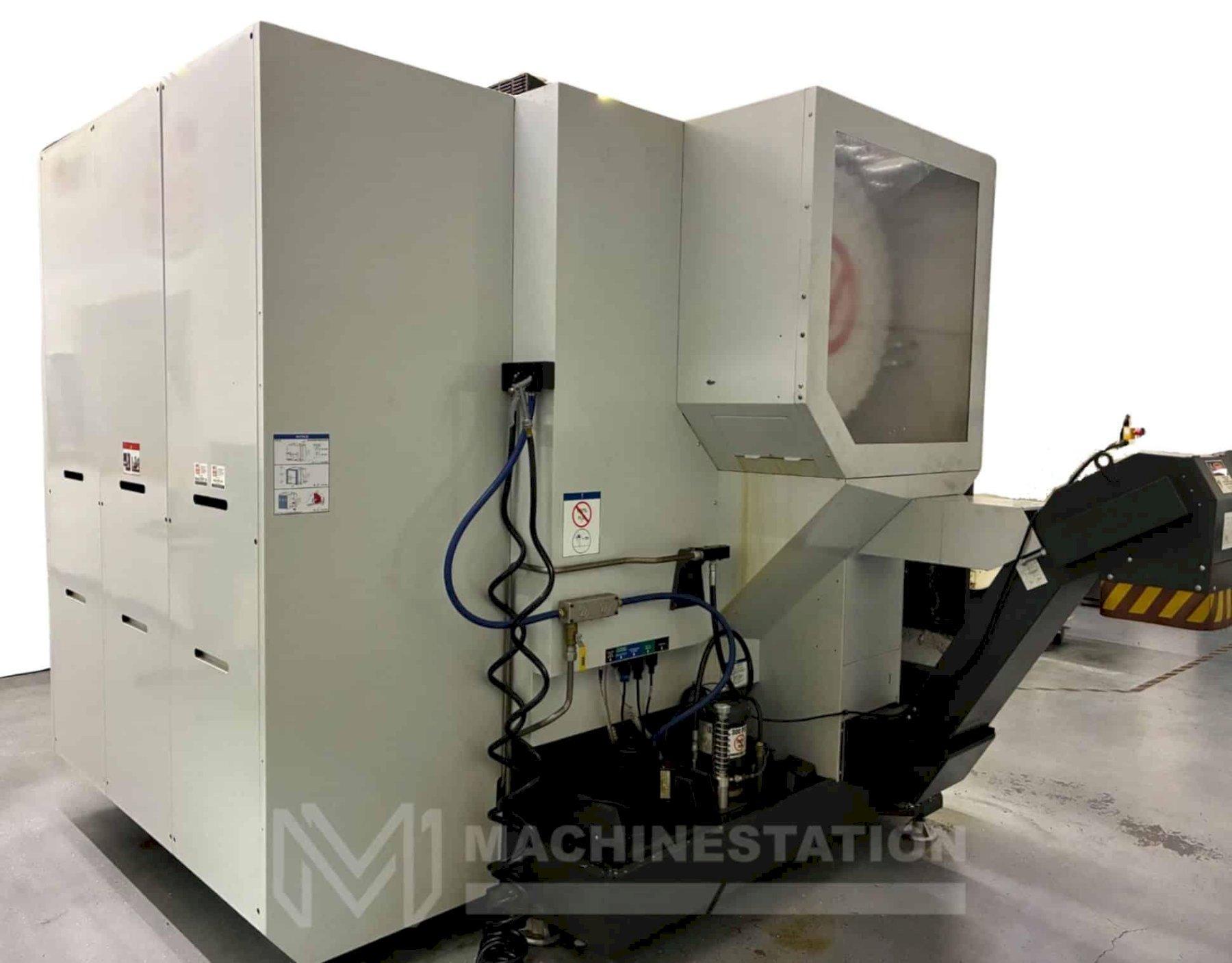

Belt-Type Chip Conveyor (Upgraded $7,995 value Included)

Travels:

X-Axis: 30″
Y Axis: 20″
Z Axis: 20″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 900 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

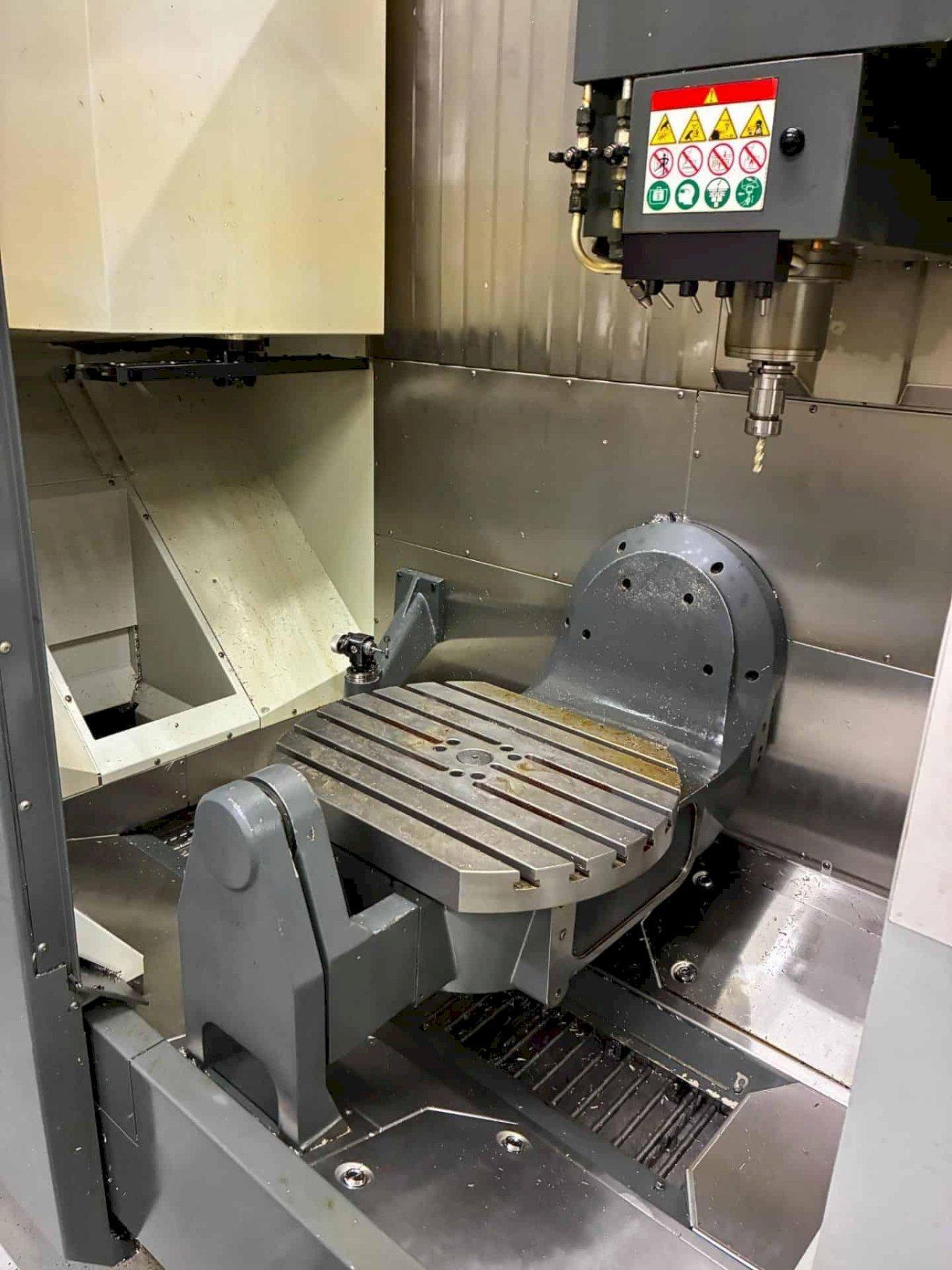

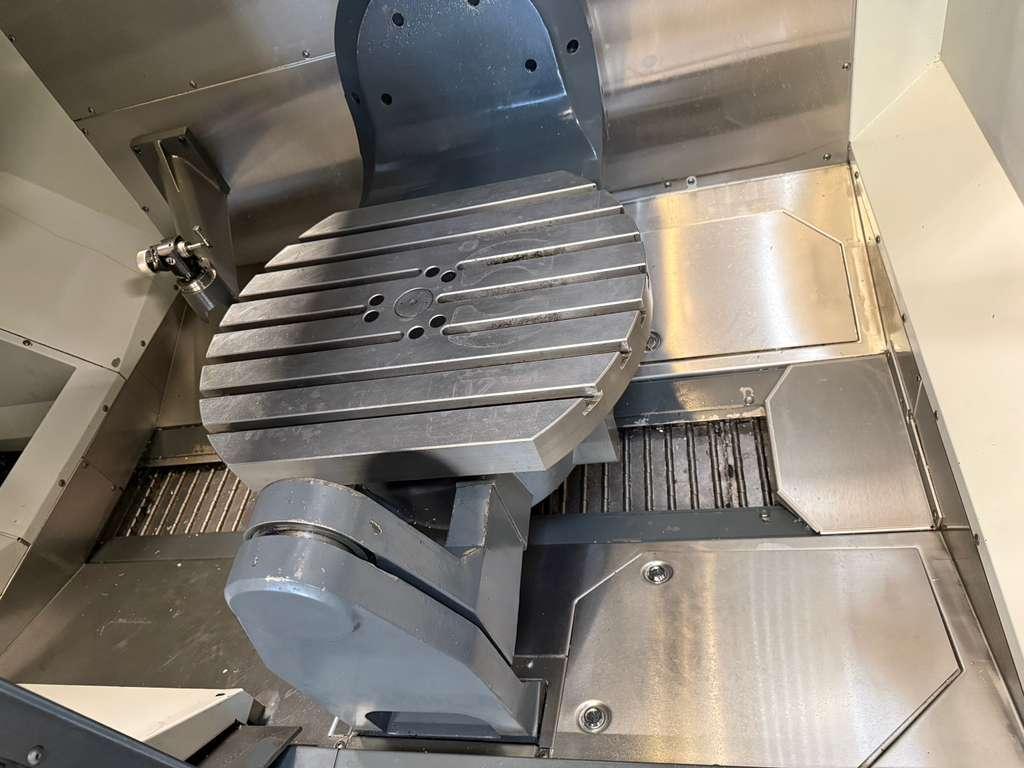

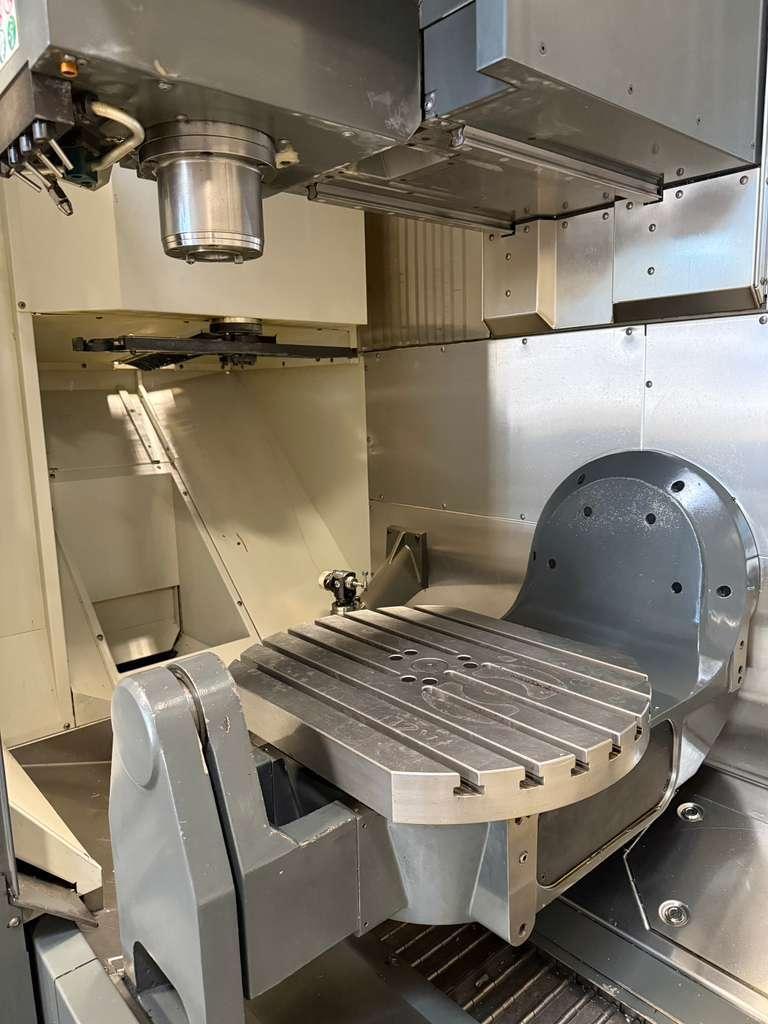

Trunnion Table:

Platter Diameter: 19.70″
Max Weight on Platter: 660 lbs
T-Slot Width: 0.626″ to 0.630″
Number of Std T-Slots: 7

Spindle:

Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

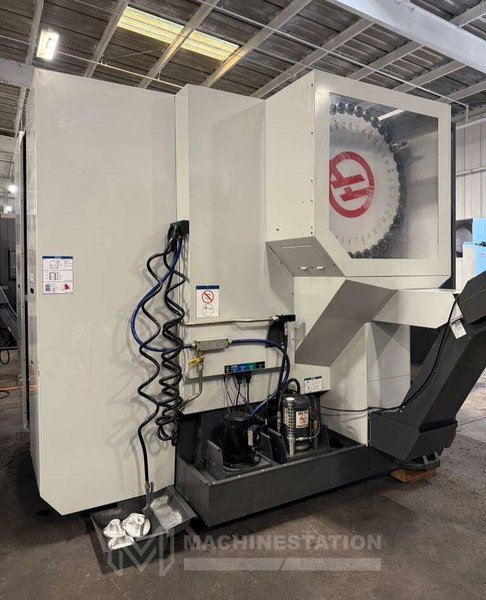

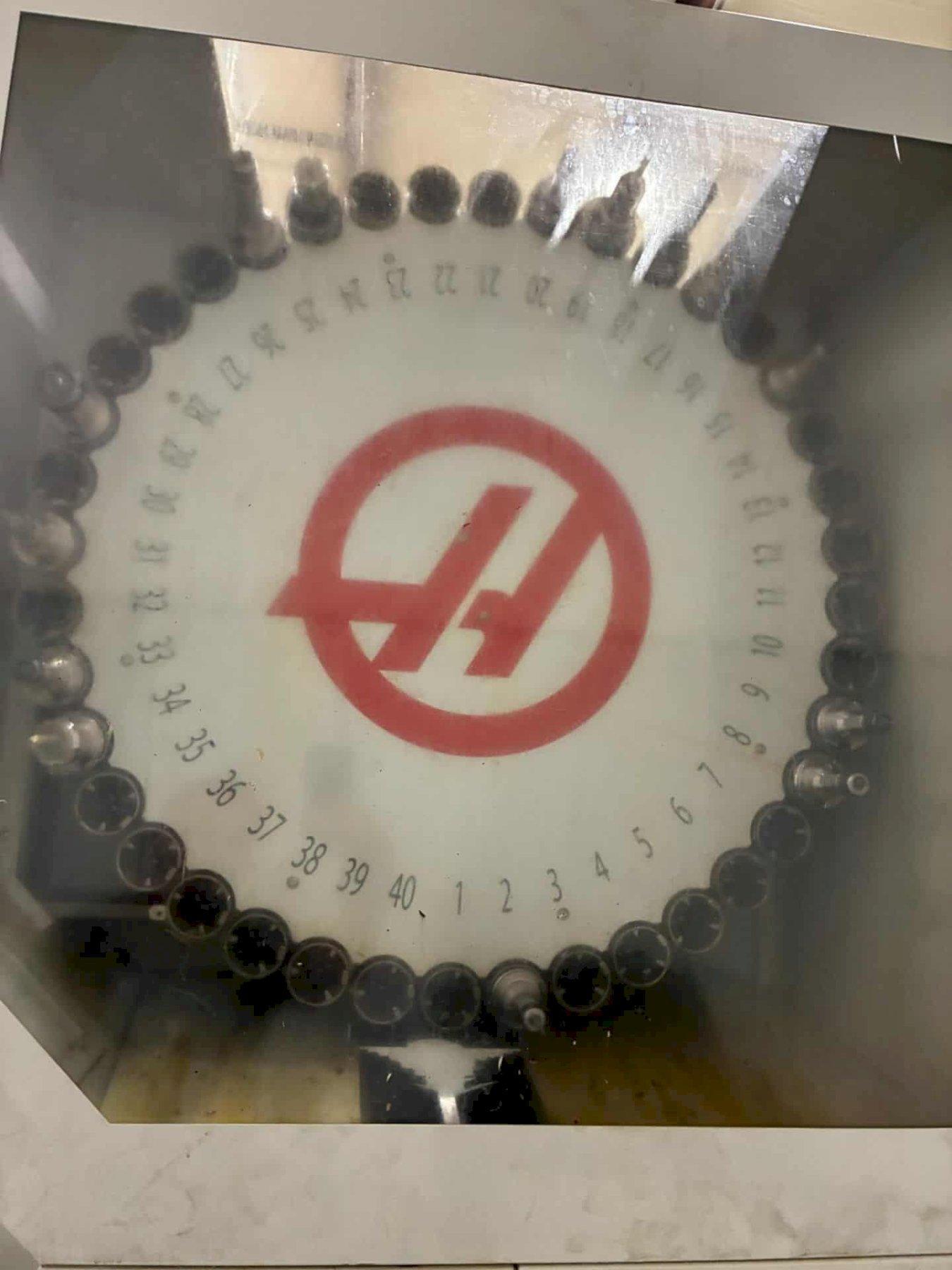

Automatic Tool Changer:

Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 2.8 Seconds

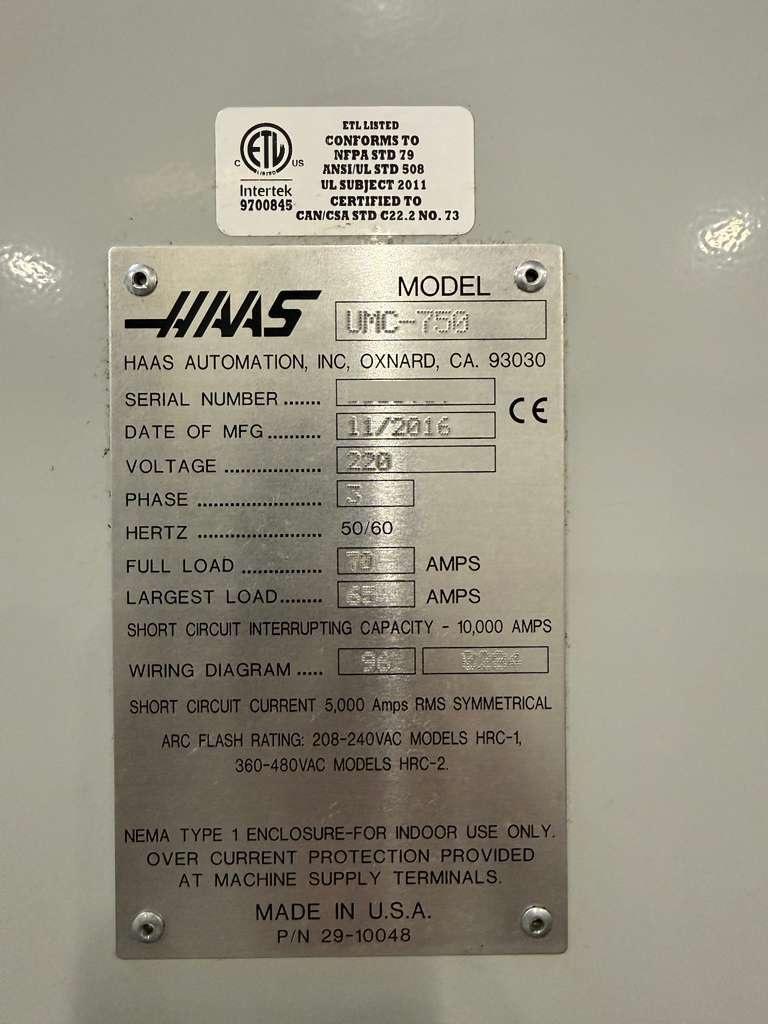

General:

Air Required: 100 psi 4 scfm

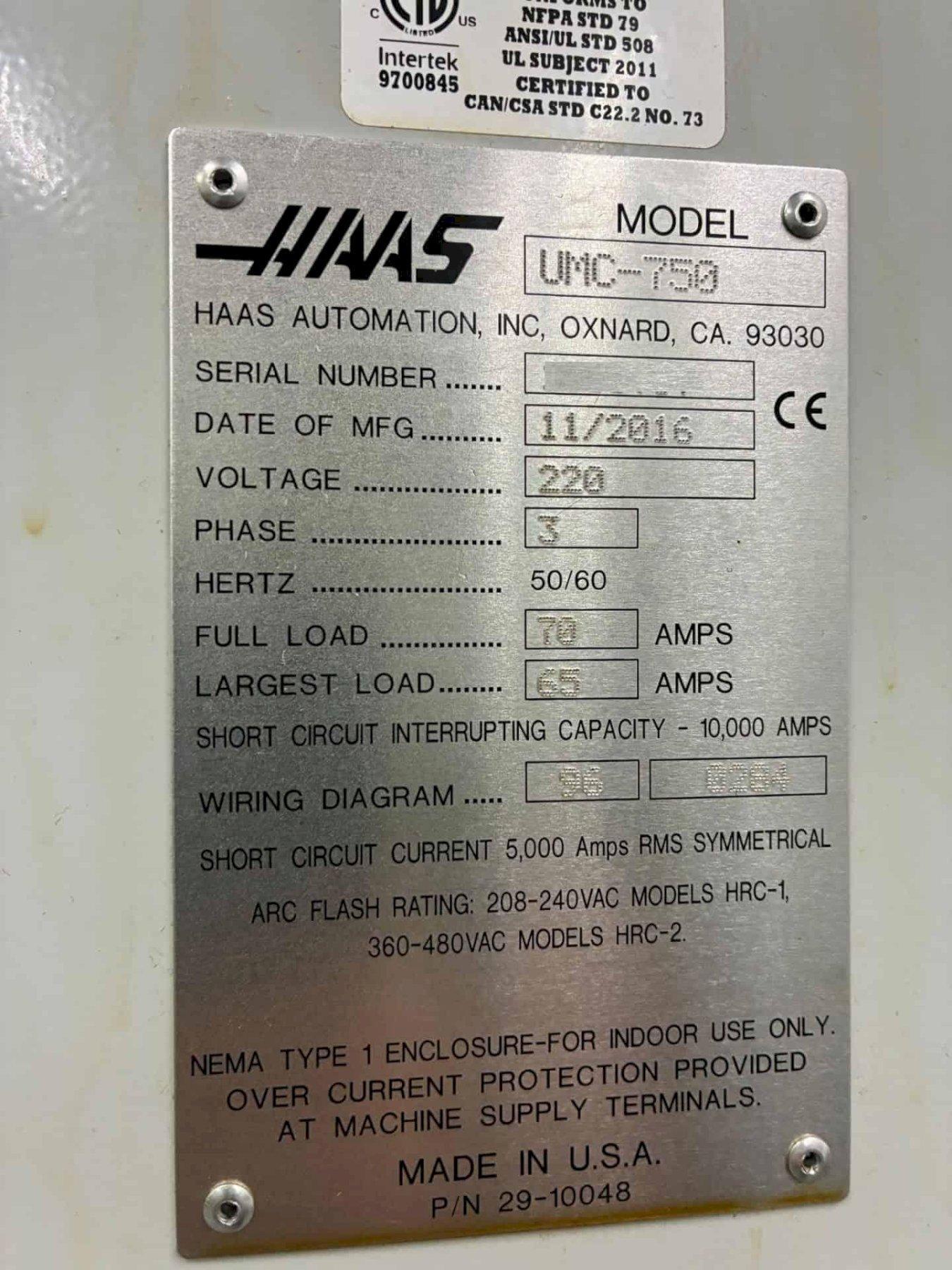

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 168″ x 92.5″ x 110″ High
Weight: 14,250 lbs.
