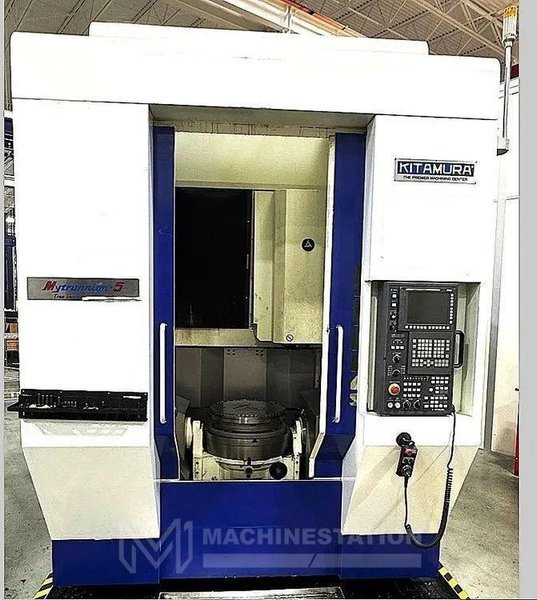

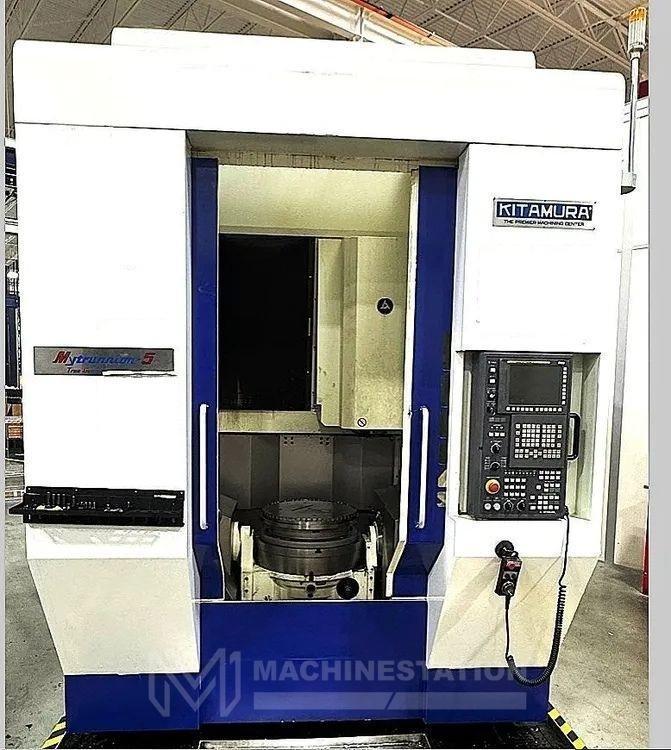

Kitamura Mytrunnion-5 5-Axis CNC Vertical Machining Center – 20,000 RPM Mill

Kitamura Mytrunnion-5 5-Axis CNC Vertical Machining Center – 20,000 RPM Mill

Name: Kitamura Mytrunnion-5 5-Axis CNC Vertical Machining Center – 20,000 RPM Mill
Brand: KITAMURA
SKU: 115116
Availability: PreOrder

Brand

KITAMURA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Kitamura
Model:	Mytrunnion 5
Condition:	Used – Good

Features:

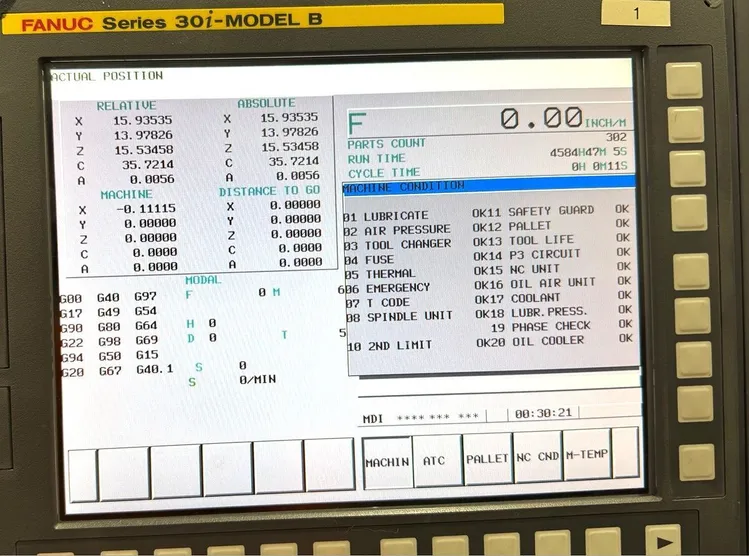

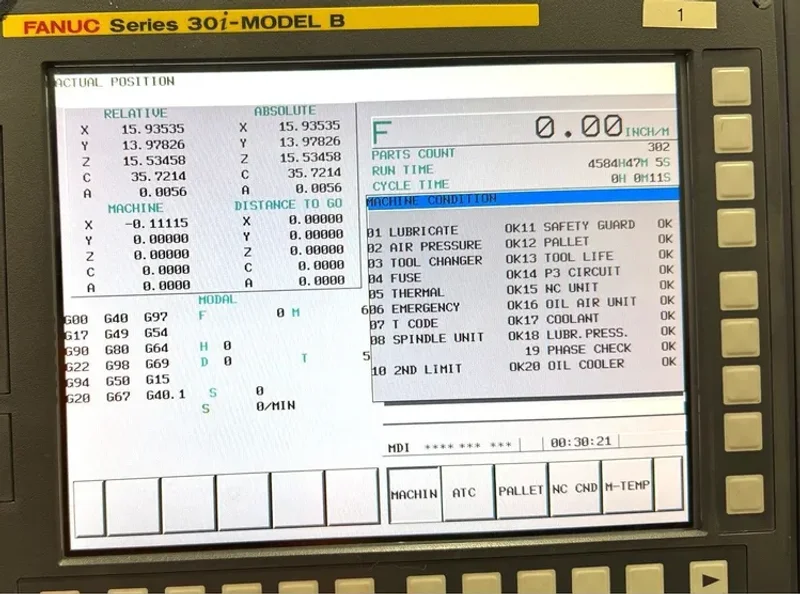

Fanuc Series 30i-Model B CNC Control
Heavy Duty Box Ways Construction
5-Axis Simultaneous Machining

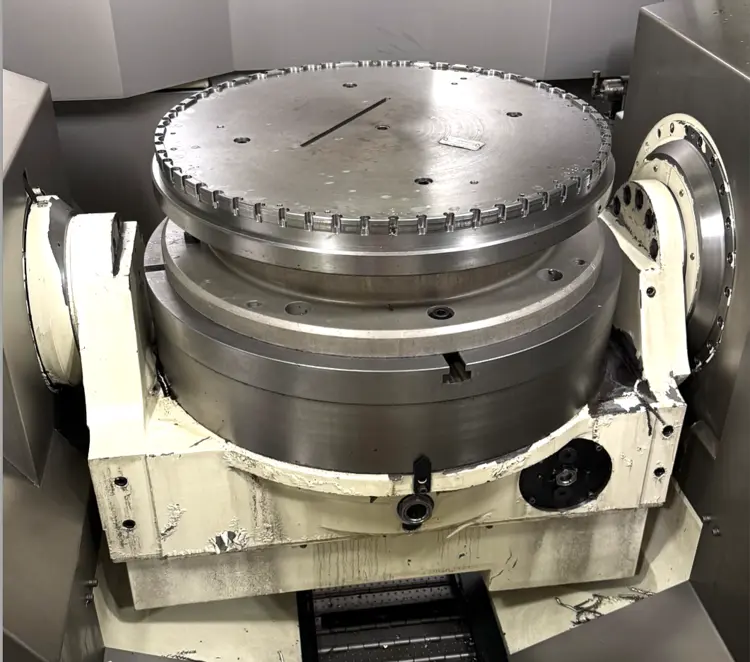

24.8″ Diameter Trunnion Table
20,000 RPM High Speed Spindle
50 Station High-Speed Automatic Tool Changer
Through-Spindle Coolant
CAT-40 Spindle Taper
30 HP Spindle Motor
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light

Travels:
X-Axis Travel: 32.1″
Y-Axis Travel: 29.3″
Z-Axis Travel: 19.7″
A-Axis Travel: −120° to +30°
C-Axis Rotation: 360° Full 5th Axis
Distance From Table Surface to Spindle Nose: 3.9″ – 23.6″
Rapid Traverse (X/Y): 1,969 Inches Per Minute
Rapid Traverse (Z): 984 Inches Per Minute
Cutting Feedrate (X/Y/Z): 945 Inches Per Minute
A-Axis Speed: 6000 Deg/Min
C-Axis Speed: 2160 Deg/Min

Table:
Table Size: 24.8″ Diameter
Maximum Table Load: 880 lbs
Maximum Workpiece Diameter: 24.8″
Maximum Workpiece Height: 19.7″
Indexing: 0.001° (4th & 5th Axes)

Spindle:
Spindle Speed: 20,000 RPM
Spindle Taper: CAT-40
Spindle Power: 30 HP

Automatic Tool Changer:
Tool Capacity: 50 Tools
Max Tool Diameter: 3.0″
Max Tool Diameter (Adjacent Pots Empty): 5.9″
Max Tool Length: 11.8″
Max Tool Weight: 22 lbs
Tool-to-Tool Time: 4.9 Seconds
