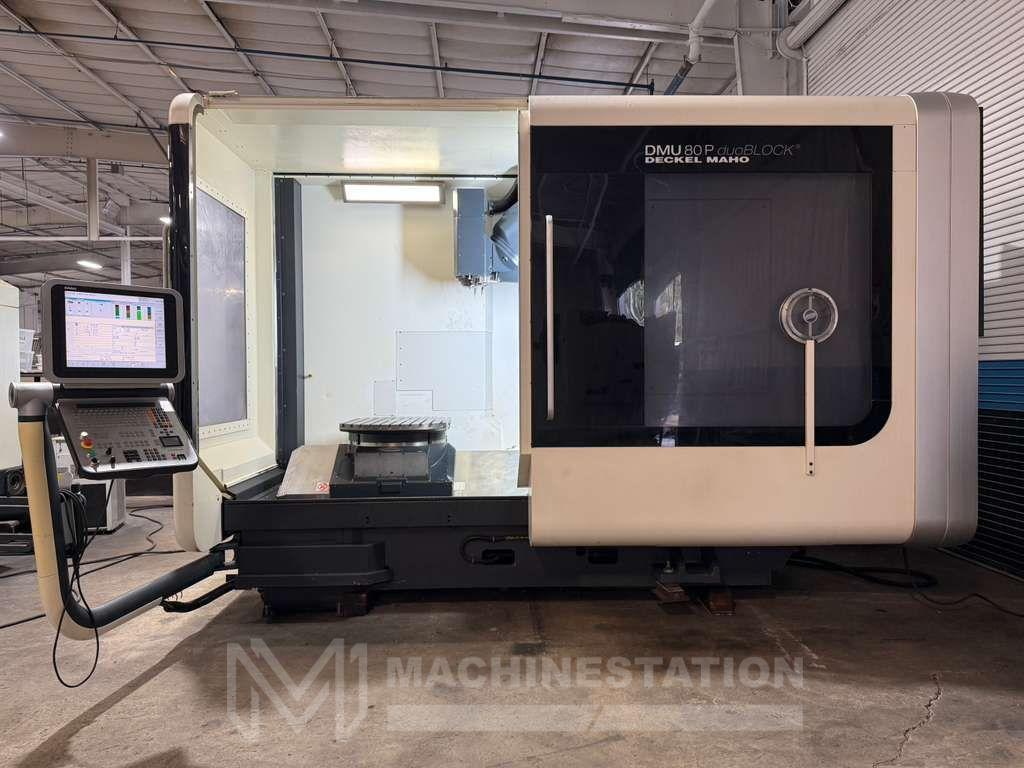

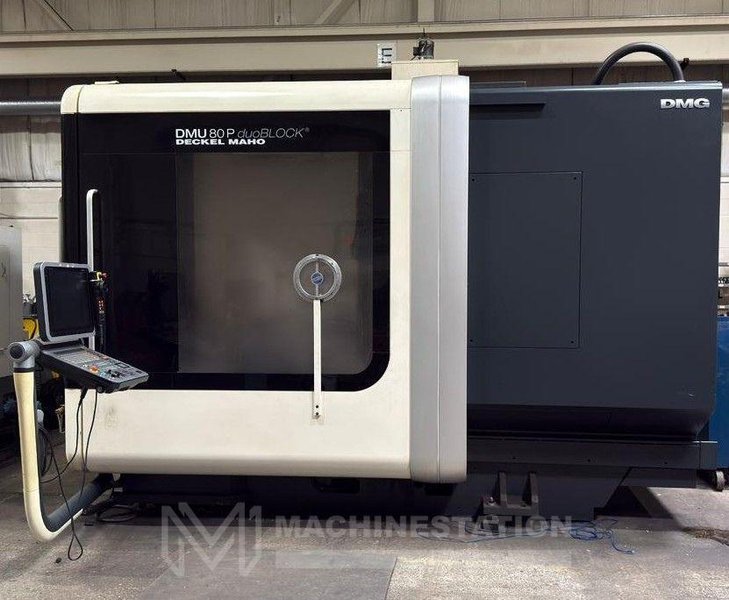

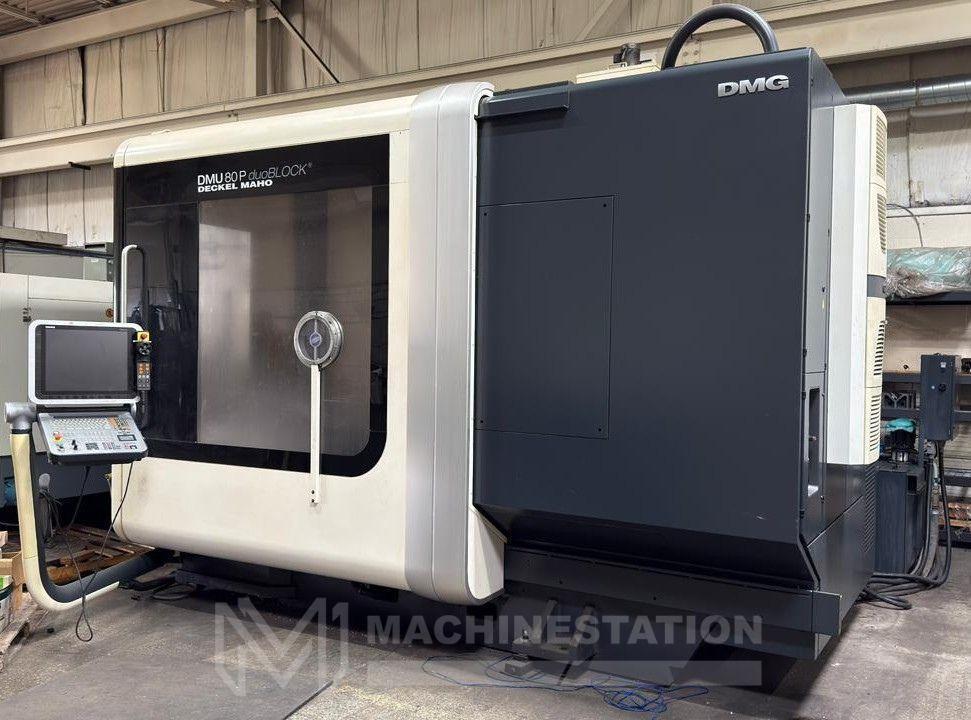

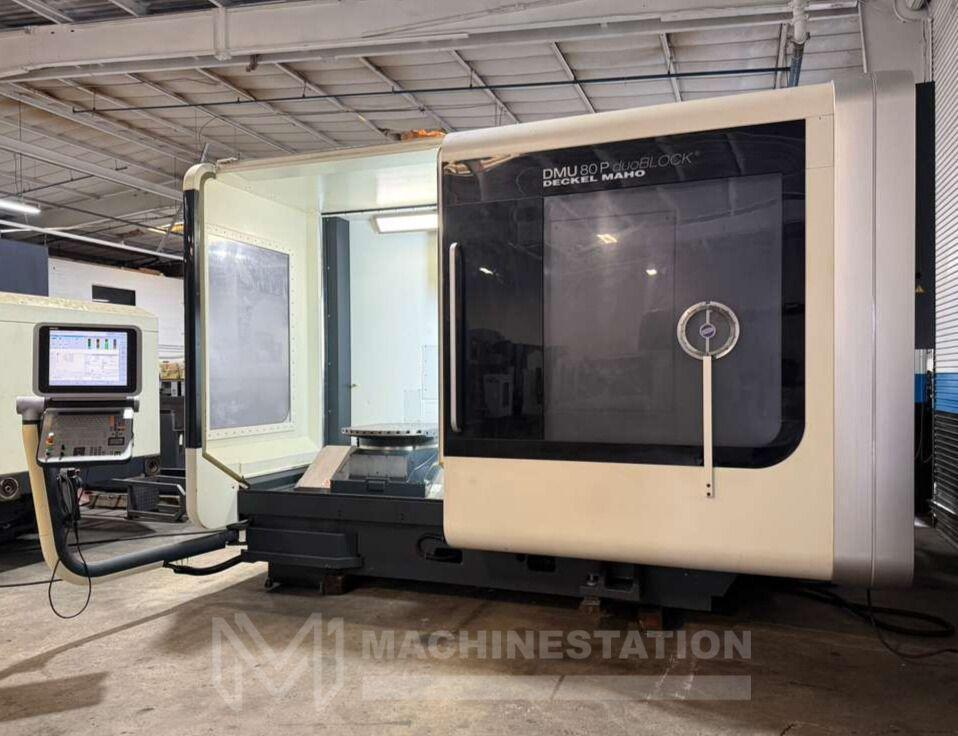

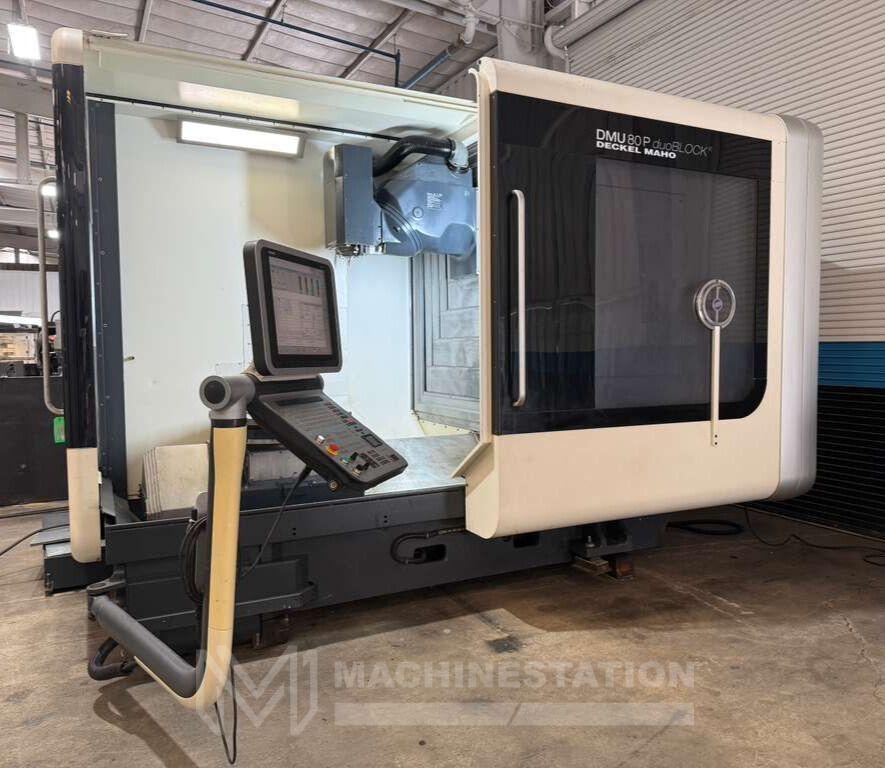

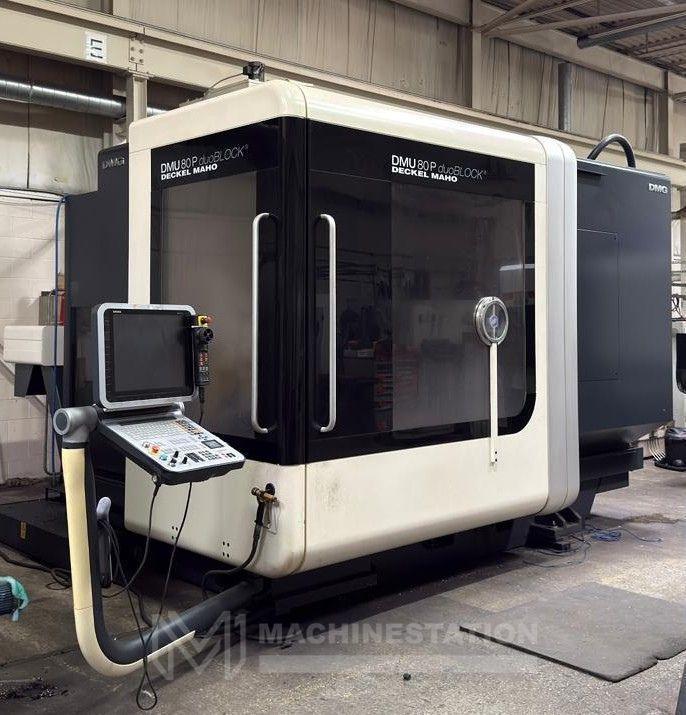

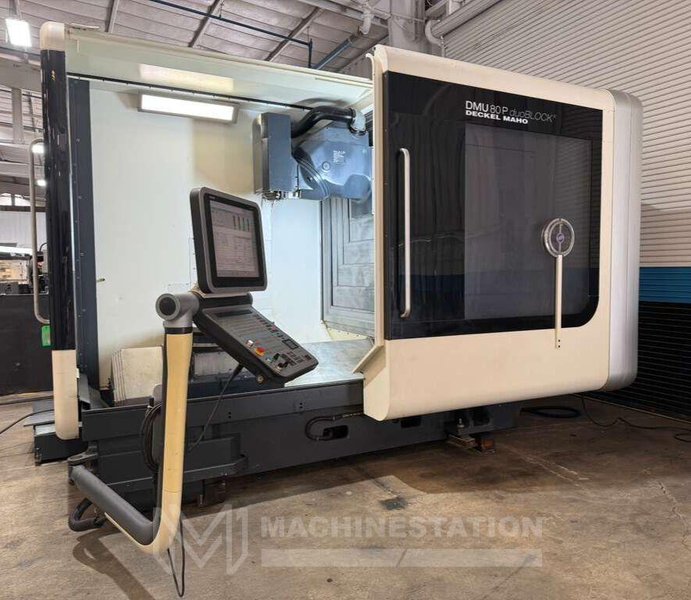

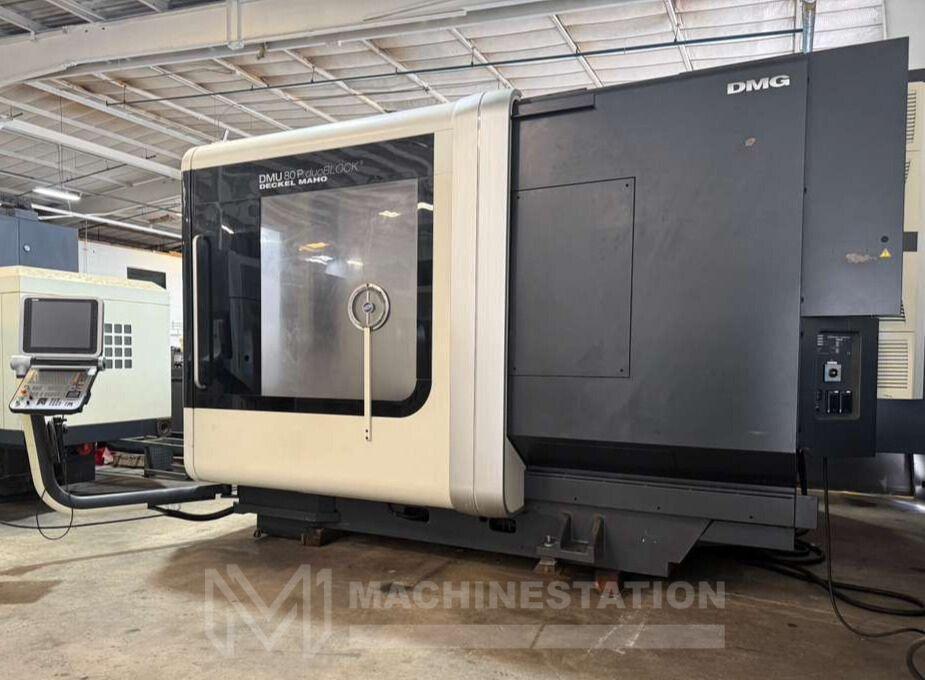

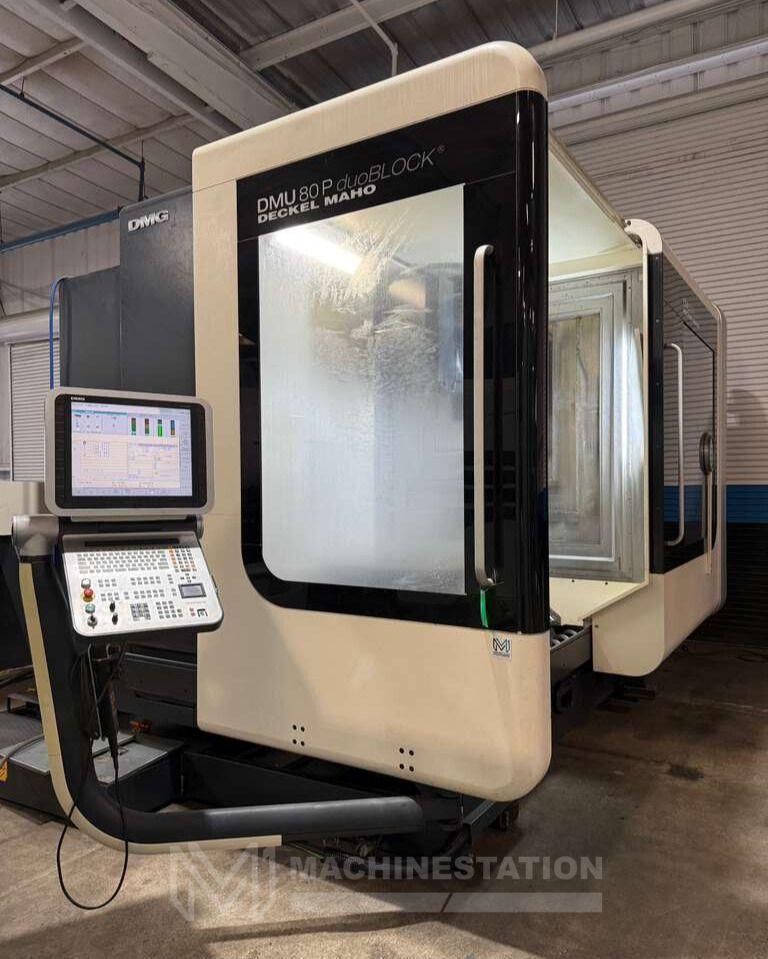

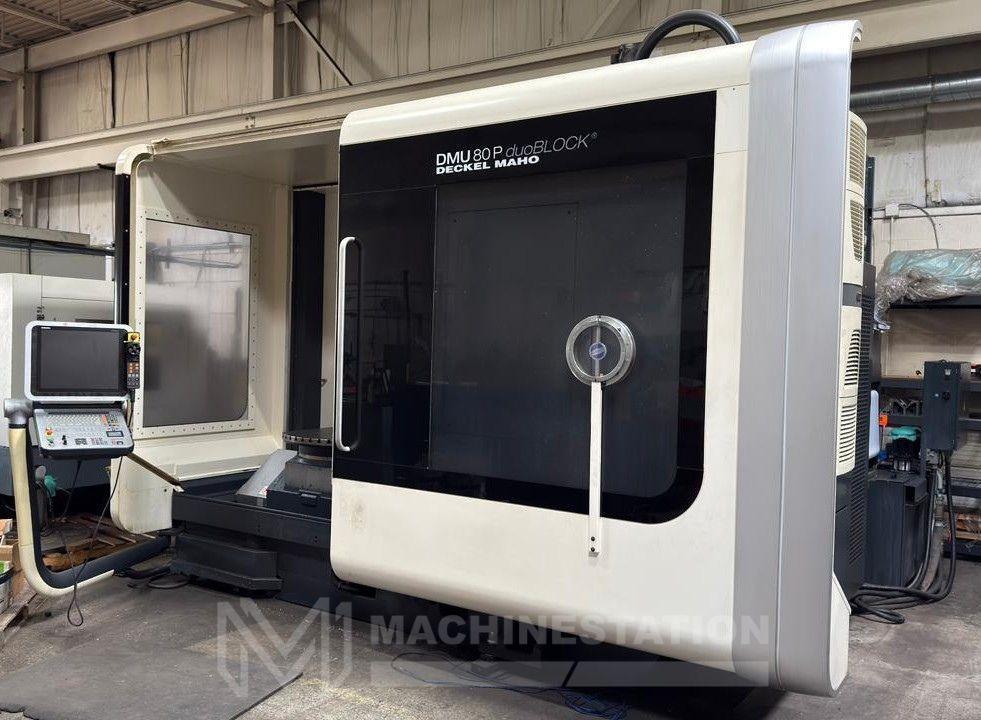

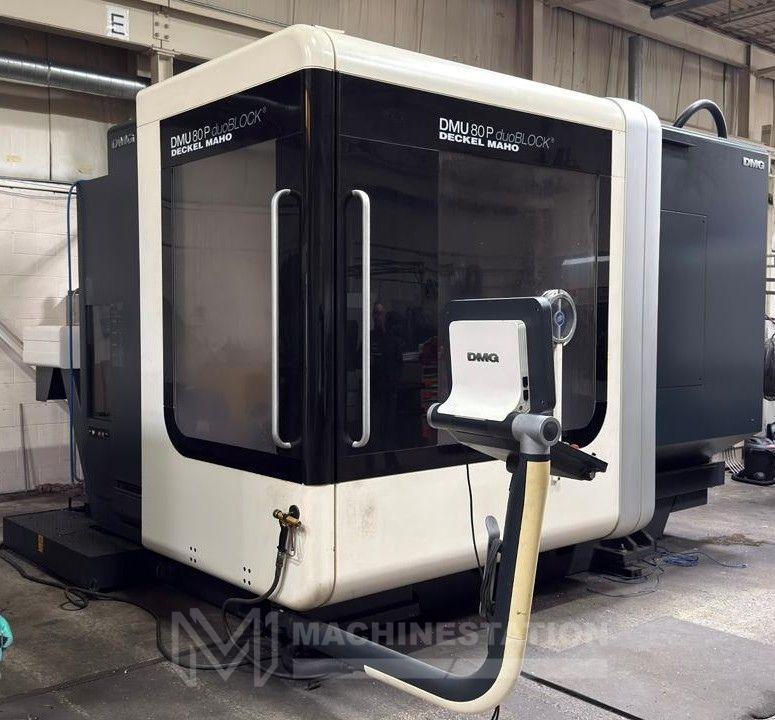

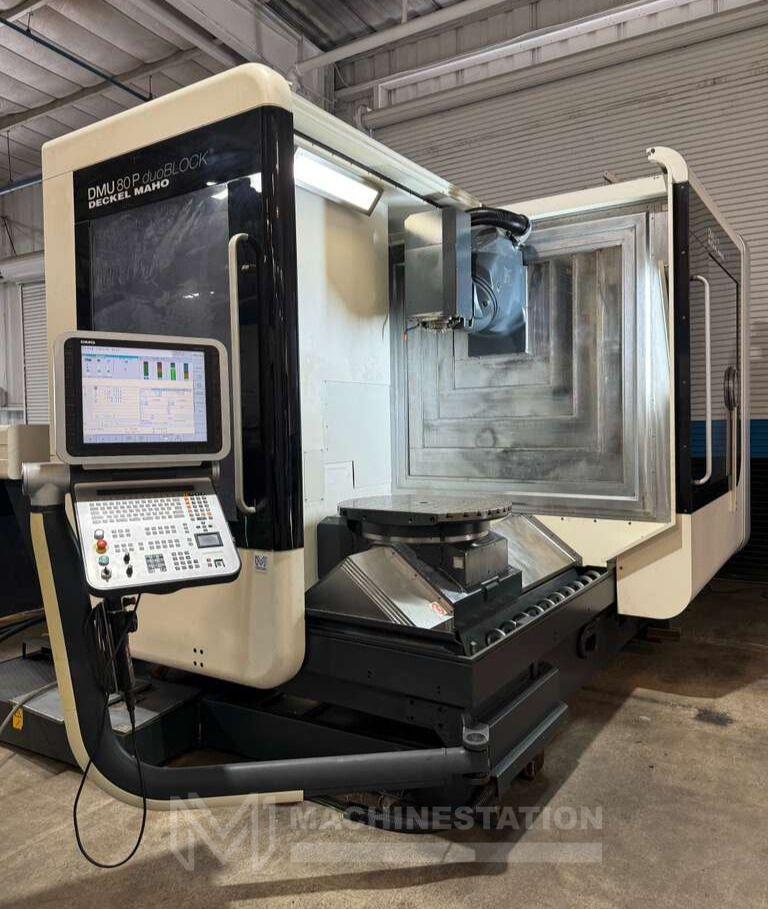

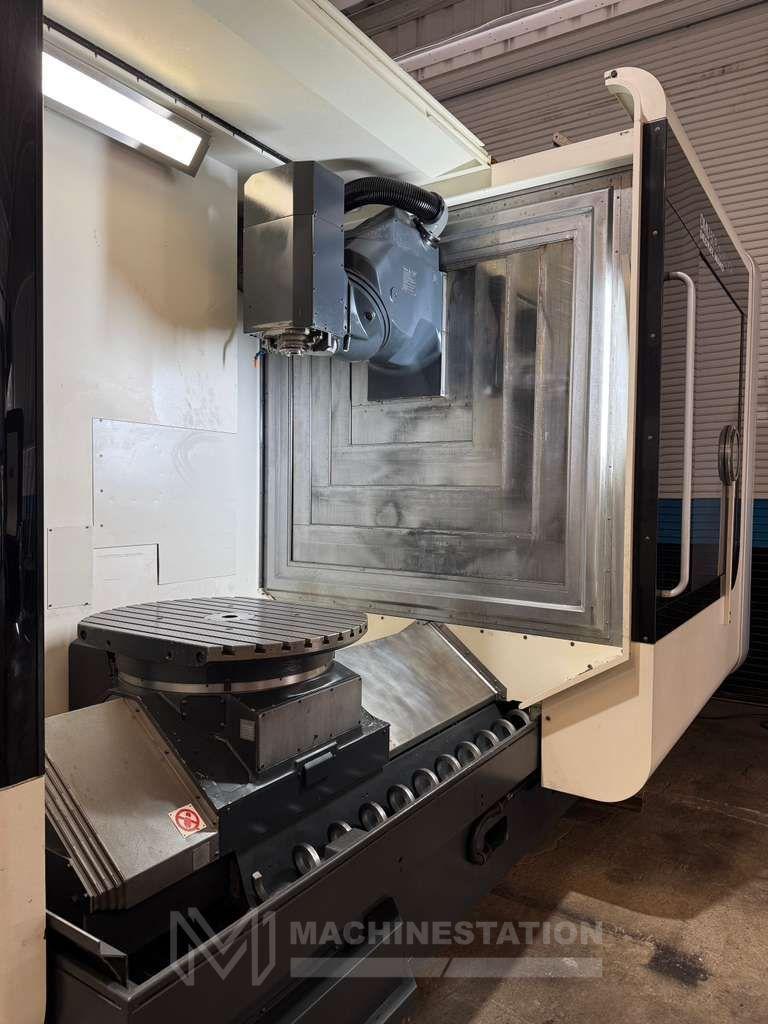

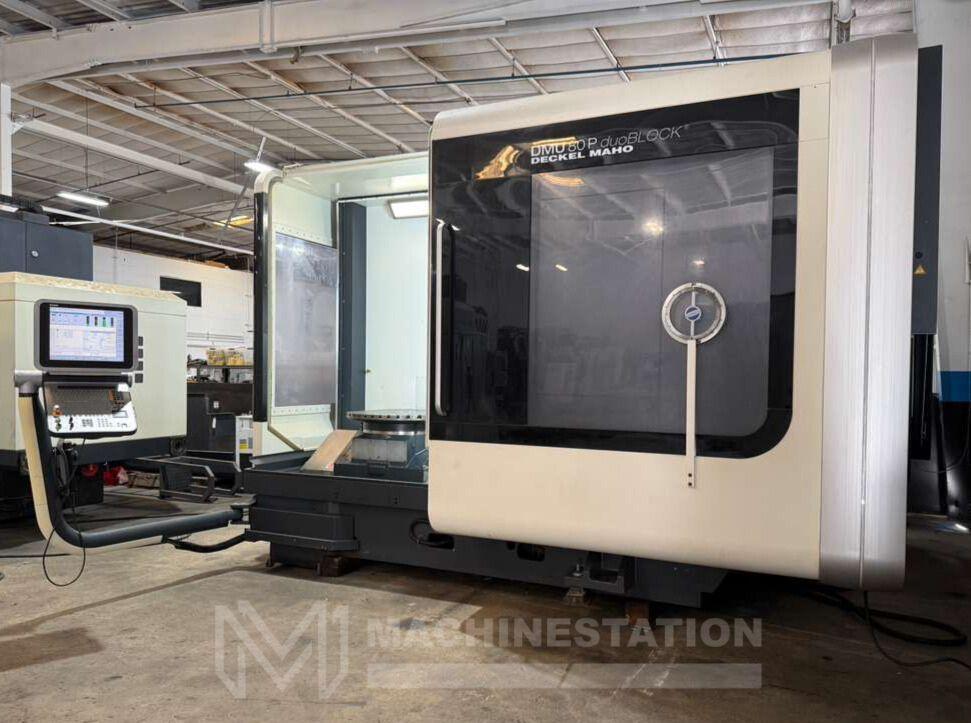

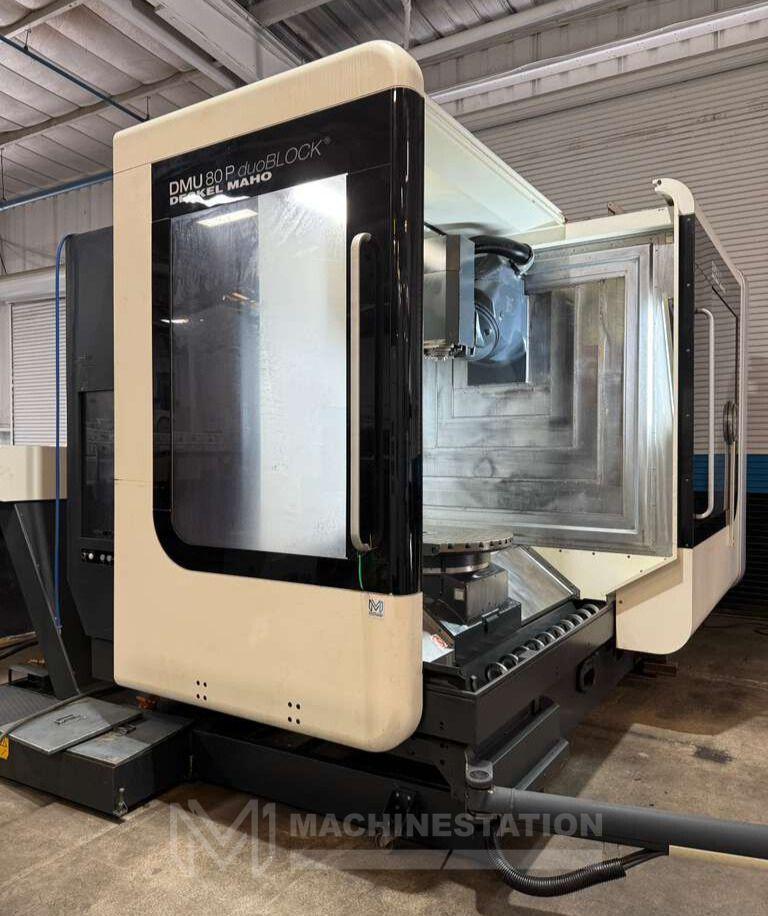

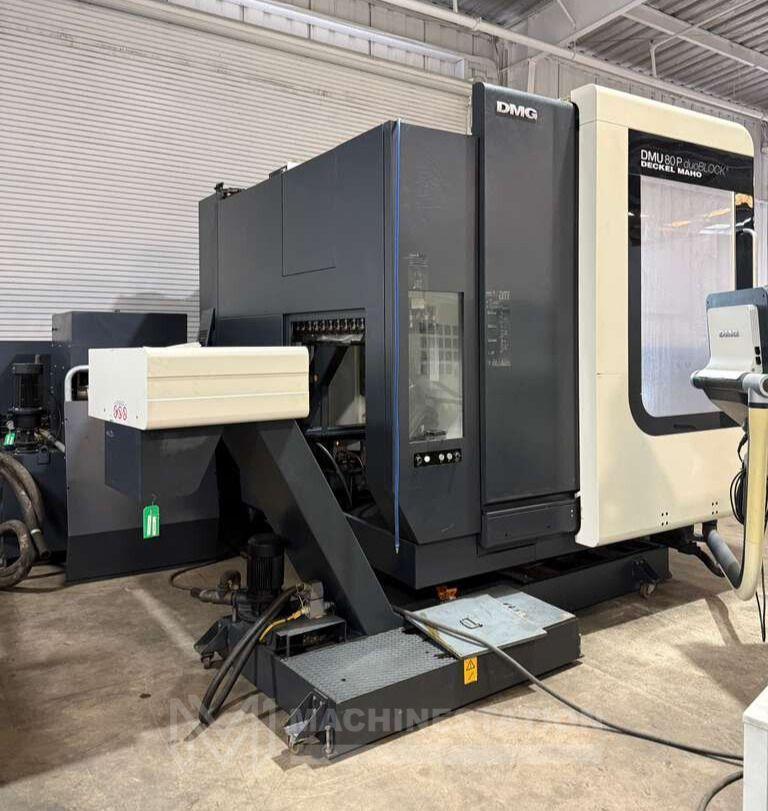

DMG DMU 80P duoBLOCK 5 Axis CNC Universal Machining Center – 18,000 RPM Mill

Brand
Not specified
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
DMG DMU 80P duoBLOCK
Stock #
112939
Year
2009
Condition
Not specified

Location

California
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: DMG
Model: DMU 80P duoBLOCK
Year: 2009
Condition: Used – Good
Features:

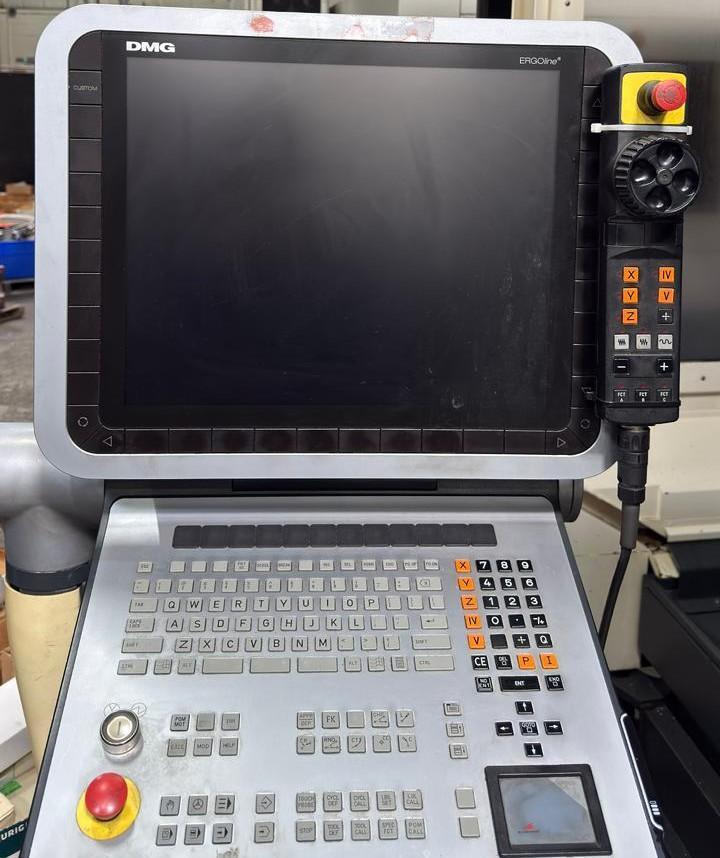

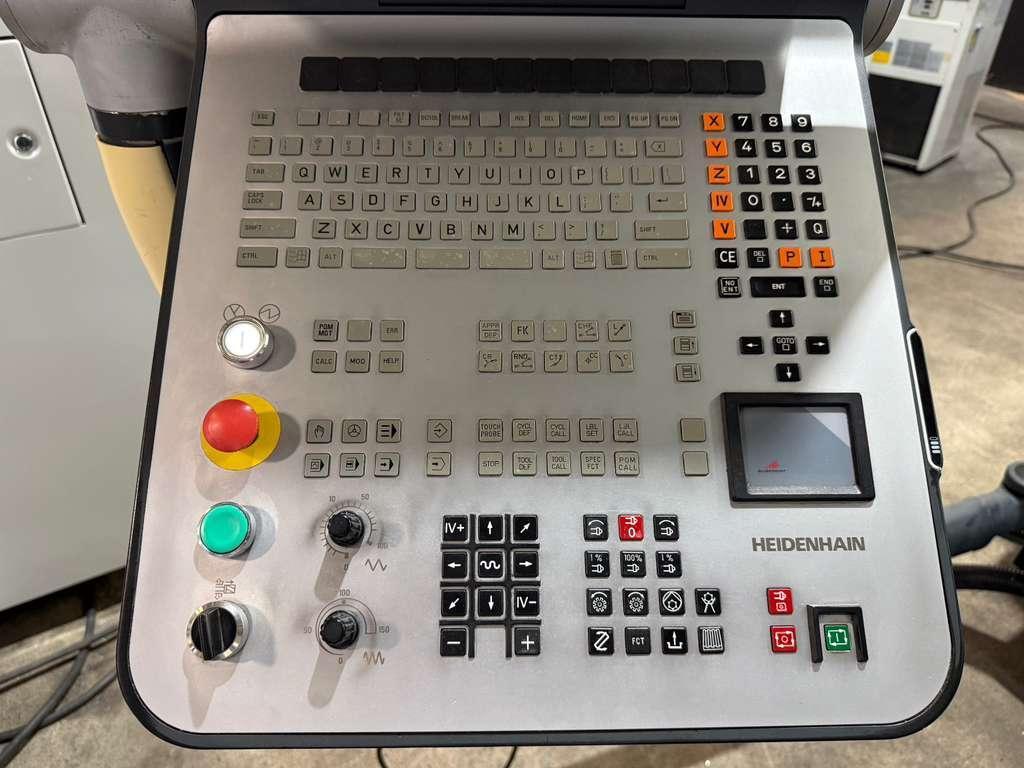

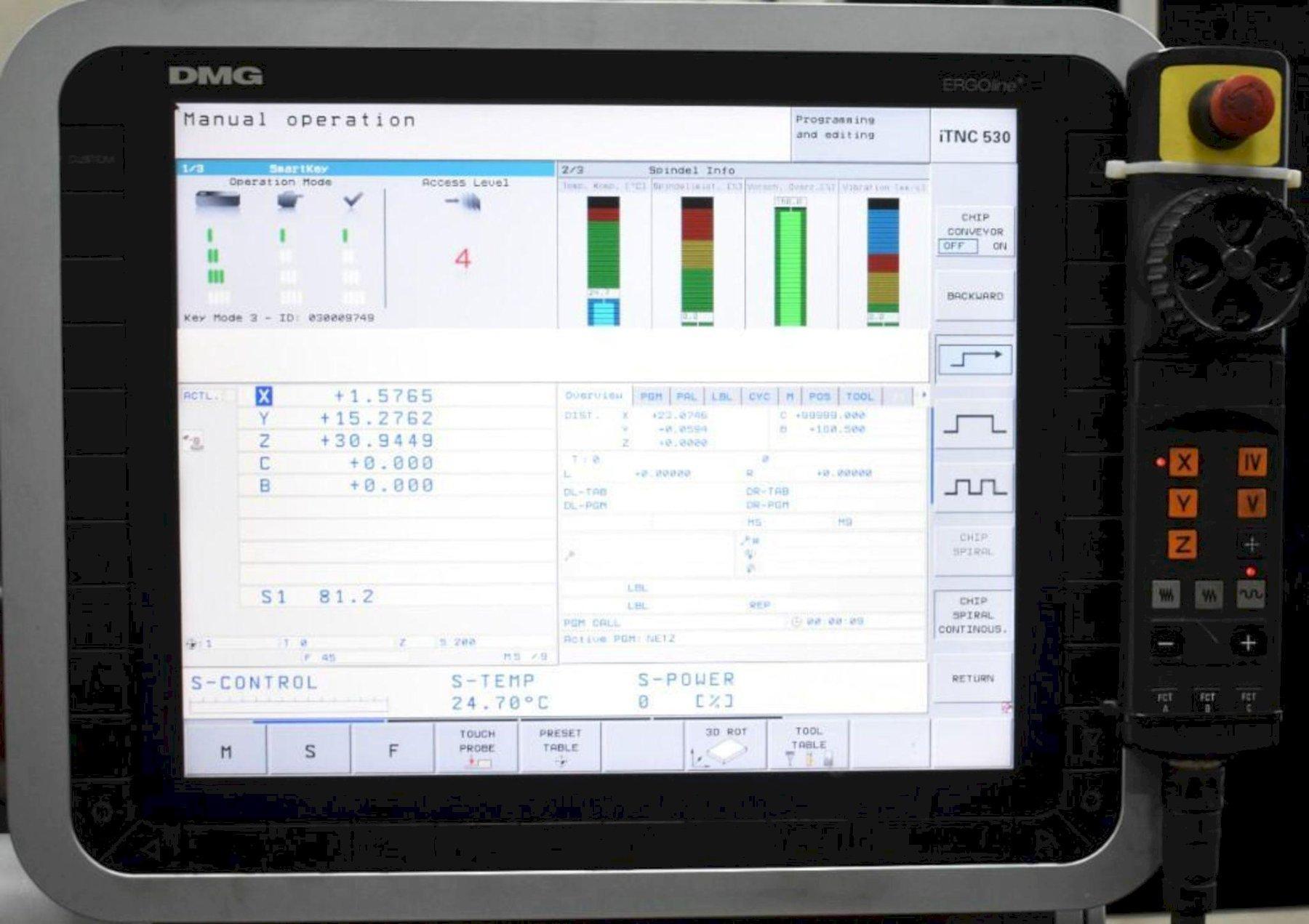

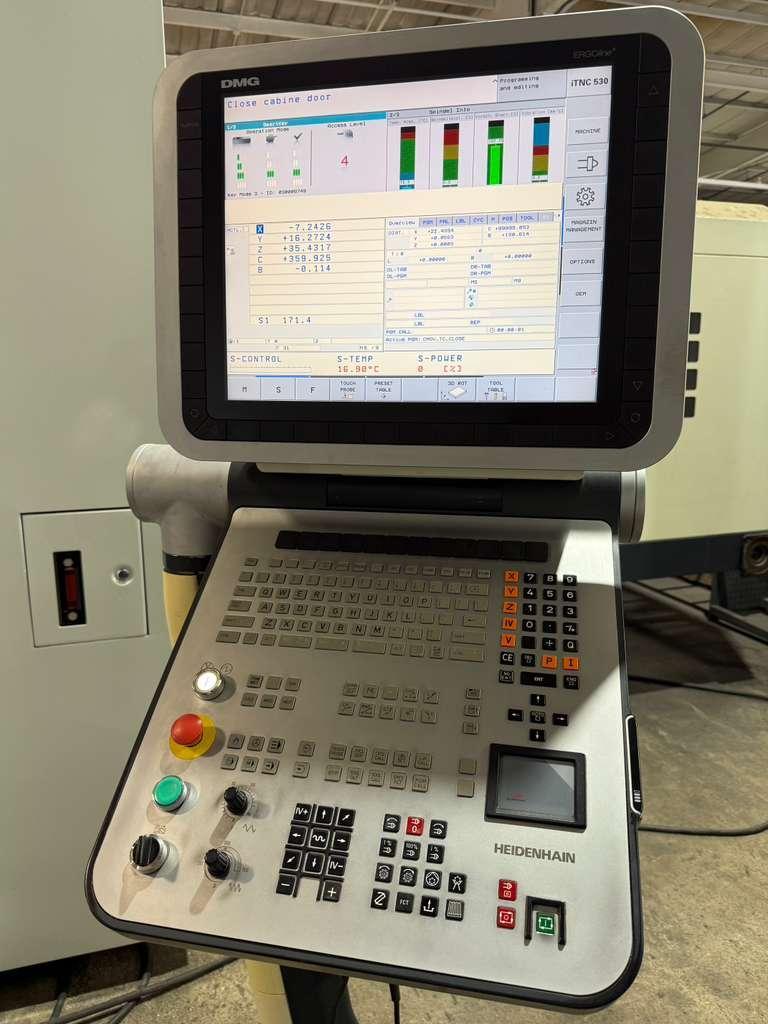

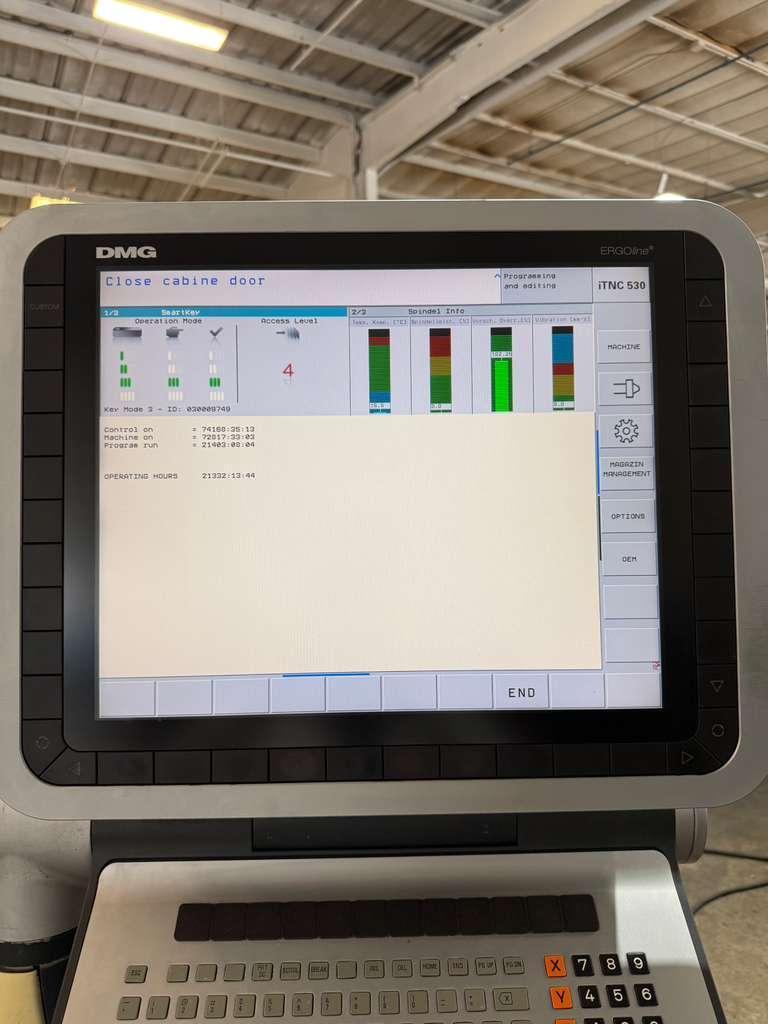

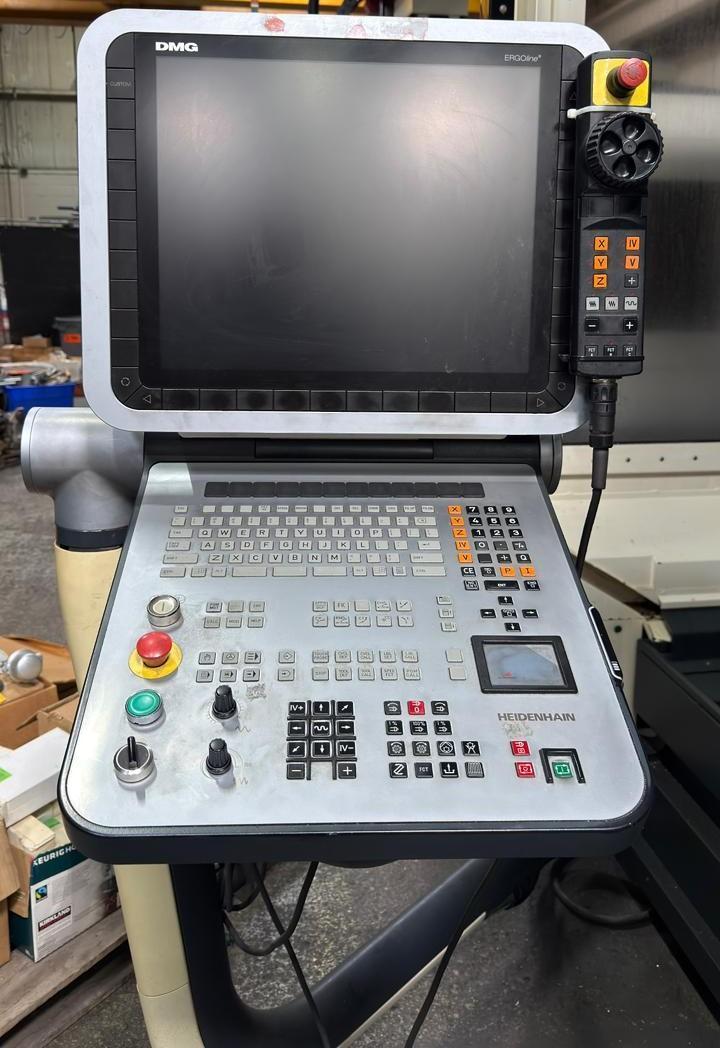

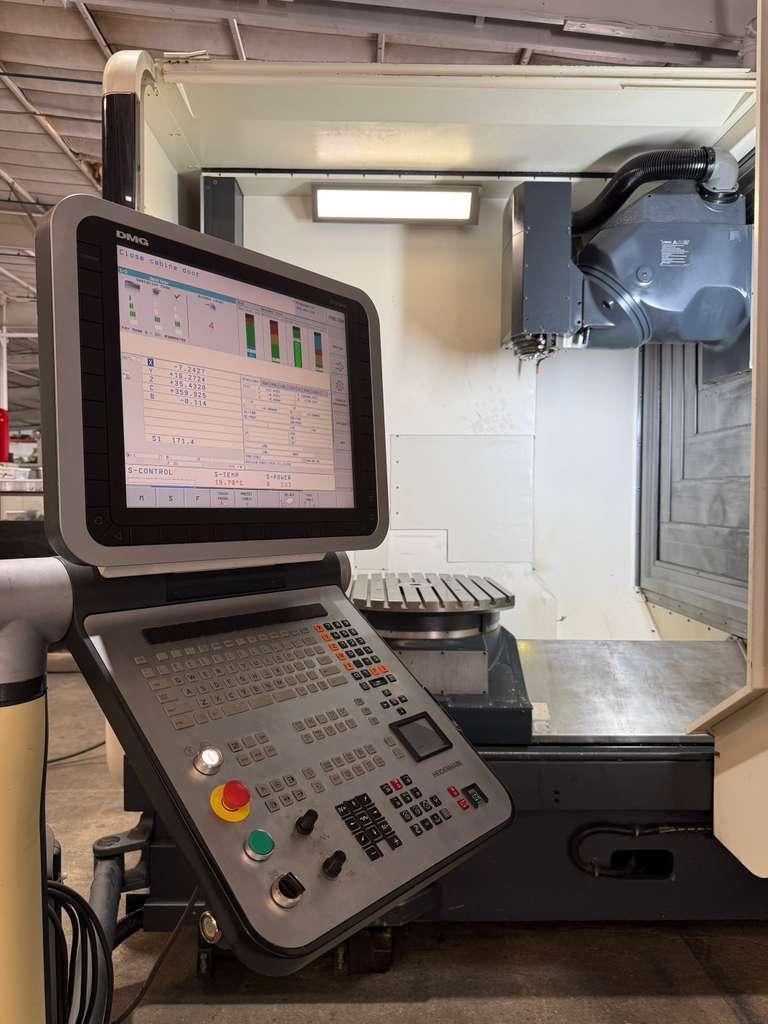

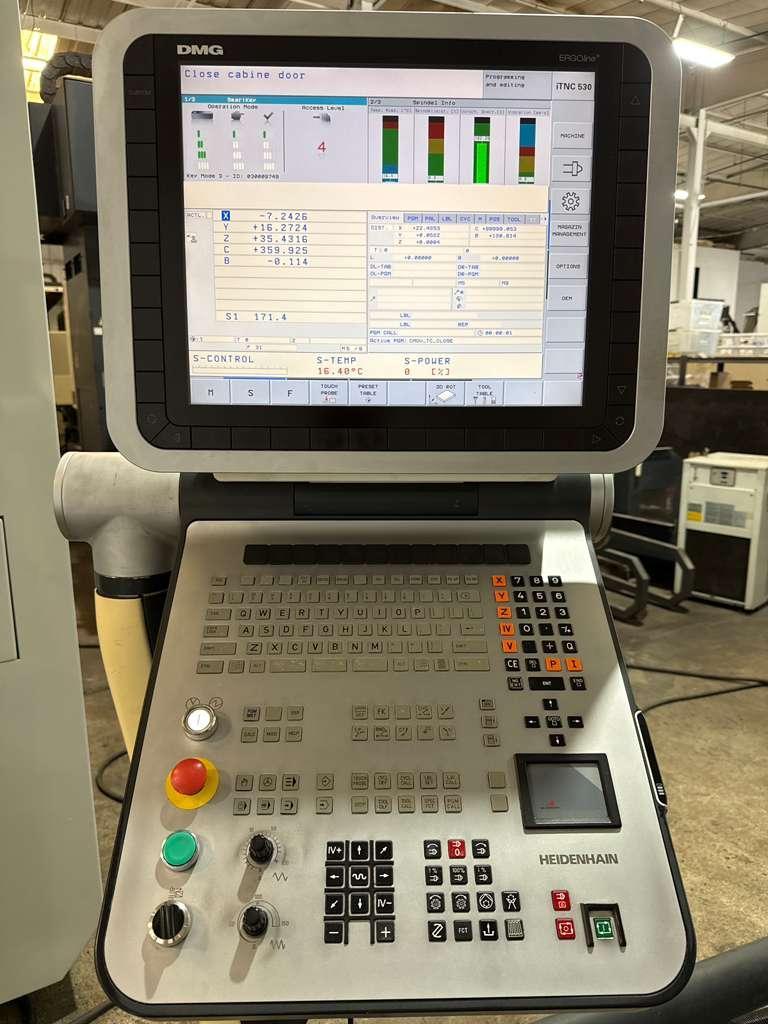

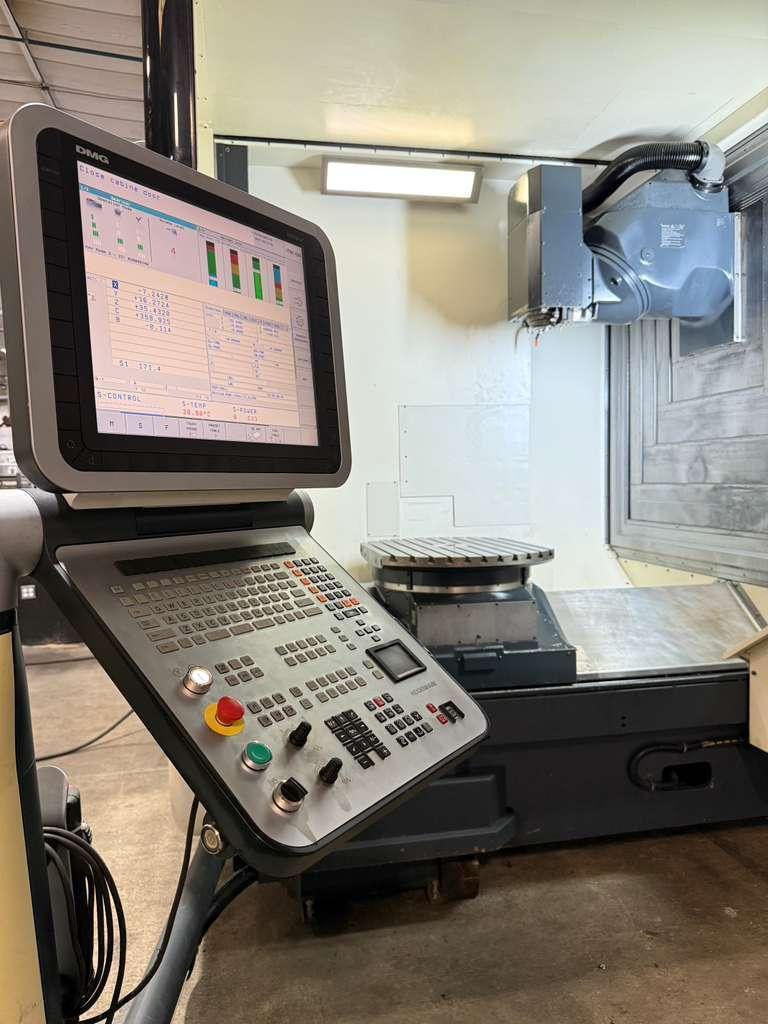

Heidenhain ERGOline iTNC 530
Linear Ways Construction
5-Axis Simultaneous Machining

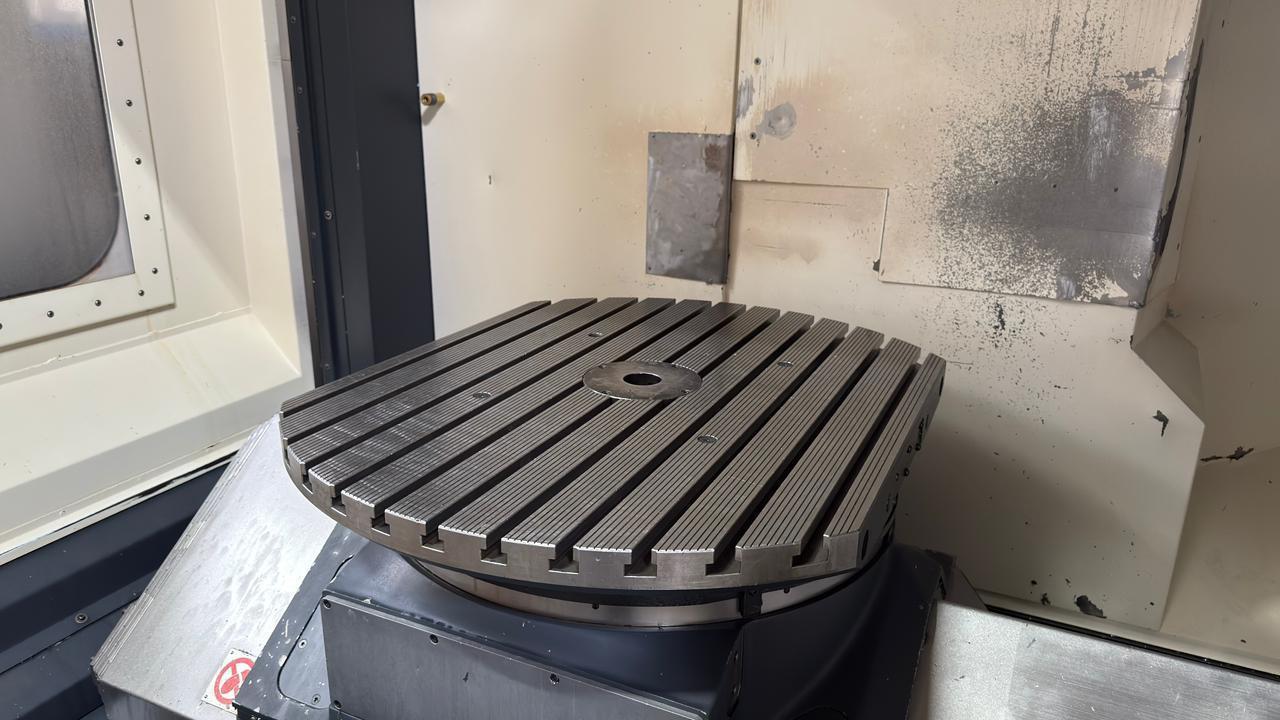

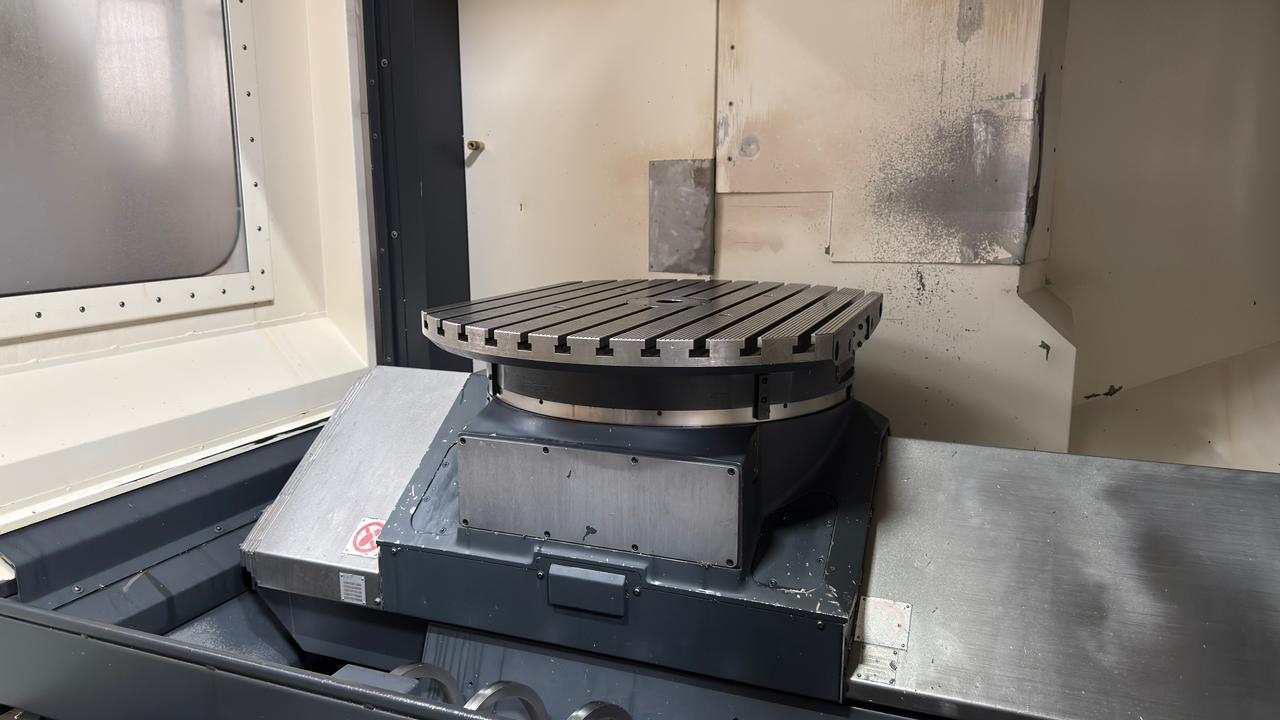

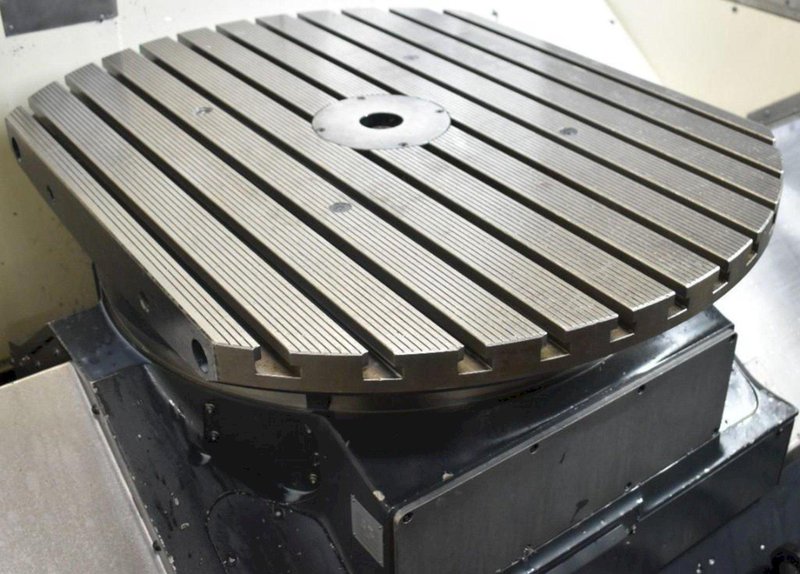

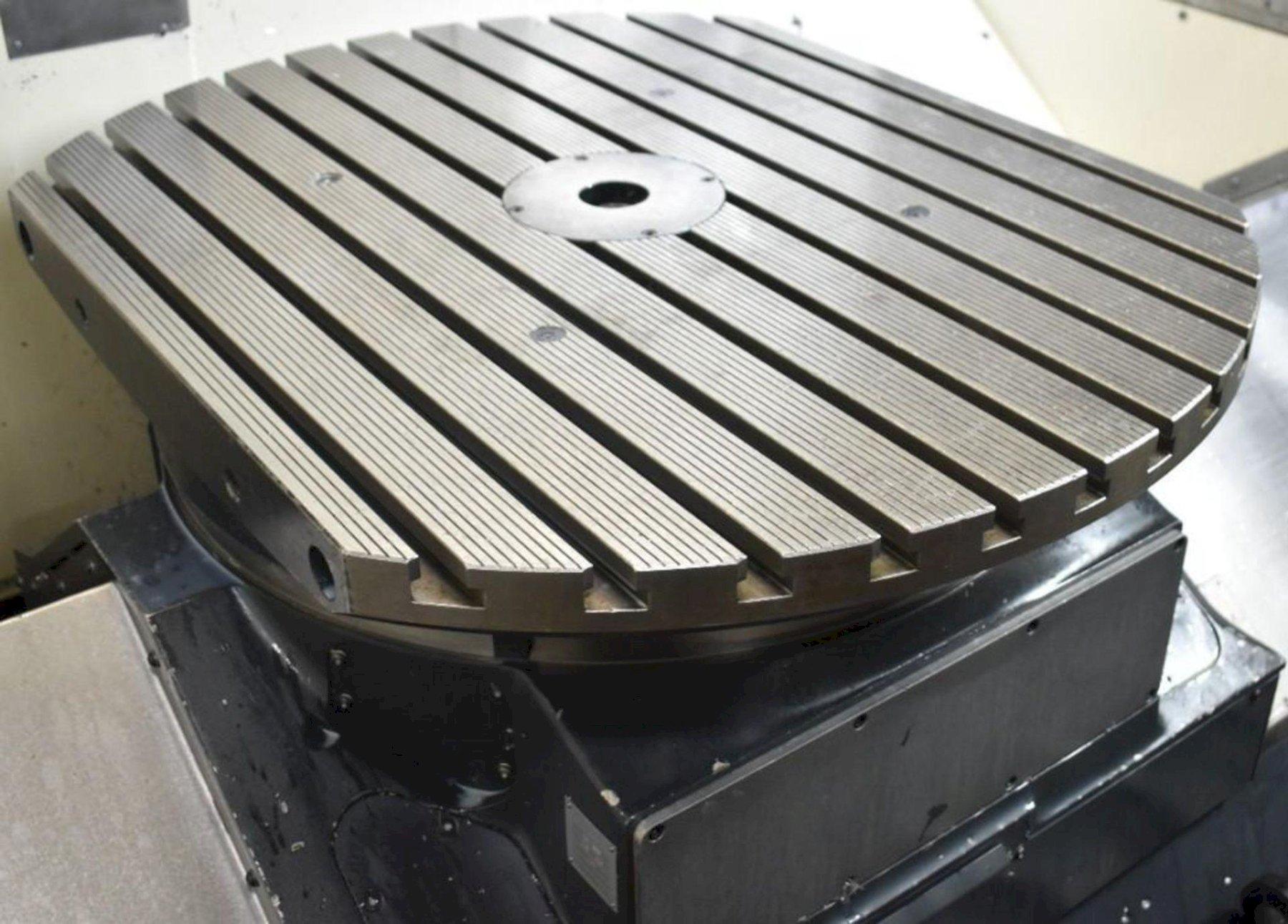

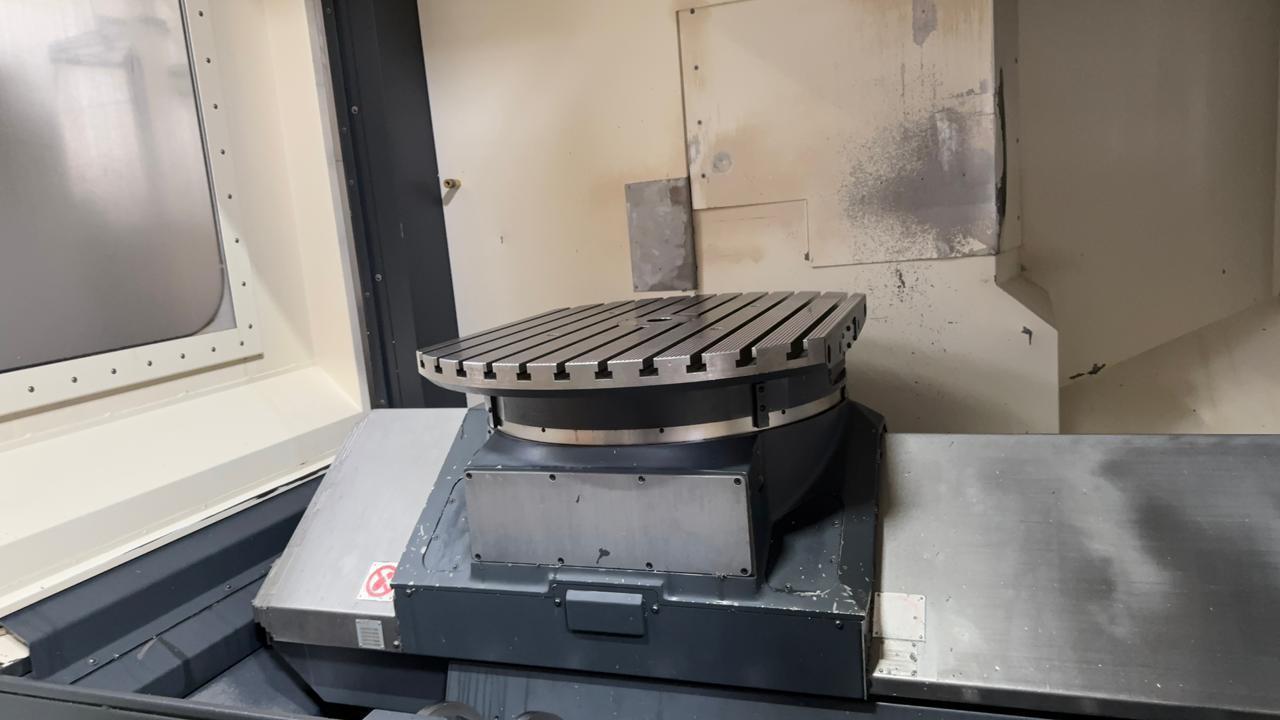

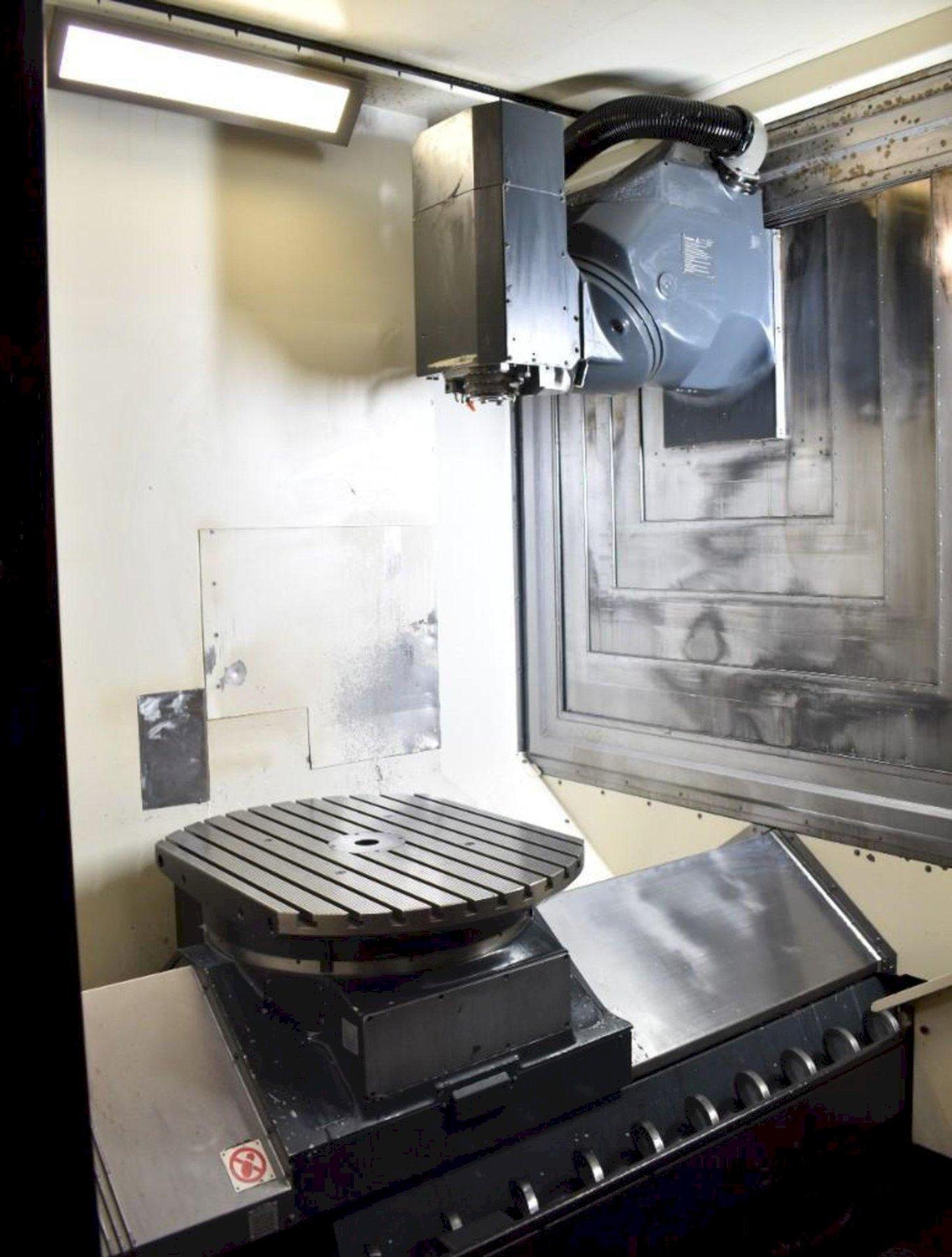

35.4″ x 27.5″ Rotary Table

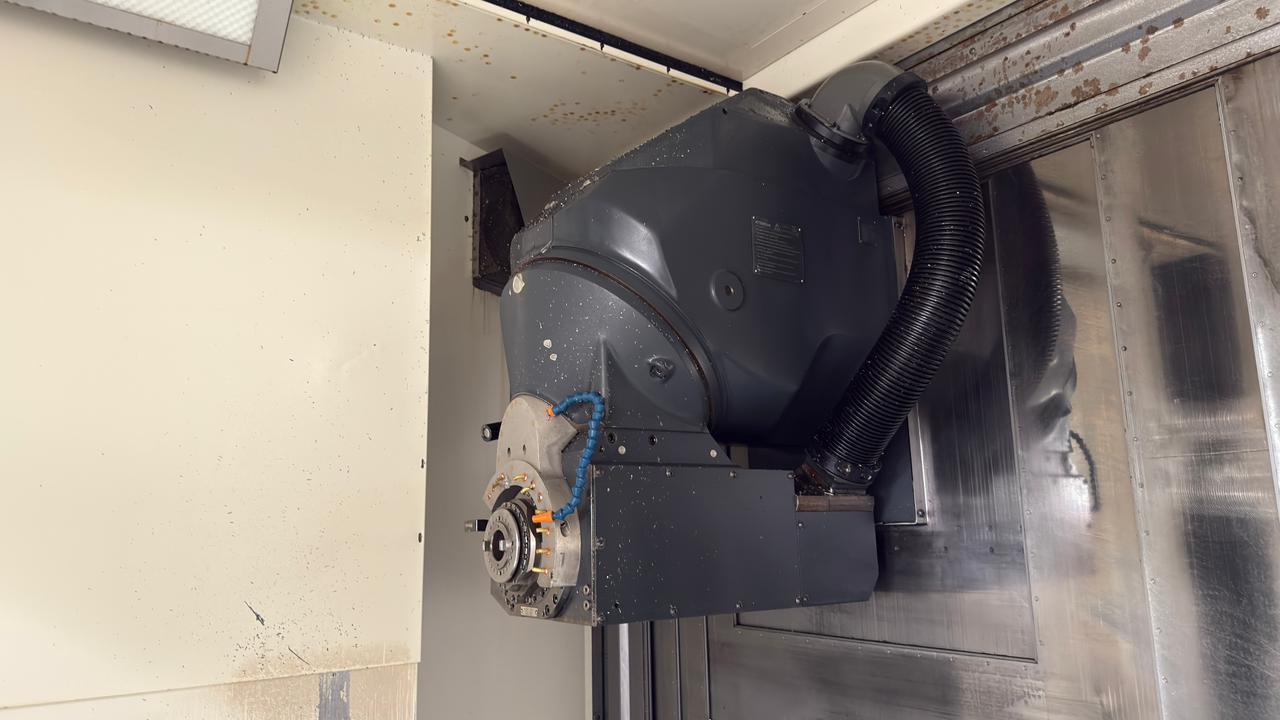

NC-Controlled Swivel Milling Head (B-Axis)
18,000 High Speed Spindle
40 Station Automatic Tool Changer
Spindle Orientation
Helical Interpolation
Rigid Tapping
Through Spindle Coolant
High Pressure Coolant System
Coolant Filtration
Spindle Chiller

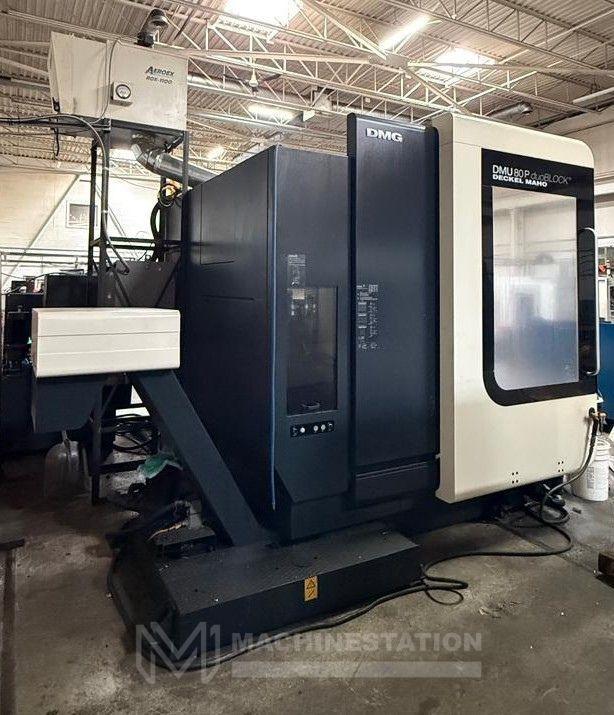

Chip Conveyor
Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 31.5″
Z-Axis Travel: 31.5″
B-Axis Swivel Range: 0° – 190°
C-Axis Rotation: 360°
Rapid Traverse (X/Y/Z): 2,362 Inches Per Minute
Feed Rate: 2,362 Inches Per Minute
Table:
Table Size: 35.4″ Diameter × 27.6″ Depth
Maximum Table Load: 3,086 lbs
Rotary Table Speed (C Axis): 30 RPM
Spindle:
Spindle Speed: 18,000 RPM
Spindle Taper: CAT-40
Spindle Power: 25 HP
Swivel Range (B Axis): 0° – 190°
Swivel Time: 1.2 Sec
Automatic Tool Changer:
Tool Capacity: 40 Tools (Chain Type)
Chip-to-Chip Time: 5 Seconds
General:
Power Requirement: 400V / 60 Hz / 3-Phase / 64 kva
Machine Dimensions: 200″ x 102″ x 130″ High Approx.
Machine Weight: 30,865 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - DMG DMU 80P duoBLOCK 5 Axis CNC Universal Machining Center – 18,000 RPM Mill
Kitamura Mytrunnion-5 5-Axis CNC Vertical Machining Center – 20,000 RPM Mill

Machining Centers, Horizontal, (5-Axis or More)

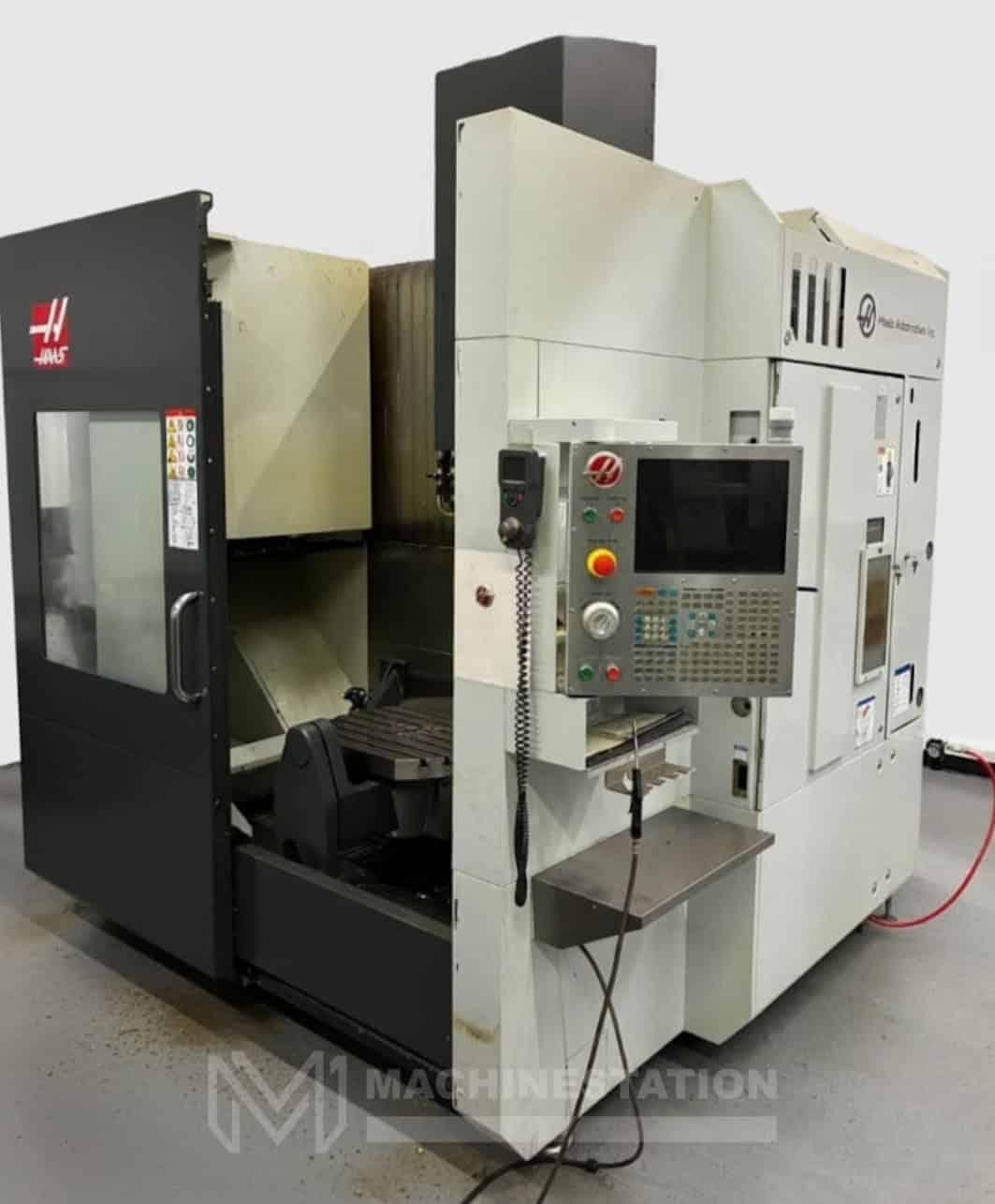

Haas UMC-750 5-Axis CNC Universal Machining Center – 12,000 RPM, 40 ATC, TSC, HSM Mill

Machining Centers, Horizontal, (5-Axis or More)

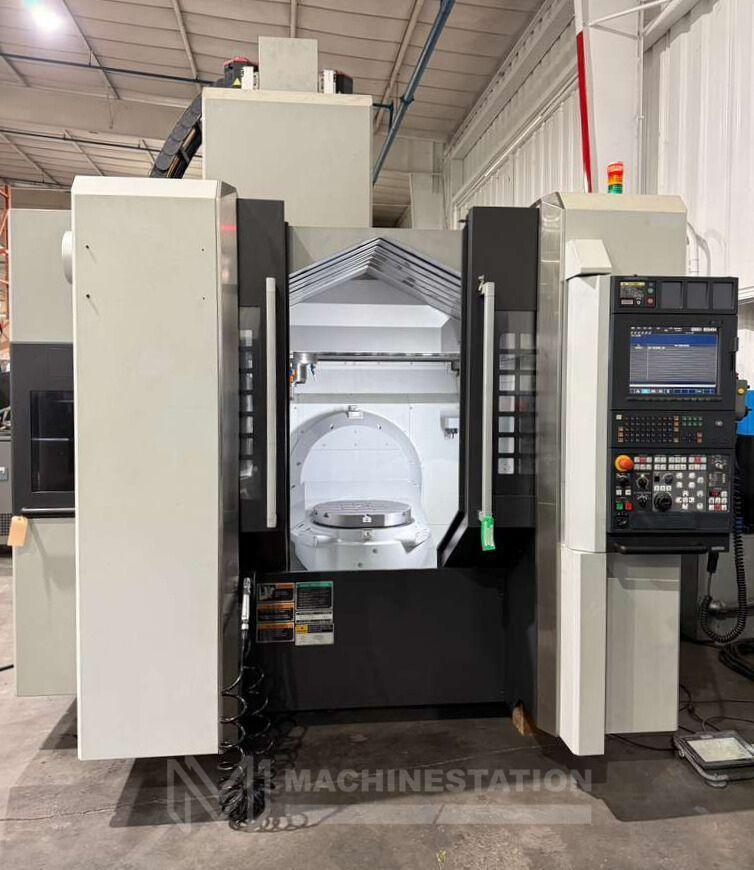

Mori Seiki NMV5000DCG 5 Axis CNC Vertical Machining Center – 12,000 RPM Mill
