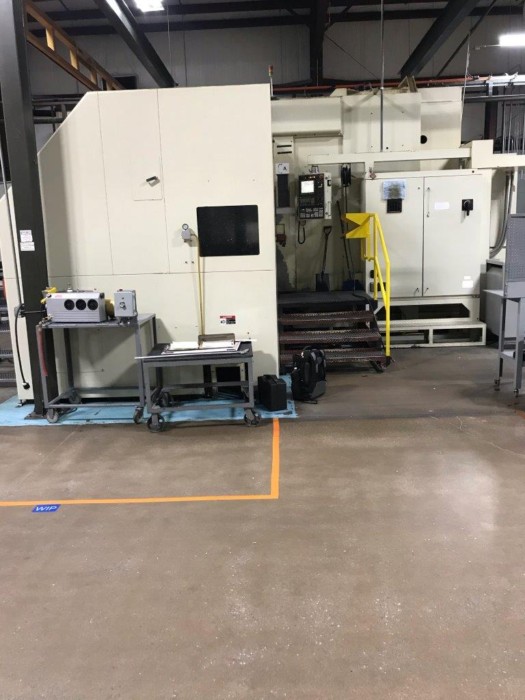

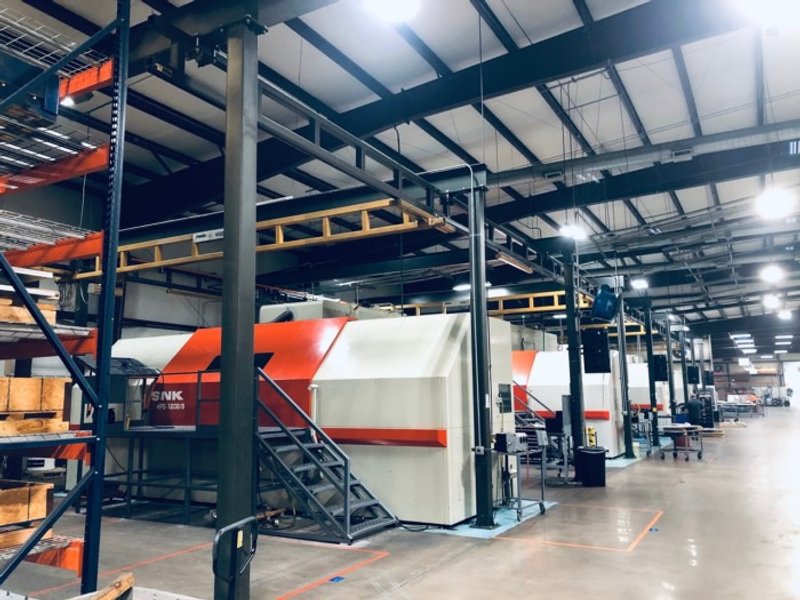

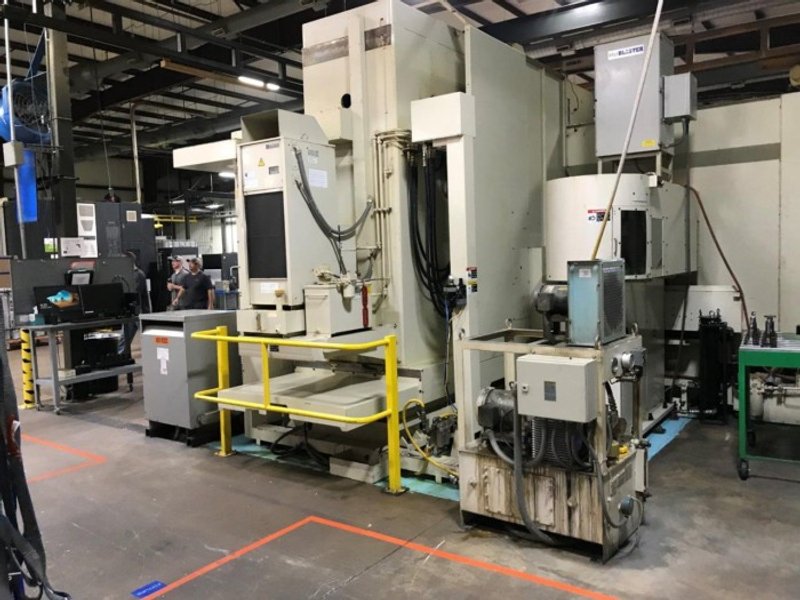

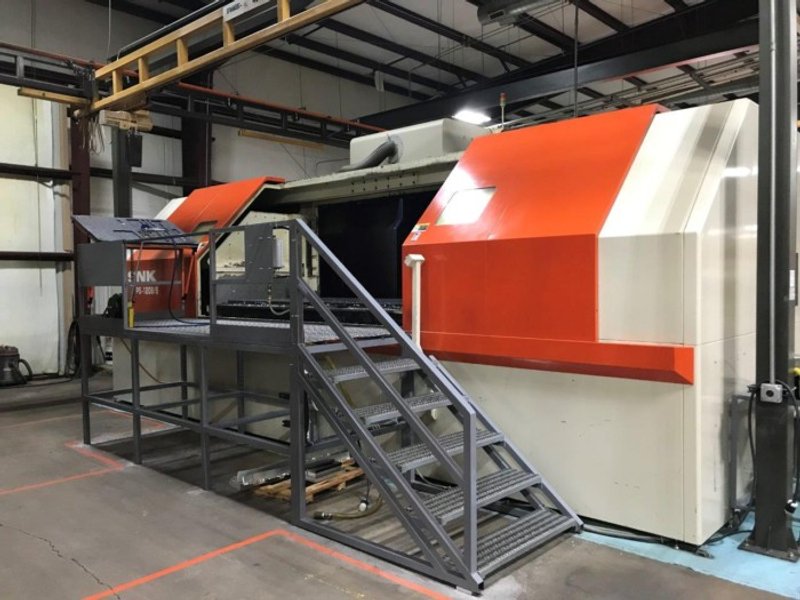

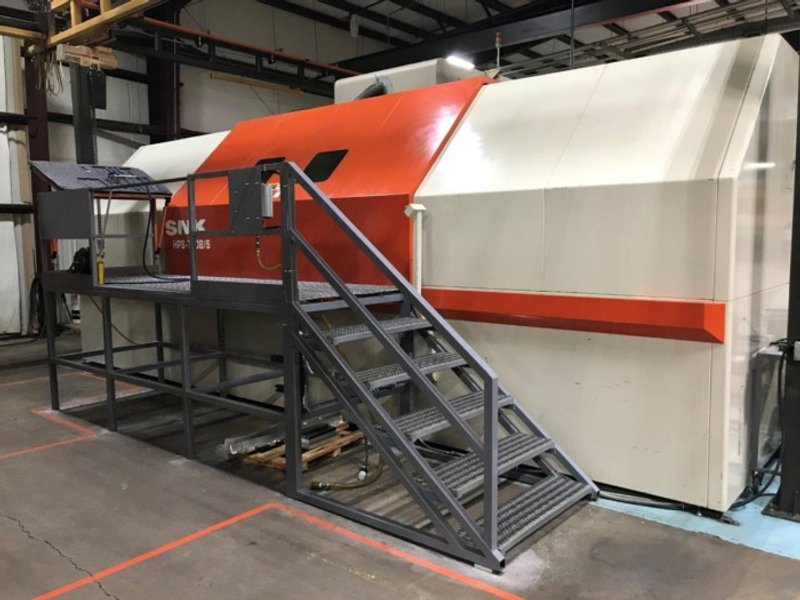

SNK HPS 120B CNC 5 Axis High Speed Profiler

Brand

SNK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Description

Product: SNK HPS 120B CNC 5 Axis High Speed Profiler
Model:
Stock #: 20176-IS
Serial No.: K2688
Year: 2006 / 2008

Specifications:


Spindle Speeds:	150 to 12,000 RPM
Spindle Taper:	50 Taper
Spindle Motor	50 / 40 HP
X Axis Travel:	124" / 3,150 mm
Y Axis Travel:	52" / 1,320 mm
Z Axis Travel:	30" / 762 mm
A Axis (Spindle Tilt):	+/- 90 Deg
C Axis (Spindle Rotation):	+/- 270 Deg
X, Y, Z Axis Feed Rates:	1 to 393 IPM
X, Z Rapid Traverse Rates:	945 IPM
Y Axis Rapid Traverse Rate:	787 IPM
A, C Axis Feed Rates:	0 - 1,800 DPM
Table Size:	48" x 120" / 1,220 mm x 3,048 mm
Table Weight Capacity:	11,000 Lbs.

Equipped With:

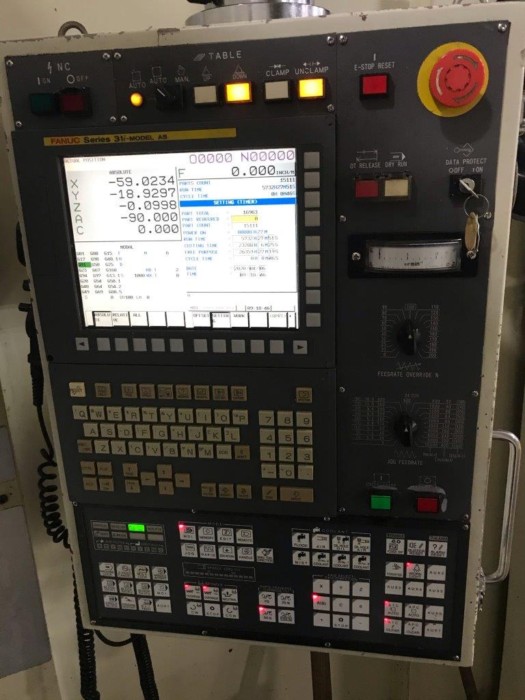

Fanuc 31iA5 CNC Control

40 Tool ATC

Table Positioning (0 deg for loading / 90 deg for machining)

Thru-The-Spindle Coolant

BLUM Laser Measuring System (Tool Length & Tool Breakage)
