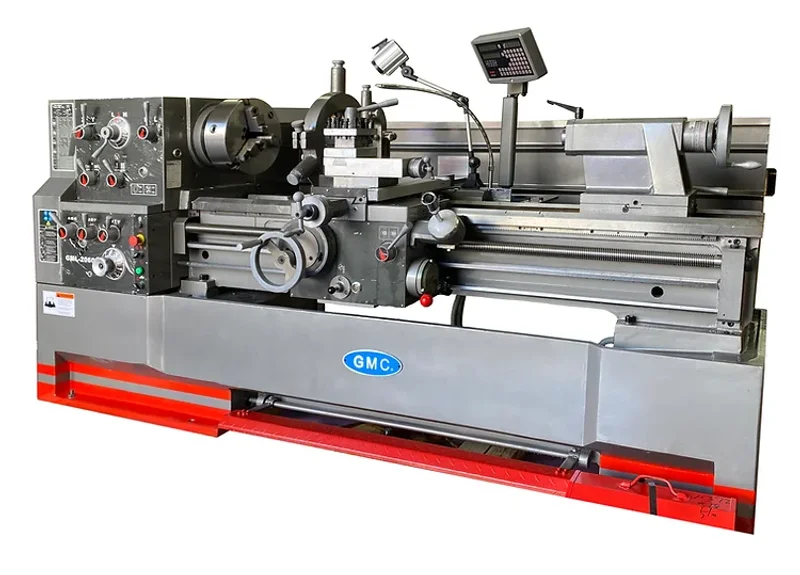

NEW 20" X 80" GMC MODEL GML-2080 HEAVY DUTY PRECISION GAP BED LATHE

Brand
GMC
Category
Lathes & Turning Machines
Type
Lathes, Engine
Model
GML-2080
Stock #
19116
Year
Not specified
Condition
New
Location
Not specified
NEW 20" X 80" GMC MODEL GML-2080 HEAVY DUTY PRECISION GAP BED LATHE
  • ISO 9001 certified
  • 1-Year Parts Only Warranty
  • Large spindle bore 3-1/8”
  • Spindle D1-8
  • Guideway width 12”
  • Main motor 10HP
  • 16 spindle speeds from 25-1,800 rpm, 12 speeds
  • 4-way rapid traverse on the carriage longitudinal and cross
  • 60 kinds of inch threads, and 41 kinds of metric threads
  • Threading and feeding rate change without changing gears
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box


STANDARD EQUIPMENT

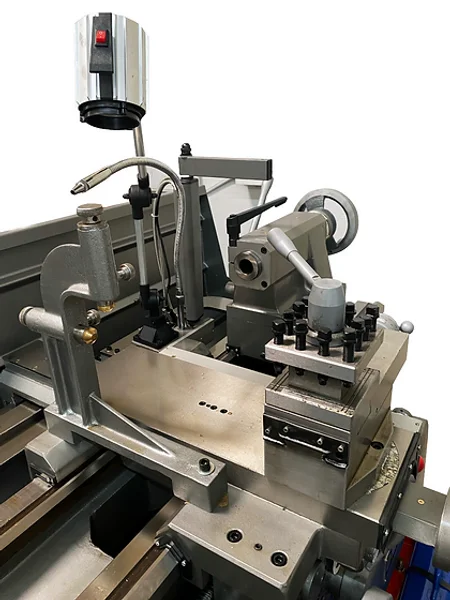

  • Free Taper turning attachment, , installed

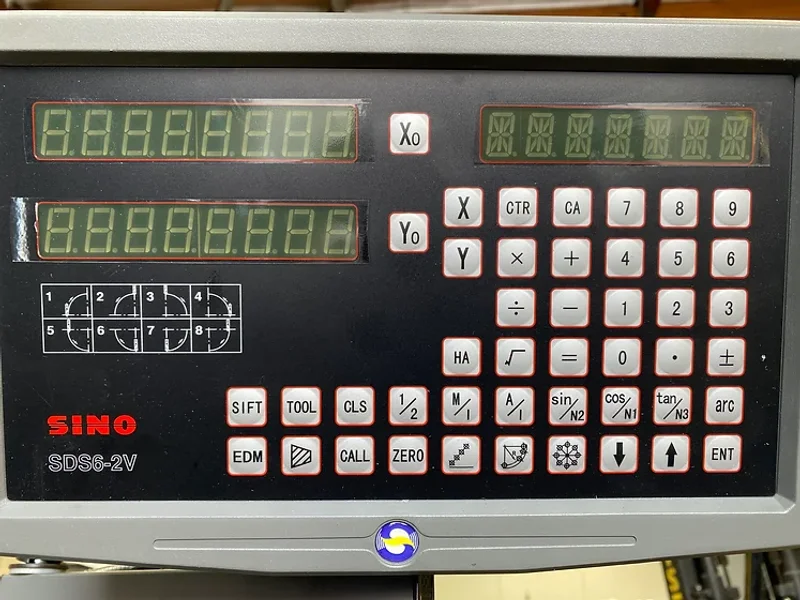

  • Free SINO DRO, installed

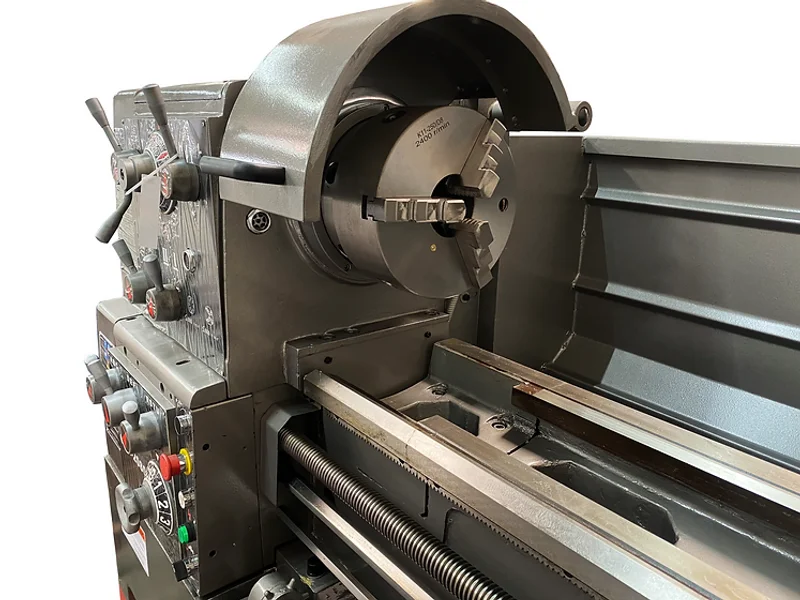

  • Chuck guard with safety shut off, made from metal
  • Automatic kick-out longitudinal carriage stop system
  • 10” 3-jaw chuck with top reversible jaws, direct mount
  • 12” 4-jaw chuck, direct mount
  • 14” Face plate
  • 1/2”-6” steady rest with roller jaws
  • 7/8”-4-3/8” follow rest
  • Removeable gap

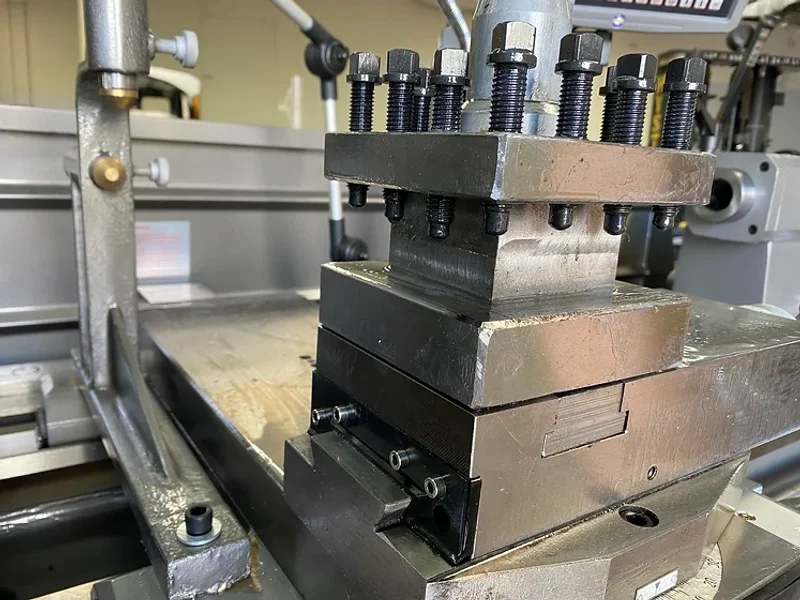

  • 4-way tools post
  • Foot brake
  • Halogen Work light and coolant system
  • Full length splash guard
  • Dead centers

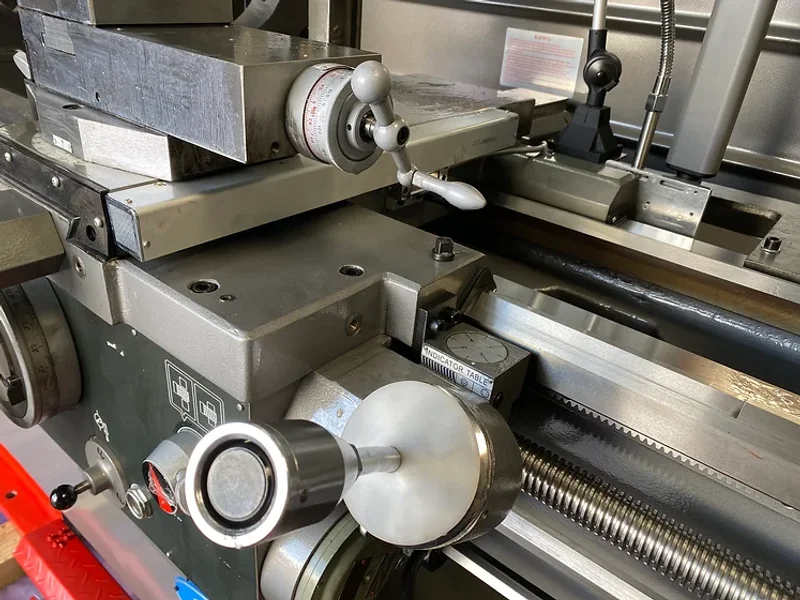

  • Thread chasing dial
  • Tool box and leveling pads


OPTIONAL EQUIPMENT
  • 5-C Hand lever type collet closer, free install ....………………...           $2,250.00
  • 33 pc 5C collet set, from 1/16”-1-1/16” by 32nd, Part# 900-0014..          $360.00
  • China ALORIS type QC tool post set # 900-0051-300, 6 pcs ….           $575.00
  • Live Center # 900-0050-04 ............................................................          $165.00
  • ¾  to 10-1/2” large steady rest with roller jaws ………………….          $995.00


Max. swing over bed 20"
Max. length of workpiece 80"
Max. swing over cross slide 12 1/2"
Max. Swing in gap 29-1/8"
Width of Bed 12"
Effective length in gap to spindle 6"
Effective length in gap to chuck jaws 3 1/2"

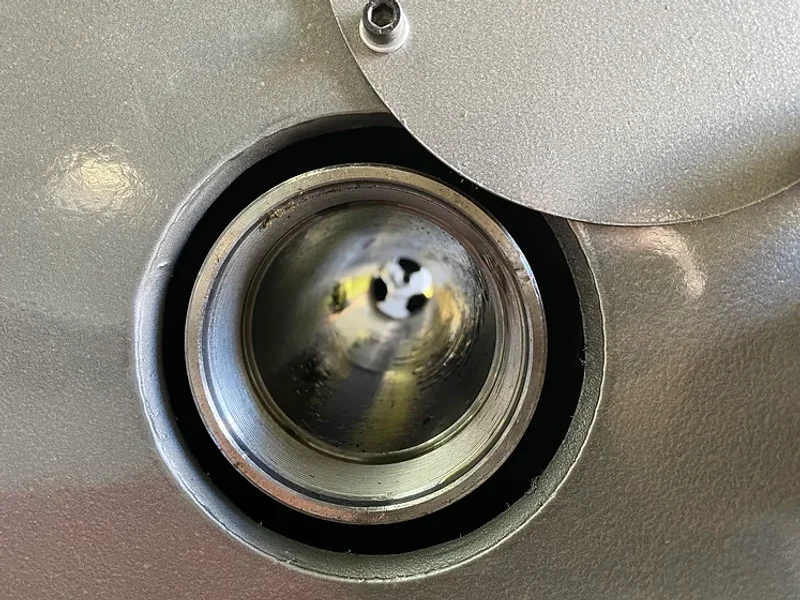

Spindle bore 3 1/8" | D1-8
Taper of spindle center M.T. #7
Spindle speeds 25-1,800 rpm / 12 steps
Longitudinal feeds 0.0011-0.063 IPR, 42 kinds
Cross feeds 0.0003-0.018 IPR, 42 kinds
Inch threads 2-112 TPI, 60 kinds
Metric threads 0.1-14 mm , 41 kinds
Diametral Pitch threads 4-112DP , 50 kinds
Module threads 0.1-7mm, 34 kinds
Max. travel of top slide 5"
Max. travel of cross slide 11 1/4"

Spindle length w/o chuck

Leadscrew length X TPI

17-1/2"

1 1/4" x 4 TPI
Diameter of tailstock quill 2-3/8”

Max. travel of tailstock quill

5-1/8”
Taper of tailstock quill center MT4

Main motor

10 HP 3 Ph.

Prewired: 220VAC / 35A

Optional: 440VAC / 20A
Coolant pump

1/8 HP 3 Ph.

Prewired: 220VAC

Optional: 440VAC
Net weight 6,350 lbs.
Overall dimensions, LxWxH 128" x 43" x 59"



Please note that this lathe is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this metal lathe is not supported.
