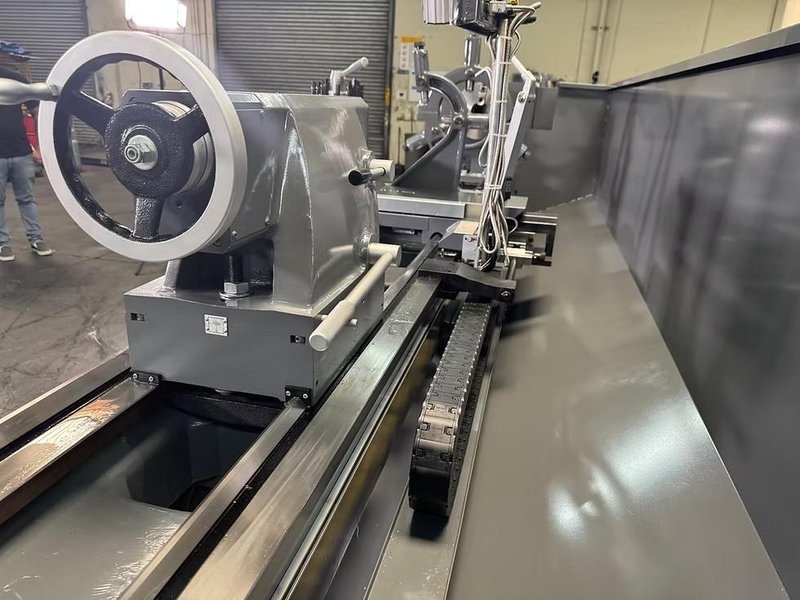

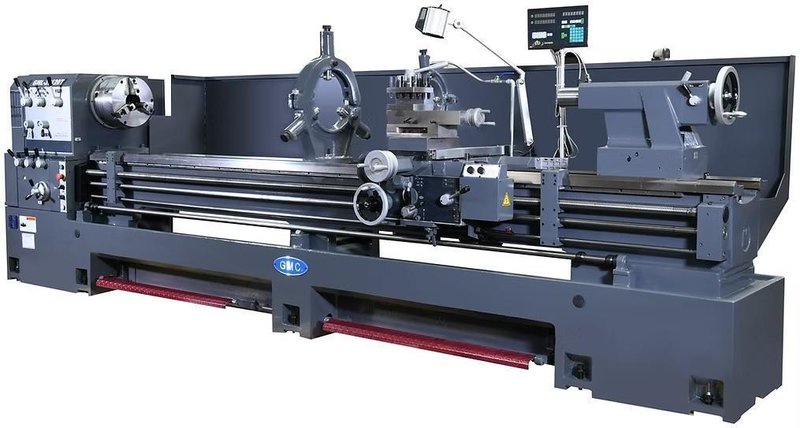

NEW 33" x 120" GMC MODEL GML-33120T PRECISION ENGINE LATHE

Name: NEW 33" x 120" GMC MODEL GML-33120T PRECISION ENGINE LATHE
Brand: GMC
SKU: 30270
Availability: InStock

Brand

GMC

California

NEW 33" x 120" GMC MODEL GML-33120T PRECISION ENGINE LATHE

Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
1 year industrial warranty for parts for all Taiwan lathes
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
ISO 9001 certified

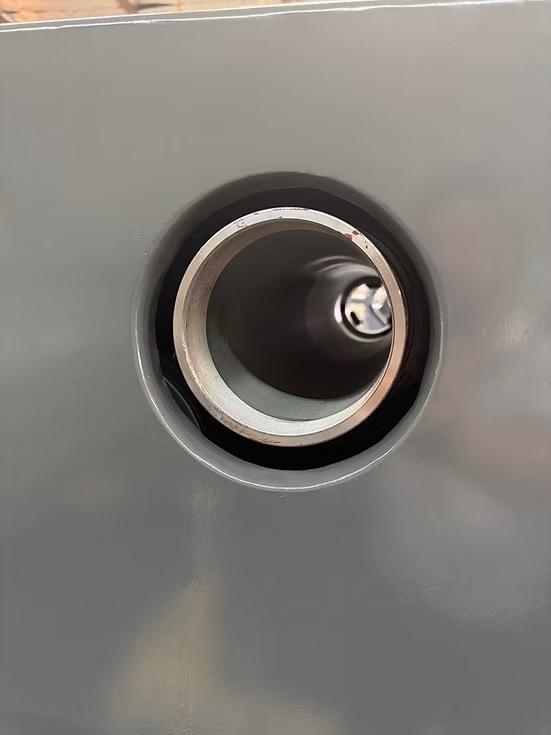

Large spindle bore 4-3/4” (120mm)
Heavy Duty spindle D1-11
Heavy Duty main motor 15HP

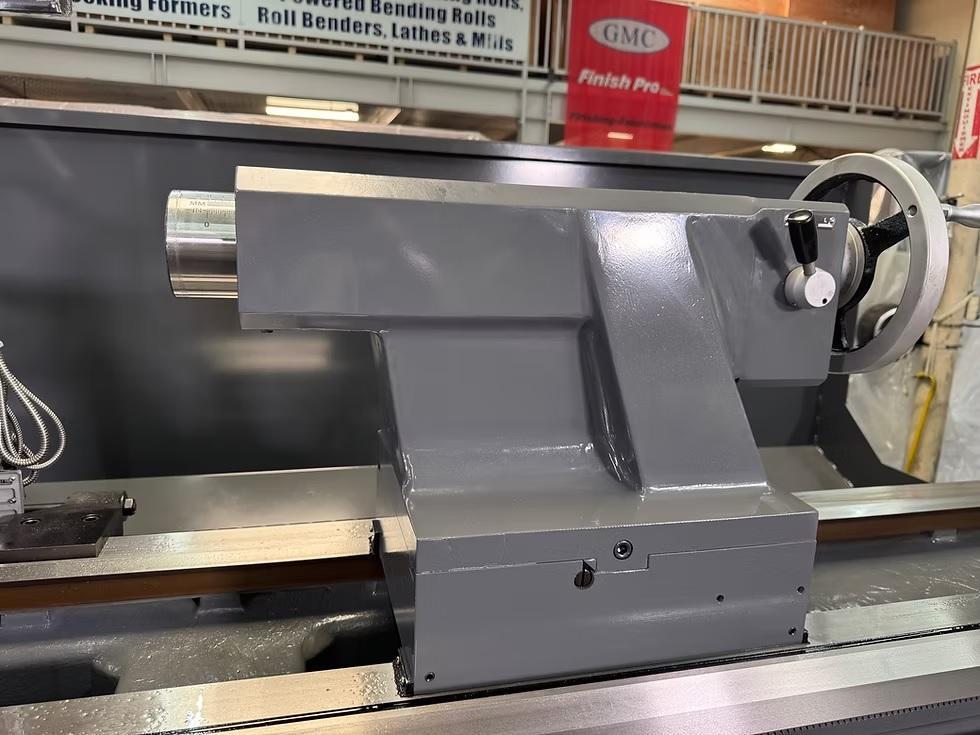

2-speed tailstock

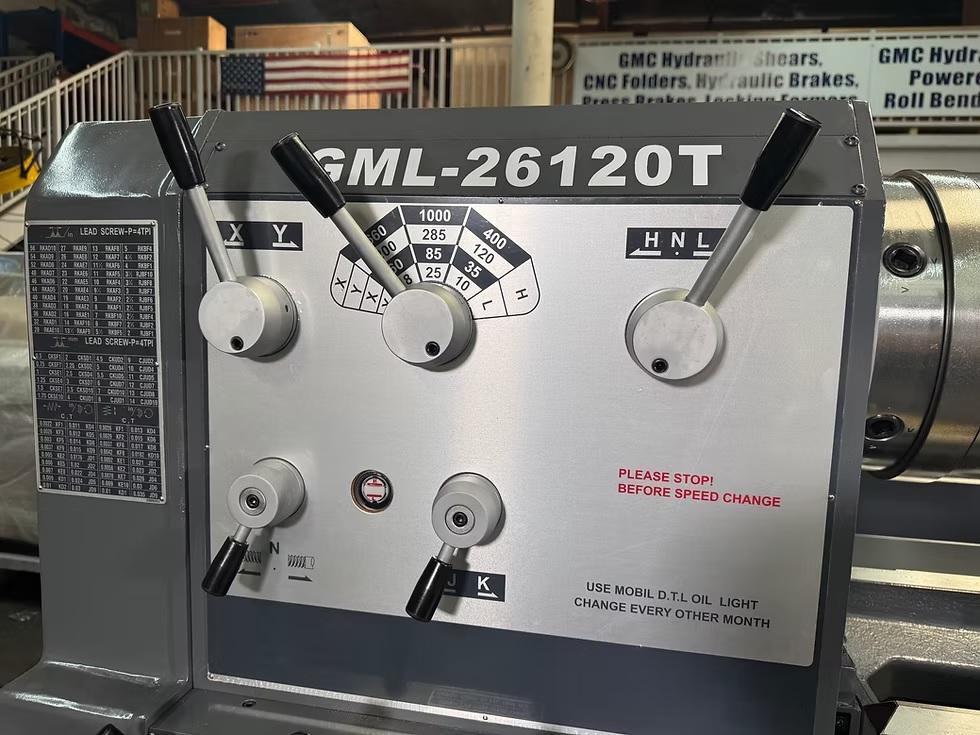

Spindle speeds from 10-1,000 rpm, 12 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box

Max. swing over bed	33”
Max. length of workpiece	129”
Max. swing over cross slide	24”
Max. Swing in gap	42”
Width of Bed	15-3/4”
Effective length in gap to spindle	9”
Effective length in gap to chuck jaws	4-1/2”
Spindle bore/ Spindle nose	4-3/4” (120mm), D1-11
Taper of spindle center	MT# 7/MT5 with reducing sleeve
Spindle speeds	10-1,000 rpm / 12 steps
Longitudinal feeds	0.002-0.032 IPR, 35 kinds
Cross feeds	0.001-0.0094IPR, 35 kinds
Inch threads	2-56 TPI, 44 kinds
Metric threads	0.5-14mm , 24 kinds


Max. travel of top slide	8”
Max. travel of cross slide	13-1/2”

Leadscrew length X TPI	1-1/2” x 4 TPI
Diameter of tailstock quill	3-1/2”
Max. travel of tailstock quill	7-1/2”

Taper of tailstock quill center	M.T. # 5

Main motor Amperage draw	15HP, 220V or 440V, 3 phase 55Amp on 220V / 30Amp on 440V
Rapid traverse motor	1HP, 220V or 440V, 3 phase
Coolant pump motor	1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil	#30 weight machine oil, 8 Gallons
Machine weight, approx. LBS	9,120 LBS
Overall dimensions, LxWxH, inch Shipping dimensions, LxWxH, inch	186x50x76 191x44x79
