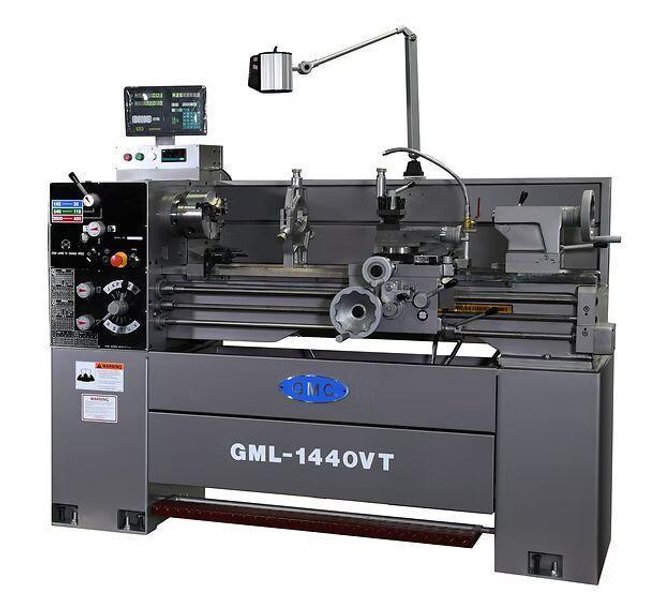

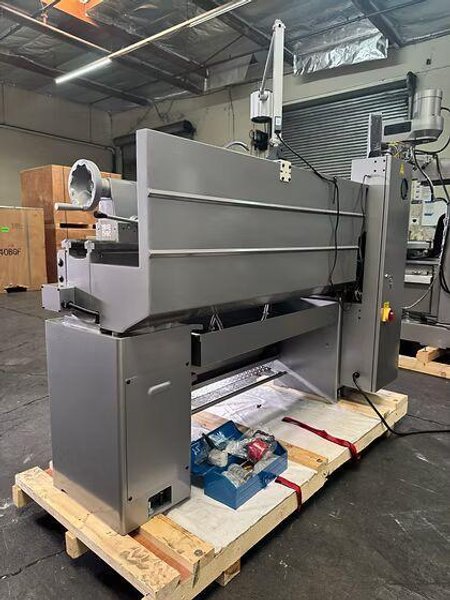

NEW 14" X 40" GMC MODEL GML-1440VT VARIABLE SPEED ENGINE LATHE

Name: New GMC GML-1440VT For Sale 30097
Brand: GMC
SKU: 30097
Availability: PreOrder

Brand

GMC

Not specified

NEW 14" X 40" GMC MODEL GML-1440VT VARIABLE SPEED ENGINE LATHE

Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
5 years industrial warranty for parts for all Taiwan lathes
ISO 9001 certified
Machine bed is made of high tensile cast iron FC25, Meehanite casting
With free CARMAR DRO installed
Full Geared-head precision Engine Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
Spindle bore 1 1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7-1/2”
Variable spindle speeds from 30-2,000 rpm
32 kinds of inch threads, and 32 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box

Comes equipped with:

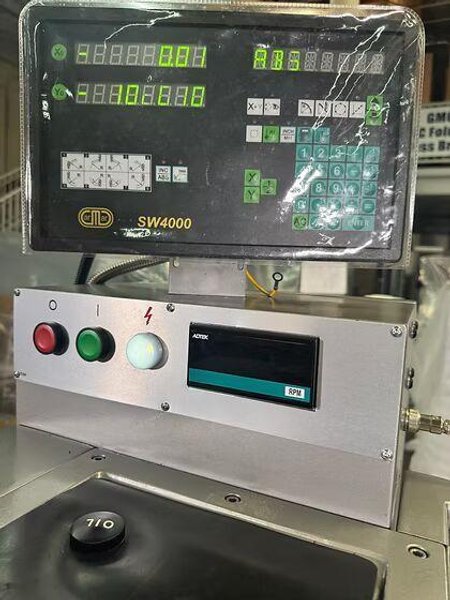

- Free CARMAR DRO installed

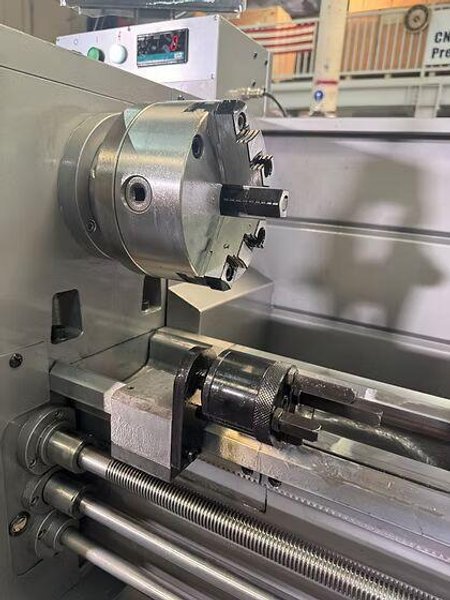

- 6” 3-jaw chuck with set reversible jaws
- 10” Face plate

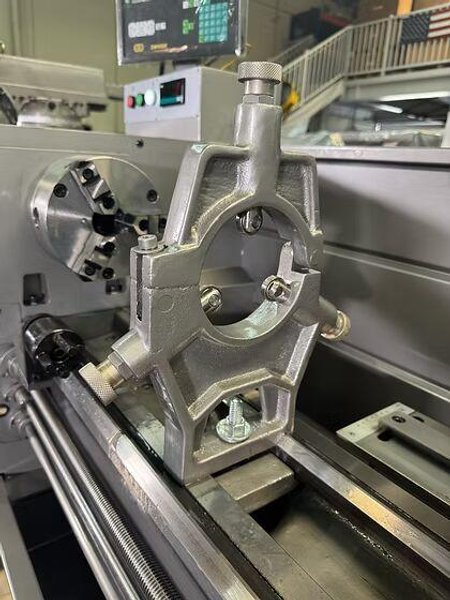

- 4” steady rest with roller jaws
- 2” follow rest with roller jaws
- 4-position carriage stop
- Foot brake
- Coolant system
- LED work light
- Removable gap

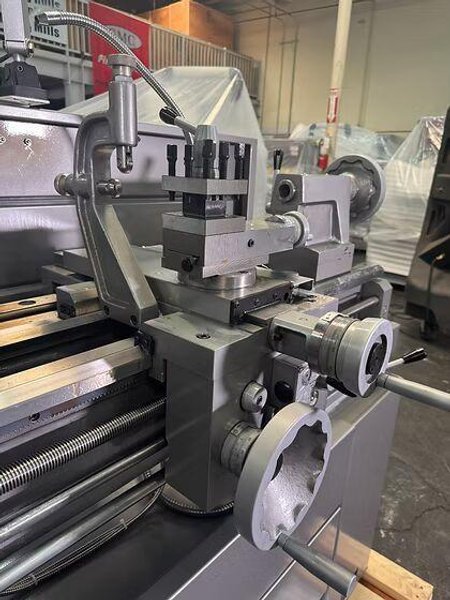

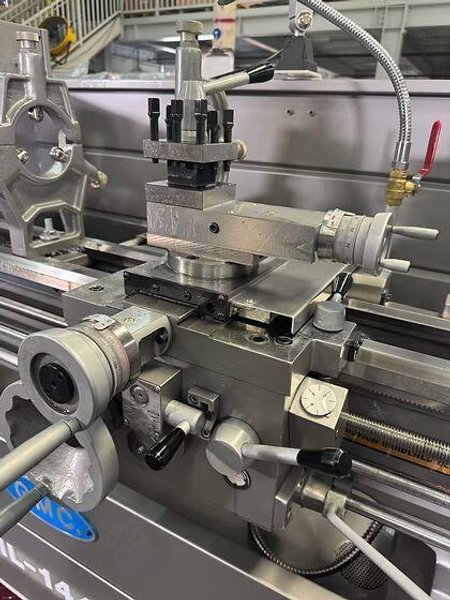

- 4-way tools post
- Full length splash guard
- (1) dead center and (1) reducing sleeve
- Thread chasing dial
- Tool box with leveling pads

Specifications	GML-1440VT
Max. swing over bed	14”
Max. length of workpiece / Max. length of cutting	40” / 34”
Max. swing over cross slide	8-5/8”
Max. swing over gap	20-1/4”
Width of Bed	7-1/2”
Spindle bore	1 ½” , D1-4
Taper of spindle center	MT# 5 (MT5/MT3 with reducing sleeve)
Spindle speeds, variable	30-2,000 rpm variable
Longitudinal feeds	.0016-.00368IPR, 40 kinds
Cross feeds	.0008-.00122IPR, 40 kinds
Inch threads	4-56 TPI, 32 kinds
Metric threads	0.4-7.0 mm , 32 kinds
Max. travel of top slide	3-1/2”
Max. travel of cross slide	6-5/16”
Longitudinal leadscrew	Dia 1” / 4TPI
Diameter of tailstock quill	1-9/16”
Max. travel of tailstock quill	3-1/2”
Taper of tailstock quill center	M.T. # 3
Oil for headstock/ Gear box/Apron	#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.
Main motor with 5HP inverter drive Amperage draw	3HP, 220V, 1phase 3HP, 220V, 3 phase 10 Amp 10 Amp
Coolant pump	1/16HP, 220V, 1phase, water base coolant
Machine weight, approx.	1,930 LBS
Overall dimensions, LxWxH	73” x 35” x 59”
Machine Shipping dimensions LWH	75” x 30” x75” x 30” x 75” x 30” x 55” 77” x 30” x 61”

OPTIONAL EQUIPMENT

5-C Hand lever type collet closer# 5C-1660AT, free install ……. call for pricing
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014.. call for pricing
Taper turning attachment, installed……………………………….. call for pricing
ALORIS type QC tool post set # 3900-5230, 6 pcs …................... call for pricing
Live Center # 3900-5004 ................................................................ call for pricing
5pc Indexable carbide turning set # 2003-0004 ........................... call for pricing
3/8” carbide insert # 2003-0014 .................................................. call for pricing
Lathe package 1 # GMCLSUP101, incl 5pc indexable carbide turning set # 2003-0004, ½ drill chuck # 3700-0102, Chuck arbor #3700-0157, and 29pc Titanium drill bit set #5000-0001T .................................... call for pricing
