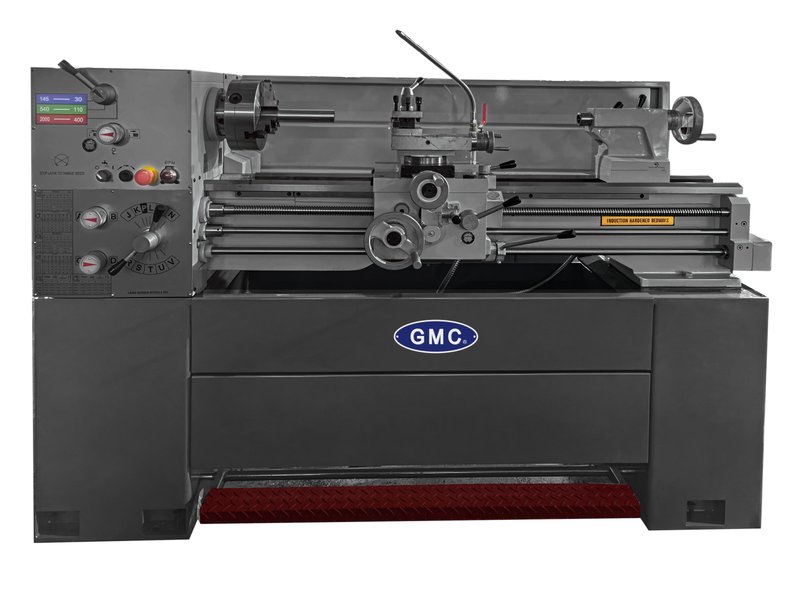

14"x40" VARIABLE SPEED PRECISION ENGINE LATHE - GML-1440T

Specifications

                              GML-1440T

Max. swing over bed

                                  14”

Max. length of workpiece / Max. length of cutting

                              40” /  34”

Max. swing over cross slide

                                8-5/8”

Max. swing over gap

                                   20-1/4”

Width of Bed

                                    7-1/2”

Spindle bore

                              1 ½” , D1-4

Taper of spindle center

    MT# 5 (MT5/MT3 with reducing sleeve)

Spindle speeds,

                  45-1,800 rpm, 12 steps

Longitudinal feeds

              .0016-.00368IPR, 40 kinds

Cross feeds

              .0008-.00122IPR, 40 kinds

Inch threads

                  4-56 TPI, 32 kinds

Metric threads

                  0.4-7.0 mm , 32 kinds

Max. travel of top slide

                                  3-1/2”

Max. travel of cross slide

                                  6-5/16”

Longitudinal leadscrew

                              Dia 1” /  4TPI

Diameter of tailstock quill

                              1-9/16”

Max. travel of tailstock quill

                              3-1/2”

Taper of tailstock quill center

                            M.T. # 3

Oil for headstock/ Gear box/Apron

#30 weight machine oil, TEXACO regal R&O/100, 3 Gal.

Main motor with 5HP inverter drive

Amperage draw

                  3HP, 220V, 1phase

                                 10 Amp

Coolant pump

1/16HP, 220V, 1phase, water base coolant

Machine weight, approx.

                          1,930 LBS

Overall dimensions, LxWxH

                        73” x 35” x 59”

Machine Shipping dimensions LWH

        75” x 30” x75” x 30” x 75” x 30” x 55” 77” x 30” x 61”
