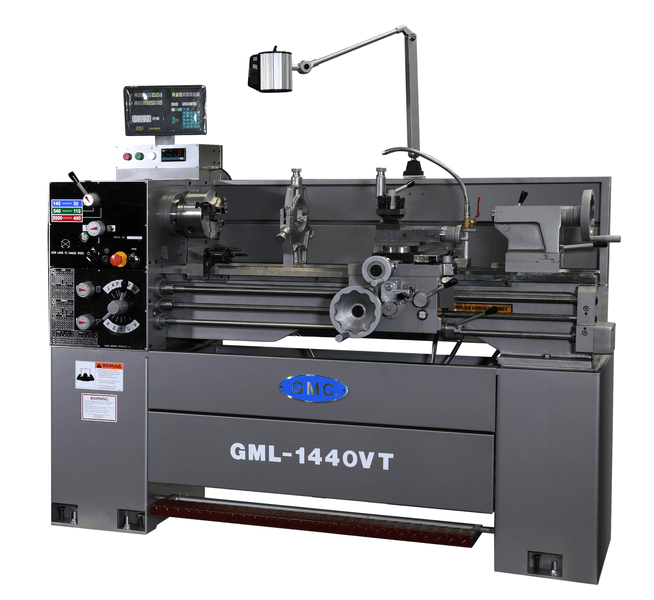

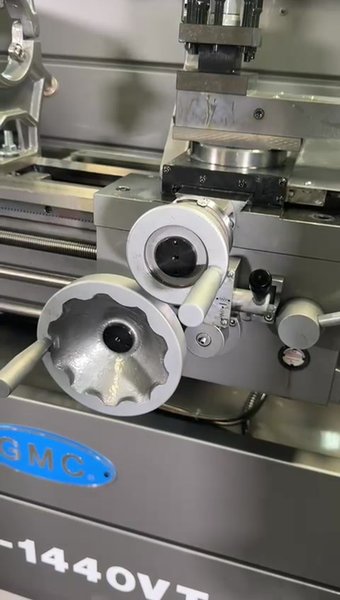

GMC VARIABLE SPEED PRECISION ENGINE LATHE - GML-1440VT

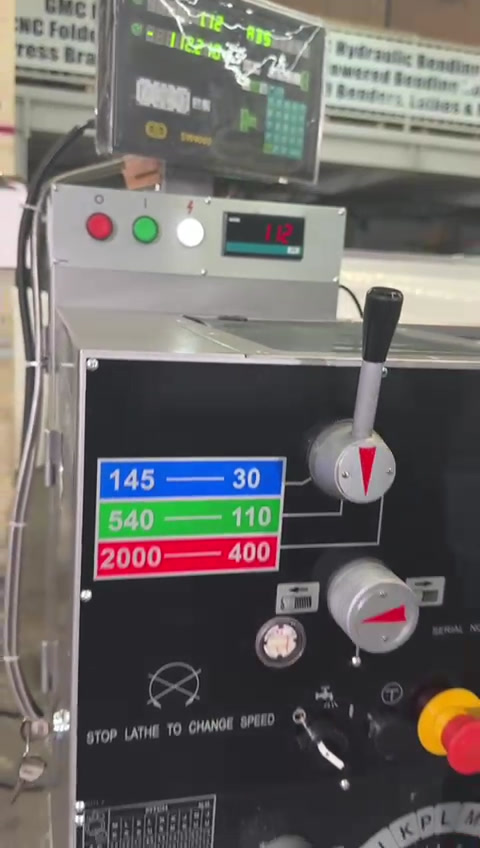

Made in Taiwan-100%Made in Taiwan, by top manufacturer with very high level of quality 1 year industrial warranty for parts for all Taiwan lathes ISO 9001 certified Machine bed isMade of high tensile cast iron FC25,  Meehanite casting With free CARMAR DRO installed   Full Geared-head precision Engine Lathe with foot brake Quick-change gearbox with fast and easy threading set up Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase Spindle bore 1 1/2” Heavy Duty spindle D1-4 Heavy Duty guideway width 7-1/2” Variable spindle speeds from 30-2,000 rpm 32 kinds of inch threads, and 32 kinds of metric threads Spindle is balanced, hardened and precision ground   All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box  Specifications                               GML-1440VT Max. swing over bed                                    14” Max. length of workpiece / Max. length of cutting                                40” /  34”  Max. swing over cross slide                                  8-5/8” Max. swing over gap                                    20-1/4” Width of Bed                                     7-1/2”  Spindle bore                                1 ½” , D1-4  Taper of spindle center      MT# 5 (MT5/MT3 with reducing sleeve) Spindle speeds, variable                      30-2,000 rpm variable Longitudinal feeds                .0016-.00368IPR, 40 kinds  Cross feeds               .0008-.00122IPR, 40 kinds  Inch threads                    4-56 TPI, 32 kinds Metric threads                    0.4-7.0 mm , 32 kinds  Max. travel of top slide                                    3-1/2” Max. travel of cross slide                                    6-5/16” Longitudinal leadscrew                                Dia 1” /  4TPI  Diameter of tailstock quill                               1-9/16” Max. travel of tailstock quill                                3-1/2” Taper of tailstock quill center                             M.T. # 3 Oil for headstock/ Gear box/Apron #30 weight machine oil, TEXACO regal R&O/100, 3 Gal. Main motor with 5HP inverter driveAmperage draw 3HP, 220V, 1phase          3HP, 220V, 3 phase 10 Amp                                         10 Amp  Coolant pump  1/16HP, 220V, 1phase, water base coolant Machine weight, approx.                            1,930 LBS  Overall dimensions, LxWxH                         73” x 35” x 59”  Machine Shipping dimensions LWH          75” x 30” x75” x 30” x 75” x 30” x 55” 77” x 30” x 61” For more complete information: https://www.gmcmachinetools.com/catalog
