72" (1800mm) x .500" (12.7mm) x 60,000# Stamco Slitting Line with 2 Heads (14069)

Brand
Model
72" X 0.500" X 60,000 Lb
Stock #
14069
Year
Not specified
Condition
Not specified
Location
Connecticut
Max Width of Workpiece 72 inches
Max Thickness of Workpiece (in.) 0.500 inches

72" (1800mm) x .500" (12.7mm) x 60,000# Stamco Slitting Line with 2 Heads (14069)
Stock Number 14069

General Specifications:

Strip Width: 20"-72" (508mm-1800mm)
Strip Thickness: .075"-.500" (1.9mm-12.7mm)
Coil ID: 20"-30" on entry, 24" on Exit (508mm-762mm on entry) (610mm on Exit)
Coil OD: 36"-80" (914mm-2032mm)
Max Coil Weight: 60,000#
Line Speed: 150 FPM (50 MPM
4 Cuts of .375" at 80,000PSI
4 Cuts of .500" at 50,000PSI

Complete Line with the Following Components:

Entry Pit Type Coil Car
Coil Saddle

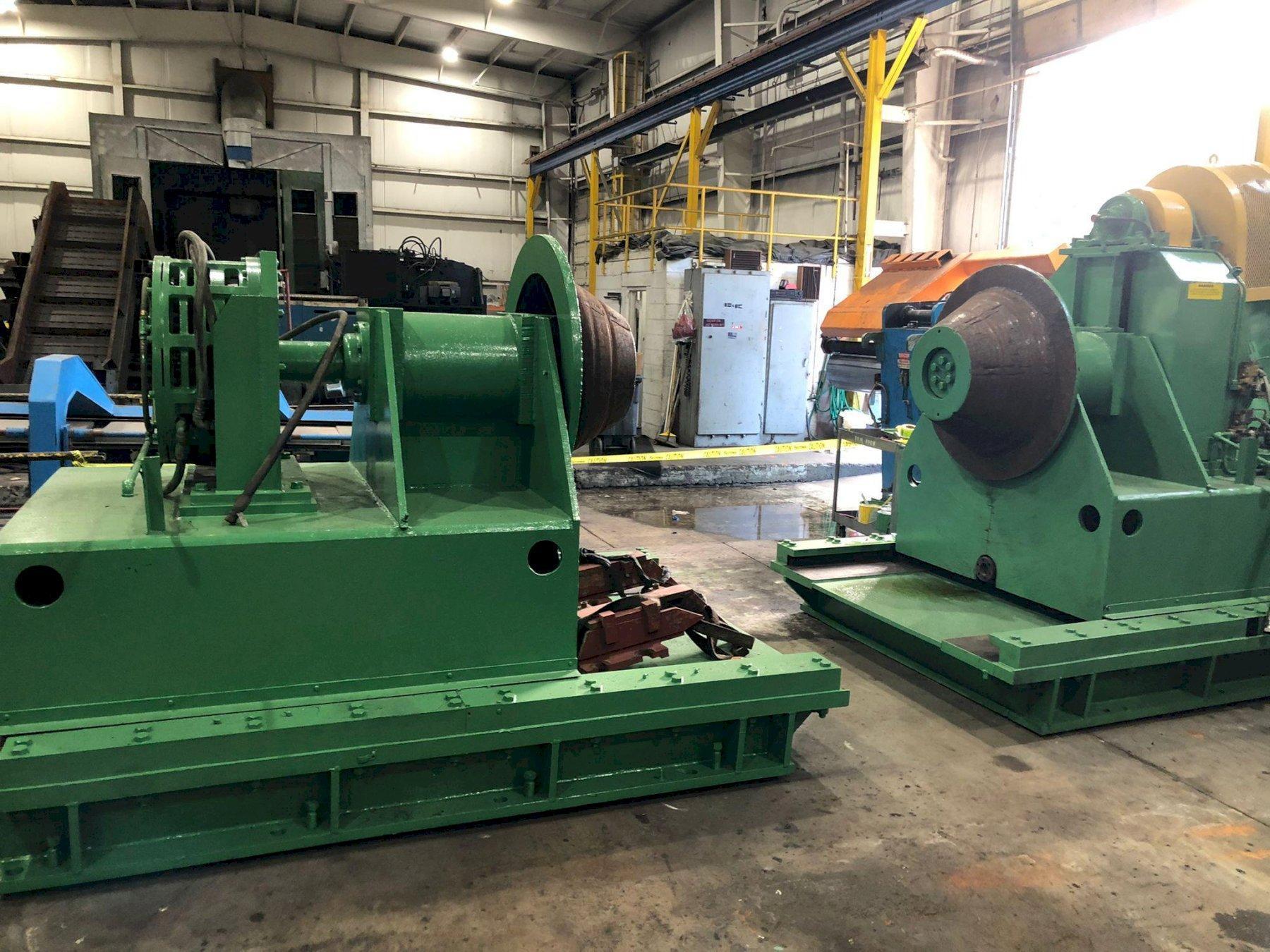

Double Cone Uncoiler
Sliding Base
Two Wichita Water Cooled Brakes
Peeler and Hold Down Roll
Hold Down Roll is Driven
Entry Edge Guides
Automatic Edge Controller
Pinch Rolls
Three Roll Flattener
Entry Crop Shear
Edge Guides Pinch Rolls

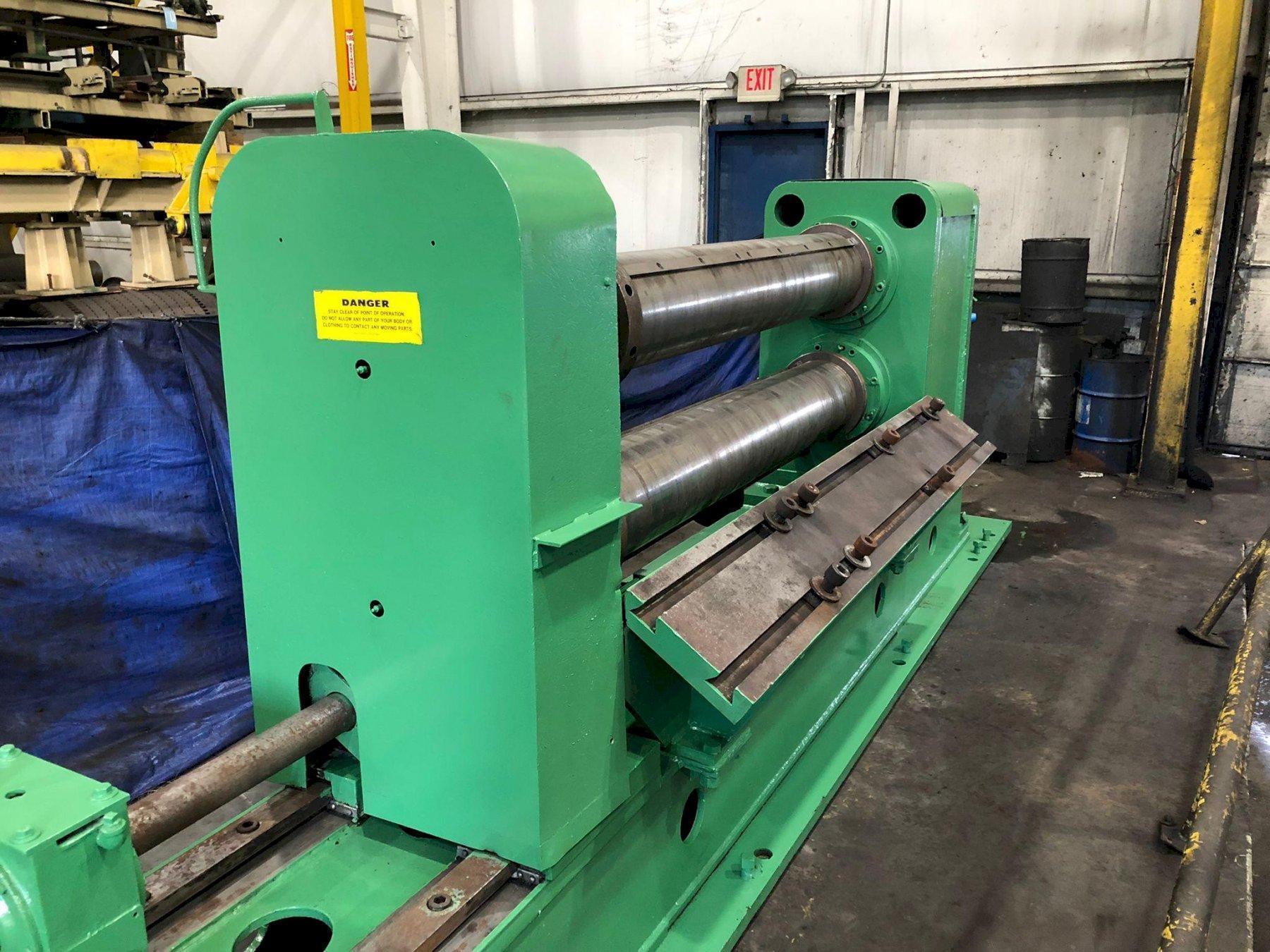

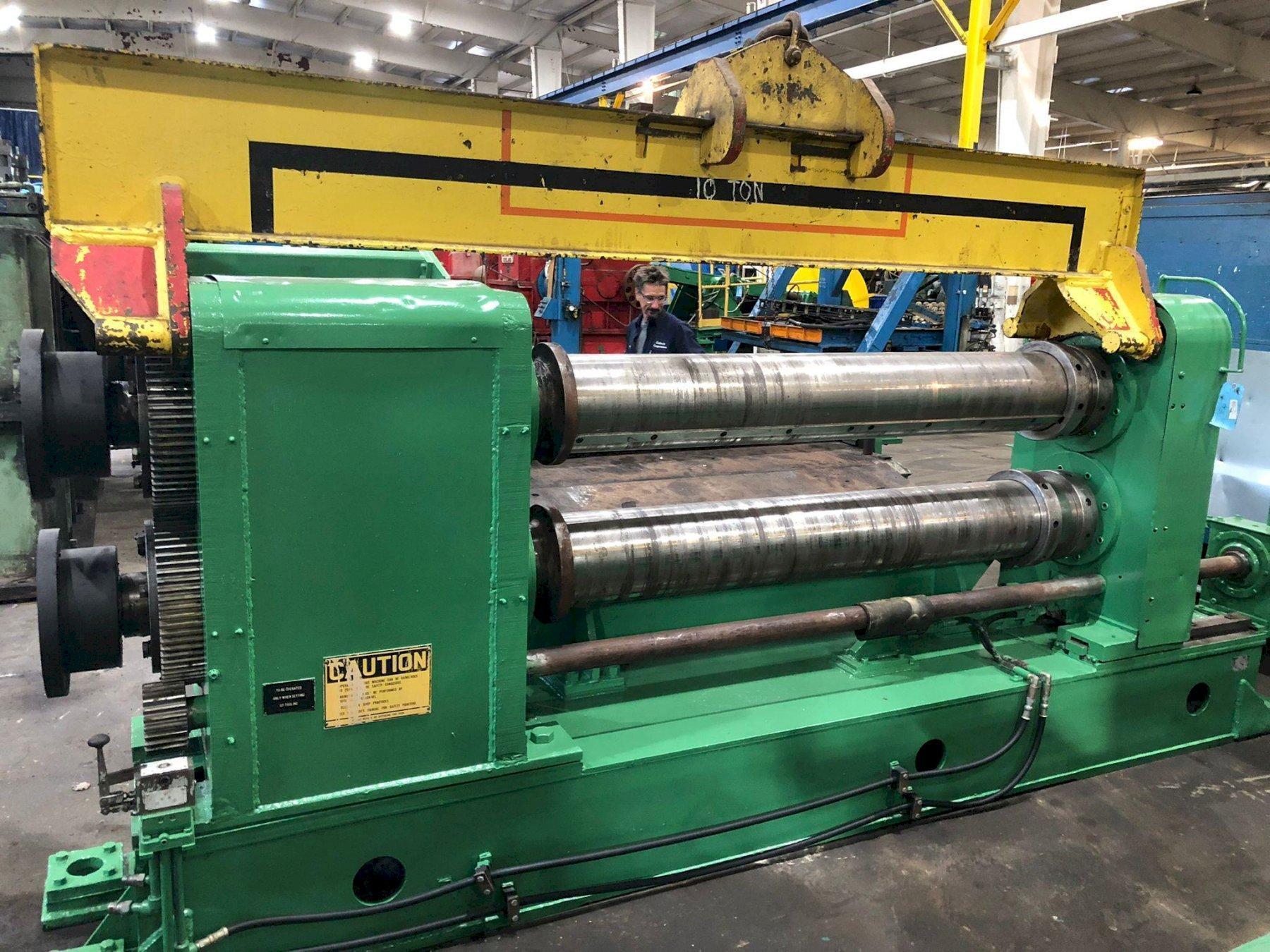

Two Slitting Heads
11" Diameter Arbors (280mm Diameter Arbors)
75HP AC Feed Up Drive
Crane Removable Type
Two Scrap Choppers
25HP DC Motor Per Chopper
Goose Neck Conveyor
Carry Over Table

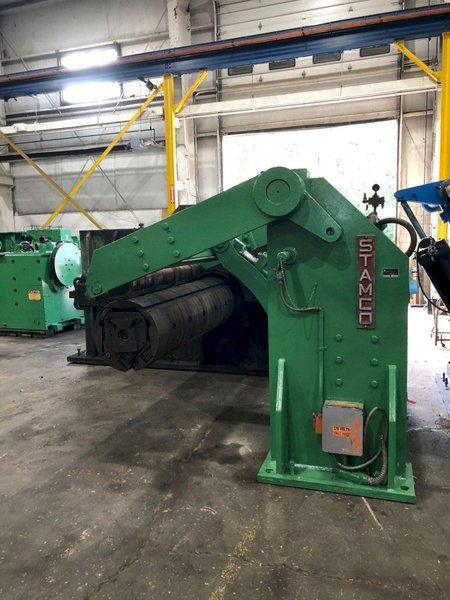

Recoiler with Overarm Separator
250HP DC Motor
Exit L-Type Coil Car
Self Contained Hydraulics
Knives, Rubbers, and Tooling,
Allen Bradley Digital Drives
Manual and Drawings

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
