72" (1800mm) x .126" (3mm) x 60,000# Stamco Coil Line
Brand
Category
Model
Not specified
Stock #
114668
Year
Not specified
Condition
Used
Location
Not specified
|
Manufacturer - Stamco/Denro
Material Thickness Range - 0.015" - 0.126" (.5mm-3mm)
Coil Width - 24"-72.8" (610mm-1800mm)
Max Coil Weight - 60,000#
Coil ID Range - 20" - 24" (508mm-610mm)
Max Coil OD: 86"
Line Speed - 330/660 FPM (100m-200m/min)
Line Direction: Left to Right

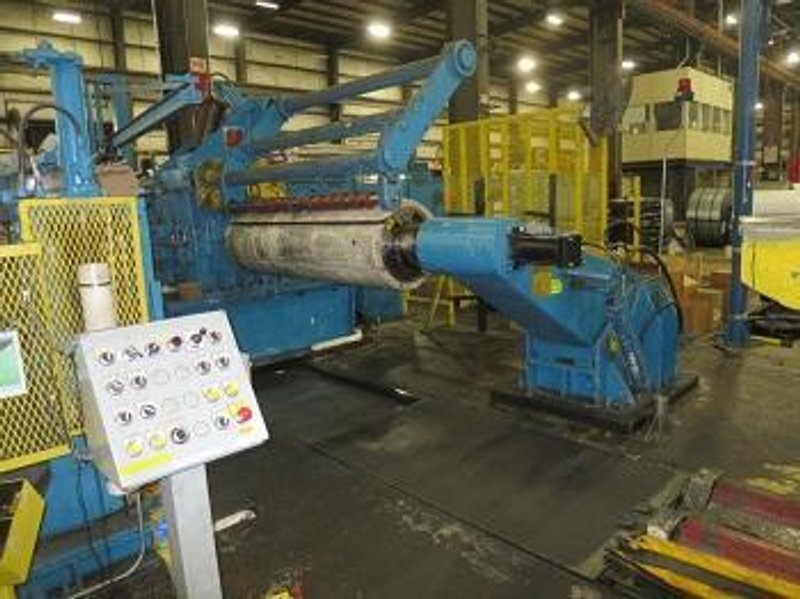

Line Components: Mandrel Uncoiler with Outboard Support Arm and Hold Down Roll
Rubber Sleeve for 24" ID
Driven Hold Down Roll
84" Mandrel Face
Hydraulic Expansion
22kw DC Drag Generator Brake
Peeler Table with Driven Pinch Rolls
81" Roll Face on Pinch Rolls
Hydraulic Valve Stand
Pass line Roll with Adjustment
37kw DC Motor for Pinch Rolls
Entry Crop Shear
Hydraulic
Entry Feed Table with XRAY Gauge (Source Not Included)
Gamma Gauge Slides In
Pass Line Rolls and Table
Pit Carry Over Table
Scrap Baler
50hp Motor

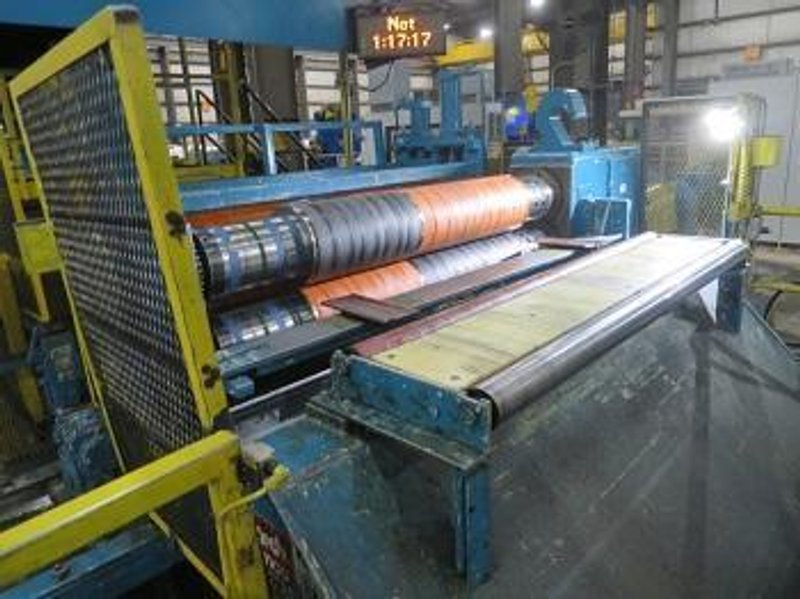

Rotary Drag Board Tension Stand with Exit Crop Shear
Wichita Water Cooled Brake
75" Face on Rolls
Hydraulic Clamping
Separator Shafts for Strips

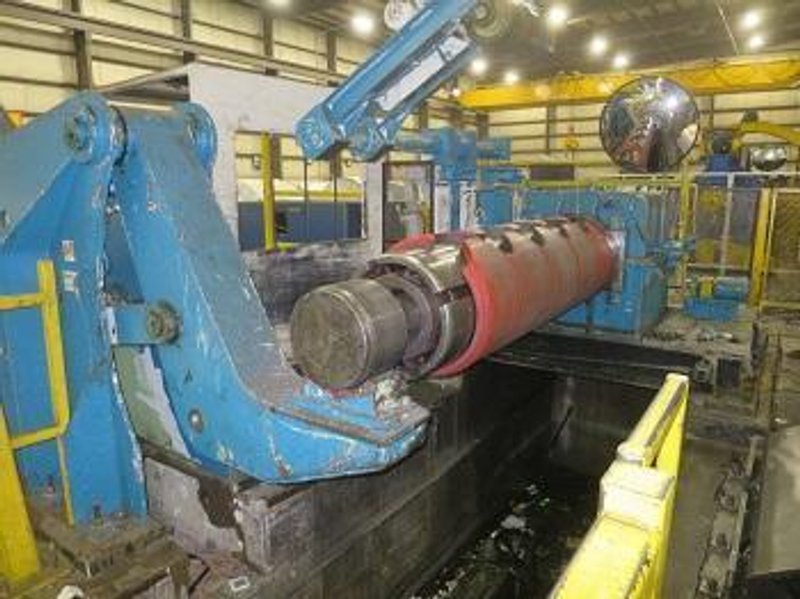

Mandrel Recoiler with Outboard Support arm and Overarm Separator
Pads for 24" ID
Hydraulic Drum
Two Speed Gear Box
78" Mandrel Face
Hydraulic Push off Plate
Exit Coil Car
Packaging Line |
