48" x .135" x 30,000# Stamco/Herr Voss Slitting Line with 2 Slitter Heads (14300)
Brand
Category
Model
48" X 0.135" X 30,000# 2 HEADS
Stock #
14300
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width of Workpiece | 48 inches |
|
48" x .135" x 30,000# Stamco/Herr Voss Slitting Line with 2 Slitter Heads

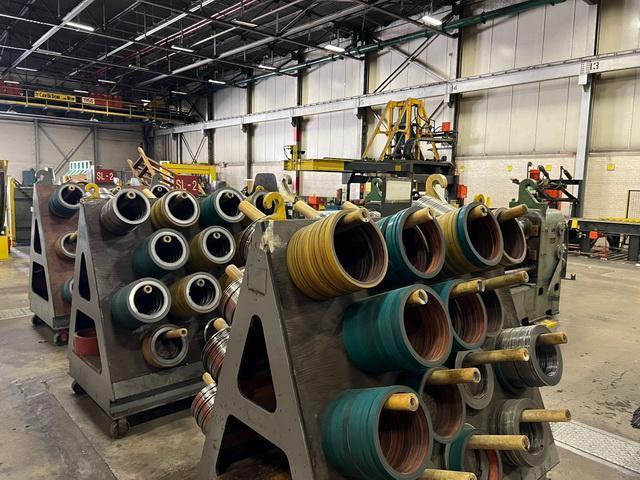

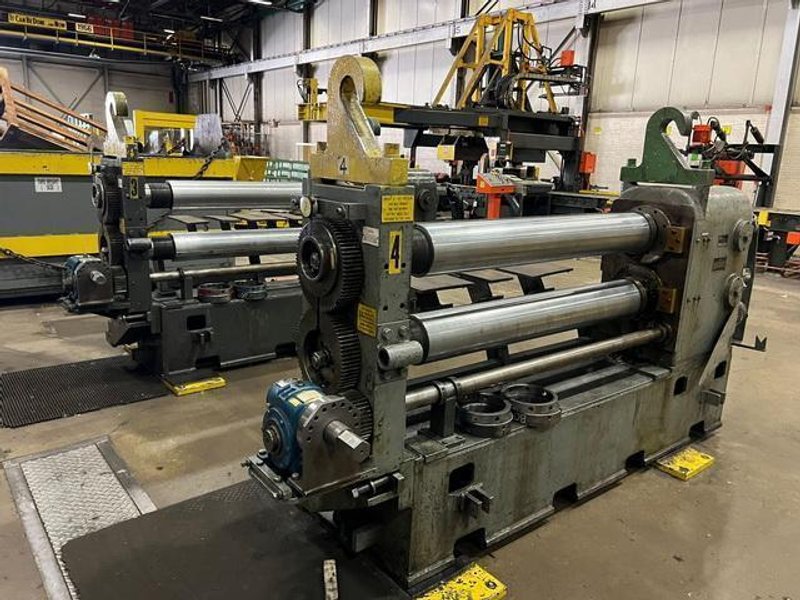

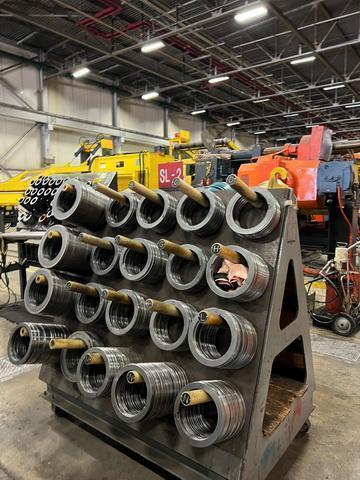

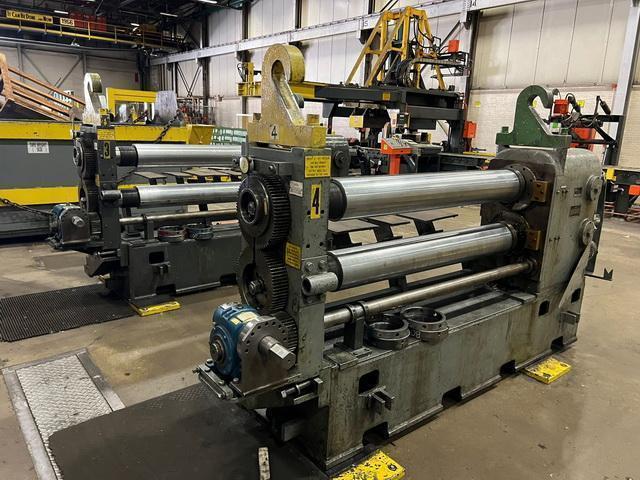

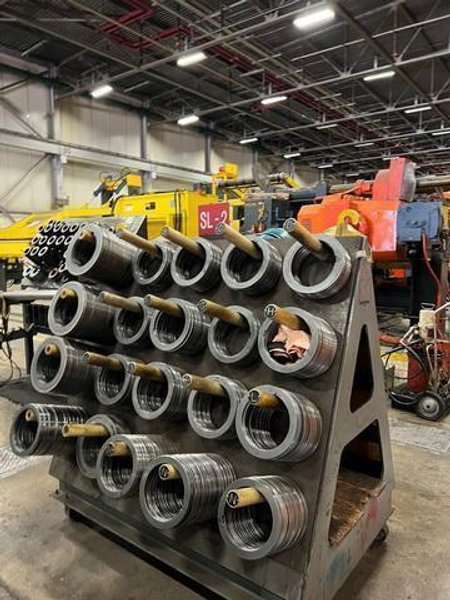

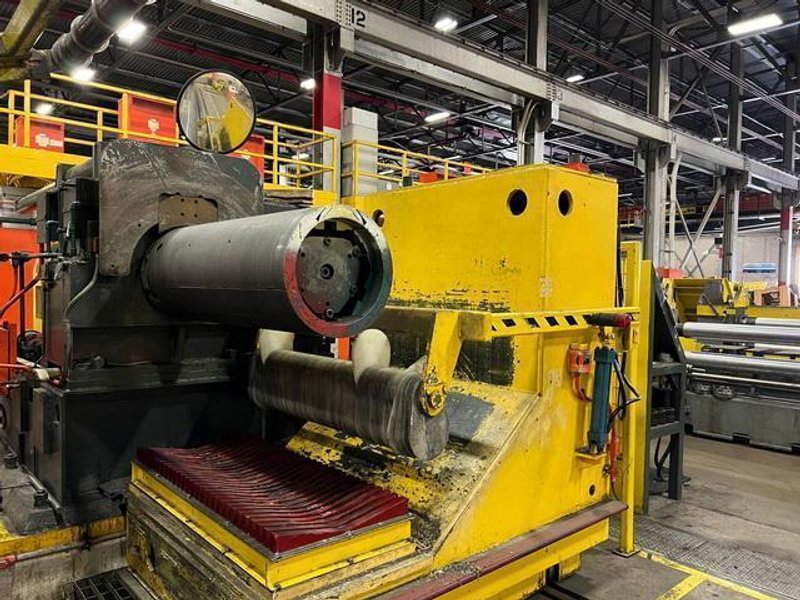

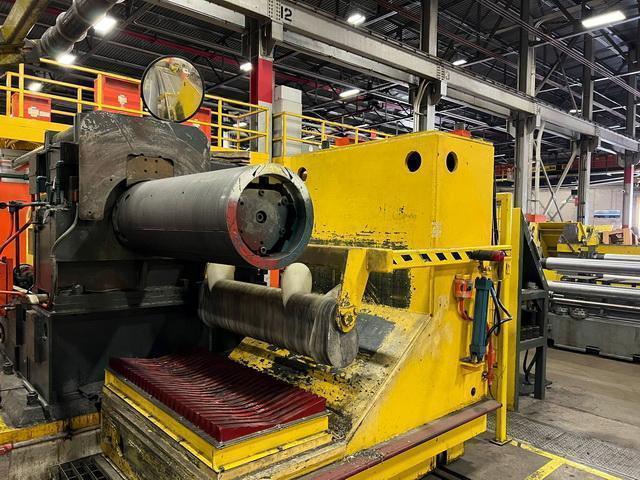

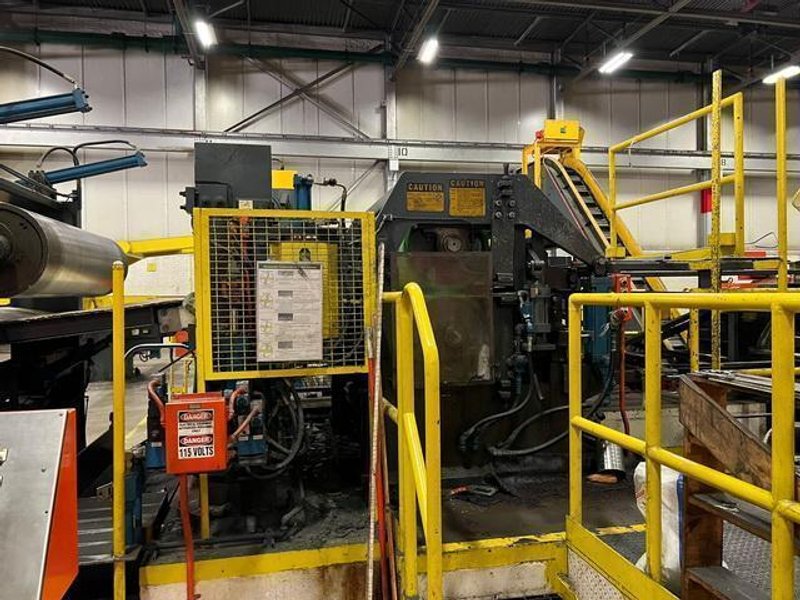

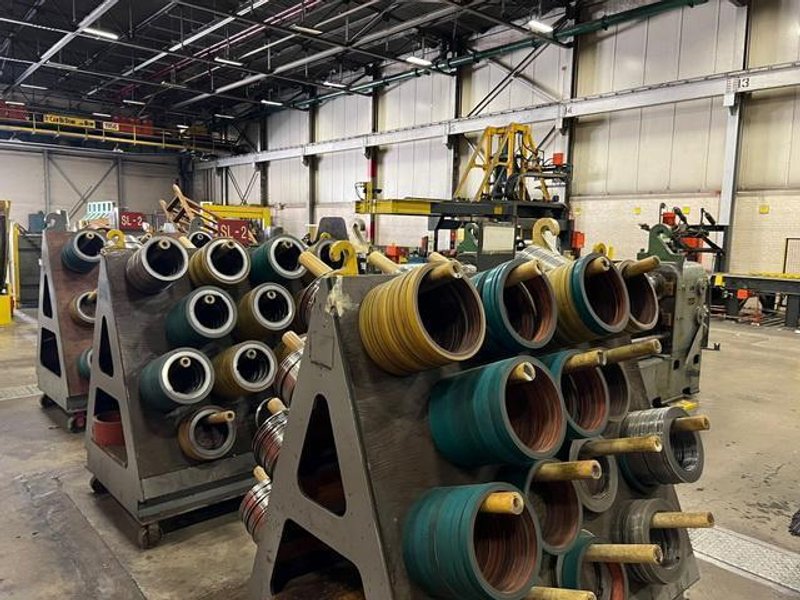

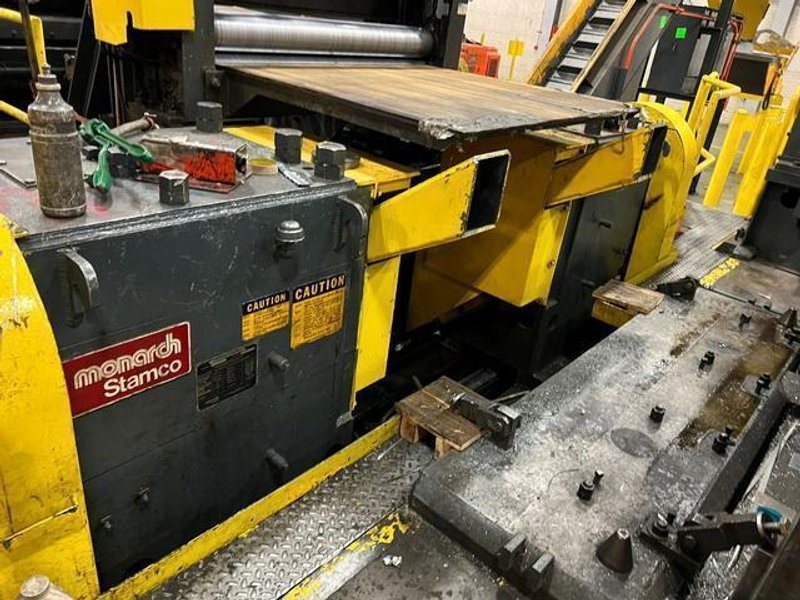

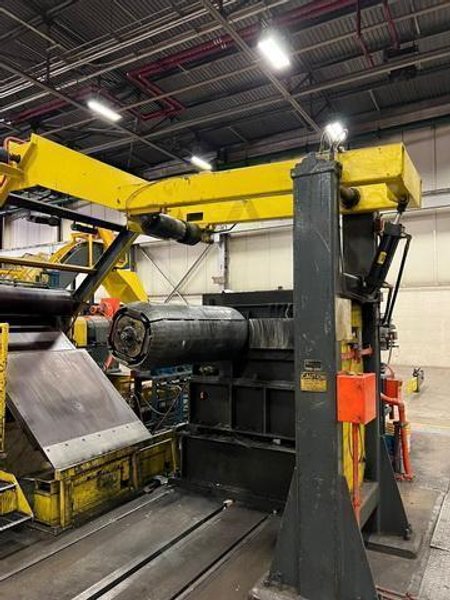

Stock # 14300 General Specifications: Line Direction: Right to Left Max Coil Weight: 30,000# Speed Range: 800fpm Max Thickness Range: .015”-.135” Min Slit Mult Width: 1” Entry Coil ID: 16” with Leaves for 20”-24” Exit Coil ID: 16" & 20" Diameter Drums Coil OD: 72” Material Characteristics: Material: Cold Rolled, Hot Rolled Pickled and Oiled Steel , Coated Steel, Aluminum Brass and Copper 80,000 Max PSI 30,000 Min PSI Complete Line with the Following Components: 2 Coil Storage Platform 2 Coil Storage Platform with Floor Type V Deck Coil Car Stamco Mandrel Uncoiler Machine#4140, Serial# 307.74.9A 4 Leaf Mandrel Design Hydraulic Expansion Sliding Base 75HP DC Motor Drive Free Standing Powered Hold Down Roll Machine# 4140, Serial# 307.74.10A Peeler Table Polyurethane Covered Pass Line Rolls Entry Non Powered Pinch Rolls 3 Roll Coil Set Deflector Rolls Machine# 4140, Serial#307.74.12A 55” Roll Face 162HP AC Motor Drive Powered Pinch Rolls 3HP AC Motor Drive (2) Stamco Slitting Heads 53 ½” Arbor Face 7 ½” Arbor Diameter Crane Removal Design 150HP Baldor DC Motor Drive Nutall Gearbox 7.814 to 1 Ratio Dual Scrap Choppers with Dual 20HP Reliance DC Motor Drives Scrap Conveyor Powered Pinch Rolls 3HP Drive Cascade Rolls Pit Cross Over Table Over Arm Separator Shaft Synchrowind Combination (Roll Type-Pad Type) Tension Stand 60” Width 100HP DC Reliance Motor Drive 2 speed Horsburg&Scott Reduction Gearbox -23.67 to 1 -11.49 to 1 Exit Pass Line Rolls Herr Voss Exit Crop Shear (Downcut Design) Thickness Range: .015 to .135” Aluminum Max Shear Strength: 50,000psi Herr Voss Free Standing Over Arm Separator with Pass Line Roll Serial# 100063-1C Coil OD Max 50” Coil ID Min 20” Speed: 800fpm Stamco Recoiler 20” ID 72” OD 54” Drum Face Full Hydraulic Drum Hydraulic Push Off 150HP DC Reliance Motor, 500-2000rpm 2 Speed Gearbox (10.37 to 1 and 20.32 to 1) Spare 16” ID x 54” Drum Face Drum Herr Voss L-Type Exit Coil Car Serial# 10436-01A Plastic Coil Keepers 60,000lbs Max Coil Weight Herr Voss Free standing Coil Keeper/Hold Down Roll Serial# 100063-006 50” Max Width 72” Coil OD 40,000lbs Max Coil Weight Allen Bradley 1395 Drives Allen Bradley PLC Complete Line with Shimlesss Tooling, Knives, Metal Spacers, Hydraulics, Electrics, Controls, Manuals and Drawings TERMS OF SALE ALL EQUIPMENT IS SOLD "AS IS--WHERE IS" WITHOUT ANY WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ALL EQUIPMENT SOLD IS USED |
|
