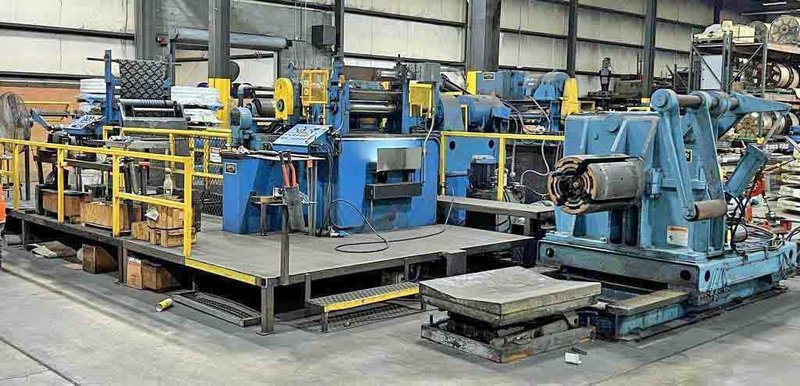

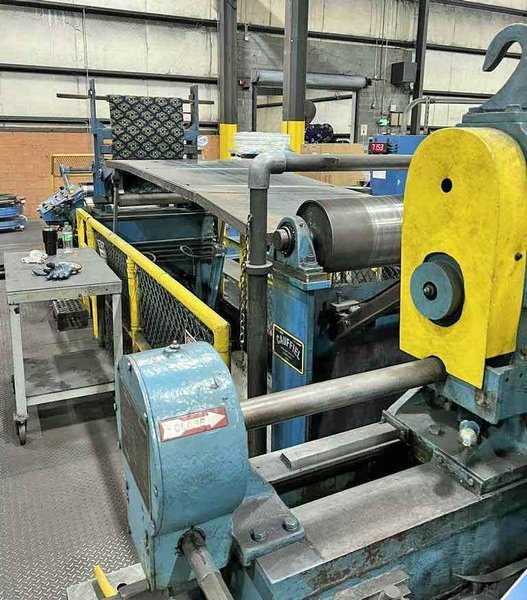

24" x 5.00" x 12,000# Stamco Slitting Line (14700)

24" X 5" STAMCO SLITTING LINE
Stock # 14700

Width:                   24"
Weight Capacity:         12,000 lbs.
Coil I.D.:               10" - 20" Entry
                         16" Exit
Coil O.D.:               72" In
                         60" Out
Line Speed:              700 FPM
Line Direction:          Right to Left

Consisting of the following:

-Entry Coil Lift: American Lift
  Stationary Lift
  48" Bed Width
  12.5" from Floor to bottom of "V" Cradle
  Hydraulic Scissor Lift
  Overall Size: 48" L x 35" W x 14" High

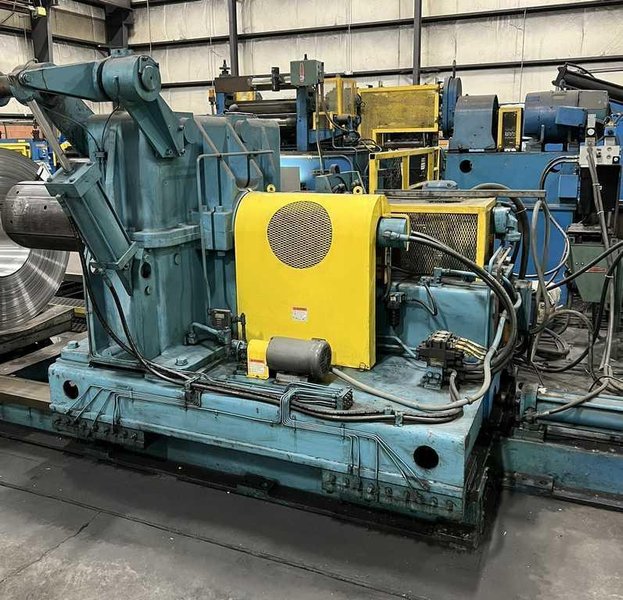

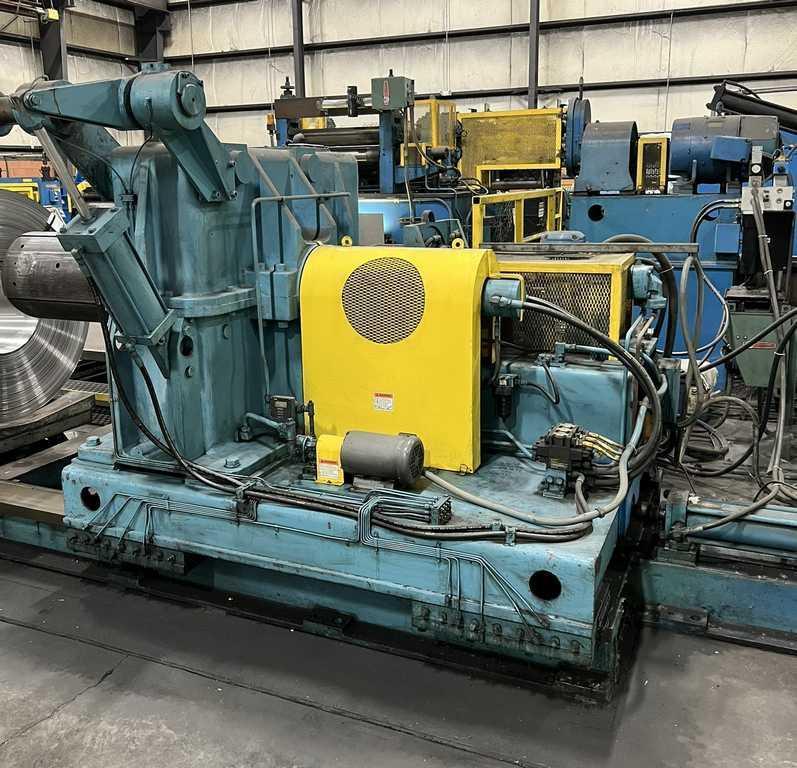

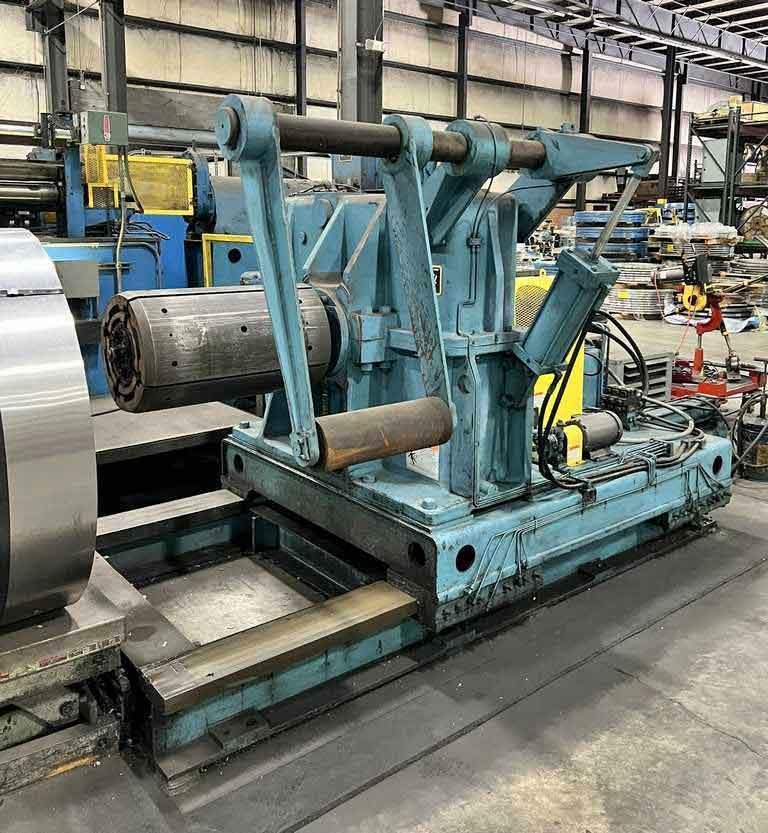

-Mandrel Uncoiler: Stamco
  28.5" Face Mandrel
  Hydraulic Expansion, 10" - 20" I.D. range w/Pads
  Hydraulic Feedup Motor
  Wichita Water Cooled Brake
  Hydraulic Slide Base
  Overarm Holddown Roll
  72" Coil O.D. Capacity
  Overall Size: 180" L x 87" W x 83" High

-Water Cooler:

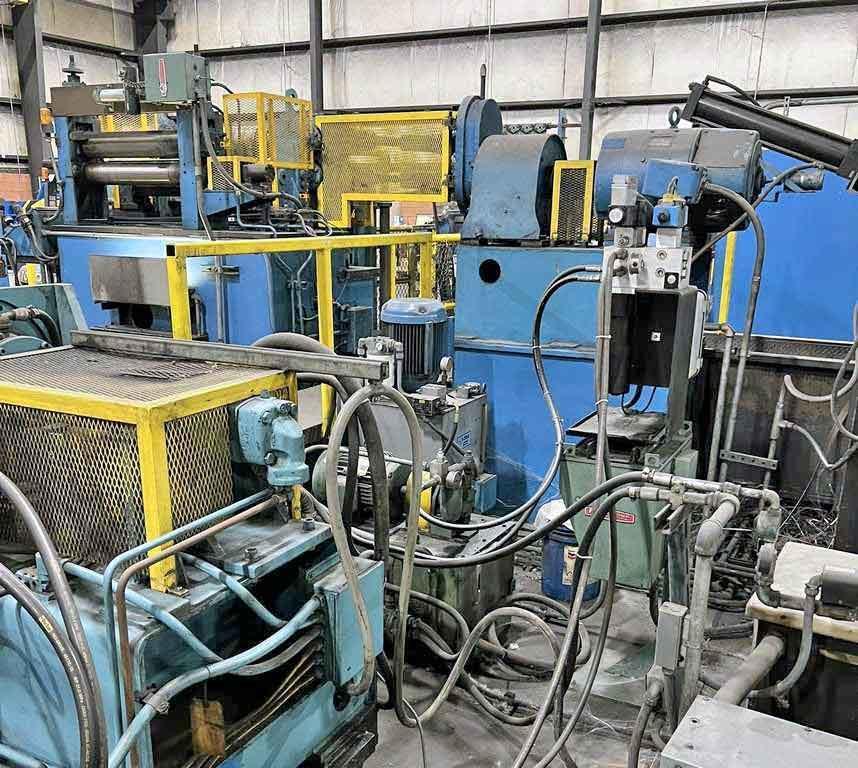

-Hydraulic Power Unit:

-North America Edge Control:
  Photo Electric

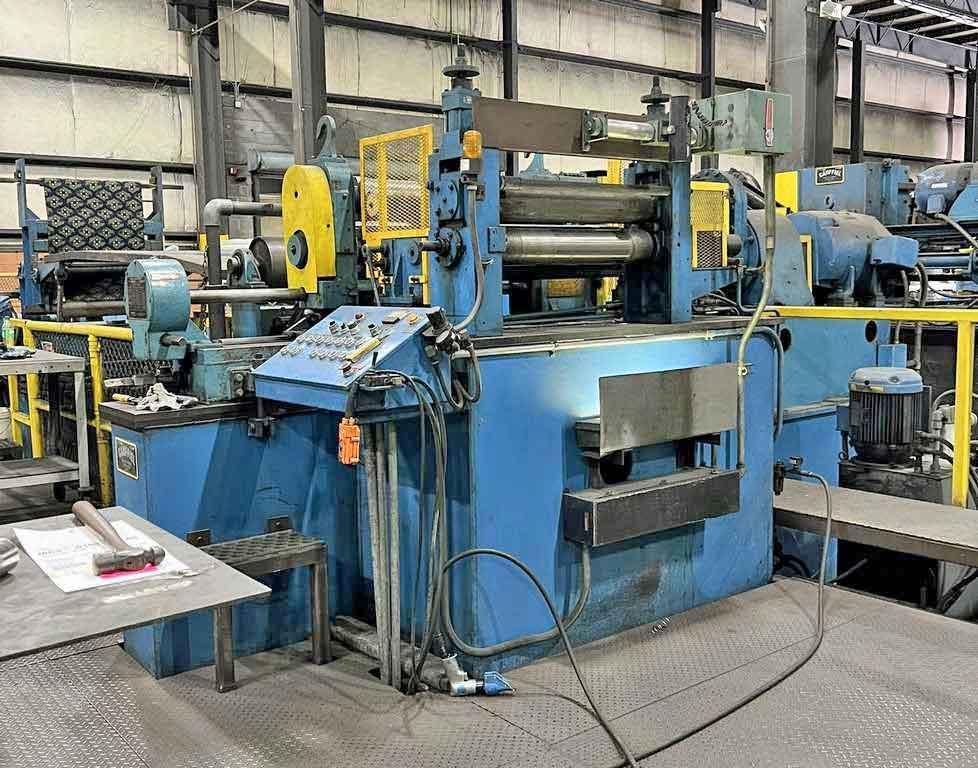

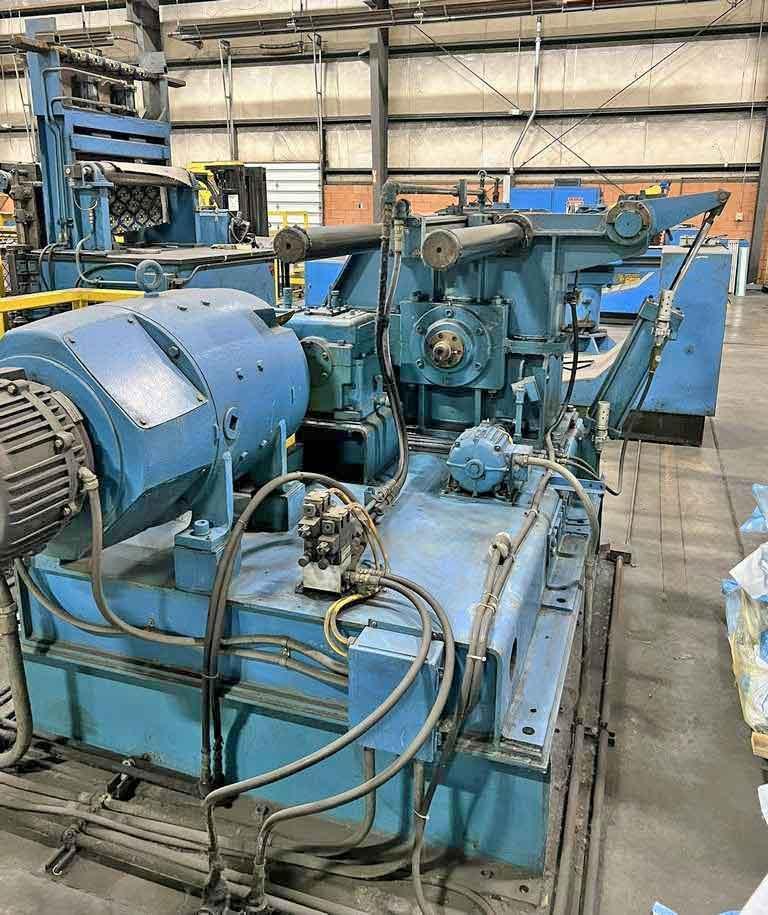

-Slitter Head: Stamco
  Removable Head (1 Head)
  5.00" Dia. Arbors
  Eccentric Arbor Adjustment
  Entry Driven Pinch Rolls
  Entry Side Guides with Center Holddown
  25 HP DC Motor Drive
  Integrated Pinion Stand Reducer
  Overall Size: 184" L x 58" W x 100" High

-Exit Passline Roll:
  11" Dia. x 36" Face Roll
  Overall Size: 46" L x 38" W x 80" High

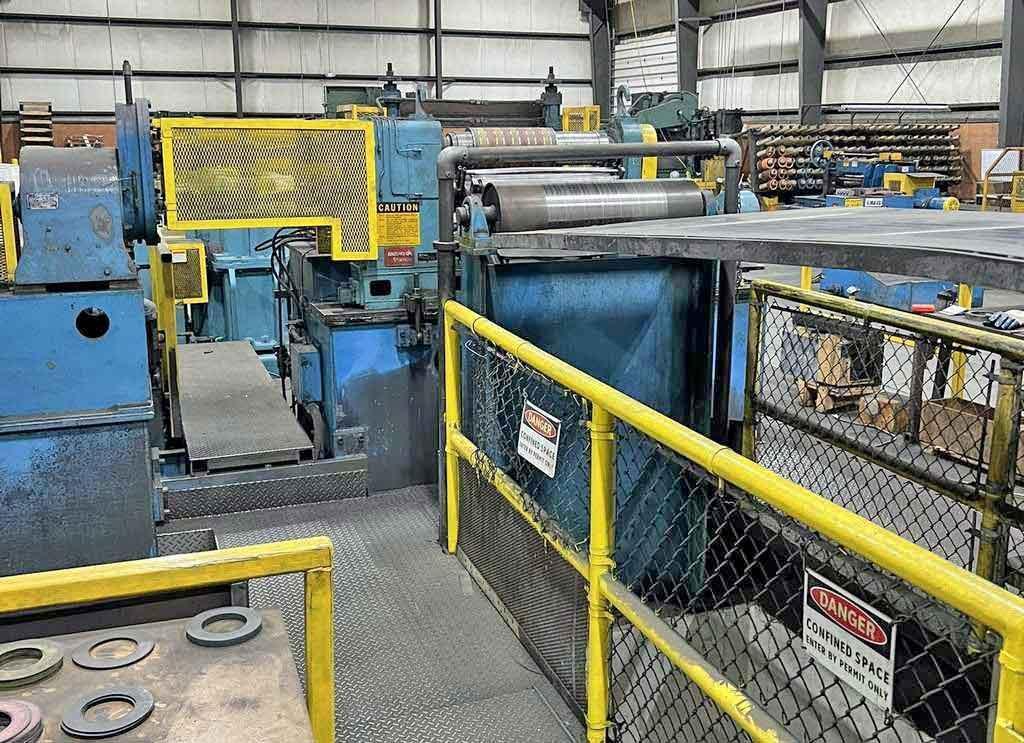

-Pit Cross Over Table:
  Attached to Tension Stand

-Scrap Winder Baller:
  AC Motor Driven
  Hydraulic Cylinder Ball Dump
  Overall Size: 88" L x 76" W x 99" High

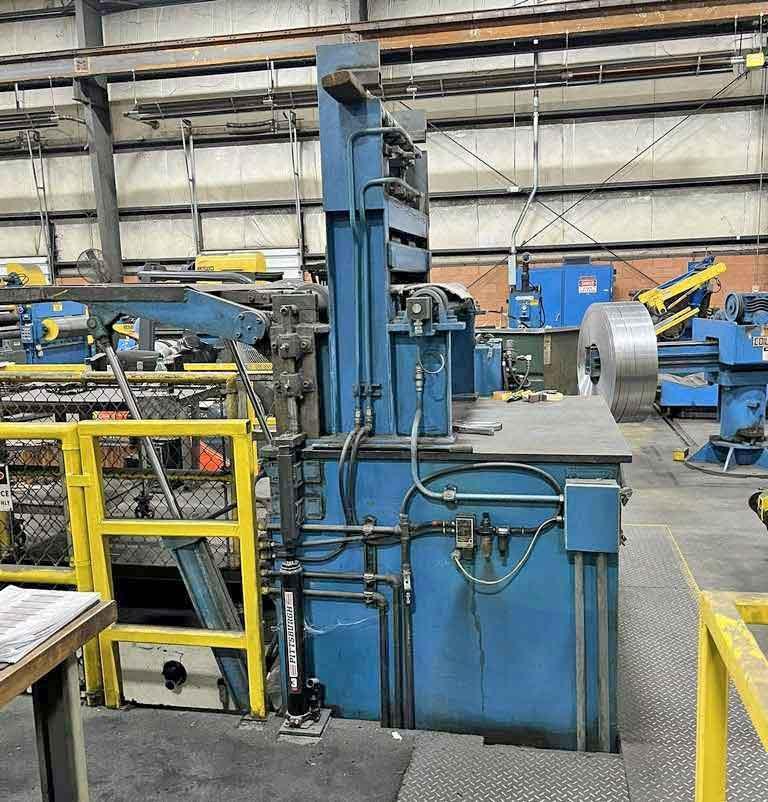

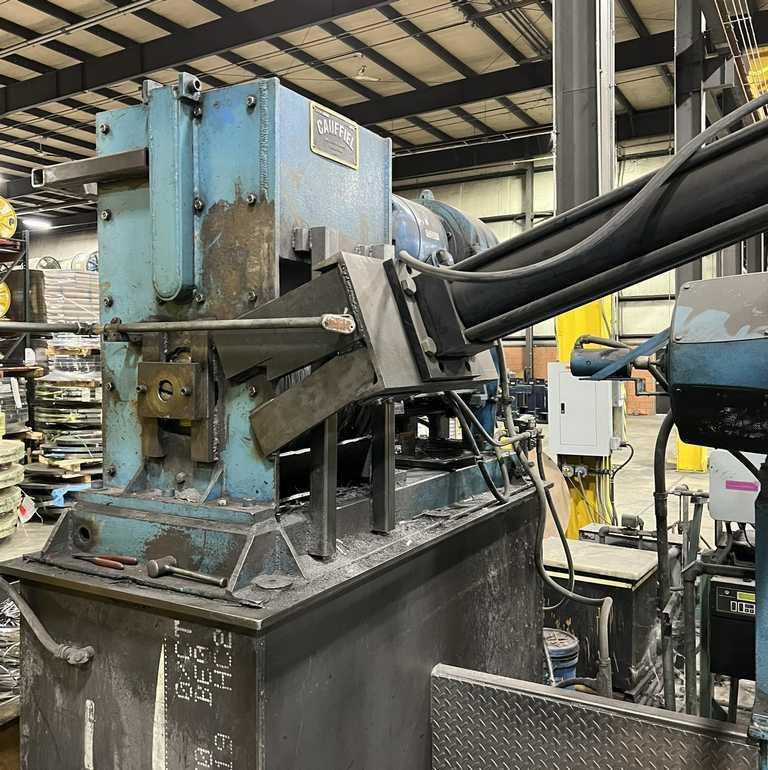

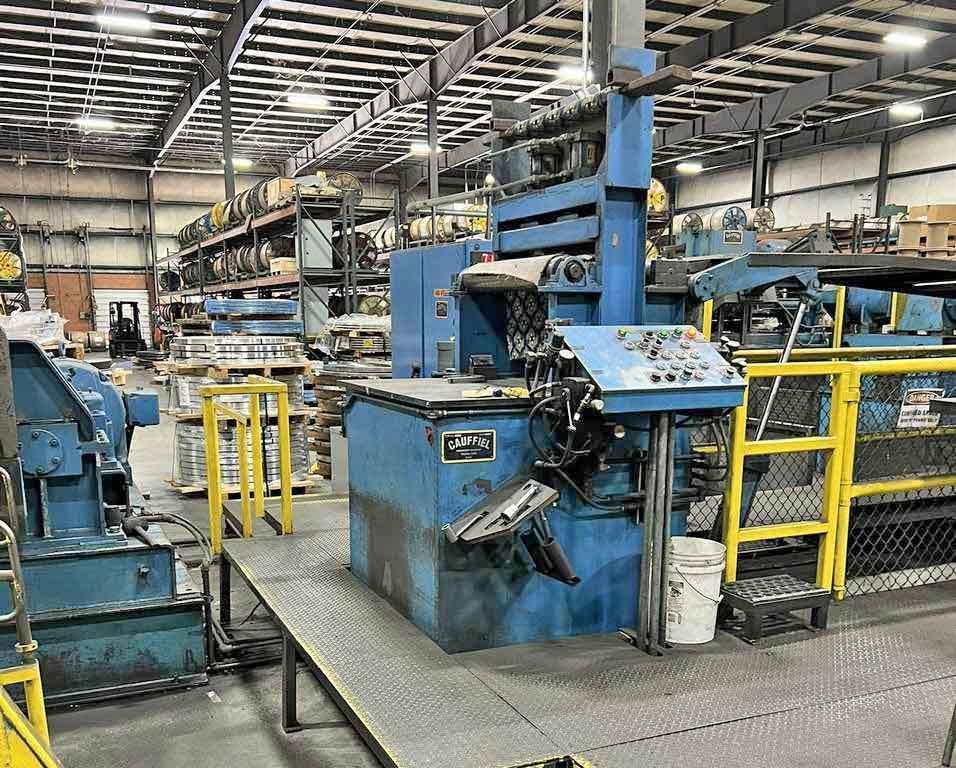

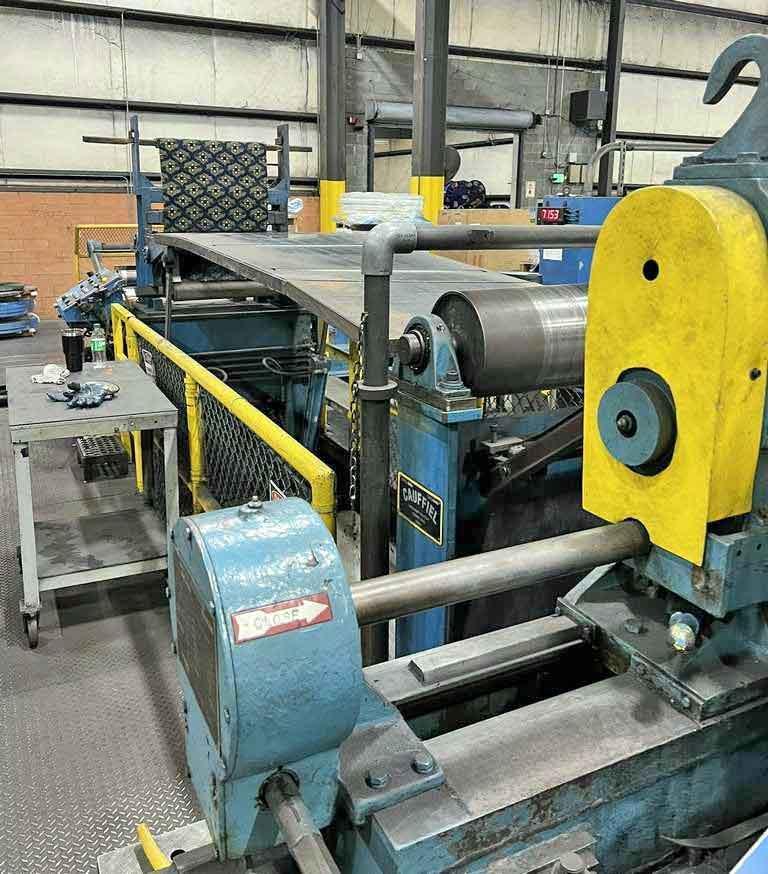

-Tension Stand: Cauffiel
  Air Cylinder Pad Tension Operation
  Entry and Exit Separator Bars
  Overall Size: 72" L x 58" W x 108" High

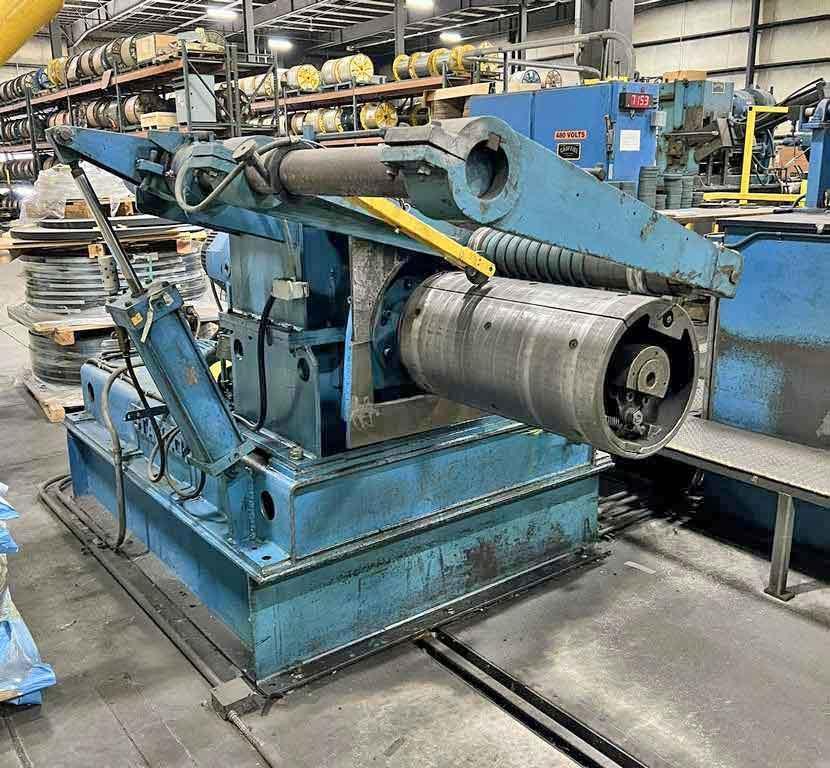

-Recoiler: Stamco
  16" Diameter x 31" Face Drum
  Manual Grip and Expand
  Overarm Separator

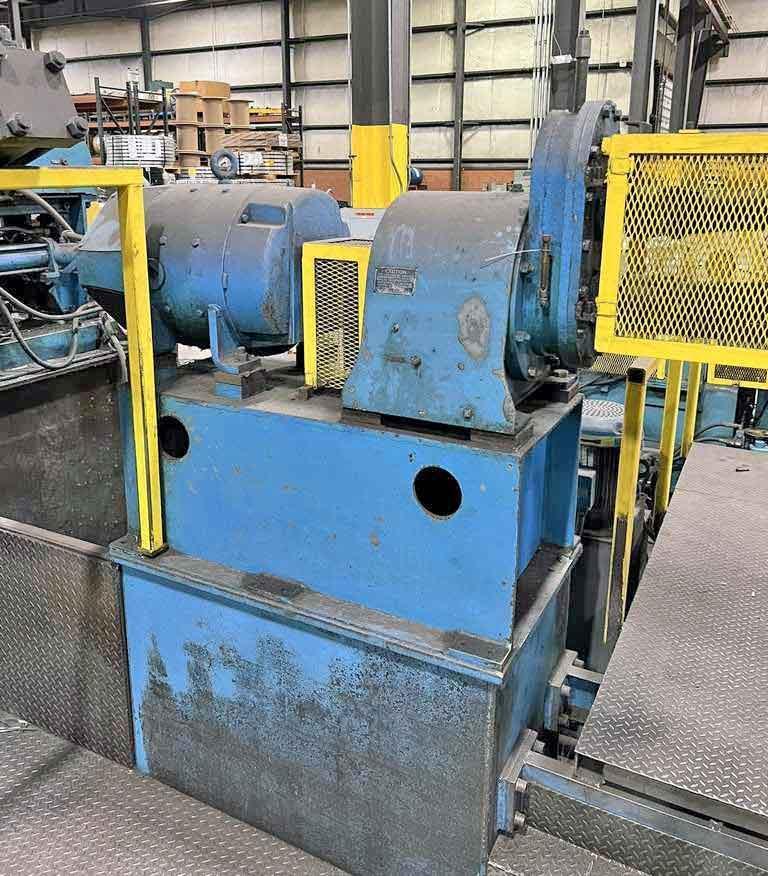

  25 HP GE DC Motor, 400/2400 RPM, 240 V
  2 Speed Reducer
  60" O.D. Capacity
  Overall Size: 152" L x 81" W x 68" High

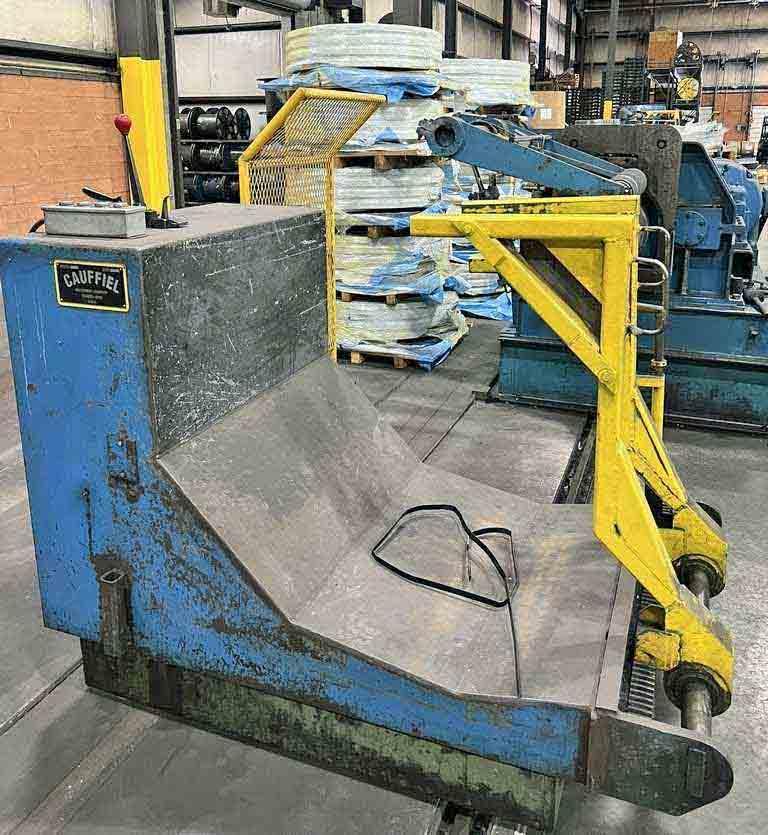

-Exit Coil Car:
  Hydraulic Lift and Travel
  40" Wide Bed
  9" from Floor to bottom of "V" Cradle
  Self-Contained Hydraulic Unit
  Coil Keeper Bars
  Overall Size: 76" L x 46" W x 52" High

-Slitter Tooling:

-Removed and in storage
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
