72" (1800mm) x .500" (12.7mm) x 60,000# Stamco Slitting Line with 2 Heads
Brand
Category
Model
Not specified
Stock #
102069A
Year
Not specified
Condition
Used
Location
Not specified
| Width | 72 inches |
| Thickness | .5 inches |
| Coil Weight | 60000 pounds |
| Arbor Size | 11 inches |
|
Strip Width: 20"-72" (508mm-1800mm)
Strip Thickness: .075"-.500" (1.9mm-12.7mm)
Coil ID: 20"-30" on entry, 24" on Exit (508mm-762mm on entry) (610mm on Exit)
Coil OD: 36"-80" (914mm-2032mm)
Max Coil Weight: 60,000#
Line Speed: 150 FPM (50 MPM)
4 Cuts of .375" at 80,000PSI
4 Cuts of .500" at 50,000PSI
Line Direction: Left to Right
Complete Line with the Following Components:
Entry Pit Type Coil Car
Coil Saddle

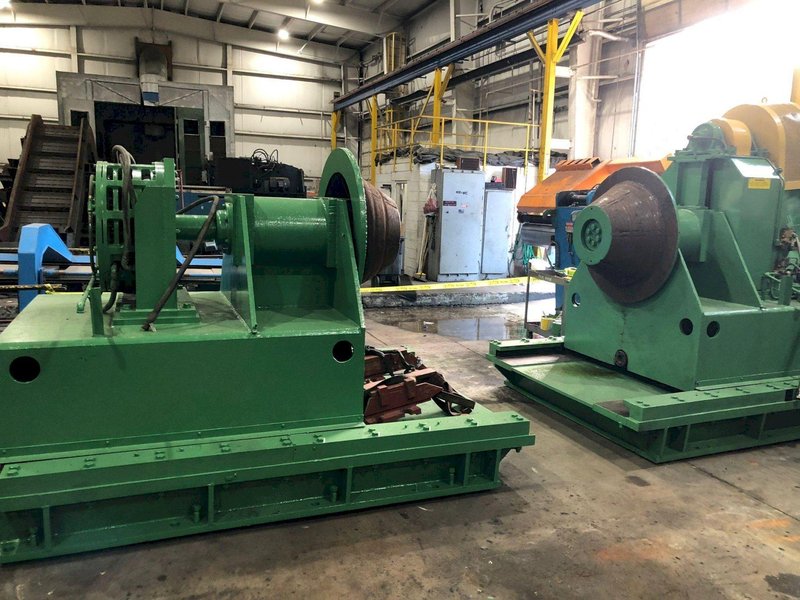

Double Cone Uncoiler
Peeler and Hold Down Roll
Entry Edge Guides
Automatic Edge Controller
Pinch Rolls
Three Roll Flattener
Entry Crop Shear
Edge Guides Pinch Rolls

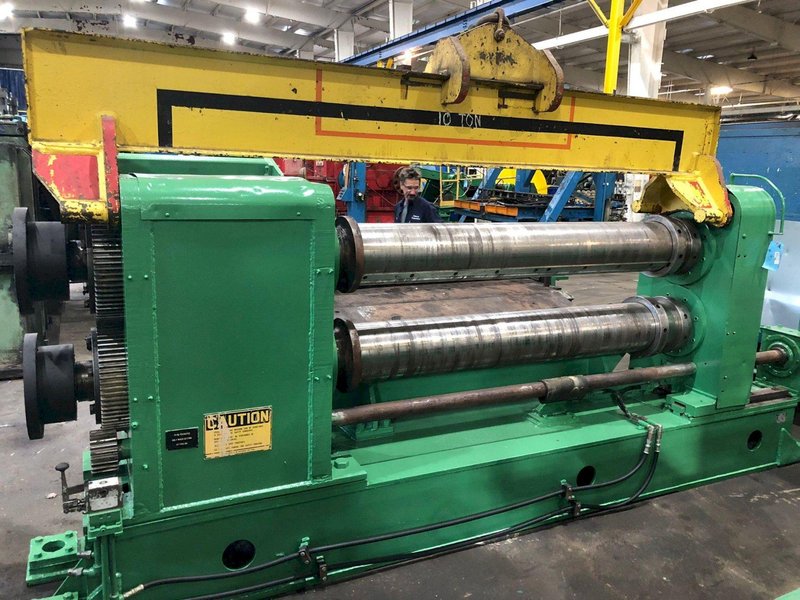

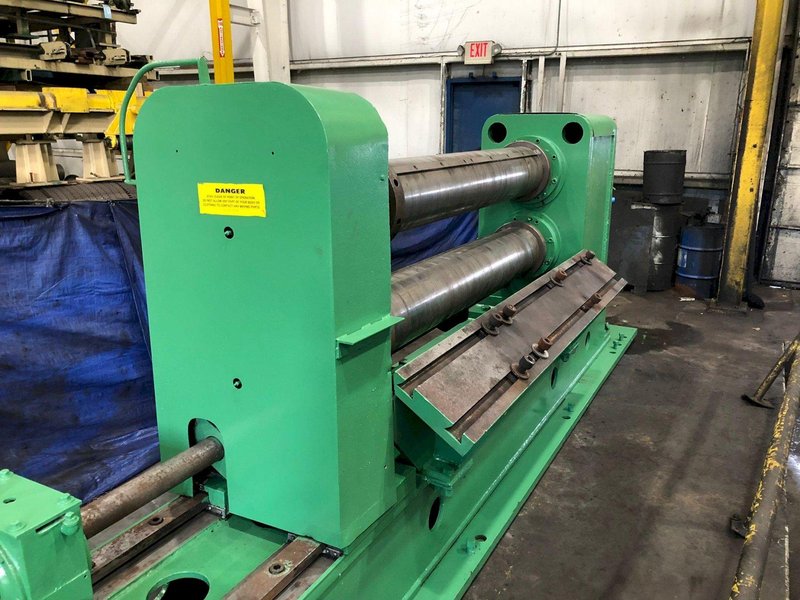

Two Slitting Heads
Two Scrap Choppers
Goose Neck Conveyor
Carry Over Table

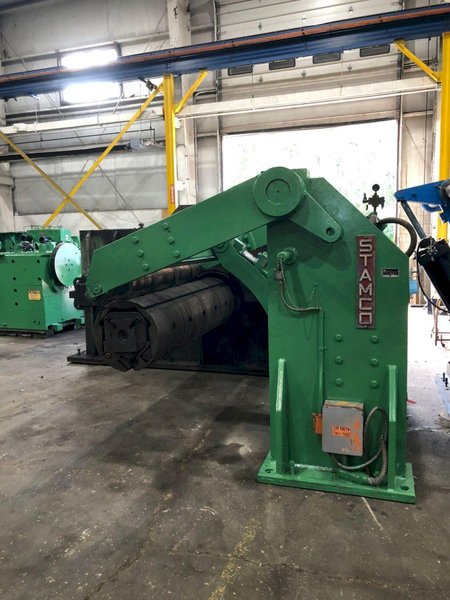

Recoiler with Overarm Separator
Exit L-Type Coil Car
Knives, Rubbers, and Tooling,
Allen Bradley Digital Drives
|
|
