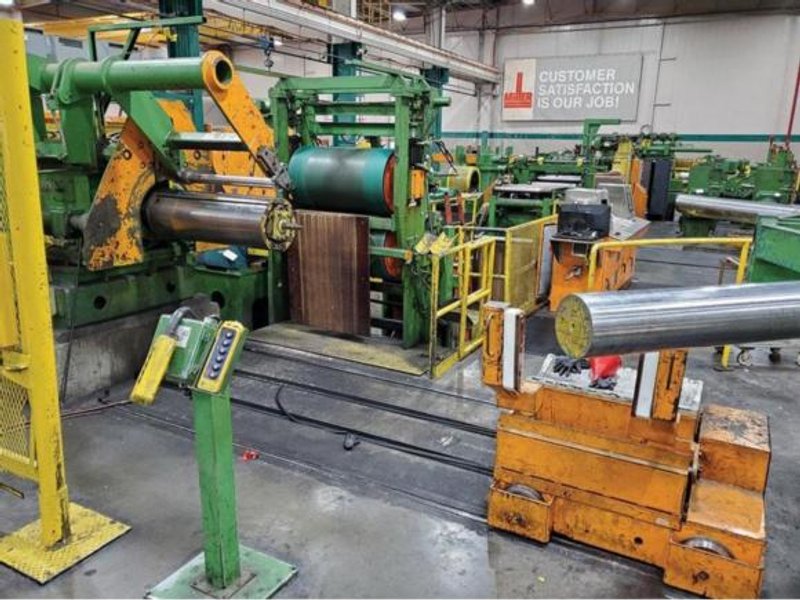

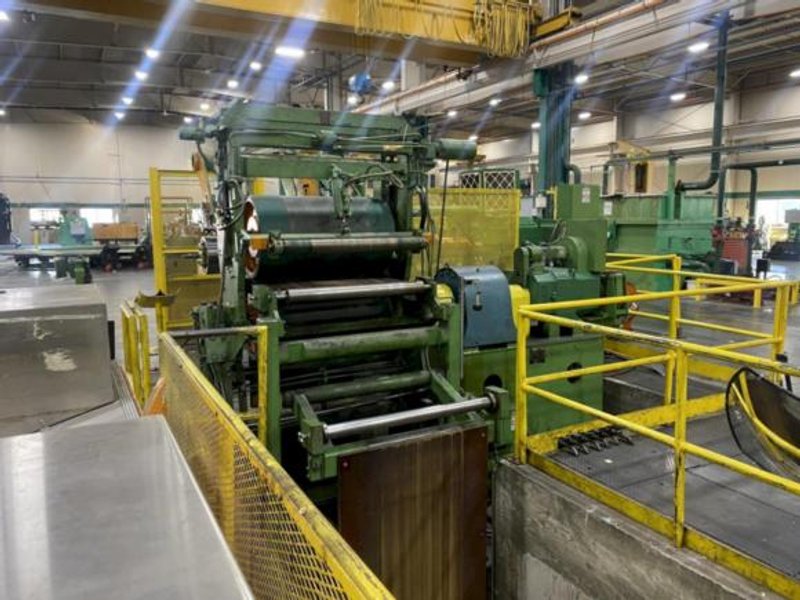

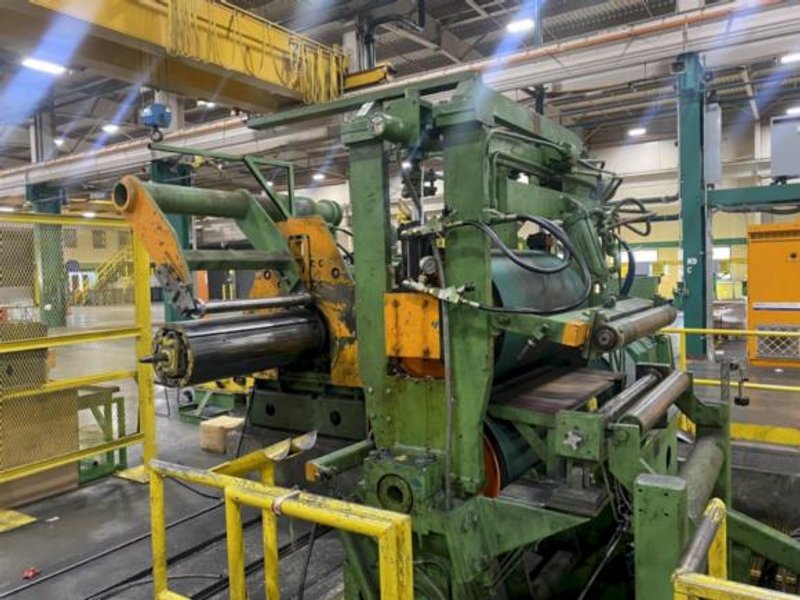

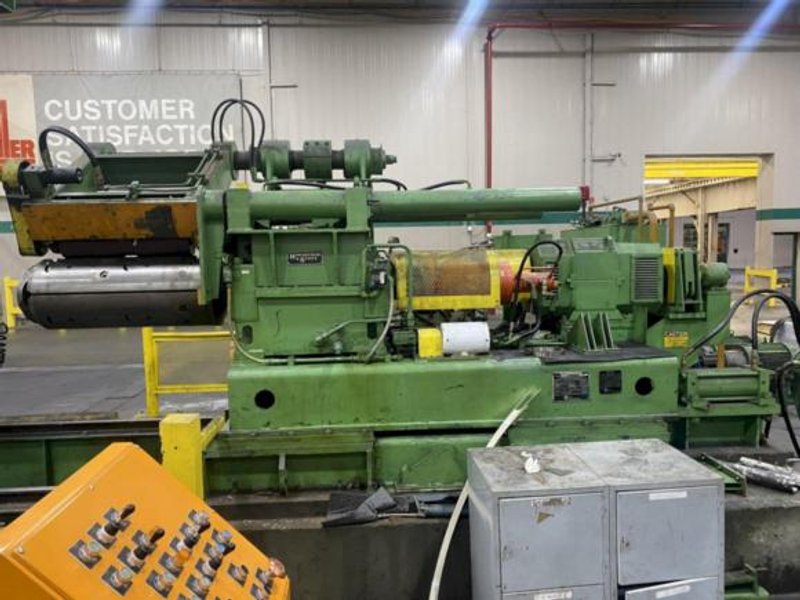

30" X 0.188" X 15,000 STAMCO INJECTOR HEAD SLITTING LINE

MANUFACTURER - STAMCO
COIL WIDTH - 7" - 30" (32" UNTRIMMED)
COIL WEIGHT - 15,000 LBS
ARBOR SIZE - 6.5"
COIL OD - 54" ENTRY/EXIT
SLITTING LINE GAUGE RANGE - 0.010" - 0.188"
BUTECH CHOPPER GAUGE RANGE - 0.070" - 0.150"
LINE SPEED - 1500 FPM
LINE DIRECTION - RIGHT HAND (EXCEPT FOR UNCOILER LEFT HAND)
ENTRY ID - 16"-20"
Exit ID - 12" & 20"

Entry Four Arm Turnstile

Entry L-Type Coil Car

Pro Eco Mandrel Uncoiler with Sliding Base & DC Drag Generator For Dynamic

Braking

Hold Down Roll Peeler

Crop Shear

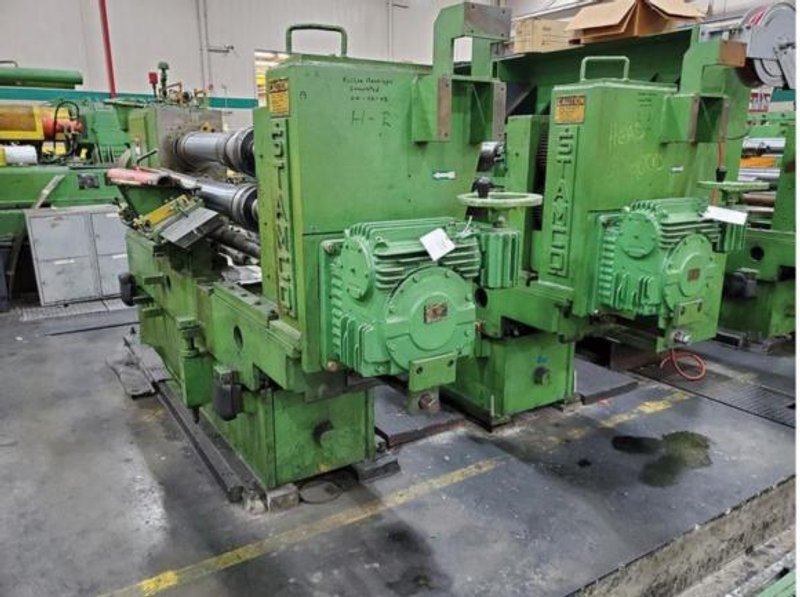

Two Injector Slitting Heads, 6.5" Arbor 100 HP DC Drive

Butech Rotary Scrap Choppers with Scrap Conveyor- 50 HP DC Drive (1999)
Goose Neck Conveyor

Shuttle Car for Slitter Head Extraction

Pit Cross Over Table
Looping Pit

Rotary Bridle Tension Stand

Recoiler, With 2 Interchangeable Drums
200 HP DC Drive
Overarm Separator
Exit Coil Car
8 Arm Exit Turnstile

Full Complement of Tooling, Knives, and Rubbers
