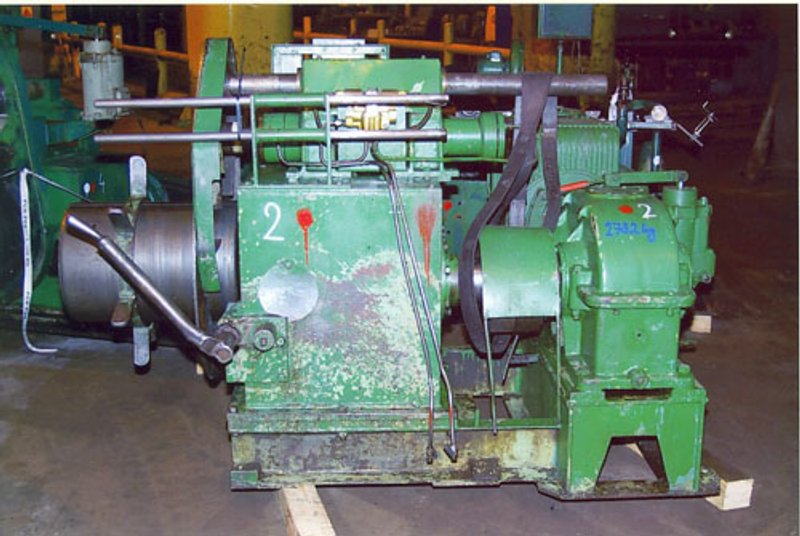

17-1/2" X 2-1/2" X 2200 LBS. KZ SLITTING LINE

Previously used for Stainless Steel

Strip Width: 8-320mm
Thickness: 0.20 -3.0mm
Number of Cuts: 17
Cutting Speed: 240M/Min
Max. Distance between Housing: 500mm
Arbor Diam.x Width: 80mm x 380mm
Slitting Knife Diam.: 170mm

With:
Decoiler
Mandrel Diam.: 450mm
Mandrel Width: 500mm
Coil Weight: 1000KG

CAP.- .118 (3mm) THICK
17-1/2" WIDE
ARBOR- 2-1/2" DIA x 1-1/2" WIDE
UNCOILER - 14" FACE x 14" DIA.
RECOILER - 18" FACE x 15" DIA.

SLITTER: 3 KW/DC RECOILER - 31 KW DC/440V

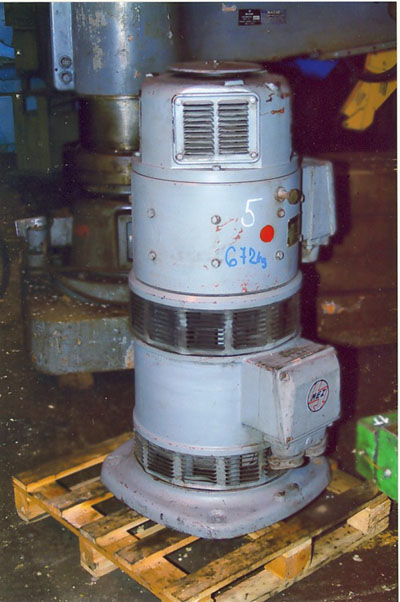

D.C. GENERATOR - 31 KW 460V 1480 RPM
HYD. PUMP

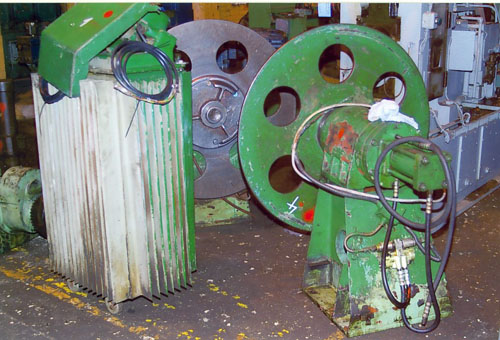

STUB MANDREL UNCOILER/w BASE & COIL LIFTER

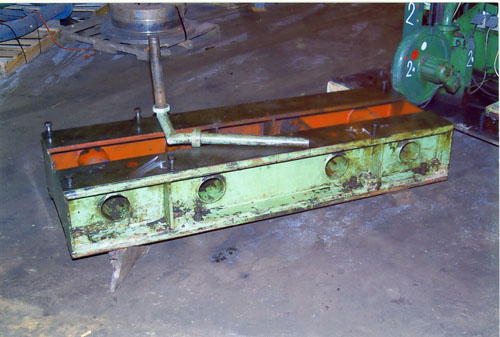

3 ARM TURNSTYLE - TOOLING
RECOILER - SCRAP WINDER

GEAR DRIVE
HYD. OPEN/CLOSE ON UNCOILER
RECOILER WITH HYD. PUSH OFF

OVERALL DIMENSIONS:

80" x 80" x 58" H MAIN w/MOTOR
40" x 25" x 34" H SCRAP WINDER
74" x 74" x 58" H RECOILER
24" x 48" H D.C. GENERATOR

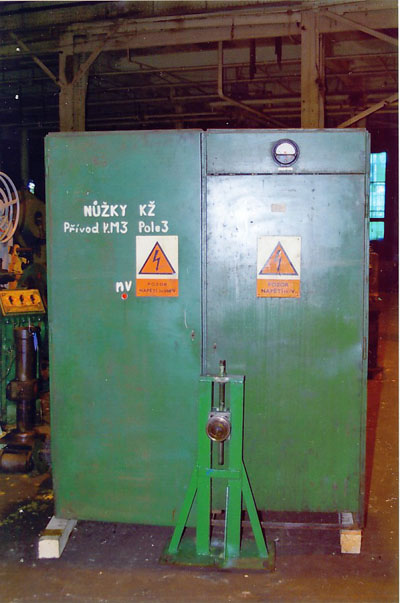

48" x 20" x 6'4" H ELECTRIC PANEL
90" L x 44" W x 52" H UNCOILER
