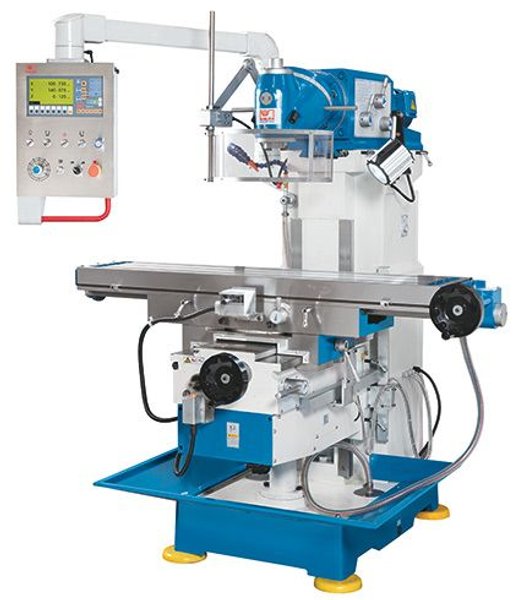

KNUTH MODEL UWF 1.2 UNIVERSAL MILLING MACHINE

Name: New KNUTH UWF 1.2 For Sale 16328
Brand: KNUTH
SKU: 16328
Availability: PreOrder

Brand

KNUTH

Not specified

Vertical Milling Head
Speed range	(11) 45 - 1,660 rpm
Spindle mount	DIN 2080 / ISO 40
Throat	6 - 22 in
Vertical spindle-to-table surface distance	3.94 - 19.69 in
Milling head swivel range	360 deg

Rapid Feed
Rapid feed X-/ Y-axis	53 in/min
Rapid Feed Z-axis	39.37 in/min

Drive Capacity
Motor rating main drive	4 Hp

Measures and Weights
Overall dimensions (length x width x height)	73x70x67 in
Weight	3,850 lbs

Part No.	362694

Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Large rectangular guideways ensure precision and quiet operation within permissible high loads
Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
By combining both swivel levels, almost any angle can be set

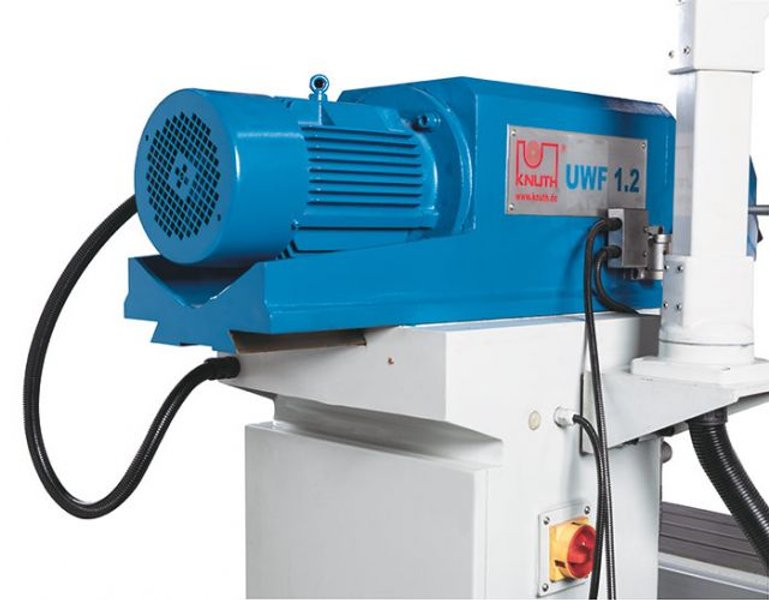

Outer arbor support for horizontal milling, mounts to cutter head

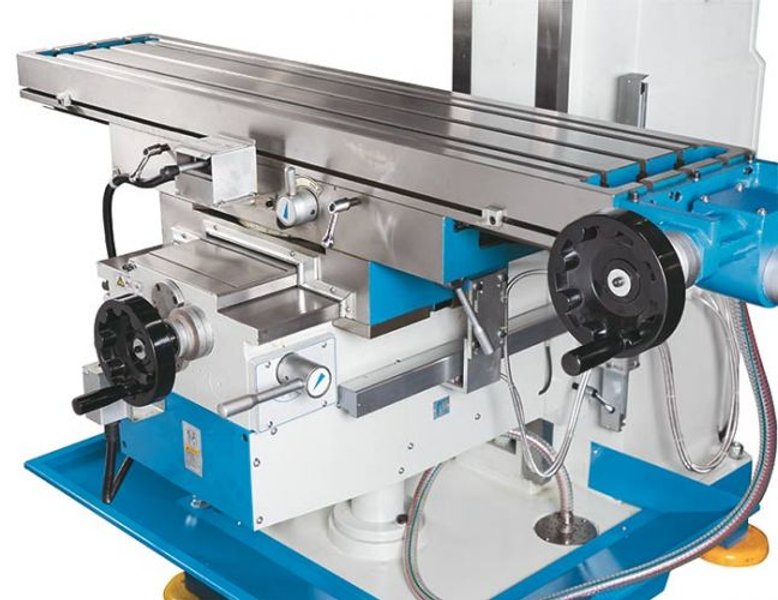

The milling table features a large setup area and can be rotated in linear direction
Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
Quiet, precision-made headstock gears with hardened and ground gears
Powerful servo-motor for infinite variation of feeds in all 3 axes
Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
Control panel swivels for comfortable operation
Coolant system and chip tray are included
