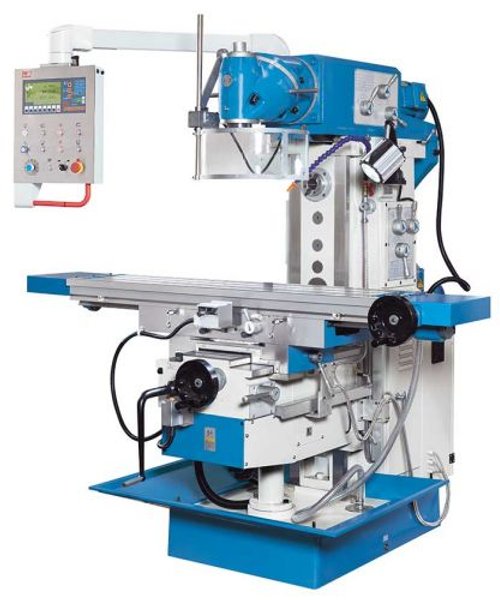

Working AreaTable set up area | 54x13 in | Table load capacity (max.) | 660 lbs | Number of T-slots | 3 positions | T-slot (width x spacing) | 0.55x3.15 in | Milling table swivel range | 45 deg | TravelsTravel X-axis | 39.4 in | Travel Y-axis | 14 in | Travel Z-axis | 16 in | Vertical Milling HeadSpeed range | (11) 45 - 1,660 rpm | Spindle mount | DIN 2080 / ISO 40 | Throat | 12 - 30 in | Vertical spindle-to-table surface distance | 10.24 - 25.98 in | Milling head swivel range | 360 deg | Rapid FeedRapid feed X-/ Y-axis | 53 in/min | Rapid Feed Z-axis | 39.37 in/min | Horizontal Milling SpindleSpindle speed (horizontal) | (12) 35 - 1,500 rpm | Spindle mount | ISO 40 | Horizontal spindle-to-table surface distance | 3 - 19 in | FeedFeed speed X-axis | (9) 1 - 33 in/min | Feed speed Y-axis | (9) 1 - 33 in/min | Feed speed Z-axis | 1 - 25 in/min | Drive CapacityMotor rating main drive | 4 Hp | Measures and WeightsOverall dimensions (length x width x height) | 75x69x79 in | Weight | 4,290 lbs |
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Large rectangular guideways ensure precision and quiet operation within permissible high loads
- Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
- The milling table features a large setup area and can be rotated in linear direction
- Quiet, precision-made headstock gears with hardened and ground gears

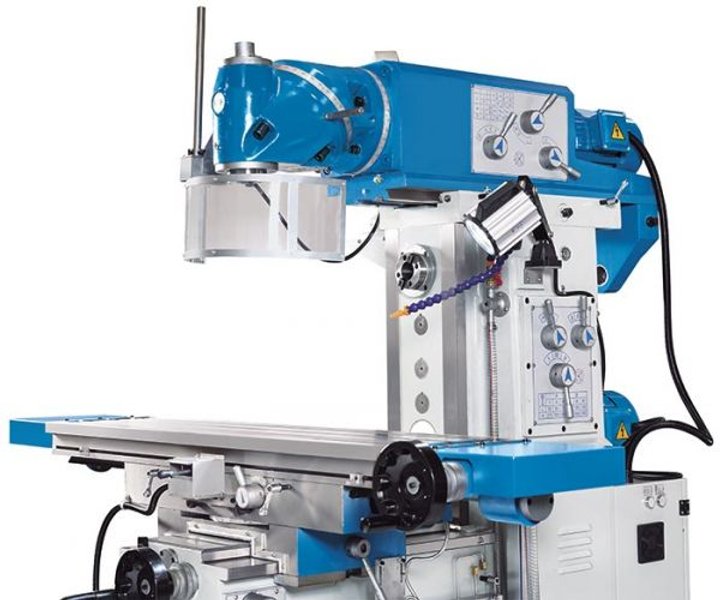

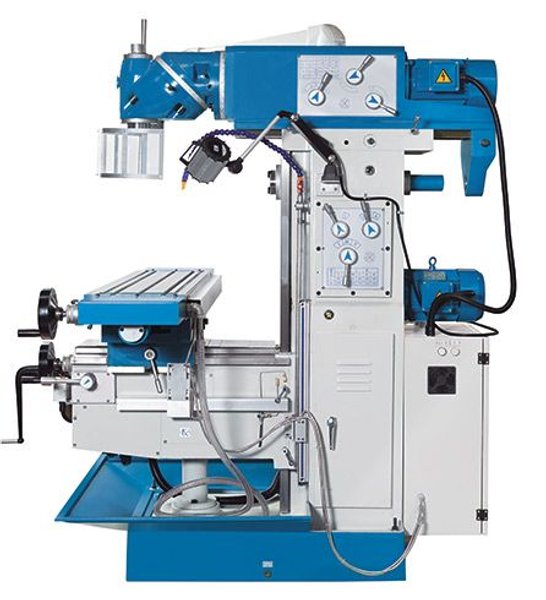

- Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
- By combining both swivel levels, almost
any angle can be set
- Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
- Powerful servo-motor for infinite variation of feeds in all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
- Control panel swivels for comfortable operation
- Coolant system and chip tray are included
- chip tray
- coolant system
- central lubrication
- 3-axis position indicator
- M16 draw bar
- outer arbor support for horizontal milling
- LED work lamp
- operating tools
- operator instructions
|
