Working AreaTable set up area | 44x10 in | Table load capacity (max.) | 550 lbs | Number of T-slots | 3 positions | T-slot (width x spacing) | 0.55x2.48 in | X axis travel | 24 in | Y axis travel | 9 in | Z axis travel | 15 in | Vertical Milling HeadSpeed range | 45 - 1,660 rpm | Spindle mount | DIN 2080 / ISO 40 | Throat | 2 - 20 in | Vertical spindle-to-table surface distance | 3.94 - 18.9 in | Milling head swivel range | 360 deg | Rapid FeedRapid Feed Z-axis | 16.61 in/min | FeedFeed speed X-axis | (9) 1 - 16 in/min | Feed speed Y-axis | (9) 1 - 16 in/min | Drive CapacityMotor rating main drive | 3 Hp | Measures and WeightsOverall dimensions (length x width x height) | 66x60x69 in | Weight | 3,256 lbs |
- Heavy machine frame with wide, adjustable dovetail guides in all axes

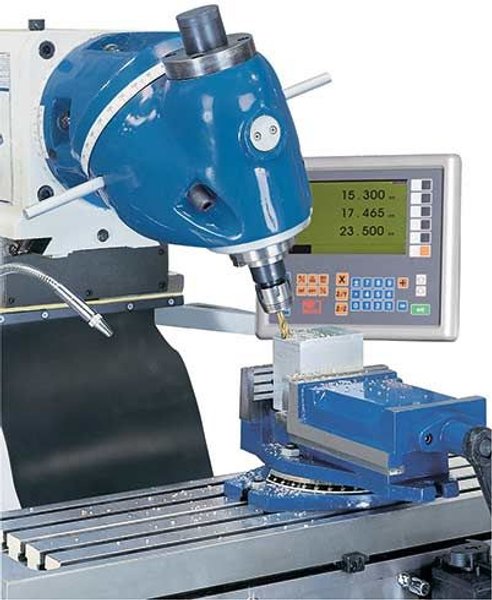

- Rigid universal cutter head, can be moved to virtually any spatial angle on two levels
- Automatic table feed on X and Y axes, including rapid feed
- Motorized height adjustment in Z direction
- 3-axis position indicator
- outer arbor support for horizontal milling
- milling chuck with collets 0.61",0.2",0.24",0.31",0.39",0.47",0.55",0.63"
- long cutter arbor ¯ 1.25"
- coolant system
- LED work lamp
- operator manual
|
