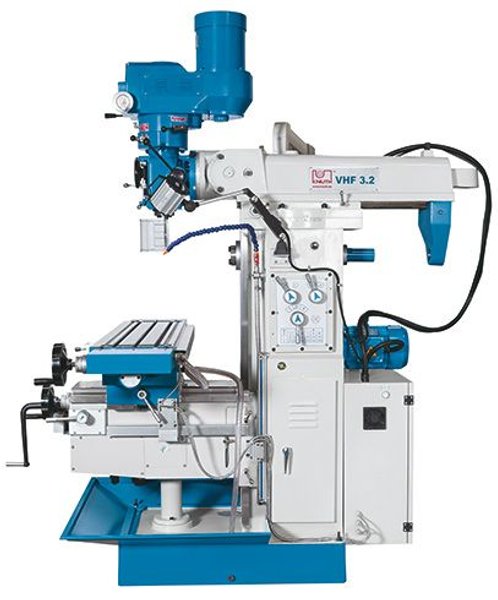

Working AreaTable set up area | 54x13 in | Table load capacity (max.) | 660 lbs | Number of T-slots | 3 positions | T-slot (width x spacing) | 0.55x3.15 in | Milling table swivel range | 45 deg | TravelsTravel X-axis | 39.4 in | Travel Y-axis | 14 in | Travel Z-axis | 16 in | Vertical Milling HeadSpeed range | 50 - 3,750 rpm | Spindle mount | ISO 40 | Throat | 7 - 34 in | Vertical spindle-to-table surface distance | 6.3 - 22.05 in | Milling head swivel range | 90 deg | Cutter head tilt angle | 45 deg | Rapid FeedRapid feed X-/ Y-axis | 53 in/min | Rapid Feed Z-axis | 39.37 in/min | Horizontal milling headaSpindle speeds | (12) 35 - 1,500 rpm | Spindle mount | ISO 40 | Horizontal spindle-to-table surface distance | 3 - 19 in | FeedFeed speed X-axis | (8) 1 - 33 in/min | Feed speed Y-axis | (8) 1 - 33 in/min | Feed speed Z-axis | (8) 1 - 25 in/min | Drive CapacityMain drive motor rating (vertical) | 5 Hp | Main drive motor rating (horizontal) | 4 Hp | Measures and WeightsOverall dimensions (length x width x height) | 75x69x93 in | Weight | 4,290 lbs |
- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Quiet, precision-made headstock gears with hardened and ground gears

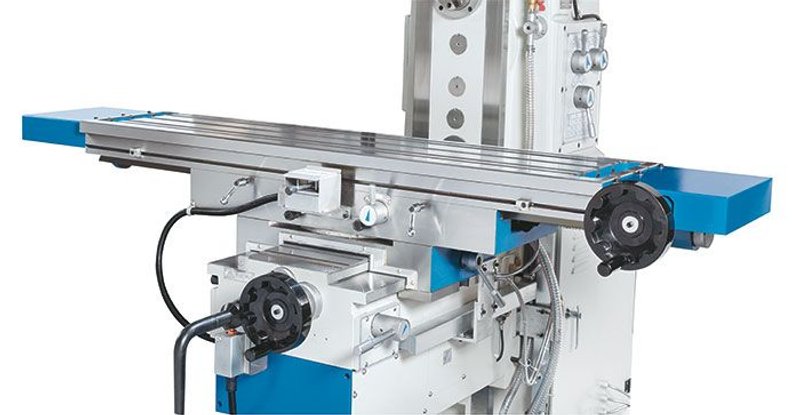

- The milling table features a large setup area and can be rotated in linear direction
- The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually
- For angular bores, the vertical cutter head swivels in two directions: r + l ±90¡; tilt fwd + rev ±45¡
- Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque
- Vertical and horizontal spindle each have their separate drive
- Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
- Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
- Minimum downtime due to rapid positioning of work table and rapid feeds in all axes

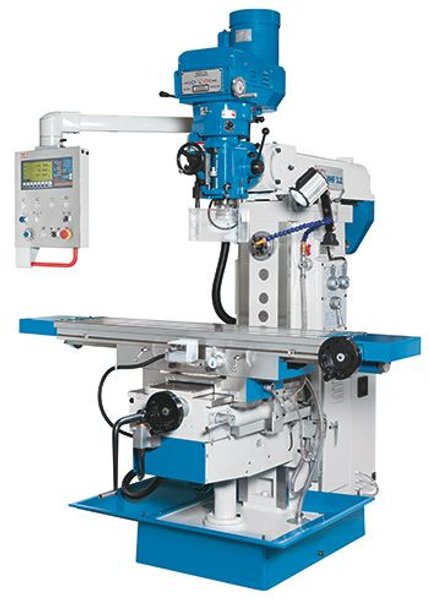

- Control panel swivels for comfortable operation
- Coolant system and chip tray are included
- chip tray
- coolant system
- central lubrication
- 3-axis position indicator
- operator instructions
- M16 draw bar
- operating tools
- cutter arbor ¯ 1"
|
