Working AreaTable dimensions | 52x14 in | Table load capacity (max.) | 1,100 lbs | Number of T-slots | 3 positions | T-slot (width x spacing) | 0.71x3.15 in | TravelsTravel X-axis | 29.5 in | Travel Y-axis | 11 in | Travel Z-axis | 15 in | Milling HeadSpeed range | (12) 60 - 1,750 rpm | Spindle mount | ISO 50 | Swivel angle | 360¡ | Upper beam travel | 22 in | Spindle center-to-table distance | 7 - 22 in | Rapid FeedRapid Feed X-axis | 47.24 in/min | Rapid Feed Y-axis | 31.5 in/min | Rapid Feed Z-axis | 23.62 in/min | Horizontal Milling SpindleSpindle speed (horizontal) | (12) 60 - 1,800 rpm | Spindle mount | ISO 50 | Throat | 15 - 37 in | FeedFeed speed X-axis | 1.1811 - 29.5275 in/min | Feed speed Y-axis | 1 - 20 in/min | Feed speed Z-axis | 0.5906 - 14.7638 in/min | Drive CapacityMotor rating horizontal spindle | 7.4 Hp | Motor rating vertical spindle | 5.4 Hp | Motor rating X axis feed | 2 Hp | Motor rating Y axis feed | 2 Hp | Motor rating Z axis feed | 2 Hp | Motor rating coolant pump | 0.1 Hp | Measures and WeightsOverall dimensions (length x width x height) | 71x83x79 in | Weight | 6,347 lbs |

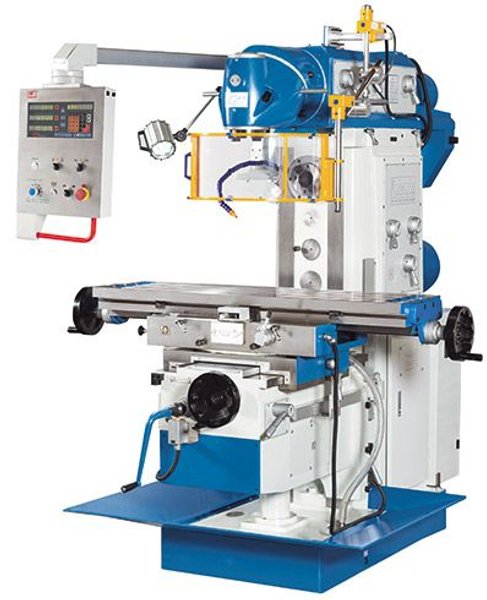

- Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
- Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
- Large work area of 52 x 14 inch
and up to 1102 lb table load capacity
- Quiet, precision-made headstock gears with hardened and ground gears

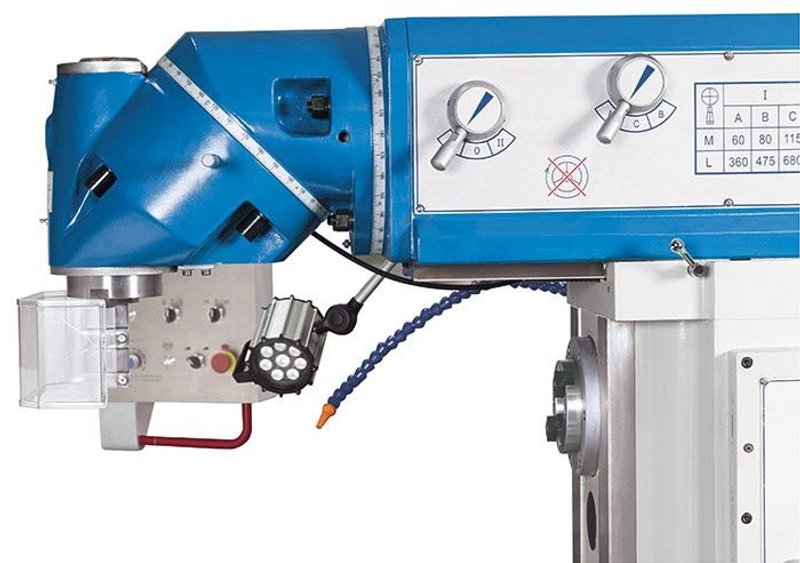

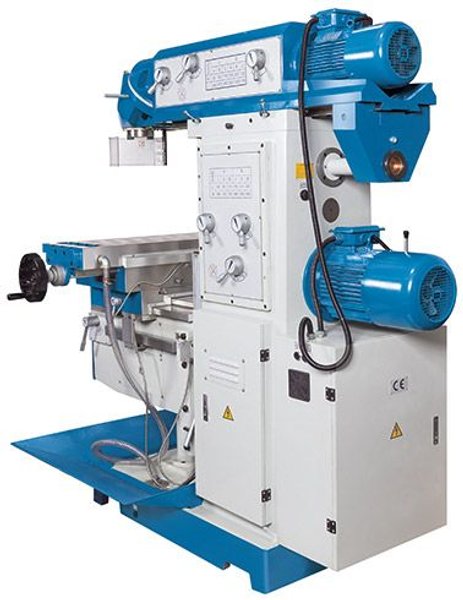

- Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
- By combining both swivel levels, almost
any angle can be set
- Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
- Telescoping covers on the Y axis protect the feed spindle
- Control panel swings out to either side and features an integrated position indicator
- 7 HP main drive guarantees high torque
- Coolant system and chip tray are included
3-axis position indicator - More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- 3-axis position indicator
- reducing sleeve ISO 50 / MT4
- milling arbors (1 in, 1.23 in)
- outer arbor support for horizontal milling
- ISO 50 collet chucks incl. collets up to 0.6 inch (8 pieces)
- coolant system
- work lamp
- chip tray
- draw bar
- operating tools
- operator instructions
|
