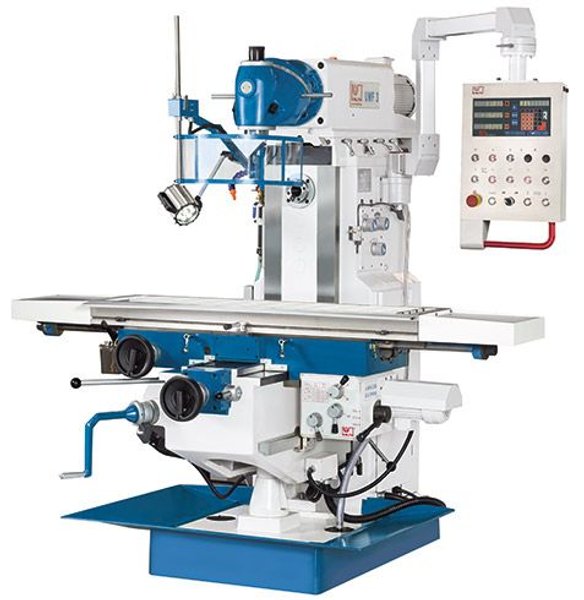

KNUTH UWF 3 UNIVERSAL MILLING MACHINE

Brand
KNUTH
Category
Milling Machines
Type
Millers, Universal
Model
UWF 3
Stock #
16283
Year
Not specified
Condition
New

Location

Not specified
REQUEST FINANCING

Working Area
Table set up area52x13 in
Table load capacity (max.)572 lbs
Number of T-slots5 positions
T-slots, width0.6 in
T-slots, spacing2.5 in
Travels
Travel X-axis39.4 in
Travel Y-axis10 in
Travel Z-axis18 in
Horizontal spindle
Spindle speed (horizontal)(12) 40 - 1,300 rpm
Spindle mountISO 40
Horizontal spindle-to-table surface distance1 - 19 in
Vertical Milling Head
Spindle speed (vertical)(11) 45 - 1,660 rpm
Spindle mountISO 40
Throat8 - 30 in
Spindle nose-to-table surface distance8 - 26 in
Milling head swivel range360 deg
Rapid Feed
Rapid Feed X-axis47.24 in/min
Rapid Feed Y-axis47.24 in/min
Rapid Feed Z-axis15.75 in/min
Feed
Feed speed X-axis(8) 1 - 14 in/min
Feed speed Y-axis(8) 1 - 14 in/min
Drive Capacity

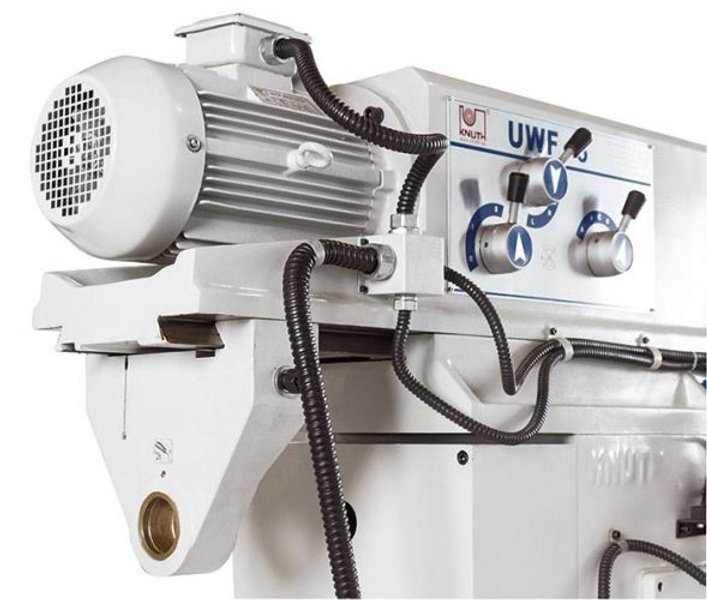

Motor rating horizontal spindle4 Hp
Motor rating vertical spindle4 Hp
Motor rating X-axis0.7 Hp
Motor rating Y0.7 Hp
Motor rating coolant pump0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)79.527x67.323x78.346 in
Weight4,400 lbs
Part No. 370297

  • Sturdy, zero-backlash rectangular guideways

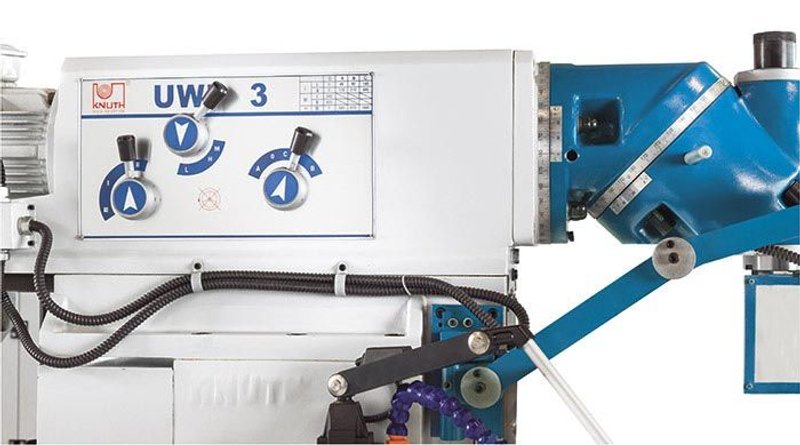

  • Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
  • Rapid feeds on all axes allow quick positioning
  • Control panel swivels for comfortable operation
  • Separate drives with gearbox for powerful material removal
  • Large machine table with one 39" X travel

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

  • 3-axis position indicator
  • central lubrication
  • coolant system
  • work lamp
  • collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)
  • horizontal arbor ¯ 1" and ¯ 1.5"
  • outer arbor support for horizontal milling
  • short milling arbor 1.25"
  • operating tools
  • operator manual
