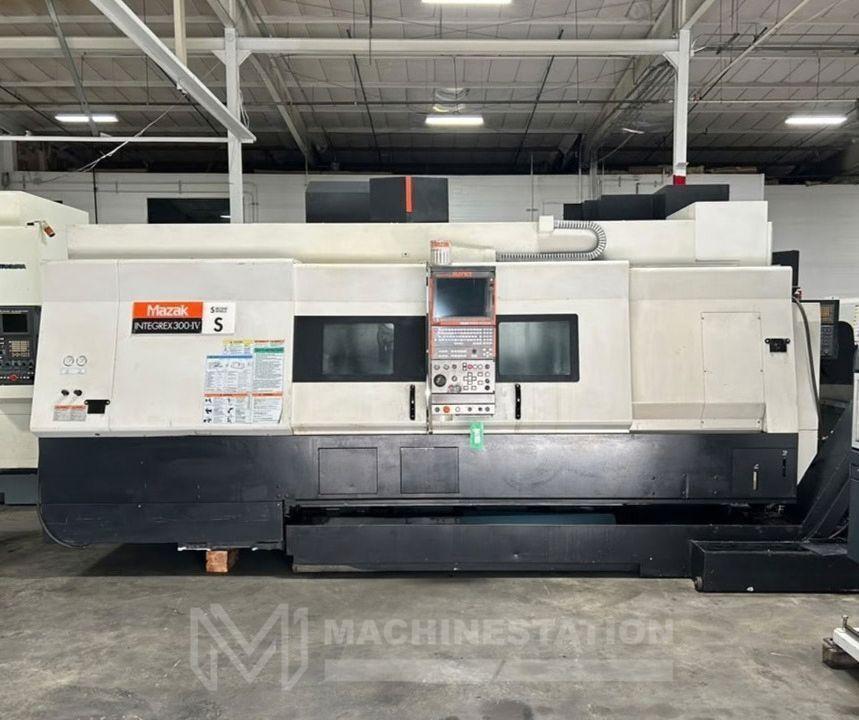

Mazak Integrex 300-IV S Multi Axis CNC Lathe – Sub Spindle, Y Axis, Milling Head, Long Bed

Mazak Integrex 300-IV S Multi Axis CNC Lathe – Sub Spindle, Y Axis, Milling Head, Long Bed

Name: Mazak Integrex 300-IV S Multi Axis CNC Lathe – Sub Spindle, Y Axis, Milling Head, Long Bed
Brand: MAZAK
SKU: 113669
Availability: InStock

Brand

MAZAK

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	MAZAK
Model:	INTEGREX 300-IVS
Year:	2008

Equipped With:
Mazatrol Matrix CNC Control
12,000 RPM Pendulum Milling Head
40-Station Tool Magazine
Sub Spindle
Y Axis Capability
Tool Presetter
Parts Catcher
10″ 3-Jaw Chuck on Main Spindle
10″ Kitagawa 3-Jaw Chuck on Sub Spindle
Servo Controlled C-Axis on Both Spindles
USB LAN Options
EIA/ISO Programming
3D Coordinate Conversion
Rigid Tapping
PCMCIA Card Slot
High Pressure Coolant
Chiller Unit
Coolant Tank
Chip Conveyor
Foot Operated Control for Chuck
Levelling Pads

Capacity:
Max Turning Diameter: 30″
Max Turning Length: 60″
Max Bar Capacity: 3.1″
Swing Over Bed: 30.0″
Distance Between Centers: 60″

Travel:
X Axis Travel: 24.80″
Y Axis Travel: 9.06″ (+/- 4.53″)
Z Axis Travel: 62.40″
B Axis Travel: 225 Degree
C Axis: 360 Degree (0.001)
X Rapid Traverse Rate: 1,496 Inch Per Minute
Y Rapid Traverse Rate: 1,024 Inch Per Minute
Z Rapid Traverse Rate: 1,496 Inch Per Minute

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.46″
Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP

Sub Spindle:
Spindle Nose: A2-6
Spindle Speed: 4,000 RPM
Spindle Motor: 30 HP

Milling Head:
Single Station Pendulum Head with 40 ATC
Spindle Speed: 15-12,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

General:
Power Source: AC 400 V / Three Phase / 50/60 Hz
Power Requirement: 95.2 kVA
Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High
Weight: 27,940 lbs Approx.
