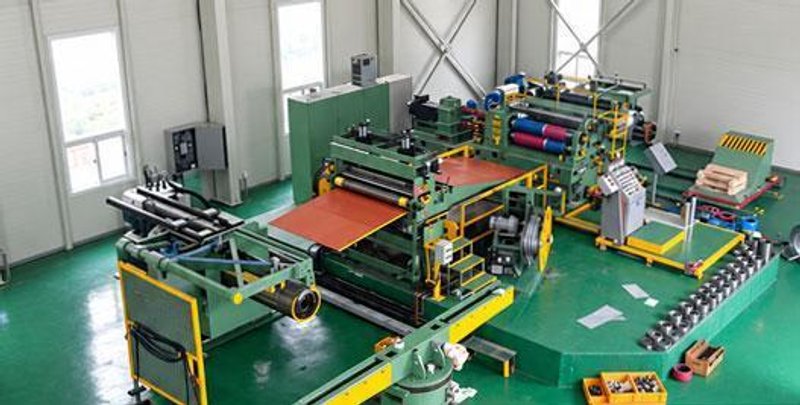

LOOPCO 1300mm X 15,000Kg SLITTING LINE (14731)

LOOPCO PULL THRU SLITTING LINE
Stock # 14731

MANUFACTURER:         LOOPCO USA
RAW MATERIAL:         COLD ROLLED STEEL
COIL THICKNESS:       MIN 0.3mm _ MAX 3.0mm
COIL WIDTH:           MAX 1,300mm UNTRIMMED
                      MAX 1,250mm TRIMMED
COIL WEIGHT:          15MT MAX
UNCOILER ID:          508mm
                      609mm
UNCOILER OD:          MIN 609mm - MAX 1,524mm
RECOILER ID:          508mm (610mm W/ATTACHMENT)
RECOILER OD:          MIN 609mm - MAX 1,524mm
RECOILER WEIGHT:      MAX 15,000Kg
LINE SPEED:           MAX 12m/min
SLITTING SYSTEM:      PULL & DRIVE CUTTING BY DC POWER
                      CONTROL
STANDARD OF
THREADING:            LINE CENTER
PASS LINE HEIGHT:     OP GL + 1,270mm
LINE DIRECTION:       RIGHT TO LEFT
                      (VIEW OF THE OPERATION SIDE)
MAIN CONTROL POWER:   AC 440 V, 60 Hz, 3PH
PLC PROGRAM:          SIEMENS
EPC PROGRAM:          PORA ELECTRIC MACHINERY

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS SUBJECT TO VERIFICATION**
