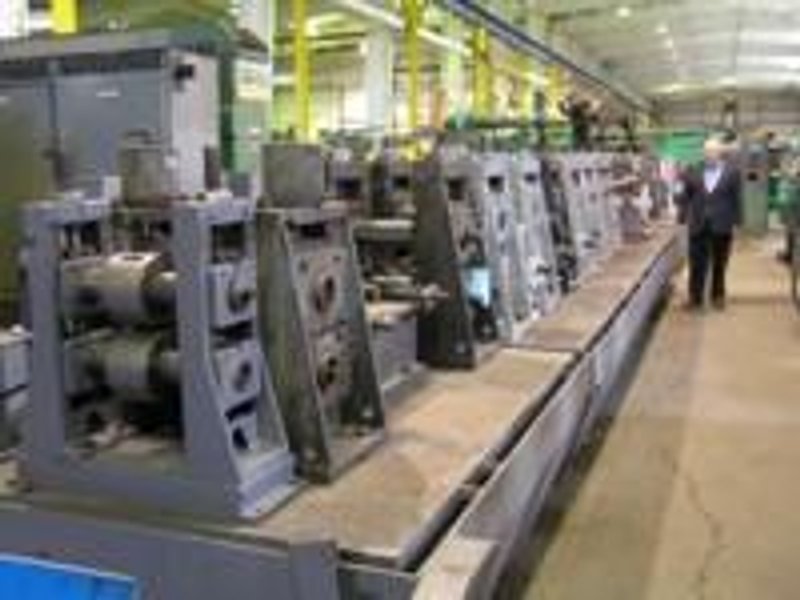

20 STAND X 4.5" ARBOR X 15" STRIP WIDTH TUREK & HELLER TUBE/PIPE MILL. STOCK # 0984626
Brand
Category
Type
Model
Not specified
Stock #
0984626
Year
Not specified
Condition
Used
Location
Ohio
|
ROUND TUBE/PIPE SIZES...................: 1" TO 4.5" OD
THICKNESS RANGE.........................: .125" TO .4" MAXIMUM STRIP WIDTH.....................: 15" MAXIMUM WEIGHT..........................: 20,000 LB COIL ID RANGE...........................: 20" - 24" MAXIMUM LINE SPEED......................: 100 FPM ENTRY SECTION: DOUBLE END UNCOILER WITH HYDRAULIC EXPANSION AND DRAG BRAKE HOLD DOWN ROLLS, TOP OR BOTTOM FEED UP DRIVE PEELER, TOP OR BOTTOM 7 ROLL FLATTENER WITH EDGE GUIDES AND ENTRY SIDE POWERED PINCH ROLLS FORMING SECTION: 4.5" DIAMETER HORIZONTAL SHAFTS (8) FORMING STANDS WITH ADUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE (3) SIDE IDLER ROLL STANDS WITH ADUSTMENT (3) FINN PASS STANDS WITH ADJUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE SIDE IDLER ROLL STANDS WITH ADJUSTMENT UNIVERSAL DRIVES FOR ALL ROLLS SIZING SECTION: 4.5" DIAMETER HORIZONTAL SHAFTS (3) SIZING STANDS WITH ADJUSTMENT, 75 HP INFINITELY VARIABLE SPEED DRIVE (3) SIDE IDLER ROLLS WITH ADJUSTMENT UNIVERSAL DRIVES FOR ALL ROLLS MAIN MOTOR WITH VARIABLE SPEED DRIVE, (3)-60 HP MOTORS (TOTAL 180 HP) ELECTRICAL CONTROL CUBICAL OPERATOR CONTROL CONSOLES |
