3/4” x 0.012” TUREK & HELLER WU-11-9 PRECISION STAINLESS STEEL TUBE MILL, NEW 2009

MANUFACTURER – TUREK & HELLER

MODEL – WU-11-9

TYPE – PRECISION SMALL DIAMETER TUBE MILL

WELDER –  SINGLE TORCH TIG TYPE

MATERIAL – STAINLESS STEEL

YEAR – 2009

MAXIMUM DIAMETER – 0.750”

CURRENTLY TOOLED FOR – 0.312”

WALL THICKNESS RANGE – 0.012”

MILL DIRECTION – RIGHT TO LEFT

LINE COMPONENTS:

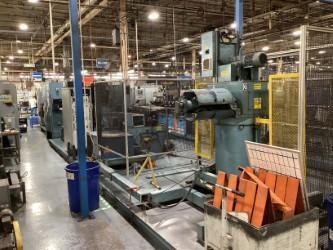

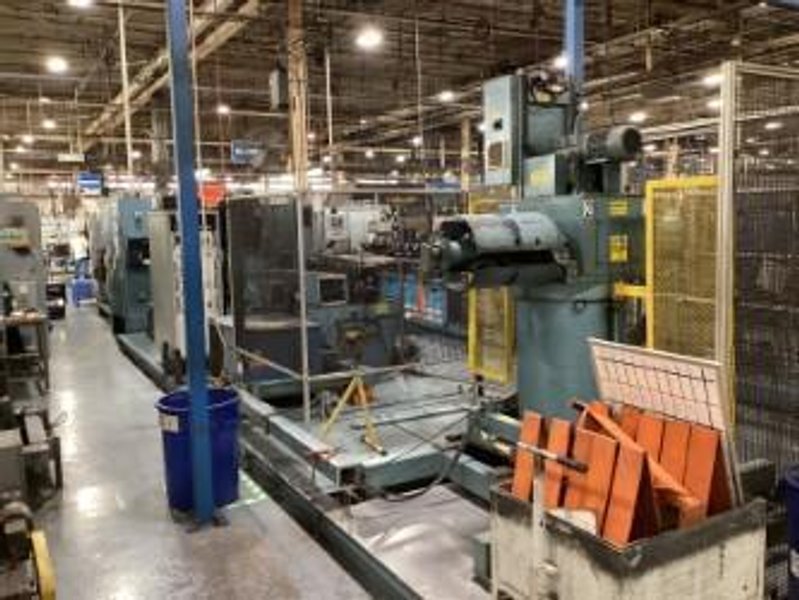

TUREK & HELLER DOUBLE END POWERED UNCOILER

WEIGHT PER SIDE – 1500 LBS

MAXIMUM WIDTH - 12”

MAXIMUM OD – 54”

ID RANGE – 14” – 20”

EXPANSION TYPE – MANUAL

SEGMENTS – 3

UNLOADING METHOD – CRANE

INCLUDES: COIL DEPLETION SENSOR & PNEUMATIC DRAG BRAKES

TUREK & HELLER SHEAR & END WELDER

STRIP WIDTH – 1”

GAUGE RANGE – 0.012”

SHEAR STRENGTH  - 65,000 PSI

POWER SUPPLY  - 110 V, 20 AMP

TYPE – TIG

WELD POWER SUPPLY – 225 AMP AC/DC POWERR SOURCE

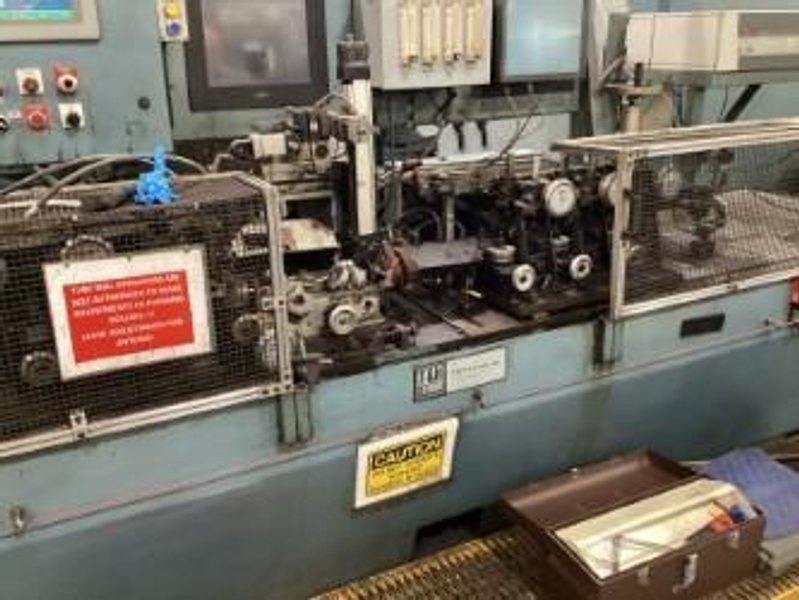

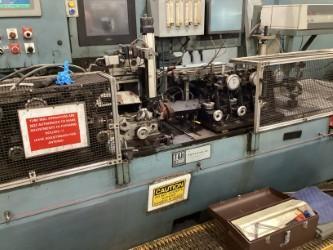

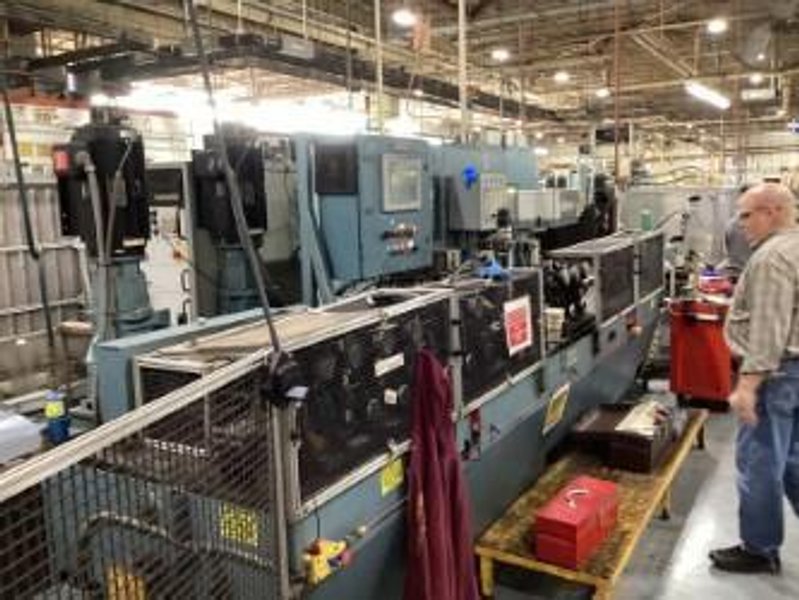

TUREK & HELLER WU11-9 TUBE MILL SYSTEM

MILL CONFIGURATION – (4) BREAKDOWN/FORMING STANDS, (3)FINISH STANDS, (3) SIZING STANDS

MAX TUBE DIAMETER – 0.750”

CURRENTLY TOOLED FOR – 0.312”

MAX WALL THICKNESS – 0.012”

DRIVEN SHAFT DIAMETER – 1.125”

BREAKDOWN SECTION ROLL SPACE – 3”

FIN SECTION ROLL SPACE – 3”

SIZING SECTION ROLL SPACE – 3”

NOMINAL ROLL ROOT DIAMETER – 2.5”

PASSLINE HEIGHT FROM FLOOR TO BOTTOM LINE OF TUBE MILL – 43”

MILL SPEED – 0-60/FPM

VOLTAGE  - 480 V, 3 PH

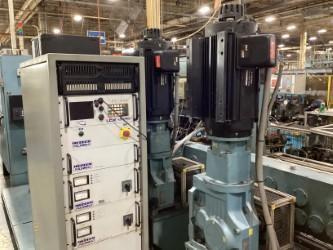

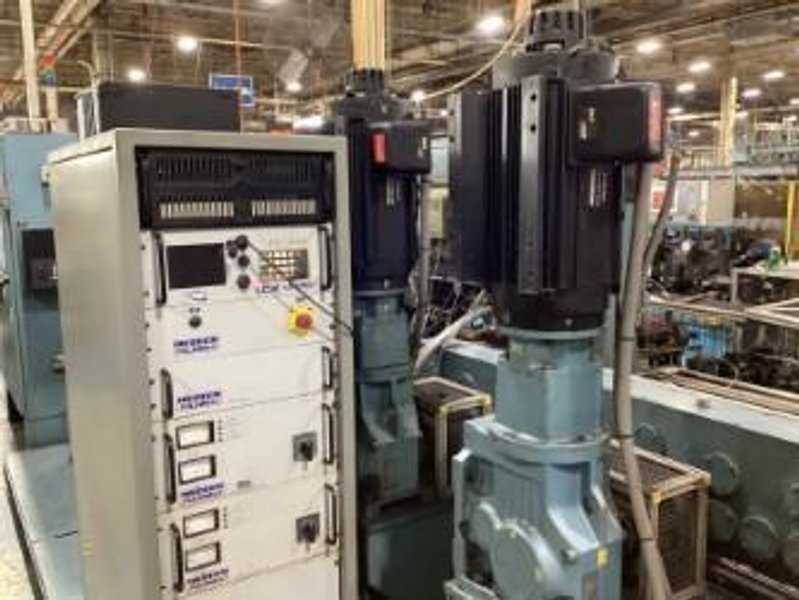

MOTORS – (3) 10 HP AC MOTORS (BREAKDOWN, FINISH, SIZING)

FOUR BREAKDOWN STANDS

SIDE HORIZONTAL PASS BETWEEN – 2, 3,4

THREE FINSHING STANDS

SIDE HORIZONTAL PASS BETWEEN – 5,6,7 (FRONT/BACK)

2 ROLL WELD BOX

ENTRY HORIZONTAL SIDE PASS

MILLER WP27 SINGLE TIG TORCH UNIT W/ HF AND 5000 HZ AMP PULSING

WATER COOL DOWN SECTION

WELD INSPECTION

LIBURDI LCX PULSWELD

200 AMP POWER SOURCE & WELDING SYSTEM

THREE SIZING STANDS

SIDE HORIZONTAL PASS BETWEEN – EACH STAND

FULL BODY INSPECTION

BETA LASERMIKE

TECHNISALES ACCU-CUT FLYING DOUBLE CUT TUBE CUTOFF

TUBE CUTOFF DIAMETER RANGE – 0.236” – 1”

WALL THICKNESS RANGE – 0.012” – 0.030”

MATERIAL – STAINLESS STEEL TUBE

SPEED – UP TO 60 FPM

CUT LENGTHS RANGE – 18” - 20’

CUT LENGTH TOLERANCE – 0.020” +/-

TUBE ENDS TO BE SQUARE WITHIN – 0.008”

CLOSED LOOP LENGTH CONTROL

RUNOUT TABLE

ALLEN BRADLEY POWERFLEX VARIABLE FREQUENCY DRIVES

MILL CONTROLS, HYRDAULIC SYSTEM,  COOLANT SYSTEM, & ELECTRICS
