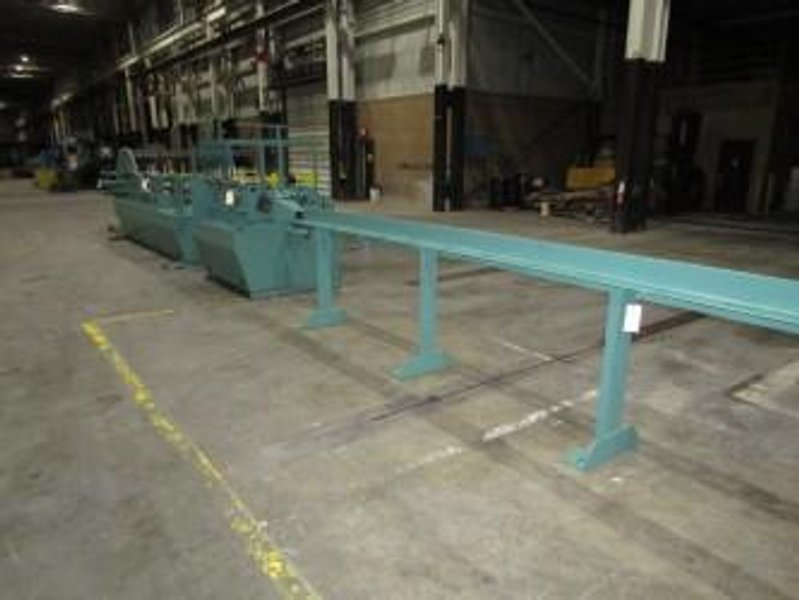

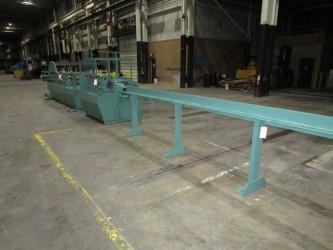

TUREK & HELLER 2-1/2" X 0.120" STAINLESS STEEL TUBE MILL, TIG TYPE
Brand
Category
Type
Model
WU-20-10
Stock #
114963
Year
Not specified
Condition
Used
Location
Ohio
| Tube Dia | 2.5 inches |
|
Manufacturer....................... TUREK & HELLER

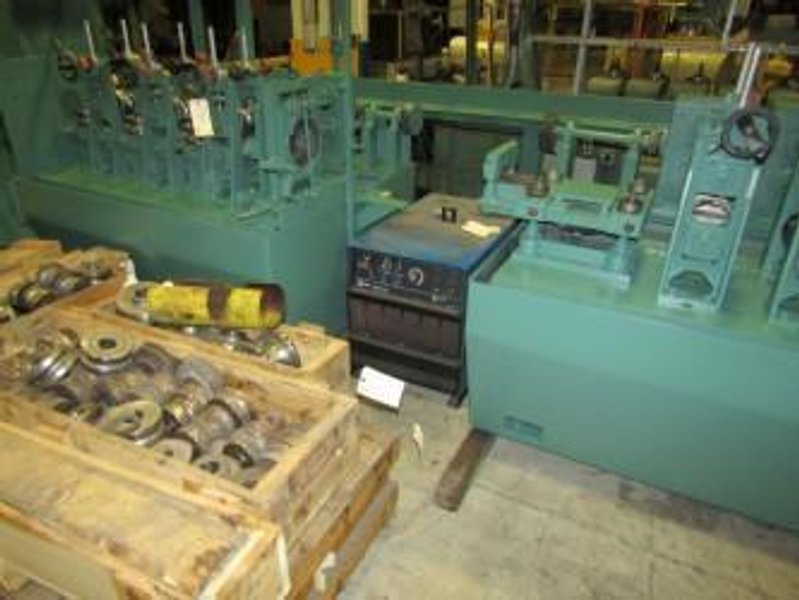

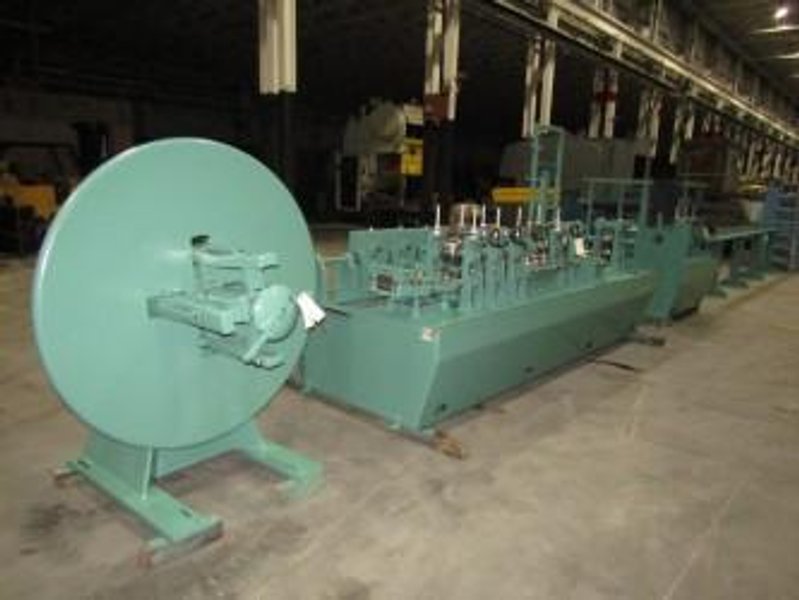

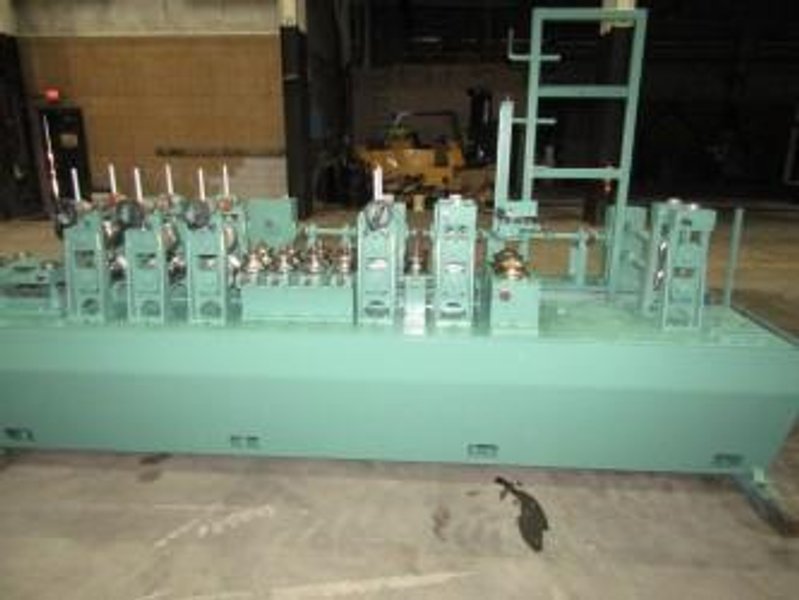

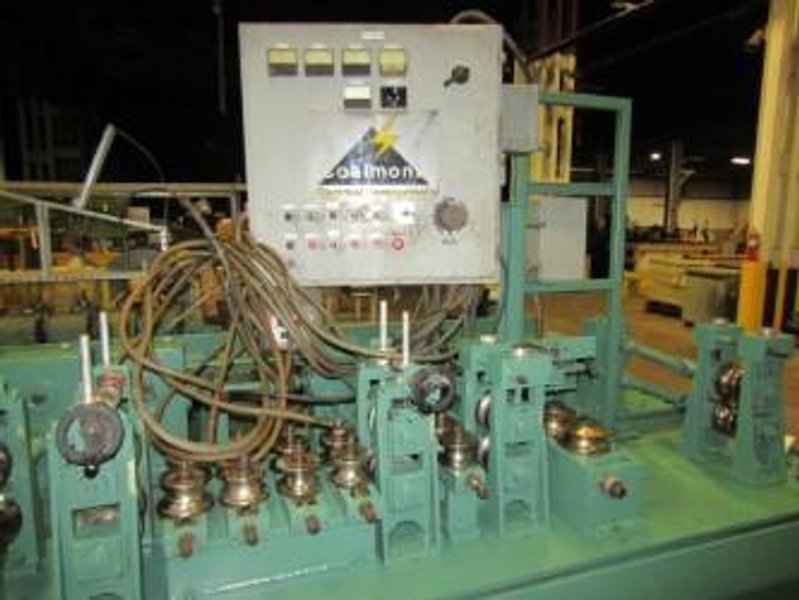

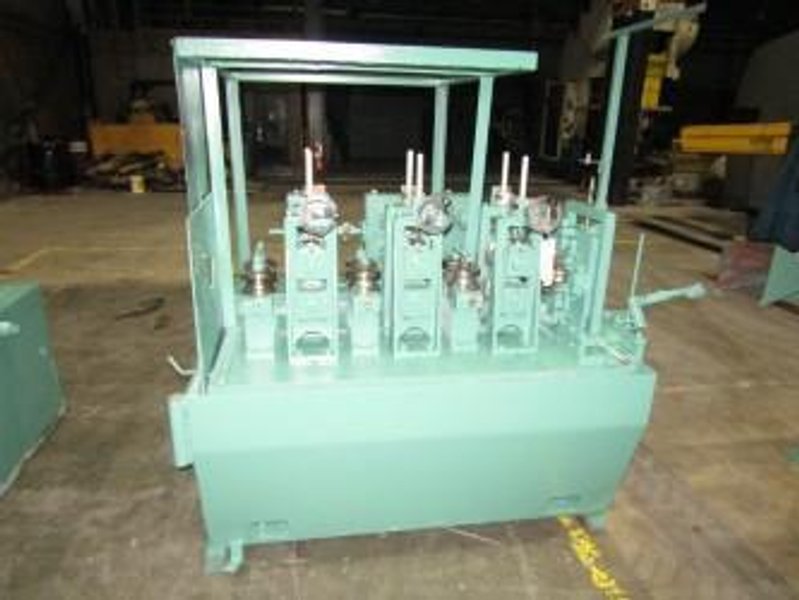

Model.............................. WU-20-10 Serial #...............................1094 Line Direction..................... Left to Right O.D. Capacity...................... .625 - 2.5" Wall Thickness..................... .020 - .120 Speed.............................. Up to 25 FPM Consisting of: LITTELL PAYOFF REEL Single Coil .......40OOlb. capacity Electric brake, Coil I.D.........15"-20" Max. Width.......12" TUREK & HELLER TUBE MILL Universal Drive, Single Point Adjustment, 2 motors FORMING SECTION: Entry Strip Guide Shaft Diameter.........2.00" 3 Forming Stands Roll Space........9" Horizontal Centers...12" Vertical Centers....5-1/2" to 7-1/2" Side Roll Cluster, 4 Passes 2 Fin Stands Roll Space........4-1/2" Horizontal Centers...15" Vertical Centers....5-1/2" to 7-1/2" Motor Drive...........____HP, DC Volt WELDING SECTION, TIG Weld Box ....2 roll Main welder: Gas control system for Argon, Nitrogen, Welder...Miller Gold Star 452 CC-DC Welding Power Source 1 Pull-Out Vertical Stand (Could be used to Bead Roll) IB-LINE INDUCTION ANNEALING Ajax Tocco Inductron, Mfg. 2006 Model DL293-150-3/10-08H 150 KW, 3/10 K-Hz Pyrometer Temperature Gauge IRCON Modline 3, Digital readout SIZING SECTION 3 Sizing Passes Roll Space............4-1/2" Horizontal Centers......15" Vertical Centers.........5-1/2" to 7-1/2" Straightening Head Coolant System Motor Drive .............___HP, DC Volt CUTOFF SECTION Flying Cutoff Saw Pneumatic Die Accelerator Pneumatic Clamp Runout Trough Mill Dynamics Main Motor Drive, Solid State AVAILABLE TOOLING...1.00", 1.050", 1.75", 2.00", 2.25" |
|
