3/4" T&H LEMONT MODEL #WU11-9 STAINLESS TUBE MILL 2009 NEW: YOBRO #24545

3/4" T&H LEMONT MODEL #WU11-9 STAINLESS TUBE MILL 2009 NEW: YOBRO #24545

Name: 3/4" T&H LEMONT MODEL #WU11-9 STAINLESS TUBE MILL 2009 NEW: YOBRO #24545
Brand: TUREK & HELLER
SKU: 24545
Availability: InStock

Brand

TUREK & HELLER

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

MANUFACTURER - TUREK & HELLER
MODEL - WU-11-9
TYPE - PRECISION SMALL DIAMETER TUBE MILL
WELDER - TIG TYPE
MATERIAL - STAINLESS STEEL
YEAR - 2009
MAXIMUM DIAMETER - 0.750"
CURRENTLY TOOLED FOR - 0.312"
WALL THICKNESS RANGE - 0.012"
MILL DIRECTION - RIGHT TO LEFT

LINE COMPONENTS:

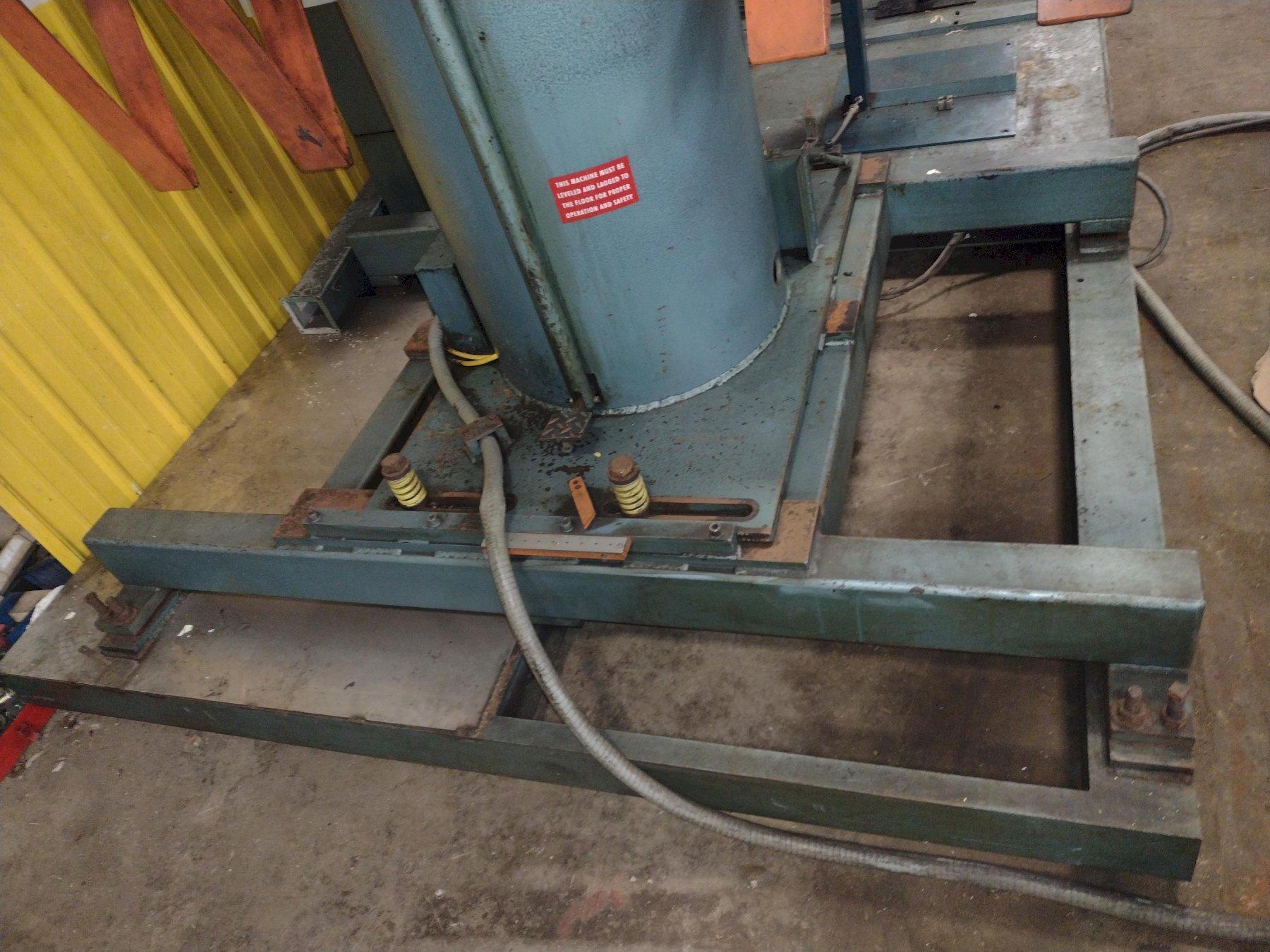

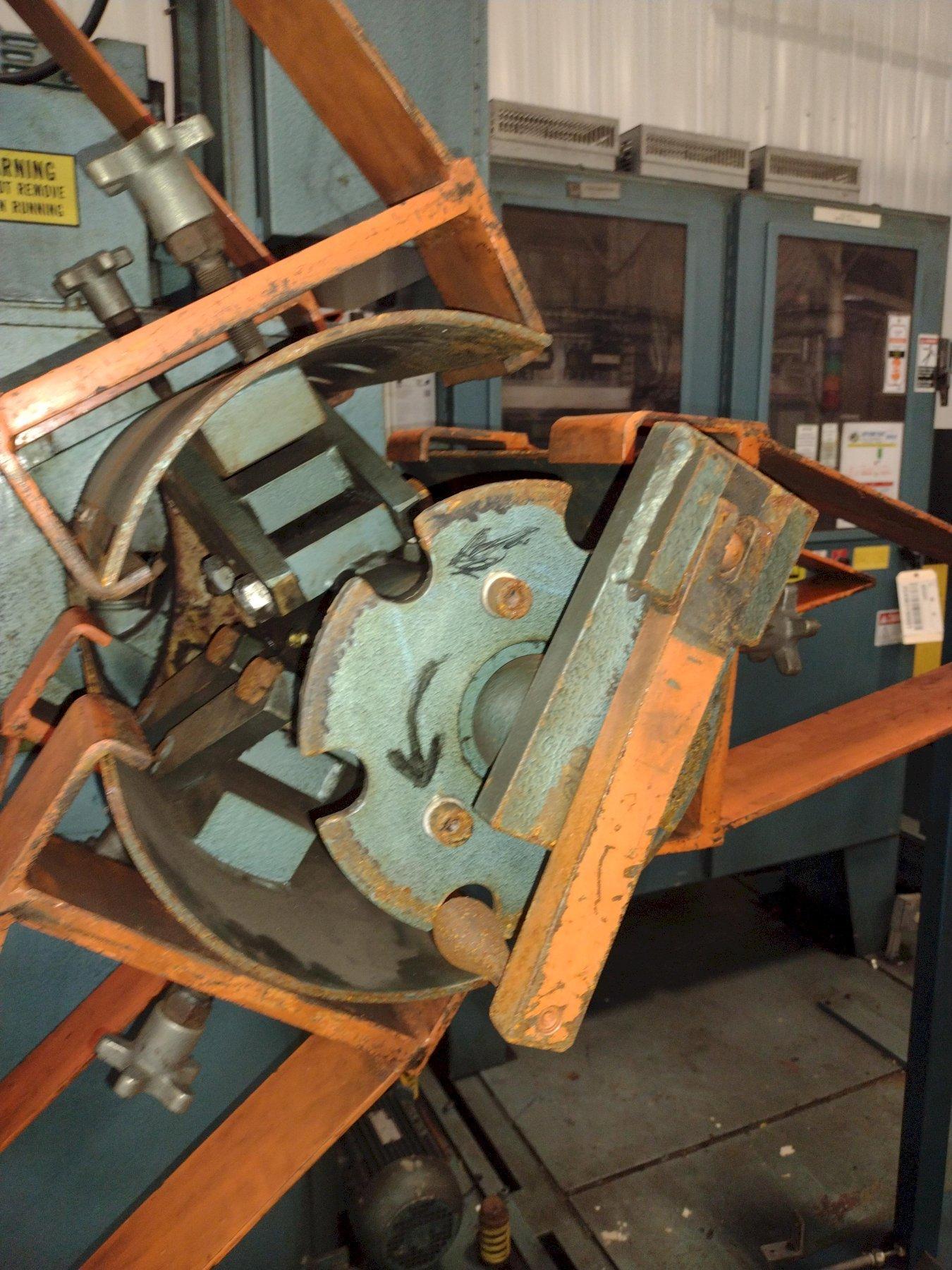

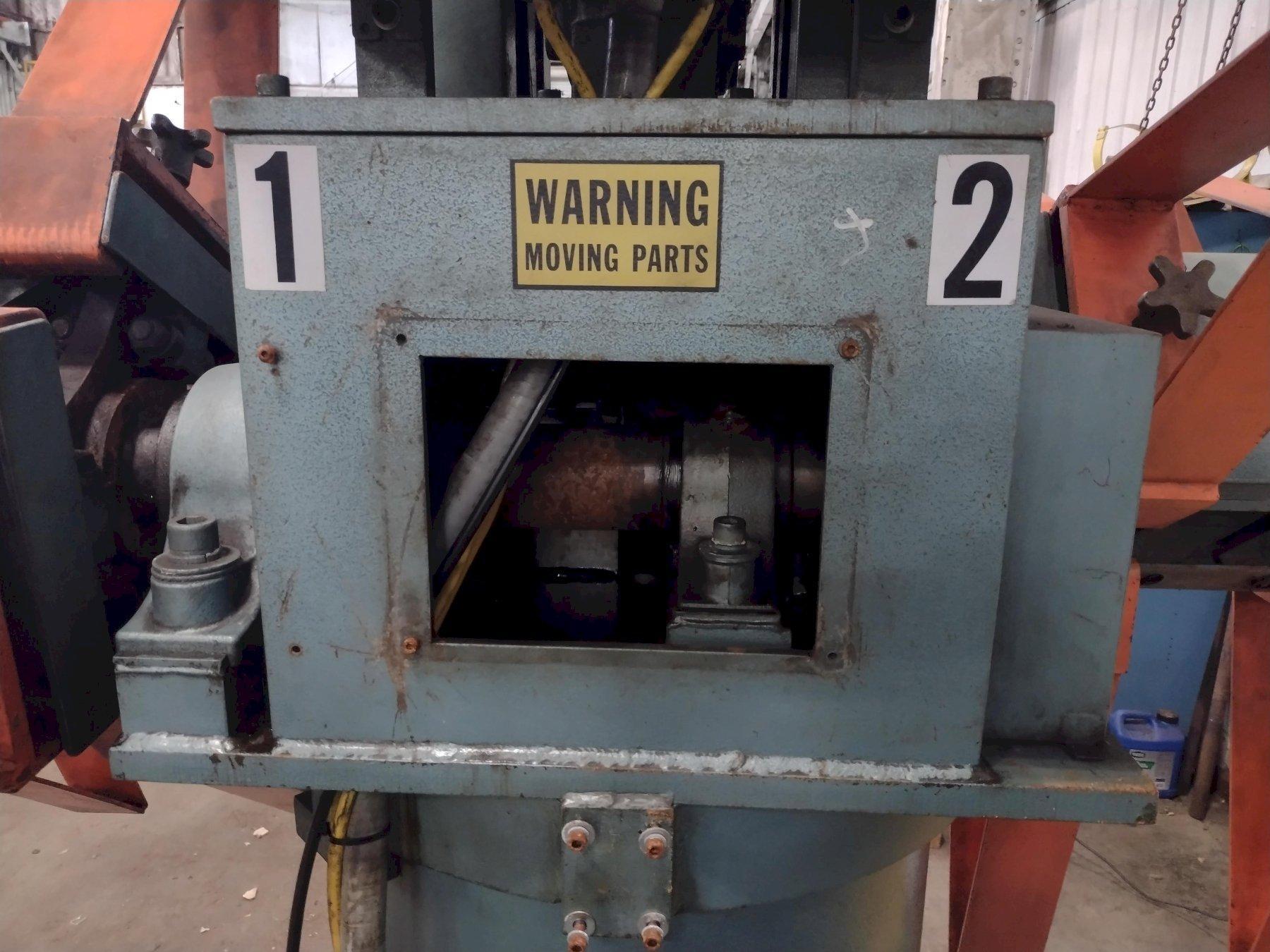

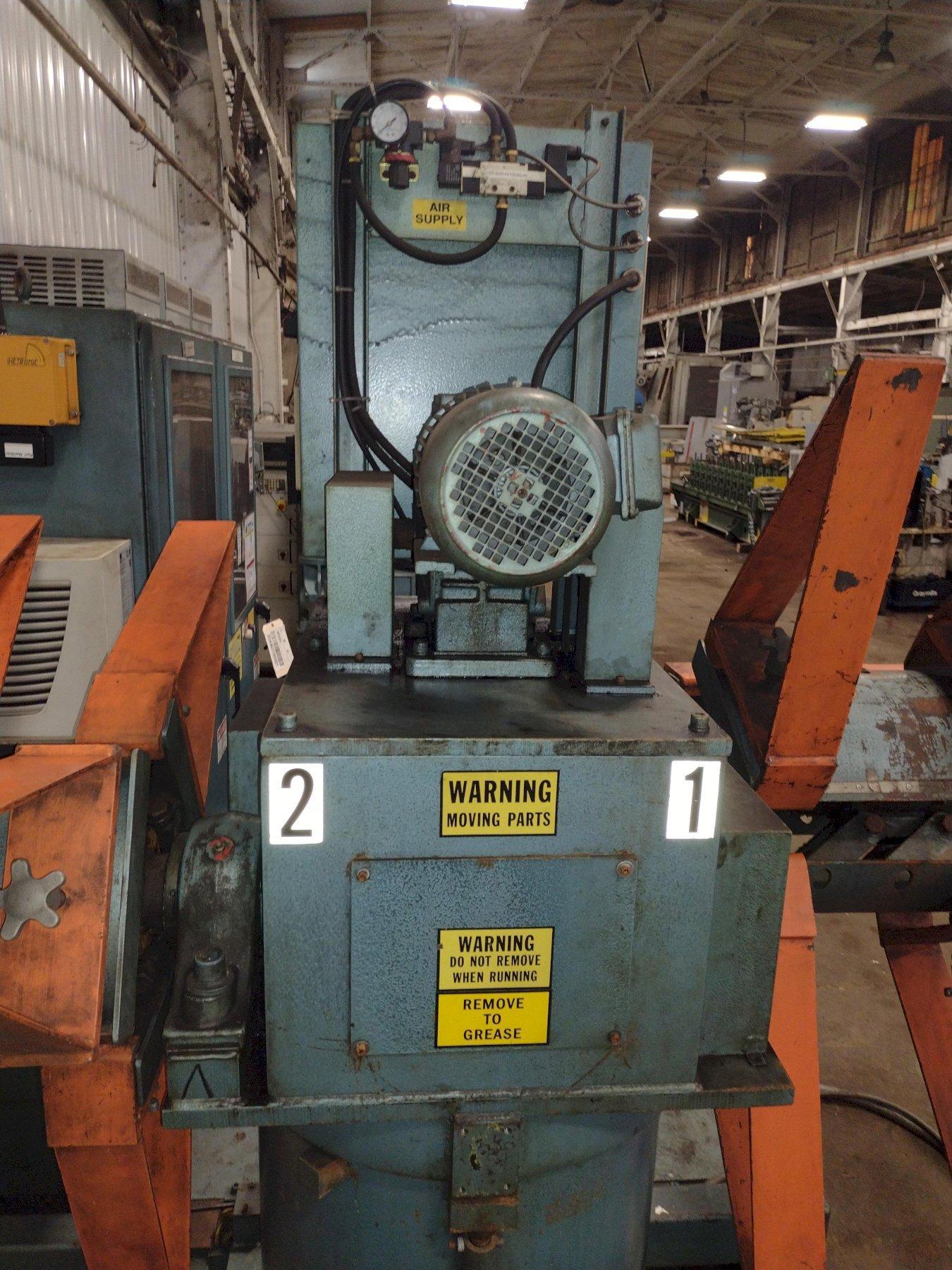

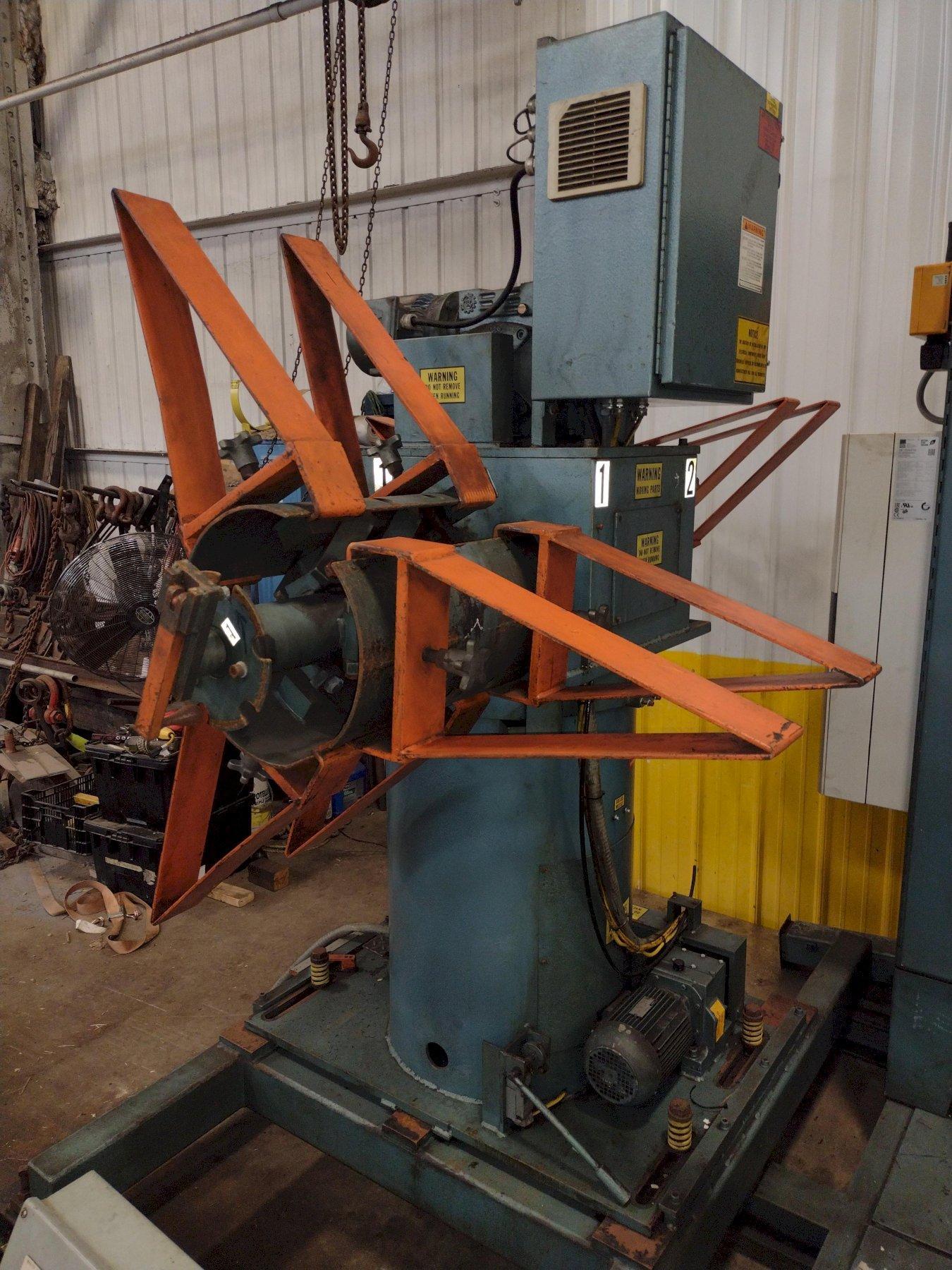

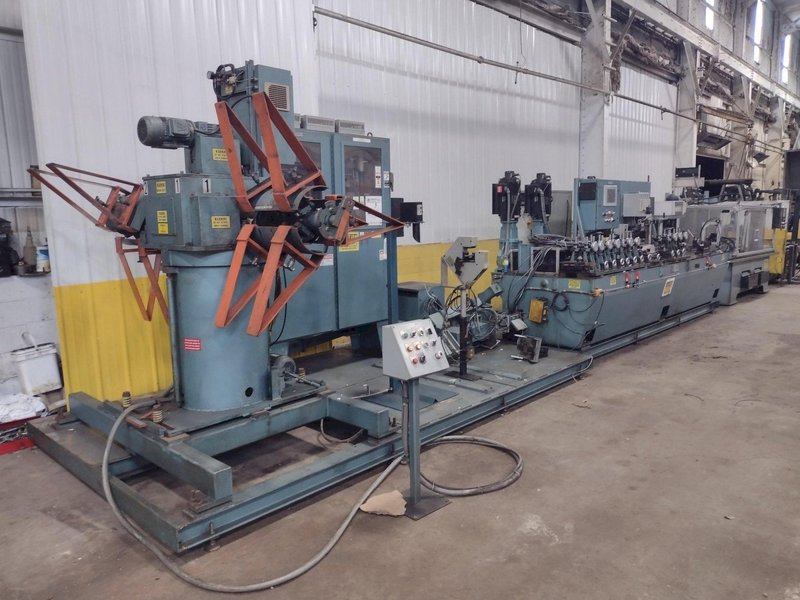

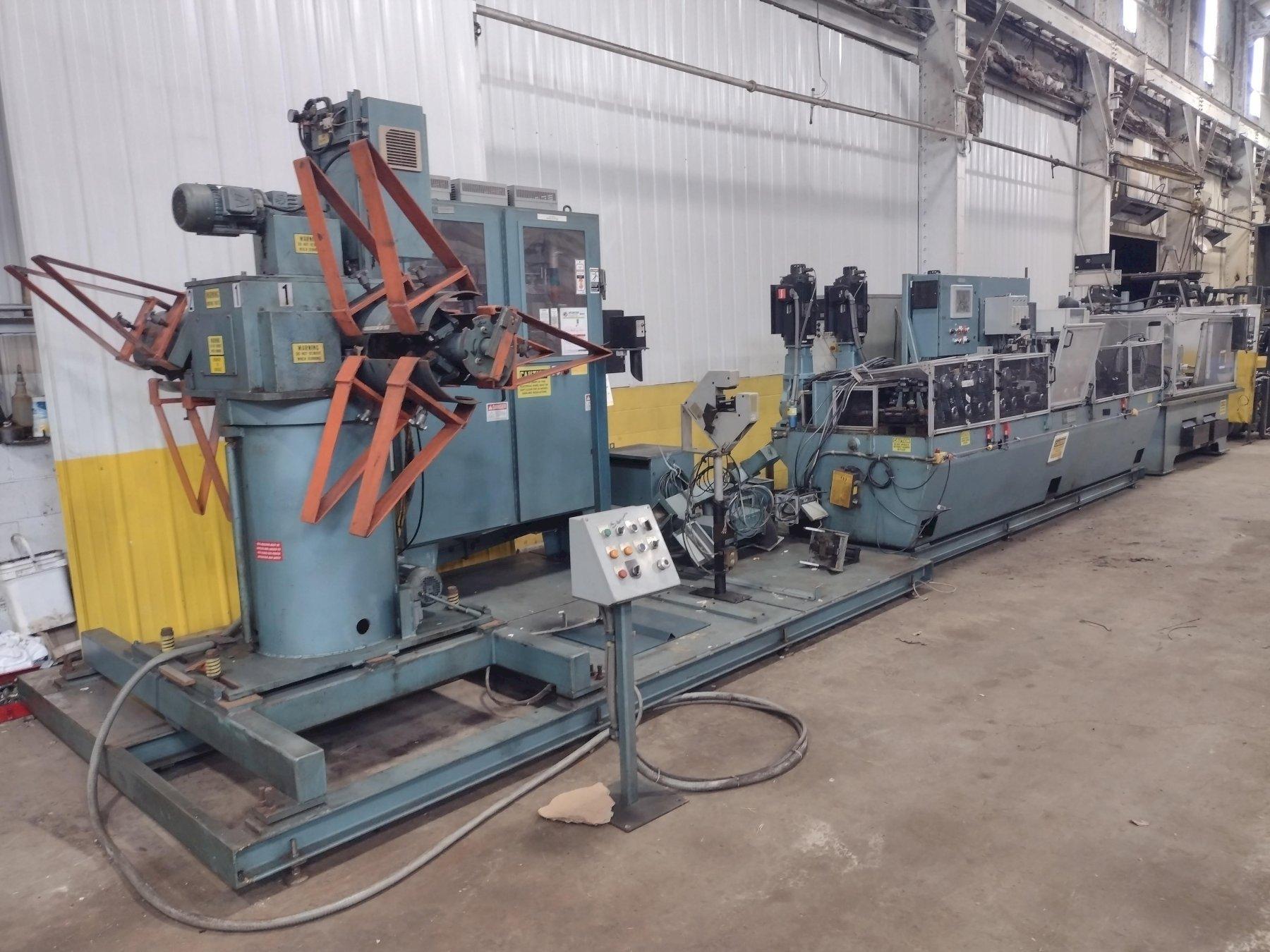

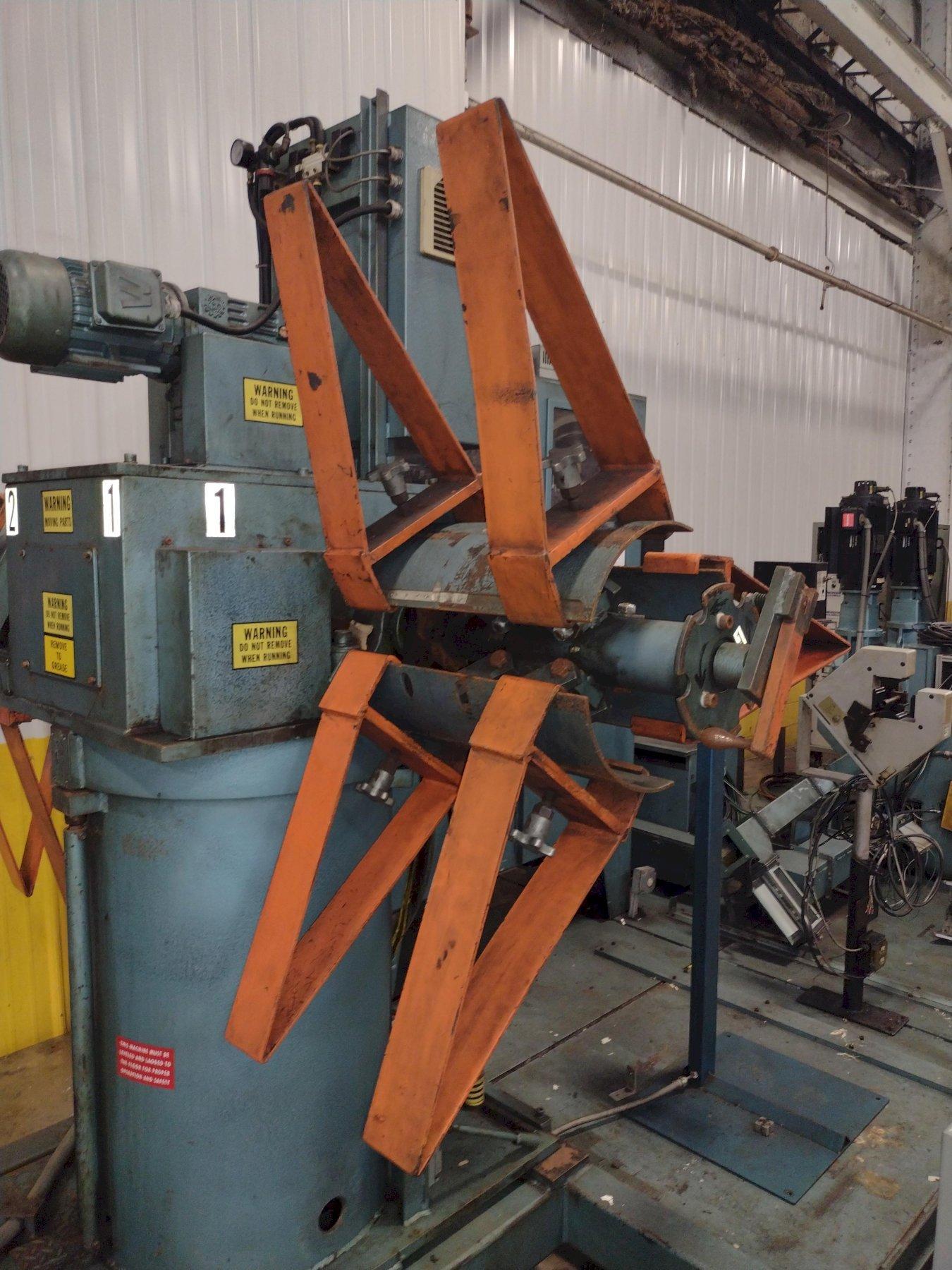

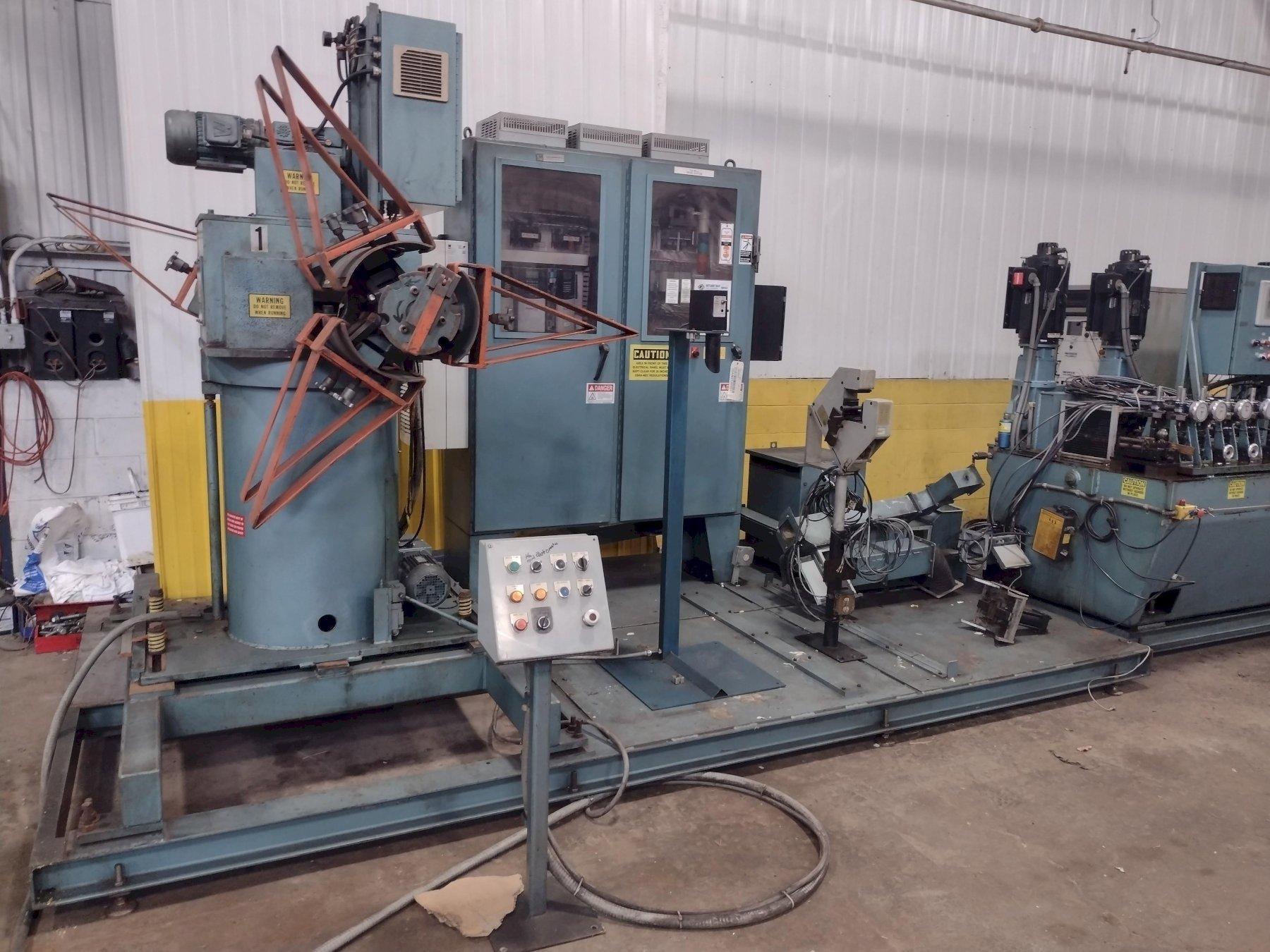

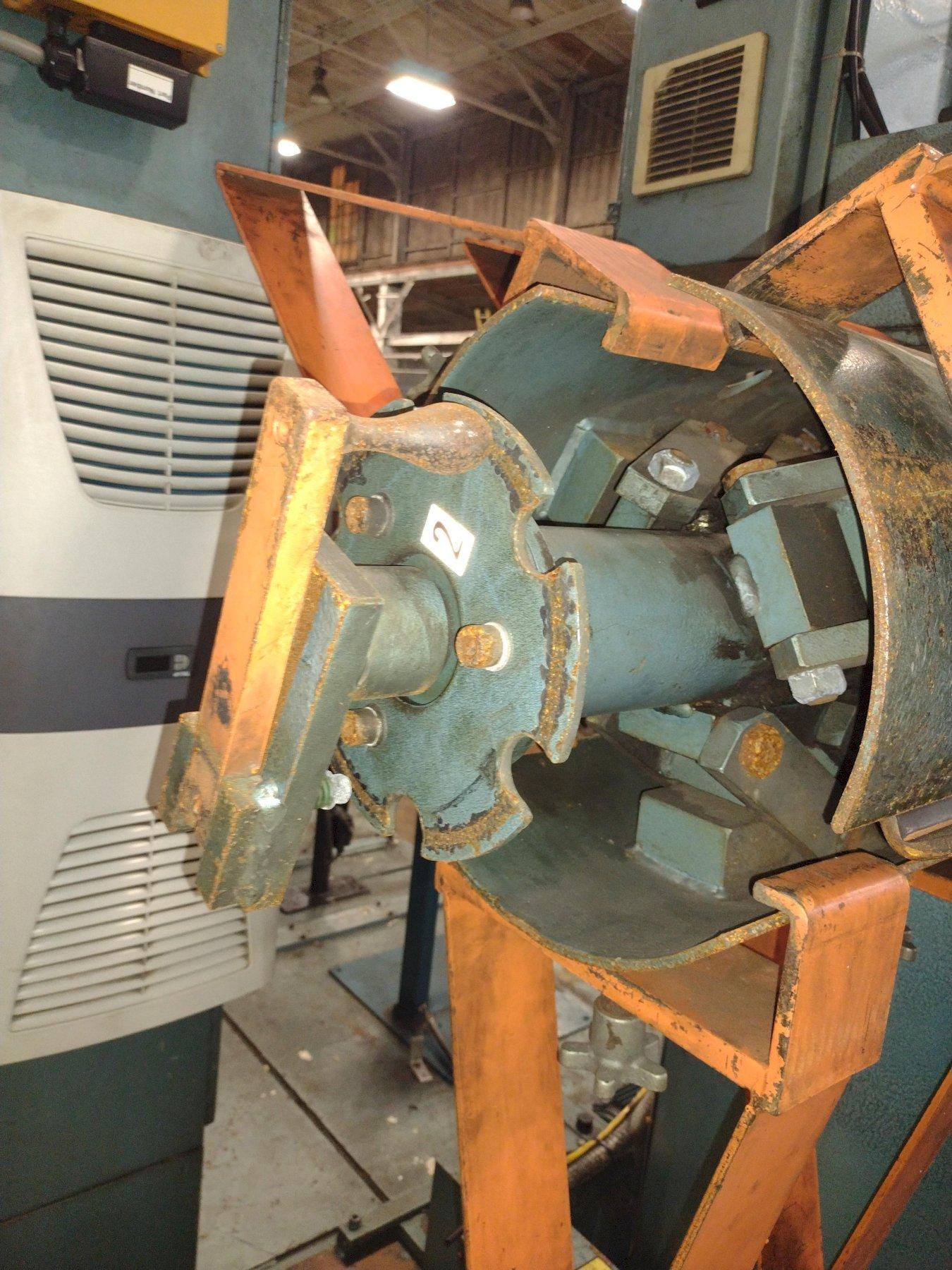

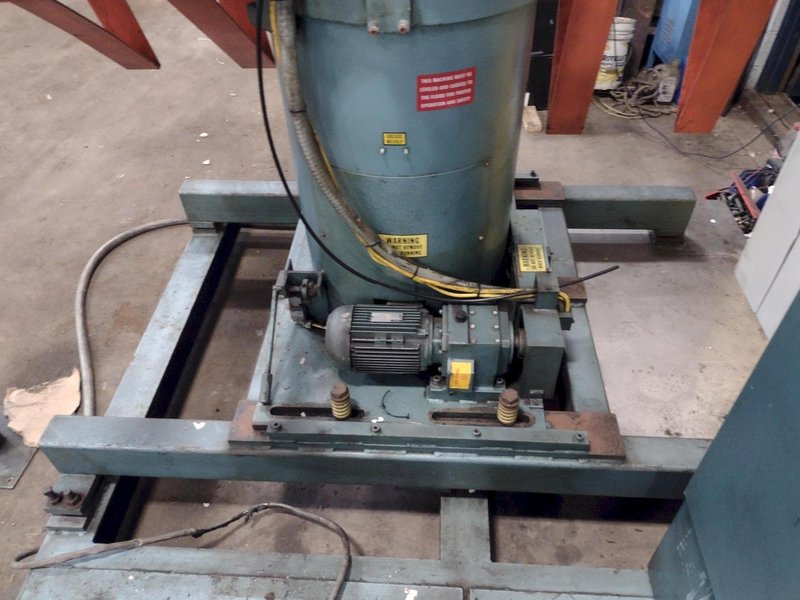

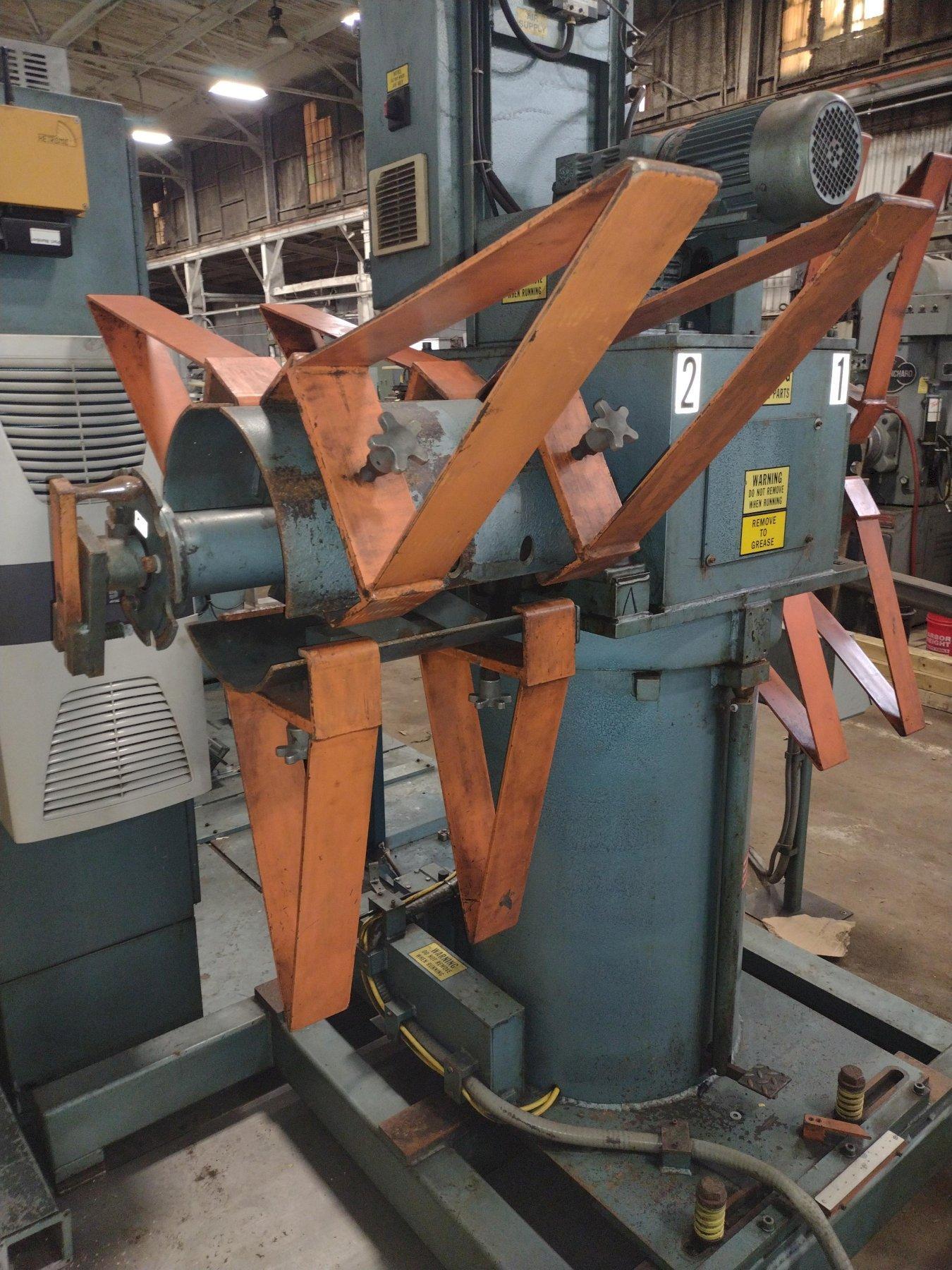

TUREK & HELLER DOUBLE END POWERED UNCOILER
WEIGHT PER SIDE - 1500 LBS
MAXIMUM WIDTH - 12"
MAXIMUM OD - 54"
ID RANGE - 14" - 20"
EXPANSION TYPE - MANUAL
SEGMENTS - 3
UNLOADING METHOD - CRANE
INCLUDES: COIL DEPLETION SENSOR & PNEUMATIC DRAG BRAKES

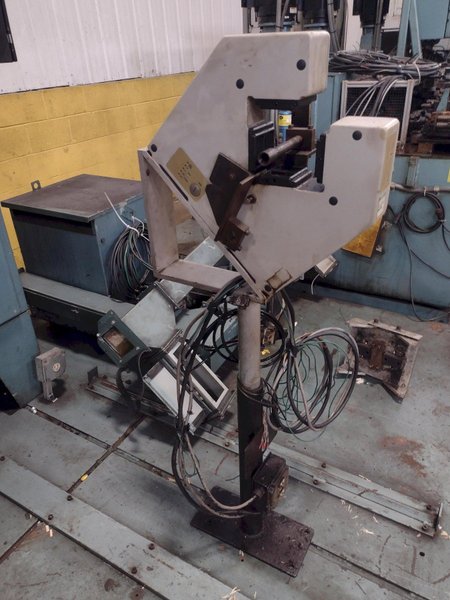

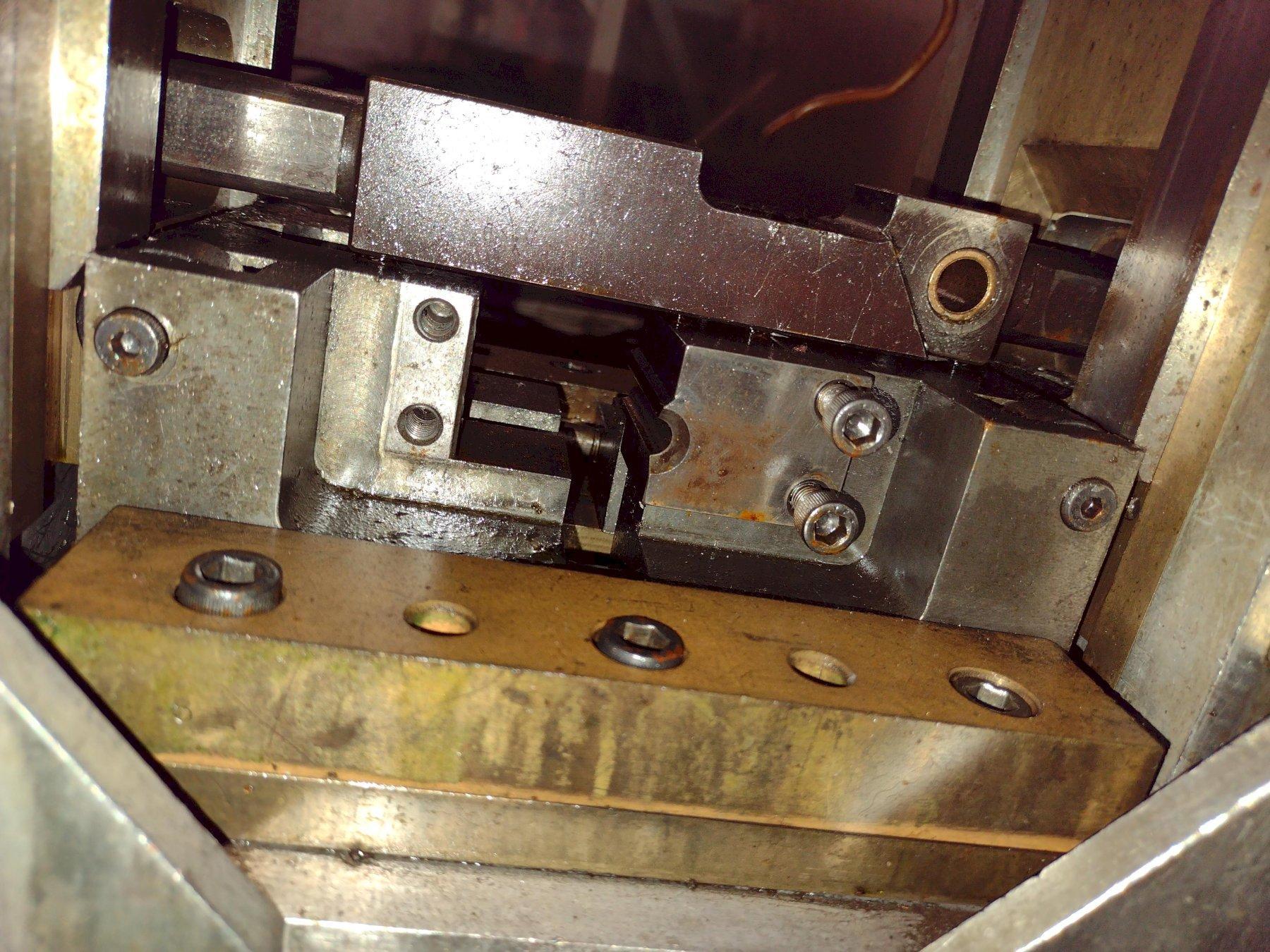

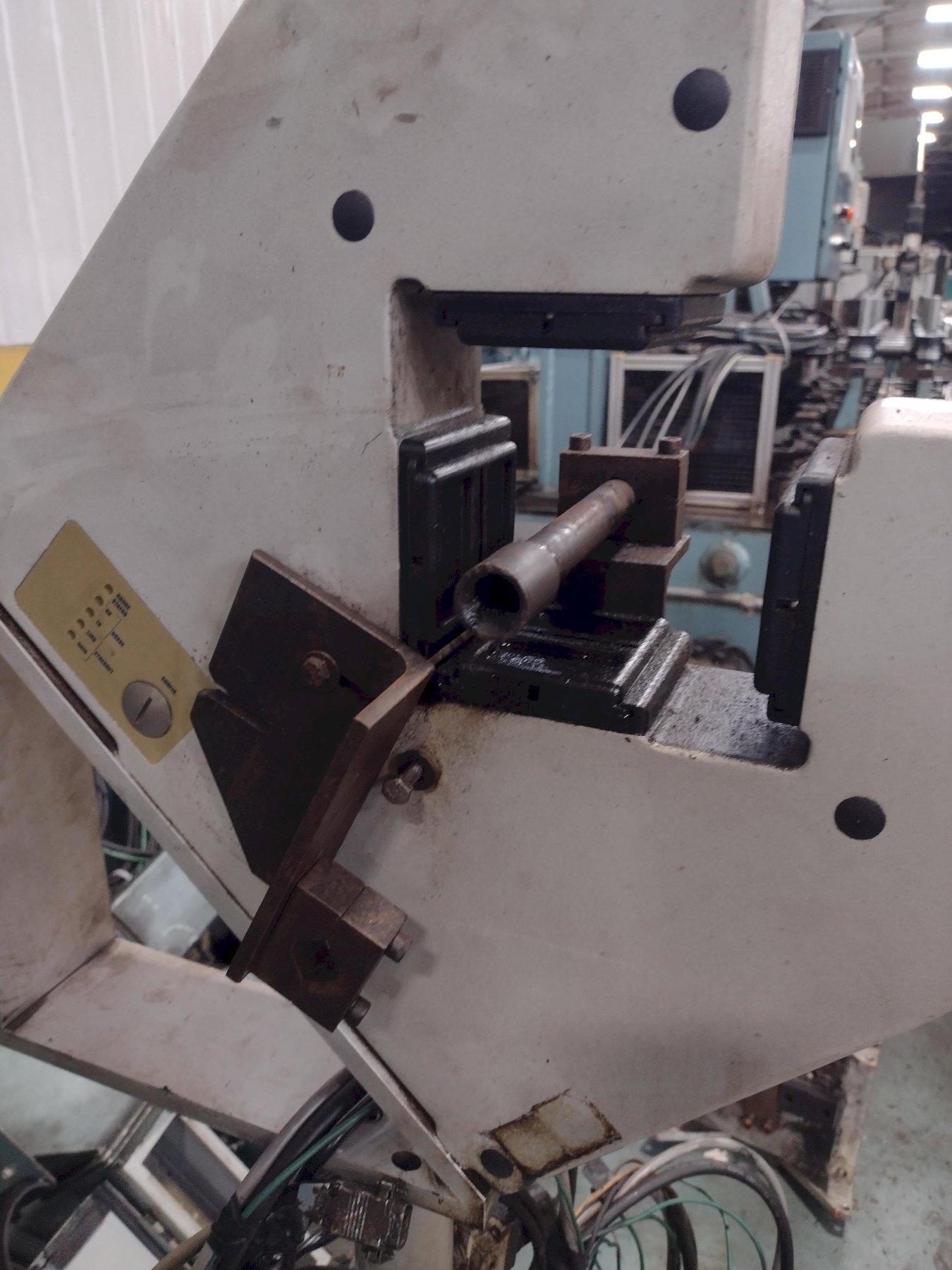

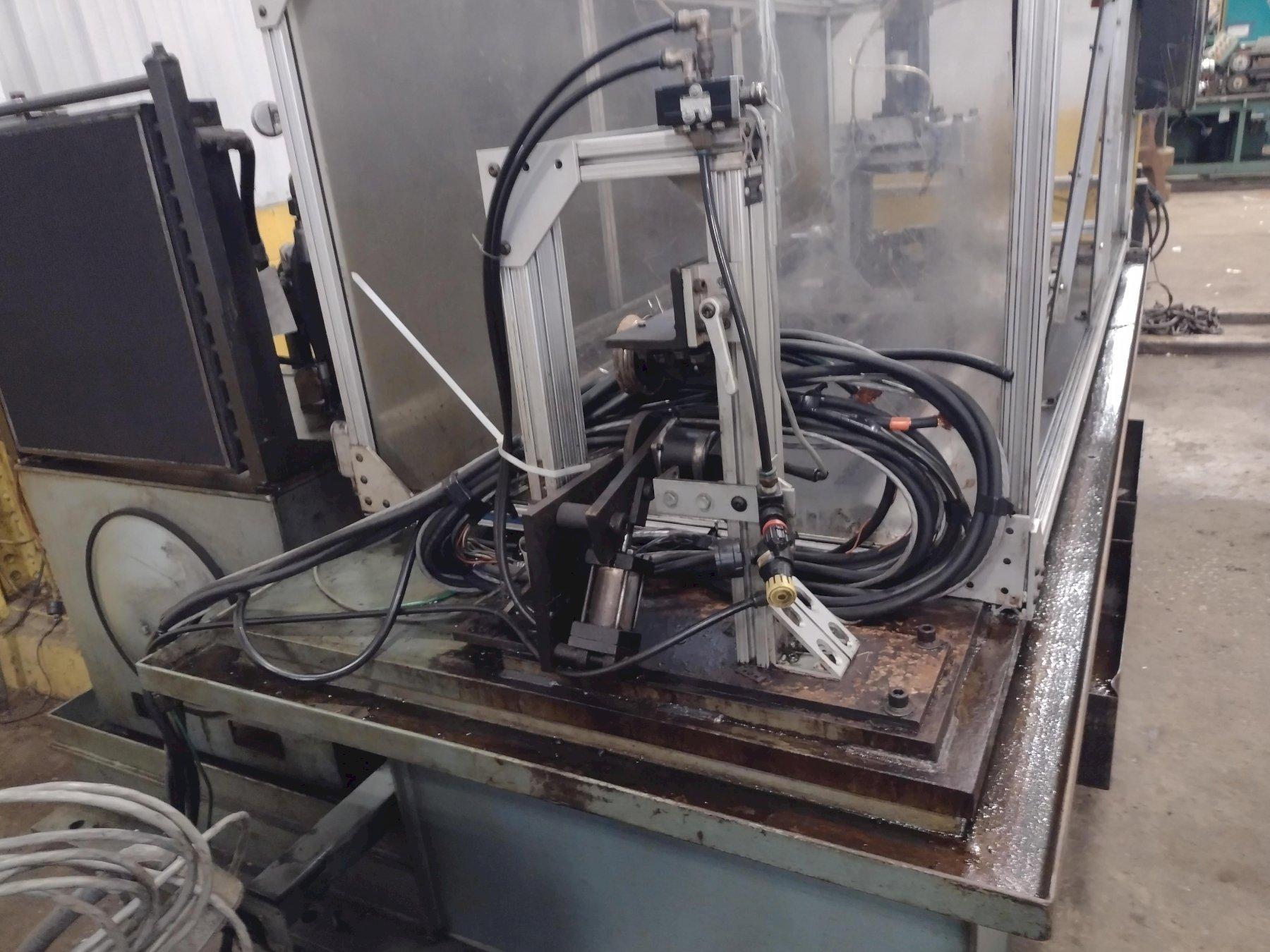

TUREK & HELLER SHEAR & END WELDER
STRIP WIDTH - 1"
GAUGE RANGE - 0.012"
SHEAR STRENGTH - 65,000 PSI
POWER SUPPLY - 110 V, 20 AMP

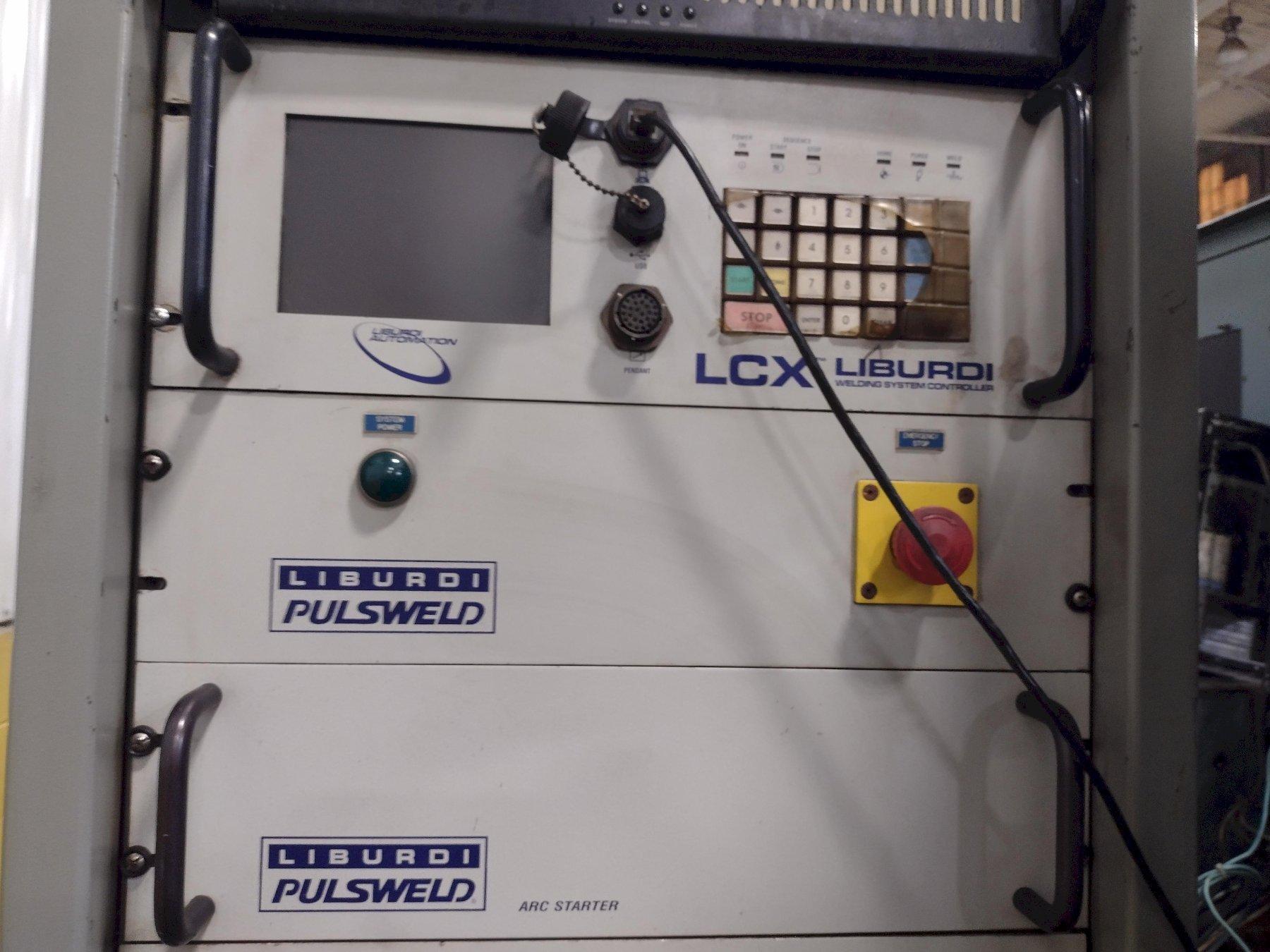

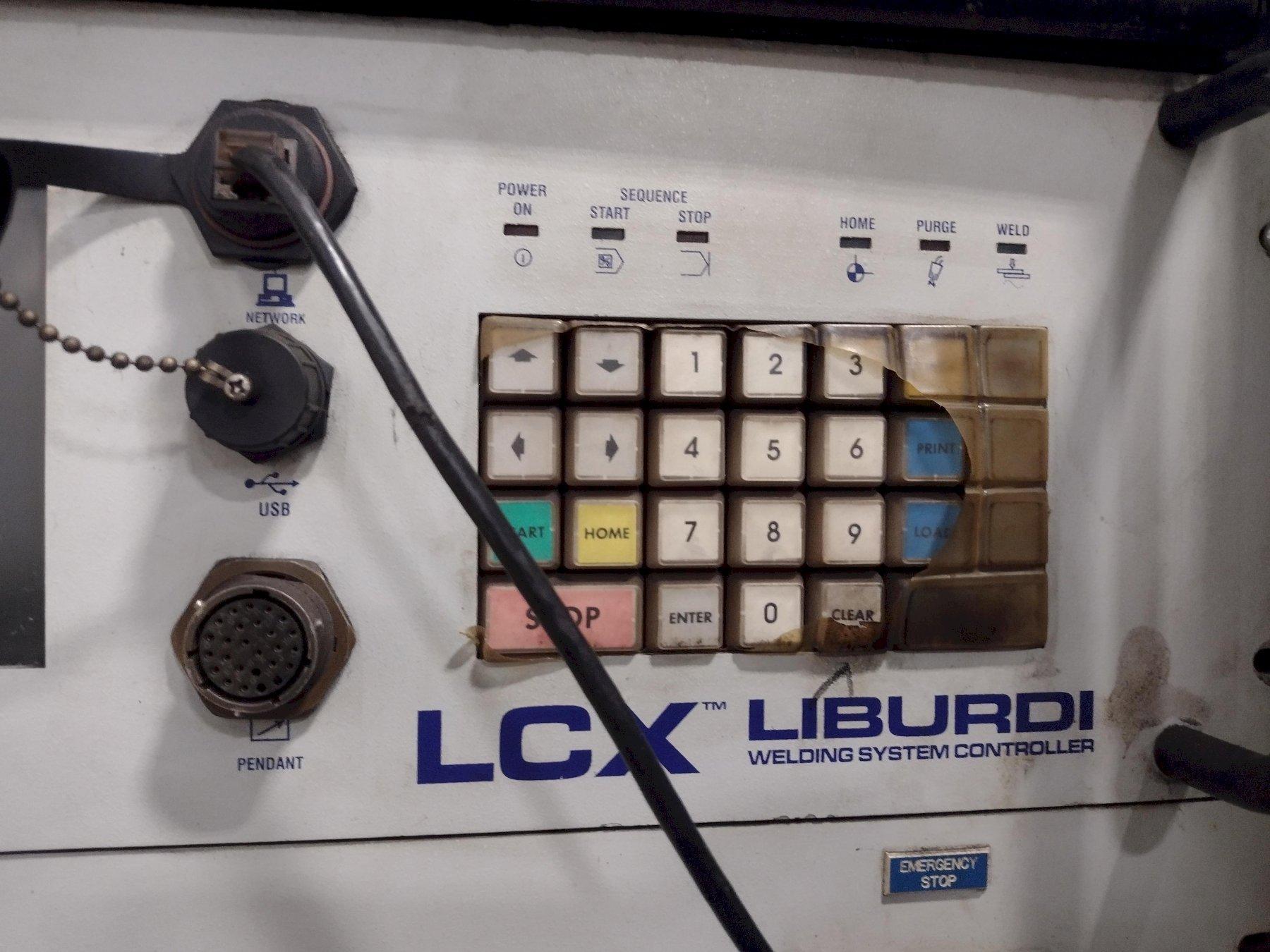

TYPE - TIG

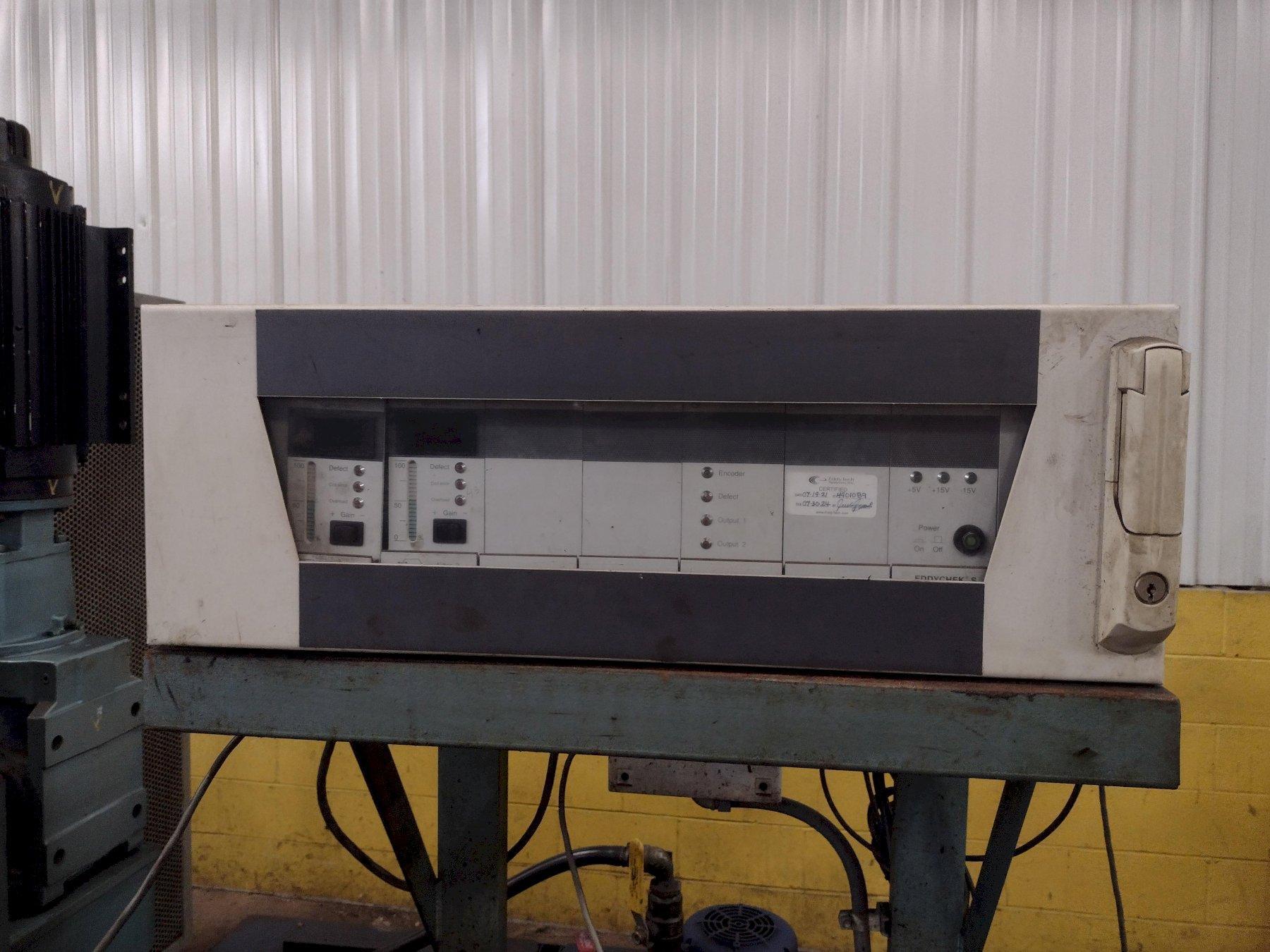

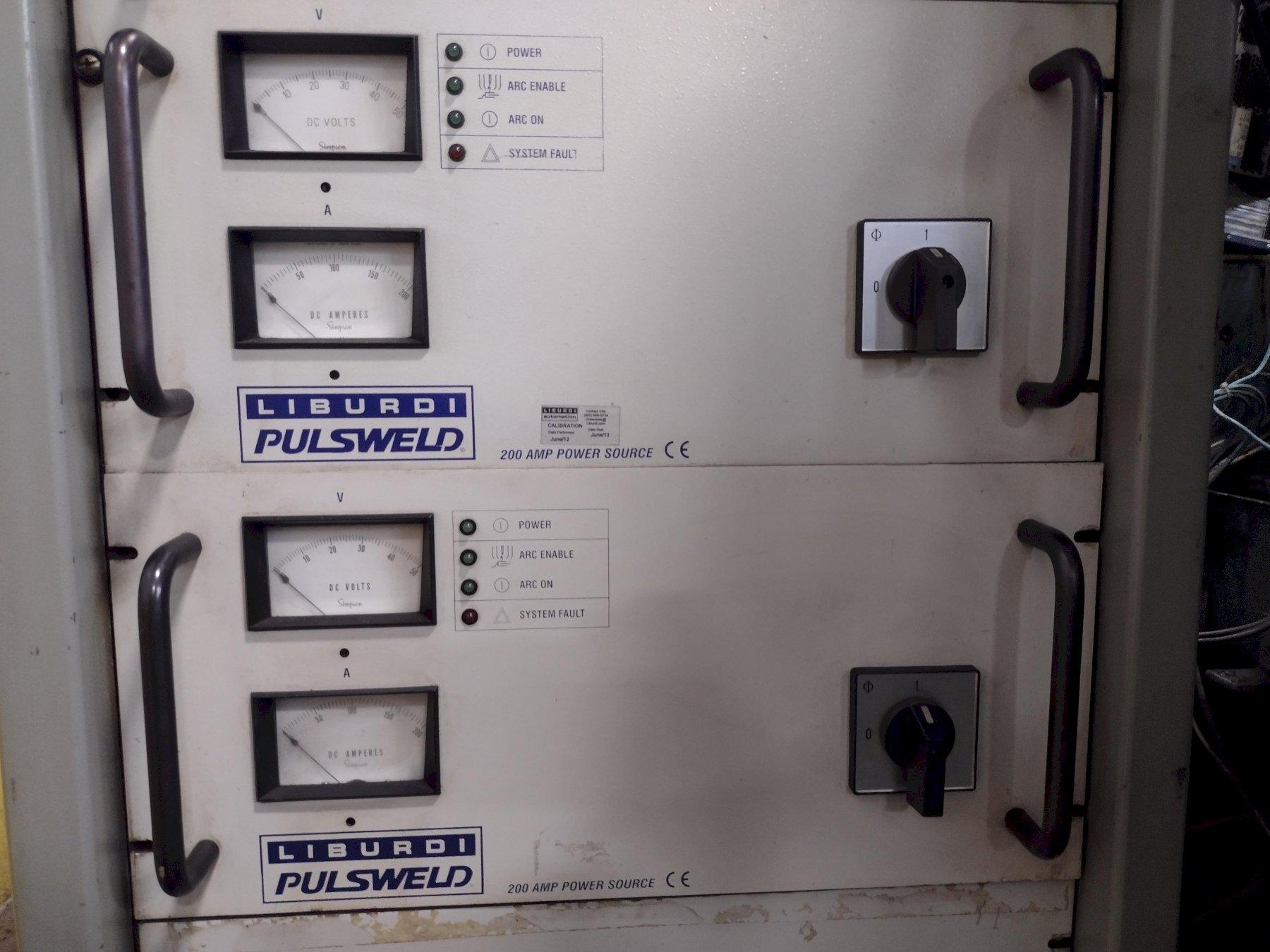

WELD POWER SUPPLY - 225 AMP AC/DC POWERR SOURCE

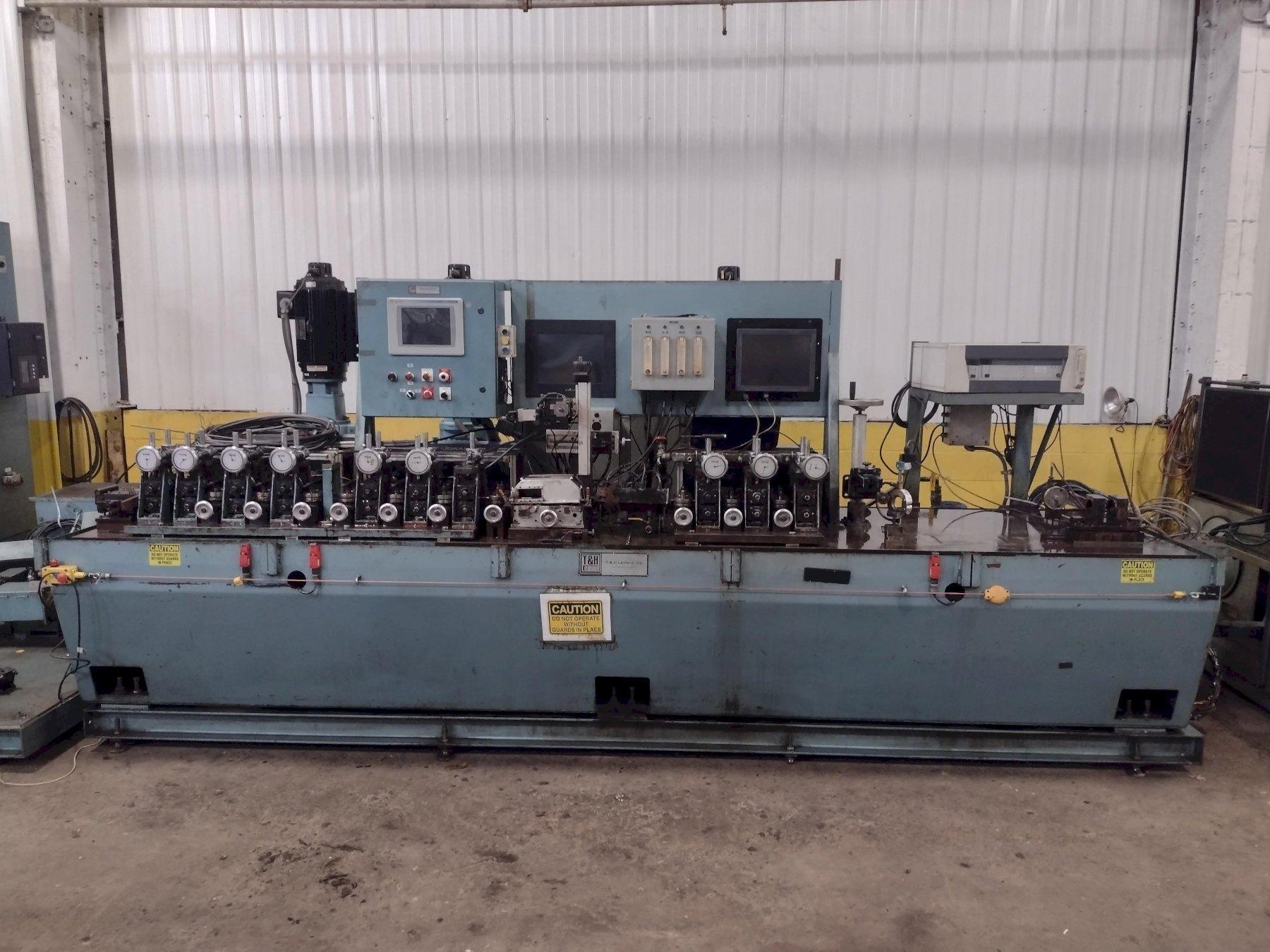

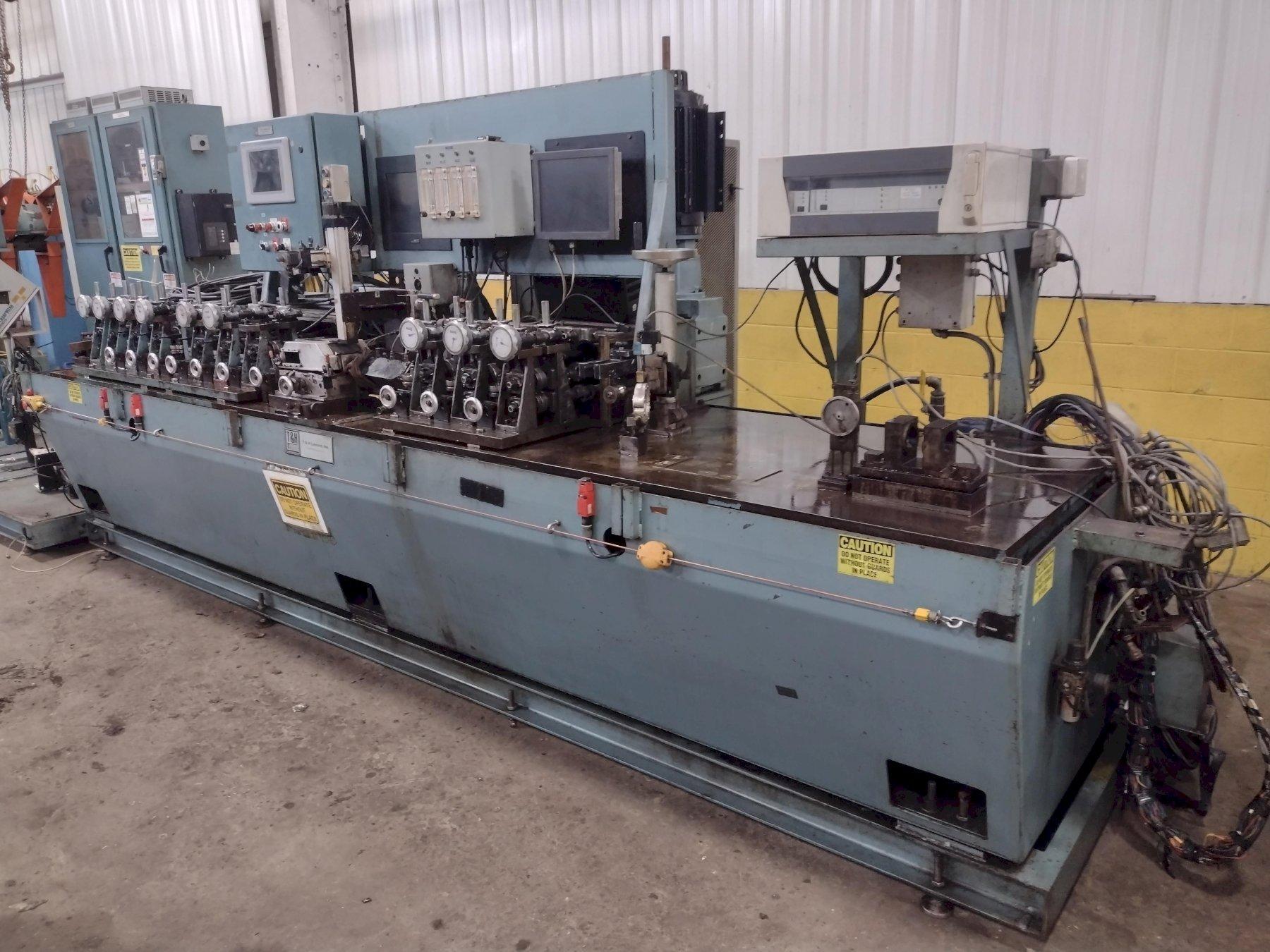

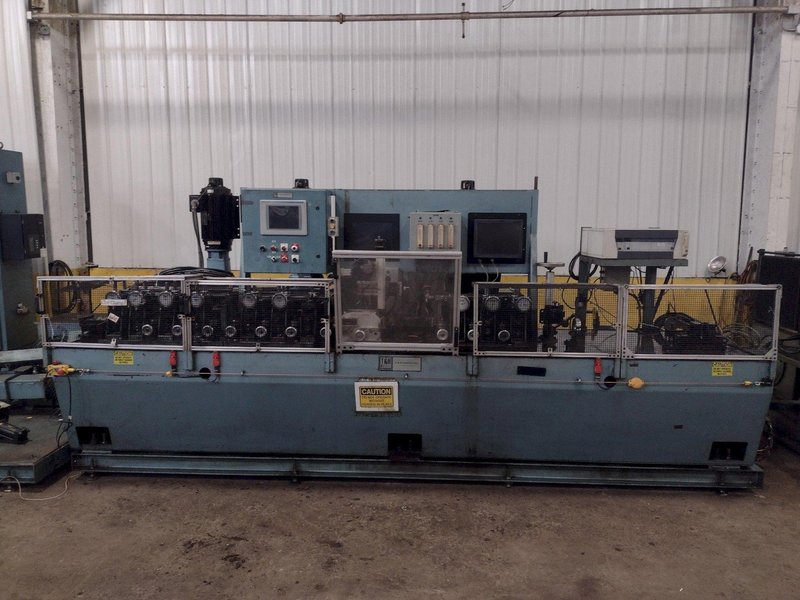

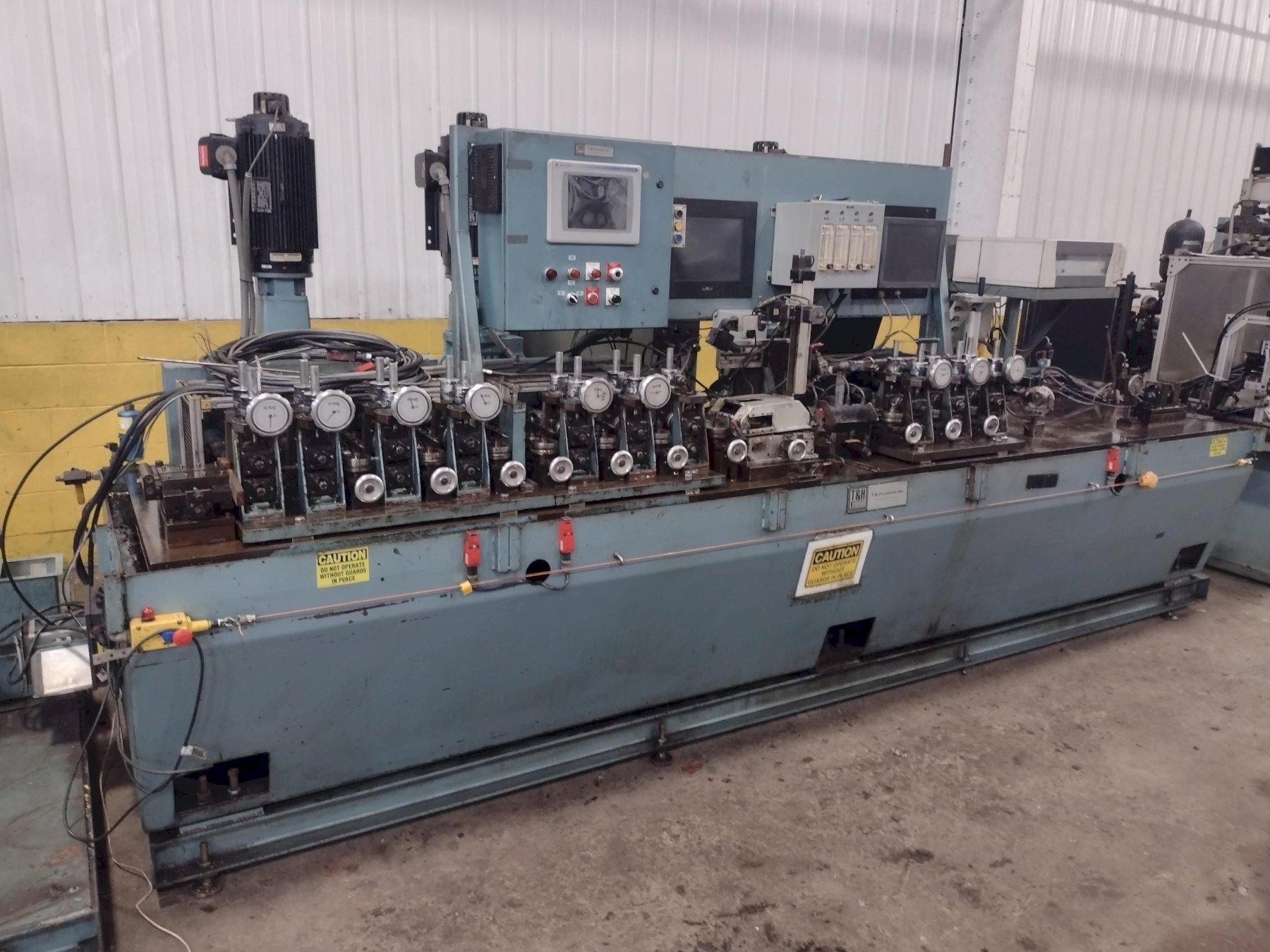

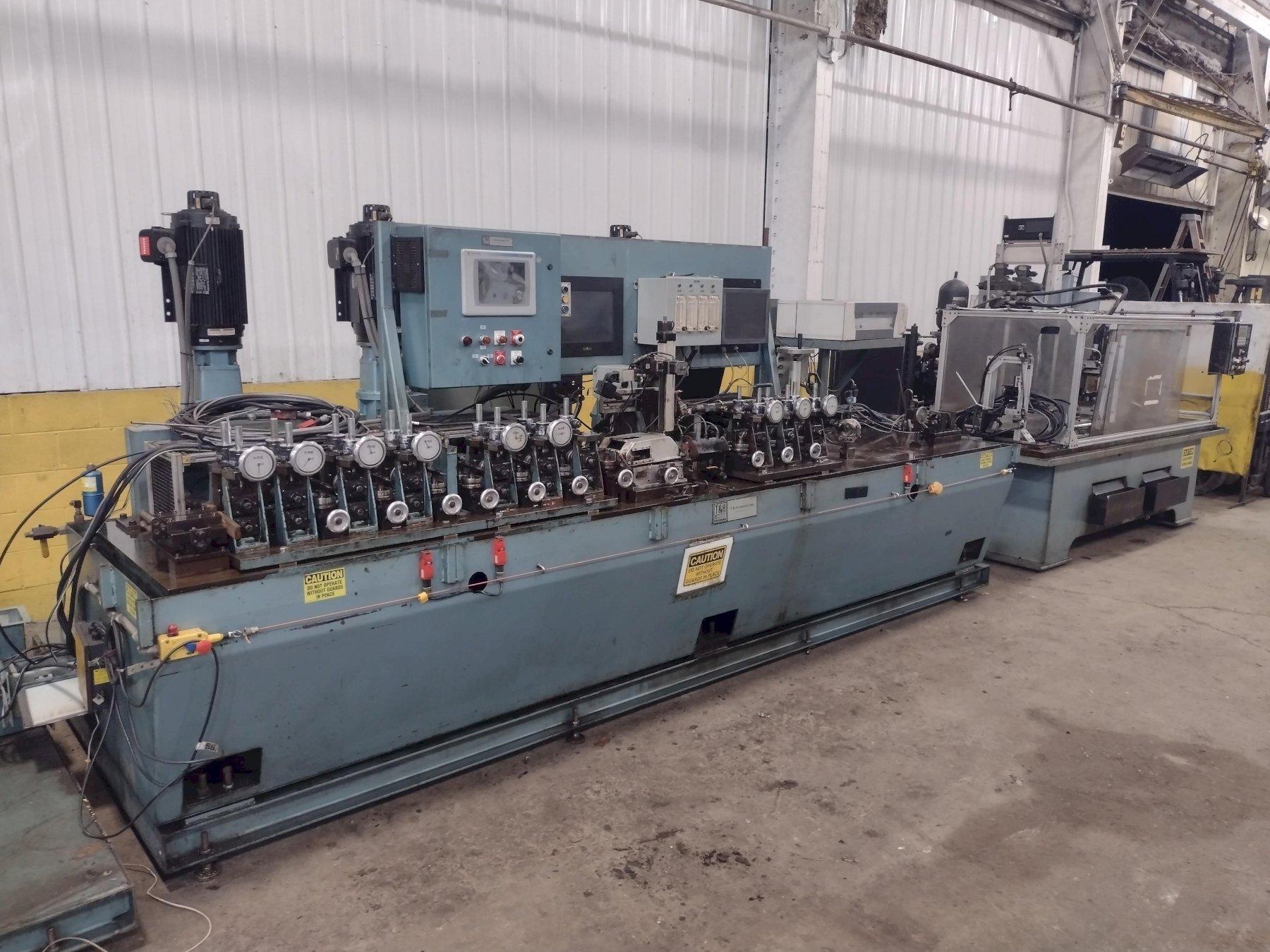

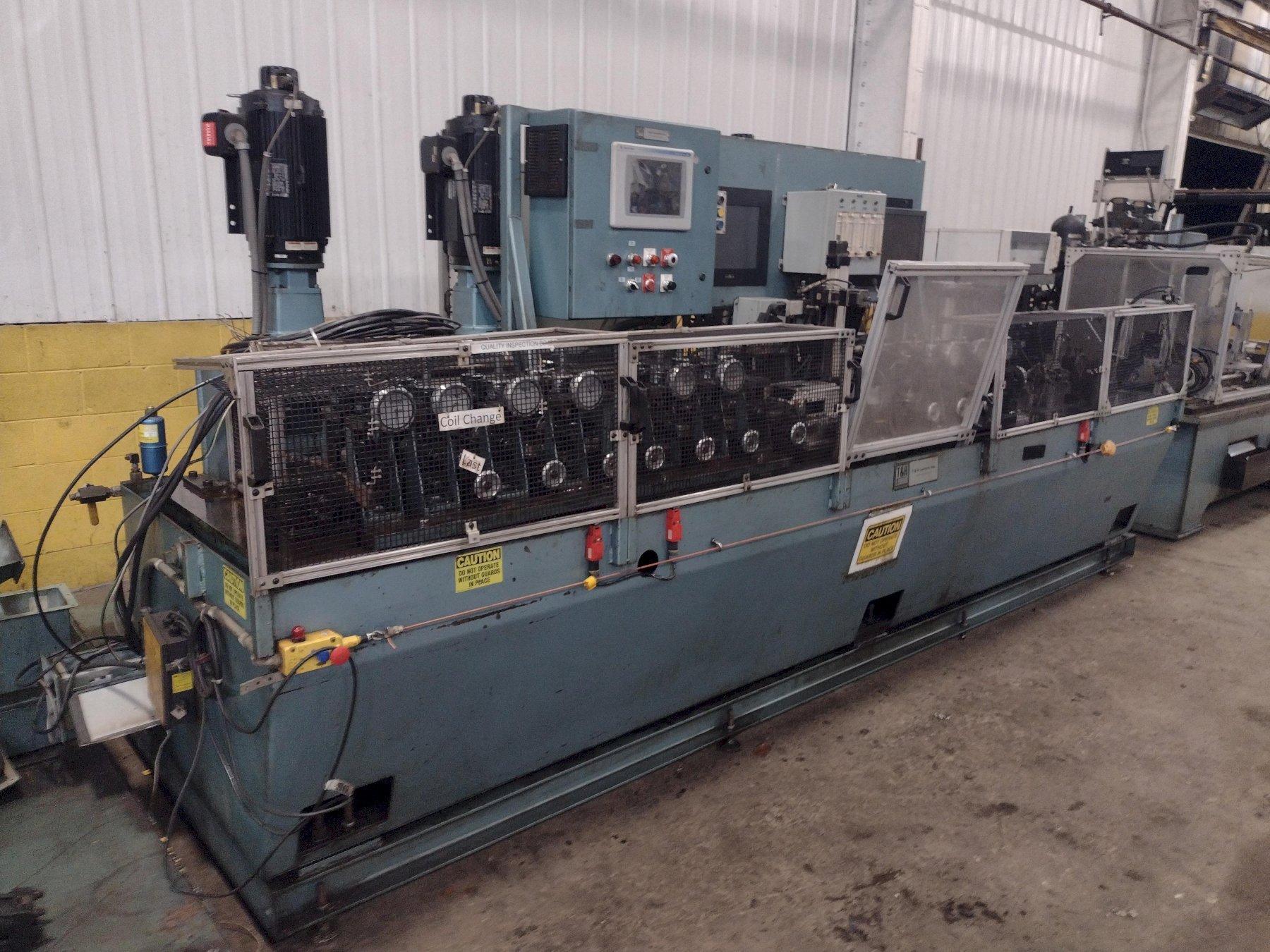

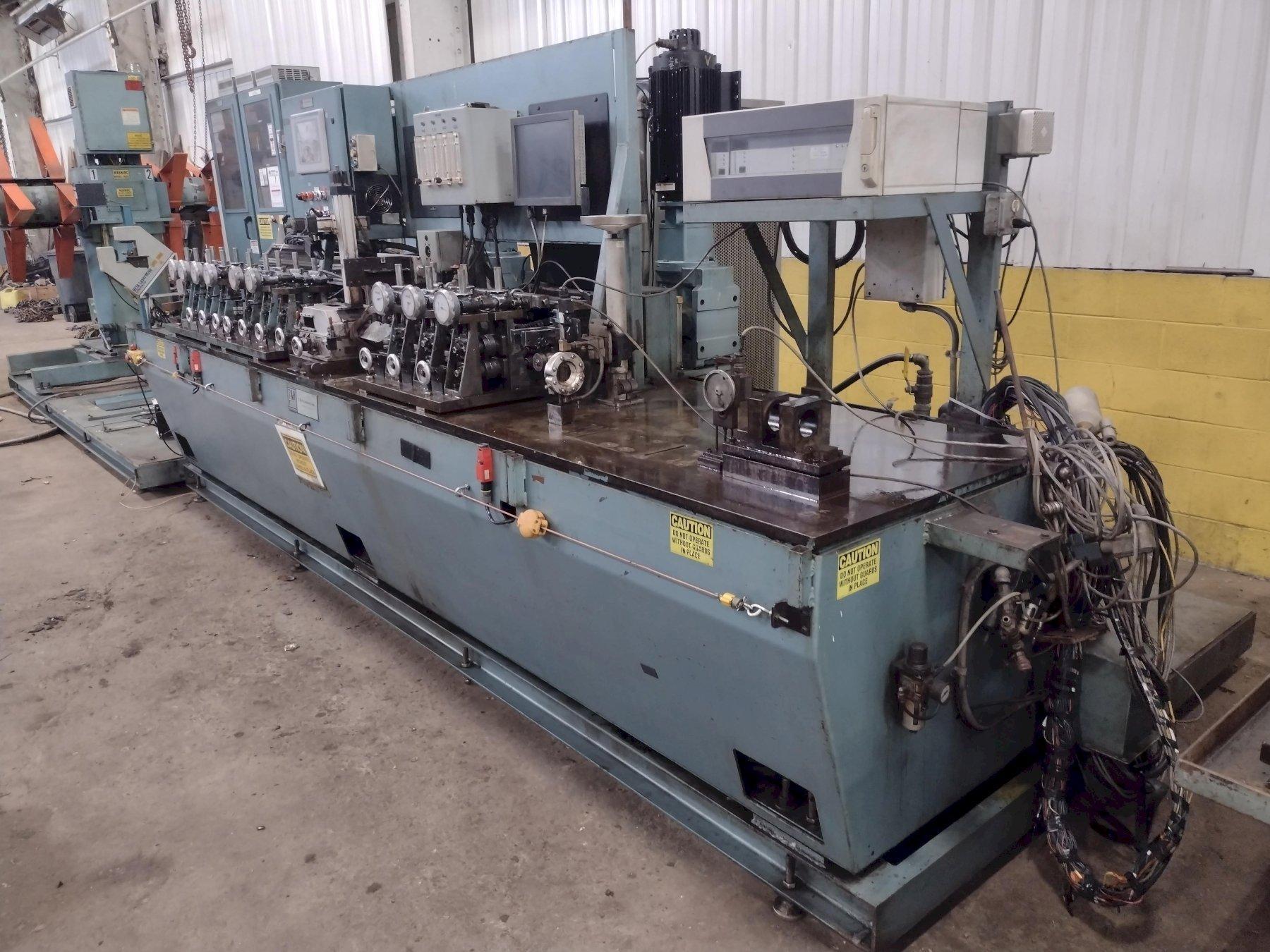

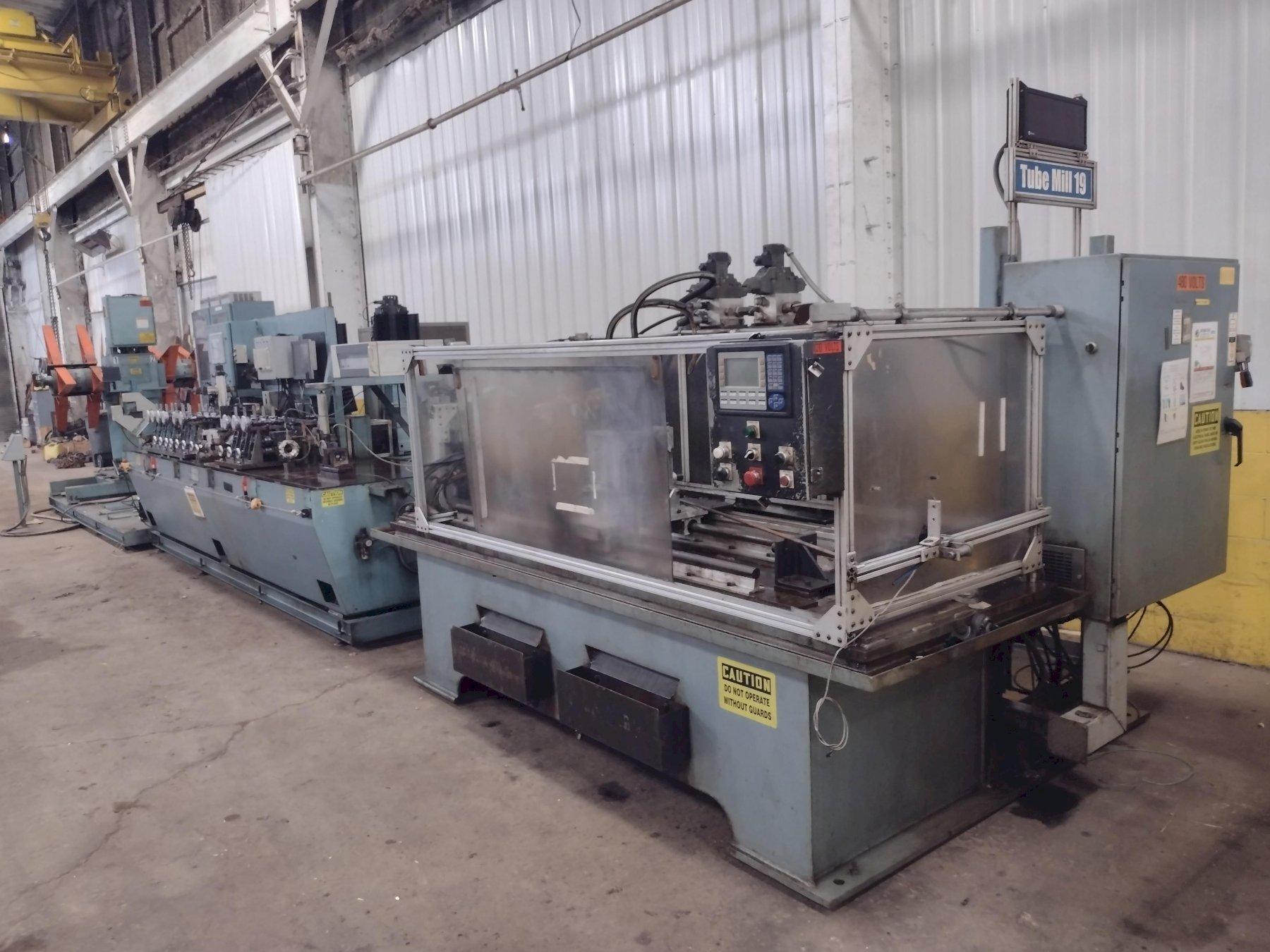

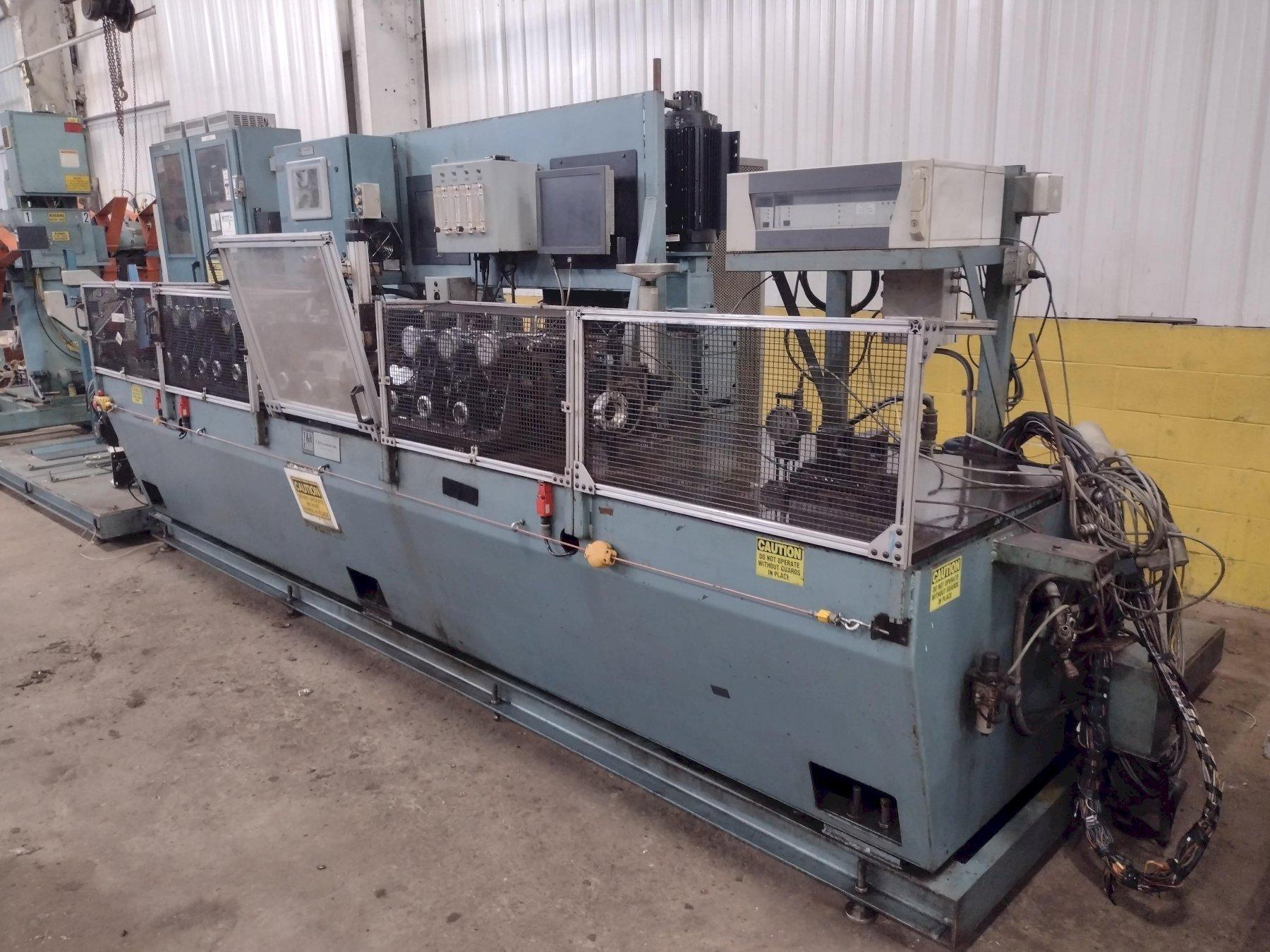

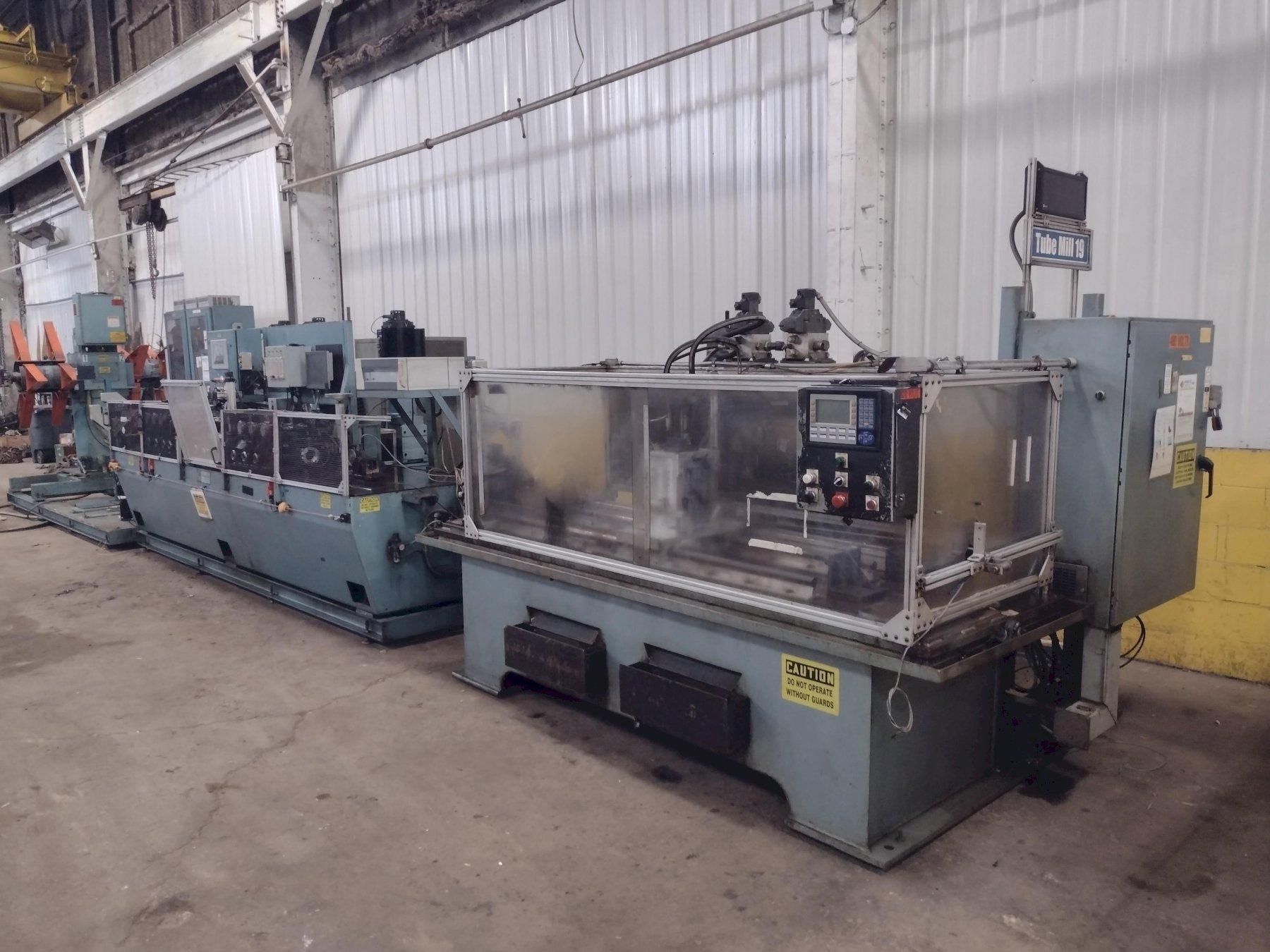

TUREK & HELLER WU11-9 TUBE MILL SYSTEM
MILL CONFIGURATION - (4) BREAKDOWN/FORMING STANDS, (3)FINISH STANDS, (2)

SIZING STANDS
MAX TUBE DIAMETER - 0.750"
CURRENTLY TOOLED FOR - 0.312"
MAX WALL THICKNESS - 0.012"
DRIVEN SHAFT DIAMETER - 1.125"
BREAKDOWN SECTION ROLL SPACE - 3"
FIN SECTION ROLL SPACE - 3"
SIZING SECTION ROLL SPACE - 3"
NOMINAL ROLL ROOT DIAMETER - 2.5"
PASSLINE HEIGHT FROM FLOOR TO BOTTOM LINE OF TUBE MILL - 43"
MILL SPEED - 0-60/FPM

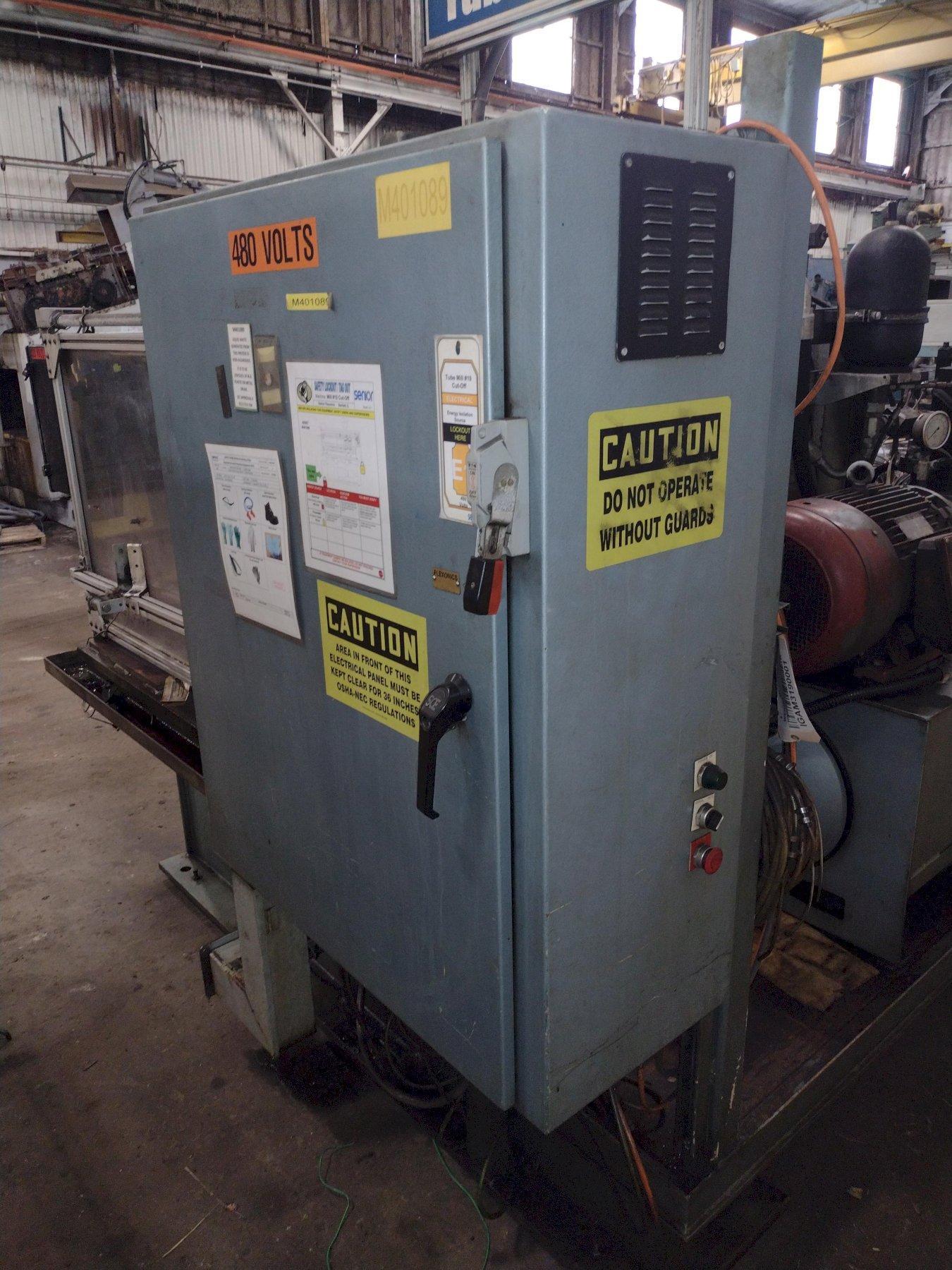

VOLTAGE - 480 V, 3 PH

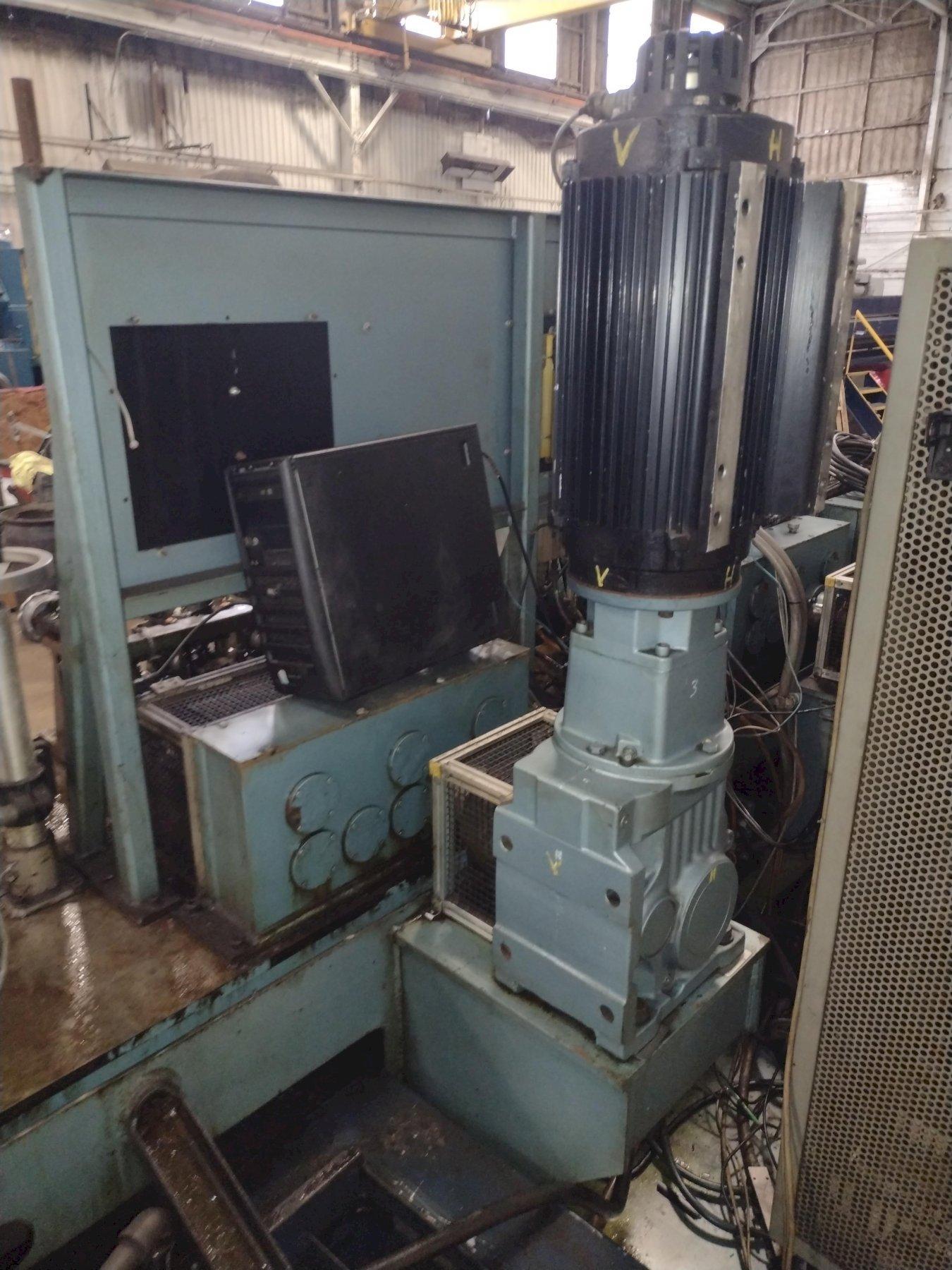

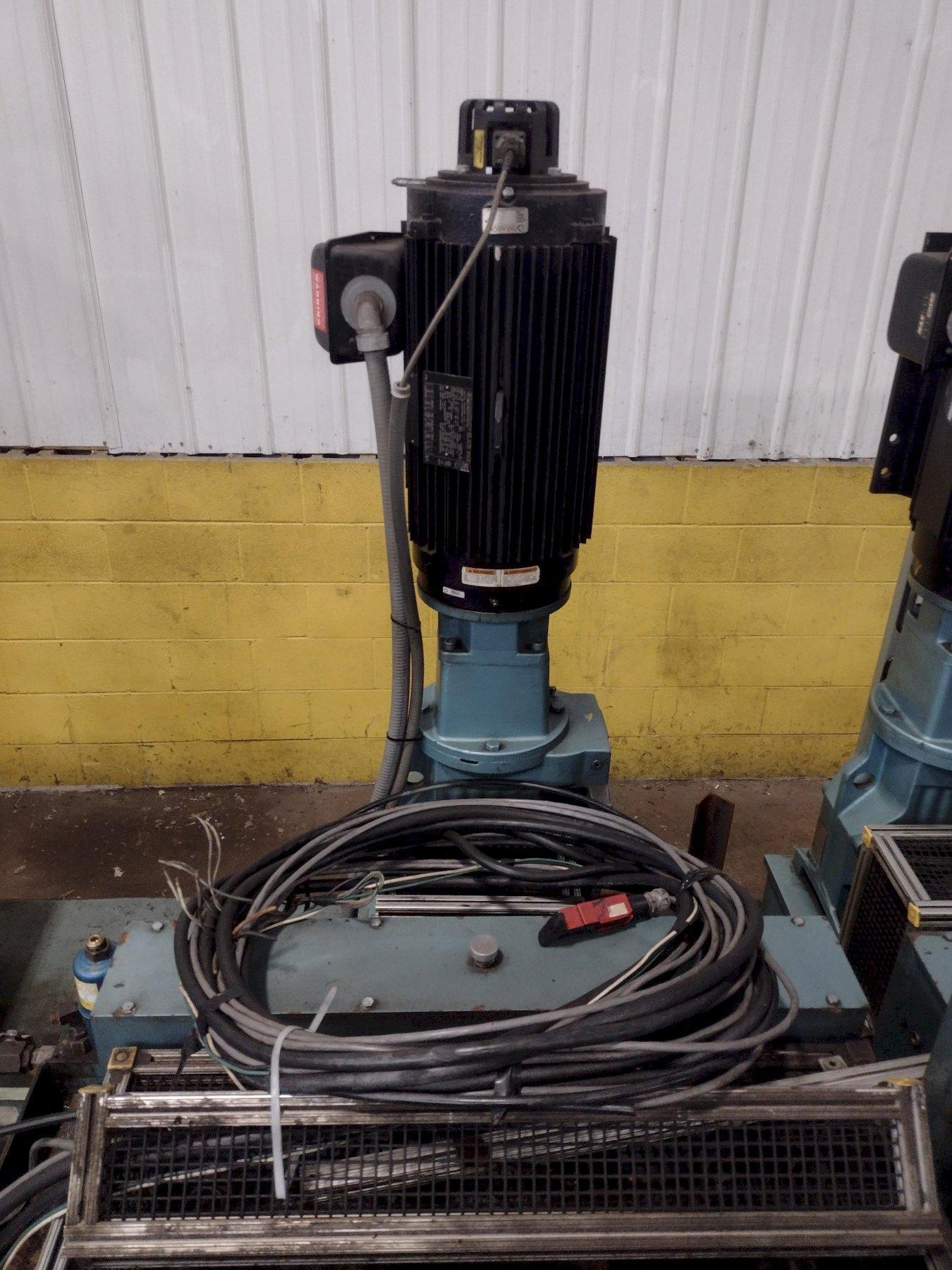

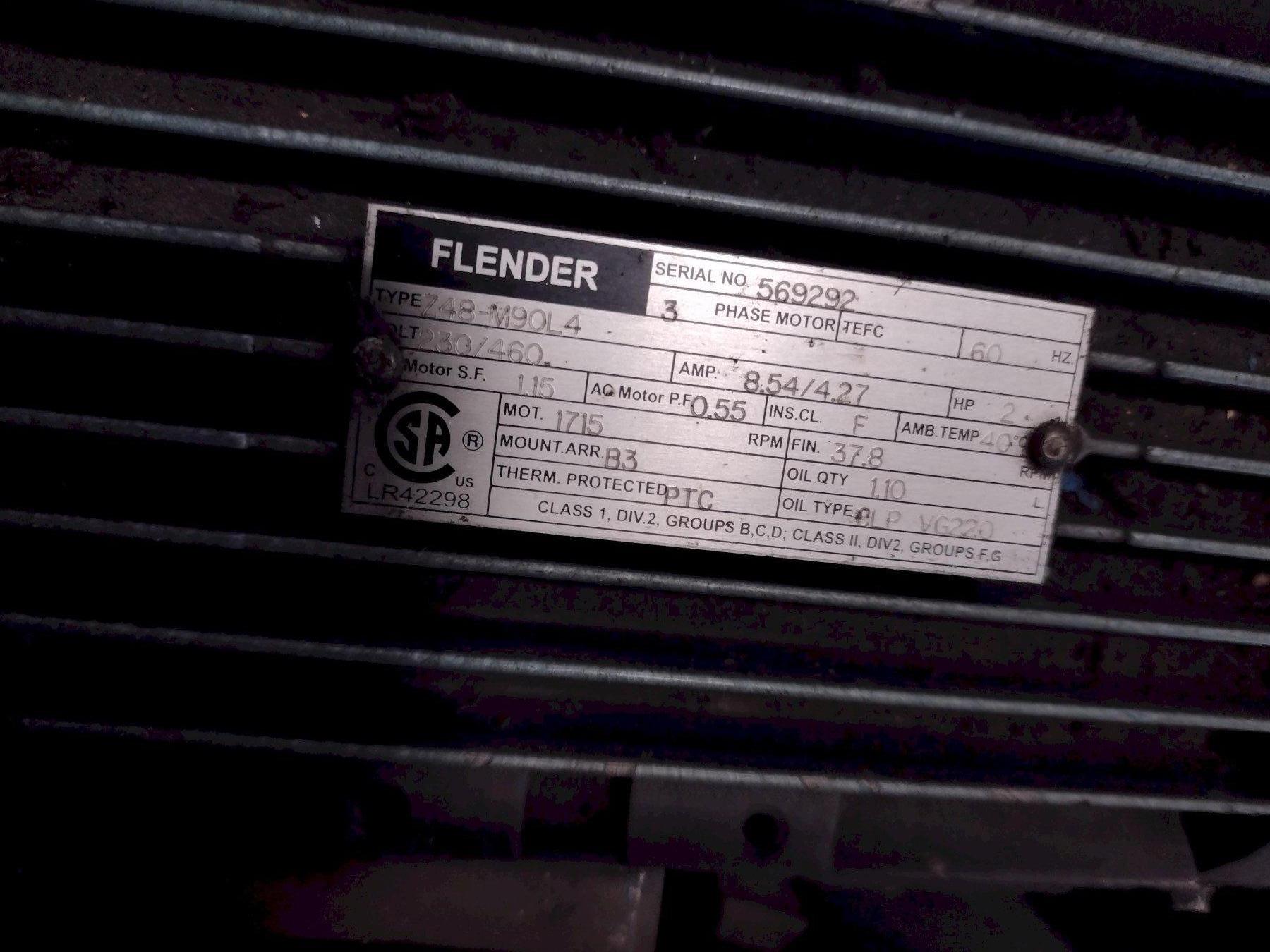

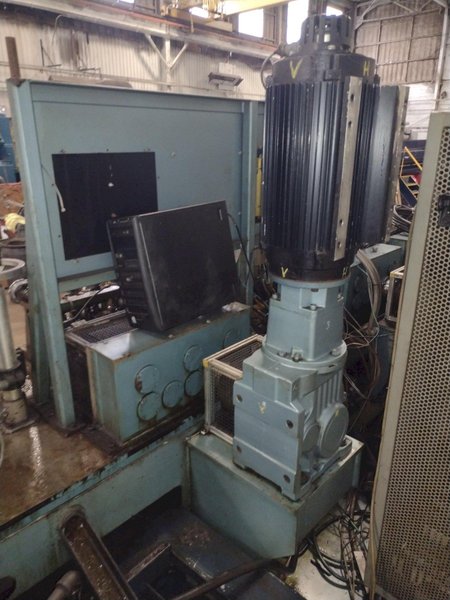

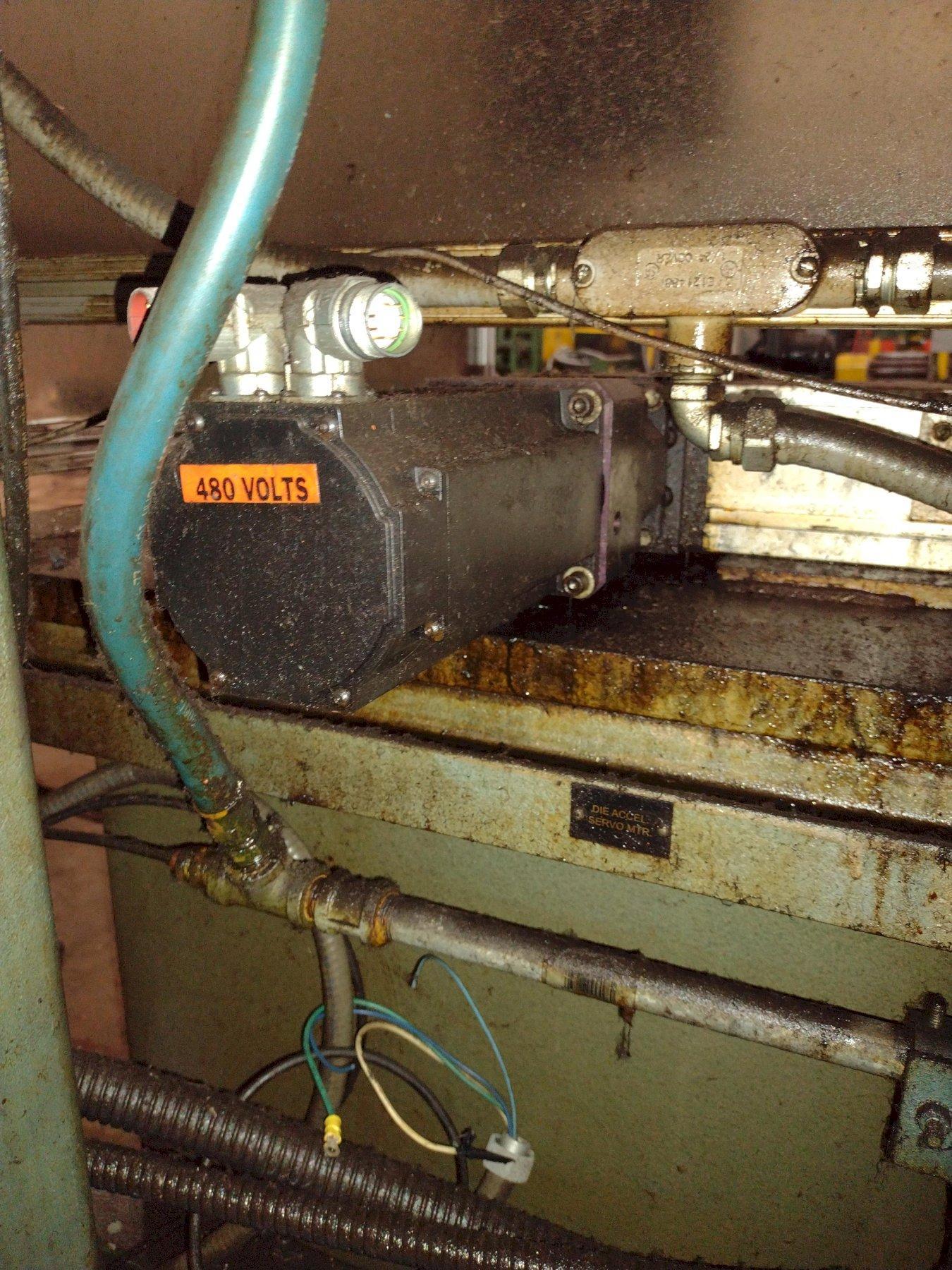

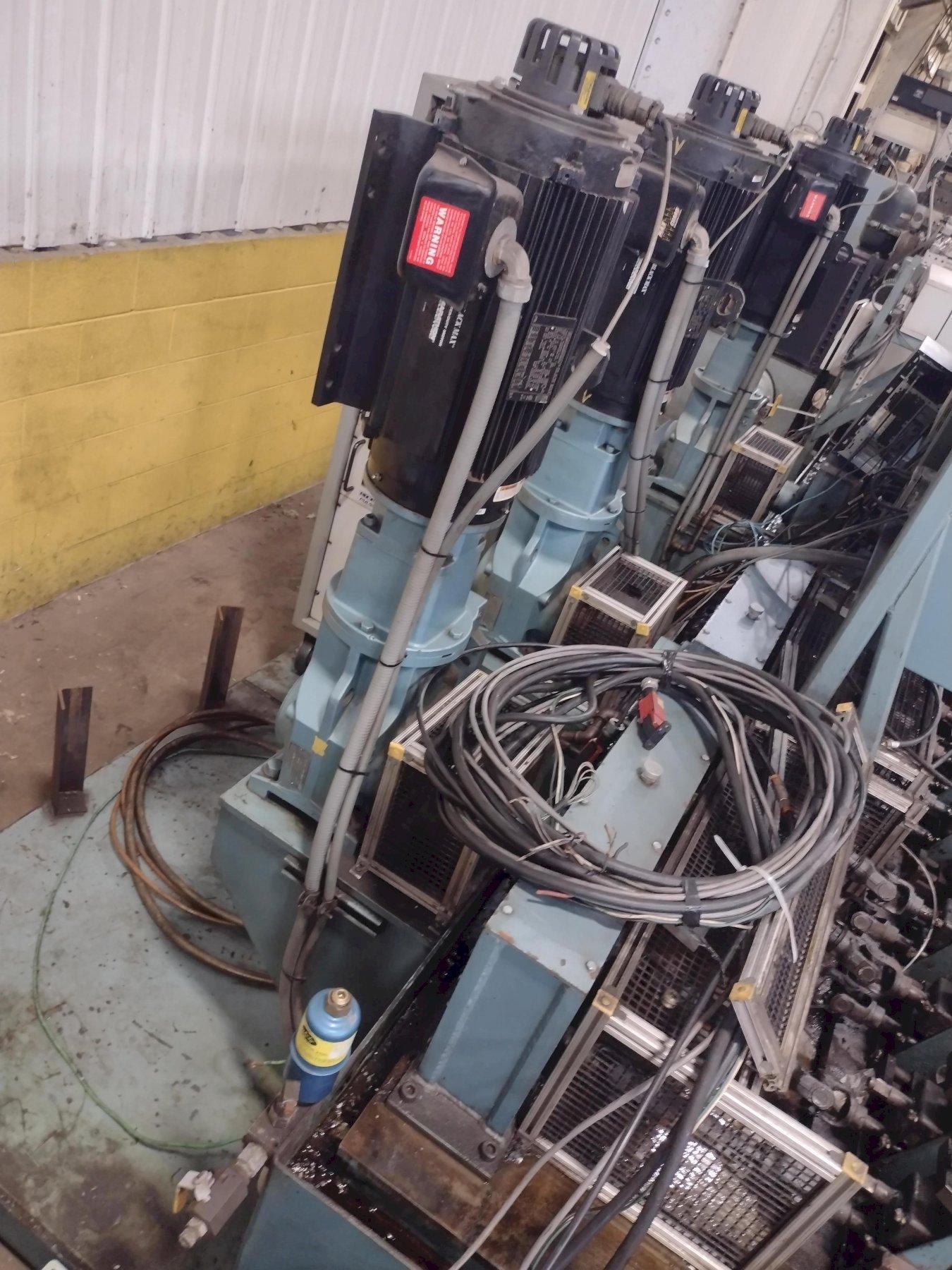

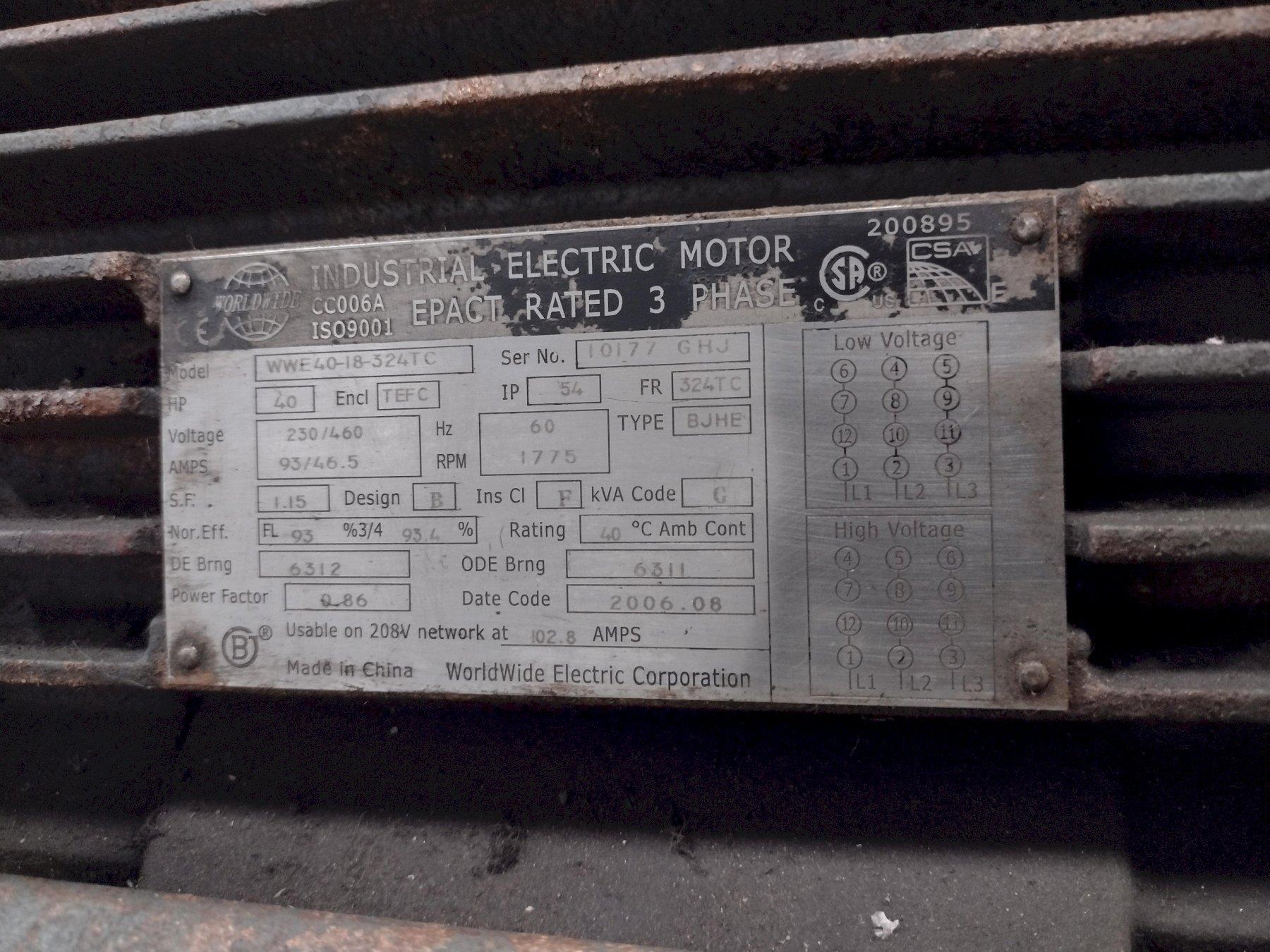

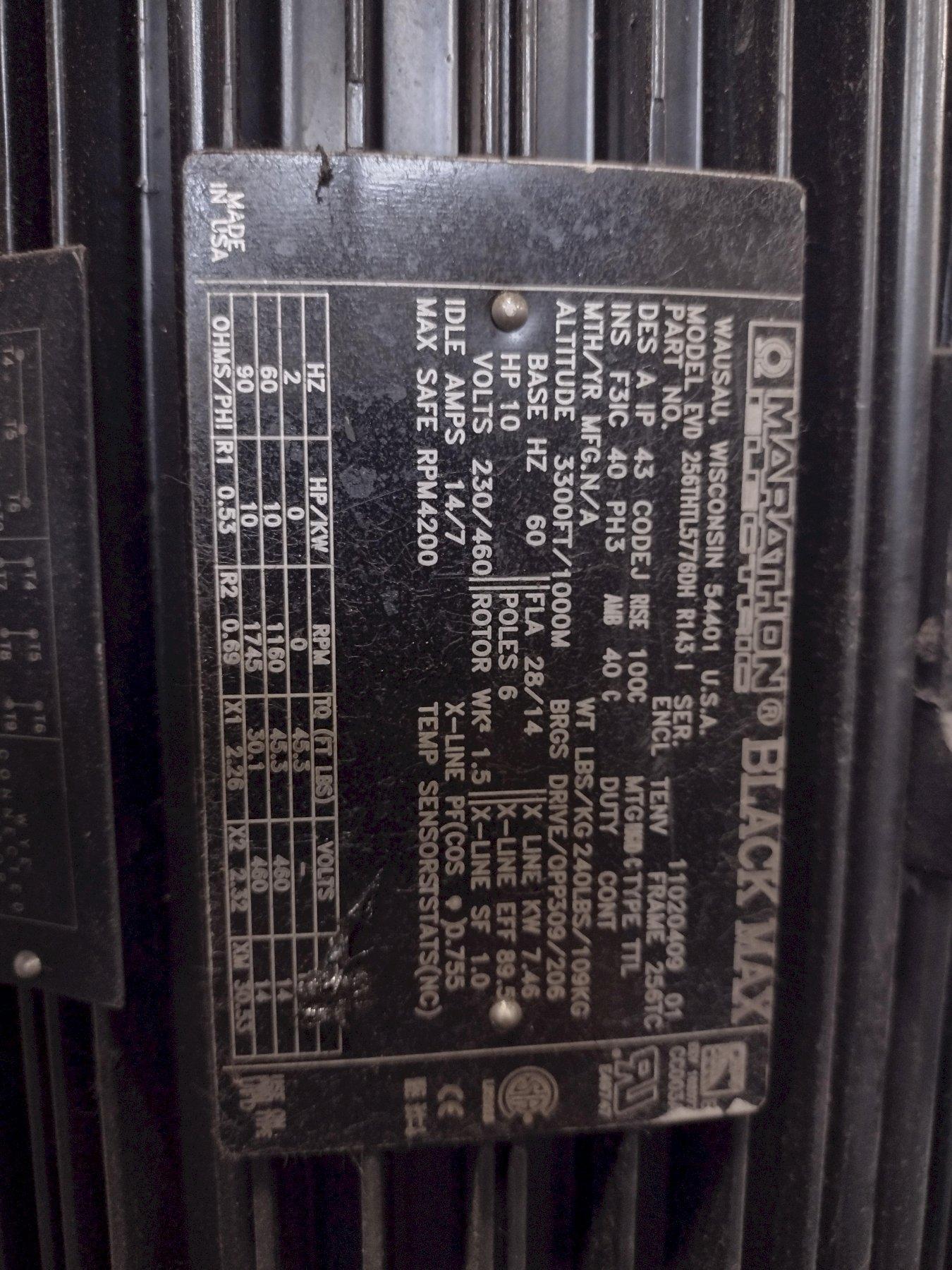

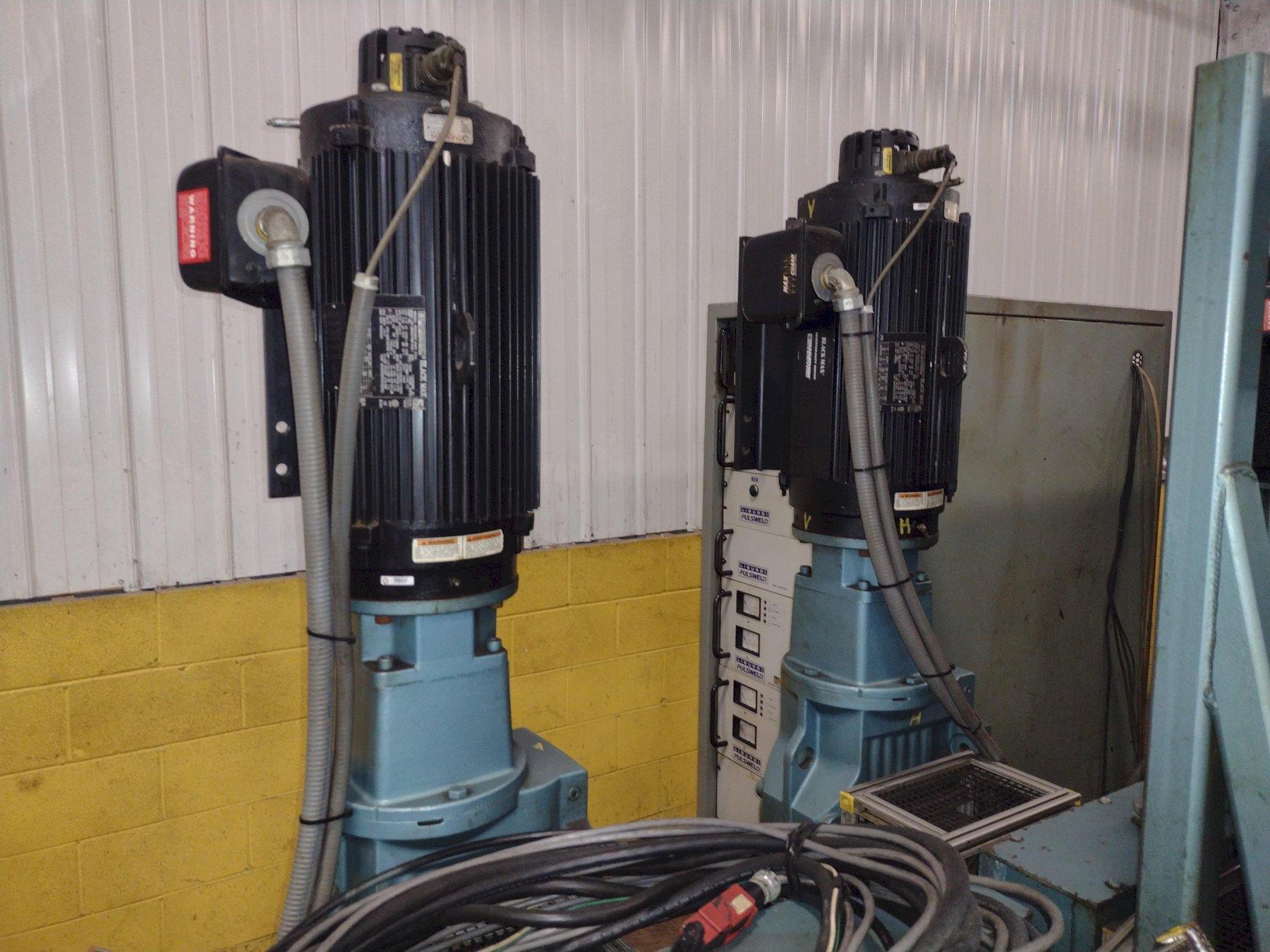

MOTORS - (3) 10 HP AC MOTORS (BREAKDOWN, FINISH, SIZING)

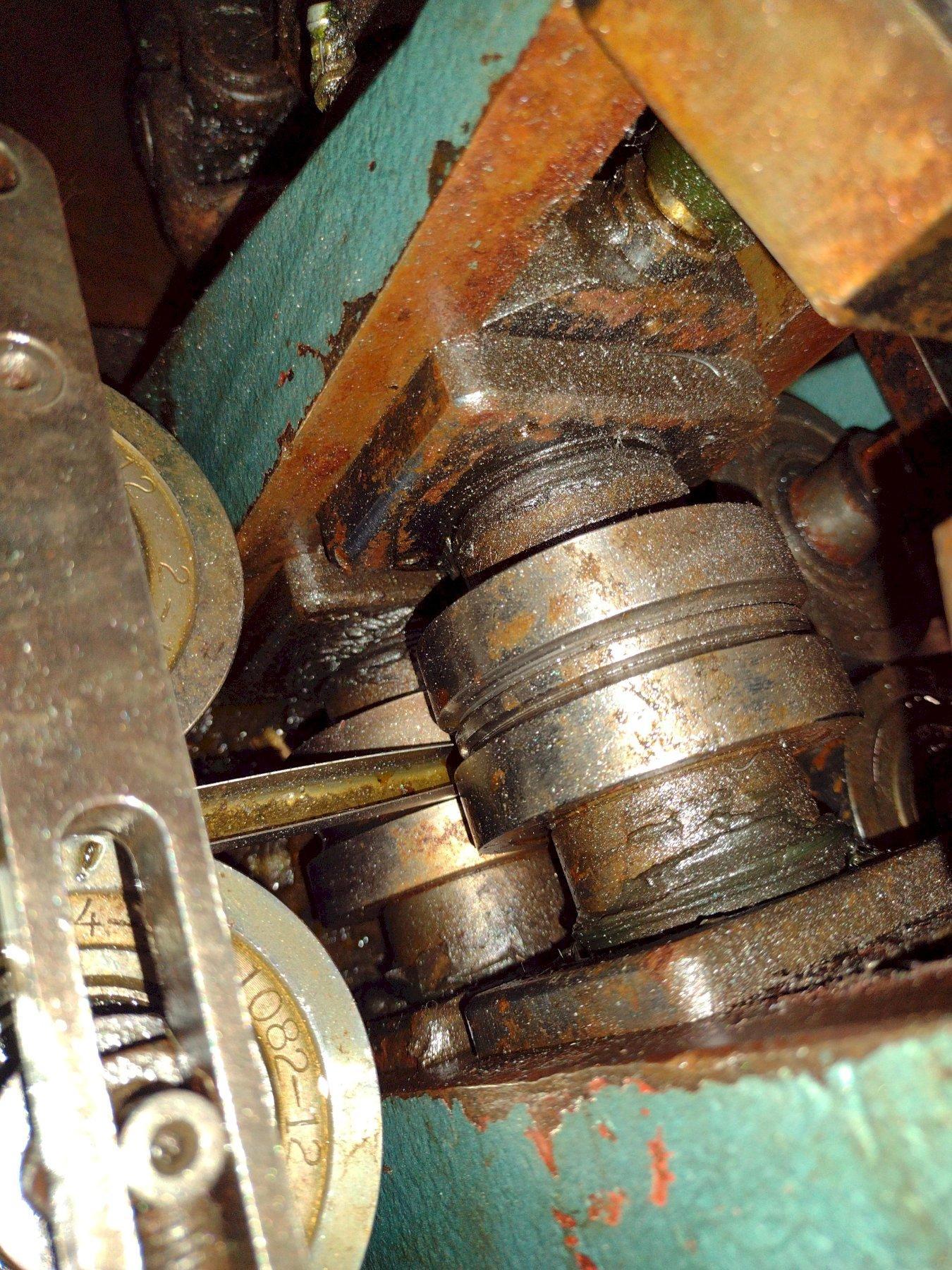

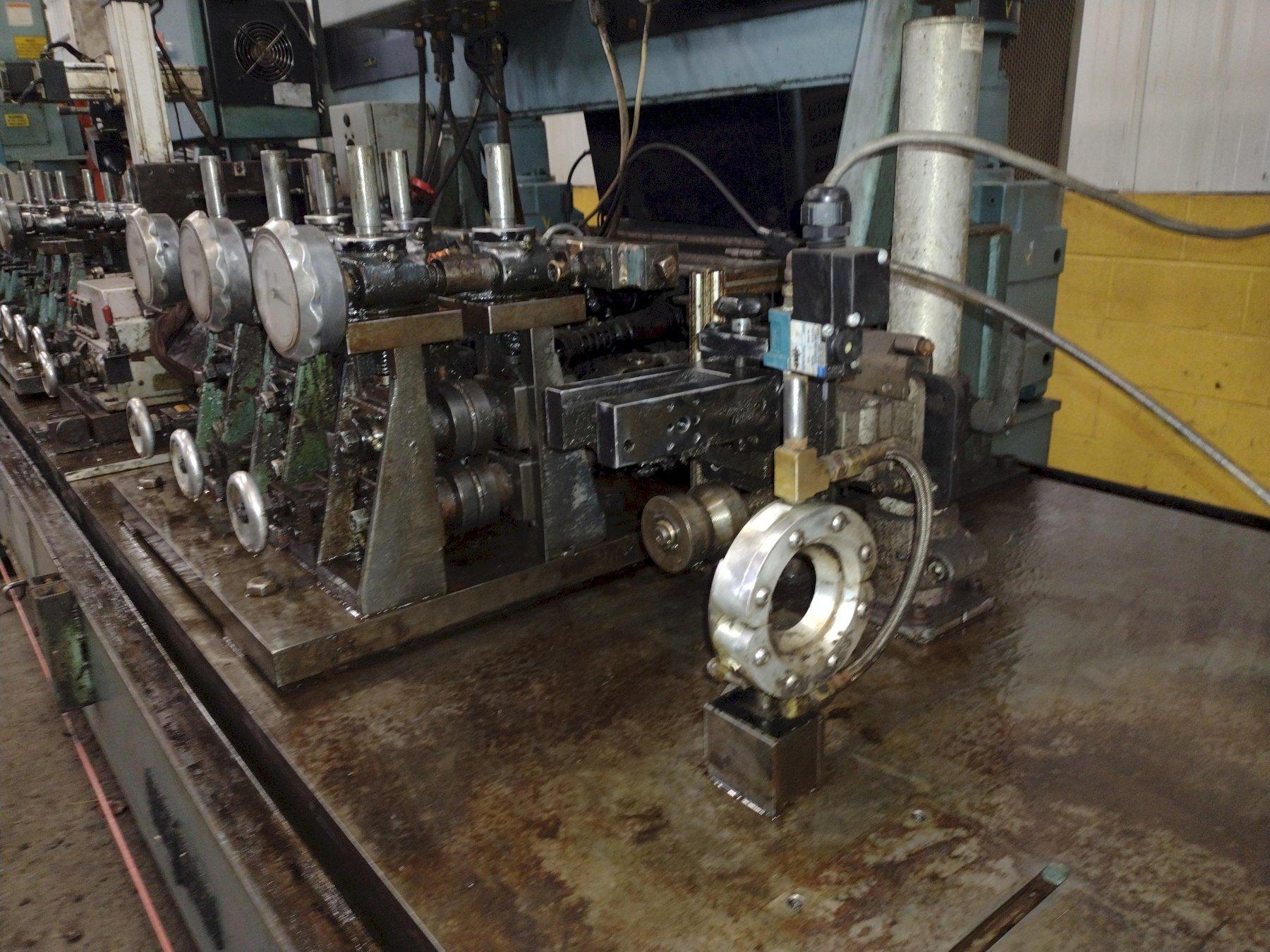

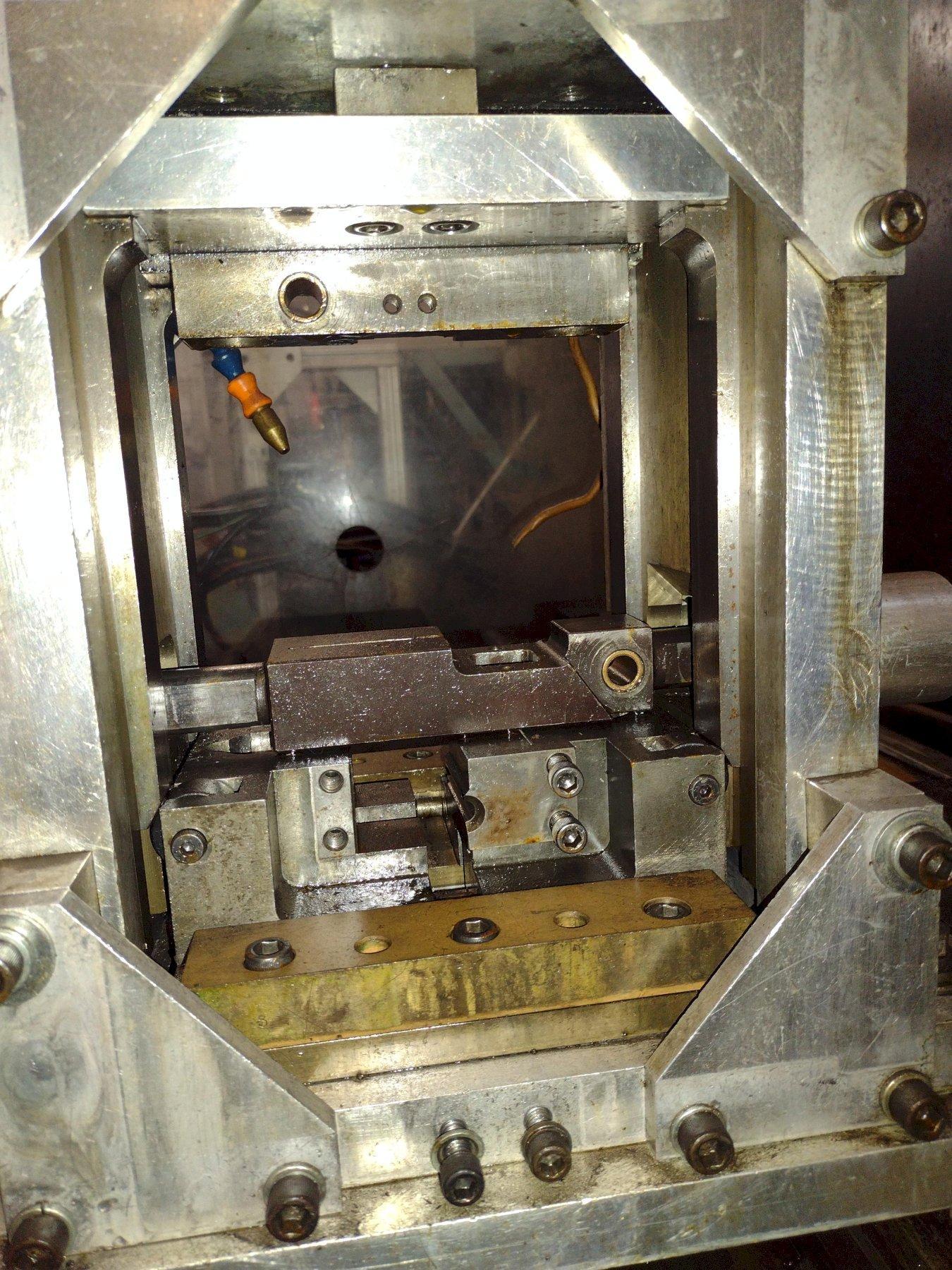

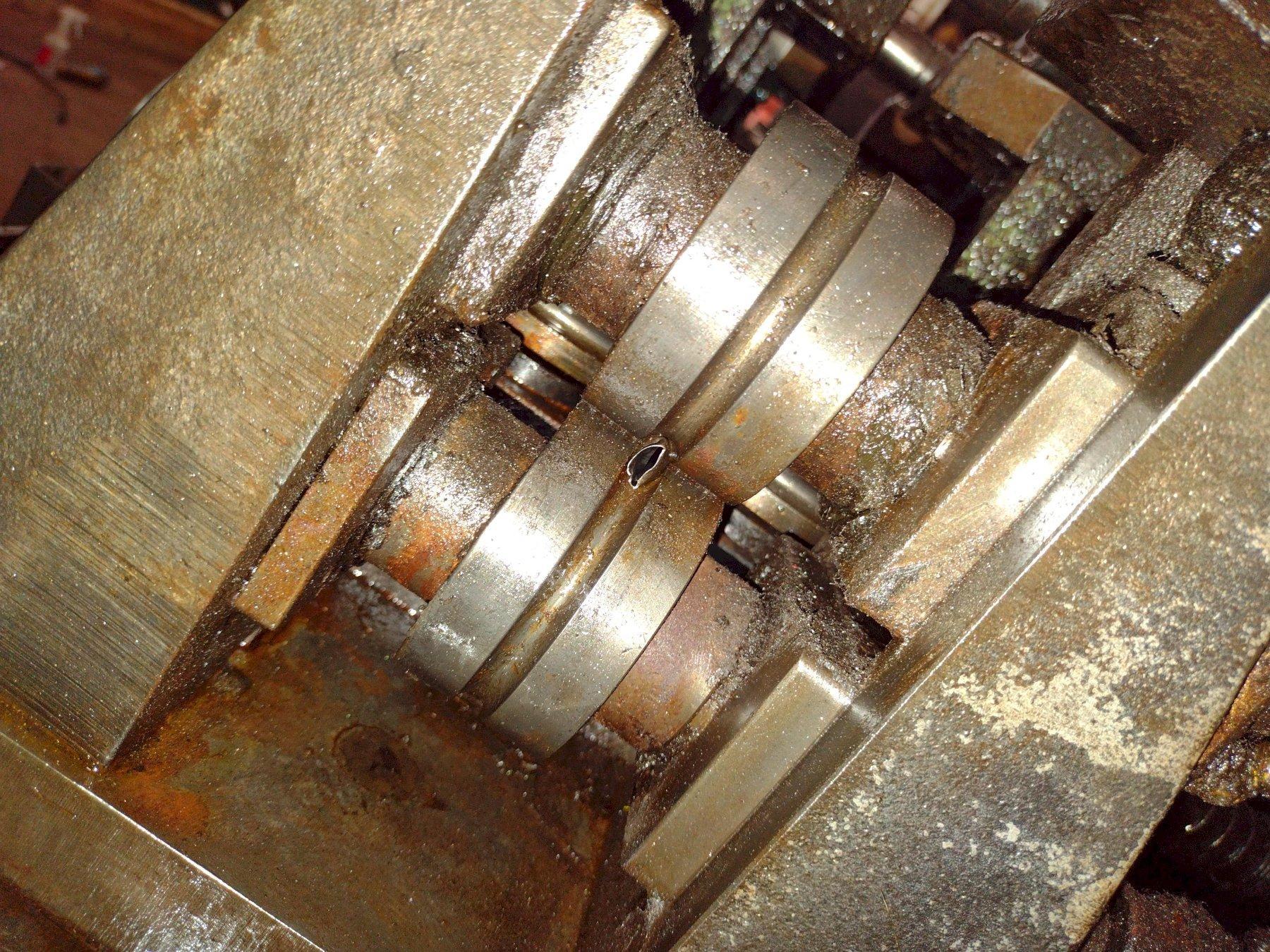

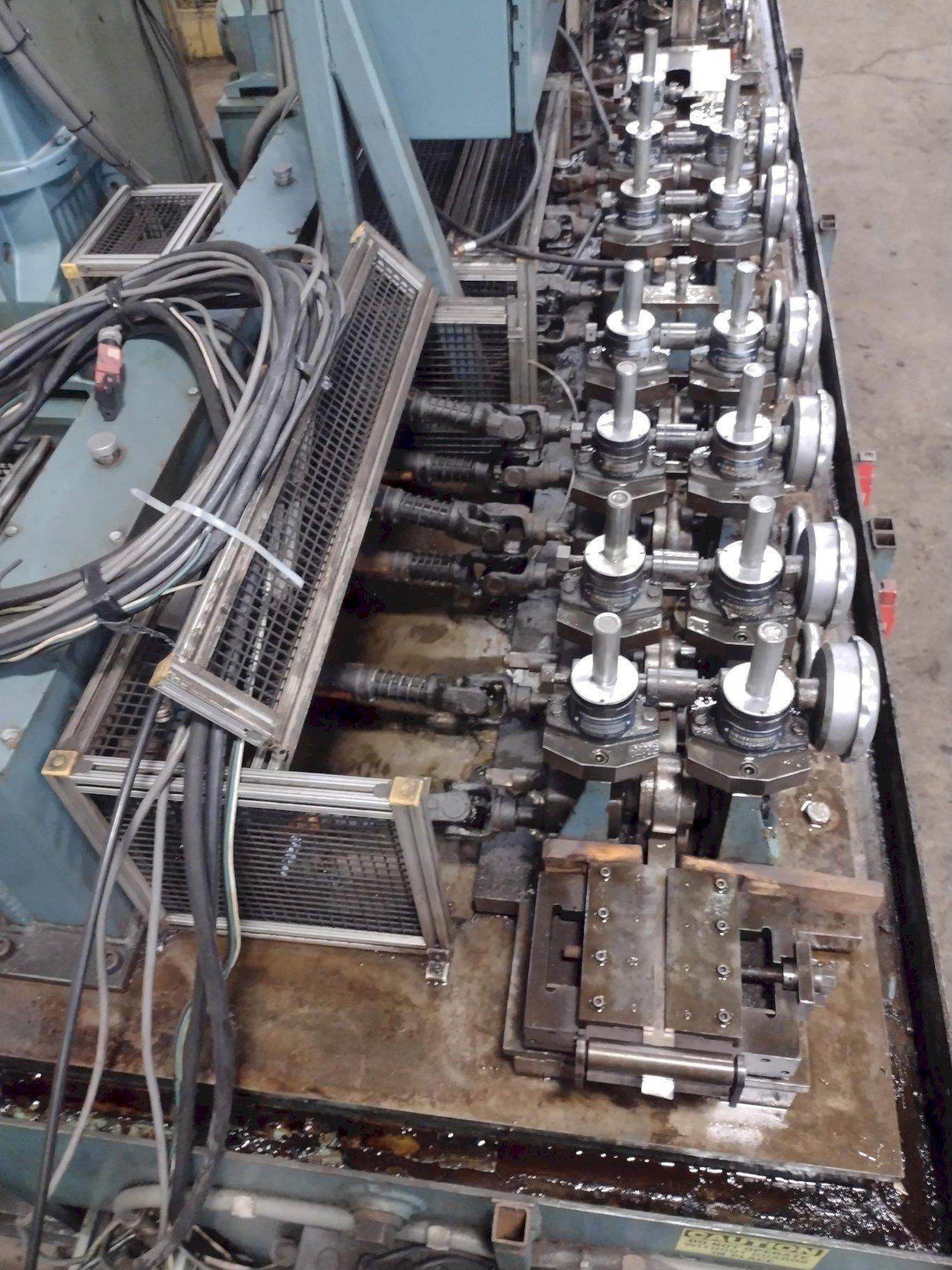

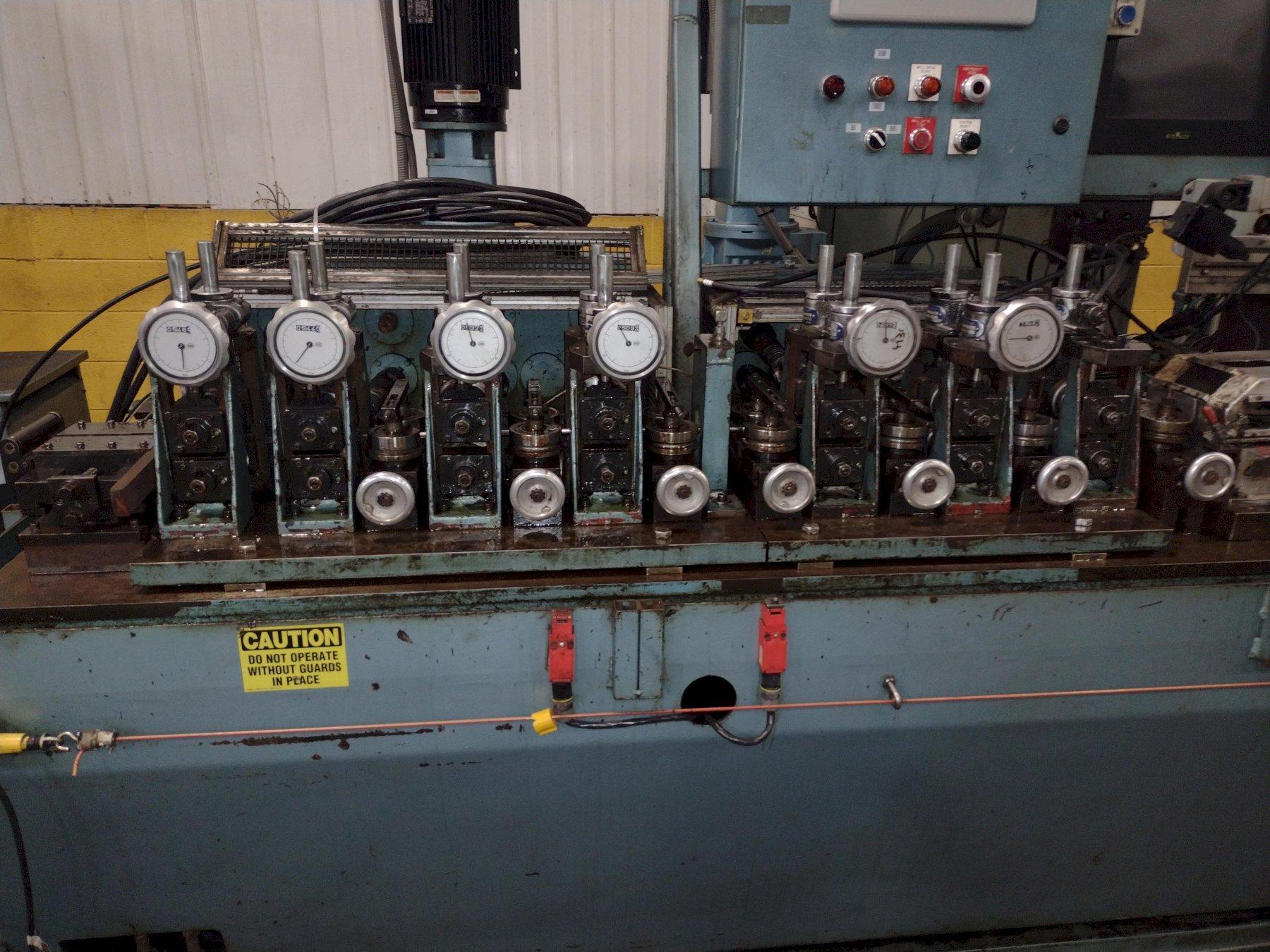

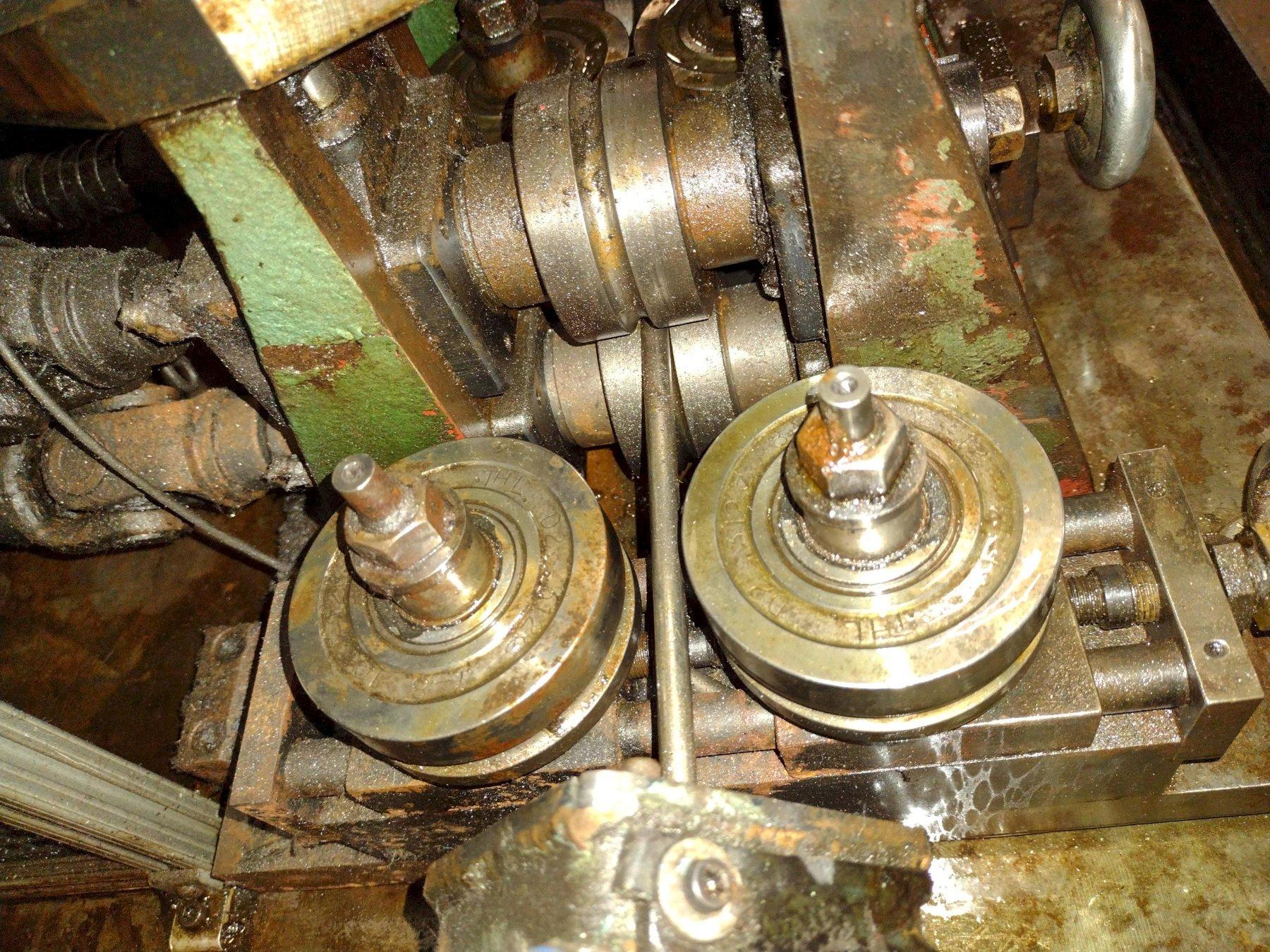

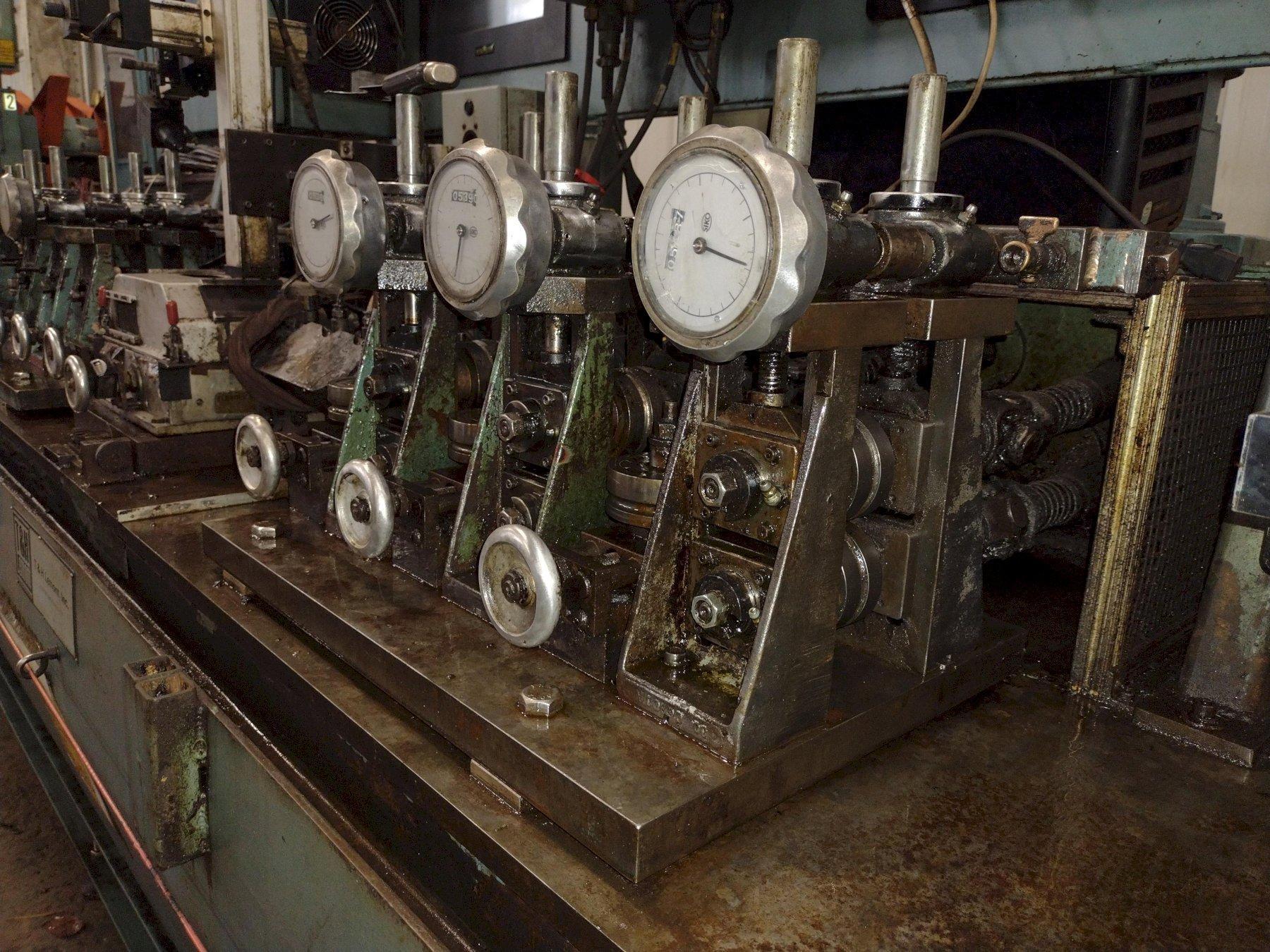

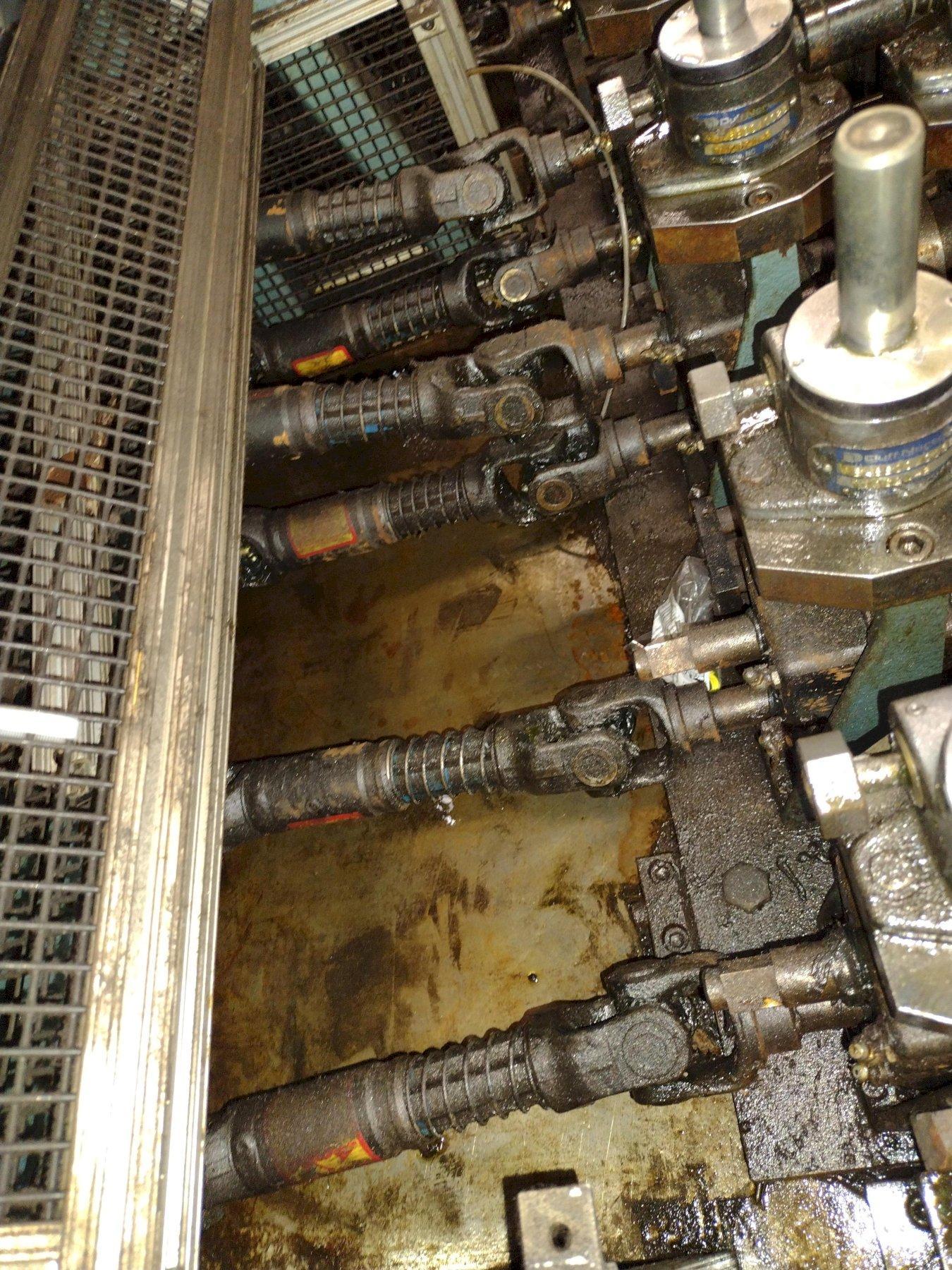

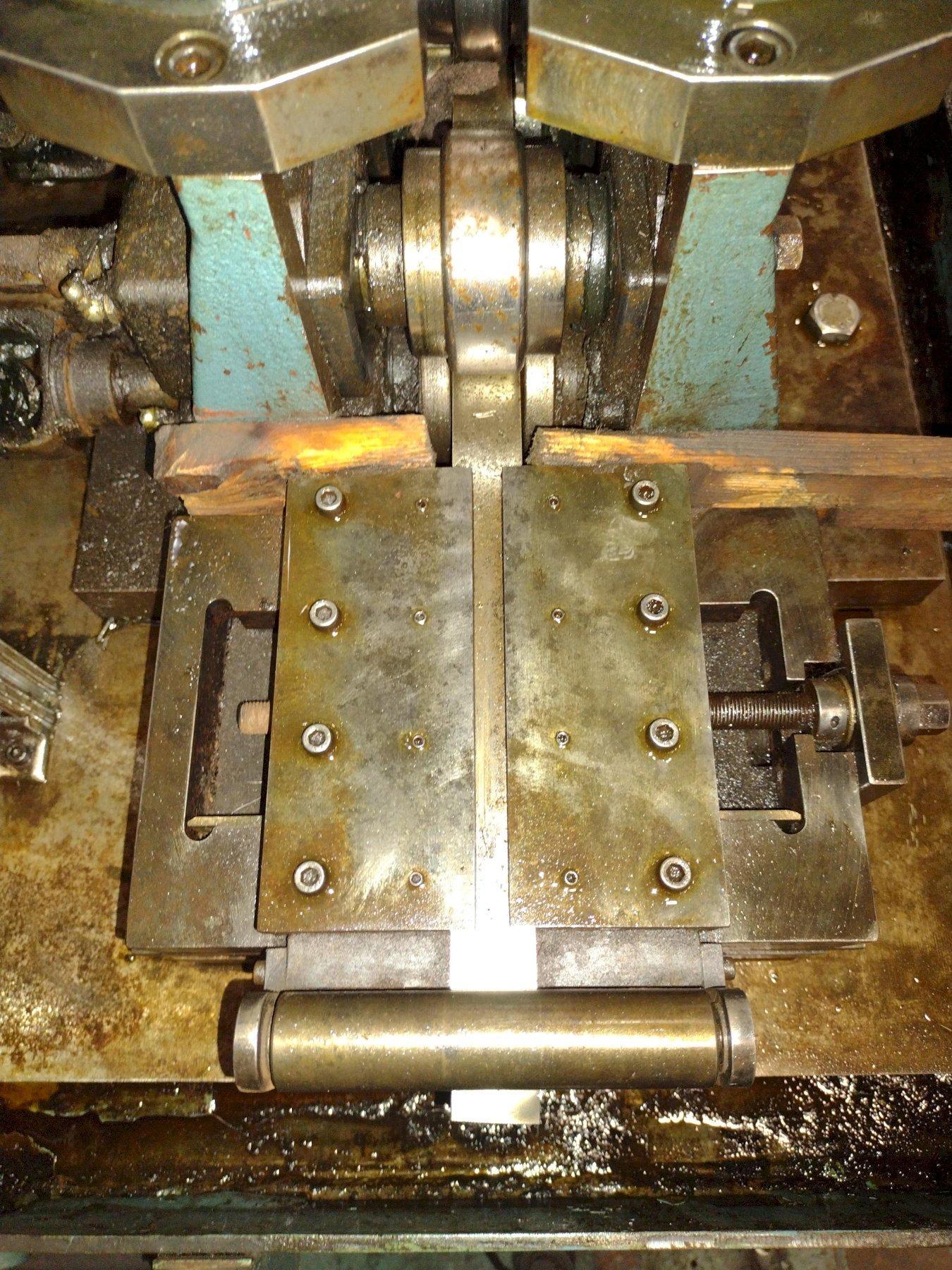

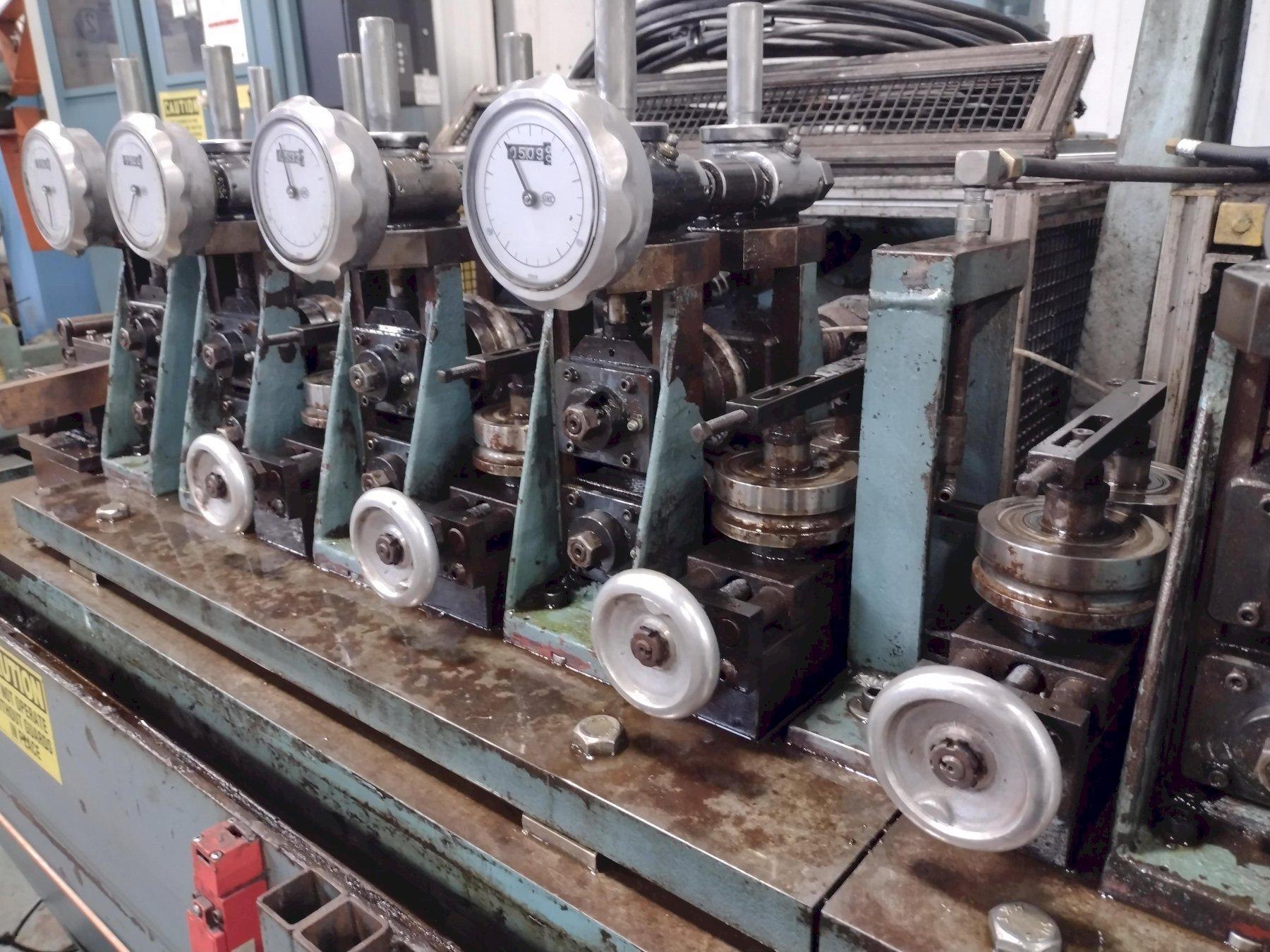

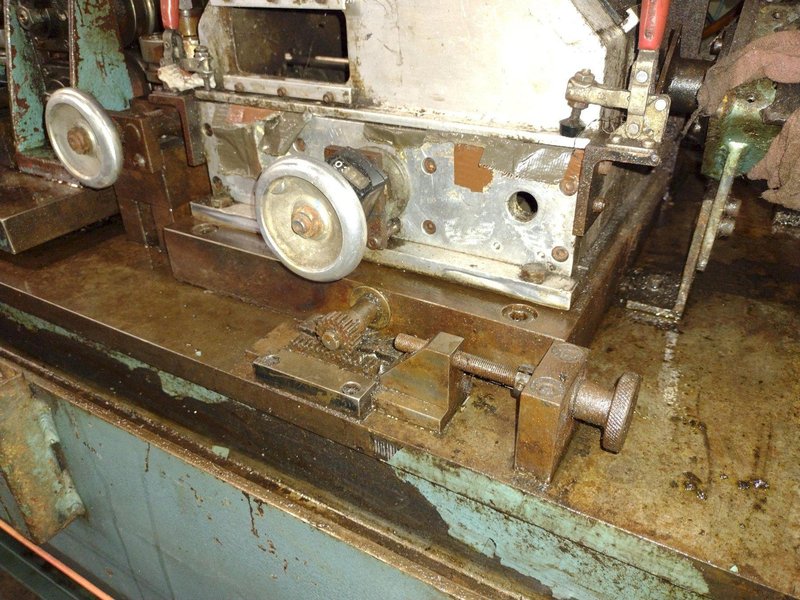

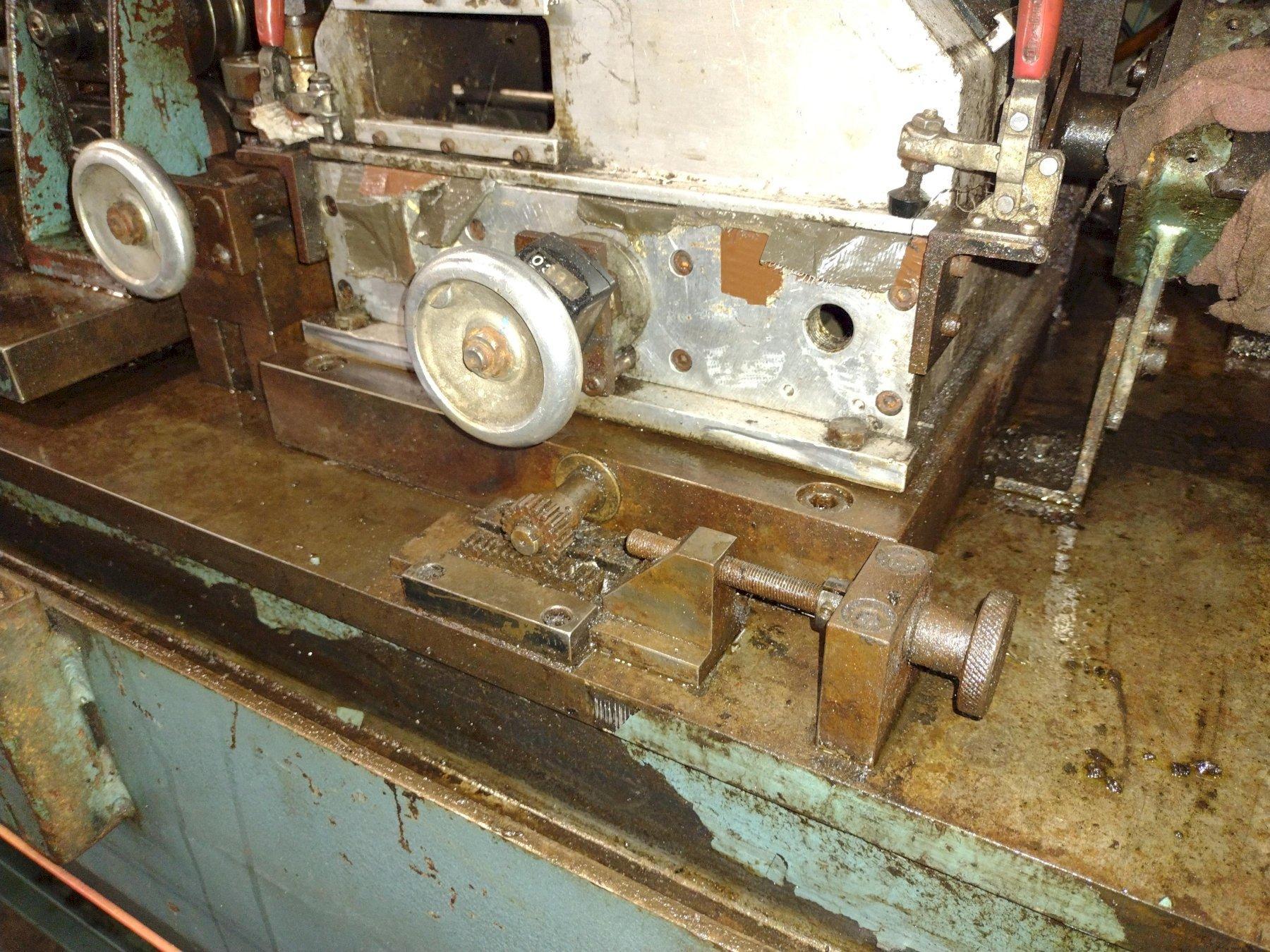

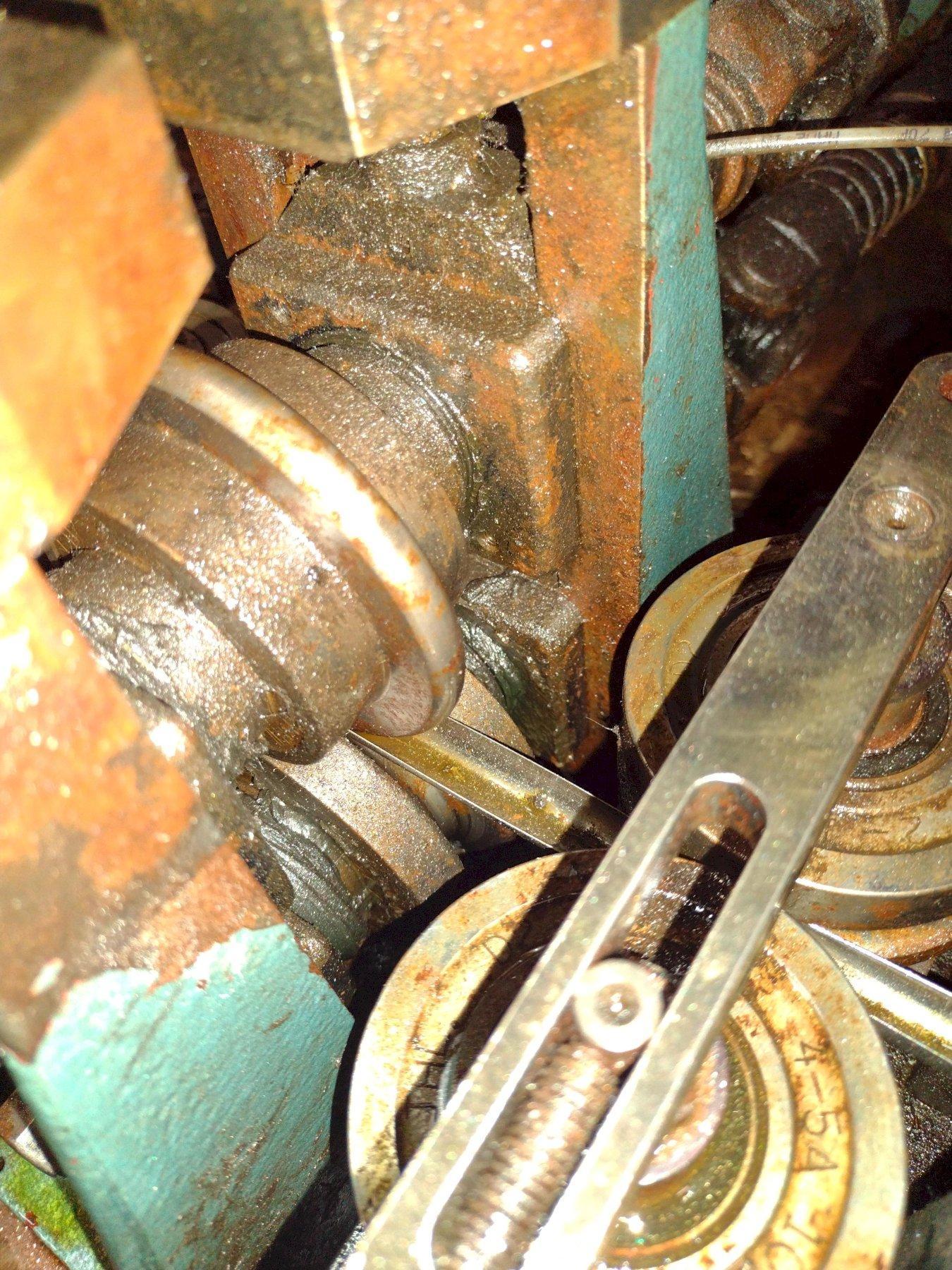

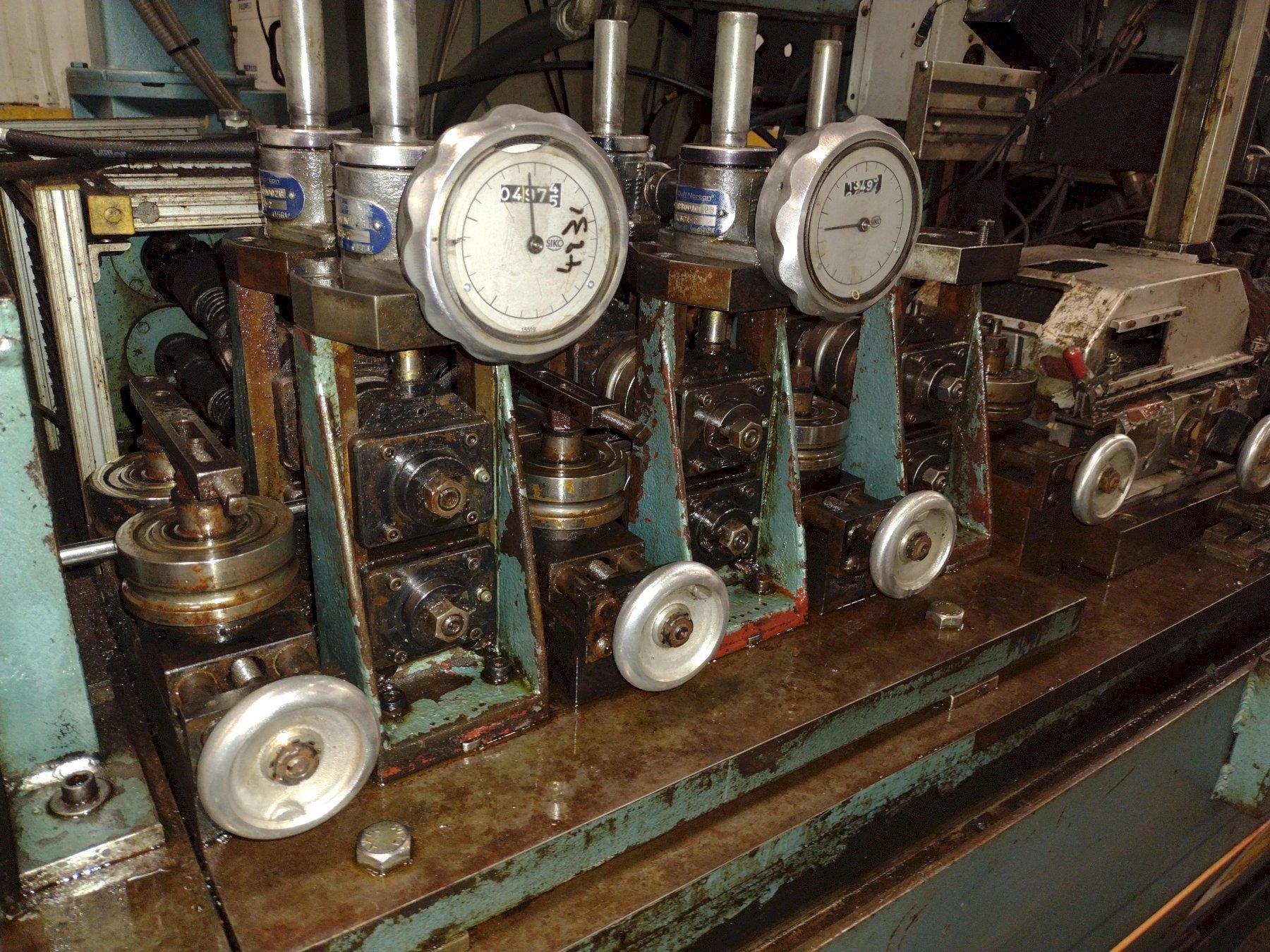

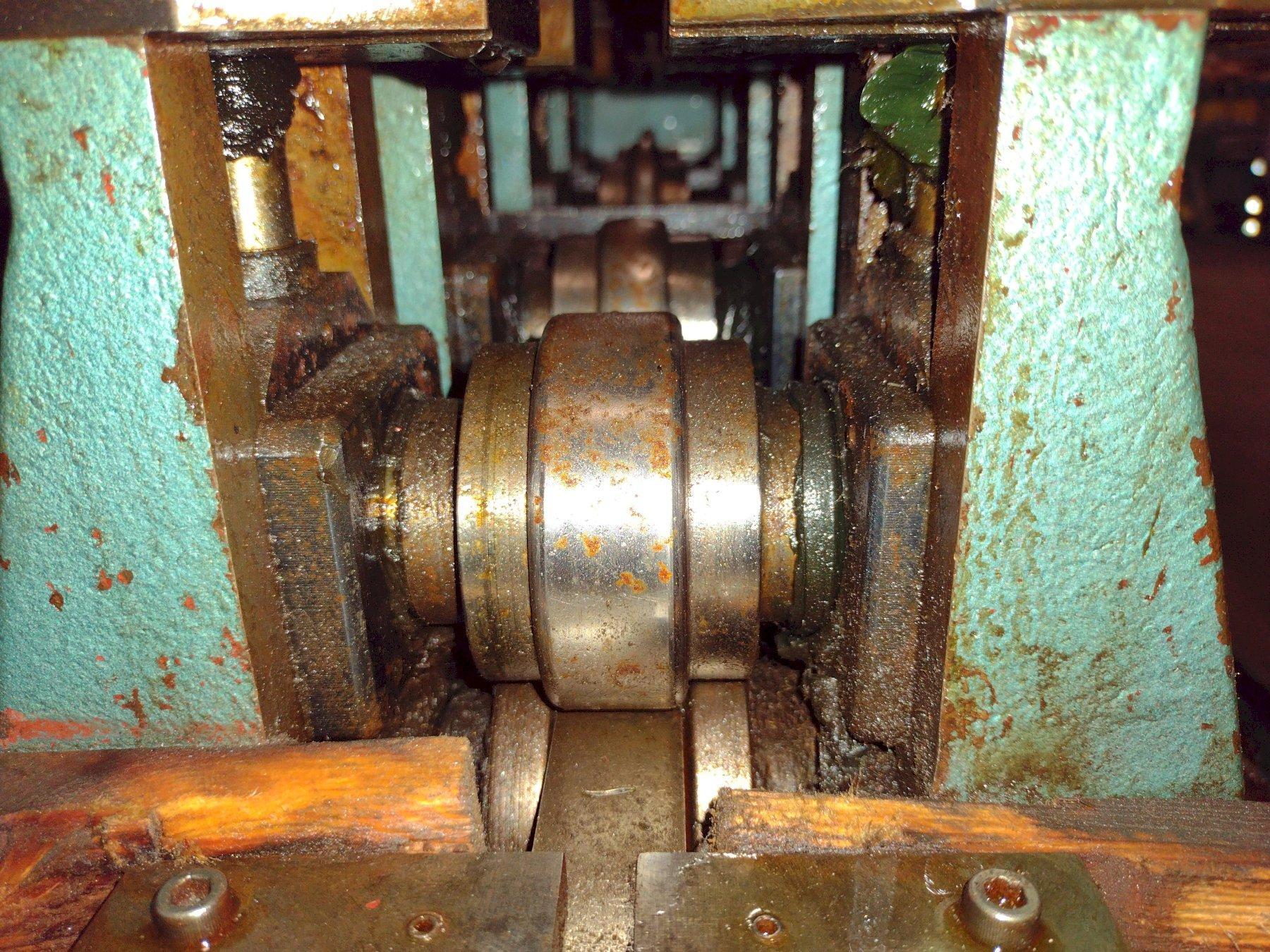

BREAKDOWN & FINISH STANDS

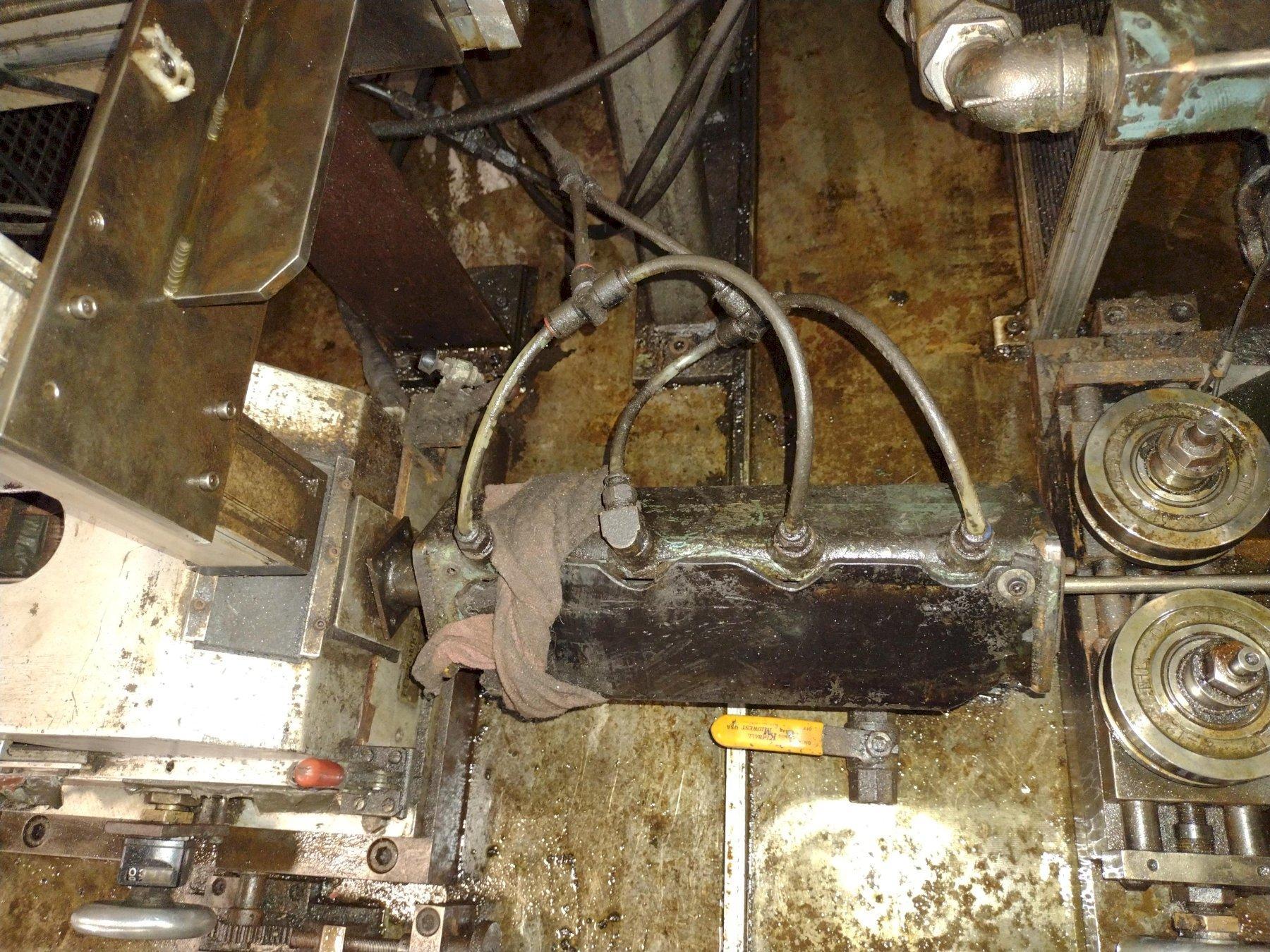

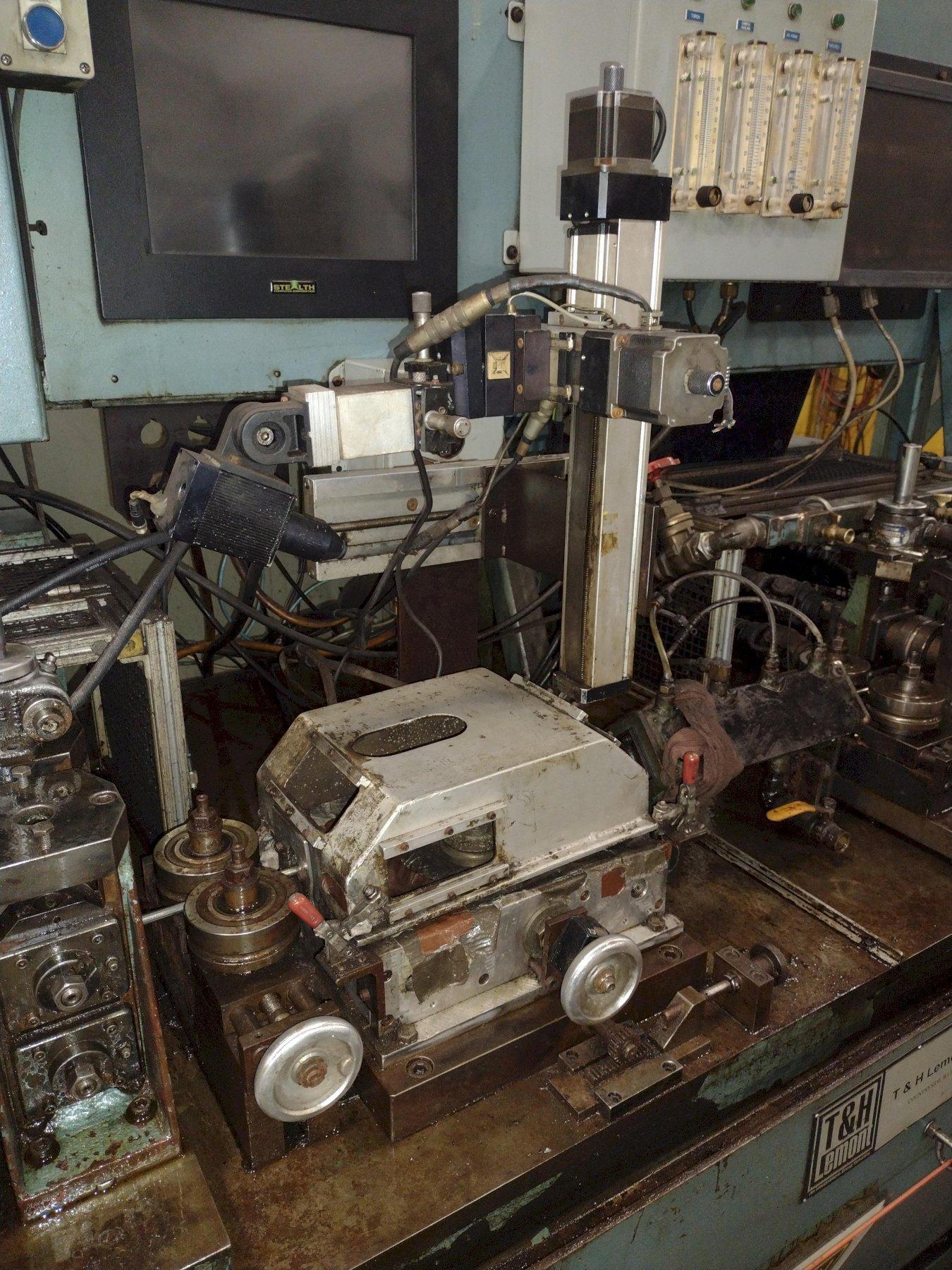

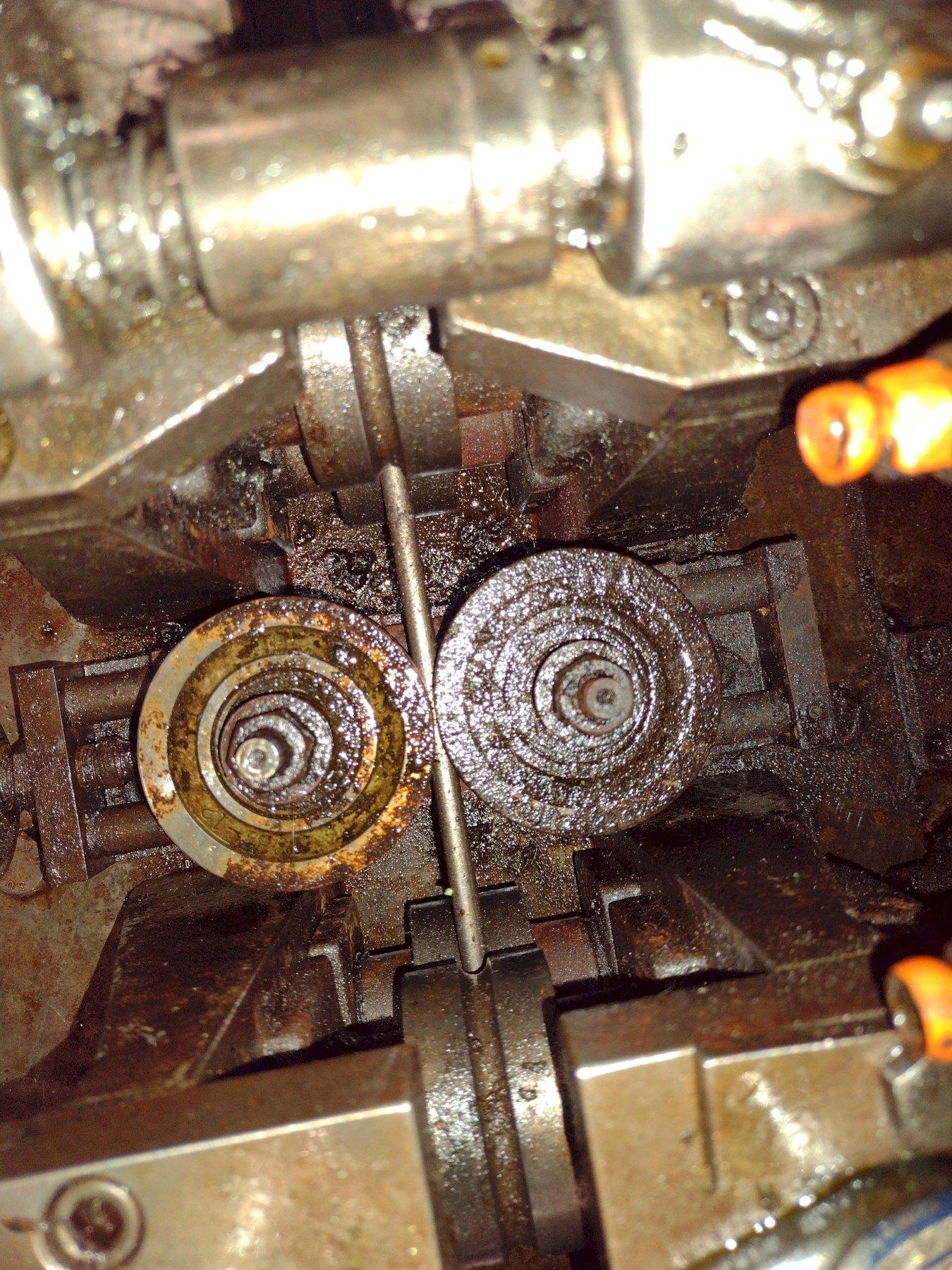

2 ROLL WELD BOX

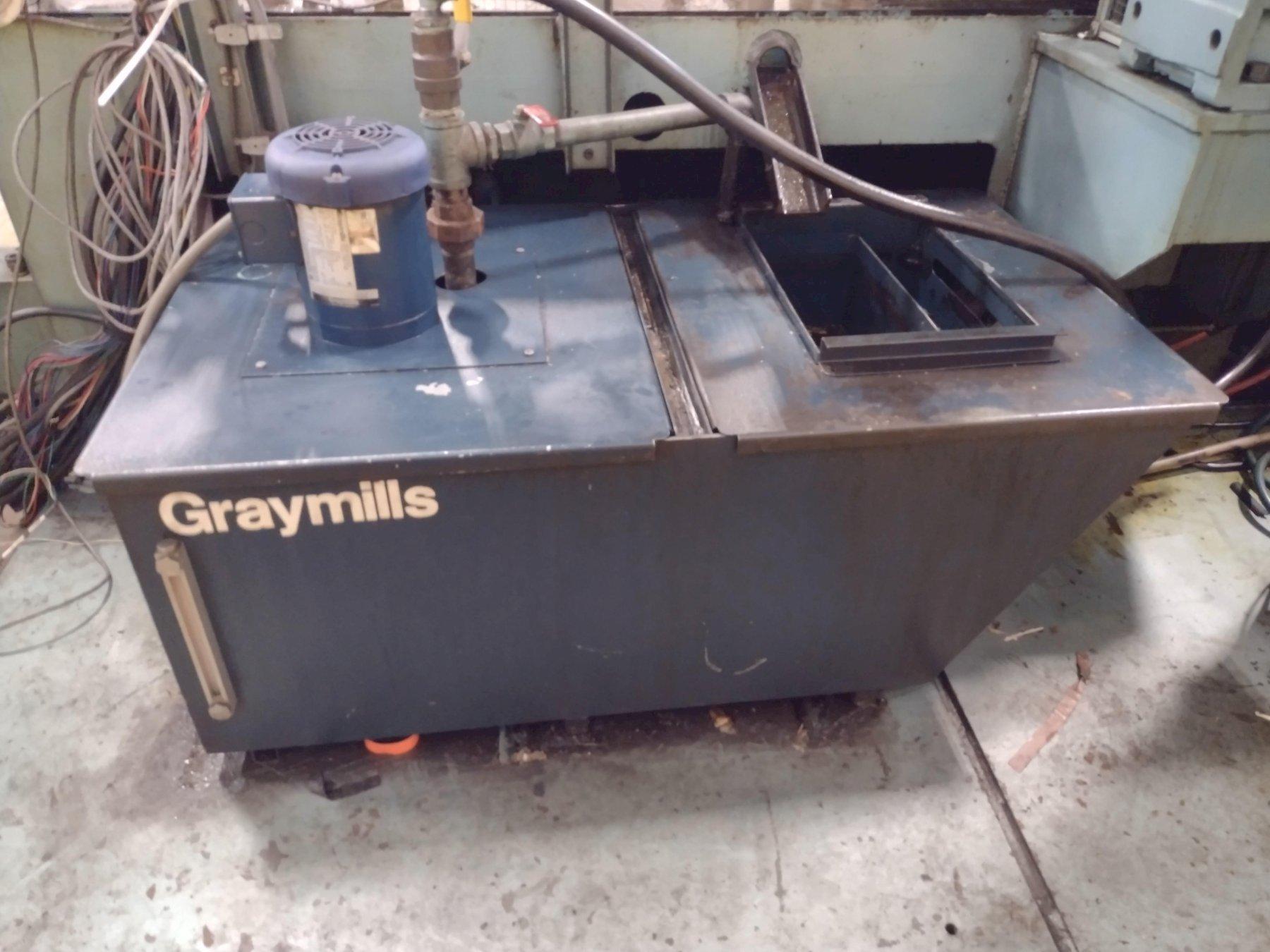

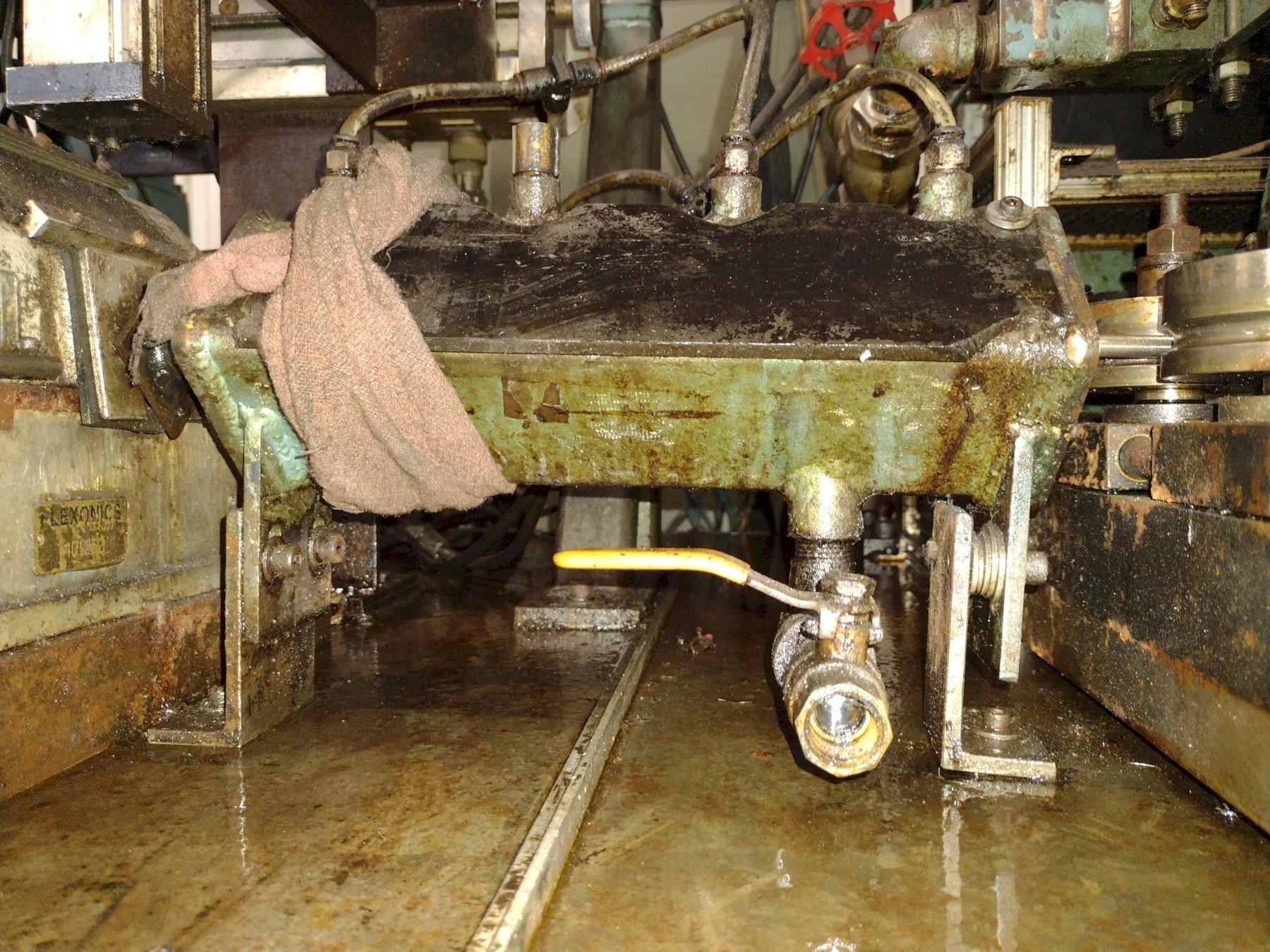

COOL DOWN SECTION

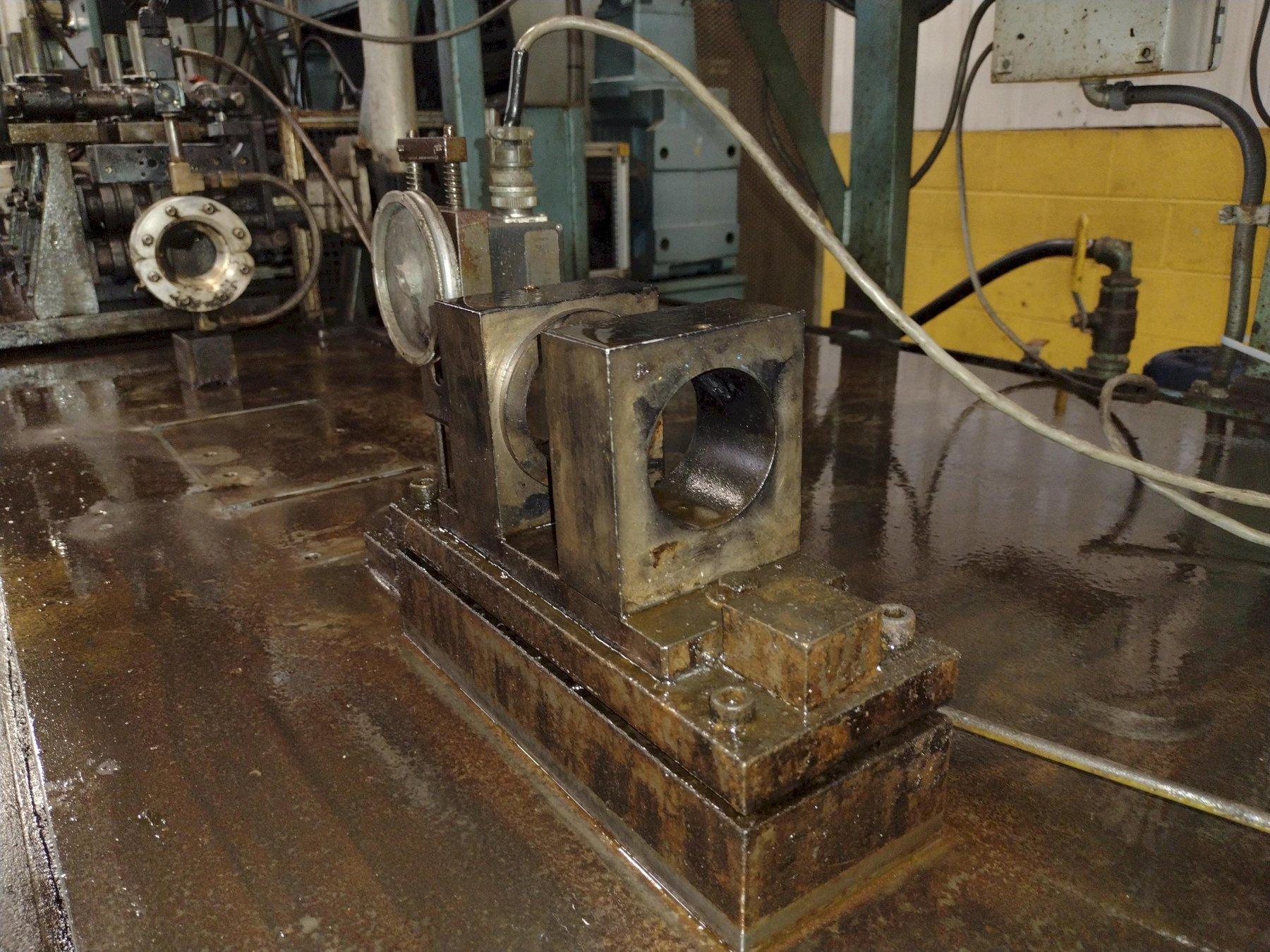

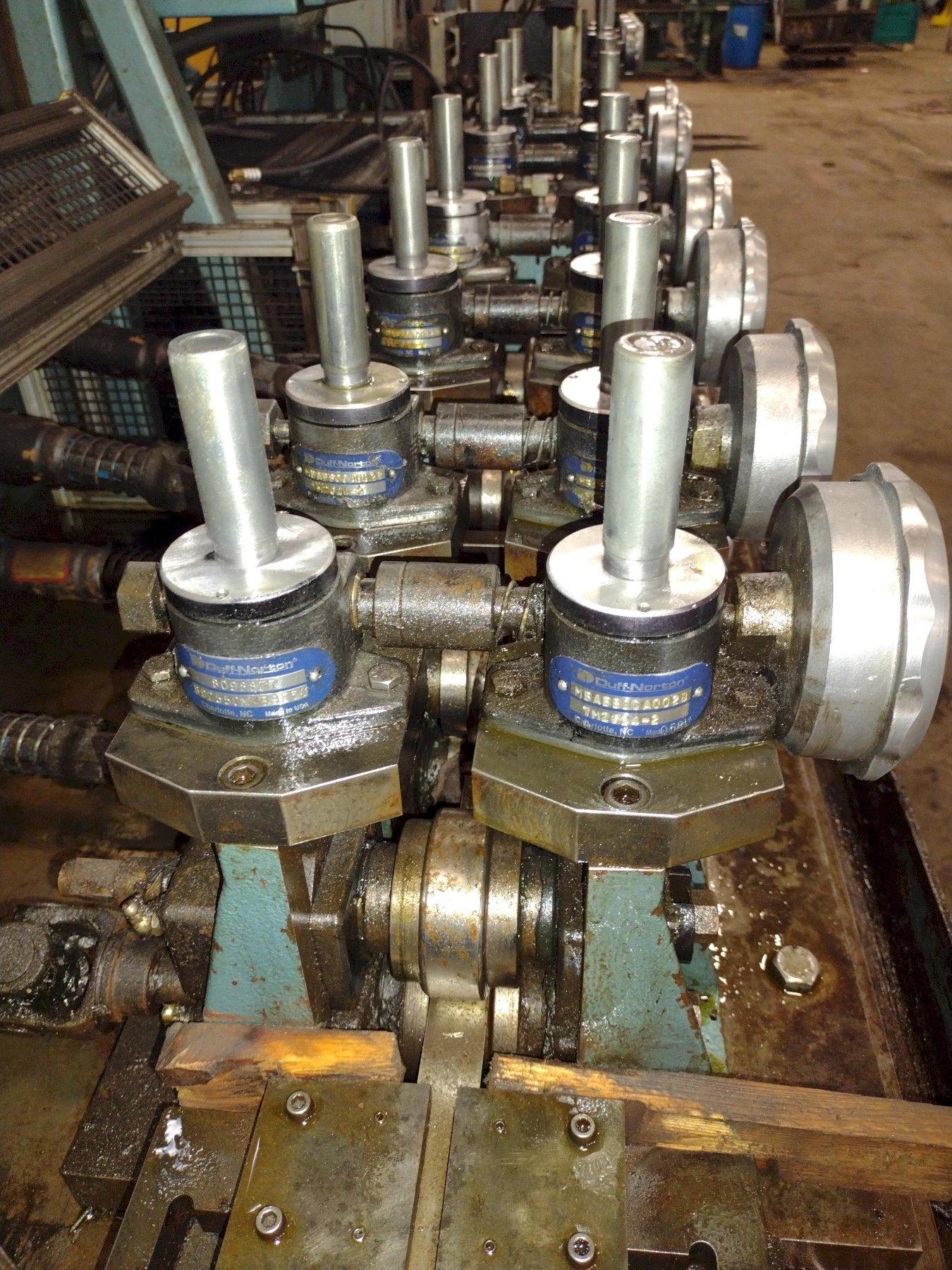

SIZING STANDS

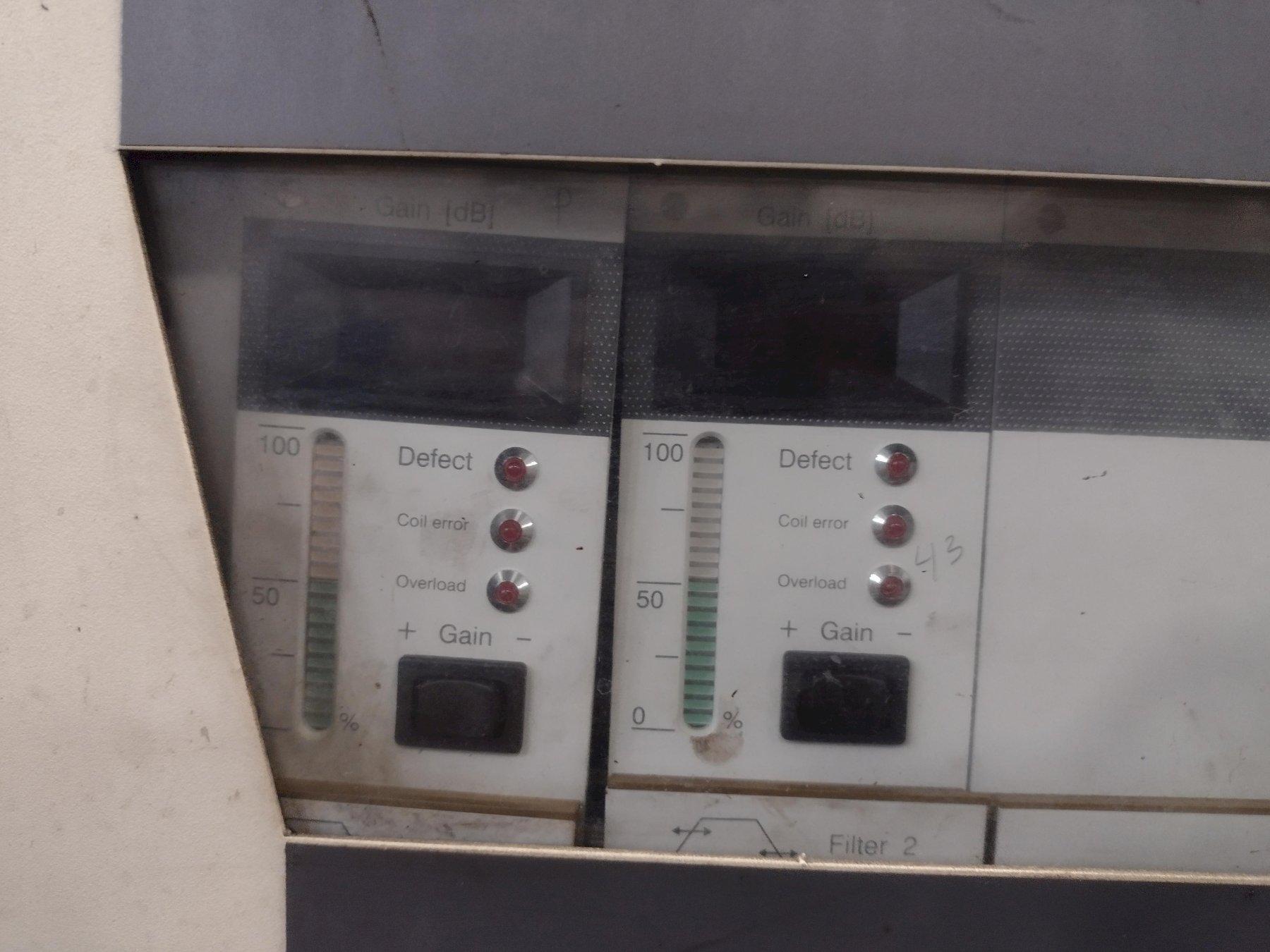

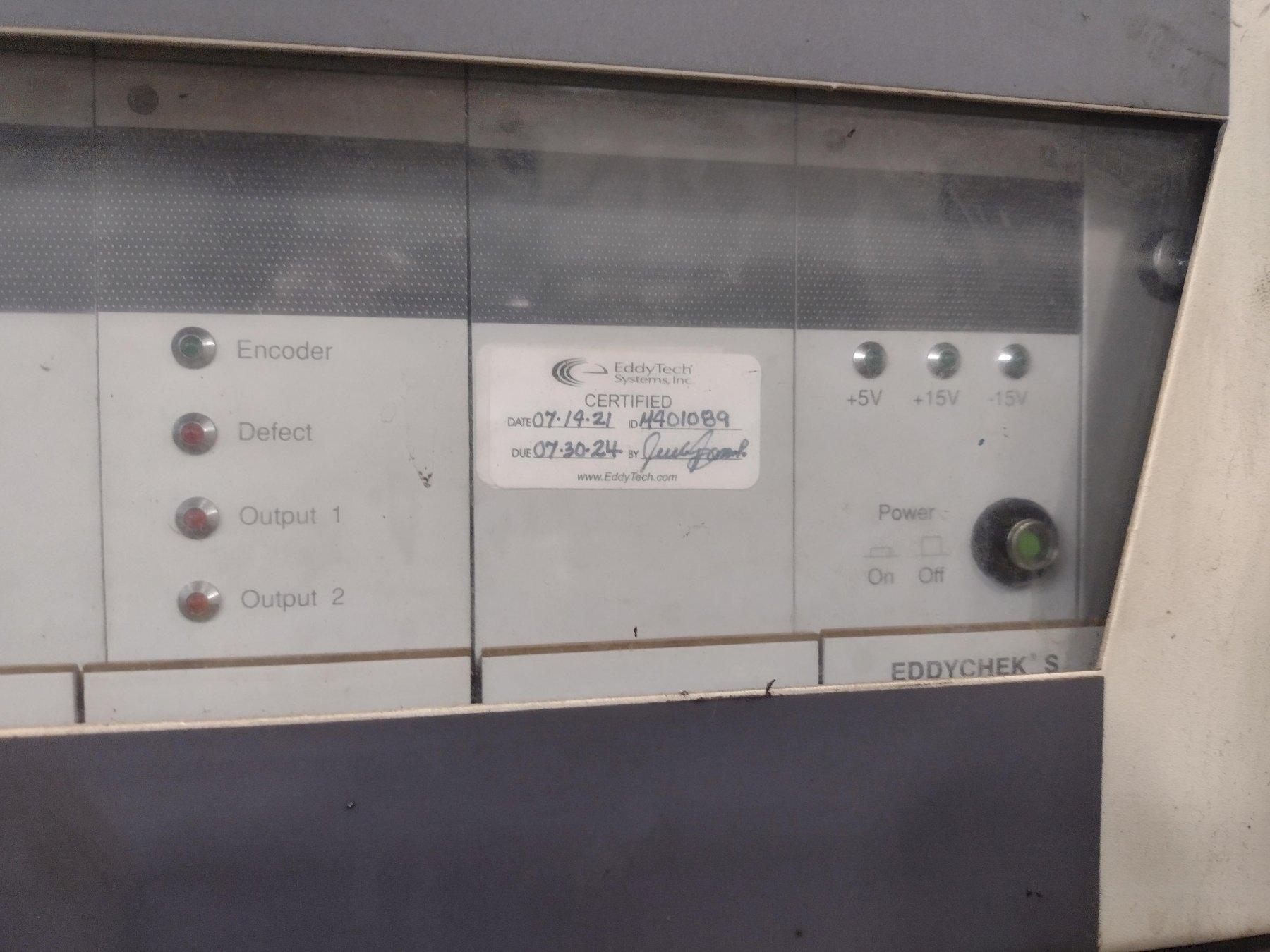

WELD INSPECTION

5- ROLL STRAIGHTENER

FULL BODY INSPECTION

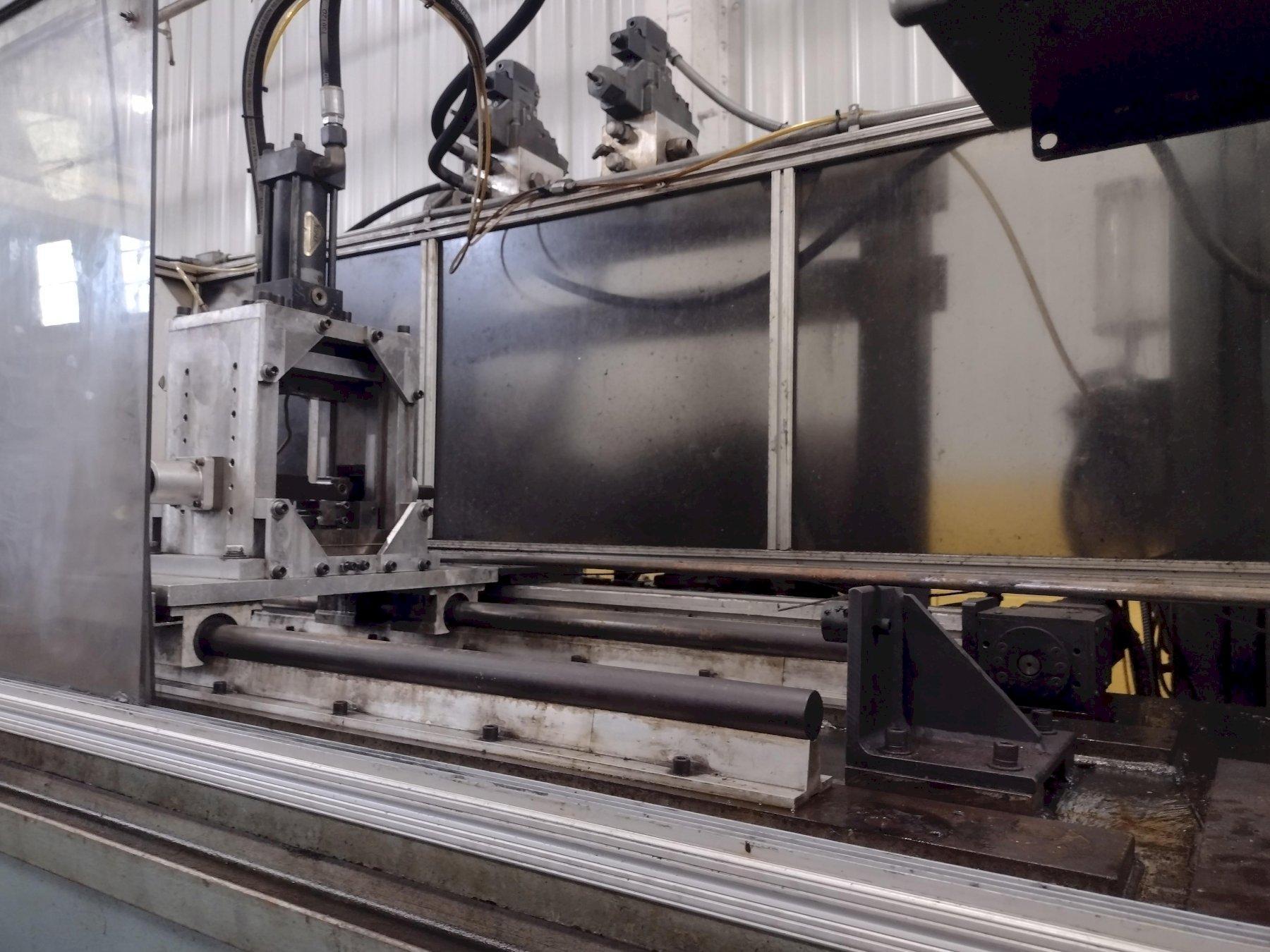

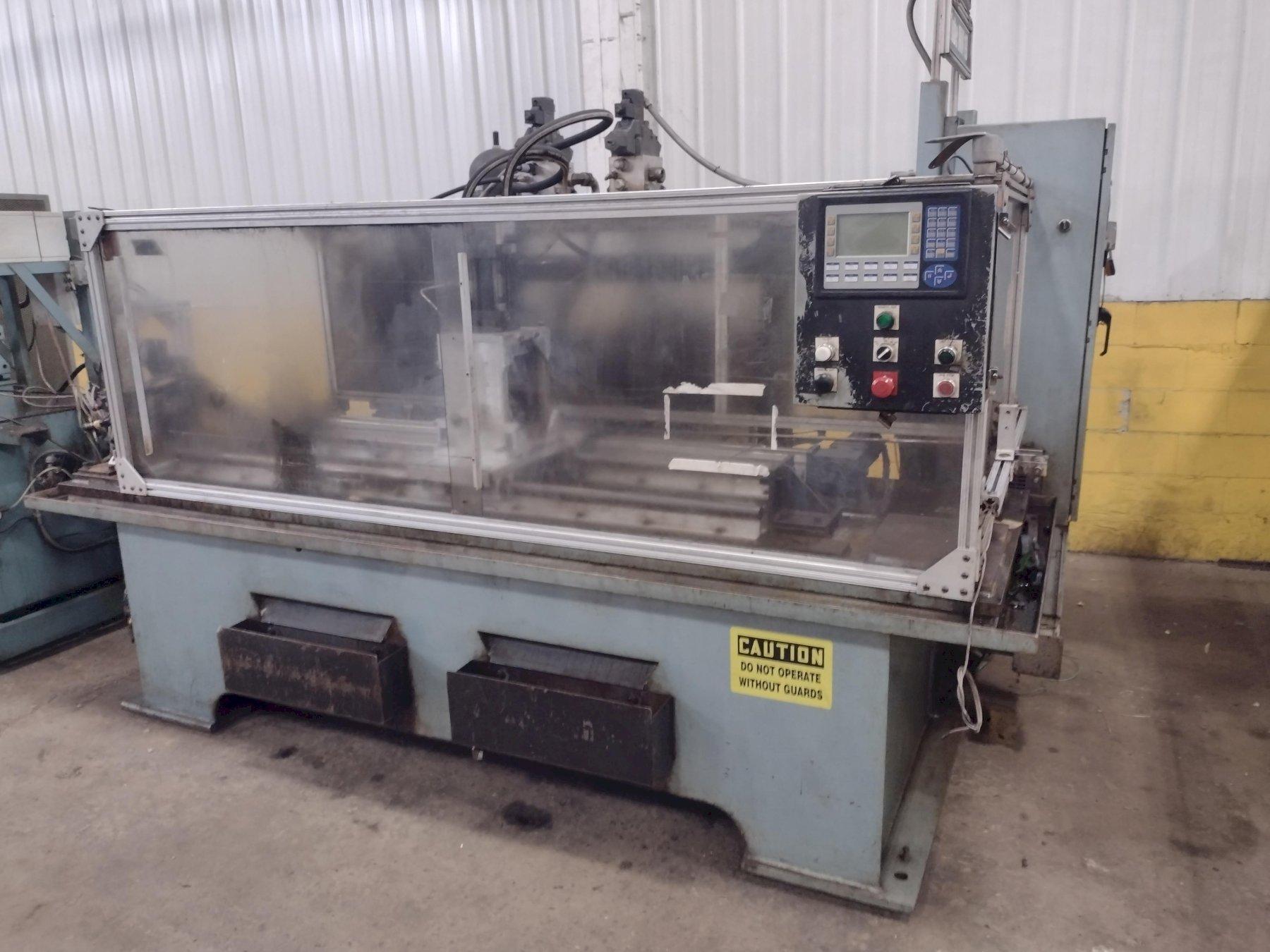

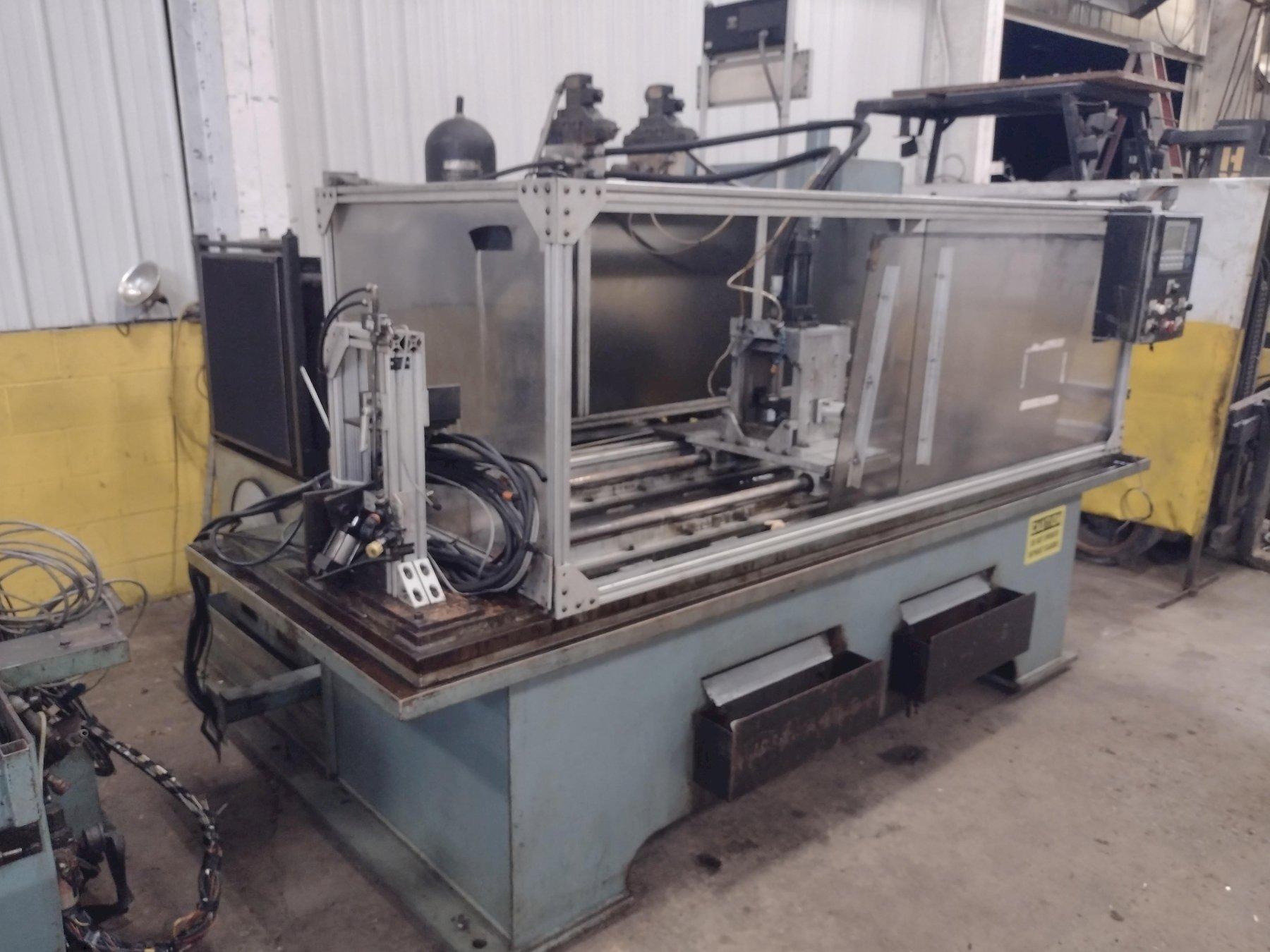

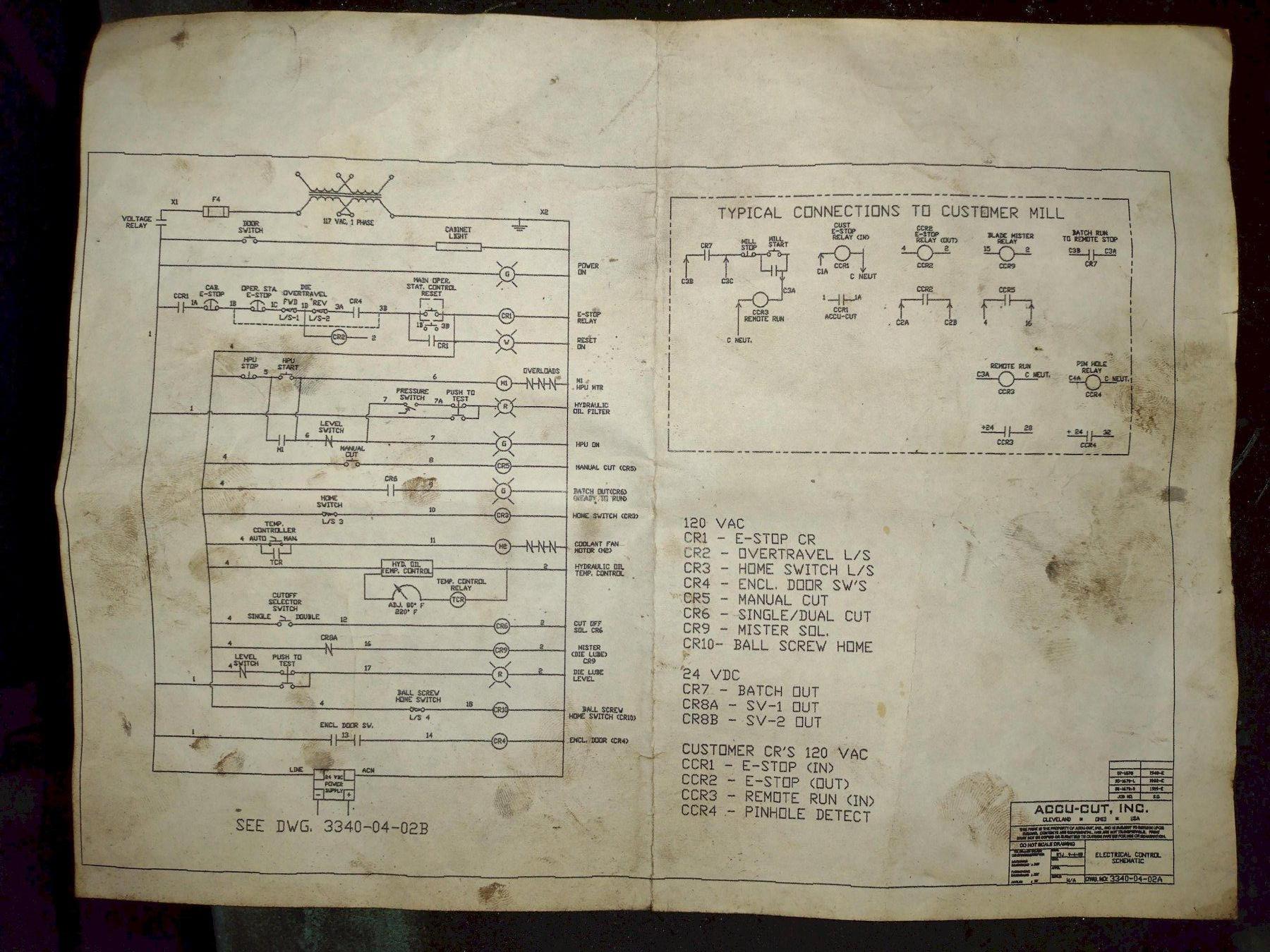

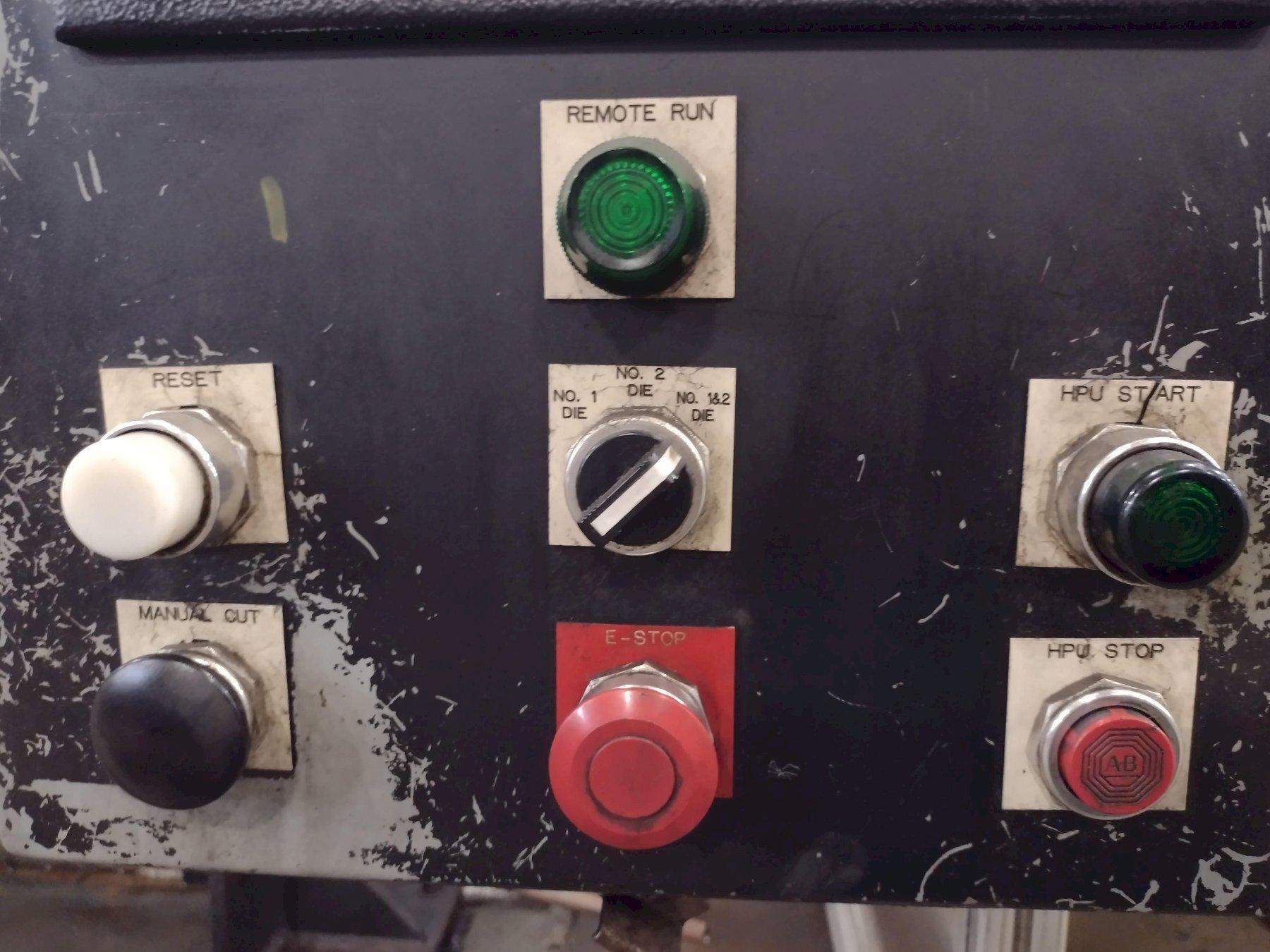

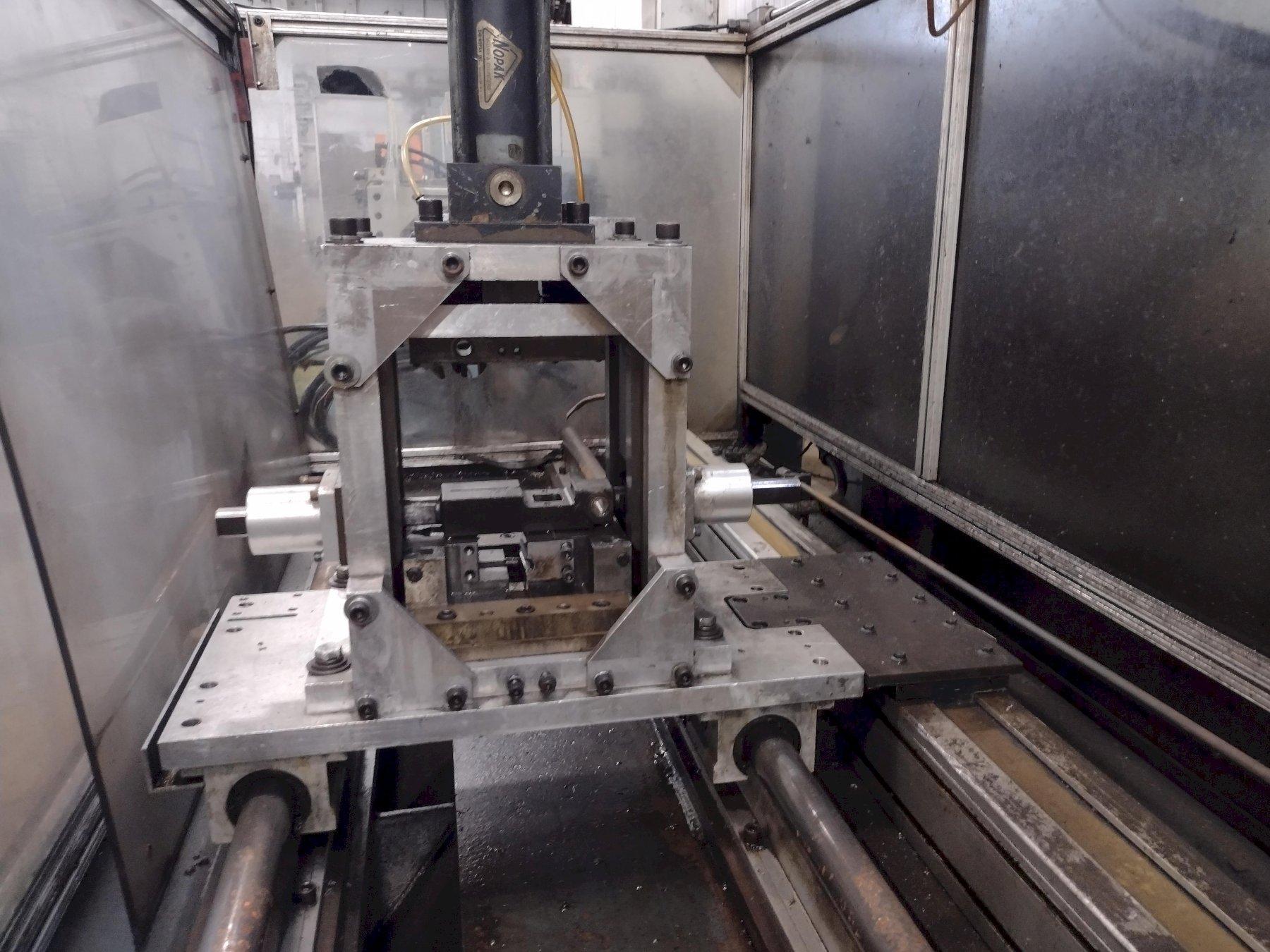

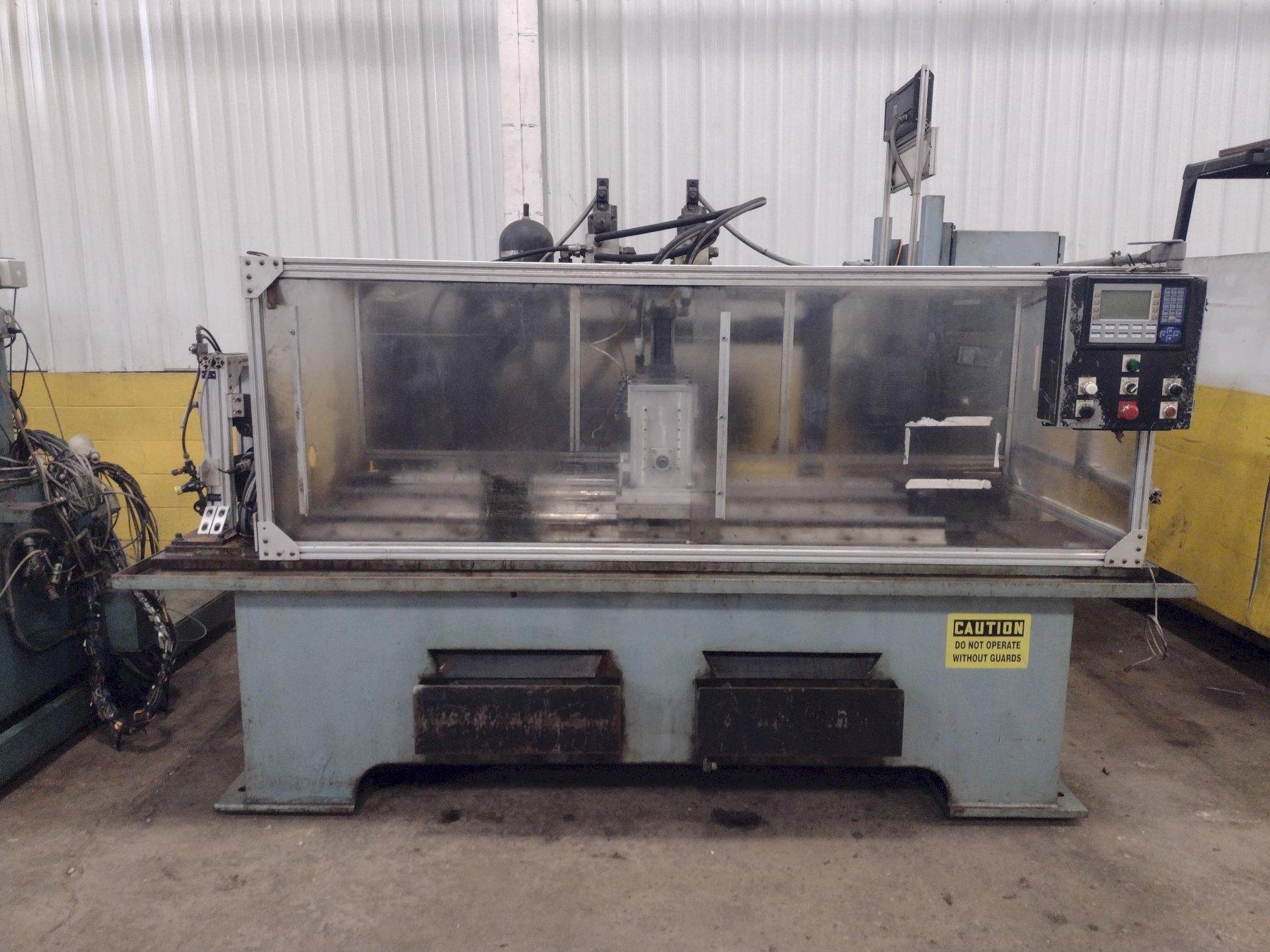

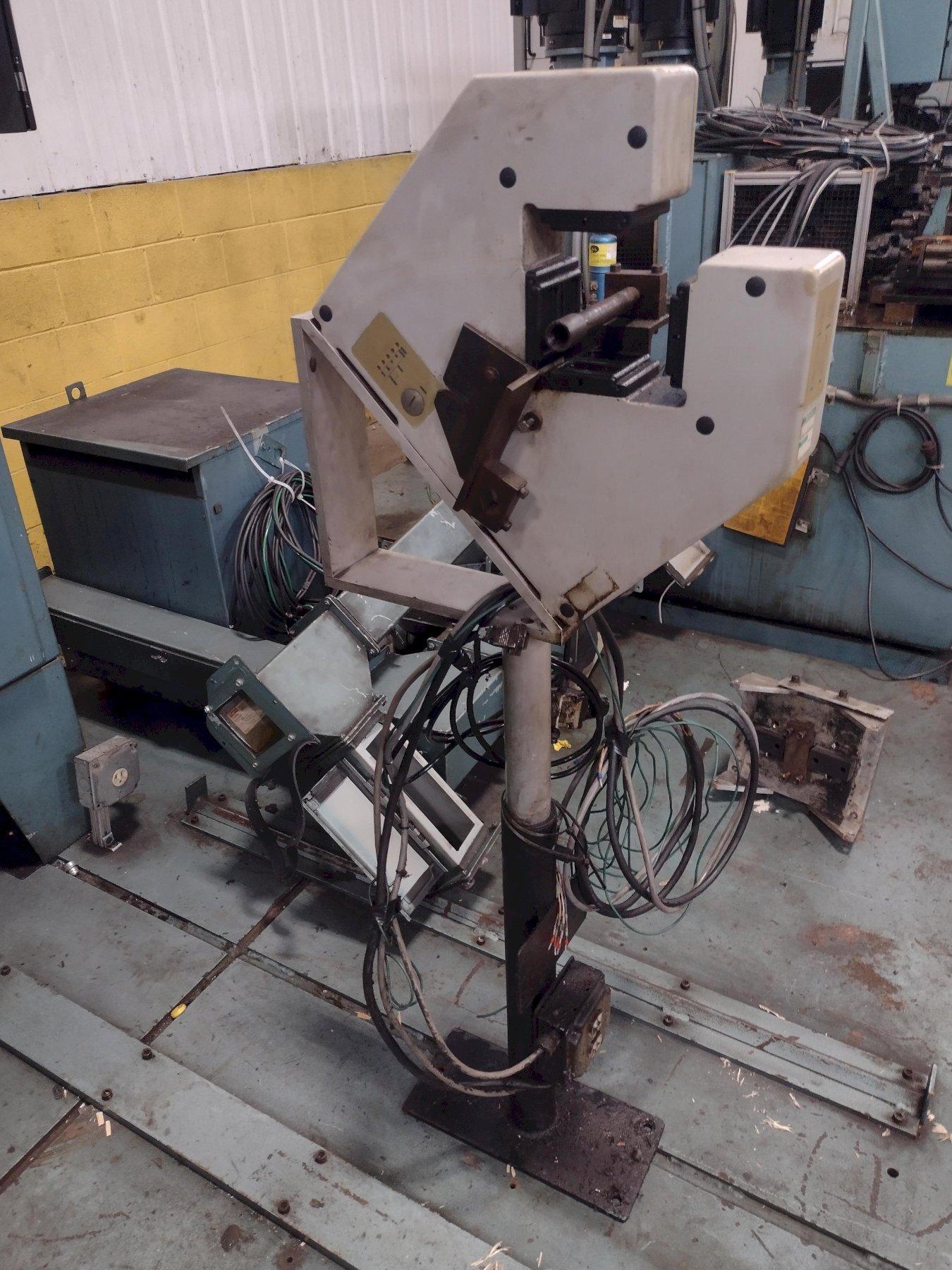

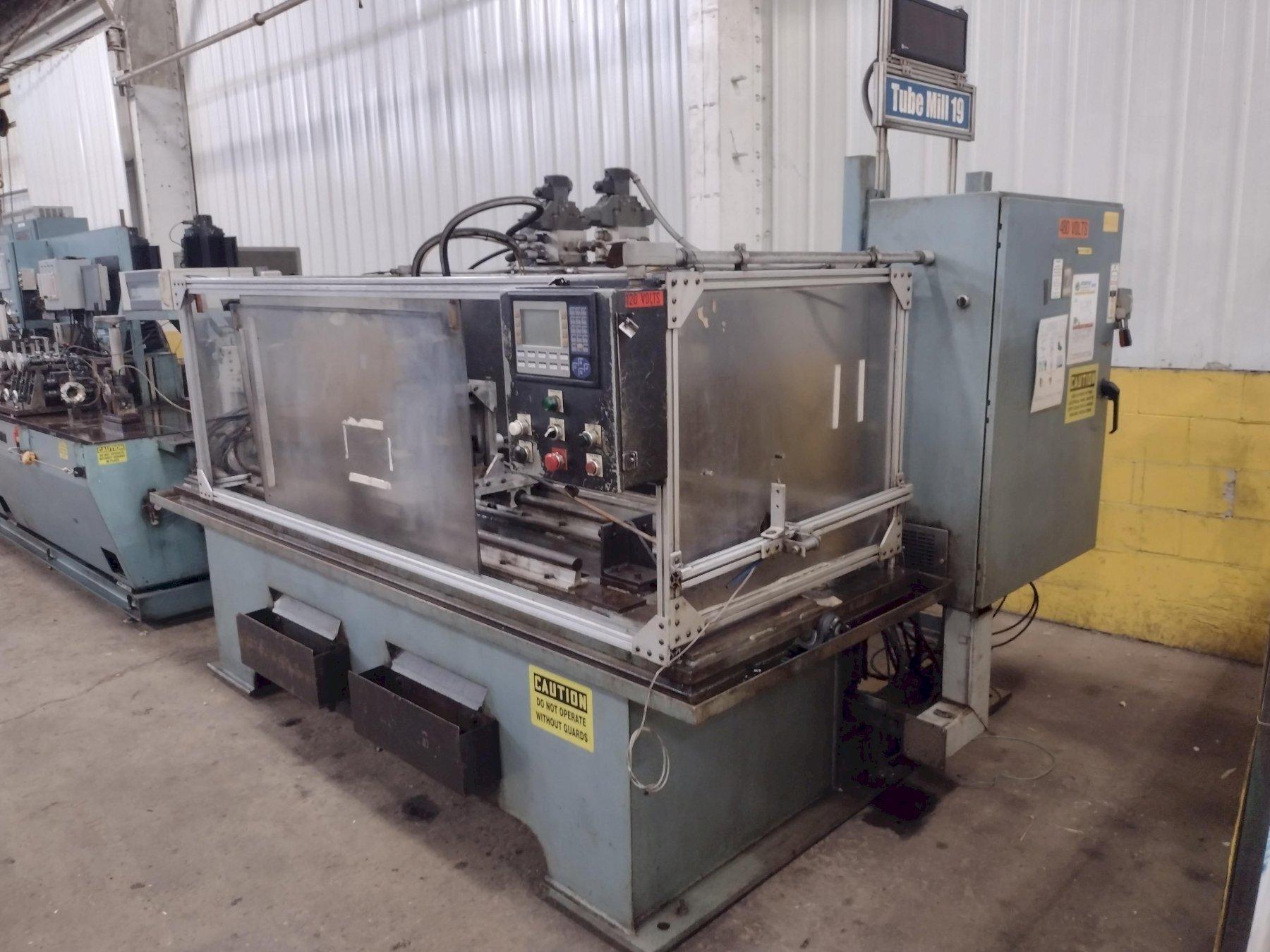

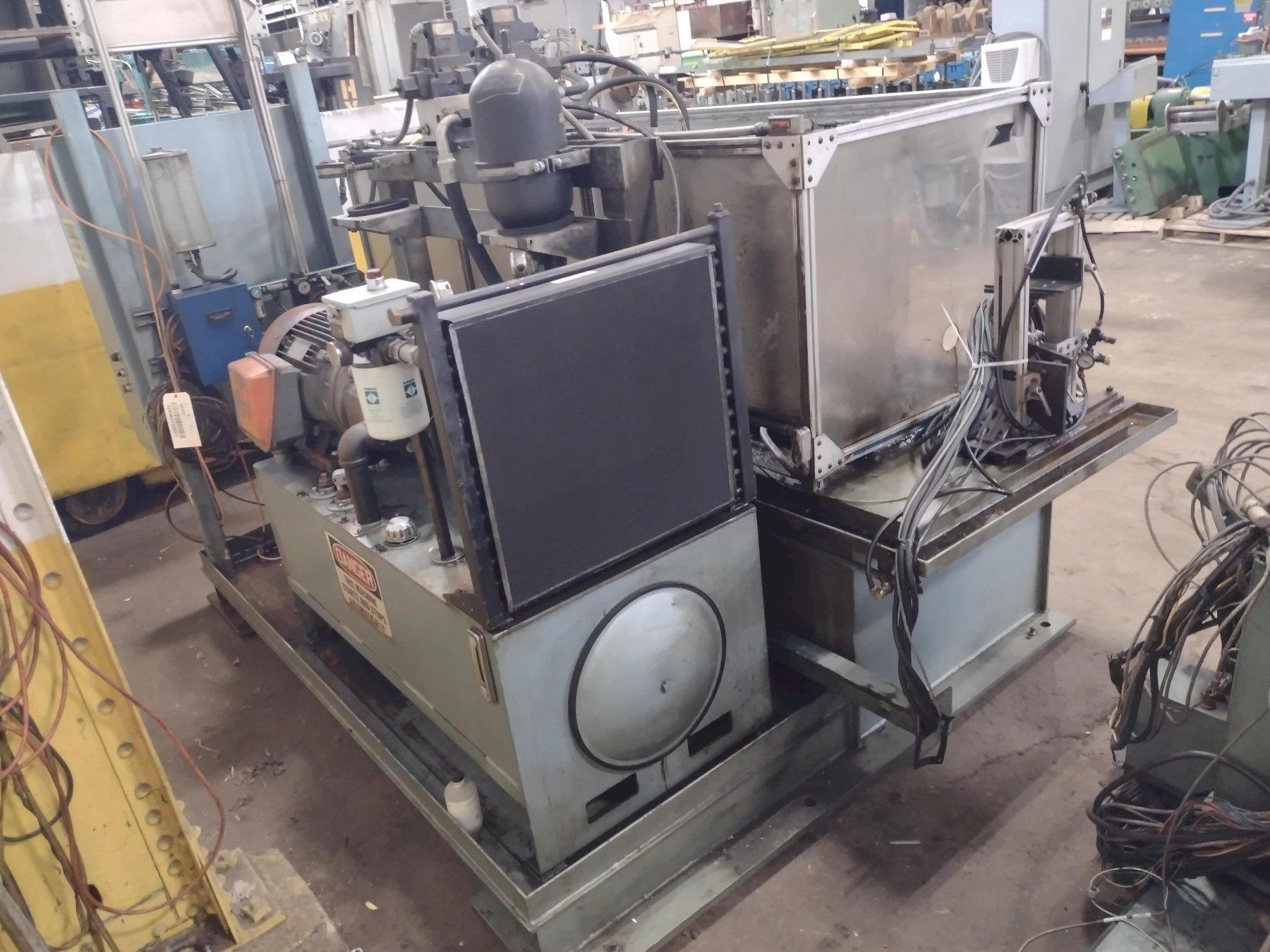

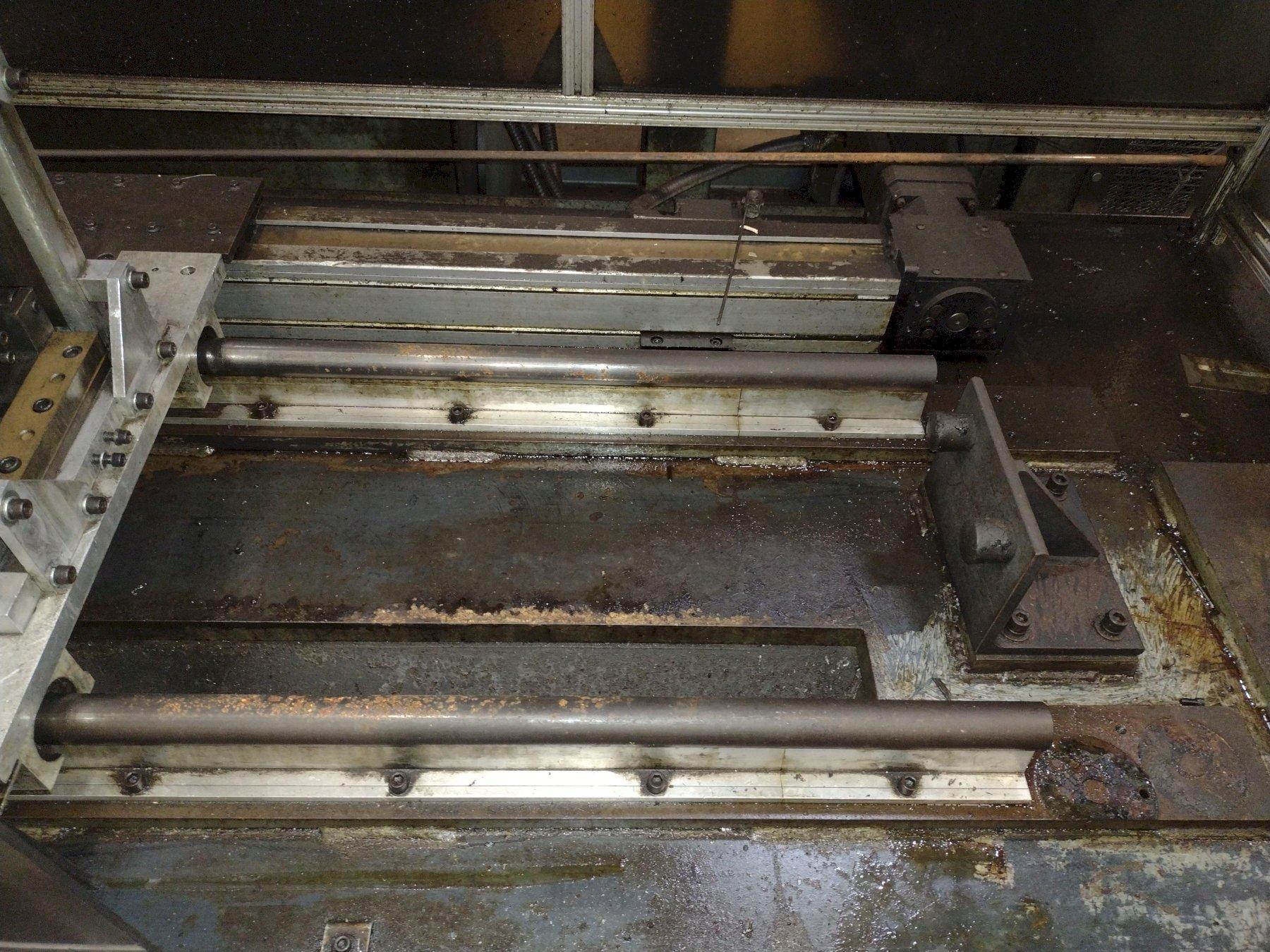

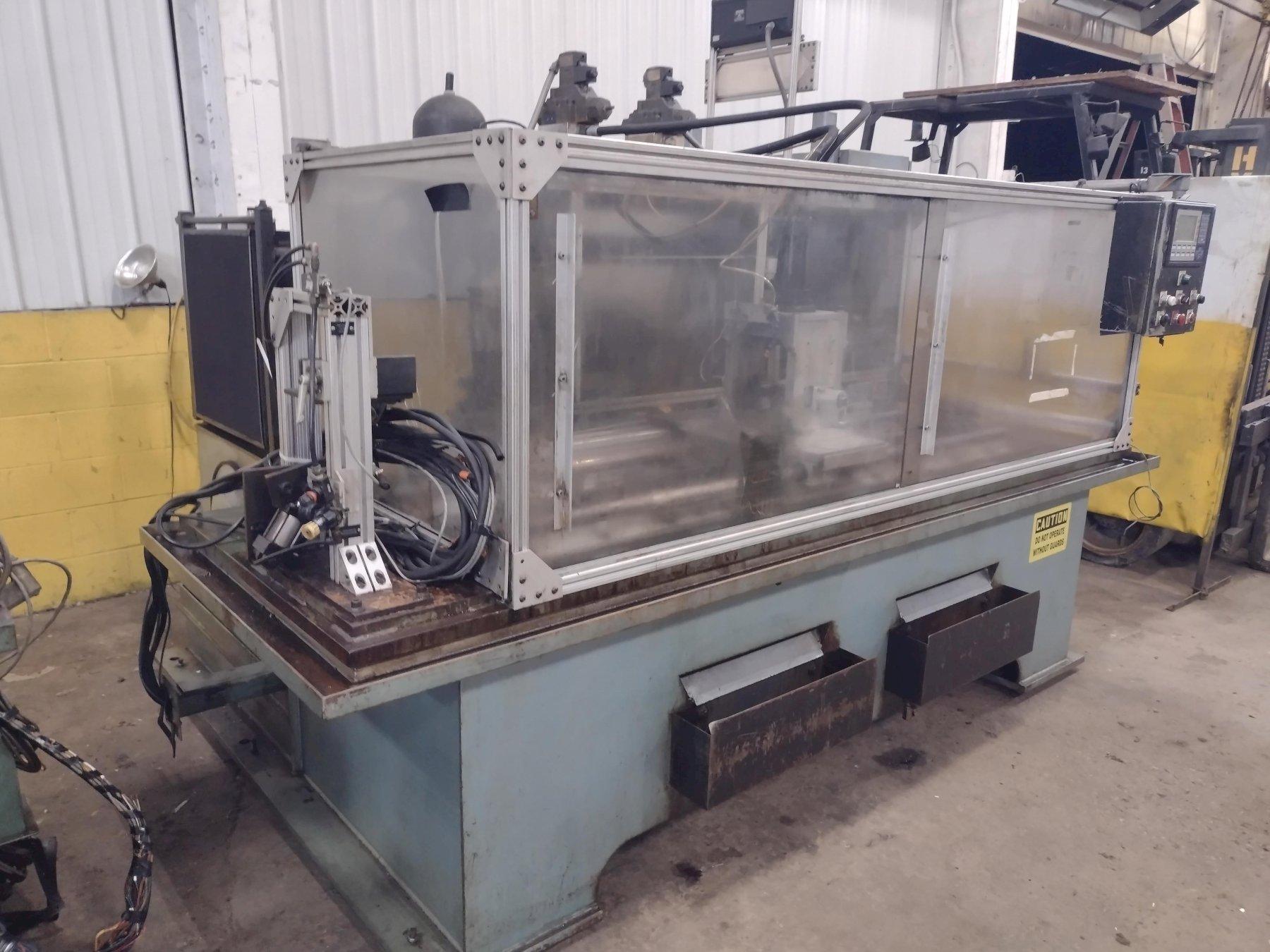

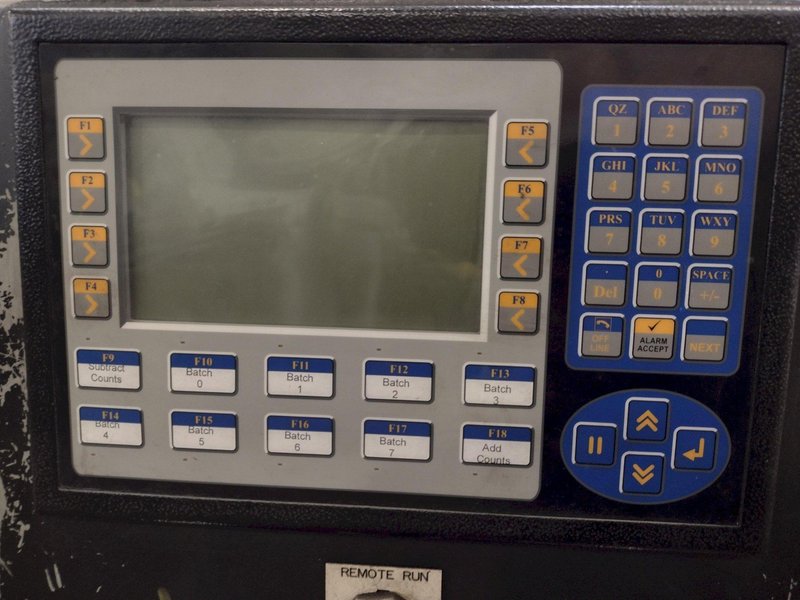

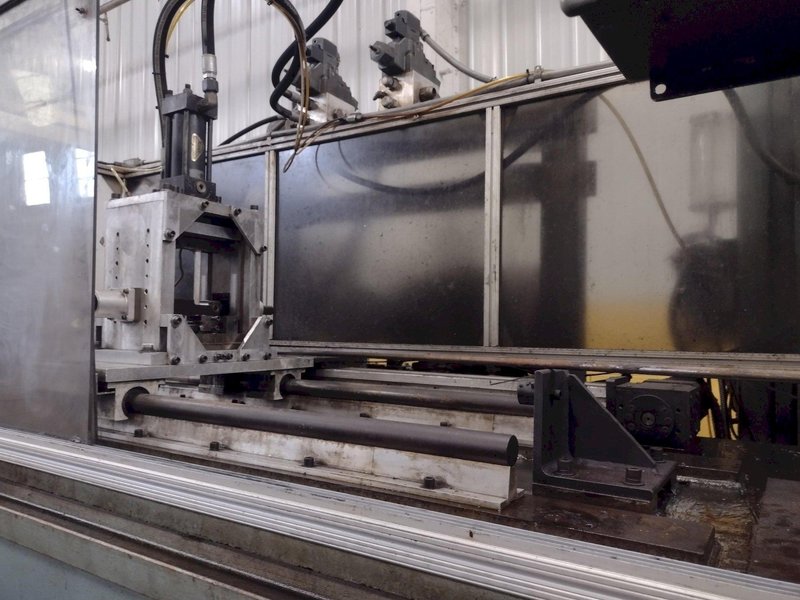

TECHNISALES ACCU-CUT FLYING TUBE CUTOFF
TUBE CUTOFF DIAMETER RANE - 0.236" - 1"
WALL THICKNESS RANGE - 0.012" - 0.030"
MATERIAL - STAINLESS STEEL TUBE
SPEED - UP TO 60 FPM
CUT LENGTHS RANGE - 18" - 20'
CUT LENGTH TOLERANCE - 0.020" +/-
TUBE ENDS TO BE SQUARE WITHIN - 0.008"
