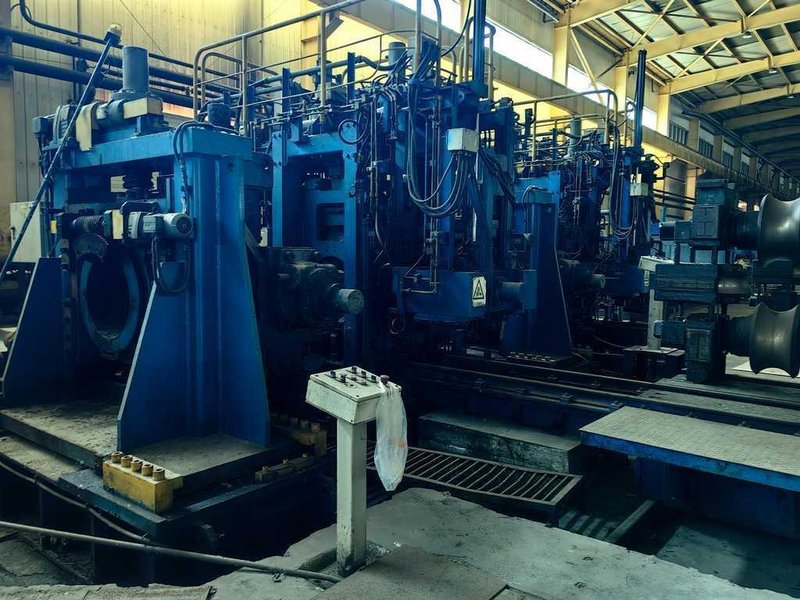

13.37" x 0.562" Nakata Tube Mill

-OD: 114.3 - 339.7mm
-Wall Thickness: 3.2 - 14.3mm
X 70-80, Max. Thickness: 10mm
-Steel Grade: H40 to N80 Oil and Gas Transmission Pipelines
-Tube Length: 6 - 12m
-Standard: API 5L
-Steel Grade: A, B, X42-80

Consisting of the following:

-Slitter
-Tube Mill Line
-2 Sets of End Facing Machines
-2 Sets of Hydro Tester Rolls
(OD 114.3, 139.7, 177.8, 219, 244.5, 273.1, 323.9, 339.7, 355.6mm)
9 Sets
-Electric Cabinets
-Hydraulic System
-Uncoiler
-Leveler
-Shear Welder
-Flying Shear
-Conveyor
-Runout Table
-Spiral Horizontal Accumulator
-Horizontal Shaft Diameter: 220mm
-HF Welder, Annealer: Thermal Tool
-HF Welder 1000KW, 3 Set of 500kw MF Seam Annealer
-Forming Machine
-Sizing Machine
-Mill Cutter: Nakata Machine was made in 2006
-Stopped running in 2016
