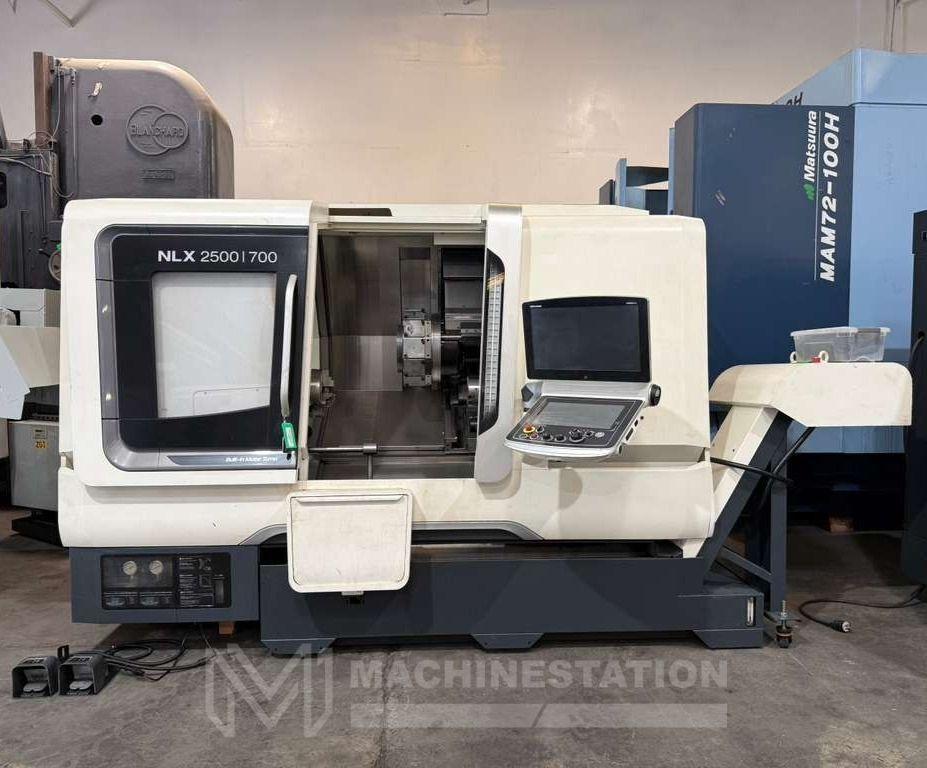

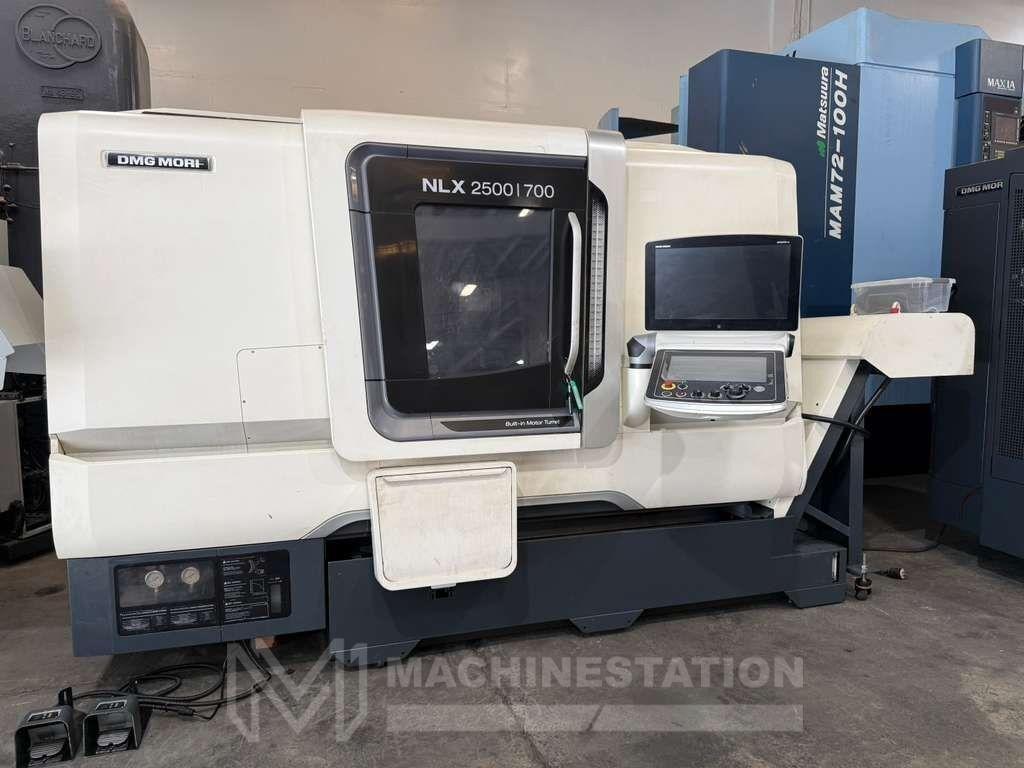

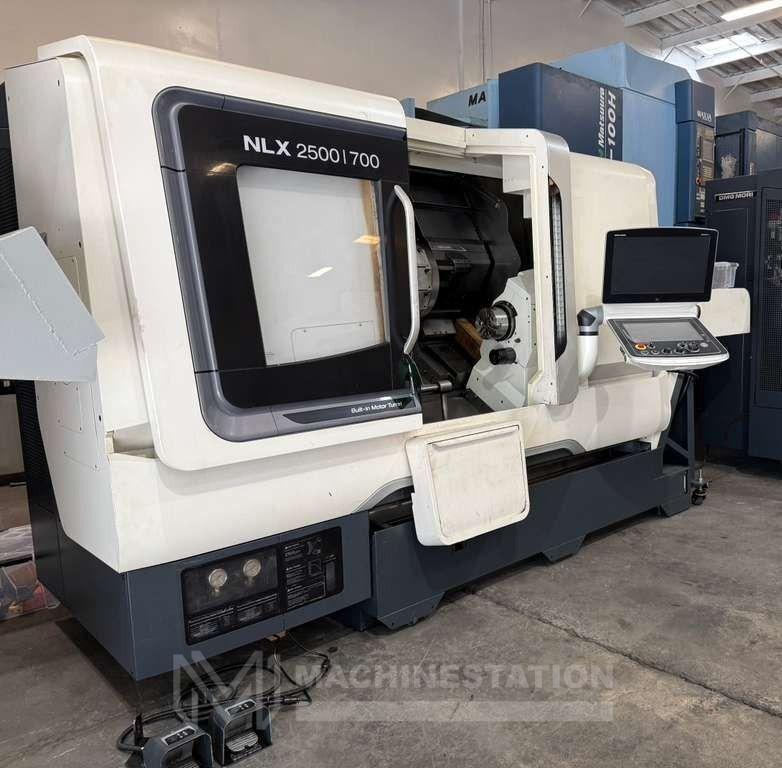

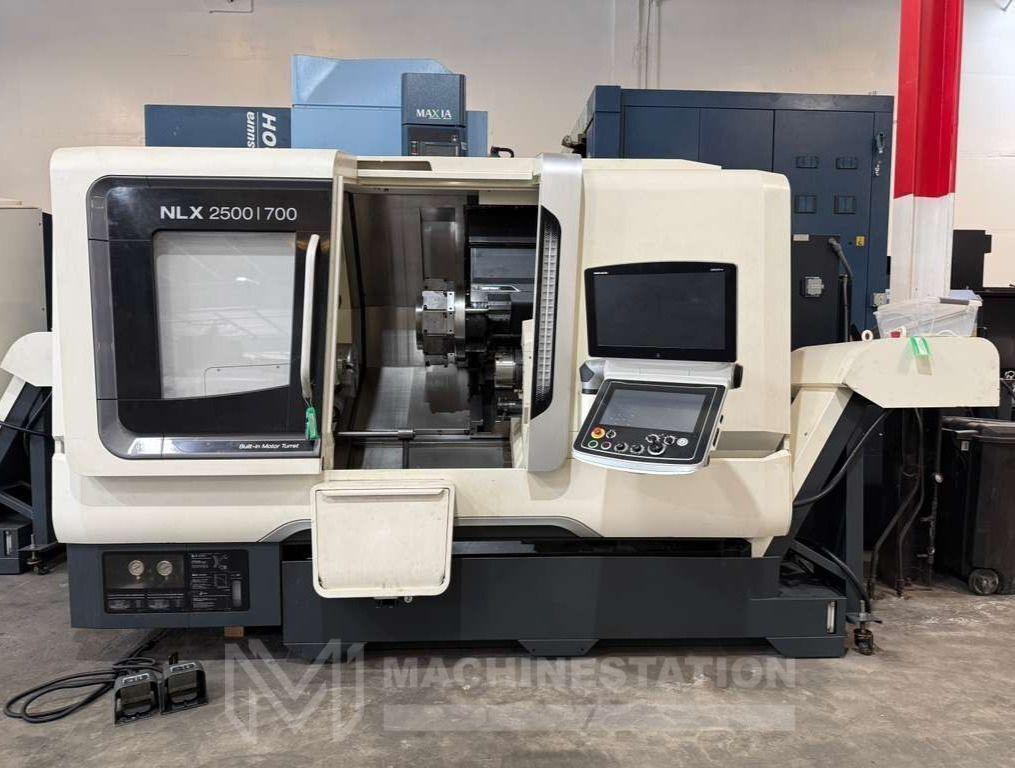

DMG Mori NLX 2500SY/700 CNC Turning Center – 2019 Sub Spindle Y Axis Lathe

Brand
DMG MORI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
NLX 2500SY/700
Stock #
113652
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Equipped With:

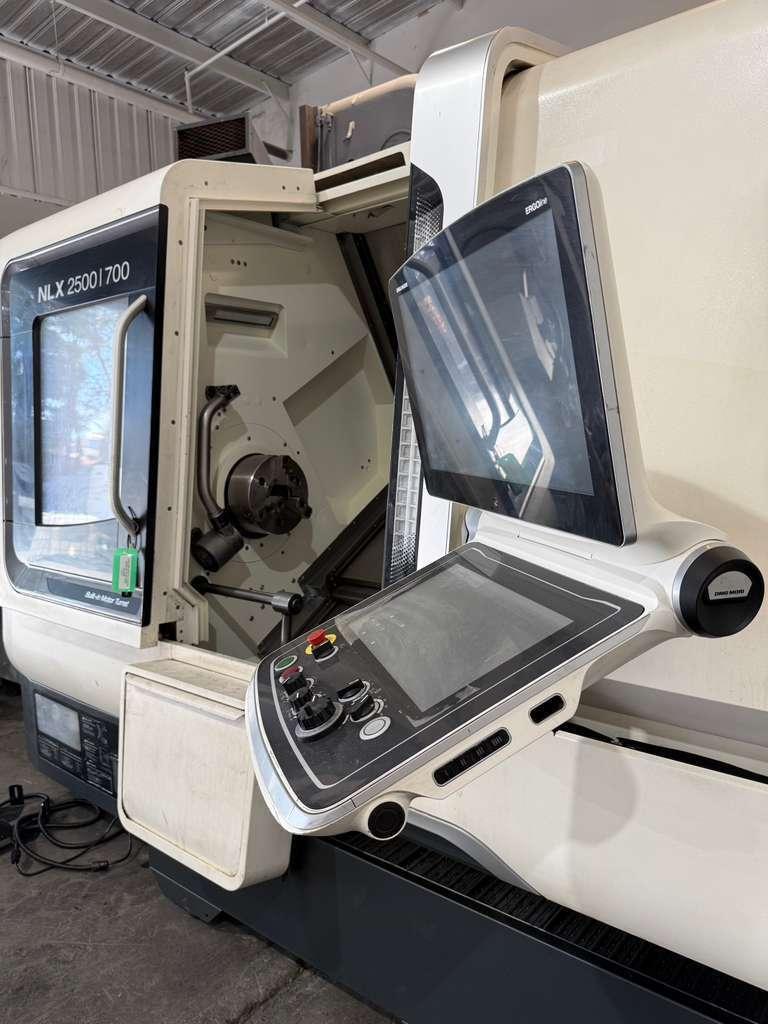

M730UM with CELOS – ERGOline Touch CNC Control

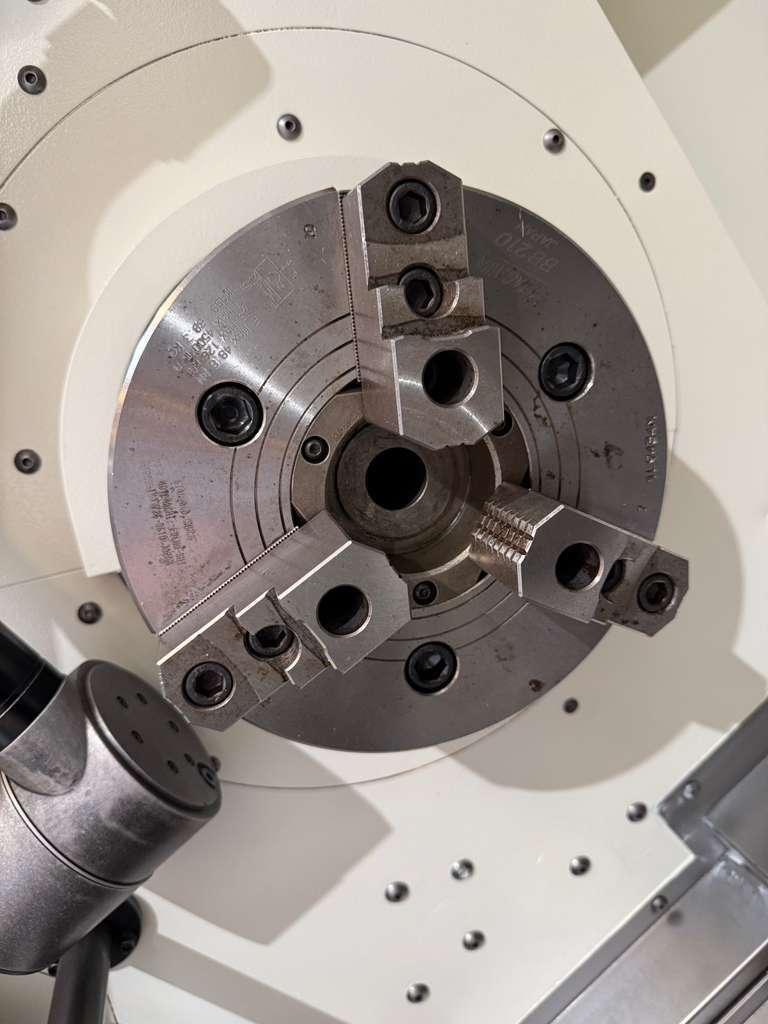

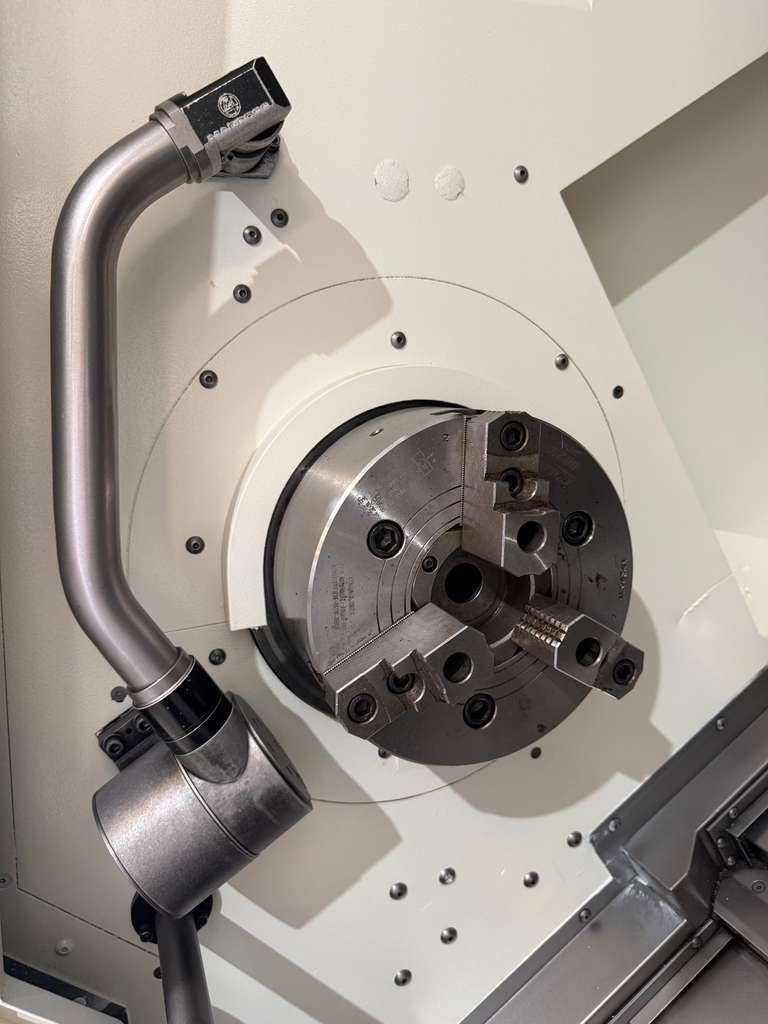

10″ 3-Jaw Kitagawa BB210 Chuck on Main Spindle

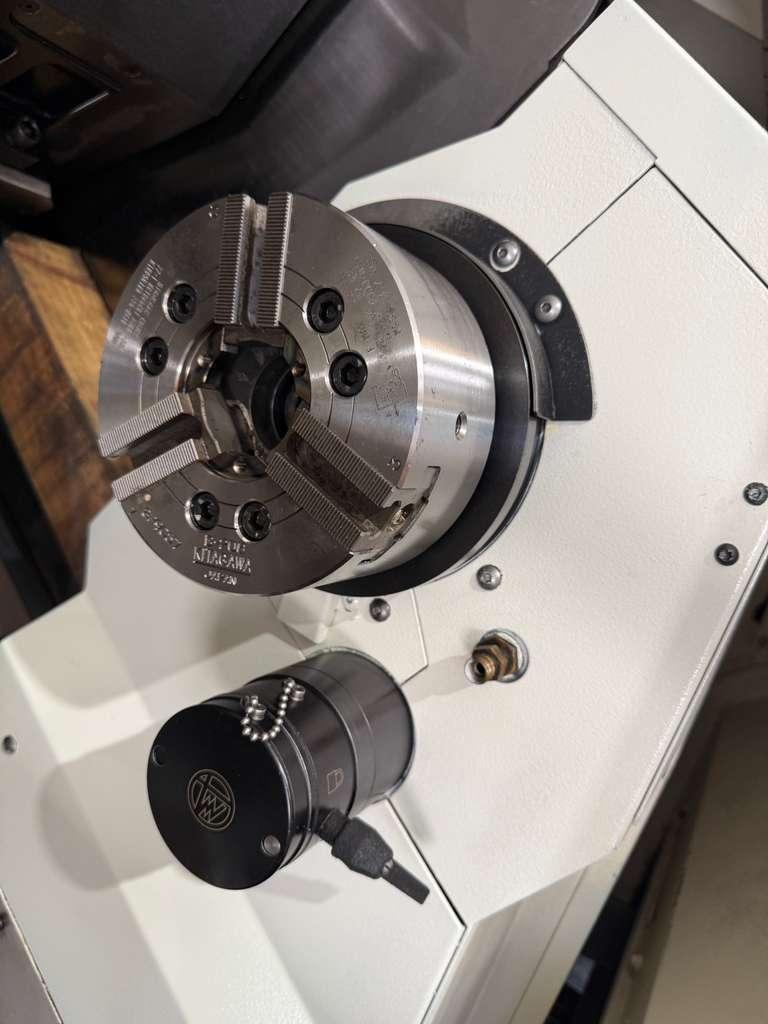

8″ 3-Jaw Kitagawa B208 Chuck on Sub Spindle

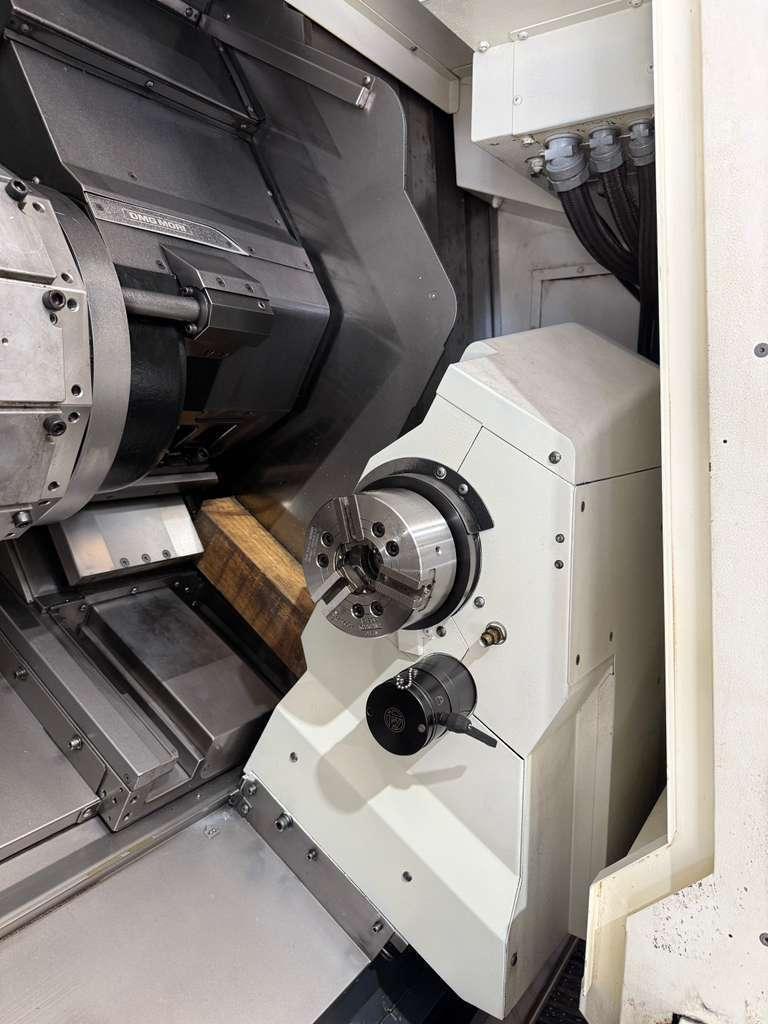

Sub Spindle
Sub Spindle Ejector
Servo Controlled C-Axis on Both Spindles

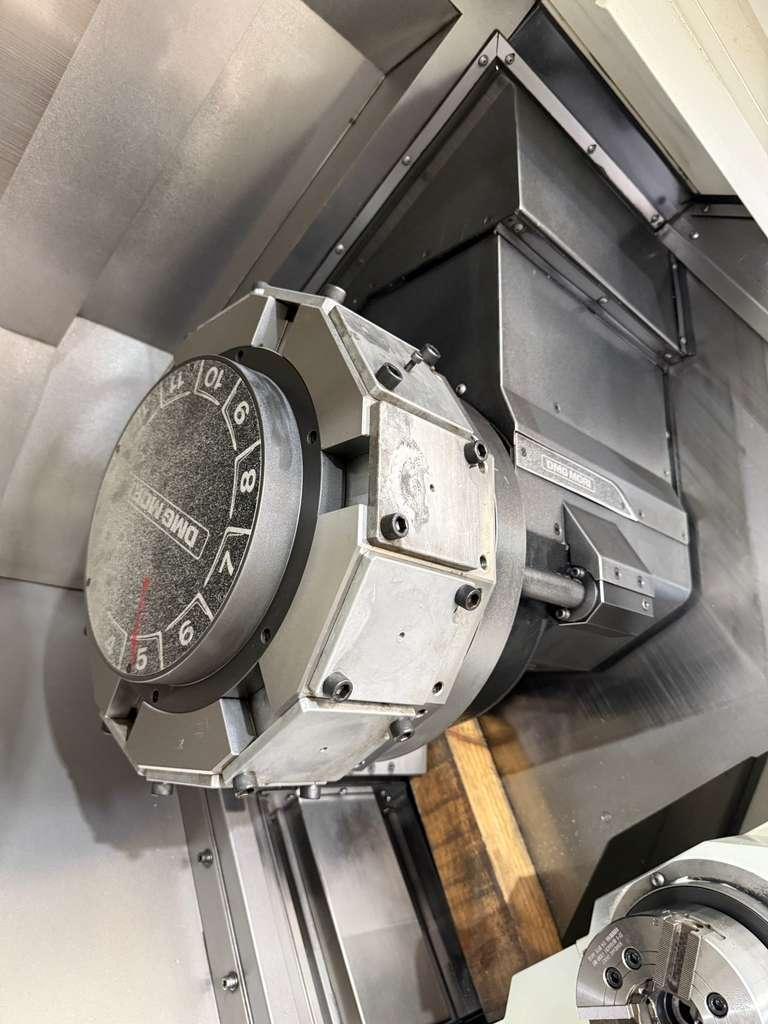

12-Station Live Tool Turret – BMT
Y-Axis on Turret
Tool Presetter
Parts Catcher
High-Pressure Coolant

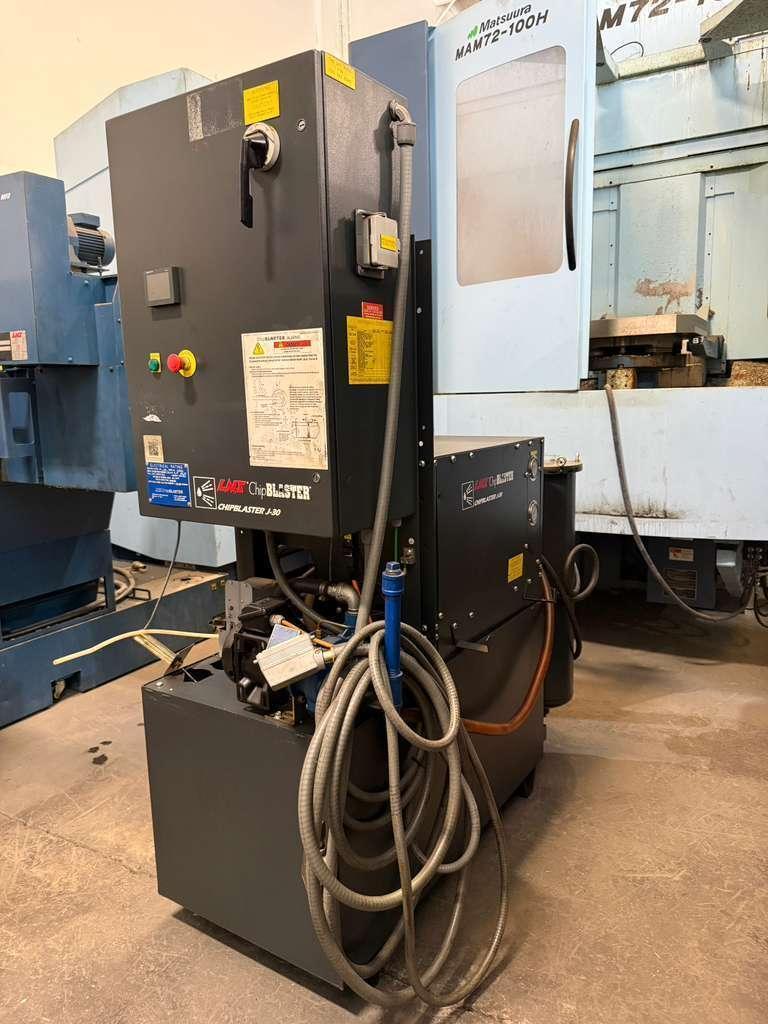

LNS Chip Blaster

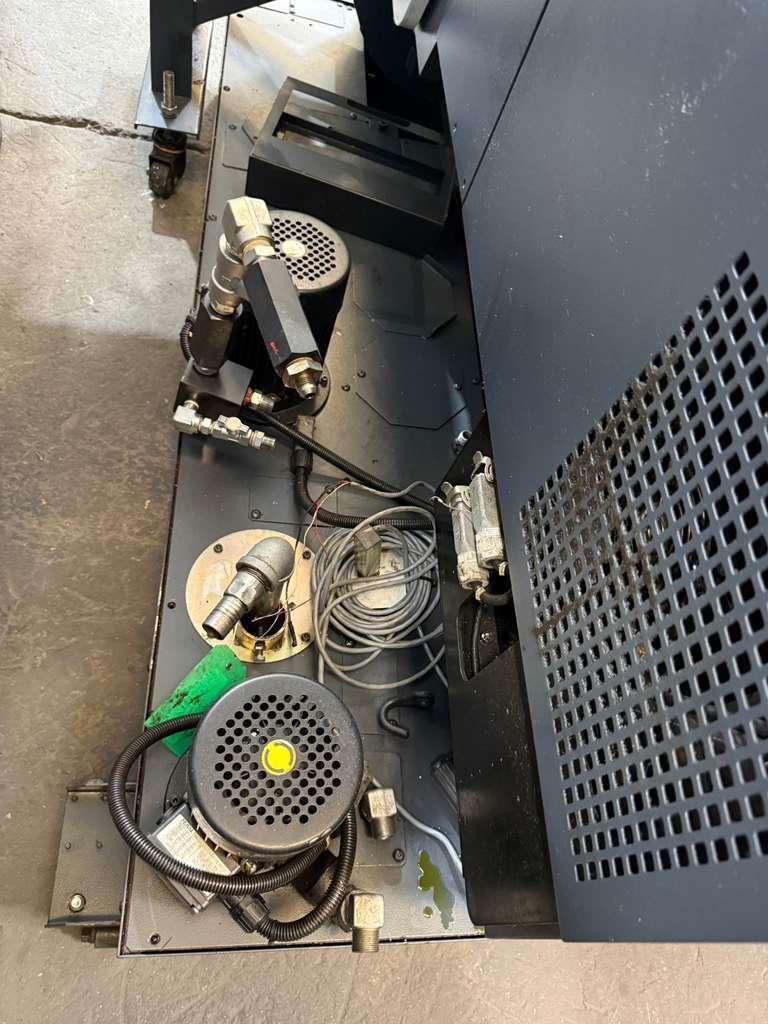

Coolant Tank
Chip Conveyor
Books & Manuals
Foot Switch
Capacity:
Maximum Turning Diameter: 14.4″
Maximum Turning Length: 27.7″
Maximum Swing Over Bed: 36.2″
Maximum Swing Over Cross Slide: 29.7″
Maximum Bar Capacity: 3.1″

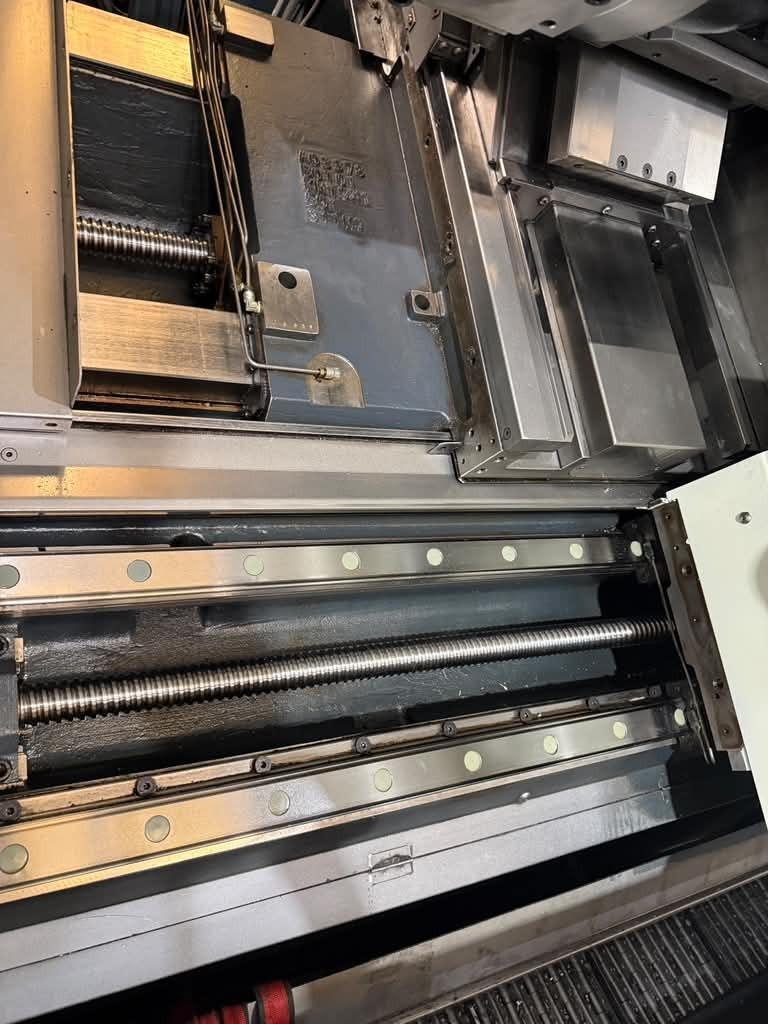

Travels:
X-Axis Travel: 10.2″
Y-Axis Travel: 3.90″ (±1.95″)
Z-Axis Travel: 31.2″
B-Axis Travel (Sub Spindle): 28.8″
C-Axis Indexing: 360° (0.001°)
Rapid Traverse Rate X, Z & B Axis: 1,181 IPM
Rapid Traverse Rate Y-Axis: 393 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.58″
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.8″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.27 Second
Rotary Tool Speed: 10,000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holder Type: BMT
General:
Power Source: AC 220V / 3-Phase / 60 Hz
Power Requirement: 50 kVA
Overall Dimensions: 156.7″ × 82.9″ × 86.6″ High
Weight: 13,992 lbs Approx.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?

Similar Listings to - DMG Mori NLX 2500SY/700 CNC Turning Center – 2019 Sub Spindle Y Axis Lathe

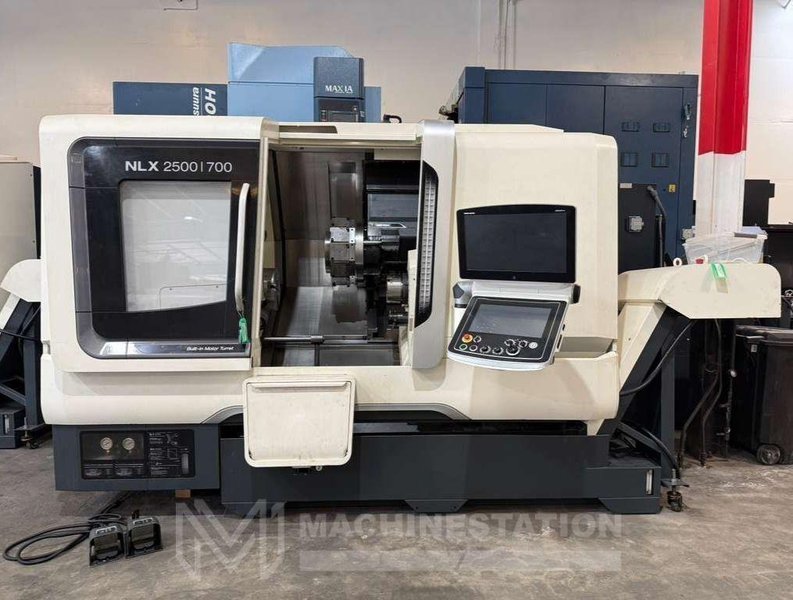

DMG Mori NLX-2500SY/700 CNC Turning Center – 2019 Sub Spindle, Y Axis Lathe
