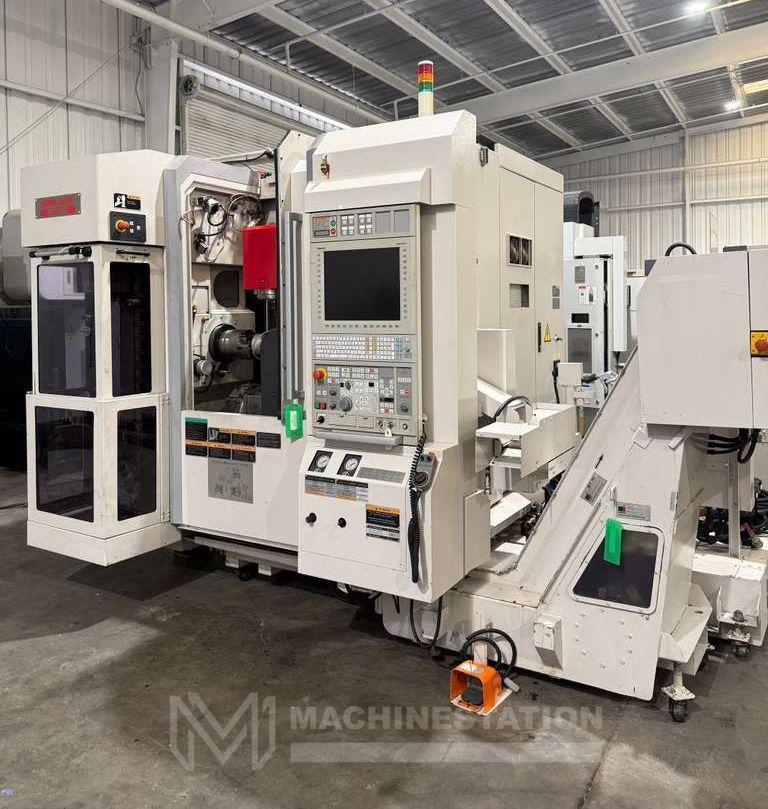

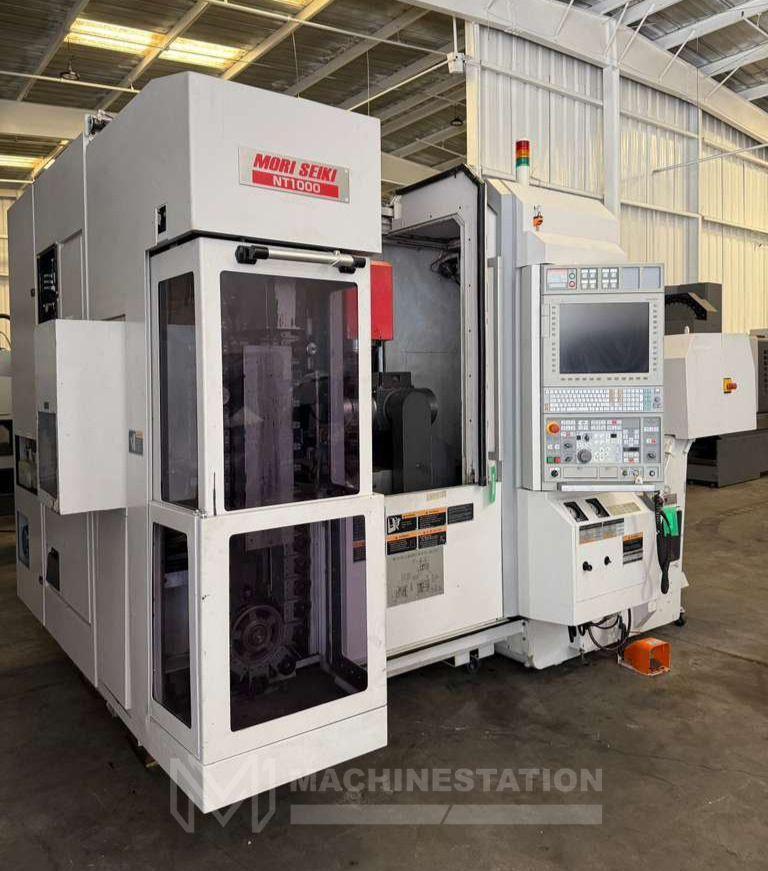

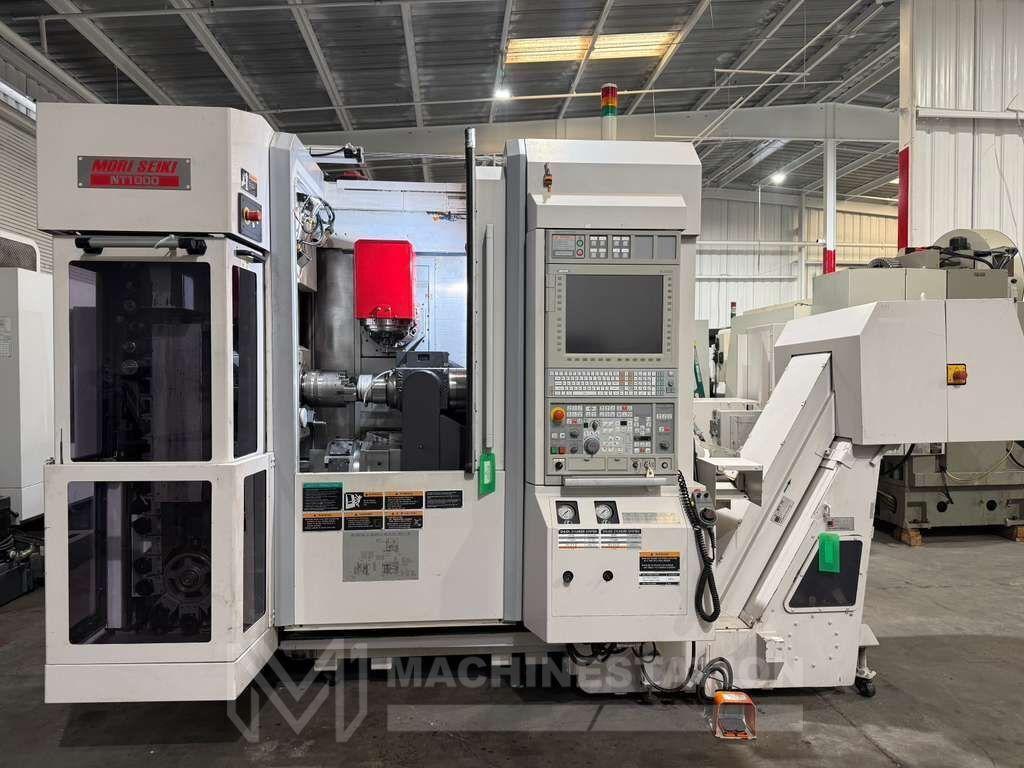

DMG Mori Seiki NT1000/WZM Multi Axis CNC Turning Center – Lathe

DMG Mori Seiki NT1000/WZM Multi Axis CNC Turning Center – Lathe

Name: DMG Mori Seiki NT1000/WZM Multi Axis CNC Turning Center – Lathe
Brand: DMG MORI
SKU: 113558
Availability: InStock

Brand

DMG MORI

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	DMG Mori Seiki
Model:	NT1000/WZM

Features:

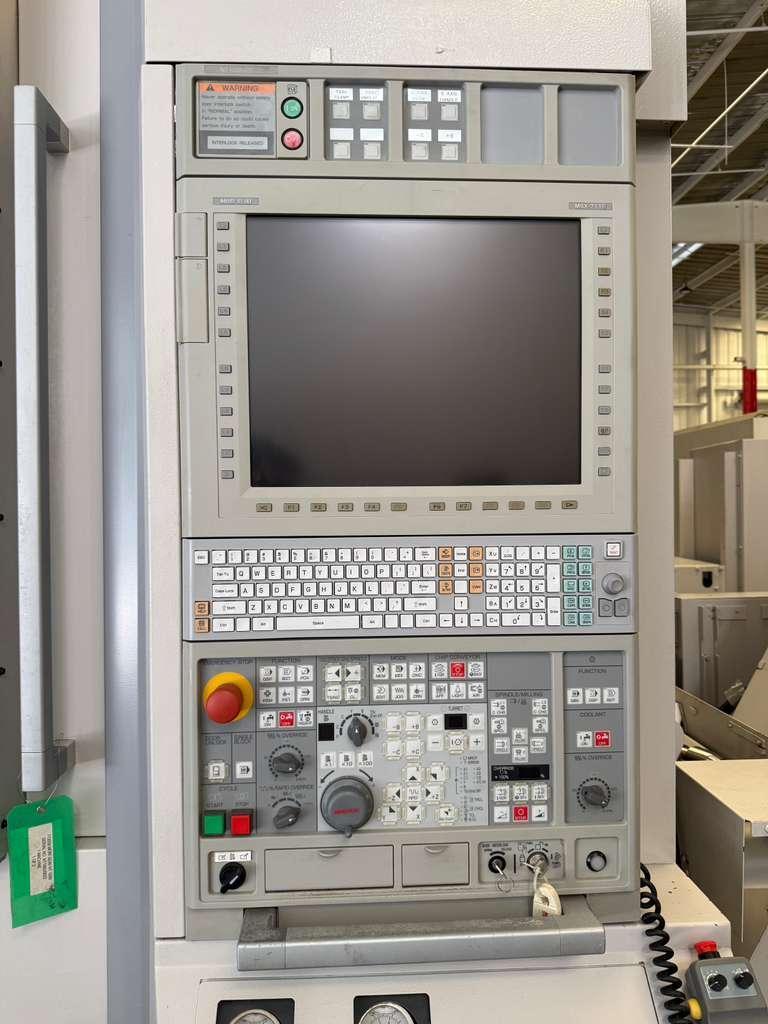

Mori Seiki MSX-711IV Series CNC Control

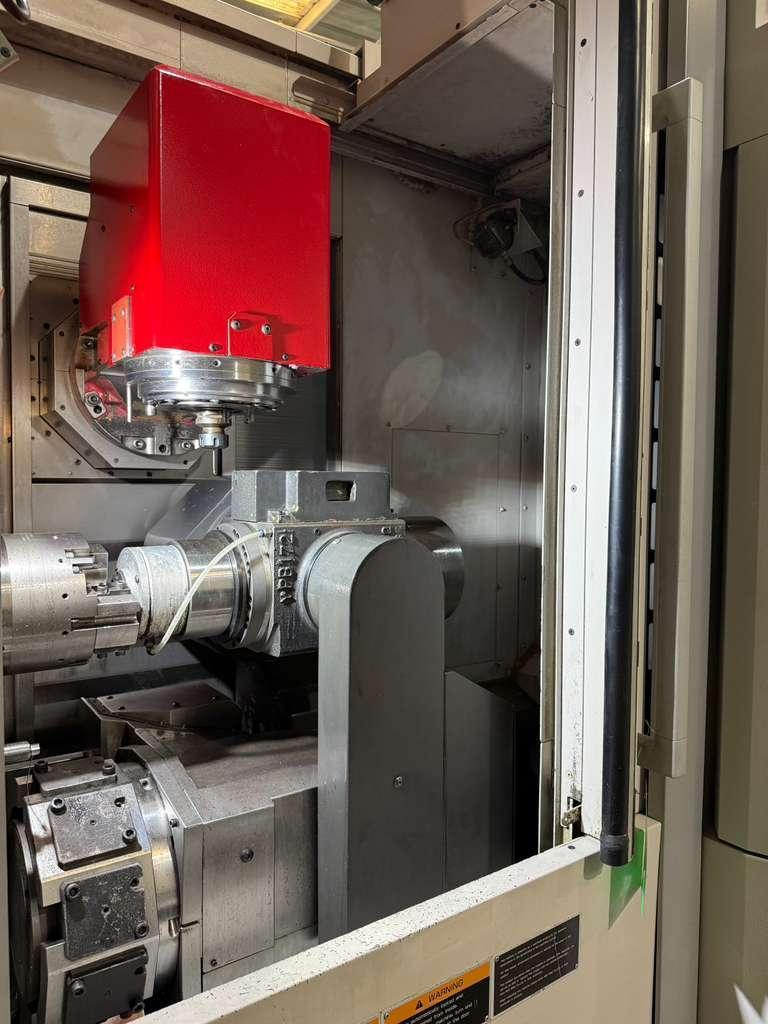

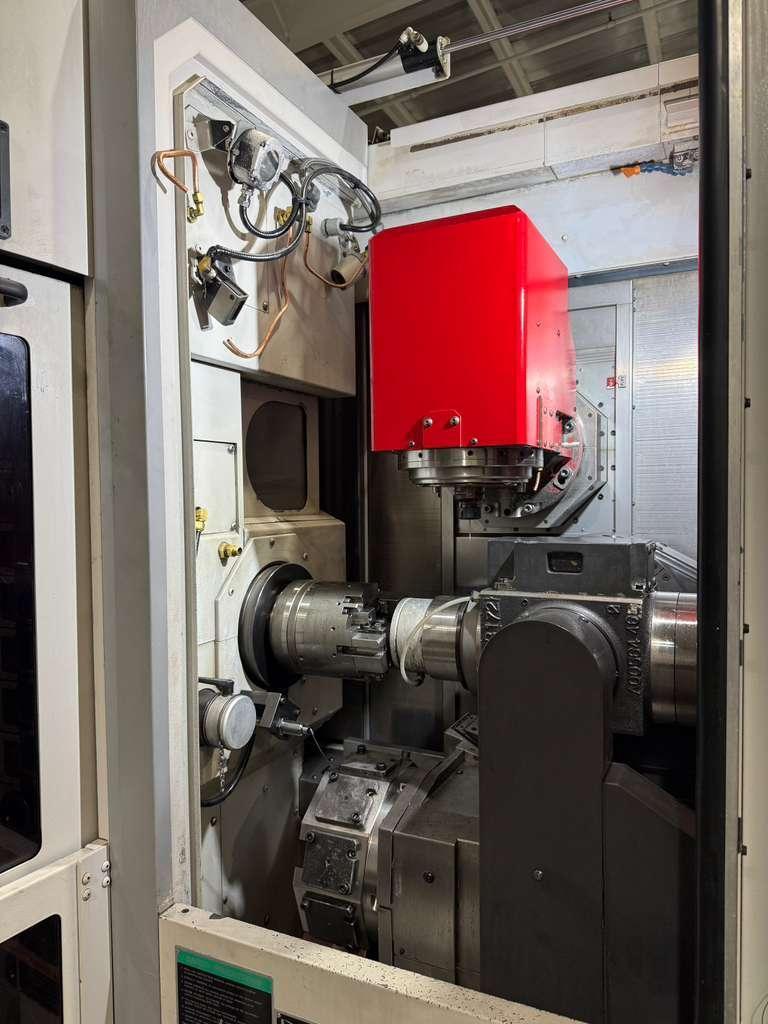

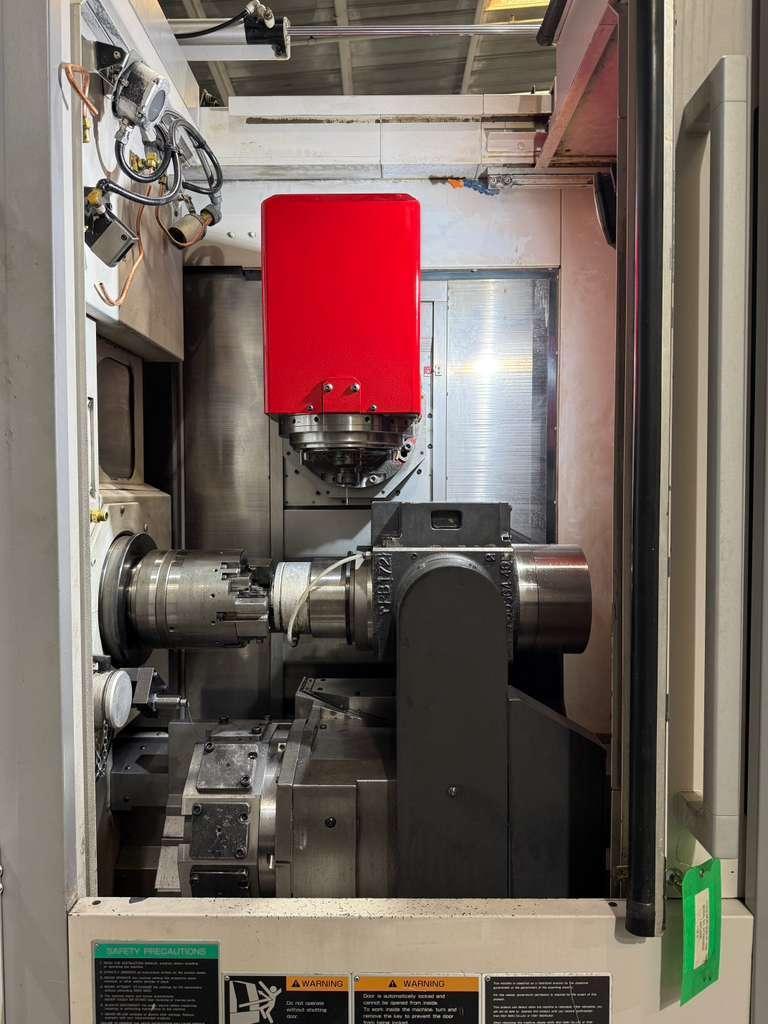

12,000 RPM Pendulum Milling Head

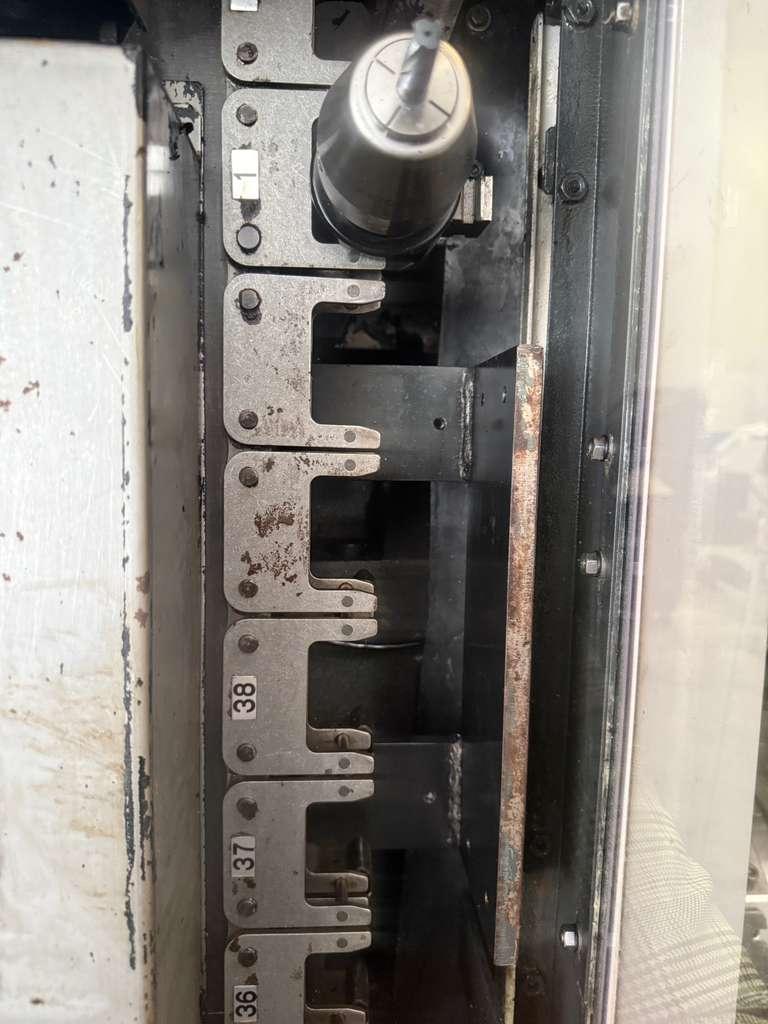

38-Station Tool Magazine
10 Station Live Tool Turret
Full C-Axis on Spindle
Y Axis Capability

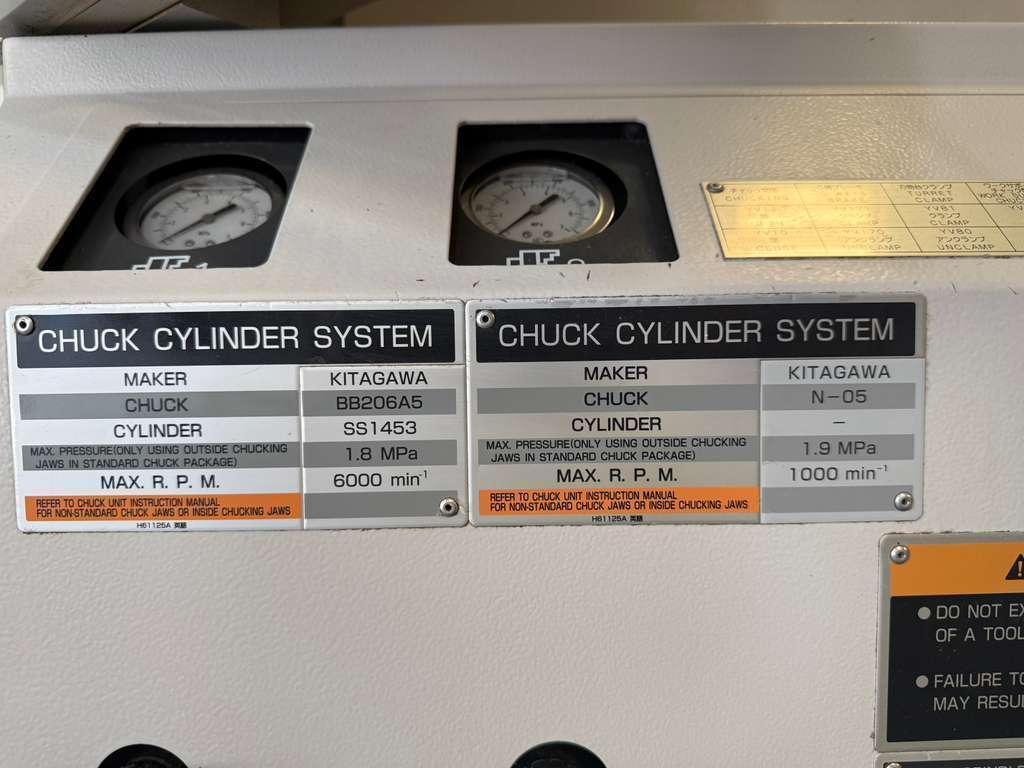

6 inch 3-Jaw BB206 Chuck On Spindle
Renishaw Reciever Installed
Tool Presetter
Workpiece Discharge Unit

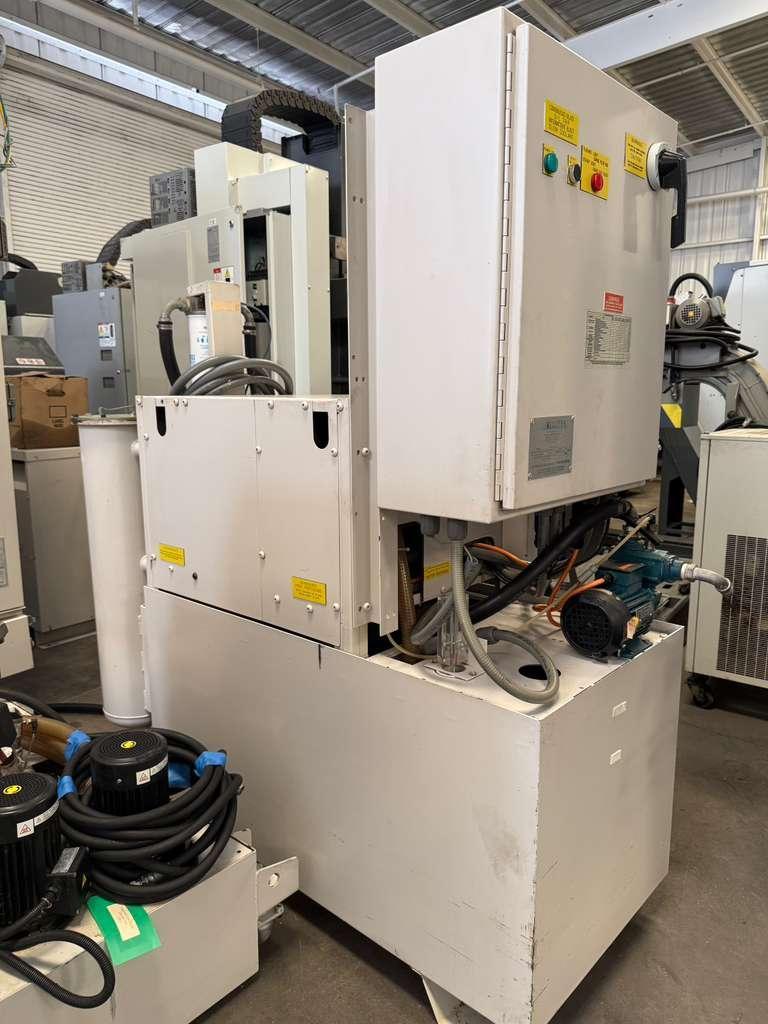

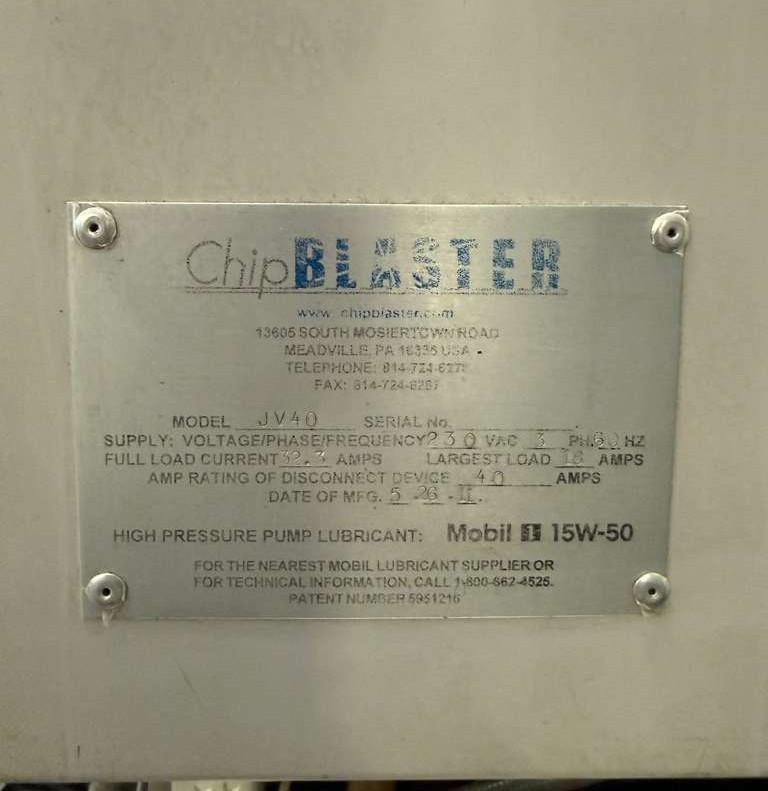

Chip Blaster
Rigid Tapping
High Pressure Coolant

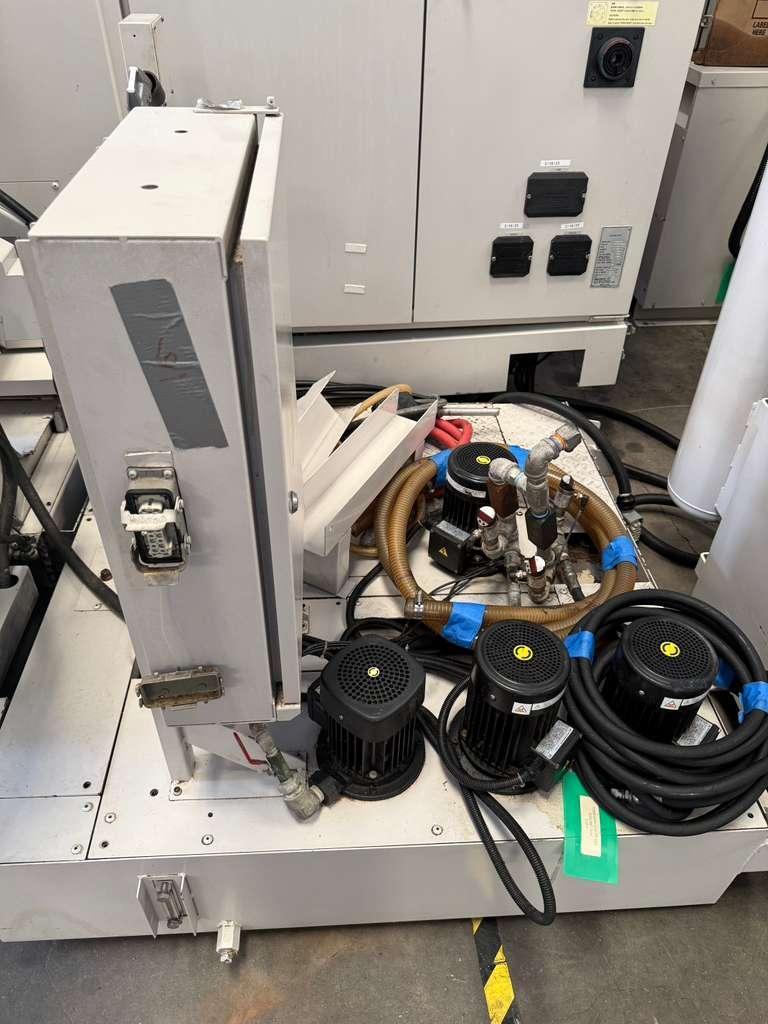

Coolant Tank
Chip Conveyor

Capacity:
Max Turning Diameter (Tool Spindle): 14.5 inch
Max Turning Diameter (Turret): 10.6 inch
Max Turning Length: 16.6 inch
Max Bar Capacity: 2.0 inch
Max Swing Over Bed: 14.5 inch
Swing Over Cross Slide (Tool Spindle): 14.5 inch
Swing Over Cross Slide (Turret): 11.8 inch

Travel:
X Axis Travel (Tool spindle): 15.0 inch
Y Axis Travel (Tool spindle): +/- 4.1 inch
Z Axis Travel(Tool spindle): 18.1 inch + 6.1 inch
B Axis Travel: 240° (0.0001°) (±120°)
X2 Axis Travel (Turret): 6.1 inch
Z2 Axis Travel: 24.0 inch
BW Axis Travel: 0°, -25°, -90°, -180° (4 Positioning Angles)
C Axis: 360° (0.0001°)
X Rapid Traverse Rate: 1574.8 Inch Per Minute
Y Rapid Traverse Rate: 1574.8 Inch Per Minute
Z Rapid Traverse Rate: 1968.5 Inch Per Minute
X2 Rapid Traverse Rate: 787.4 Inch Per Minute
Z2 Rapid Traverse Rate: 1417.3 Inch Per Minute

Main Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4 inch
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Workpiece Discharge Unit (Allowable Rotational Speed): 1000 RPM

Tool Spindle:
Single Station Pendulum Head
Tool Type: Capto C-5 Taper
Spindle Speed: 12,000 RPM
Spindle Motor: 12 HP

Automatic Tool Changer:
Capacity: 38 Tools
Max Tool Diameter (without Adjacent Tools): 5.1 inch
Max Tool Diameter (with Adjacent Tools): 2.7 inch
Max Tool Length: 9.8 inch
Max Tool Weight: 11 lbs.
Tool Changing Time: 1.2 Seconds

Turret:
Capacity: 10 Stations
Square Tool Size: 0.8 inch
Boring Tool Diameter: 1.2 inch
Turret Index Time: 0.19 Sec.
Rotary Tool Speed: 6,000
Rotary Tool Power: 2 HP

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 52 kva
Overall Dimensions: 100 inch x 106 inch x 119 inch High Approx.
Weight : 18,040 lbs Approx.
