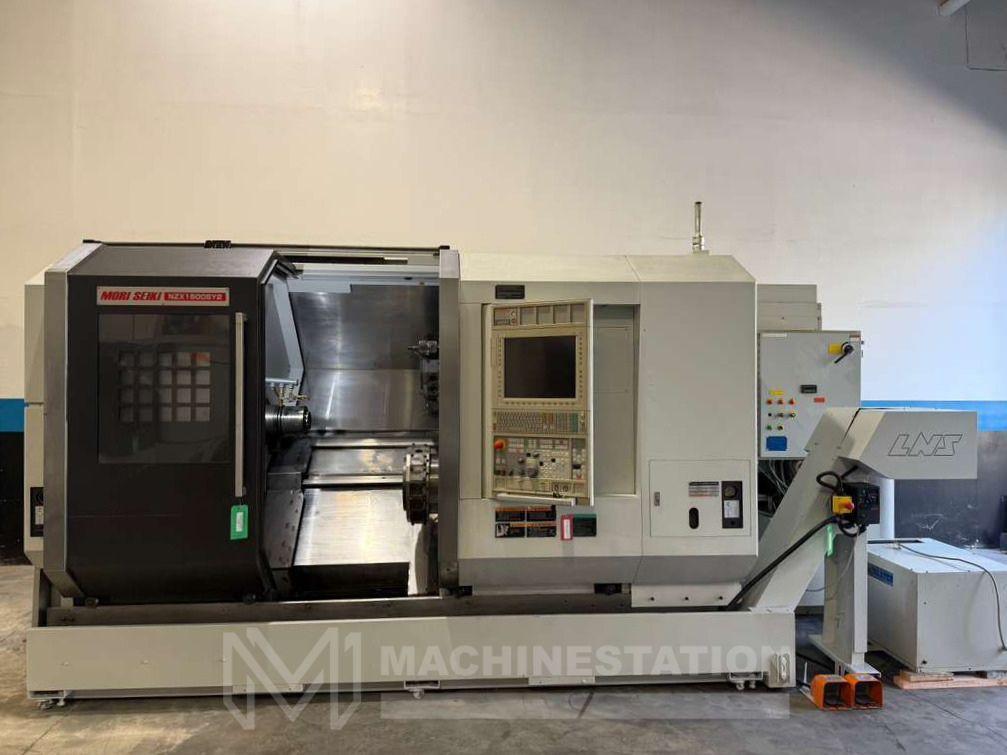

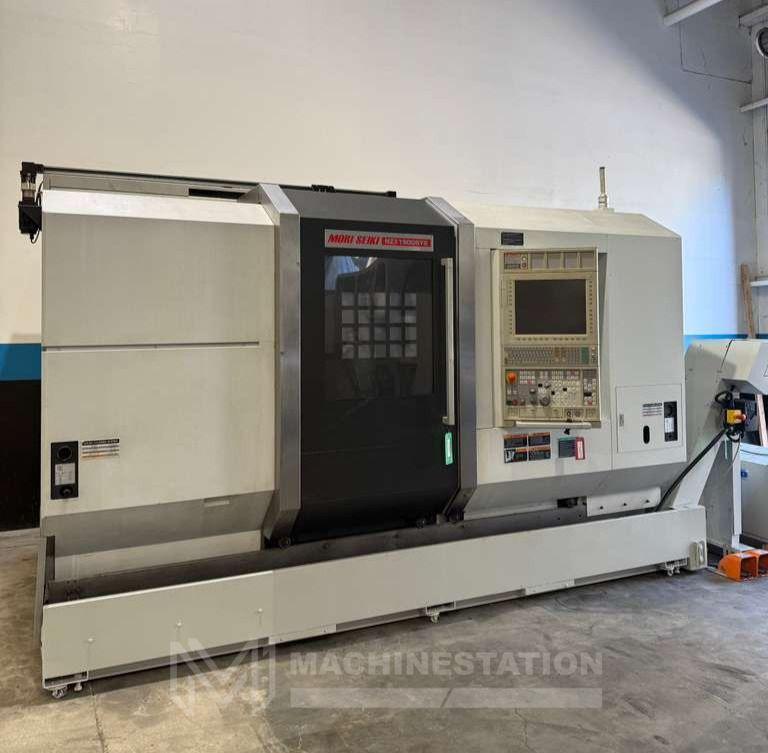

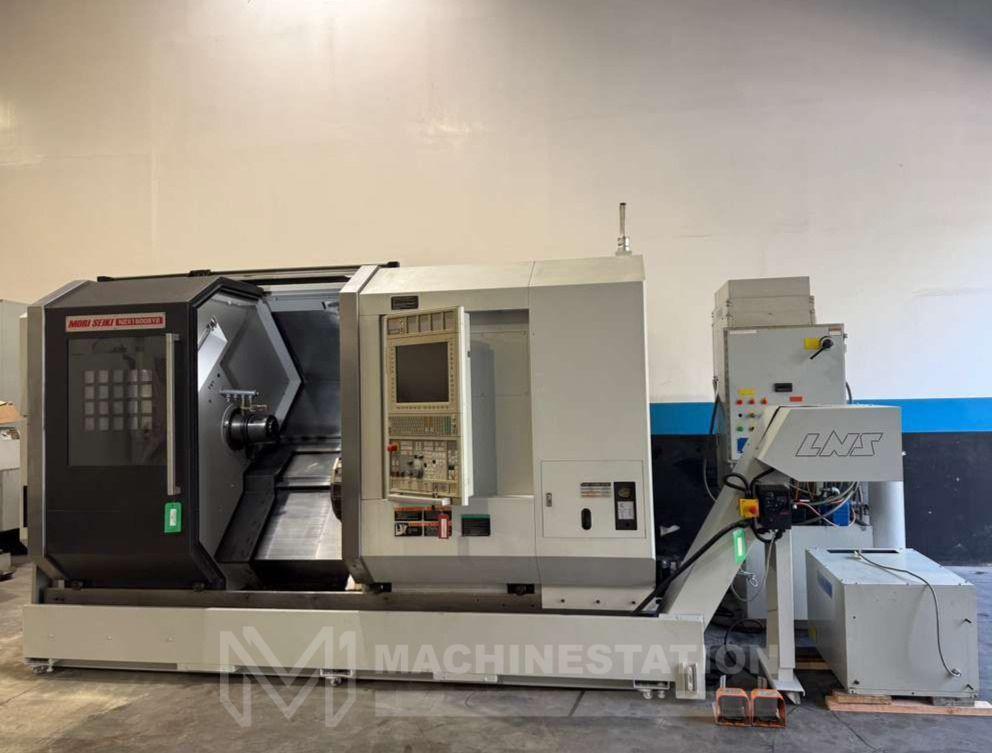

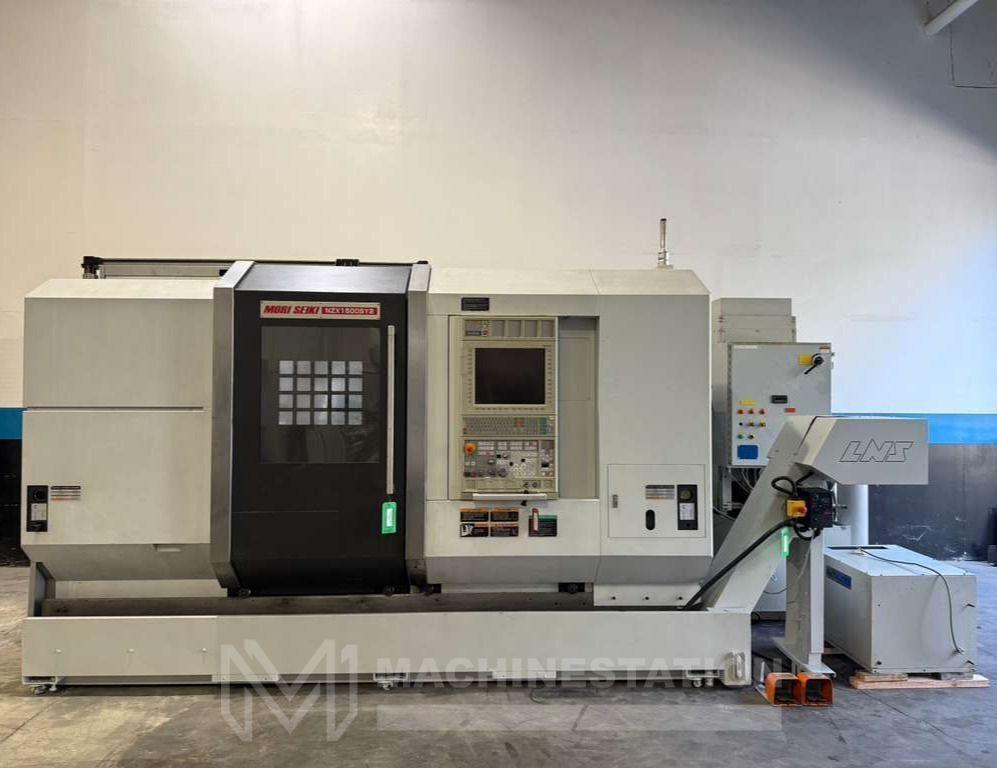

DMG Mori Seiki NZX 1500/800SY2 Multi Axis CNC Lathe – Twin Spindle Twin Turret, Y Axis

Brand
DMG MORI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
DMG Mori Seiki NZX 1500/800SY2
Stock #
113582
Year
2012
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: DMG Mori Seiki
Model: NZX 1500/800SY2
Year: 2012
Condition: Used – Good
Equipped With:

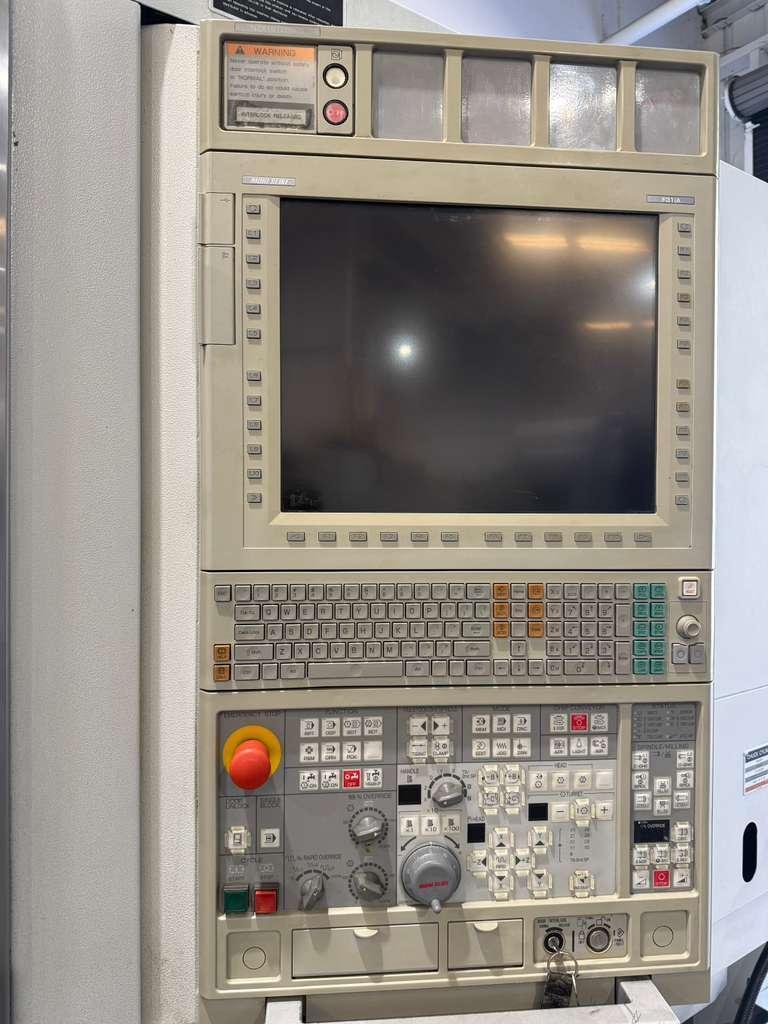

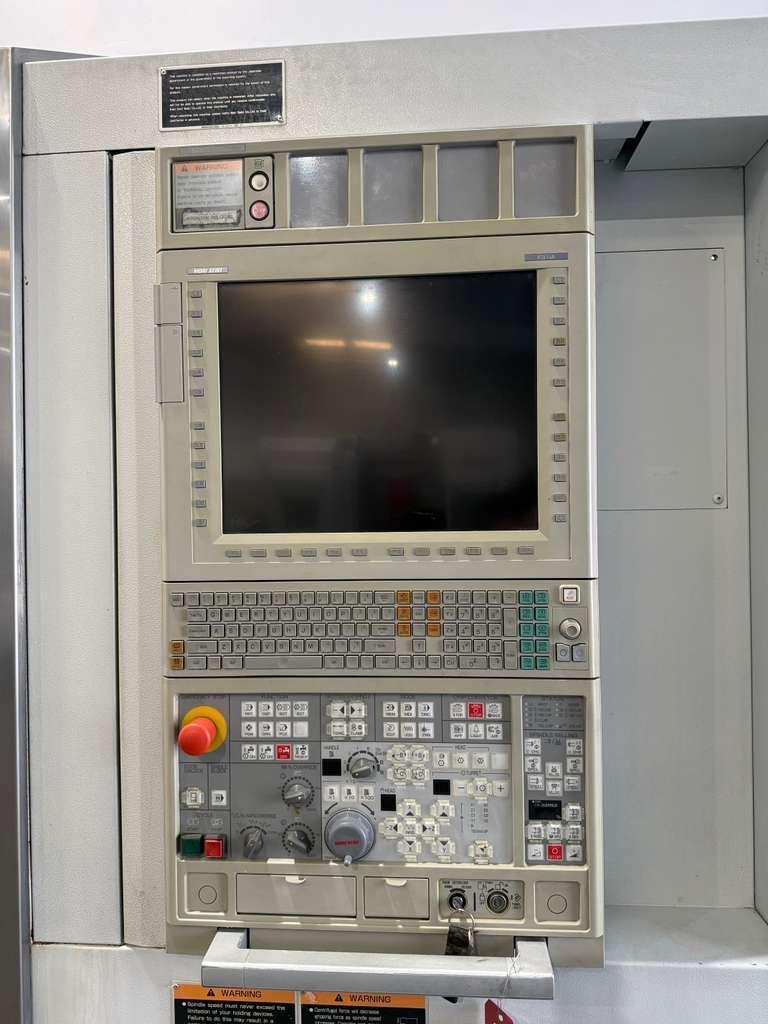

Fanuc 31i-A Series CNC Control

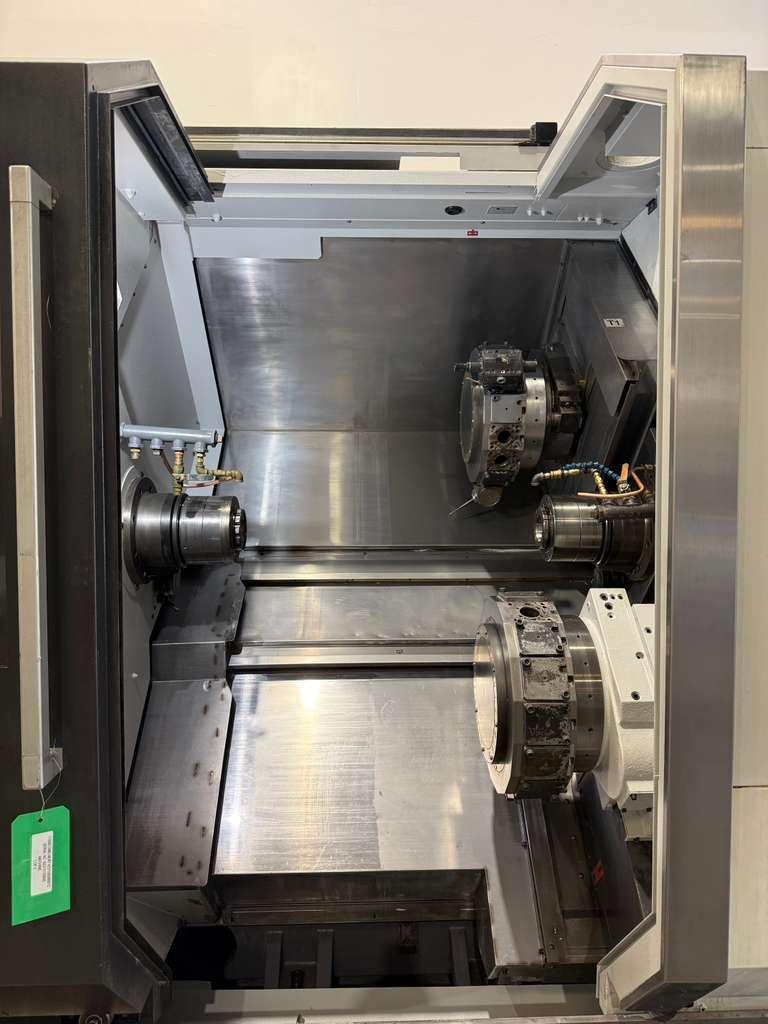

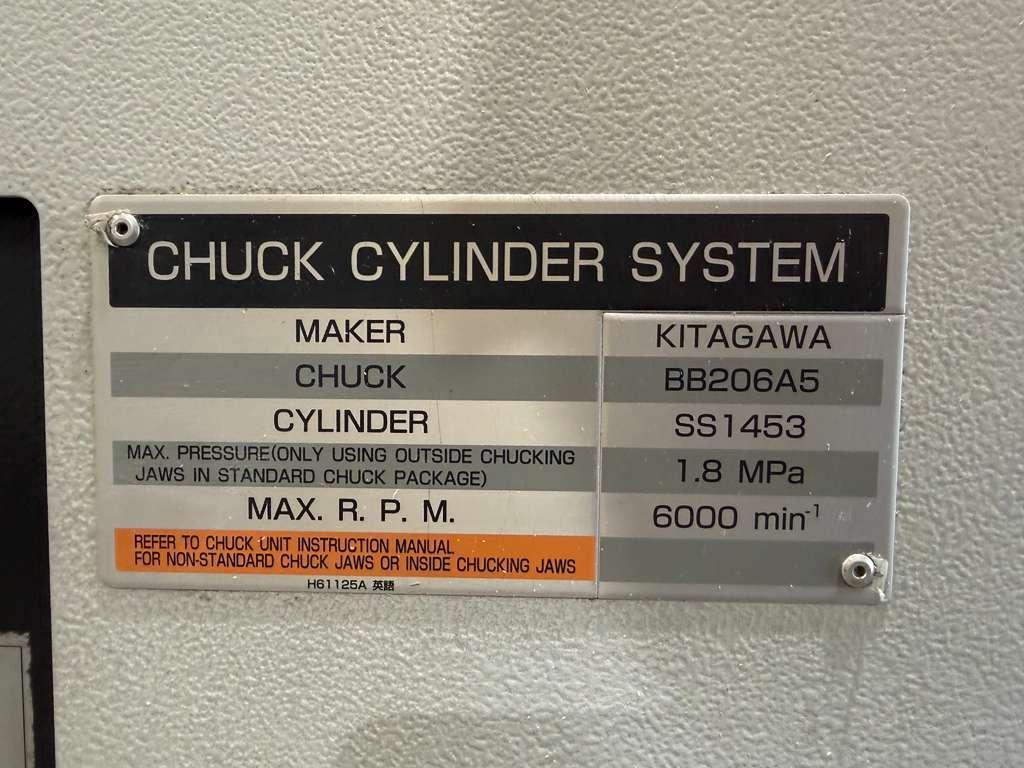

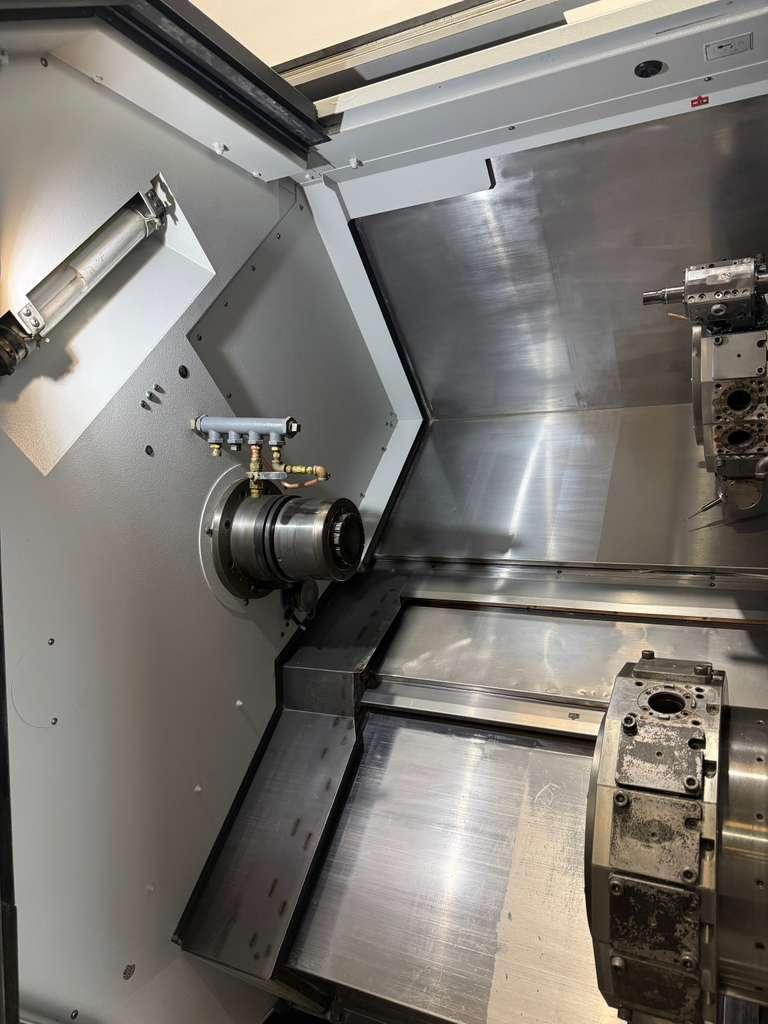

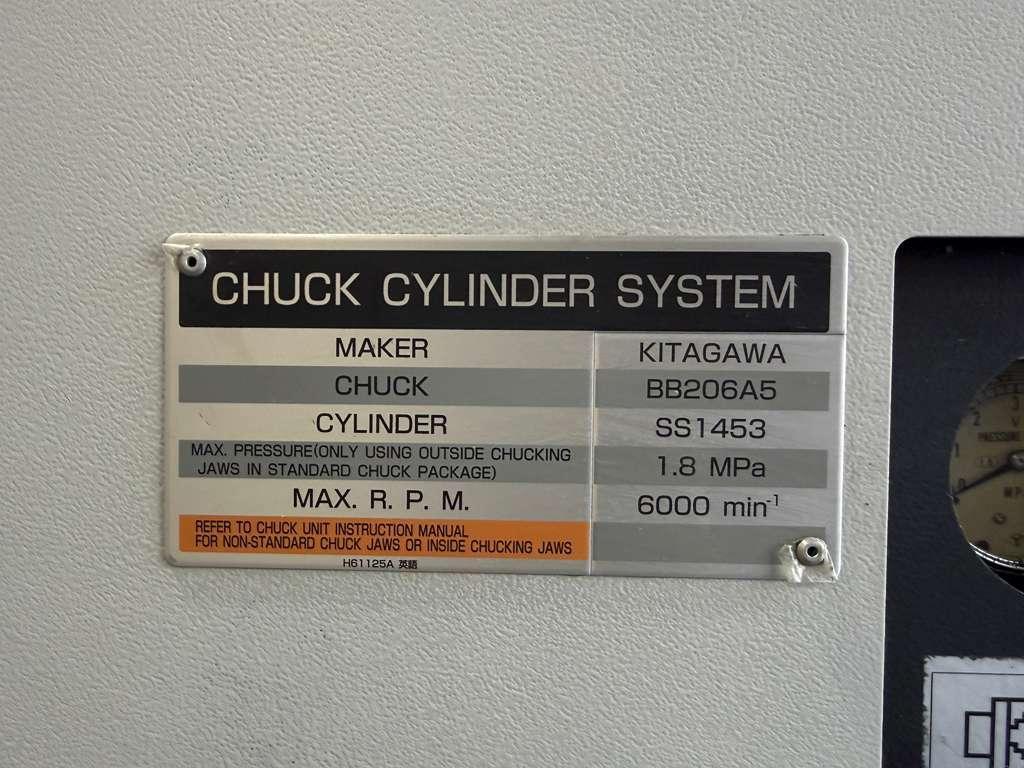

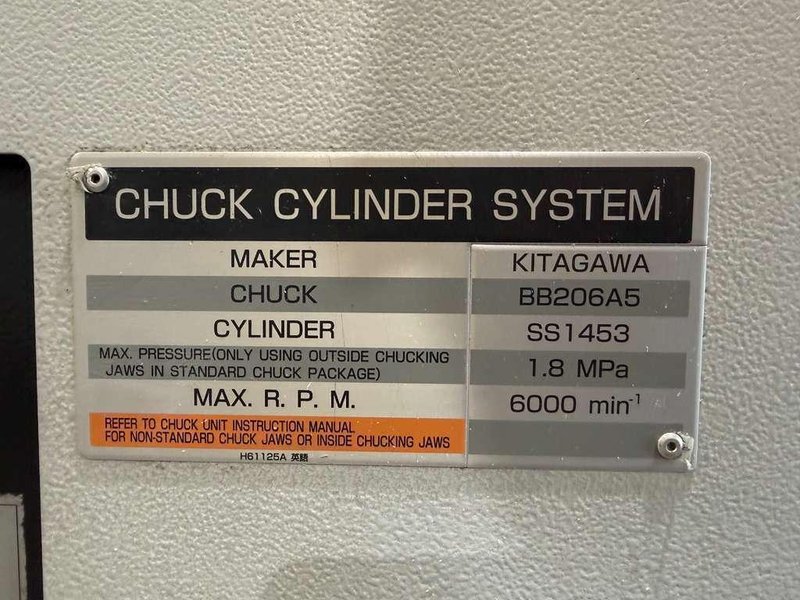

Collet Chuck on Main Spindle

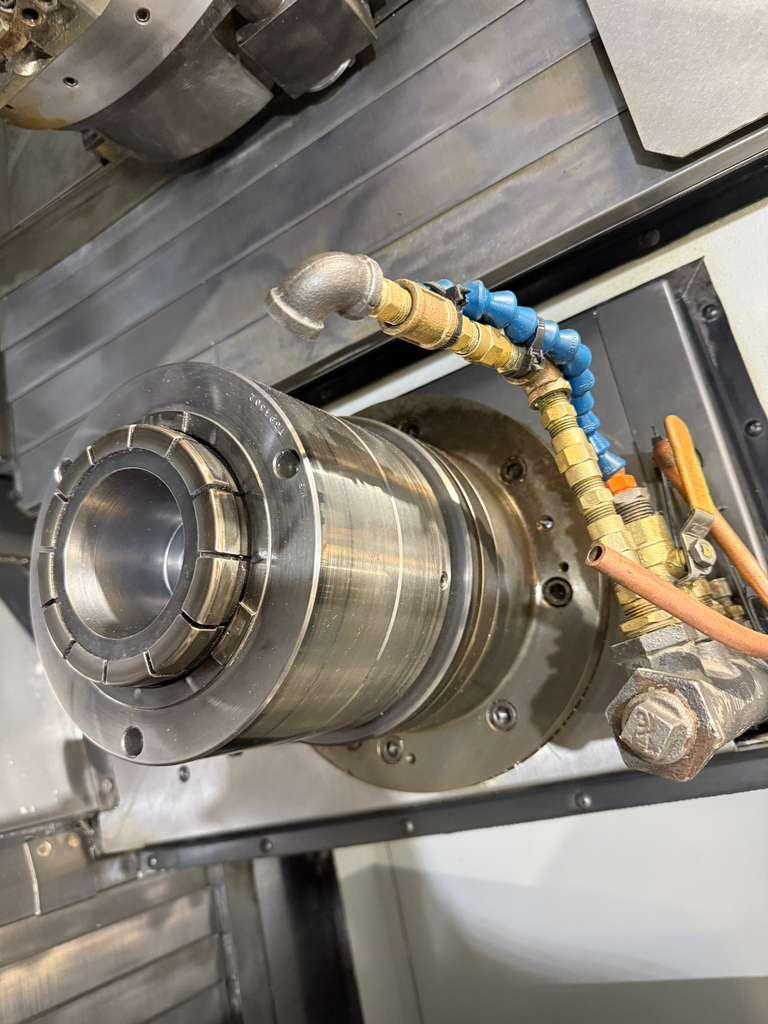

Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles

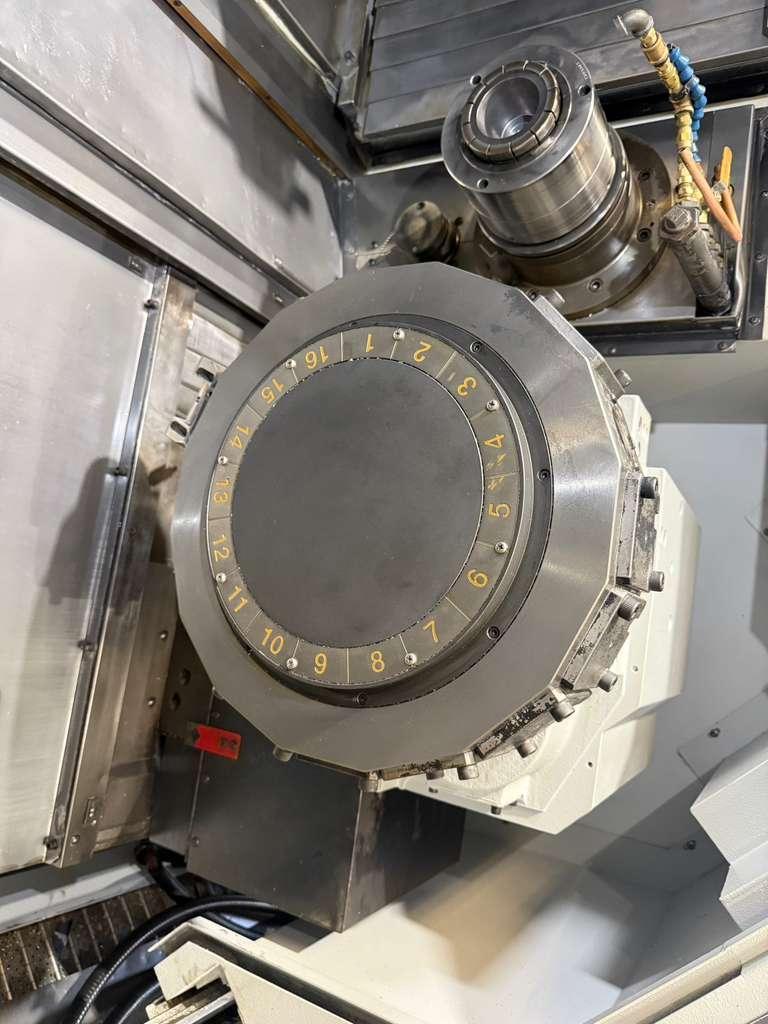

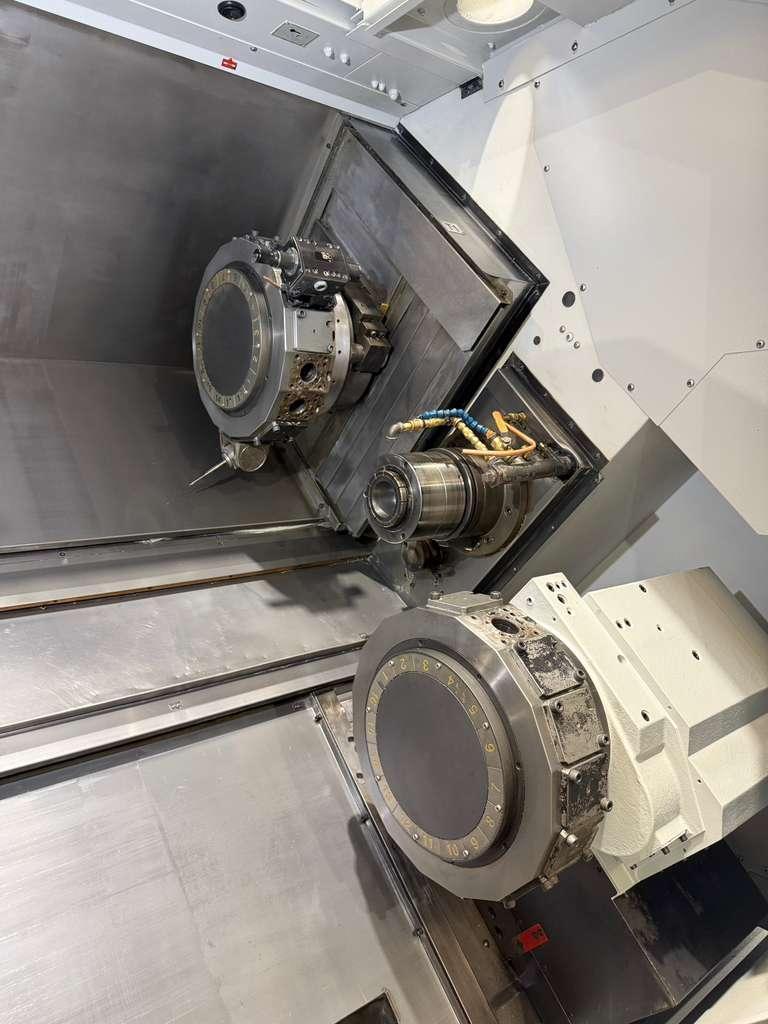

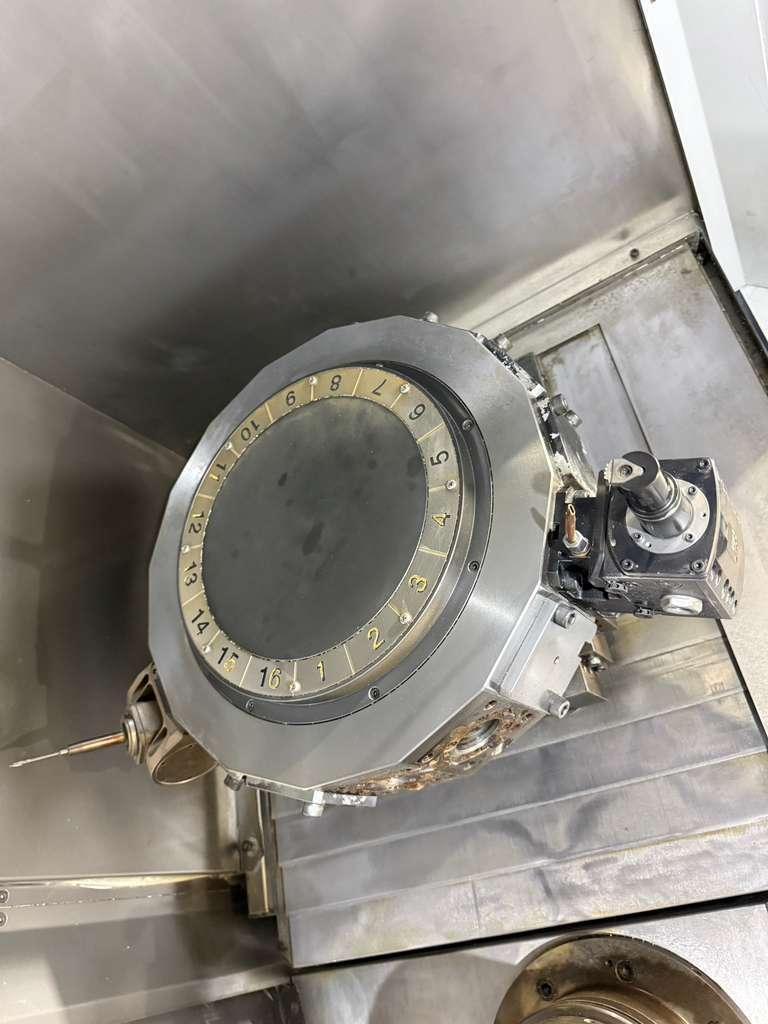

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets

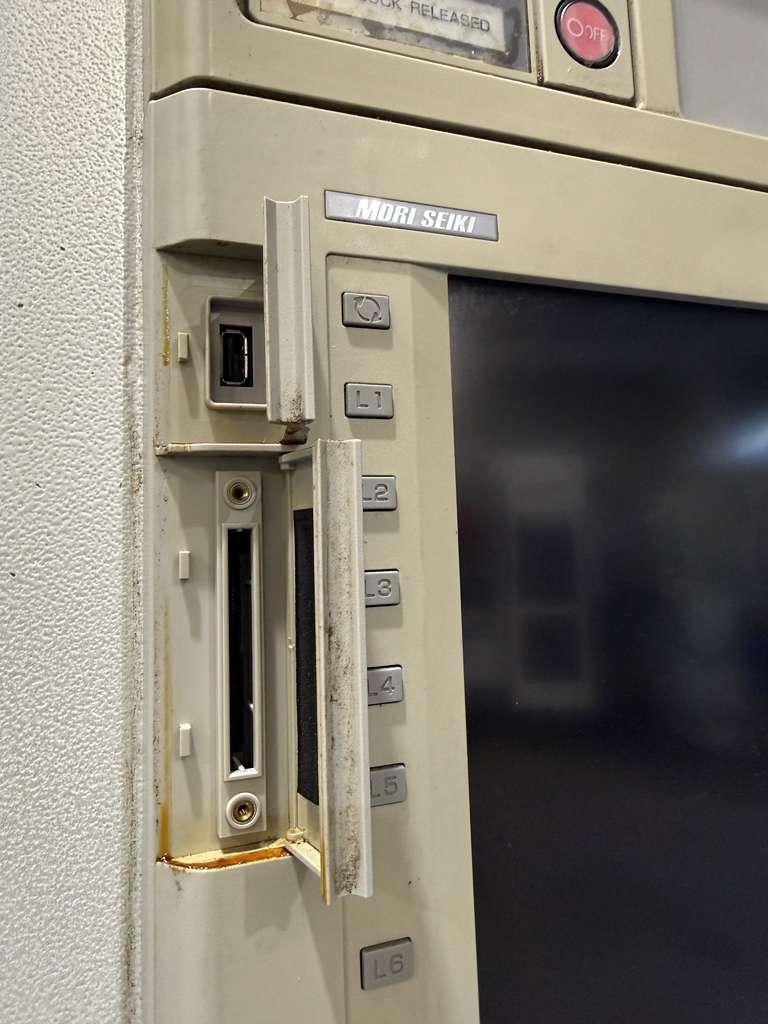

PCMCIA Card Slot & USB Port
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System

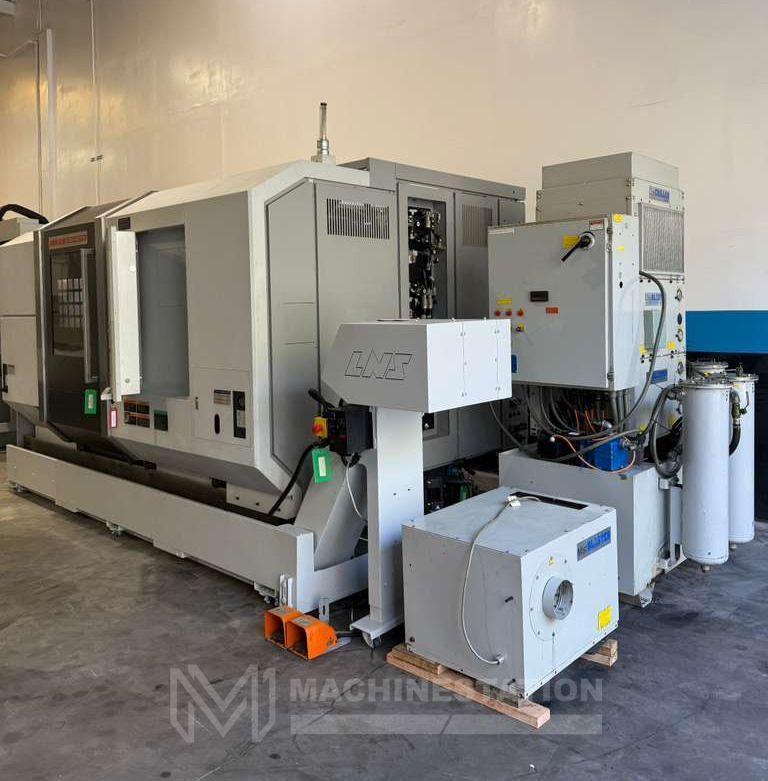

Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter: 11.8″
Max Turning Length: 31.5″
Max Bar Capacity: 2.0″
Max Swing Over Bed: 31.5″
Travels:
X1, X2 Axis Travel: 8.3″
Y1, Y2 Axis Travel: 4.3″ (+ 2.6″/- 1.8″)
Z1, Z2 Axis Travel: 31.9″
B Axis Travel (Sub Spindle): 35.4″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X1, X2 Axis: 1181 IPM
Rapid Traverse Rate Y1, Y2 Axis: 787 IPM
Rapid Traverse Rate Z1, Z2 Axis: 1968 IPM
Main Spindle:
Main Spindle Nose: A2-5
Main Spindle Bore: 2.4″
Main Spindle Speed: 6000 RPM
Man Spindle Motor: 30 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 30 HP
Upper Turret:
Turret Capacity: 16 Stations
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 10 HP
Lower Turret:
Turret Capacity: 16 Stations
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 10 HP
General:
Power Source: AC 220v,  3-Phase,  60 Hz
Power Requirement: 82 kva
Overall Dimensions: 173″ x 111″ x 91″ High Approx.
Weight : 18,300 lbs Approx.
