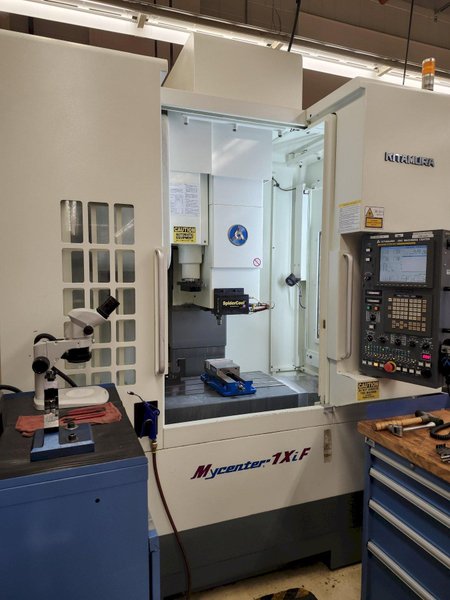

2008 KITAMURA Mycenter-1XiF Vertical Machining Center - 15,000 RPM Spindle Speed, 3450 Actual Cut Hours - In Test Lab
Brand
Category
Model
Mycenter-1XLF
Stock #
57787
Year
2008
Condition
Excellent
Location
Minnesota
| SPECIAL NOTE: | From Research Lab...light use. |
| CNC Control | yes |

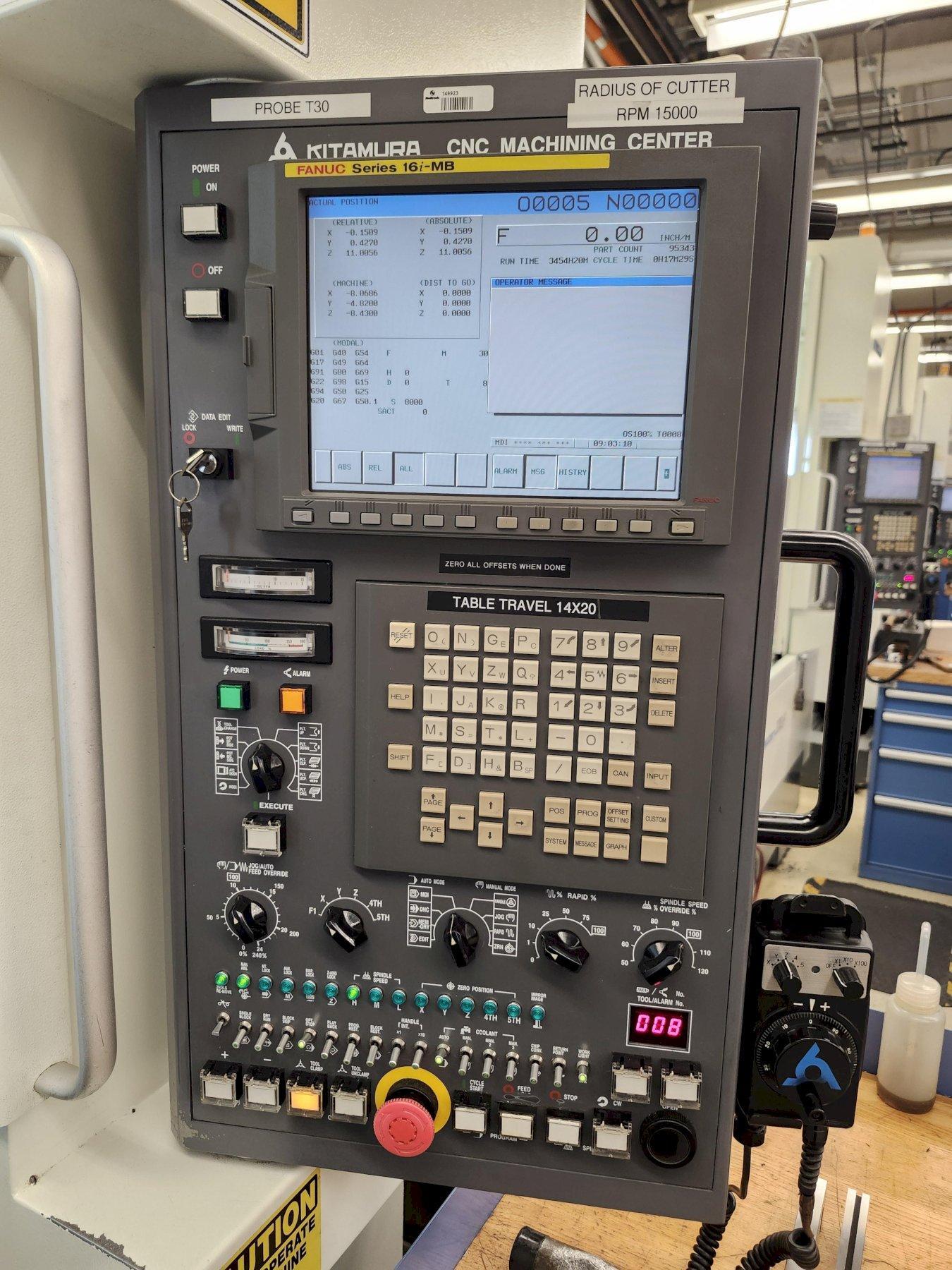

| Type Of CNC Control | Fanuc Series 16i-MB |
| # Axis | 3 |

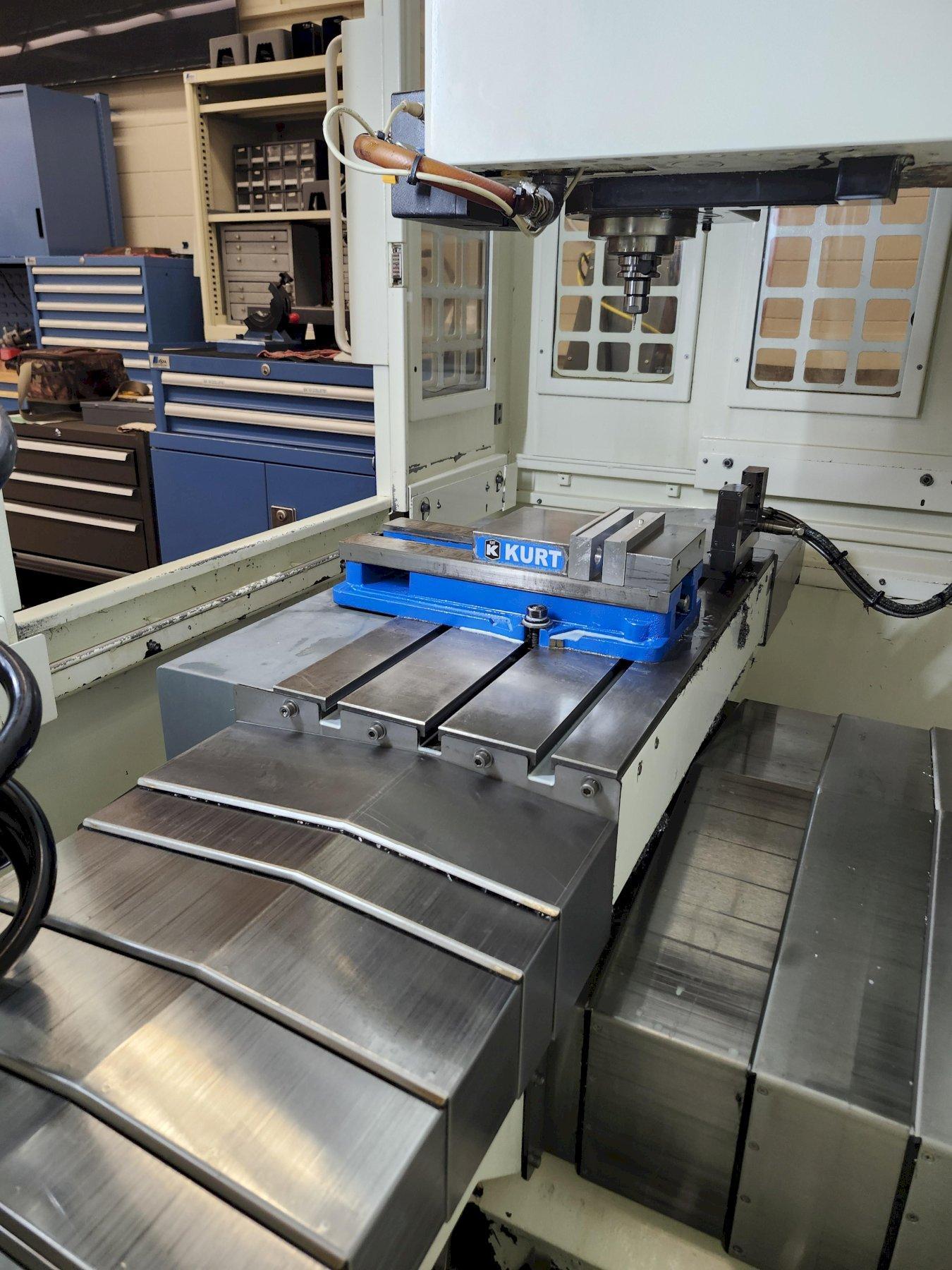

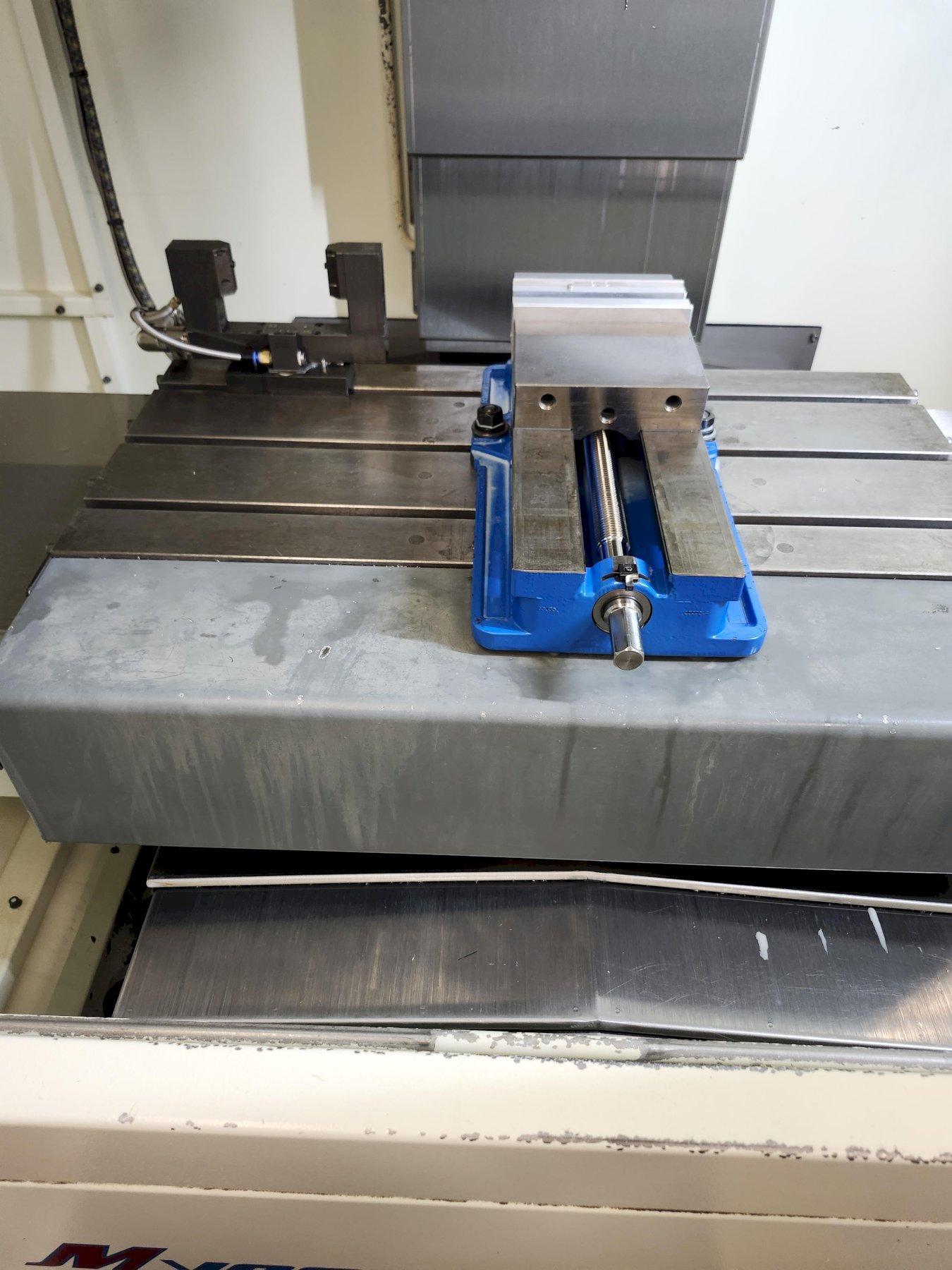

| Table Size | 31" X 14" |
| X-Axis Travel | 20.0 inches |
| Y-Axis Travel | 14.0 inches |
| Z-Axis Travel | 18.1 inches |
| Spindle Speed | to 15,000 RPM |
| Spindle Taper | BT-30 |
| Main Motor | 10 HP (Peak) |

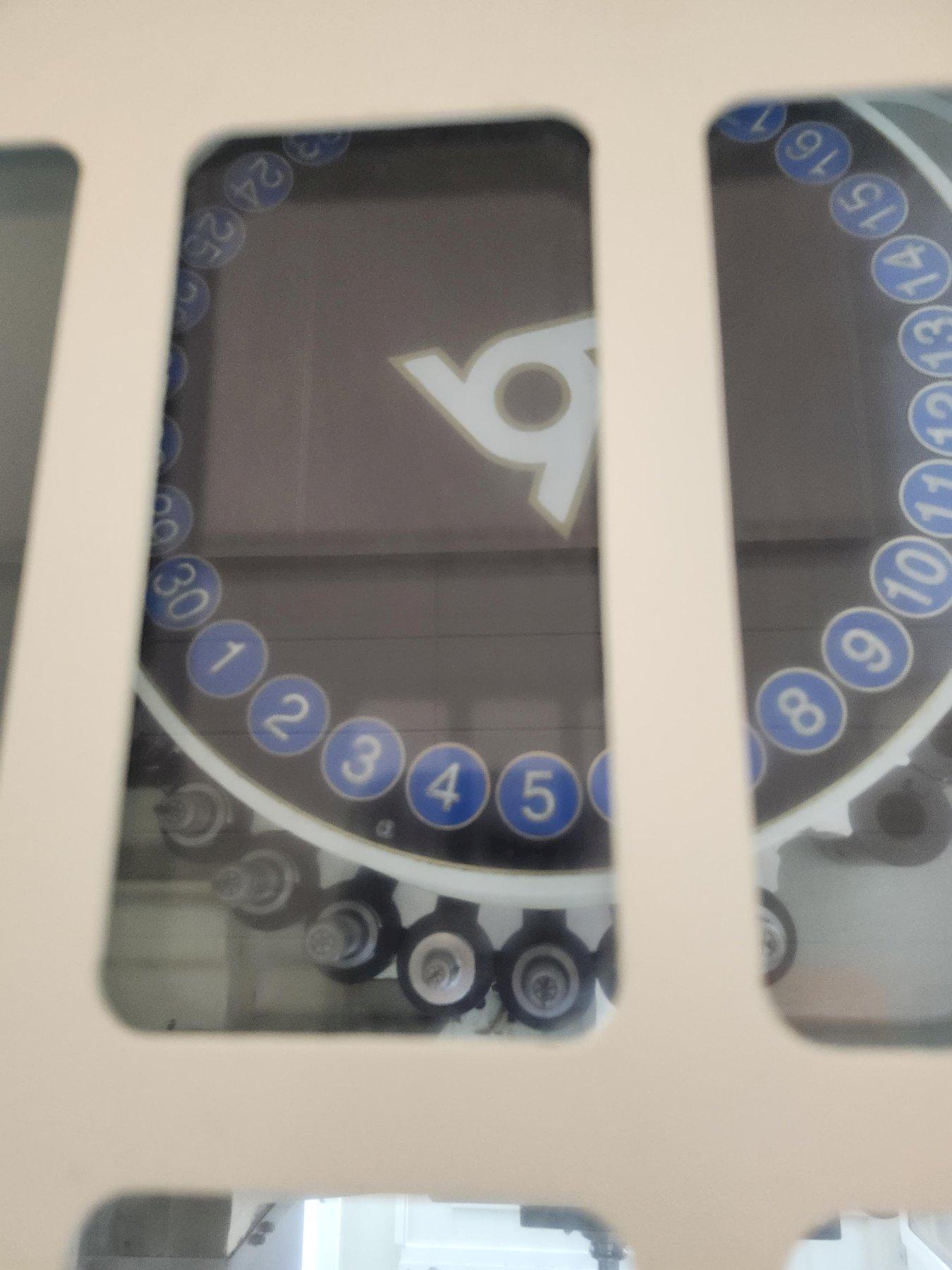

| Tool Changer Capacity | 30 |
| X-Axis Rapid Traverse Rate | 1,969 inches per minute (IPM) |
| Y-Axis Rapid Traverse Rate | 1,969 inches per minute (IPM) |
| Z-Axis Rapid Traverse Rate | 1,969 inches per minute (IPM) |
| Machine Hours | 3454 |
| Weight | 11500 pounds |
|
From Research Facility

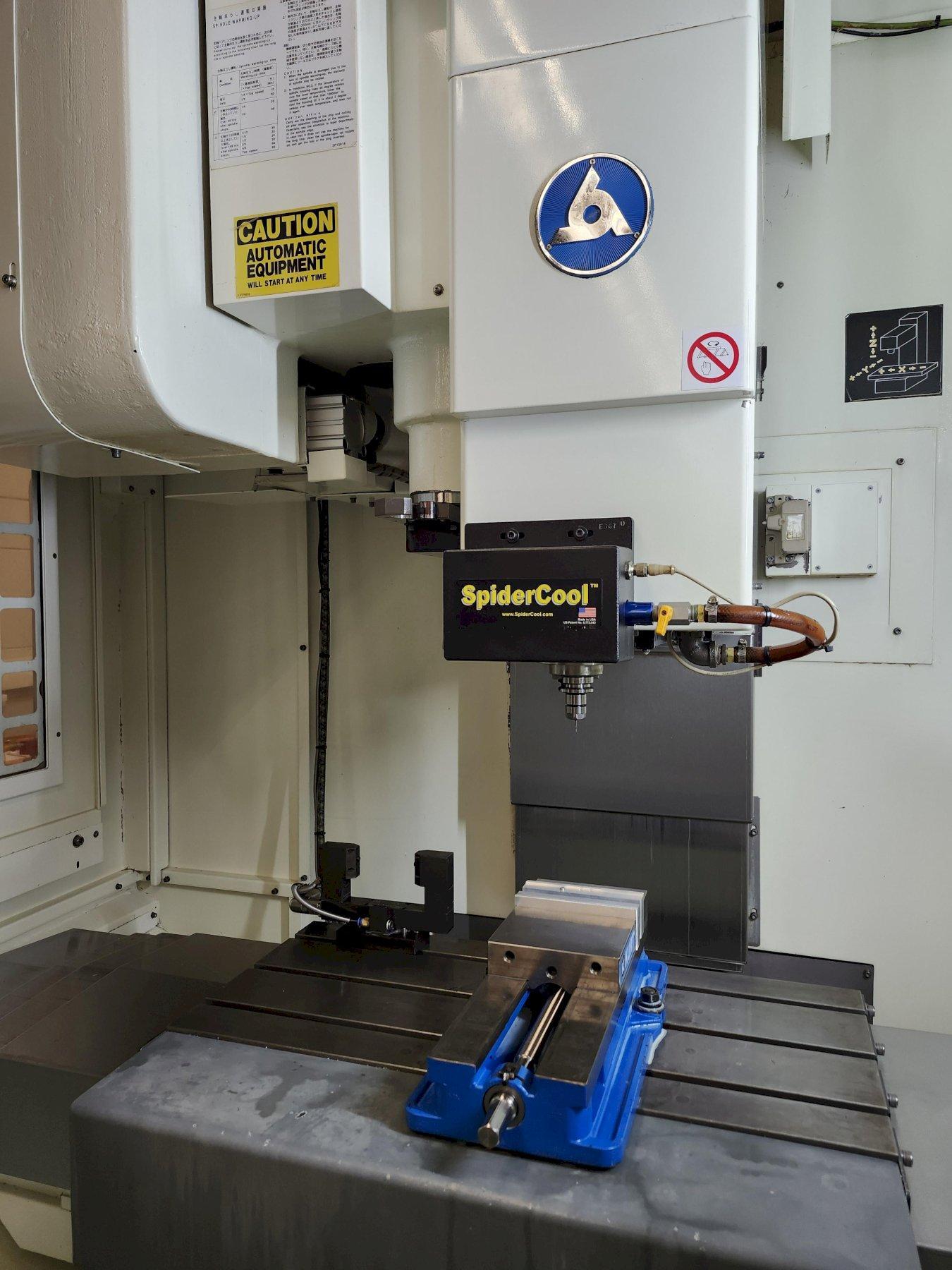

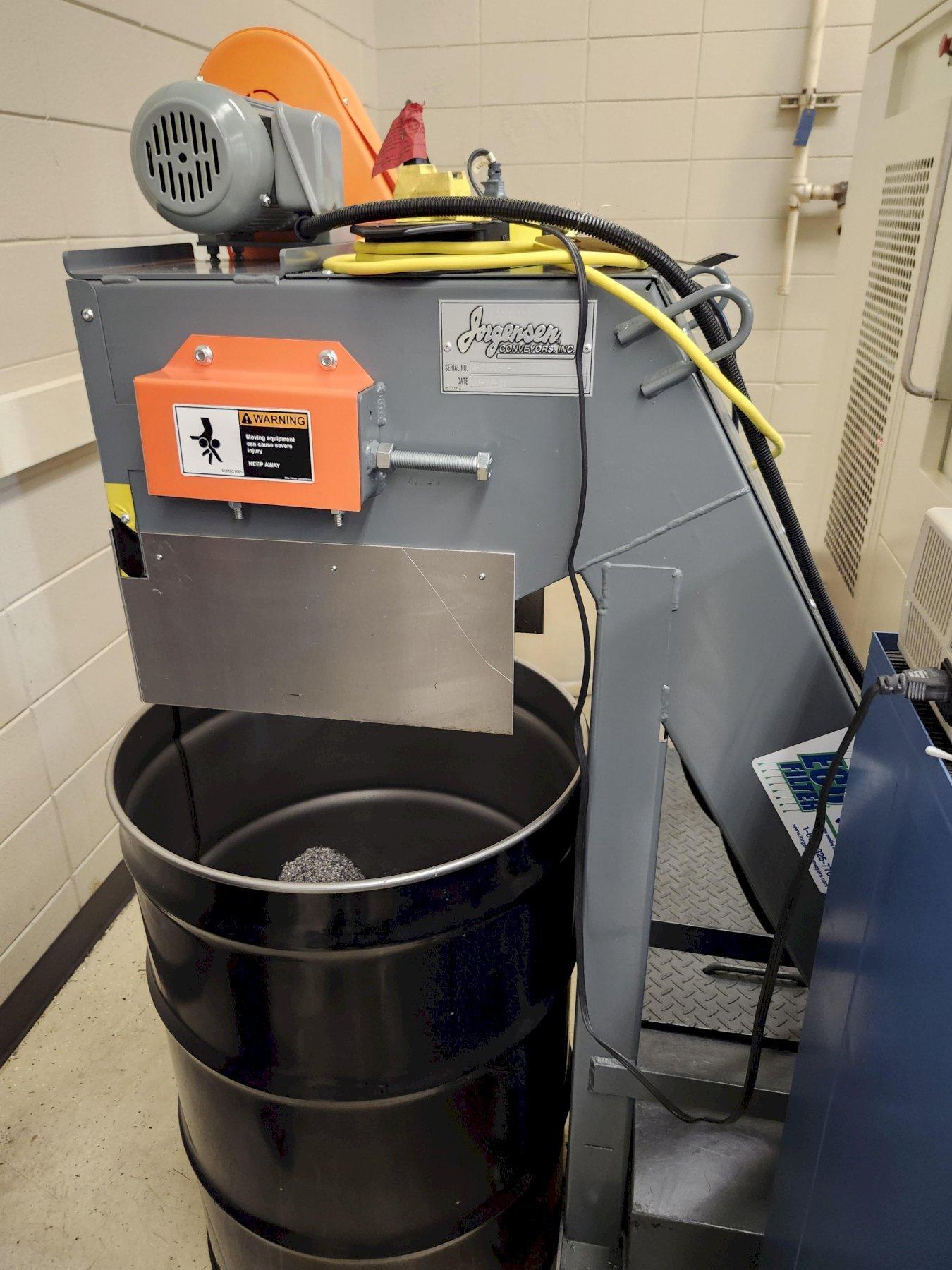

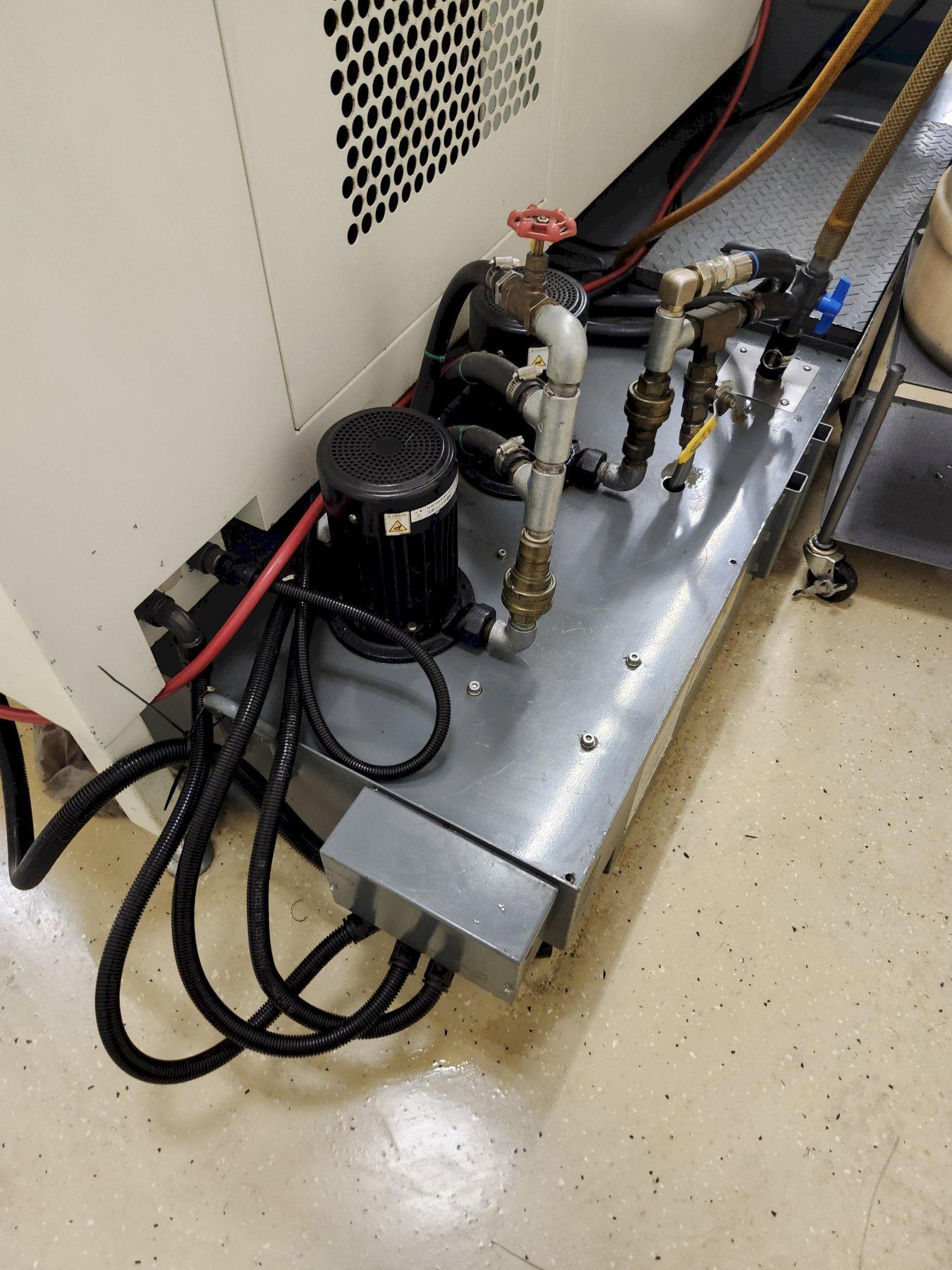

Control: Fanuc Series 16i-MB Harden Box Ways on all axes 15000 RPM SpiderCool Renishaw Probe Blum Laser Measurement Touch Off Probe on Table 30 Station Automatic Toolchanger Coolant System Chip Conveyer Manuals Some Misc. tooling |
|
Watch https://www.youtube.com/watch?v=vZ44XyYhrGA
